1. Interoperability Work Group Brodaric, 14-03-2007 1 1G, Interoperability, and GeoSciML Boyan Brodaric, Geological Survey of Canada, Ottawa Interoperability Work Group, IUGS-CGI

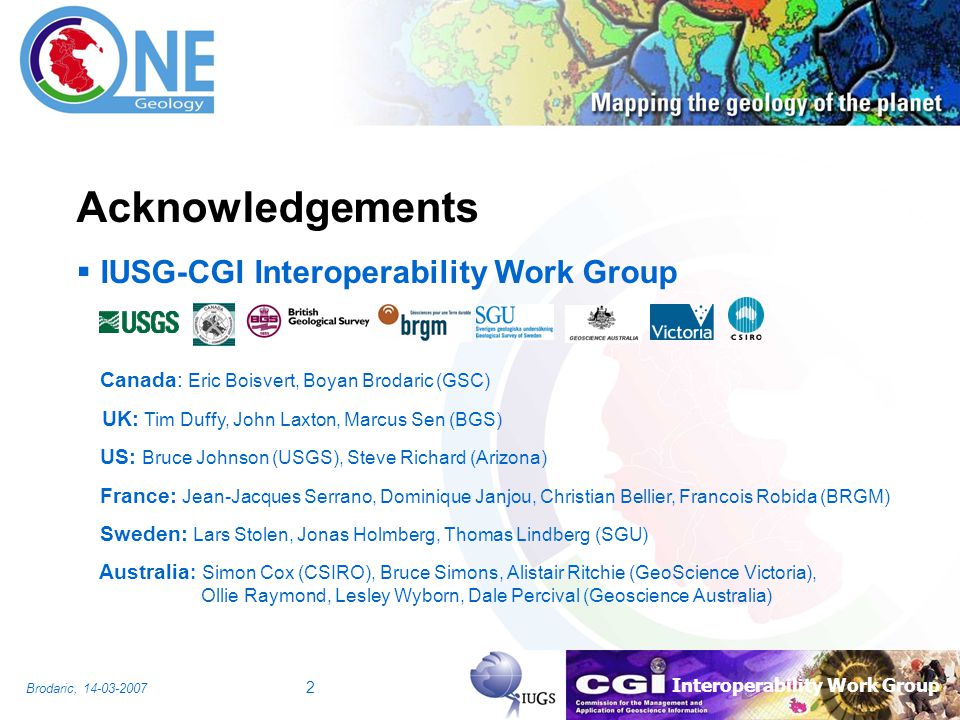

2. Interoperability Work Group Brodaric, 14-03-2007 2 Acknowledgements IUSG-CGI Interoperability Work Group Canada: Eric Boisvert, Boyan Brodaric (GSC) UK: Tim Duffy, John Laxton, Marcus Sen (BGS) US: Bruce Johnson (USGS), Steve Richard (Arizona) France: Jean-Jacques Serrano, Dominique Janjou, Christian Bellier, Francois Robida (BRGM) Sweden: Lars Stolen, Jonas Holmberg, Thomas Lindberg (SGU) Australia : Simon Cox (CSIRO), Bruce Simons, Alistair Ritchie (GeoScience Victoria), Ollie Raymond, Lesley Wyborn, Dale Percival (Geoscience Australia)

3. Interoperability Work Group Brodaric, 14-03-2007 3 Outline Web mapping approaches Levels of data interoperability Demo

4. Interoperability Work Group Brodaric, 14-03-2007 4 Two Approaches to Web Geology Maps Atlas (Geologic Cartographic System): mosaic of geologic map images GIS (Geologic Information System): collection of geologic map data

5. Interoperability Work Group Brodaric, 14-03-2007 5 Option 1: web ATLAS purpose:communication content:picture, text, URL function:view only standard:data systems

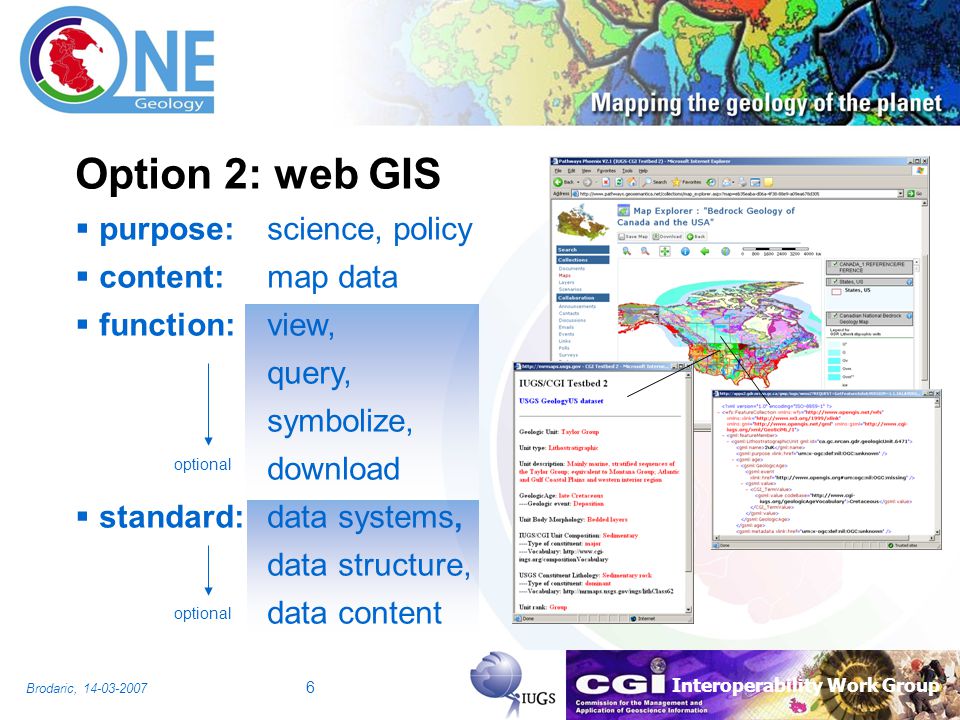

6. Interoperability Work Group Brodaric, 14-03-2007 6 optional Option 2: web GIS purpose: science, policy content: map data function: view, query, symbolize, download standard: data systems, data structure, data content

7. Interoperability Work Group Brodaric, 14-03-2007 7 Levels of Map Data Interoperability systems syntax schematic semantic Map System 1 scientific systems syntax schematic semantic Map System 2 scientific Integrated Map Scientific Interpretation (Geologist) Data Content (Ontology) Data Structure (GeoSciML) Data Language (GML) Data Services (WMS, WFS, WCS) Atlas GIS

8. Interoperability Work Group Brodaric, 14-03-2007 8 from www.GEONgrid.org Systems Interoperability aligning data system interfaces (web services) but: heterogeneous structure, content, interpretation STANDARD DATA INTERFACES to different data systems e.g. open geospatial web services (OGC)

9. Interoperability Work Group Brodaric, 14-03-2007 9 GEOLOGIC AGEROCK TYPE but: heterogeneous data content, interpretation from www.GEONgrid.org Schematic Interoperability aligning heterogeneous data structures STANDARD SCHEMA for data transfer

10. Interoperability Work Group Brodaric, 14-03-2007 10 GEOLOGIC AGEROCK TYPE Volcanic from www.GEONgrid.org Semantic Interoperability aligning heterogeneous definitions for data content Era Eon Period Series STANDARD DEFINITIONS data content: rock types, time scale, … data schema, metadata but: heterogeneous interpretation at map borders

11. Interoperability Work Group Brodaric, 14-03-2007 11 from www.GEONgrid.org Scientific Interoperability aligning heterogeneous scientific interpretations but: done by geologists, not computers (… for now?) Differences in: geometry geohistory description classification

12. Interoperability Work Group Brodaric, 14-03-2007 12 Example of Schematic Interoperability GeoSciML Testbed 2 IUGS-CGI Interoperability Work Group (IWG) - Use open standards for system & syntax (WxS,GML) - Develop standard schema for data exchange (GeoSciML) - Demonstrate the need for semantic standards - Three use-cases: view & query, download, symbolize

13. Interoperability Work Group Brodaric, 14-03-2007 13 GML Client USGS schema BRGM schema GSC schema BGS schema SGU schema GA schema GeoSciML Australia Sweden UK France USA Canada WMS WFS WMS WFS WMS WFS WMS WFS WMS WFS WMS WFS Example of Schematic Interoperability GeoSciML Testbed 2 multiple viewers custom tools many databases (ESRI, Oracle,shp, …) local data control standard interface custom translator one output data format

14. Interoperability Work Group Brodaric, 14-03-2007 14 Use-case 1: view map & query one object

15. Interoperability Work Group Brodaric, 14-03-2007 15 Use-case 2: select objects and download

16. Interoperability Work Group Brodaric, 14-03-2007 16 Use-case 3: symbolize by rock type, age

17. Interoperability Work Group Brodaric, 14-03-2007 17 Some questions for 1G: Atlas or GIS or hybrid? Level of interoperability? Leverage GeoSciML Testbed 2? GeoSciML Testbed 2 demonstration on Friday!

18. Interoperability Work Group Brodaric, 14-03-2007 18 END Demo
