1. University of North Texas
Jinni: Intelligent Mobile Agent Programming at the Intersection of Java and Prolog
Paul Tarau
University of North Texas
&
BinNet Corporation
Copyright © 1999, BinNet Corp.

2. other talk: Blackboard Constraints in Jinni http://www.binnetcorp.com
Paul Tarau
University of North Texas
&
BinNet Corporation
Copyright © 1999, BinNet Corp.

3. What is Jinni? JINNI: Java INference engine and Networked Interactor
lightweight, multi-threaded
Prolog-style agent scripting language
knowledge processing components
high level, distributed, Java based: alternative to RMI, CORBA, KQML

4. Motivation
paradigm shift towards networked, mobile, ubiquitous computing
increasingly complex patterns of interaction
reactive and mobile agents
inference capabilities, autonomy and self- reliance.

5. BASIC ONTOLOGY: THE USERS' VIEW
Things: represented as Prolog terms
Places: server component listening on a port + Linda blackboard
Agents: collections of mobile threads
running a set of goals at set of Places
transporting and processing Things

6. A typical Jinni application
a hierarchy of Places and Agents
Agent threads moving between Places
wait for/produce Things satisfying constraints
sensing changes of state, produce and react to events

7. THE ARCHITECTURE OF JINNI
operatorless syntactic subset of Prolog
multiple engines running on separate threads,
blackboards to communicate between engines
Linda coordination, associative search

8. Architecture of Jinni - details -
high level networking operations: code and compoutation mobility, remote execution
Jinni-to-Java translator
ability to load code directly from the Web
hyothetical reasoning, backtrackable assumptions, Assumption Grammars

9. The Jinni Kernel: Basic Linda + Remote Predicate Calls
out(X): puts X on the blackboard
in(X): waits until it can take an object matching X from the blackboard
all(X,Xs): reads the list Xs matching X currently on the blackboard
the(Pattern,Goal,Answer): runs Goal to produce the(Answer) or no => here/there switch =>local/remote

10. Assertional Constraints vs. Binding Constrains
when nonvar(X) ...
when proven(X) …
when a_fact(X)… more realistic
lower granularity
arguably: more appropriate for distributed programming

11. Beyond Linda: Blackboard Constraint Operations
wait_for(Pattern,Constraint): waits for a Pattern on the blackboard, such that Constraint holds, and when this happens, it removes the result of the match from the blackboard
notify_about(Pattern): notifies about this Pattern one of the blocked threads which waits for it with a matching constraint

12. Coordination with Blackboard Constraints
?- notify_about(stock_offer(nscp,29)).
?-wait_for(stock_offer(nscp,Price), less(Price,30)).

13. wait_for(Pattern,Constr)
wait_for(P,C):-
if(take_pattern(available_for(P),C),
true,
and(local_out(waiting_for(P,C)),
local_in(holds_for(P,C))
) ).

14. notify_about(Pattern,Constr)
if(take_pattern(waiting_for(P,C),C),
local_out(holds_for(P,C)),
local_out(available_for(P)) ).

15. take_pattern/2 take_pattern(Pattern,Constraint):-
local_all(Pattern,Ps),
member(Pattern,Ps),
Constraint,
local_cin(Pattern,_).

16. Mobile thread operations
run_server/0, here/0, there/0, where/1
set_this_host/1, set_this_port/1
set_that_host/1,set_that_port/1
move/0, return/0
bg/1, bg/2, thread_clone/1

17. BUILDING BEHAVIORS: BASIC AGENT PROGRAMMING CONSTRUCTS
a reactive channel listener
?-listen(fun(_)).
selective channel publisher
?-talk(fun(jokes)).
will not match:
?-talk(stocks(quotes,nasdaq))

18. Example: a stock market trader agent
sell(Who,Stock,AskPrice) :- notify_about(offer(Who,Stock,AskPrice)).
buy(Who,Stock,SellingPrice) :- bg(try_to_buy(Who,Stock,SellingPrice)).
try_to_buy(Me,Stock,LimitPrice) :- wait_for(offer(You,Stock,YourPrice), ……….

19. Examples of Mobile Computations
Window 1: a mobile thread
?- there, move, println(on_server), member(X,[1,2,3]), return, println(back).
Window 2: a server
?- run_server.

20. Mobile code vs. RPCs: move once, compute many times
?-for(I,1,1000), remote_run(println(I)), eq(I,1000).
?-there, move, for(I,1,1000), println(I), eq(I,1000).

21. Mobile code: WHY? Large database, small agent
Speed-up: move to a fast processor and back, transparently
here/there switch: same code can be run localy or remotely
fault tolerance - move->run->come back

22. Emulating multiple answer computations
?- there, move, findall(X,for(I,1,3),Xs), return, member(X,Xs).
X=1;
X=2;
X=3

23. Reflective Meta Interpreter
solve(G):-once(reduce(G,NewG)),NewG.
reduce(G,G):-is_builtin(G).
reduce(','(A,B),','(solve(A),solve(B))).
reduce(G,','(clause(G,Gs),solve(Gs))).

24. MUTUAL AGENT/HOST SECURITY: THE BRING YOUR OWN WINE PRINCIPLE
reflective meta-interpreter: a few lines of Prolog - can be mobile - bring your own!
a sandbox can protect the Host against the Agent
undecidability of a Turing equivalent meta-interpreter protects the Agent against the Host

25. Ongoing Work
Day trader: reactive agent, using Internet data mining for quotes and user defined rules beyond conventional limit/stop/market transactions
Network monitoring: new Internet2 infrastructure at UNT, experiments with mobile agents on Gigabit networks
Visual Jinni, educational agents

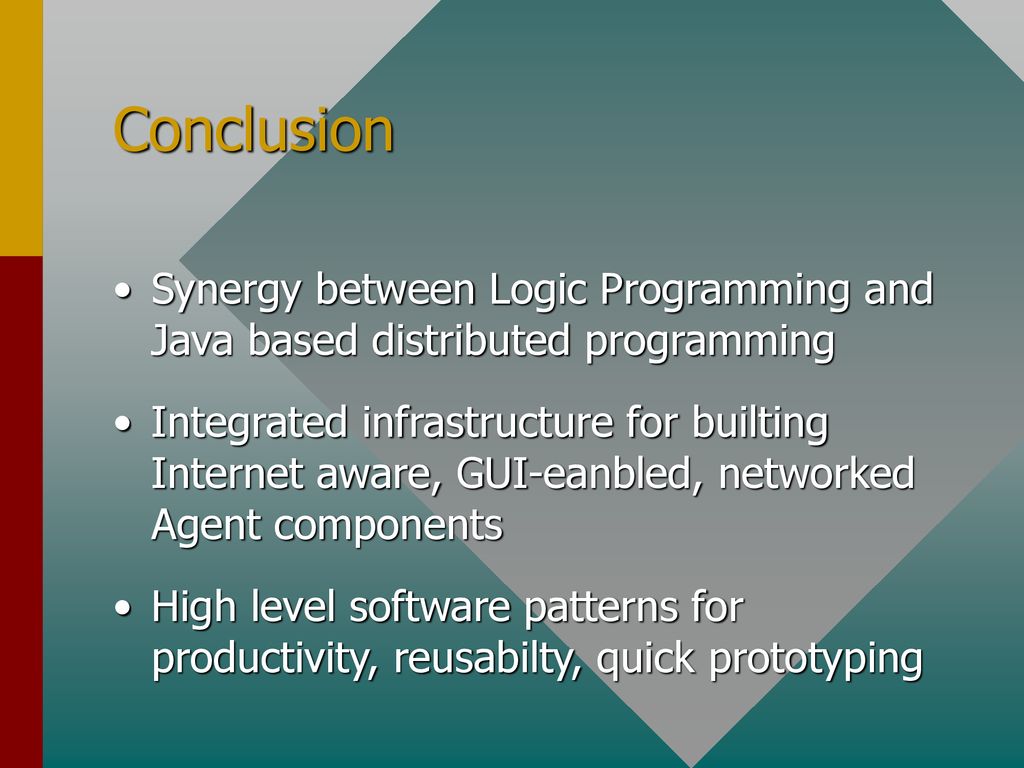

26. Conclusion
Synergy between Logic Programming and Java based distributed programming
Integrated infrastructure for builting Internet aware, GUI-eanbled, networked Agent components
High level software patterns for productivity, reusabilty, quick prototyping
