1. Current Status of CSC Trigger Elements – Quick Summary
Jay Hauser, with many slides from Darin Acosta and Stan Durkin
On-chamber
Comparator ASICs for Cathodes (CFEB cards) – DONE.
ALCT Anode Trigger – almost done (~90%)
Peripheral-crate
TMB Trigger Motherboard – pre-production prototypes
MPC Muon Port Card – 2nd generation prototype
CCB Clock & Control Board – 2nd generation prototype
Track Finder crate in counting house
SP2002 Sector Processor – 2nd generation prototype
CSC Muon Sorter – 1st generation prototype
Backplane – 2nd generation prototype
CMS Annual Review
September 16, 2003

2. CSC Muon Trigger Scheme
TriDAS part: Second generation prototypes
EMU part: on-chamber nearing end of production, peripheral crate production > ESR in Nov. ‘03
Muon Portcard (1)
Trigger Motherboard (9)
Clock Control Board
Trigger Timing & Control M P C D B T O N R L E
DAQ Motherboard (9)
Optical link
Peripheral Crate
on iron disk (1 of 60)
1 of 5
Muon Sorter (1)
Sector Processor (12)
CSC
CFEB
ALCT
1 of 24
1 of 2
LVDB
Cathode Front-end Board
CSC Track-Finder Crate (1)
Anode LCT Board
In underground counting room
On detector
3-D Track-Finding and Measurement
Trigger Primitives
Anode Front-end Board
CMS Annual Review
September 16, 2003

3. On-chamber CSC Trigger Electronics
Comparator ASICs – DONE.
Compare pulse heights from adjacent strips to find position of muon to ½-strip
channel ASICS on CFEB boards (OSU)
ALCT Boards – nearly DONE.
Finds tracks among anode hits, stores data for readout
468+spares boards of 3 types (288-, 384-, 672-channel)
CMS Annual Review
September 16, 2003

4. CSC Peripheral Crates in UXC55
Crate Controller M P C D B T O N R L E
DAQ Motherboard (DMB)
TRIG Motherboard (TMB)
Muon Port Card (MPC)
Clock Control Board (CCB)
CMS Annual Review
September 16, 2003

5. SP2002 (Main Board) 12 Used in CMS System Merged 3 SR2000s Florida
Receiver:
Florida
Optical Transceivers
16 x 1.6 Gbit/s Links
VME/CCB FPGA
TLK2501 Transceiver
Data conversion:
Phi Global LUT
To/from custom GTLP back-plane
Eta Global LUT
Phi Local LUT
Merged 3 SR2000s
Front FPGA
CMS Annual Review
September 16, 2003

6. SP Trigger Logic From SP2000 to SP2002 mezzanine card (5 manufactured)
Florida
Xilinx Virtex-2 XC2V4000 ~800 user I/O
Performs track-finding logic and PT assignment
CMS Annual Review
September 16, 2003

7. Muon Sorter
Sorts up to 36 muons from 12 SP’s and transmits best 4 to GMT
Have 4 boards in hand, one stuffed (except for backplane interface)
Sorter testing is in progress, will test with Track-Finder in the autumn
Only 1 needed in CMS
Rice
MEZZANINE CARD (same as SP design)
LVDS
DRIVERS
AND SCSI-3
CONNECTORS
GTLP
BACKPLANE
INTERFACE
CMS Annual Review
September 16, 2003

8. CSC Test Beam Studies 2003 First structured beam period May 23-June 1
Trigger primitives tests were highly successful:
Verified peripheral crate electronics design for Nov. ESR
MPC-to-SP optical link data transfer unsuccessful (synch. problems)
Unstructured beam period June 13-28
Improved low- and high-rate CLCT and TMB studies, angle scans
Second structured beam period Sept
Patches to fix optical link data transfer from MPC to SP
New readout shell program (fully OO software)
CMS Annual Review
September 16, 2003

9. 2003 Time-structured Beam Test Setup
X5A Setup
TTC crate
Trigger
primitives
DAQ Data PC
Track finder Crate
Peripheral Crate
2 DMB, 2 TMB
1 CCB, 1 MPC
FED crate
1 DDU
TRIDAS
beam S1 S2 S3
CSC 1
CSC 2
CMS Annual Review
September 16, 2003

10. CSC Bunch ID From ALCT Timing
First, tune the ALCT data latching in 2 ns intervals (0-32ns) and maximize the single-BX fraction of events:
Then look at the BX distribution relative to BX from scintillator (L1A):
ALCT BX efficiency 98.7%
CMS Annual Review
September 16, 2003

11. CSC Trigger High Rate Tests
data consistent with
dead-time = 225 ns
Chamber #1 CLCT
500
1,000
1,500
2,000
2,500
3,000
Beam Intensity (KHz)
CLCT Rate (KHz)
Expected LCT rate at LHC < 25 KHz (ME1/1)
CMS Annual Review
September 16, 2003

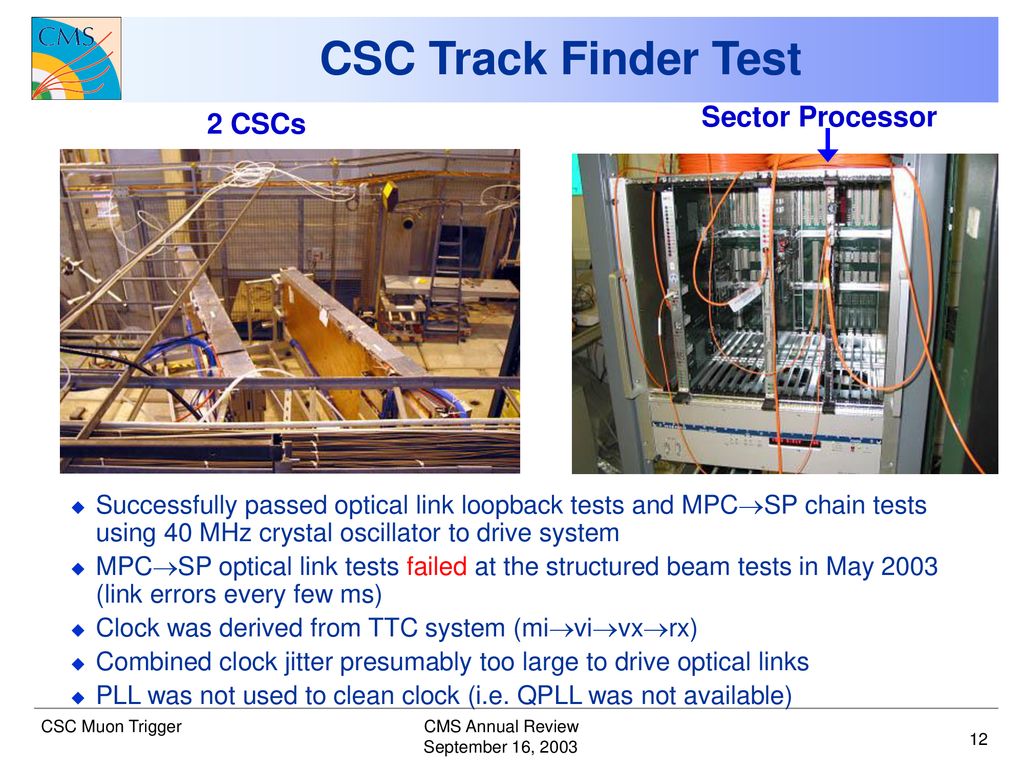

12. CSC Track Finder Test Sector Processor 2 CSCs
Successfully passed optical link loopback tests and MPCSP chain tests using 40 MHz crystal oscillator to drive system
MPCSP optical link tests failed at the structured beam tests in May 2003 (link errors every few ms)
Clock was derived from TTC system (mivivxrx)
Combined clock jitter presumably too large to drive optical links
PLL was not used to clean clock (i.e. QPLL was not available)
CMS Annual Review
September 16, 2003

13. Additional 2003 Test Beam Results
(Later, unstructured beam period)
Very high efficiencies achieved
Highest trigger efficiency of 99.9% required low rate (few kHz)
Improved DAQ throughput allowed readout up to 80k full events per spill. Typical “run” is 1 or 2 spills.
Improved scans taken:
Logic scope read out on most data
HV scan
Comparator threshold scan
Pattern requirements scan
Angle scans fb
CMS Annual Review
September 16, 2003

14. Sector Processor Clock Patch
LVDS Repeater Delivers Multiplied Clock to Front FPGAs to Drive TLK2501 clock input
VCXO and PLL added to clean synchronous clock
Voltage Controlled Crystal Oscillator PLL Patch
Low jitter Output
Cleans Backplane clock to drive SP logic
x2 BackPlane Clock supplies reference to TLK2501
CMS Annual Review
September 16, 2003

15. Patched CCB Clock, 100m fibers
SP Patch Results
Conditions
Type of Test
Time
Errors
Patched CCB Clock, 100m fibers
SPSP loopback PRBS test
5 hours x 3 links “
MPCSP PRBS test (within same TF crate)
24 hours x 3 links
TTCvx with MHz XO Patch
32 hours x 3 links
MPC SP PRBS test (peripheral crate to TF crate) with L1A 100kHz.
14 hours x 3 links
Eagerly awaiting QPLL chips from CERN
CMS Annual Review
September 16, 2003

16. Preparation for Sept. 2003 Beam Test
Cosmic ray test stand in Florida
System brought to working order
(everything now shipped to CERN)
Scintillator Panels
HV Supply
CSCs
TTCvx
Periph Crate
TF Crate
MPC
CCB
TTCvi SP
Dynatem
TMB
DDU
CCB
DMB
SBS
CMS Annual Review
September 16, 2003

17. Conclusions The CSC system is in very good shape:
Chambers being mounted on disks at SX5
Majority of the chambers already built and tested, including on-chamber electronics
Test beam showed that CSC peripheral crate electronics work very well under “battle conditions”
Of course, much work remains:
We especially need to validate the optical link clocking for MPC-SP data transfer
Production starts soon for peripheral crate electronics
Production planning will start soon for Track Finder (MPC, SP, MS) boards
CMS Annual Review
September 16, 2003
