1. CSCD 303 Essential Computer Security Fall 2017
Lecture 17 – Internet Security
Reading: See links end of Lecture

2. Overview Internet Security Threats Web Technology Web 2.0
Active Content
Javascript
Java Applets
ActiveX Controls
VBScript
Ajax

3. Internet Security Introduction
There are currently over 1 Billion websites on the web
That number is growing as more of the world gets connected and technology makes it easier for people to have a voice and online presence via Websites
Everyone can be an author ….
Over a third of the websites online are powered by four key platforms: WordPress, Joomla!, Drupal, and Magento.
WordPress is leading market with over 60% market share

4. Internet Security Introduction
Implications for Web Site Security
According to a 2016 Web Security Report by Sucuri
Large influx of unskilled webmasters and service providers responsible for the deployment and administrations of these sites.
Google currently blacklists close to ~20,000 websites a week for malware and another ~50,000 a week for phishing.
March 2016, Google reports over 50 million website users greeted with warning that websites visited were either trying to steal information or install malicious software.

5. Watch Live Web Sites Get Hacked
Want to view websites hacked in real time?

6. Internet Security
Knowing how the Internet works and understanding the technologies used, allows us to better defend our content and figure out how its being attacked
Technologies used today, makes the Internet more popular than ever and unsafe at the same time
Major problem is Internet has evolved from storing content to user created content

7. Web Threats

8. Infected Websites – Lots !!!!
Google warns 760,000 websites: 'You've been hijacked' - but many are infected again in days
Google is urging website operators to sign up for its security notifications after a study of 760,935 hijacked websites revealed the difficulties in cleaning up infections that expose visitors to malware
Previous studies have found that sites running on WordPress, Joomla, and Drupal faced a higher risk of compromise because hackers focused on platforms with the largest marketshare.
been-hijacked-but-many-are-infected-again-in-days/

9. More Security Threats 2013
is-the-web-browser
Recognition among security authorities that drive-by malware from web links is #1 threat facing networks today
Attackers are moving into targeting browser plugins
Java, Adobe Reader and Adobe Flash
Drive-by download attacks are almost exclusively launched through compromised legitimate websites which are used by attackers to host malicious links and actual malicious code

10. Web Technology Useful to understand how Web works
As technical people, have basic understanding of clients/servers
Look at details and some stats on both browsers and Web Servers
Which browsers would you guess are most popular today?
Nice page of ALL Web browsers, even text based

11. Web Browser Stats 2017 Chrome IE/Edge Firefox Safari Opera
October % % % % %
September % 4.2 % % % %
August % % % % %
Chrome IE/Edge Firefox Safari Opera
December % % % % %
November % % % 4.0 % %
October % % % % %

12. Web Server Stats
server-survey.html
Based on annual survey sites, Netcraft reports that Apache has a 41 % share in 2017 while IIS has 10%
Apache , % 410, % -0.35
Microsoft 101, % , %

13. Web Server Operating Systems
Apache has been the most widely used web server on the Internet since the early days of the Web. It still is dominant
Underlying operating system is mostly – Linux
Over years, this has proven to be the most reliable and flexible platform for running high- quality web hosting services worldwide.
linux.html
Windows based hosts use the IIS (Internet Information Services) Server and of course run on some version of Windows

14. Web Browser Functions Browser interprets and displays HTML files
Supposed to conform to specifications maintained W3C (World Wide Web Consortium) organization
Standards organization for web
Current Version HTML 5 as of 2014

15. Plug-ins Enhance Browsers
Visit web page that includes more than simple HTML content
Likely to need plug-in applications
Flash Player most needed plug-in
75% of the animated advertisements you see online are Flash .swf movies
Adobe Acrobat Reader .pdf, next most needed
Most government forms, online application forms, multitude of other documents use .pdf format on the Web
Movie/audio player to run .mov, .mp3, .wav, .au, and .avi files
Windows Media Player is .. most popular

16. Browser and Web Server State
Neither Browsers or Web Servers keep “state”
What does this mean?
How can browsers and Web Servers keep state?

17. Browsers and Web Server State Defined
This means user data is not persisted from one Web page to next in a Web site
Web developers refer to practice of tracking users as maintaining state
Series of interactions that a particular user has with a site is a session

18. Browser State How do browsers keep state? Cookies!!! Cookies
Cookies, small text files stored in your computer's browser directory or other directory
Cookies
Created when you use your browser to visit website that uses cookies to keep track of your movements within site,
Helps resume where you left off,
Remembers registered login, theme selection, preferences, and other customized selections

19. Browser Cookies Two types of cookies are used Session cookies,
Temporary cookies remain in cookie file of your browser until you leave the site
These cookies only stored in memory
Persistent cookies,
Remain cookie file, browser for much longer
Have an expiration date

20. Browser Cookies Each cookie has values for six fields:
Each cookie has values for six fields:
* Name - Name of the cookie
* Value - ID string set by Web site
* Domain - Of Web site issuing cookie
* Path - “/” means the cookie is valid anywhere on that domain
* Expires - Cookie expires on that date
* Secure (used for cookies that require a SSL connection)‏

21. Can Cookies Be Malicious?
What do you think?
Use of Cookies
To collect demographic information about who visits Web site. Sites often use this information to track how often visitors come to the site and how long they remain on the site.
To personalize the user's experience on the Web site.
Cookies do not act maliciously on computer systems. They are merely text files that can be deleted at any time - they are not plug ins nor are they programs.
Cookies do contain personal information .. that you give to site

22. Can Cookies Be Malicious?
Popular view … previous slide.
Cookies can violate privacy, but are not generally malware or compromise security
Other views, say … Yes. Cookies can be evil !!!
Involved in
Cross Site Request Forgery Attack (XSRF)
Session Fixation
XSS – Cross Site Scripting, Cookie Tossing Attack
Other resources: threats-1.html

23. Evolution of Web Technologies

24. Problem
All research shows, Internet based attacks appear to be increasing
Why is this?

25. Evolved from Web 1.0 to 2.0 Most people agree that Web 2.0 is
Interactive and social
Facilitating collaboration between people
User content is the norm
This is distinct from the early web (Web 1.0) which was a static information dump where people read websites but rarely interacted with them

26. Web 2.0 How do you define Web 2.0?
Web "as Platform," where software applications built on Web as opposed to desktop
Customers are building content
Activities of users generating content ... ideas, text, videos, pictures create value to web site ...
Nice YouTube Video of “Us as Web”

27. Web 2.0 vs. Web 1.0

28. Web 2.0 Technologies

29. Web 2.0 Web 1.0 Web 2.0 Pull information Read information
HTML (Web pages)‏
Web 2.0
Push information
Read / write (cooperate and collaborate)‏
XML, RSS= Rich Site Summary, Mash-ups
What's a mash-up?

30. Mash-up Defined A mashup
Web site that combines content data from more than one source to create a new user experience
"mashup" comes from pop music term, refers to two or more songs combined into a new song
Example
Most common Google product used for mashups is Google Maps

31. Security and Web 2.0 Why is Web 2.0 more Insecure?
User generated content
Do you trust your users?
Easier to upload or infect content
More complicated technologies behind Web 2.0
Active content – scripts and other automatic components
Combined content from many sources
Advertising often contributes vulnerabilities

32. Web 2.0 Increases Threat communicate and use web
Popularity of Web 2.0 sites has changed way we
communicate and use web
Created an irresistible target for malware authors
Social-networking sites, blogs, and wikis
Malware authors take advantage of these sites, opening up
yet another front in security defenses and hackers
How-to-protect-against-Web-20-threats/article/34711/

33. Web 2.0 Nightmare
“Every company has plans to move mission critical applications to the Web
Yet, companies don't have web security plan to ensure sites free from exploits and hackers … (accidents waiting to happen)‏”
CIO Magazine quote
Look at the technologies that enables Web to function

34. Web 3.0 is Coming http://socialmediatoday.com/node/423732
Web 3.0 is a Marketing Term. Sadly, this is probably most likely way that we'll be using term 'Web 3.0' in future
Within Web 3.0 social networks will be critical conduits through which we design and stumble through our individual contexts, veering out to increasingly social content experiences built by big content providers like Yahoo, AOL, newspapers, blogs and so on
Amazon and eBay have already become large media experiences as we come to enjoy act of browsing as much as act of buying
For example, eBay Motors says 95% of traffic doesn’t come to buy car as much as look at cars
They’re a media channel that sells ads more than they are a marketplace for cars.

35. Active Content

36. Active Content Used to be Web pages consisted of HTML
Purpose of the Internet was
Download information
View pictures and other graphic images
Fill out input forms
Our Web site, example of what kind of content?

37. Active Content What is active content?
Web site that is either interactive
Such as Internet polls or
Dynamic, such as animated GIFs, stock tickers, weather maps, moving ads
Embedded objects, streaming video and audio
CNN

38. Active Content Languages
Implementing Active Content
HTML does not have built in capability to handle active content … this is changing HTML 5
Embedded video objects,
Dancing bears
Other languages added to Web pages within HTML tags allow expanded capability
What languages implement Active Content?

39. Active Content Languages
Active content implemented mainly through
Javascript
ActiveX Controls
Deprecated in new browsers
Java Applets
VBScript
AJAX

40. Javascript What is it? Has anything to do with Java?
JavaScript, is unrelated to Java programming language
Has common C syntax
JavaScript copies many Java names and
naming conventions
Was originally named "LiveScript"
Renamed in a co-marketing deal between
Netscape and Sun
Netscape bundling Sun's Java runtime in
their then-dominant browser

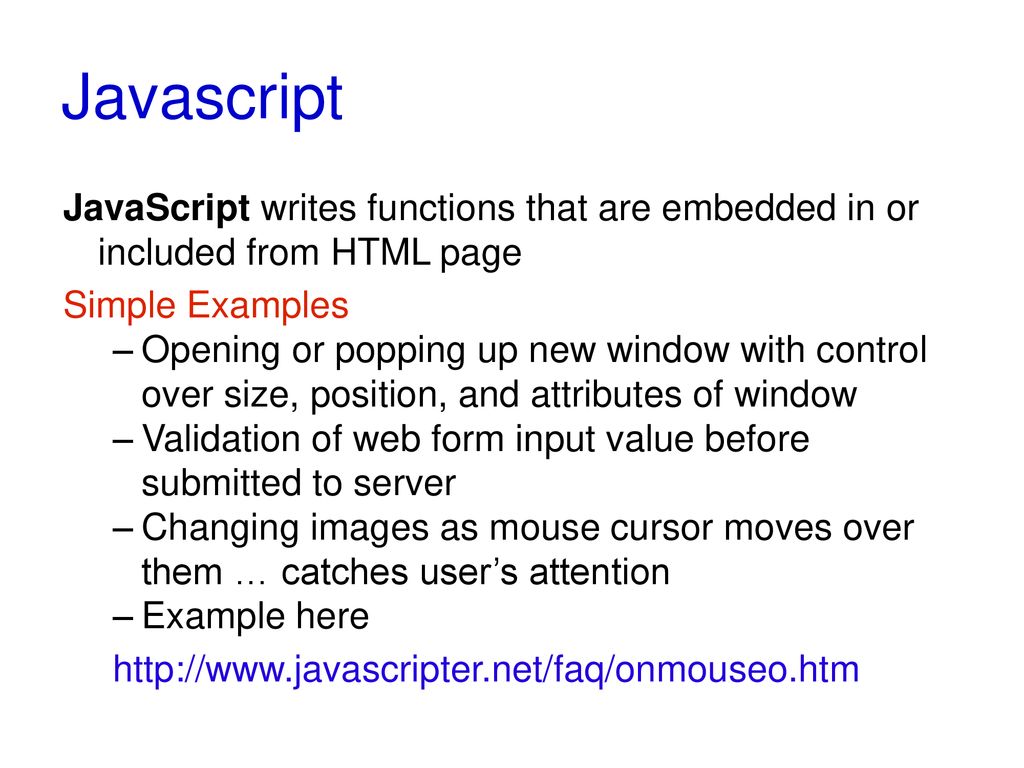

41. Javascript
JavaScript writes functions that are embedded in or included from HTML page
Simple Examples
Opening or popping up new window with control over size, position, and attributes of window
Validation of web form input value before submitted to server
Changing images as mouse cursor moves over them … catches user’s attention
Example here

42. Javascript JavaScript code runs locally in user's browser
Respond to user actions quickly, making an application feel more responsive
Example:
Gmail is written in JavaScript
JavaScript dispatches requests for information such as the content of an message

43. HTML code with Javascript
<head><title>simple page</title></head>
<body>
<script type="text/javascript">
document.write ('Hello World!');
</script>
<noscript>
<p>Your browser either does not support
JavaScript, or you have JavaScript turned
off.</p>
</noscript>
</body>
</html>

44. Java Applets Java Applets
The word applet is meant to suggest a small application
Applets were intended to be small programs run over the Internet
Applets can be viewed over Internet, or without any connection to Internet
When you use browser to view page that contains an applet, applet's code is transferred to your system
Executed by browser's Java Virtual Machine (JVM)‏

45. Java Applets
An applet class is compiled in same way as any other Java class
However, applets run differently from other Java programs
Normal way to run applet is to embed it in an HTML document
Then run and viewed through a Web browser

46. Java Applets <html> <head> <title> Vampire Control
. . .
<applet code="AppletCalculator.class" width=400 height=300>
</applet>
</html>

47. Active X
ActiveX, set of object-oriented programming technologies and tools from Microsoft!
You create, in ActiveX environment, a component
Self-sufficient program that can be run anywhere in
your ActiveX network
Component known as an ActiveX control
ActiveX Microsoft's answer to Java
An ActiveX control is like Java applet
Can be developed in several languages
Visual Basic,
C++
Java

48. Active X ActiveX Renamed Component Object Model (COM)‏
developed by Microsoft for Windows,
Changed to ActiveX in 1996
A software application can compose one or more components in order to provide needed functionality

49. Active X Most Microsoft Windows applications
Internet Explorer, Microsoft Office, Microsoft Visual Studio, Windows Media Player,
All … Use ActiveX controls
Encapsulate functionality as ActiveX controls
can be embedded in other applications
Internet Explorer also allows ActiveX controls to be embedded inside web pages
Point for us !!!!
Can expand application functionality to the Web!

50. Example Active X Control

51. Active X ActiveX Controls are like Java Applets,
Both designed to be downloaded and executed from
web browsers
Differences
Java applets can run on nearly any platform,
ActiveX components can only run on
Microsoft's Internet Explorer
ActiveX controls also granted a much higher level of
control over Windows than Java applets
Making them both more powerful and dangerous!!!

52. Active X Example
The process of embedding ActiveX controls into a web page is very similar to the way Java applets are embedded. The following example shows the HTML code used to embed an ActiveX control.
<OBJECT ID="AreaMenu" WIDTH=192 HEIGHT=192
CLASSID="CLSID:275E2FE D0-89D6-00A0C90C9B67"
CODEBASE="
version=1,0,0,44">
<PARAM NAME="ForeColor" VALUE="&H ">
<PARAM NAME="BackColor" VALUE="&H00BEBEBE">
<PARAM NAME="FontName" VALUE="Verdana">
<PARAM NAME="FontSize" VALUE="10">
<PARAM NAME="FontBold" VALUE="0">
<PARAM NAME="FontItalic" VALUE="0">
<PARAM NAME="FontUnderline" VALUE="0">
<PARAM NAME="FontStrikethrough" VALUE="0">
<PARAM NAME="FontCharset" VALUE="0">
</OBJECT>

53. Active X Example
The tag creates the ActiveX object. The tag has 5 attributes:
ID: Object Name. You use ID to refer to the object with JavaScript
WIDTH: defines the width of the control on the web page
HEIGHT: defines the height of the control on the web page
CLASSID: Each ActiveX control assigned unique Class ID number, like an identification number, use number to tell computer which ActiveX control to load
CODEBASE: If control is not present on system, Codebase attribute tells the browser where to find the control on the Internet. The viewer's browser will then download the file and install it on to the user's computer
Short article below explains Active X
ntations/activex.html

54. VBScript VBScript Visual Basic Scripting Edition
An Active Scripting language developed by Microsoft
Language's syntax reflects its history as a limited variation of Microsoft's Visual Basic programming language

55. VBScript
VBScript installed by default in every desktop release of Microsoft Windows since Windows 98
Microsoft Internet Explorer
VBScript is similar in function to JavaScript, as a language to write functions that are embedded in or included from HTML pages

56. VBScript
Web browsers Firefox, and Opera do not have built-in support for VBScript
So ... developers almost always use JavaScript
for cross-browser compatibility
Besides client-side web development,
VBScript is used for server-side processing of web pages, most notably with Microsoft Active Server Pages (ASP)‏

57. VBScript Example Can you see this in Firefox? <html>
<body>
<script type="text/vbscript">
document.write("Hello World")‏
</script>
</body>
</html>
Can you see this in Firefox?

58. Ajax AJAX Group of web technologies
Implements a web application that communicates with a server in the background,
Without interfering with current state of page
AJAX = Asynchronous JavaScript and XML
AJAX is based on JavaScript and HTTP requests
Not a new language but a combination of languages already known

59. Ajax Traditional Web application, interaction
between customer and server goes like this
1. Customer accesses Web application
2. Server processes request and sends data to browser
while the customer waits
3. Customer clicks on a link or interacts with the application
4. Server processes request and sends data back to the
browser while customer waits
5. etc....
There is a lot of customer waiting!!

60. Ajax Ajax Acts as an Intermediary
Ajax engine works within Web browser to render Web application and handle any requests that customer might have of Web server
At start of session, browser loads an Ajax Engine — written in JavaScript and usually tucked away in a hidden frame
Engine is responsible for both rendering interface user sees and communicating with server on user’s behalf

61. Ajax vs Traditional Web Browser

62. Ajax
With Ajax,
JavaScript loaded when page loads handles most of basic tasks
Data validation and manipulation,
Plus displays changes
Same time that it makes display changes for customer, sends data back and forth to server
Data transfer is not dependent upon actions of customer, asynchronous
Google maps,
Google suggest,
Flicr use Ajax

63. Summary Begun to look at Internet and Web security
Web 2.0 is a problem
Active Content is today’s Internet
People want functionality
Security seems to be secondary
So, what else is new?

64. References Nice Overview of Browser/Web Workings
Wikipedia Browser Comparison Page
Browser Cookies
sics
google-analytics-cookies.html
Web 2.0

65. The End
Next Time more Internet Security
