Presentation on theme: "Multi-Homing Security Gateway MH-1000. Outline Product Overview Product Features Product Application Product Comparison."— Presentation transcript:

1 Multi-Homing Security Gateway MH-1000

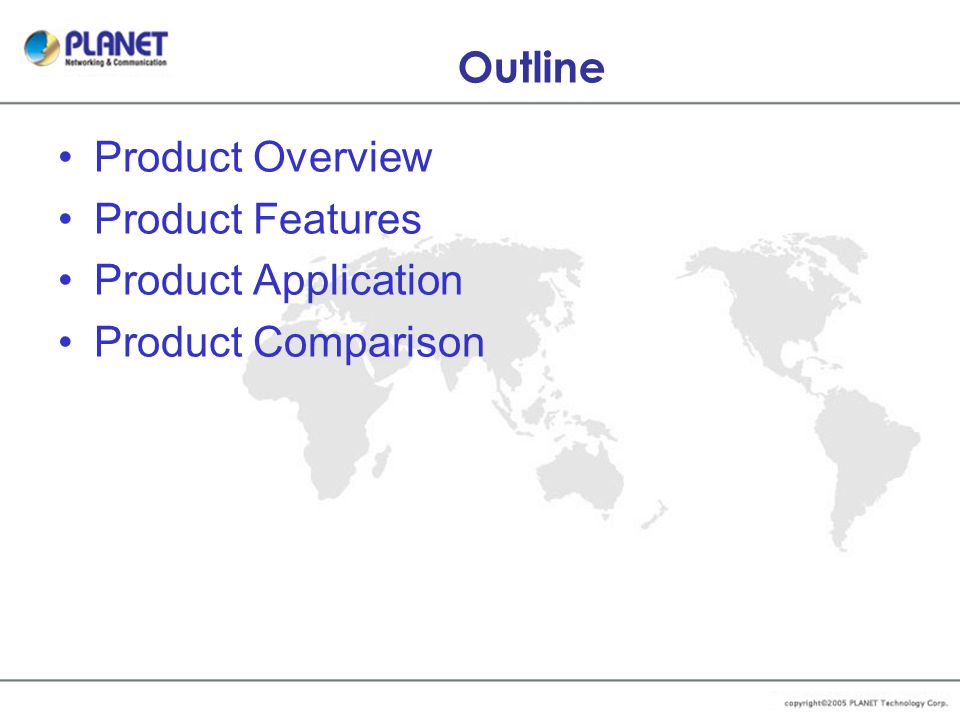

2 Outline Product Overview Product Features Product Application Product Comparison

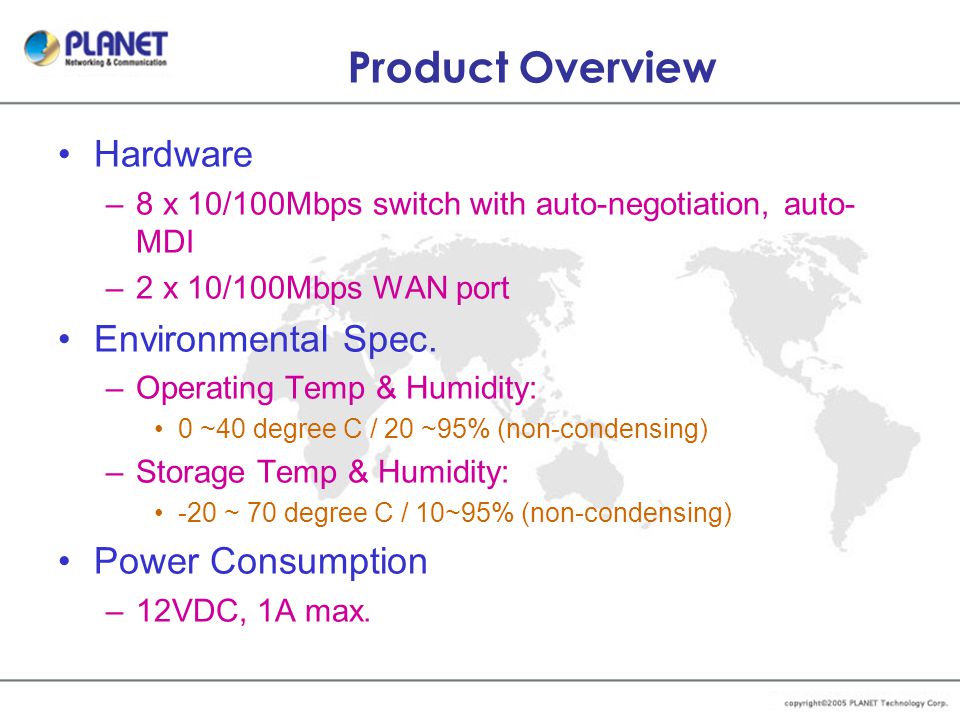

3 Product Overview Hardware –8 x 10/100Mbps switch with auto-negotiation, auto- MDI –2 x 10/100Mbps WAN port Environmental Spec. –Operating Temp & Humidity: 0 ~40 degree C / 20 ~95% (non-condensing) –Storage Temp & Humidity: -20 ~ 70 degree C / 10~95% (non-condensing) Power Consumption –12VDC, 1A max.

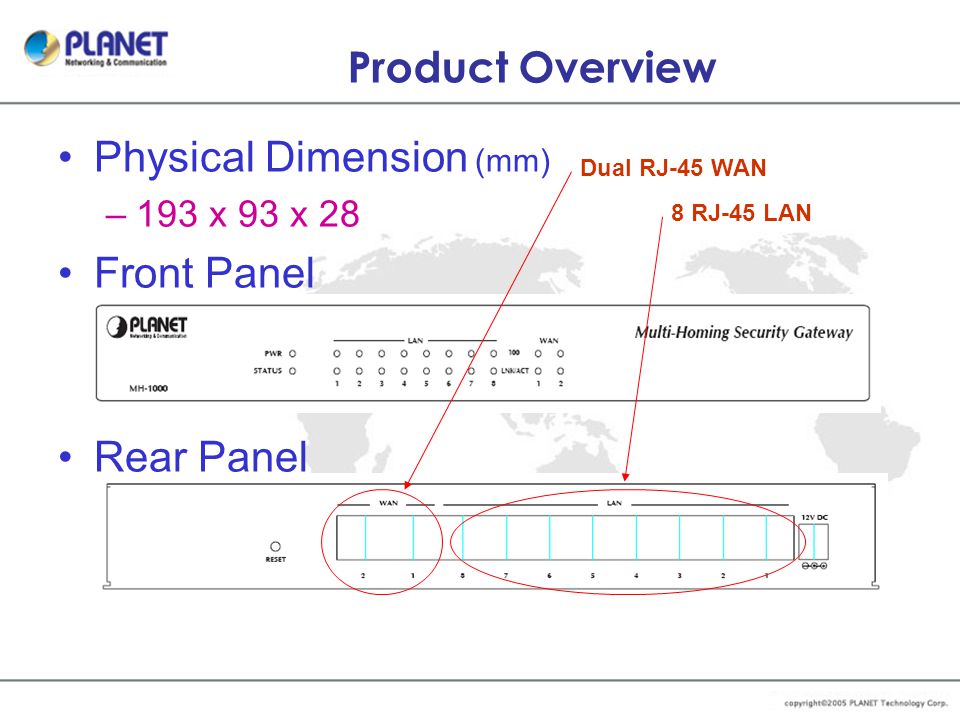

4 Product Overview Physical Dimension (mm) –193 x 93 x 28 Front Panel Rear Panel Dual RJ-45 WAN 8 RJ-45 LAN

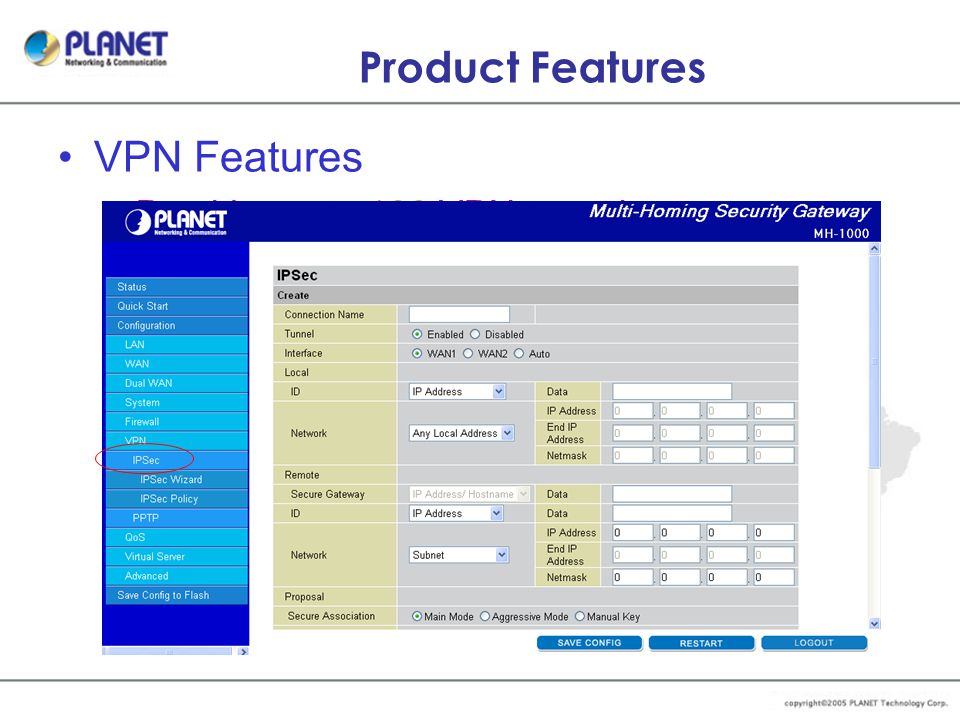

5 Product Features VPN Features –Provide up to 100 VPN tunnels –Up to 30Mbps IPSec VPN throughput –MD5/SHA-1 Authentication, 3DES/AES Encryption –IPSec RSA VPN support –IPSec, PPTP and L2TP VPN pass through

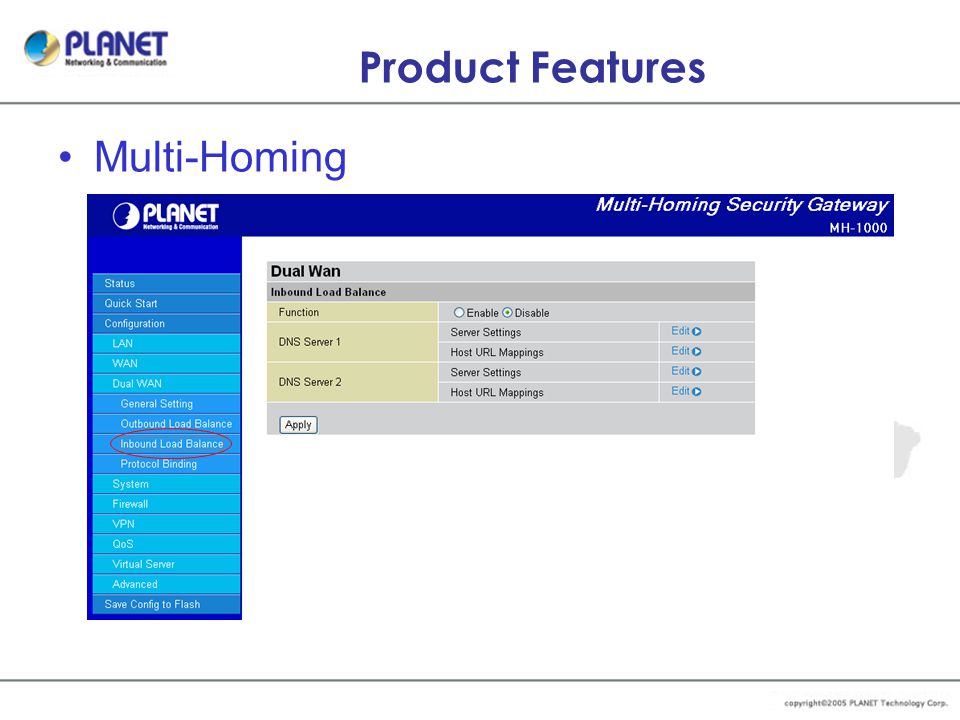

6 Product Features Multi-Homing –WAN Fail-over support –Outbound Load Balance –DNS Inbound Load Balance

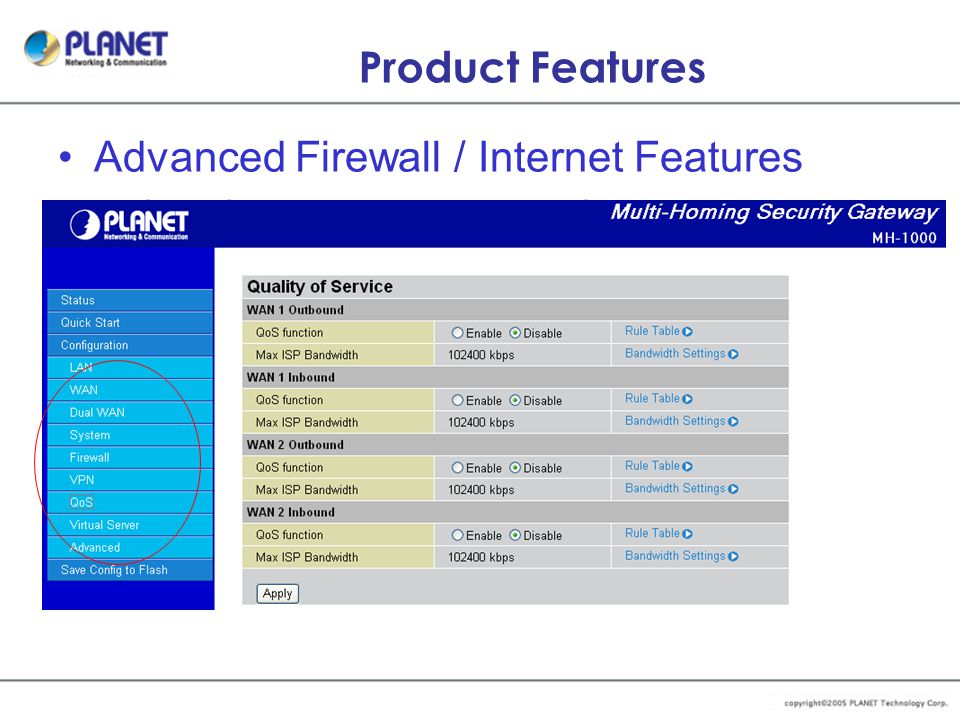

7 Product Features Advanced Firewall / Internet Features –Stateful Packet Inspection firewall –DoS (Denial of Service) attacks –Support Packets filter by IP, MAC address and service –QoS support –Virtual server, DMZ and DDNS support –Content Filter to block webpage or scripts –Static route and RIP v2 support

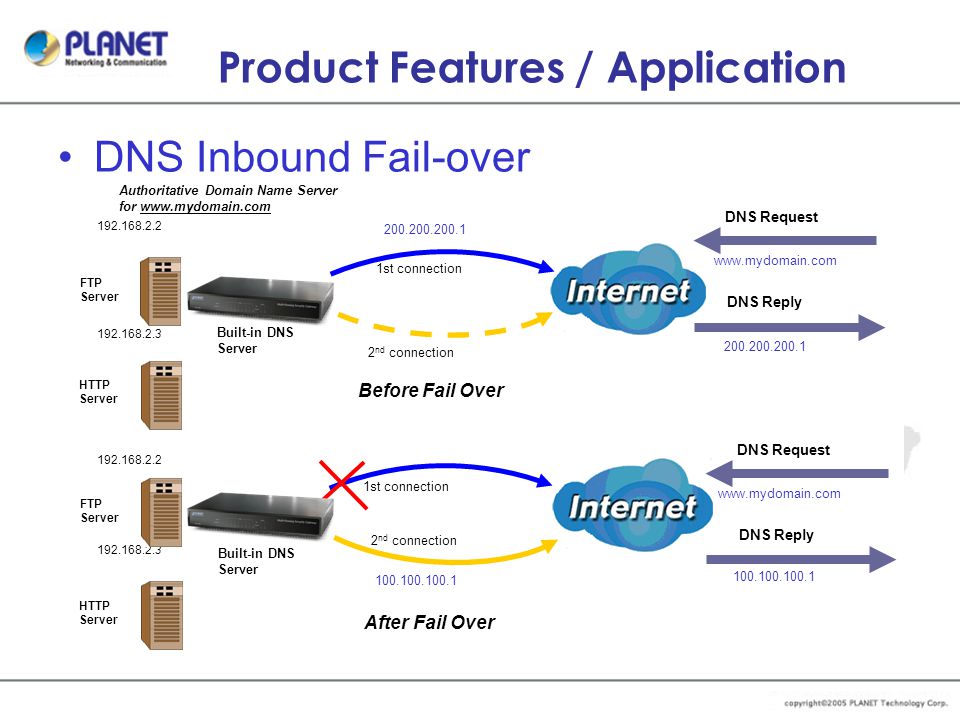

8 Product Features / Application DNS Inbound Fail-over Built-in DNS Server 192.168.2.2 192.168.2.3 FTP Server HTTP Server 200.200.200.1 www.mydomain.com 200.200.200.1 Authoritative Domain Name Server for www.mydomain.com Before Fail Over 100.100.100.1 After Fail Over 100.100.100.1 DNS Request DNS Reply Built-in DNS Server 192.168.2.2 192.168.2.3 FTP Server HTTP Server 1st connection 2 nd connection 1st connection 2 nd connection www.mydomain.com DNS Request DNS Reply

9 Product Features / Application DNS Inbound Load Balance Authoritative Domain Name Server FTP Server HTTP Server 192.168.2.2 192.168.2.3 Built-in DNS Server Heavy load on WAN 100.100.100.1 200.200.200.1 DNS Reply DNS Request www.mydomain.com FTP Server HTTP Server 192.168.2.2 192.168.2.3 Built-in DNS Server Heavy load on WAN 100.100.100.1 200.200.200.1 100.100.100.1 DNS Reply DNS Request www.mydomain.com

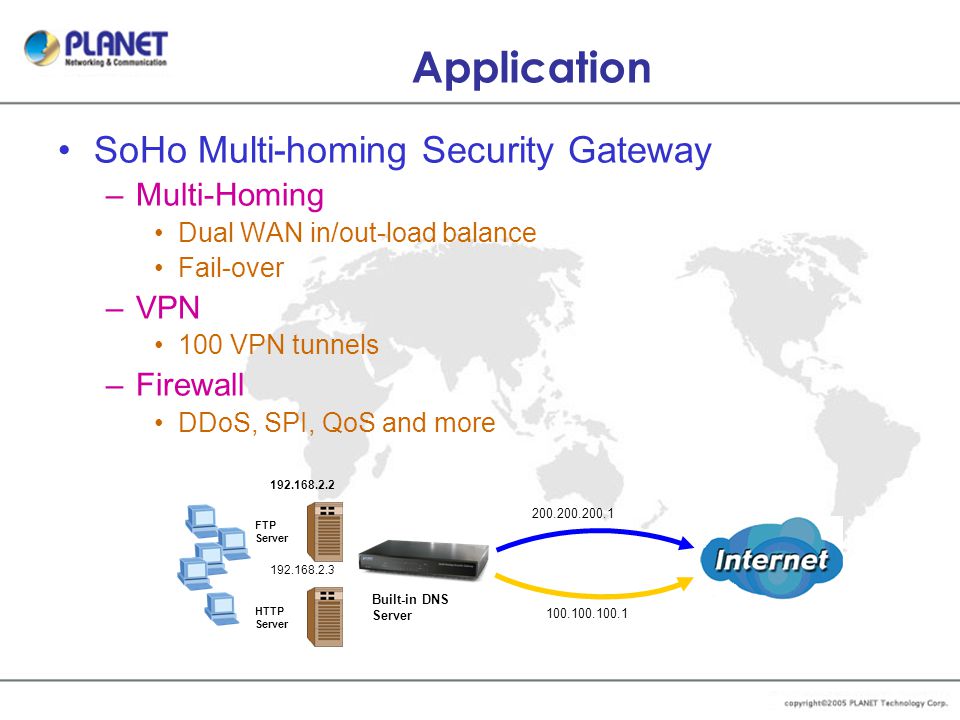

10 Application SoHo Multi-homing Security Gateway –Multi-Homing Dual WAN in/out-load balance Fail-over –VPN 100 VPN tunnels –Firewall DDoS, SPI, QoS and more FTP Server HTTP Server 192.168.2.2 192.168.2.3 Built-in DNS Server 100.100.100.1 200.200.200.1

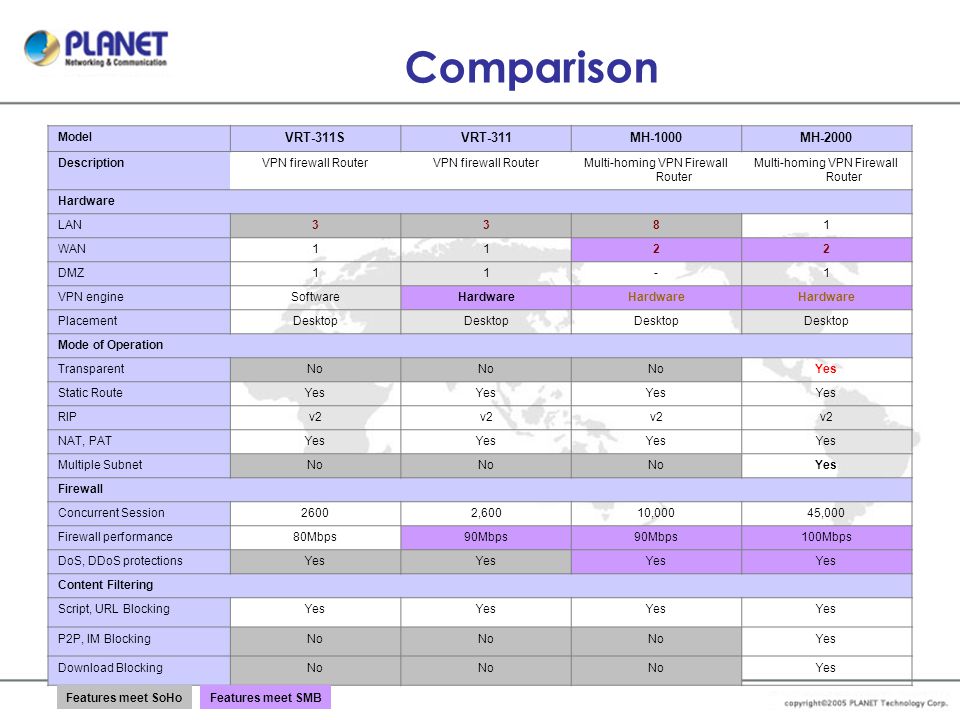

11 Comparison VRT v.s. MH Model VRT-311SVRT-311MH-1000MH-2000 DescriptionVPN firewall Router Multi-homing VPN Firewall Router Hardware LAN3381 WAN1122 DMZ11-1 VPN engineSoftwareHardware PlacementDesktop Mode of Operation TransparentNo Yes Static RouteYes RIPv2 NAT, PATYes Multiple SubnetNo Yes Firewall Concurrent Session26002,60010,00045,000 Firewall performance80Mbps90Mbps 100Mbps DoS, DDoS protectionsYes Content Filtering Script, URL BlockingYes P2P, IM BlockingNo Yes Download BlockingNo Yes Features meet SoHoFeatures meet SMB

12 Comparison Model VRT-311SVRT-311MH-1000MH-2000 DescriptionVPN firewall Router Multi-homing VPN Firewall Router VPN VPN Tunnel10100 100/200 3DES performance3.5Mbps20Mbps30Mbps16Mbps EncryptionDES, 3DES, AES IPSec AuthenticationSHA-1, MD5 PPTP serverYes User Authentication Authentication User – Built-in Database No 250 entries Multi-Homing WAN Load balancing--Inbound and OutboundOutbound WAN Fail over--Yes Bandwidth Management Guarantee and Maximum Bandwidth --Yes Priority Bandwidth Utilization--7 Level3 Level Others Server Load Balancing--No4 groups Syslog server supportYes Email AlertYesYes-Yes Features meet SoHoFeatures meet SMB

13 Pioneer of IP Innovation PLANET Technology Corp
