1 Numerical Weather Forecast Model (governing equations)
Momentum equations Mass continuity equation Moisture equation Ideal gas law Thermodynamic equation

2 Numerical Weather Forecast Model (governing equations)
Vertical momentum equation Non-hydrostatic Hydrostatic assumption (large scale phenomena):

3 Numerical Weather Forecast Model
Discretized in space (mesh) Model grid points (boxes) x j J-1 J+1 J-2 n n-1 n+1 n-2 t Discretized in time

4 Numerical Weather Forecast Model
Let’s simplify the equation to for now How do we discretize it? j J-1 J+1 J-2

5 Numerical Weather Forecast Model
B.C. u u n=2 n=1 n=0 u j=1 I.C. j=N

6 Descretization y=x2 Resolutions: 1 True solution

7 Numerical Weather Forecast Model
Global model vs. regional model Regional model

8 Weather Forecast WRF: Weather Research and Forecasting model
I.C. B.C. Outputs Preprocessor model Terrain Data AVN, ETA,… WRF: Weather Research and Forecasting model

9 WRF Hurricane Isabel (2003) Usually forecast is not this good!
New KF, YSU, Purdue Lin, 10km Radar observation Model forecast Usually forecast is not this good! WRF

10 MM5 Model Configuration
Global Data: NCEP GDAS Domain km km km Physic schemes: 48-h simulation from 00Z 17 July 1997 . • Betts-Miller convective scheme • Blackadar PBL • Mixed phase microphysics • Simple radiation

11 Hurricane Danny Initial Conditions
(SLP, 950 mb wind vectors) (950 mb moisture) OBS mb . Analysis mb Reanalysis from global model

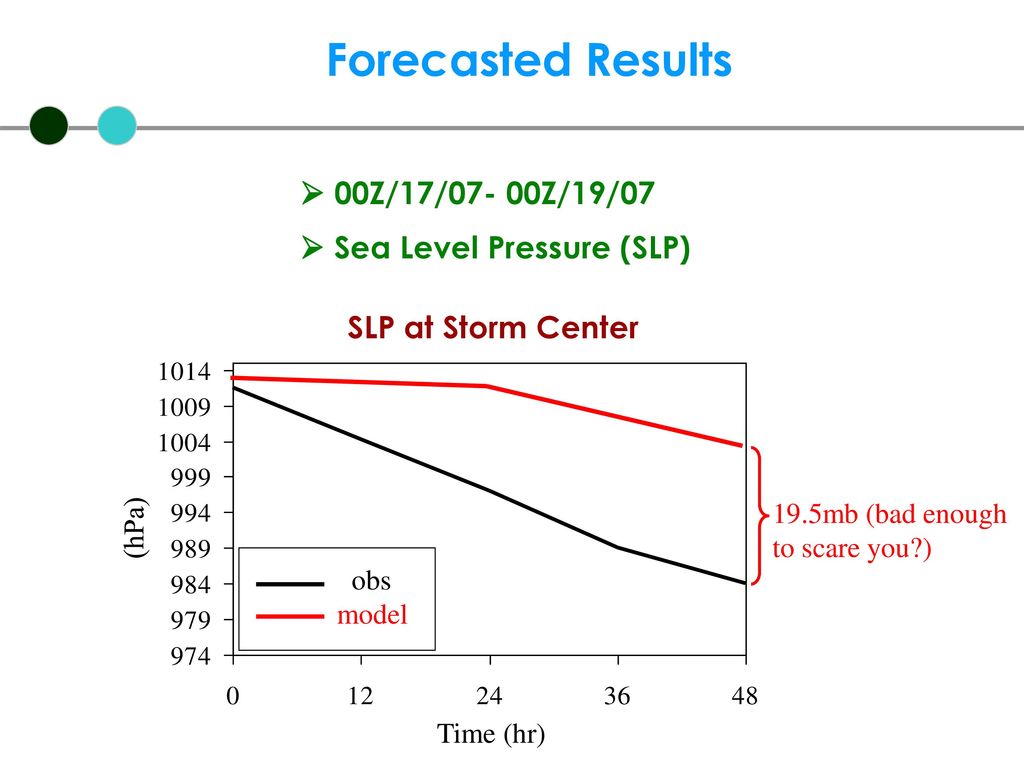

12 Forecasted Results  00Z/17/07- 00Z/19/07  Sea Level Pressure (SLP)
(hPa) Time (hr) obs SLP at Storm Center model 19.5mb (bad enough to scare you?)

13 Forecast Errors WRF: Weather Research and Forecasting model
I.C. B.C. Outputs Preprocessor model Terrain Data AVN, ETA,… WRF: Weather Research and Forecasting model

14 Forecast Errors Model Errors: Dynamics (numerical schemes)
Physics parameterization Resolution 2. Initial and boundary conditions (I.C/B.C.) error

15 Discretization (resolution)
Resolutions: 1 0.1 0.01 (more accurate) Usually Dt is proportional to Dx. True solution Dx = 0.1 Dx = 0.01 => the higher the resolution, the more the computational time! Dx =1

16 Problems of I.C. Reanalysis data – coarse resolution  Errors in I.C.
 Lack of mesoscale features in I.C.  Model spin-up problem

17 WRF Model Flow Chart Data Assimilation Improved IC/BC Preprocessor
OBServations Improved IC/BC I.C. B.C. Outputs Preprocessor model Terrain Data AVN, ETA,…

18 Conventional Observations
12z 65 upper air soundings, 866 surface stations

19 Problems Reanalysis data – coarse resolution  Error in I.C
 Lack of mesoscale features in I.C.  Model spin-up problem Coarse resolution of World Meteorological Organization Upper-air radiosondes  Twice a day  Several hundred km resolution Conventional data sparse areas  Ocean  Antarctic

20 Need Unconventional Observations
Remote Sensing Data QuikSCAT

21 Using observations to improve model I.C. and B.C.
Objective Analysis Using observations to improve model I.C. and B.C. j J-1 J+1 Model grid points Observations (obs) x k-1 k k+1 R r J-2 radius of influence Cressman method : Weighting coefficient R: radius of influence r : distance between obs and model grid point j

22 Estimation and Data Assimilation
Suppose Tm = 18 C (model temperature) To = 21 C (observed temperature) Suppose m = 2 C (model error) o = 1 C (observational error) T is sought as: T = a Tm + b To Such that the expected error: E{ ( T-Tt )2 } is minimal Cost function

23 Optimal Estimation Introduction T = a Tm + b To Optimal solution o2
o2 + m2 m2 o2 a = T = Tm ( To – Tm ) Optimal nudging coefficient Tm = 18 C (model) To = 21 C (obs) m = 2 C (model) o = 1 C (obs) T = 20.4 o C

24 Study: Danny, 1997 To comcompare two different
approaches for assimilating SSM/I data  Retrieved products: Total precipitable water (TPW) Sea surface wind (SSW)  Raw measurements: Brightness temperature (Tb)

25 MM5 Model Configuration
Study: Danny MM5 Model Configuration Global Data: NCEP GDAS Domain km km km Physic: 48-h simulation from 00Z 17 July 1997 . • Betts-Miller convective scheme • Blackadar PBL • Mixed phase microphysics • Simple radiation

26 WRF Model Flow Chart Data Assimilation Improved IC/BC Preprocessor
OBServations Improved IC/BC I.C. B.C. Outputs Preprocessor model Terrain Data AVN, ETA,…

27 MM5 Data assimilation system
Study: Danny SSM/I Data Experiments NCEP GDAS I.C. CONTROL Water vapor Surface wind I.C. RV Irradiance I.C. TB MM5 Data assimilation system 1st guess

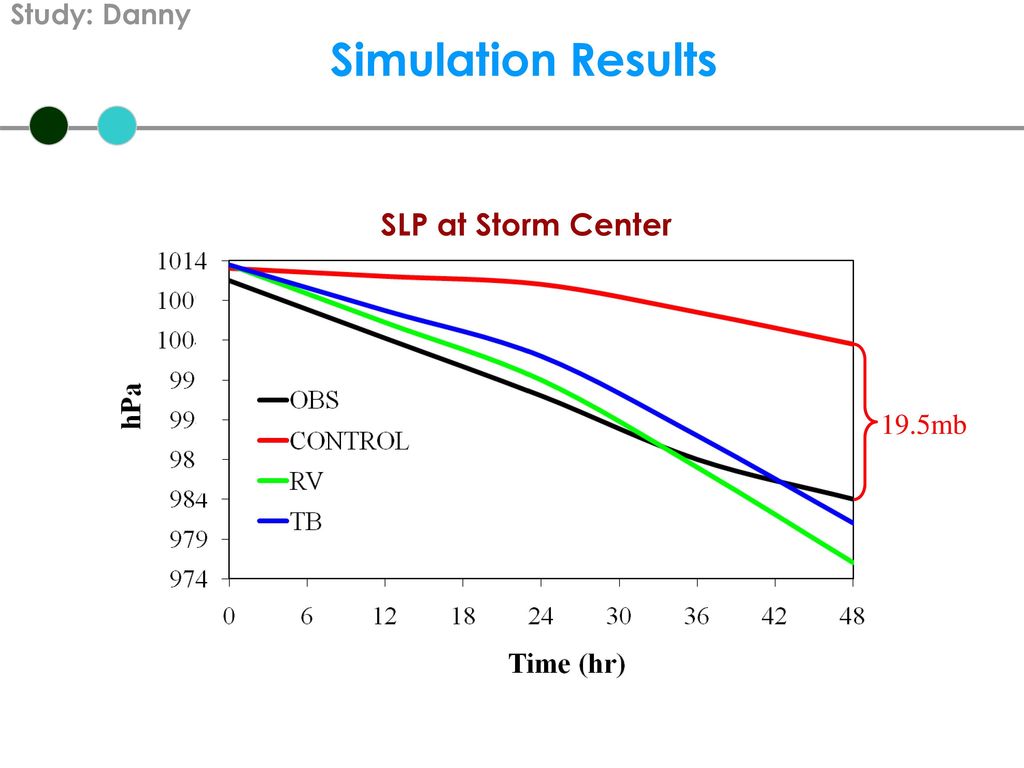

28 Study: Danny Simulation Results SLP at Storm Center 19.5mb

29 Study: Danny Simulation Results SLP at Storm Center 19.5mb

30 Simulation Rainfall First 12-h accumulated rainfall 0-1 hr 9~10 hr
Study: Danny SSM/I Data Simulation Rainfall First 12-h accumulated rainfall No SSM/I (CONTROL) SSM/I (TB) 0-1 hr 9~10 hr
