1. School of Computer Science & Engineering
Artificial Intelligence
Local Search:
A TSP Solution
Dae-Won Kim
School of Computer Science & Engineering
Chung-Ang University

3. Q: Why is the TSP important?

4. Why are we doing TSP-like Projects?

5. Answer:
Real-life problems
NP-Hard problems
Why are the real-life problems difficult?

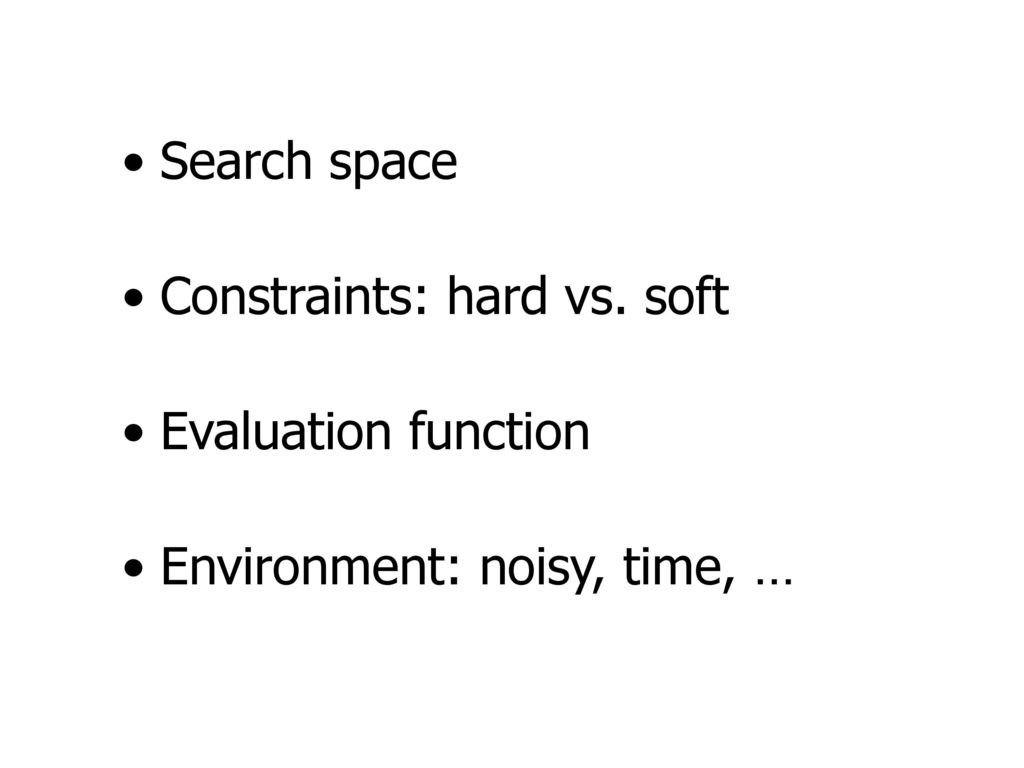

6. Search space
Constraints: hard vs. soft
Evaluation function
Environment: noisy, time, …

7. What is the size of search space of the TSP with 20 cities?

8. Search space = n! / 2n = (n-1)! / 2

9. If 20 cities, 1016 possible solutions

10. What could be constraints for TSP?

11. e.g., must visit or cannot visit order

12. How to design an evaluation fn?

13. Given “15 – 3 – 11 – 19 – 17”
Eval-fn = dist(15,3) + dist(3,11) + … + dist(19,17)

14. What could be environment noise or dynamic factors for TSP?

15. Problem? Model? Solution?

16. Problem  Model  Solution

17. Problem  ModelA  SolutionP

18. Problem  ModelP  SolutionA

19. Q: Which one of the two is better?

20. Problem  ModelP1  SolutionA1…
Problem  ModelPn  SolutionAn

21. Feasible Solution

22. Definition: a solution that satisfies the problem-specific constraints

23. Feasible space (F)  Search space (S)

24. F = S for TSP

25. The “search problem” and “optimization problem” are considered synonymous.

26. The search for the best feasible solution is the optimization problem

27. Problem for TSP

28. Given S, and F  S, find x  F such that eval(x)  eval(y) for all y  F.

29. The search itself knows nothing

30. Model for TSP

31. We need three factors for modeling

32. Representation
Objective function
Evaluation function

33. Representation Objective function Evaluation function
permutation: determine a search space
Objective function
mathematical statement; min dist(x,y)
Evaluation function
map each tour to its corresponding distance

34. There are many classic algorithms that are designed to search spaces for an optimum solution.

35. They fall into two disjoint classes

36. Algorithms that require the evaluation of partially constructed solutions (exhaustive search)
Algorithms that only evaluate complete solutions (local search)

37. We come up with some search terms:
“Uninformed, Informed, Exhaustive,
Local, Blind, Heuristic, Incremental”

38. Exhaustive Search Classical DFS, BFS
Backtracking, branch and bound, A* …

39. We take advantage of an opportunity to organize the search and prune the number of alternative candidates that we need to examine

40. It is often called enumerative search

41. What could be its advantages?

42. It is simple.
The only requirement is to generate every possible solution systematically.
There are ways to reduce the amount of work you have to do.

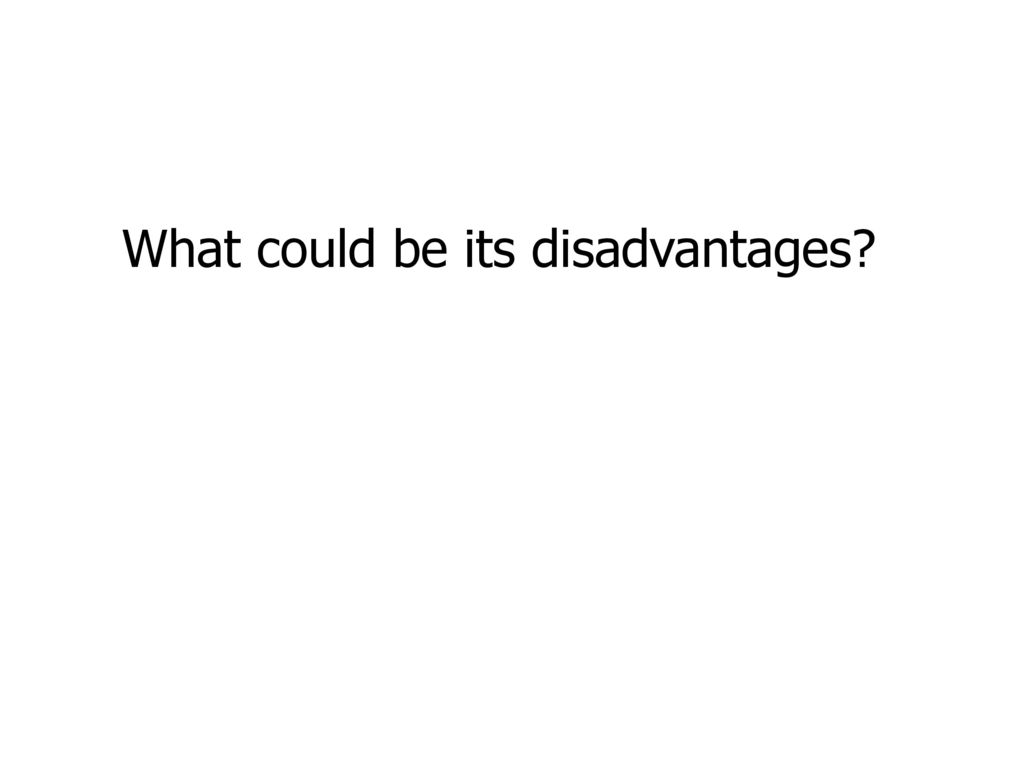

43. What could be its disadvantages?

44. Some permutations might not be feasible unless the TSP is fully connected.
Generating all possible permutations of cities are not practical. Try it for n > 100!
A fast branch and bound is working??? A smart f = g + h is required.

45. How about greedy algorithms?

46. Attack a problem by constructing the complete solution in a series of steps.

47. Amazingly simple.
Assign the values for all of the decision variables one by one and at every step make the best available decision.
Does not always return the optimum solution.

48. Greedy Algorithm for TSP

49. The most intuitive greedy algorithm is based on the nearest-neighbor heuristic

50. Starting from a random city, proceed to the nearest unvisited city and continue until every city has been visited, at which point return to the first city

51. Dynamic Programming
DP works on the principle of finding an overall solution by operating on an intermediate point that lies between where you are now and where you want to go.
Computationally intensive
All-pairs shortest path problem

52. Branch and Bound Idea: If we have a solution with a cost of c,
we know that the next solution to try has a lower bound that is greater than c,
and we minimizing, we don’t have to compute how bad it actually is.
Q: Branch and Bound vs. A*

53. What is local search?

54. In many optimization problems, path (sequence info
In many optimization problems, path (sequence info.) is irrelevant; the goal state itself is the solution

55. e.g., The 0/1 Knapsack Problem

56. State space = set of “complete” solutions
Find optimal solution satisfying constraints
Keep a single “current” solution, try to improve it (iterative improvement search)

57. What is the benefit?
e.g., Hill-climbing, SA, GA, …

58. Local searches focus our attention within a local neighborhood of some particular solution.

59. Procedure of Local Search

60. 1. Pick a solution from the search space and evaluate its merit
1. Pick a solution from the search space and evaluate its merit. Define this as the current solution.
2. Apply a transformation to the current solution to generate a new solution and evaluate its merit.
3. If the new solution is better than the current solution, then exchange it with the current solution; otherwise discard the new solution.
4. Repeat steps 2 and 3 until no transformation in the given set improves the current solution.

61. What is key issues of local search?

62. Type of transformation applied to the current solution

63. Type of transformation: TSP

64. Start with any complete tour, perform pair-wise exchanges
Start with any complete tour, perform pair-wise exchanges. The simplest is called 2-opt (2-interchange)

65. The neighborhood is defined as the set of all tours that can be reached by changing two nonadjacent edges.

66. Your should design the best local transformation for TSP

67. Local search for N-Queens Problem

69. Local Search: Hill-Climbing

71. It is often called as gradient descent

72. We should accept local optima solution

73. What is local optima? Examples?

74. Like climbing Everest in thick fog with amnesia

76. How to avoid local optima?

77. Random-restart may works.
