1. Modeling Cyber Crimes and Investigations for Digital Forensics Education
James Palmer, Cornell University
Brea Llorens, DePauw University
Sarah Kaufman, Mesa Community College
Christopher Gibbons, University of Massachusetts Lowell
MdGayas Chowdhury, University of Massachusetts Lowell
Cindy Chen, University of Massachusetts Lowell
Xinwen Fu, University of Massachusetts Lowell
Computer Science Department University of Massachusetts Lowell

2. Outline Introduction Cybercrime model Cybercrime investigation model
A web-based cyber crime case system
Preliminary survey
Conclusion
Computer Science Department University of Massachusetts Lowell

3. Introduction
The Internet is now a battlefield of cyber war and cybercrimes
Digital forensics education meets the urgent need of cyberspace operations professionals
Network forensics focuses on evidence collection, analysis and suspect identification in a networked environment
Often involves computer forensics – forensics over individual end systems
Computer Science Department University of Massachusetts Lowell

4. Motivation
Current network forensics education lacks a systematic view of real-world cybercrimes and investigations
Individual techniques are taught in class without sufficient real-world case support
Security terms and jargons are all over the media and textbook, often confusing, ad hoc and not systematic
Computer Science Department University of Massachusetts Lowell

5. Contributions
Define three basic crime strategies and model a real world cyber crime case as a sequence of these three basic crime strategies
Define two basic investigation strategies and model a cybercrime investigation as combinations of the two basic investigation strategies
Research and develop a secure cybercrime case web database system with enough case details of both cybercrimes and investigations
Give complete definition of cybercrime classifications from the FBI Internet Crime Complaint Center (IC3)
Computer Science Department University of Massachusetts Lowell

6. Outline Introduction Cybercrime model Cybercrime investigation model
A web-based cyber crime case system
Preliminary survey
Conclusion
Computer Science Department University of Massachusetts Lowell

7. Three Basic Cybercrimes
Computer focused crimes
Computer assisted crimes
Non-cyber attack (i.e. traditional crime)
Computer Science Department University of Massachusetts Lowell

8. Real-world Cybercrime Model
Model: a real-world cybercrime is combination of the three basic crimes
How many types of cybercrimes exist under this model?
A specific crime has n phases and each phase involves a crime. The number of combinations is 3n, e.g. n=5, 243
More complicated: each basic crime may use a variety of crime techniques such as buffer overflow and SQL injection. More combinations!
Computer Science Department University of Massachusetts Lowell

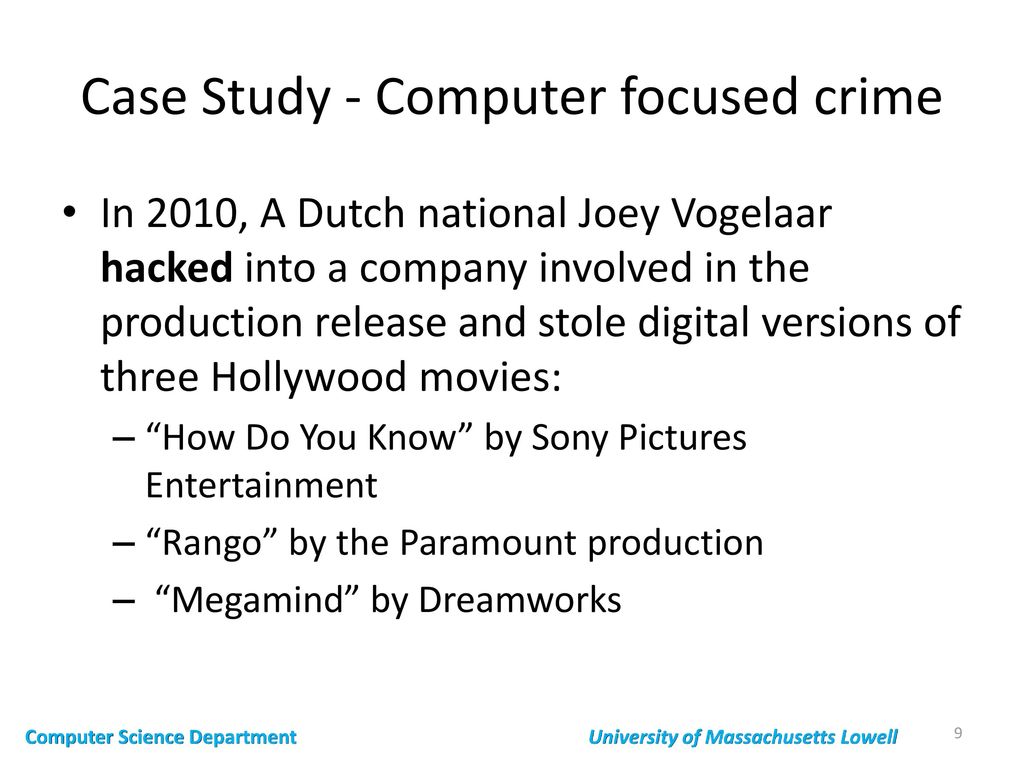

9. Case Study - Computer focused crime
In 2010, A Dutch national Joey Vogelaar hacked into a company involved in the production release and stole digital versions of three Hollywood movies:
“How Do You Know” by Sony Pictures Entertainment
“Rango” by the Paramount production
“Megamind” by Dreamworks
Computer Science Department University of Massachusetts Lowell

10. Computer assisted crime
Ross William Ulbricht created a web site called Silk Road in approximately January 2011 and operated this global dark marketspace
Illegal goods and services including controlled substances, hacking software and services
Silk Road utilized Tor
Tor is abused to provide anonymity for illegal activities, sellers and buyers
Bitcoin was used as the currency of Silk Road
Computer Science Department University of Massachusetts Lowell

11. Non-cyber crime
From at least December 2007 through June 2009, Radostin Paralingov and Ulian Parlingov installed skimming devices at branches of Citibank and JPMorgan Chase Bank in the New York City area
A skimming device is installed over an ATM card reader and steals the card information from the magnetic strip
A hidden camera is often installed on or around the ATM machine to steal the PIN number
Computer Science Department University of Massachusetts Lowell

12. Complicated Case - Credit/debit card fraud
Phase 1 (involving computer assisted crime): From at least as early as September 2010 through at least June 2012, Olanrewaju Abiola and conspirators purchased stolen credit card data on the Internet
If hacking was used, a computer focused crime
Phase 2: (involving traditional crime)
Made counterfeit gift, credit/debit cards, and driver licenses
Bought gift cards and other merchandise at merchant locations like Nordstrom in or around the Washington-Baltimore region
Returned the merchandise to convert stolen data to cash
Computer Science Department University of Massachusetts Lowell

13. Outline Introduction Cybercrime model Cybercrime investigation model
A web-based cyber crime case system
Preliminary survey
Conclusion
Computer Science Department University of Massachusetts Lowell

14. Cybercrime Investigation Model
Laws and constitution protect user privacy and prohibit arbitrary surveillance on the Internet
Traditional investigative technique such as sting operations are necessary, sometimes more efficient
Two broad categories of cybercrime investigative strategies are applied by law enforcement
Computerized techniques
Traditional operations
A combination of these two strategies can be utilized in the investigation of a specific case.
Computer Science Department University of Massachusetts Lowell

15. Traditional Sting Operation: A Case of Sex Trafficking
A sting operation often has the following four elements
1. An opportunity or enticement to commit a crime
2. A targeted likely offender or group of offenders
3. An undercover or hidden police officer
4. A ‘gotcha’ climax when the operation ends with arrests.”
Law enforcement acted as pimps and approached suspects willing to pay for sex with underage girls of years old
After the negotiation was sealed for the deal, five people were arrested during the 2014 Sturgis Motorcycle Rally
Computer Science Department University of Massachusetts Lowell

16. Computerized Techniques
Ardolf hated his neighbor reporting his kiss of his neighbor’s 4 year old son’s lip
He cracked the WEP encryption of his neighbor’s router
Sent various harassing and threatening s including a death threat against Bidenon April 1, 2009, under the name of his neighbor
The law enforcement traced back to the neighbor’s router and found they were innocent
A packet capturing device (sniffer) captured packets when the threat was sent to Biden
The packet content contained Ardolf’s name and IP address
He was sentenced an 18-year prison.
Computer Science Department University of Massachusetts Lowell

17. A Complicated Investigation
United States Of America v. Ross William Ulbricht, master of Silk Road
Traditional Operations
Traditional sting operations: agents registered accounts within Silk Road and purchased over 100 items of controlled substances
U.S Customs and Border Protection (CBP) intercepted counterfeit identity documents from Canada on July 10, 2013 with Ulbricht’s photo with different names
Around July 26, 2013, Homeland Security agents visited the residence of the mail address and encountered Ulbricht
Computer Science Department University of Massachusetts Lowell

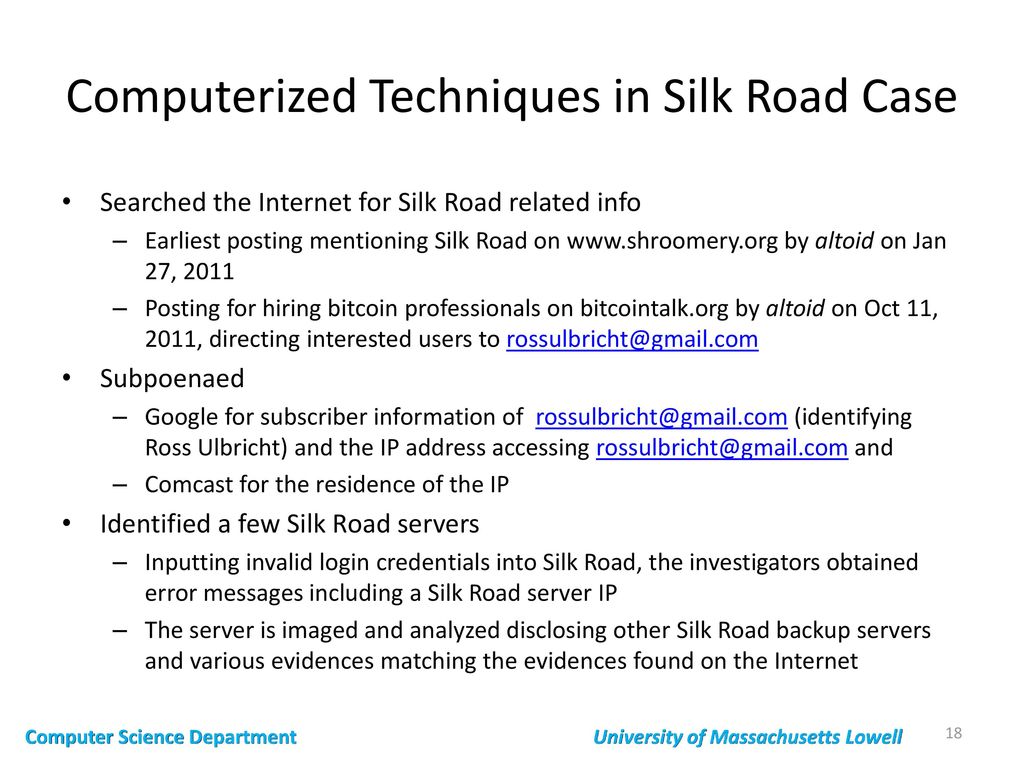

18. Computerized Techniques in Silk Road Case
Searched the Internet for Silk Road related info
Earliest posting mentioning Silk Road on by altoid on Jan 27, 2011
Posting for hiring bitcoin professionals on bitcointalk.org by altoid on Oct 11, 2011, directing interested users to
Subpoenaed
Google for subscriber information of (identifying Ross Ulbricht) and the IP address accessing and
Comcast for the residence of the IP
Identified a few Silk Road servers
Inputting invalid login credentials into Silk Road, the investigators obtained error messages including a Silk Road server IP
The server is imaged and analyzed disclosing other Silk Road backup servers and various evidences matching the evidences found on the Internet
Computer Science Department University of Massachusetts Lowell

19. Outline Introduction Cybercrime model Cybercrime investigation model
A web-based cyber crime case system
Preliminary survey
Conclusion
Computer Science Department University of Massachusetts Lowell

20. Cybercrime Case System
FBI established Internet Crime Complaint Center (IC3) in 2003
Reporting incidents and law enforcement agencies investigating and prosecuting these crimes
IC3 news lacks technique details of crimes or investigations
We have been referring to Public Access to Court Electronic Records (PACER) [PACER16] and RECAP to obtain those details and record them into the online database
We expect the website will generate a great impact on both education and research in academics
Computer Science Department University of Massachusetts Lowell

21. Database Structure
crime_catgory: categories defined by FBI IC3 with their definition
technique: records both attack and investigation techniques
users: used for access control
cases_has_technique: records the technique involved in a case
cases: case description and its category
Computer Science Department University of Massachusetts Lowell

22. First Version Developed by 2015 REU site students and Xinwen Fu
OWASP Zed Attack Proxy (ZAP) Application used for scanning and finding vulnerabilities
ZAP was developed by Open Web Application Security Project (OWASP)
Computer Science Department University of Massachusetts Lowell

23. Sample Scanning Results
Computer Science Department University of Massachusetts Lowell

24. Current Version Guess it is secure
Computer Science Department University of Massachusetts Lowell

25. Outline Introduction Cybercrime model Cybercrime investigation model
A web-based cyber crime case system
Preliminary survey
Conclusion
Computer Science Department University of Massachusetts Lowell

26. Preliminary Survey Results
We have introduced the cyber crime and investigation models and case studies to two MSIT (Master of Science in Information Technology) classes on digital forensics in Fall 2015 and Spring 2016
The two classes had 48 students in total
They all agreed that the models and case study “Help much understand digital forensics”
More rigid survey study will be performed for both undergraduates and graduates as future work
Computer Science Department University of Massachusetts Lowell

27. Outline Introduction Cybercrime model Cybercrime investigation model
A web-based cyber crime case system
Preliminary survey
Conclusion
Computer Science Department University of Massachusetts Lowell

28. Conclusion
Comprehensive classification of cybercrime strategies, cybercrime investigation strategies
A cybercrime in a case as a combination of computer assisted strategy, computer focused strategy and non-cyber strategy. Very manageable!
A cybercrime investigation as a combination of computerized strategies and traditional operations. Very manageable!
Web based system documenting and classifying cases
Easy venue for searching related cases
Technical details from PACER, RECAP and others
Populated with real-life examples of cybercrime
Refer to the paper for definitions of FBI IC3 categories
Computer Science Department University of Massachusetts Lowell

29. Major IC3 Cybercrime Categories
Advance Fee Fraud
Auction Fraud
Blackmail/Extortion
Charity Fraud
Consumer Complaint (non-auction)
Counterfeiting/Forgery:
Credit/Debit Card Fraud
Computer Damage (Destruction/Damage/Vandalism of Property)
Drug/Narcotic Offenses
Business/Employment Fraud
FBI Scams
Gambling Offenses
ID Theft
Illegal Business
Intimidation
Investment Fraud
Miscellaneous Fraud
Non-Delivery of Merchandise (non-auction)
Overpayment Fraud
Pornography/Obscene Material
Prostitution (NIBRS: Prostitution Offenses
Relationship Fraud
Rental Fraud
Spam
Stolen Property Offenses
Terrorist Threat
