1. Aprovechando XML dentro de la base de datos con SQL Server 2005

2. 2 SQL Server 2005 para desarrolladores Solid Quality Learning Adolfo Wiernik adolfo@wiernik.net Microsoft Regional Director - http://msdn.microsoft.com/isv/rdhttp://msdn.microsoft.com/isv/rd Mentor Solid Quality Learning - http://www.solidqualitylearning.comhttp://www.solidqualitylearning.com Fundador, Costa Rica User Group.NET - http://www.crug.nethttp://www.crug.net Orador INETA Latinoamérica - http://www.ineta.org/latamhttp://www.ineta.org/latam Blog - http://www.wiernik.nethttp://www.wiernik.net Jose Ricardo Ribeiro ricardor@microsoft.com En Microsoft desde 1998 Desde el 2003 - Regional Program Manager SQL Server Latinoamérica

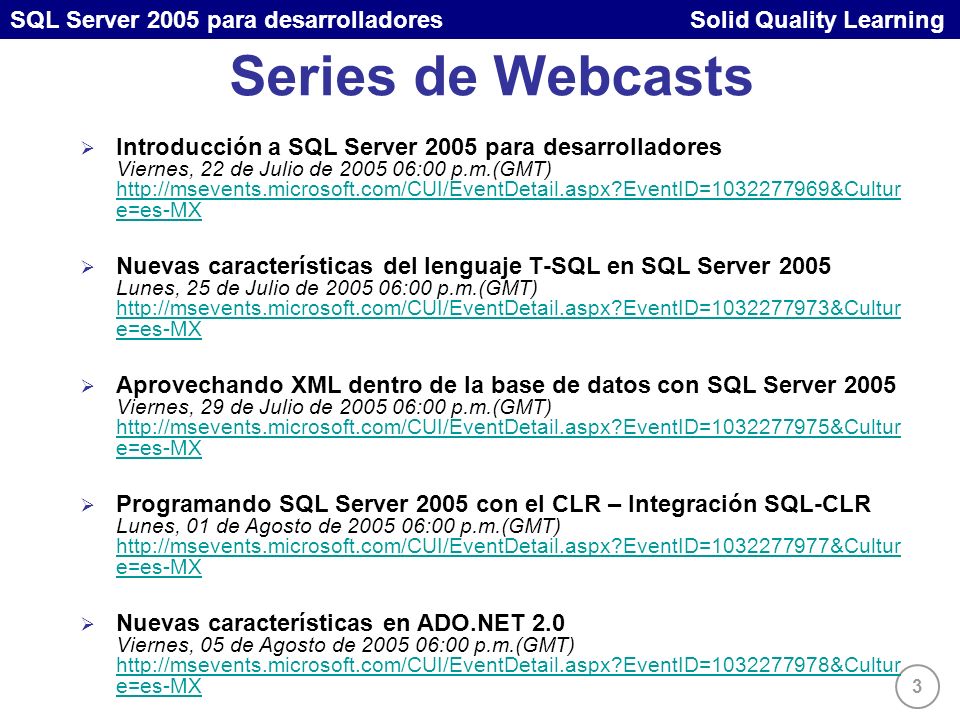

3. 3 SQL Server 2005 para desarrolladores Solid Quality Learning Series de Webcasts Introducción a SQL Server 2005 para desarrolladores Viernes, 22 de Julio de 2005 06:00 p.m.(GMT) http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277969&Cultur e=es-MX http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277969&Cultur e=es-MX Nuevas características del lenguaje T-SQL en SQL Server 2005 Lunes, 25 de Julio de 2005 06:00 p.m.(GMT) http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277973&Cultur e=es-MX http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277973&Cultur e=es-MX Aprovechando XML dentro de la base de datos con SQL Server 2005 Viernes, 29 de Julio de 2005 06:00 p.m.(GMT) http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277975&Cultur e=es-MX http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277975&Cultur e=es-MX Programando SQL Server 2005 con el CLR – Integración SQL-CLR Lunes, 01 de Agosto de 2005 06:00 p.m.(GMT) http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277977&Cultur e=es-MX http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277977&Cultur e=es-MX Nuevas características en ADO.NET 2.0 Viernes, 05 de Agosto de 2005 06:00 p.m.(GMT) http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277978&Cultur e=es-MX http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277978&Cultur e=es-MX

4. 4 SQL Server 2005 para desarrolladores Solid Quality Learning.NET Framework Common Language Runtime Integration User-defined Aggregates User-defined Data Types User-defined Functions SQL Server.NET Data Provider Extended Triggers Data Types Managed SQL Types New XML Datatype Varchar (MAX) Varbinary (MAX) XML XQUERY Support XML Data Manipulation Language FOR XML Enhancements XML Schema (XSD) Support MSXML 6.0 (Native).Net XML Framework Full-text Search Indexing of XML Datatype MDAC SNAC Microsoft Installer base setup ADO.NET 2.0 Notification Support Object Model enhancements SQL Client.NET Data Provider Server Cursor Support Asynchronous Execution System.Transactions Security Separation of Users and Schema Data encryption primitives Administration SQL Management Objects (SMO) Analysis Management Objects (AMO) Replication Management Objects (RMO) T-SQL Recursive Queries Common Table Expressions PIVOT – UNPIVOT Operators APPLY Operator Exception Handling SQL Server Engine SQL Service Broker HTTP Support (Native HTTP) Multiple Active Result Sets (MARS) Snapshot Isolation Level Reporting Services Multiple Output Formats Parameters (Static, Dynamic, Hierarchical) Bulk Delivery of Personalized Content Support Multiple Data Sources STS (Web Parts, Doc Libraries) Visual Design Tool Charting, Sorting, Filtering, Drill- Through Scheduling, Caching Complete Scripting Engine Scale Out architecture Open XML Report Definition Notification Services SQL Server Mobile Edition Nuevas Características para Desarrollo

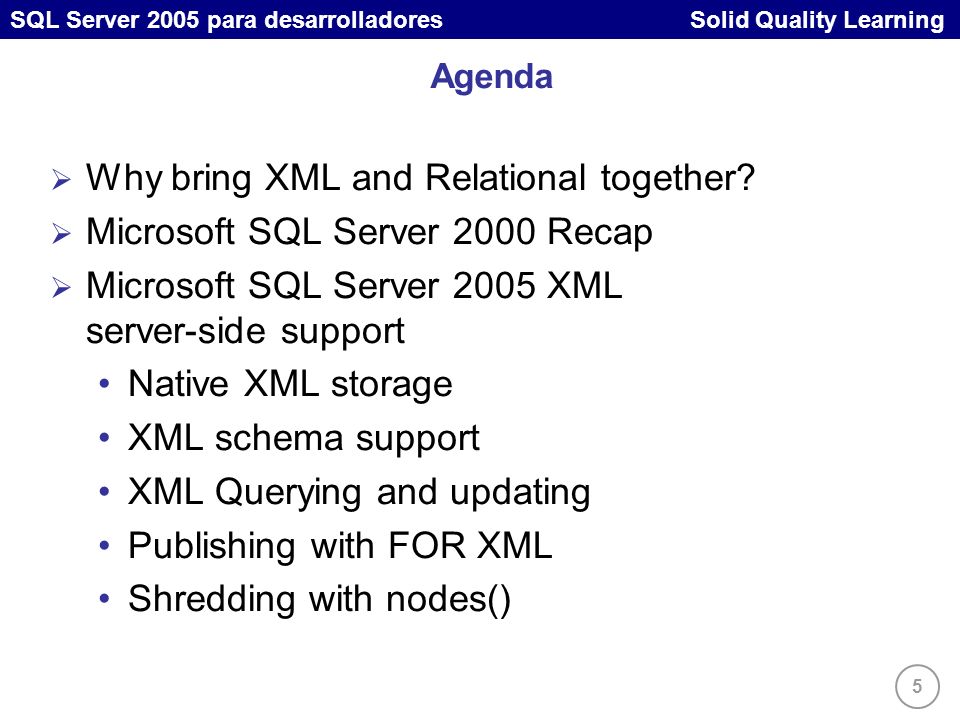

5. 5 SQL Server 2005 para desarrolladores Solid Quality Learning Agenda Why bring XML and Relational together? Microsoft SQL Server 2000 Recap Microsoft SQL Server 2005 XML server-side support Native XML storage XML schema support XML Querying and updating Publishing with FOR XML Shredding with nodes()

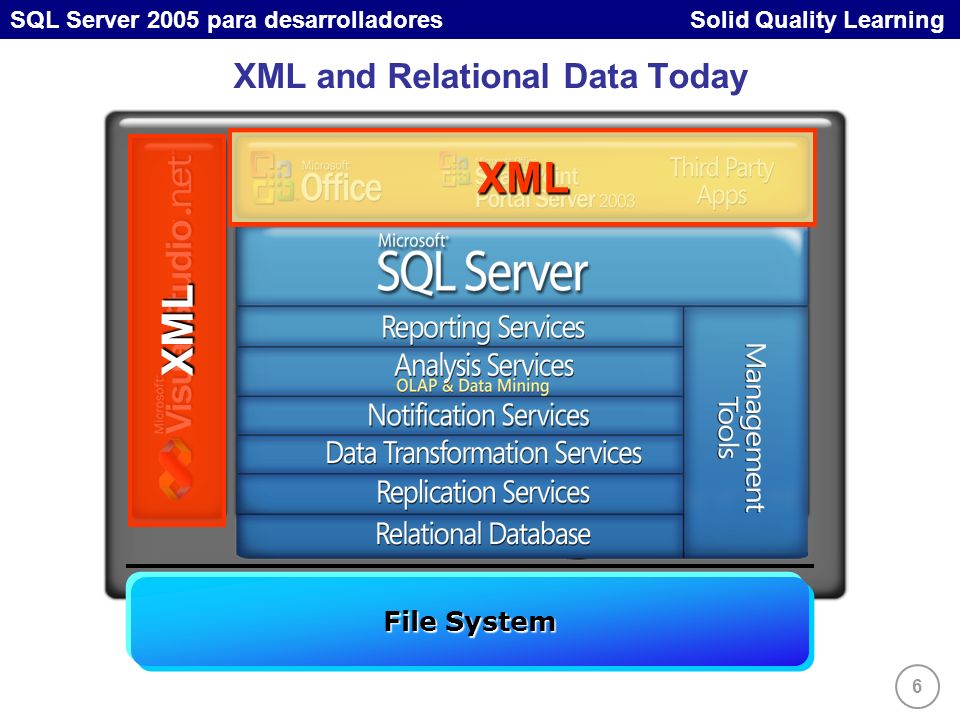

6. 6 SQL Server 2005 para desarrolladores Solid Quality Learning File System XML XML XML XML XML and Relational Data Today

7. 7 SQL Server 2005 para desarrolladores Solid Quality Learning XML Self-describing: This is an example. Complex data Trees, recursive, graph Structured Data: highly regular, homogeneous structures Semi-structured Data: heterogeneous, sparse data Markup Data: documents/content markup Document ordering Schema/Type system Schema-less Optional Schema: semi-structured, structured Extensible Annotations, multiple schemas (late binding)

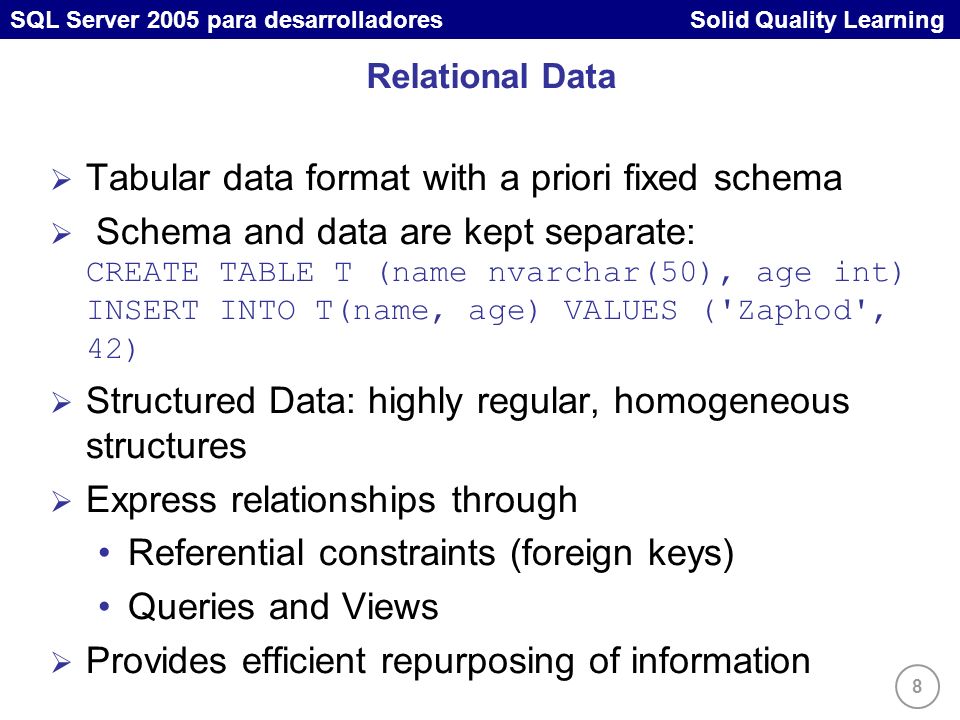

8. 8 SQL Server 2005 para desarrolladores Solid Quality Learning Relational Data Tabular data format with a priori fixed schema Schema and data are kept separate: CREATE TABLE T (name nvarchar(50), age int) INSERT INTO T(name, age) VALUES ('Zaphod', 42) Structured Data: highly regular, homogeneous structures Express relationships through Referential constraints (foreign keys) Queries and Views Provides efficient repurposing of information

9. 9 SQL Server 2005 para desarrolladores Solid Quality Learning XML Scenarios Data Exchange Business-to-business (B2B), business-to-consumer (B2C), application-to- application (A2A) XML is ubiquitous, extensible, platform independent transport format Document Management Office XML Documents Data/view separation: Documents, style sheets, transforms Messaging Simple Object Access Protocol (SOAP) Mid-Tier Collaboration Ad-hoc modeling storing objects with sparse and multi-valued properties that do not fit well in the traditional relational schemata Transport, Store, and Query XML dataTransport, Store, and Query XML data

10. 10 SQL Server 2005 para desarrolladores Solid Quality Learning Why Bring XML and Relational Data Together? XML for relational data Rel XML Native XML Store in RDBMS + XML dt XML, relational and semi-structured data Document Mgmt Rel XML XML in SQL Server 2000 (incl SQLXML) XML in SQL Server 2005 (incl SQLXML) Native XML and semi-structured data DBMS

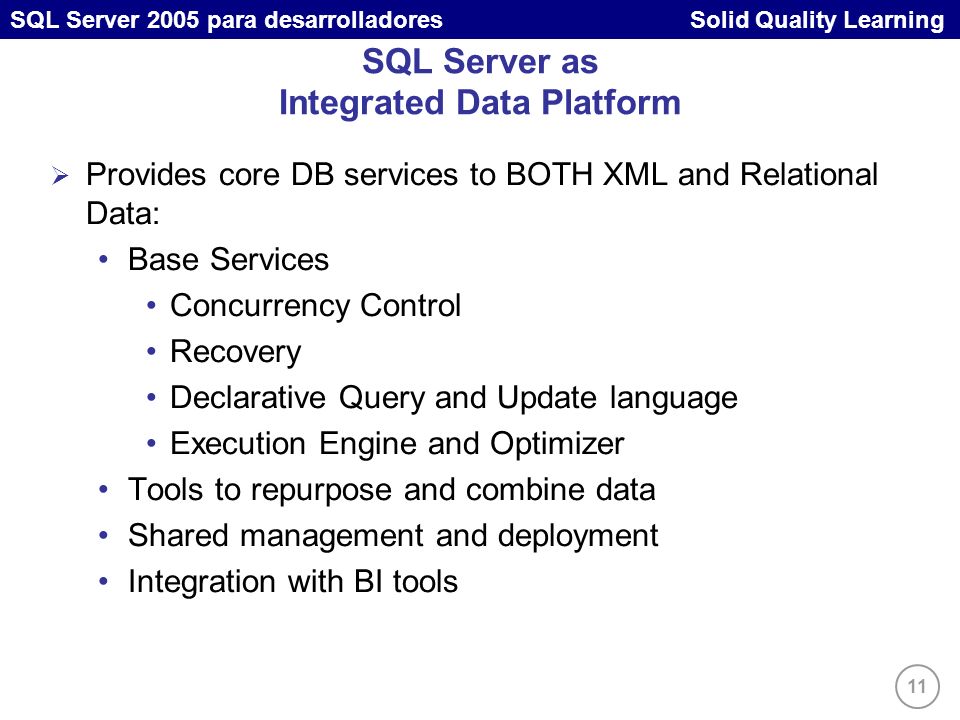

11. 11 SQL Server 2005 para desarrolladores Solid Quality Learning SQL Server as Integrated Data Platform Provides core DB services to BOTH XML and Relational Data: Base Services Concurrency Control Recovery Declarative Query and Update language Execution Engine and Optimizer Tools to repurpose and combine data Shared management and deployment Integration with BI tools

12. 12 SQL Server 2005 para desarrolladores Solid Quality Learning XML or Relational? Data CharacteristicsXMLRelational Flat Structured Data Hierarchical Structured Data Not First Class: PK-FK with cascading delete Semi-structured Data Not First Class Mark-up Data Not First Class: FTS Order preservation Not First Class Recursion (Recursive query)

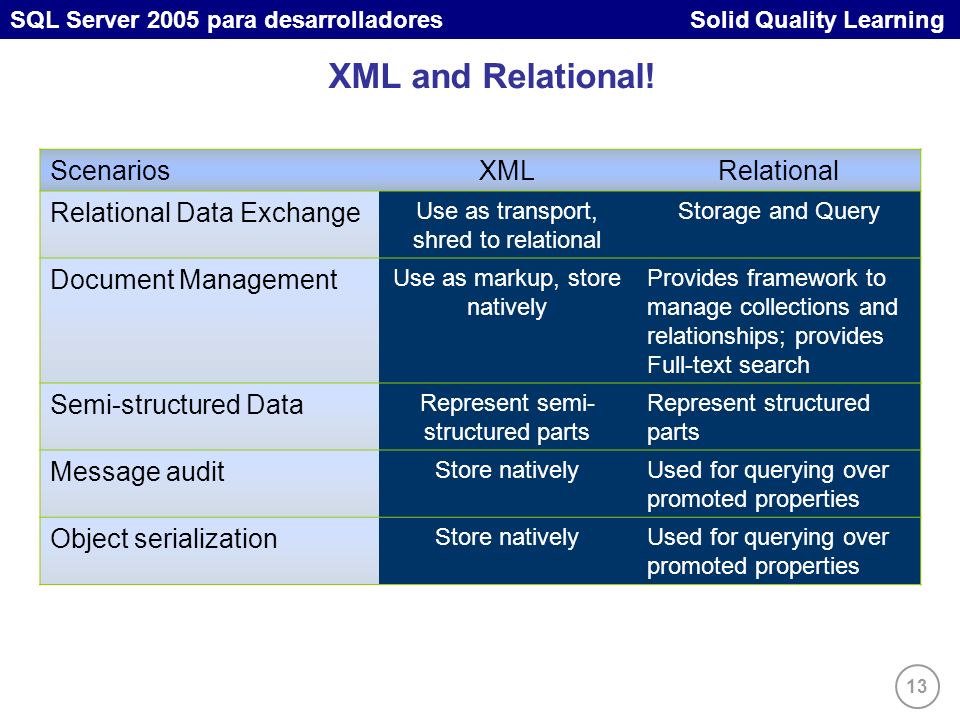

13. 13 SQL Server 2005 para desarrolladores Solid Quality Learning XML and Relational! ScenariosXMLRelational Relational Data Exchange Use as transport, shred to relational Storage and Query Document Management Use as markup, store natively Provides framework to manage collections and relationships; provides Full-text search Semi-structured Data Represent semi- structured parts Represent structured parts Message audit Store natively Used for querying over promoted properties Object serialization Store natively Used for querying over promoted properties

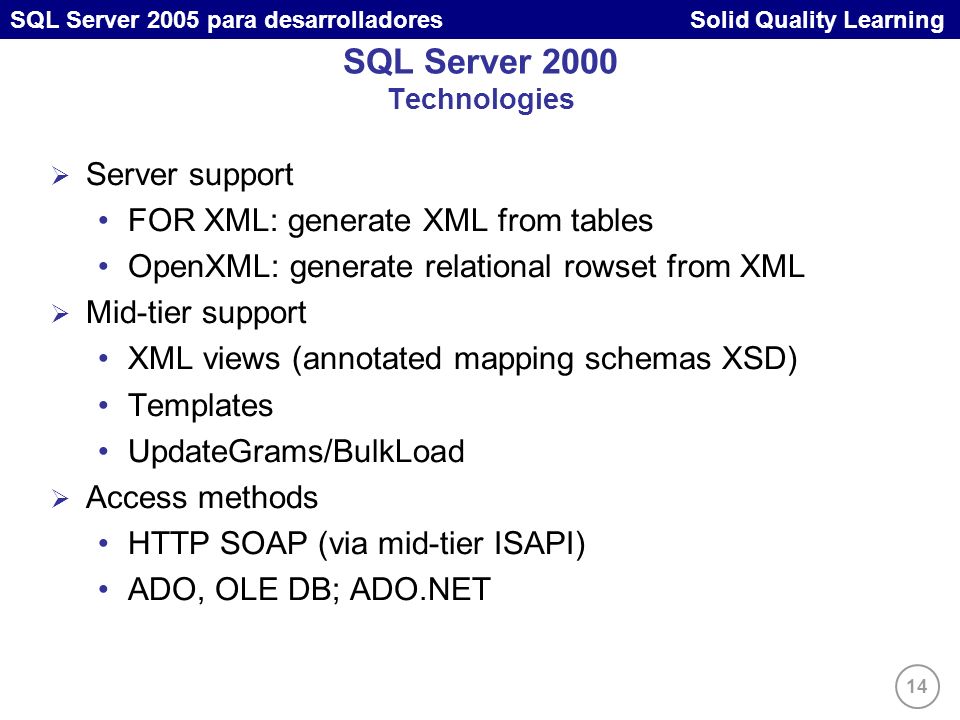

14. 14 SQL Server 2005 para desarrolladores Solid Quality Learning SQL Server 2000 Technologies Server support FOR XML: generate XML from tables OpenXML: generate relational rowset from XML Mid-tier support XML views (annotated mapping schemas XSD) Templates UpdateGrams/BulkLoad Access methods HTTP SOAP (via mid-tier ISAPI) ADO, OLE DB; ADO.NET

15. 15 SQL Server 2005 para desarrolladores Solid Quality Learning XML Datatype Native SQL type Use for column, variable or parameter Can represent: XML 1.0 documents XML 1.0 fragments (0 to n element nodes and text nodes at top) Can be constrained by XML Schema collection Queryable with XQuery Updateable with XML-DML XML Indexing Well-formed and validation checks

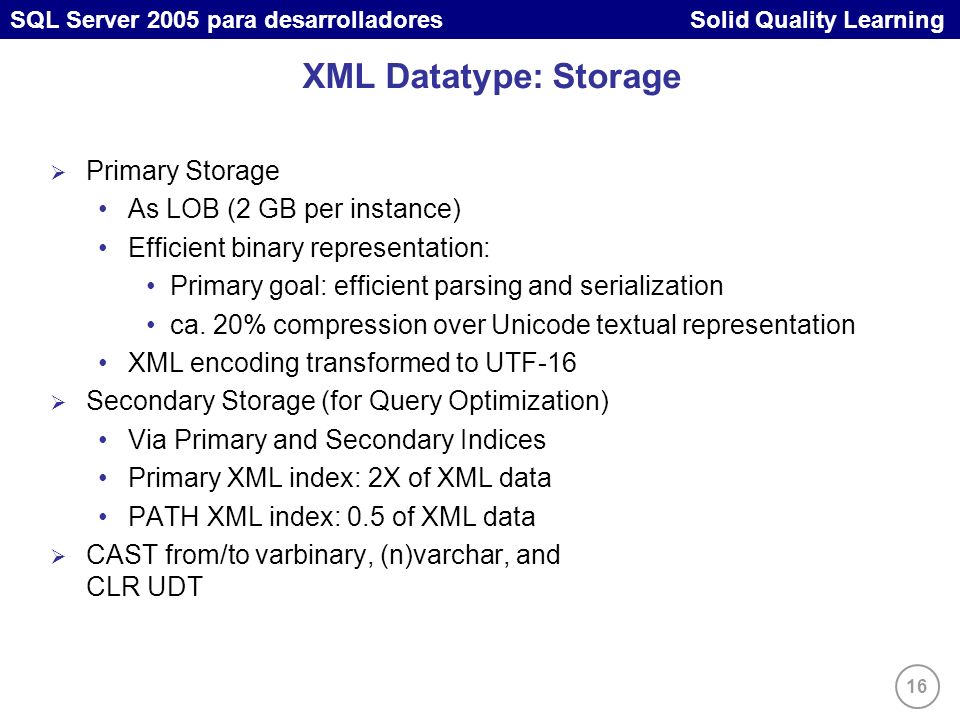

16. 16 SQL Server 2005 para desarrolladores Solid Quality Learning XML Datatype: Storage Primary Storage As LOB (2 GB per instance) Efficient binary representation: Primary goal: efficient parsing and serialization ca. 20% compression over Unicode textual representation XML encoding transformed to UTF-16 Secondary Storage (for Query Optimization) Via Primary and Secondary Indices Primary XML index: 2X of XML data PATH XML index: 0.5 of XML data CAST from/to varbinary, (n)varchar, and CLR UDT

17. 17 SQL Server 2005 para desarrolladores Solid Quality Learning XML Schema Support XML Schema (World Wide Web Consortium [W3C] standard) Rich mechanism for type definitions and validation constraints Can be used to constrain XML documents Benefits of typed data Guarantees shape of data Allows storage and query optimizations XML type system Store XML schemas in system metadata Does not preserve annotations

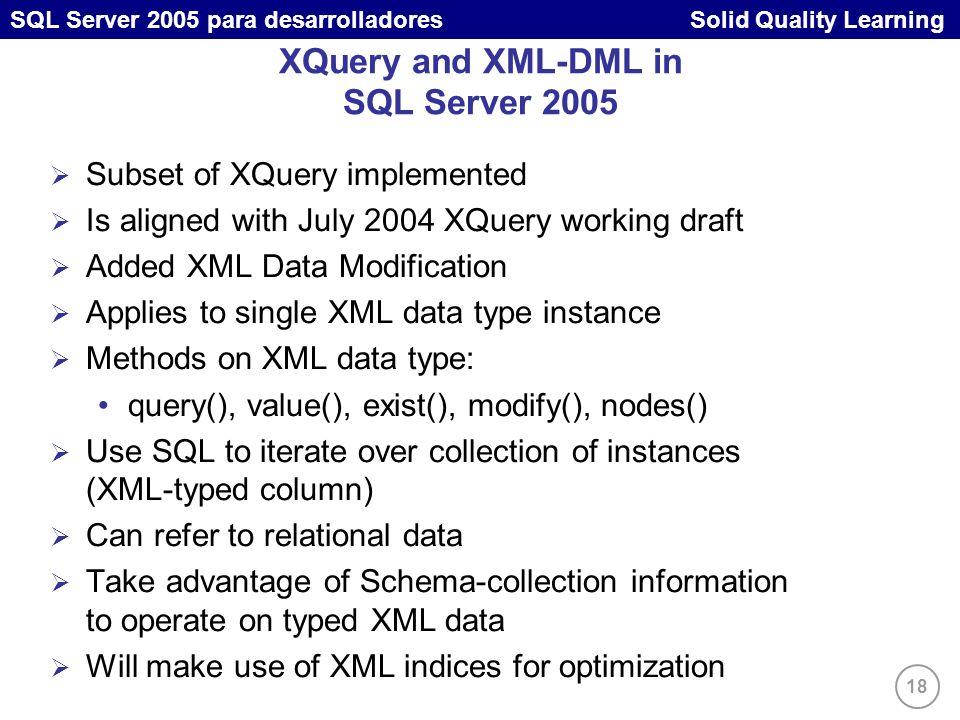

18. 18 SQL Server 2005 para desarrolladores Solid Quality Learning XQuery and XML-DML in SQL Server 2005 Subset of XQuery implemented Is aligned with July 2004 XQuery working draft Added XML Data Modification Applies to single XML data type instance Methods on XML data type: query(), value(), exist(), modify(), nodes() Use SQL to iterate over collection of instances (XML-typed column) Can refer to relational data Take advantage of Schema-collection information to operate on typed XML data Will make use of XML indices for optimization

19. 19 SQL Server 2005 para desarrolladores Solid Quality Learning XML Query XQuery: query XML documents and data Standards-based: W3C working draft In document 123, return section heading of section 3 and later SELECT id, xDoc.query(' for $s in /doc[@id = 123]//sec[@num >= 3] return {data($s/heading)} ') FROM docs

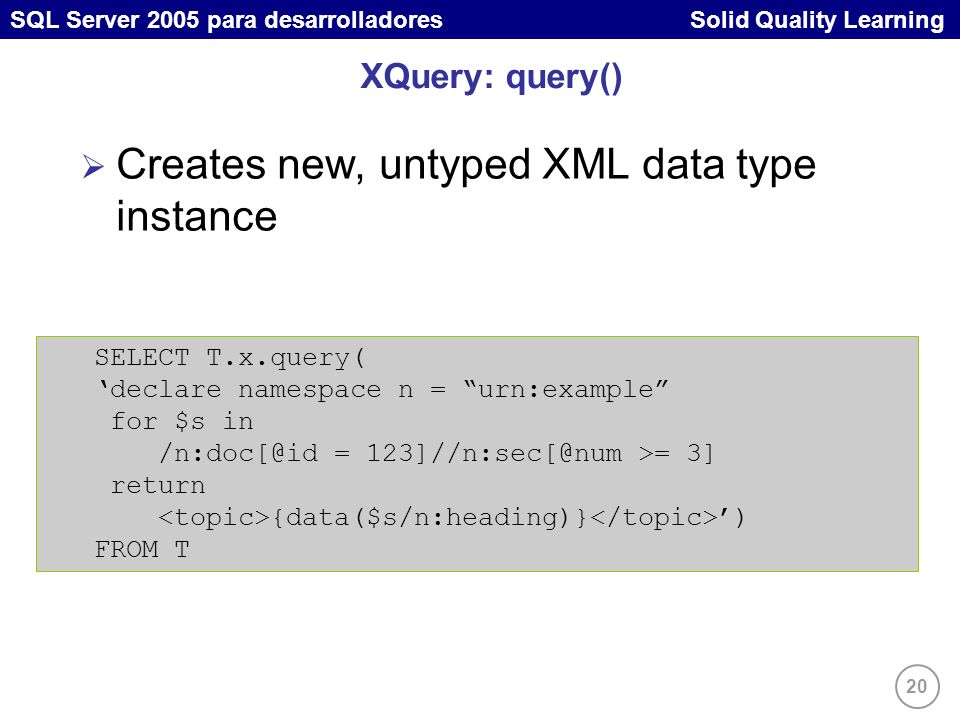

20. 20 SQL Server 2005 para desarrolladores Solid Quality Learning XQuery: query() Creates new, untyped XML data type instance SELECT T.x.query( declare namespace n = urn:example for $s in /n:doc[@id = 123]//n:sec[@num >= 3] return {data($s/n:heading)} ) FROM T

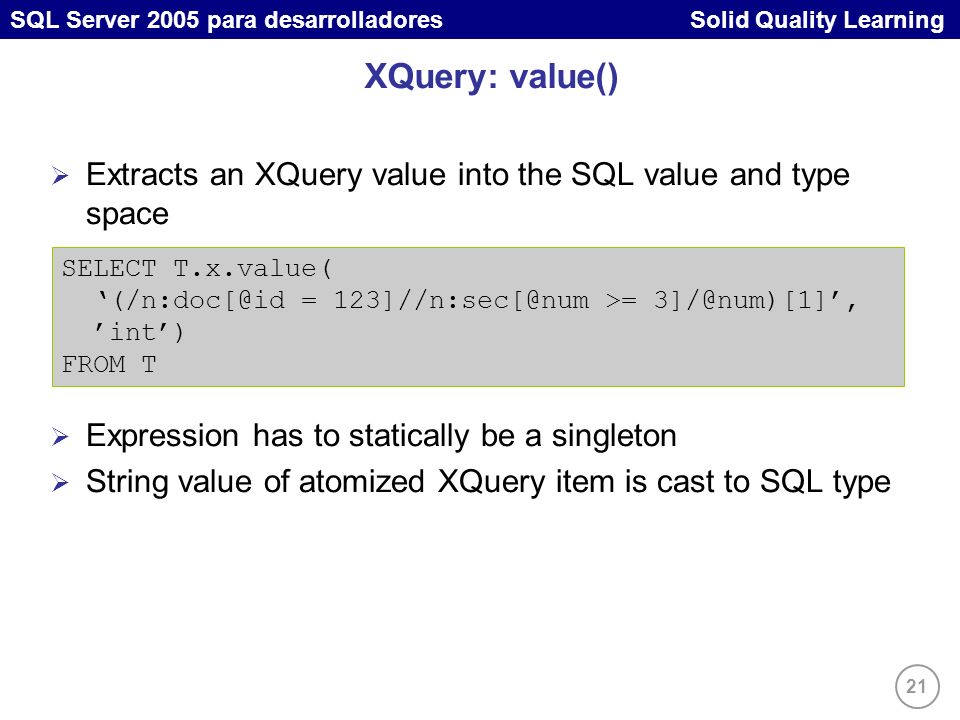

21. 21 SQL Server 2005 para desarrolladores Solid Quality Learning XQuery: value() Extracts an XQuery value into the SQL value and type space Expression has to statically be a singleton String value of atomized XQuery item is cast to SQL type SELECT T.x.value( (/n:doc[@id = 123]//n:sec[@num >= 3]/@num)[1], int) FROM T

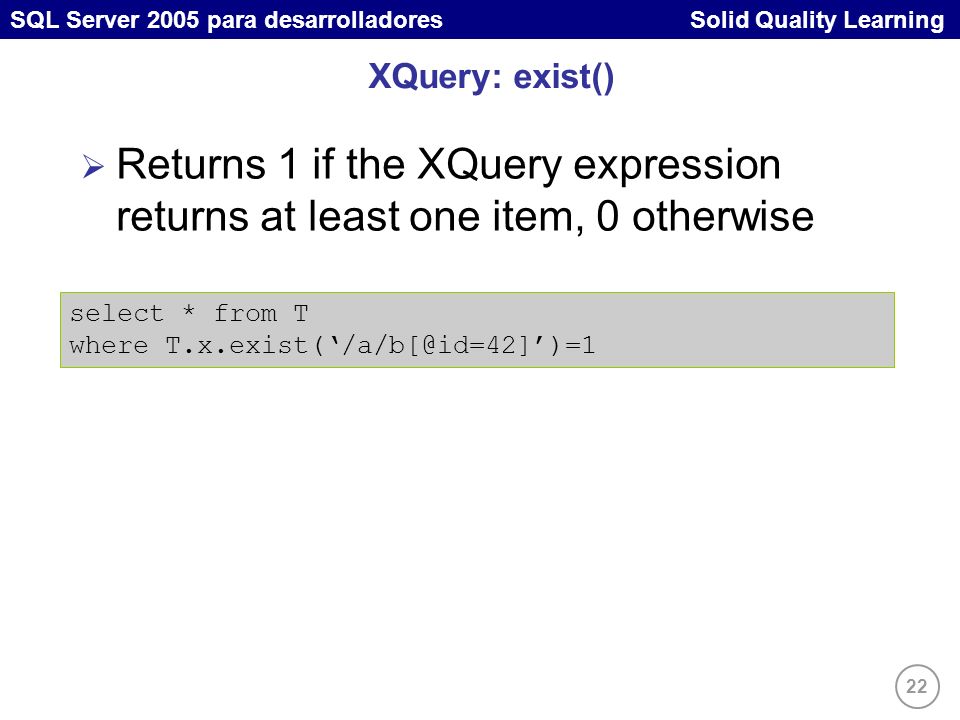

22. 22 SQL Server 2005 para desarrolladores Solid Quality Learning XQuery: exist() Returns 1 if the XQuery expression returns at least one item, 0 otherwise select * from T where T.x.exist(/a/b[@id=42])=1

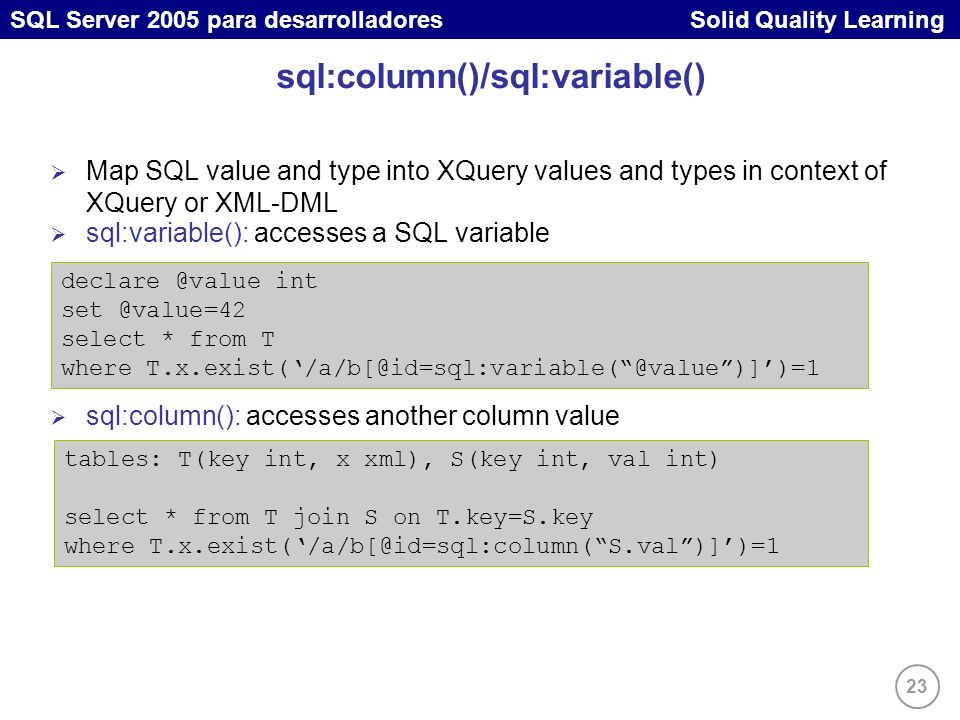

23. 23 SQL Server 2005 para desarrolladores Solid Quality Learning sql:column()/sql:variable() Map SQL value and type into XQuery values and types in context of XQuery or XML-DML sql:variable(): accesses a SQL variable sql:column(): accesses another column value declare @value int set @value=42 select * from T where T.x.exist(/a/b[@id=sql:variable(@value)])=1 tables: T(key int, x xml), S(key int, val int) select * from T join S on T.key=S.key where T.x.exist(/a/b[@id=sql:column(S.val)])=1

24. 24 SQL Server 2005 para desarrolladores Solid Quality Learning XML Indices Create XML index on XML column CREATE PRIMARY XML INDEX idx_1 ON docs (xDoc) Creates secondary indexes on tags, values, paths Speeds up queries Results can be served directly from index Entire query is optimized Same award winning cost based optimizer Indexes are used as available Indices can be ALTERed and DROPed

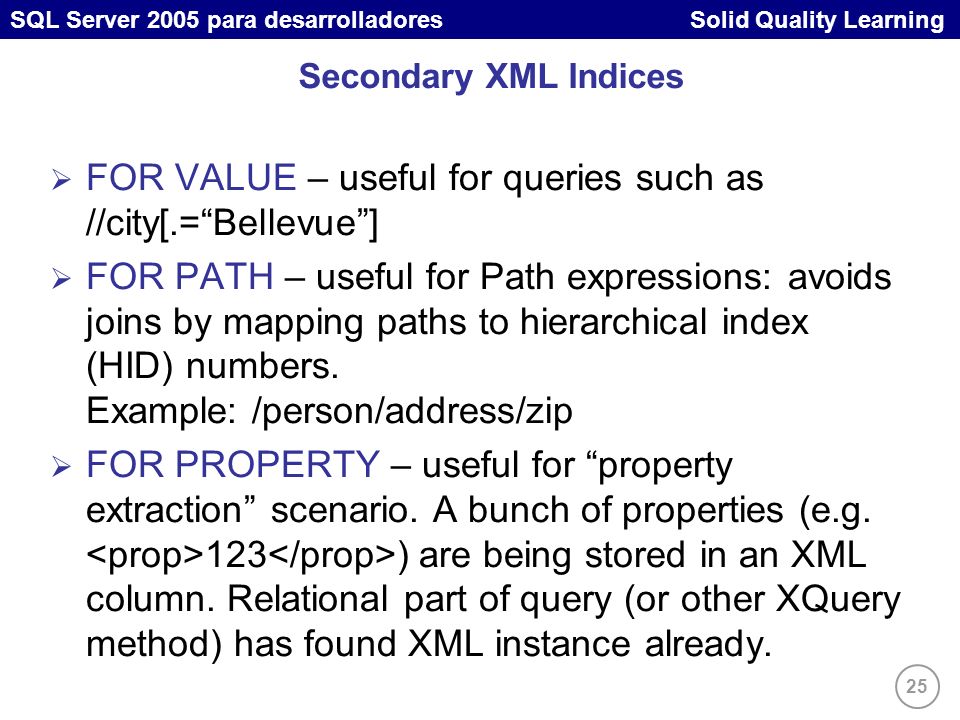

25. 25 SQL Server 2005 para desarrolladores Solid Quality Learning Secondary XML Indices FOR VALUE – useful for queries such as //city[.=Bellevue] FOR PATH – useful for Path expressions: avoids joins by mapping paths to hierarchical index (HID) numbers. Example: /person/address/zip FOR PROPERTY – useful for property extraction scenario. A bunch of properties (e.g. 123 ) are being stored in an XML column. Relational part of query (or other XQuery method) has found XML instance already.

26. 26 SQL Server 2005 para desarrolladores Solid Quality Learning Shredding and Publishing XML Server-side: Publishing: FOR XML Shredding: nodes() method or OpenXML Client-side: SQLXML 4.0 XML Bulkload object ADO.NET DataSet SQL Server Integration Services

27. 27 SQL Server 2005 para desarrolladores Solid Quality Learning FOR XML and OpenXML Backward compatible with SS2K FOR XML New directive TYPE returns XML data type Nested FOR XML Assignment to XML data type Support for new data types New PATH mode WITH XMLNAMESPACES (for FOR XML and XQuery) Requires explicit cast of CLR UDT to XML element-centric raw mode inline XSD for raw and auto NULL as xsi:nil or absence for element-centric modes OpenXML Based on MSXML 3.0 engine XML overflow column New types [n]varchar(max), varbinary(max), XML

28. 28 SQL Server 2005 para desarrolladores Solid Quality Learning XQuery: nodes() Provides OpenXML-like functionality on XML data type column in SQL Server 2005 Returns a row per selected node Each row contains a special XML data type instance that: Has the context node set to the selected node Preserves the original structure and types Can only be used with the XQuery methods (not modify()), count(*), and IS (NOT) NULL

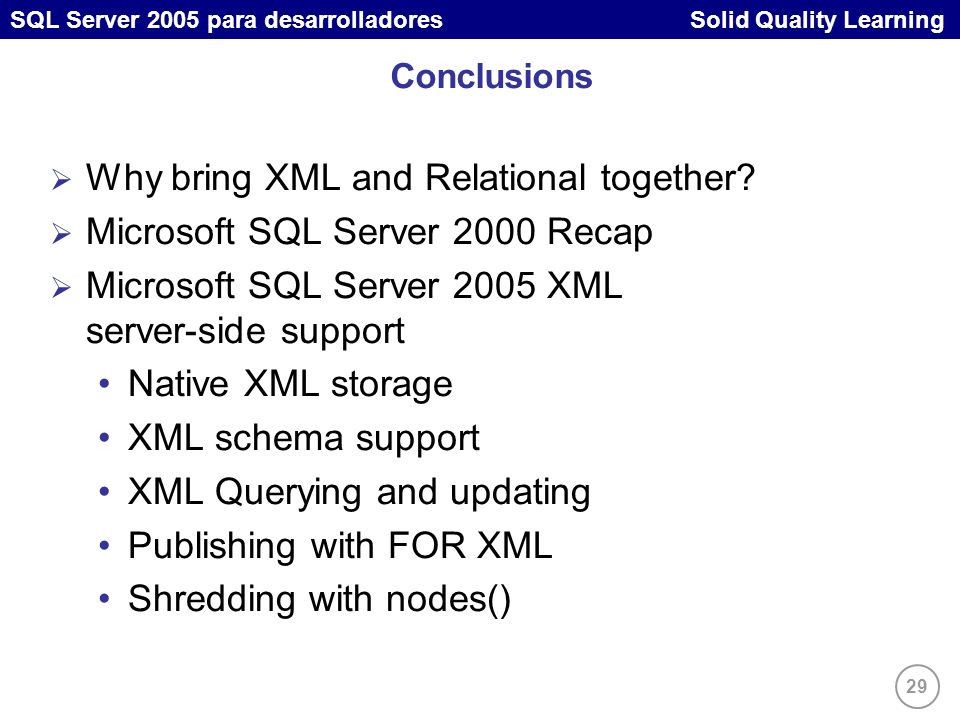

29. 29 SQL Server 2005 para desarrolladores Solid Quality Learning Conclusions Why bring XML and Relational together? Microsoft SQL Server 2000 Recap Microsoft SQL Server 2005 XML server-side support Native XML storage XML schema support XML Querying and updating Publishing with FOR XML Shredding with nodes()

30. 30 SQL Server 2005 para desarrolladores Solid Quality Learning Resources SQL Server webpage: http://msdn.microsoft.com/SQL/2005/http://msdn.microsoft.com/SQL/2005/ XML and Databases whitepapers: http://msdn.microsoft.com/XML/BuildingXML/XMLandDatabase/ http://msdn.microsoft.com/XML/BuildingXML/XMLandDatabase/ Online WebCasts: http://msdn.microsoft.com/sql/2005/2005webcasts/ http://msdn.microsoft.com/sql/2005/2005webcasts/ Newsgroups & Forum: microsoft.private.sqlserver2005.xml http://communities.microsoft.com/newsgroups/default.asp? ICP=sqlserver2005&sLCID=us http://forums.microsoft.com/msdn/ShowForum.aspx? ForumID=89 http://communities.microsoft.com/newsgroups/default.asp? ICP=sqlserver2005&sLCID=us http://forums.microsoft.com/msdn/ShowForum.aspx? ForumID=89

31. 31 SQL Server 2005 para desarrolladores Solid Quality Learning Series de Webcasts Introducción a SQL Server 2005 para desarrolladores Viernes, 22 de Julio de 2005 06:00 p.m.(GMT) http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277969&Cultur e=es-MX http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277969&Cultur e=es-MX Nuevas características del lenguaje T-SQL en SQL Server 2005 Lunes, 25 de Julio de 2005 06:00 p.m.(GMT) http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277973&Cultur e=es-MX http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277973&Cultur e=es-MX Aprovechando XML dentro de la base de datos con SQL Server 2005 Viernes, 29 de Julio de 2005 06:00 p.m.(GMT) http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277975&Cultur e=es-MX http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277975&Cultur e=es-MX Programando SQL Server 2005 con el CLR – Integración SQL-CLR Lunes, 01 de Agosto de 2005 06:00 p.m.(GMT) http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277977&Cultur e=es-MX http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277977&Cultur e=es-MX Nuevas características en ADO.NET 2.0 Viernes, 05 de Agosto de 2005 06:00 p.m.(GMT) http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277978&Cultur e=es-MX http://msevents.microsoft.com/CUI/EventDetail.aspx?EventID=1032277978&Cultur e=es-MX

32. Gracias adolfo@wiernik.net adolfo@solidqualitylearning.com Weblog: www.wiernik.netwww.wiernik.net
