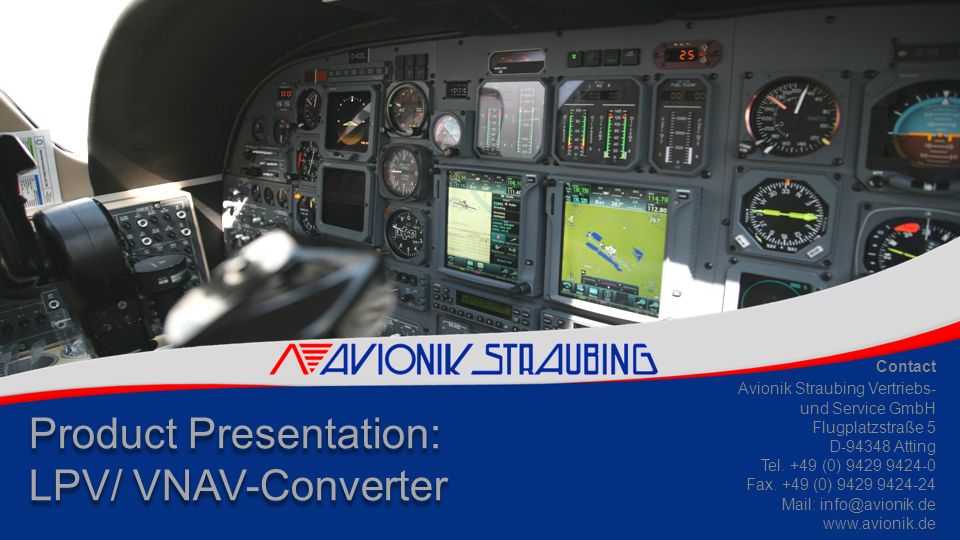

1 Contact Avionik Straubing Vertriebs- und Service GmbH Flugplatzstraße 5 D-94348 Atting Tel. +49 (0) 9429 9424-0 Fax. +49 (0) 9429 9424-24 Mail: info@avionik.de www.avionik.de Product Presentation: LPV/ VNAV-Converter

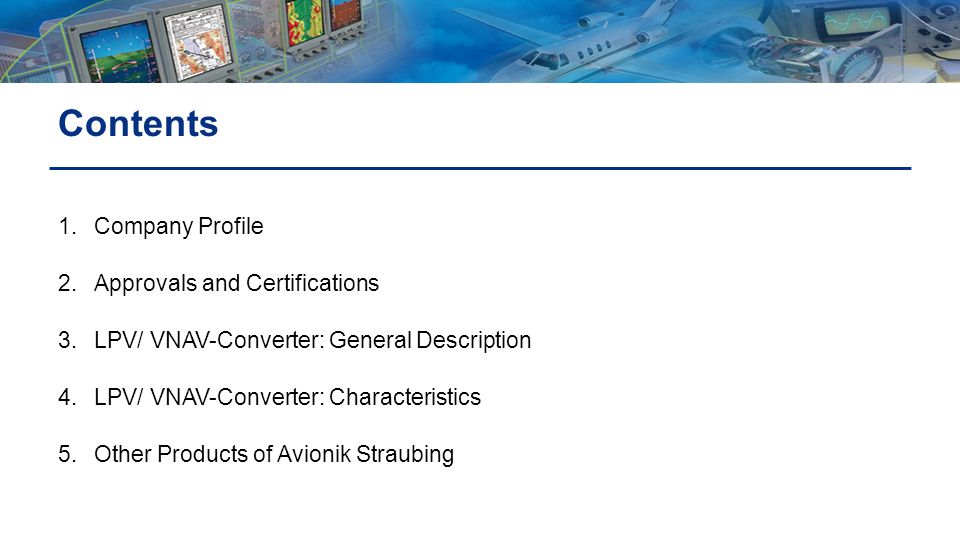

2 Contents 1.Company Profile 2.Approvals and Certifications 3.LPV/ VNAV-Converter: General Description 4.LPV/ VNAV-Converter: Characteristics 5.Other Products of Avionik Straubing

3 Company Profile Founded in 1977 Operating at the airports Straubing-Wallmuehle (EDMS) and Egelsbach (EDFE) certified maintenance and repair station Avionics equipment repair, maintenance and overhaul Services for complete general aviation up to the executive and business sector Developed from small origins, now one of the leading avionic facilities in Europe

4 Dealership, Sales Agency and more for…

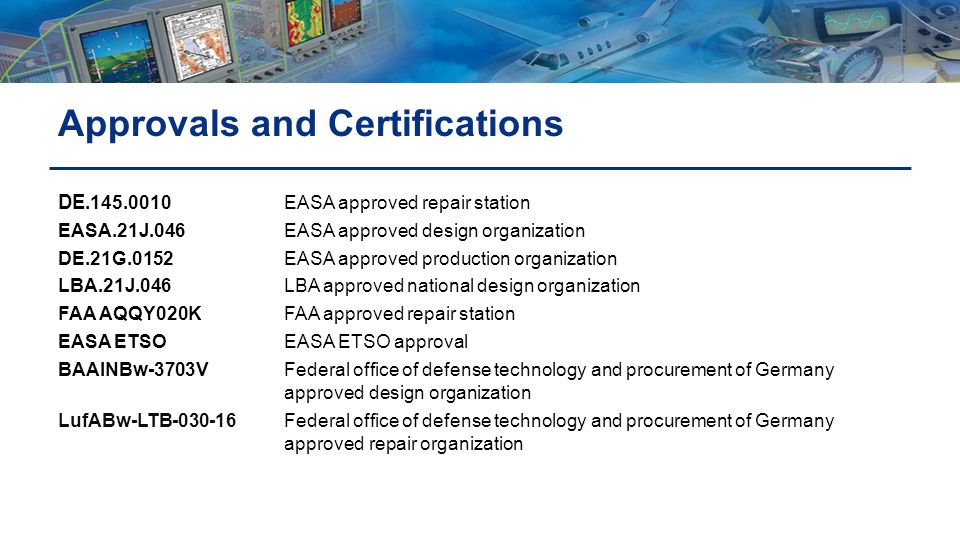

5 Approvals and Certifications DE.145.0010EASA approved repair station EASA.21J.046EASA approved design organization DE.21G.0152EASA approved production organization LBA.21J.046LBA approved national design organization FAA AQQY020KFAA approved repair station EASA ETSOEASA ETSO approval BAAINBw-3703V Federal office of defense technology and procurement of Germany approved design organization LufABw-LTB-030-16 Federal office of defense technology and procurement of Germany approved repair organization

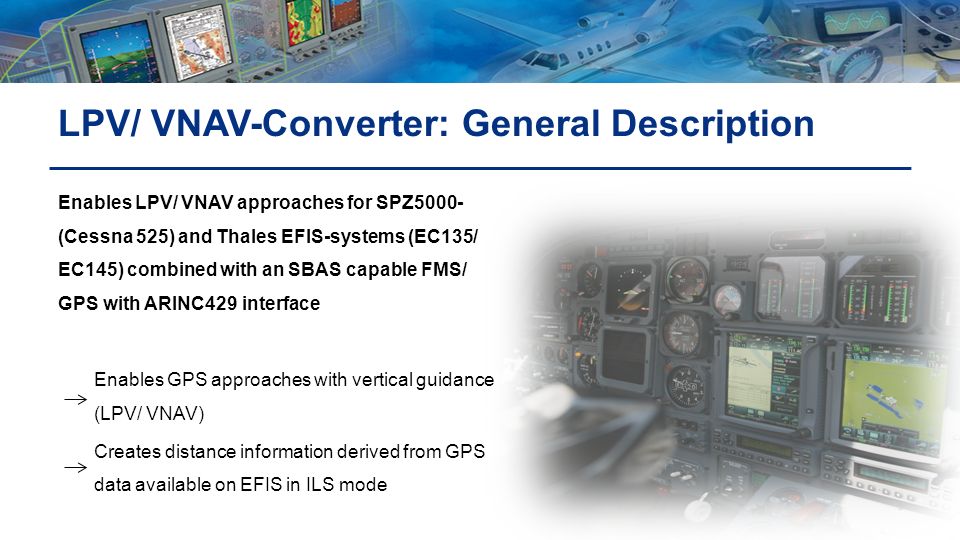

6 LPV/ VNAV-Converter: General Description Enables LPV/ VNAV approaches for SPZ5000- (Cessna 525) and Thales EFIS-systems (EC135/ EC145) combined with an SBAS capable FMS/ GPS with ARINC429 interface Enables GPS approaches with vertical guidance (LPV/ VNAV) Creates distance information derived from GPS data available on EFIS in ILS mode

7 LPV/ VNAV-Converter: Characteristics Connector:HD-Sub 26 pin male type Weight:< 1 kg (35.27 oz) Dimension:180x130x40 mm (7.09x5.12x1,57 in) Cooling:not required Input Voltage:18-32.2 VDC Max. Current Cons.: < 0.3 A Approvals/ Environment Category: RTCA DO-160G (D2)BBB[S(B3)]XYXXFSZBAR(ZC)YM(A333X)XXAC RTCA DO-254, DAL B (Hardware) RTCA DO-178, DAL B (Software)

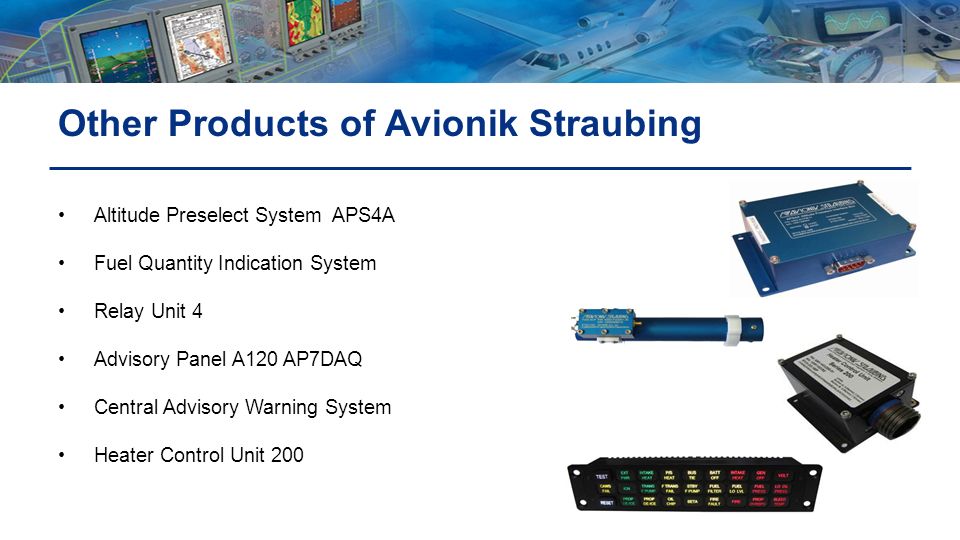

8 Other Products of Avionik Straubing Altitude Preselect System APS4A Fuel Quantity Indication System Relay Unit 4 Advisory Panel A120 AP7DAQ Central Advisory Warning System Heater Control Unit 200

9 Contact Avionik Straubing Vertriebs- und Service GmbH Flugplatzstraße 5 D-94348 Atting Tel. +49 (0) 9429 9424-0 Fax. +49 (0) 9429 9424-24 Mail: info@avionik.de www.avionik.de For further information contact us
