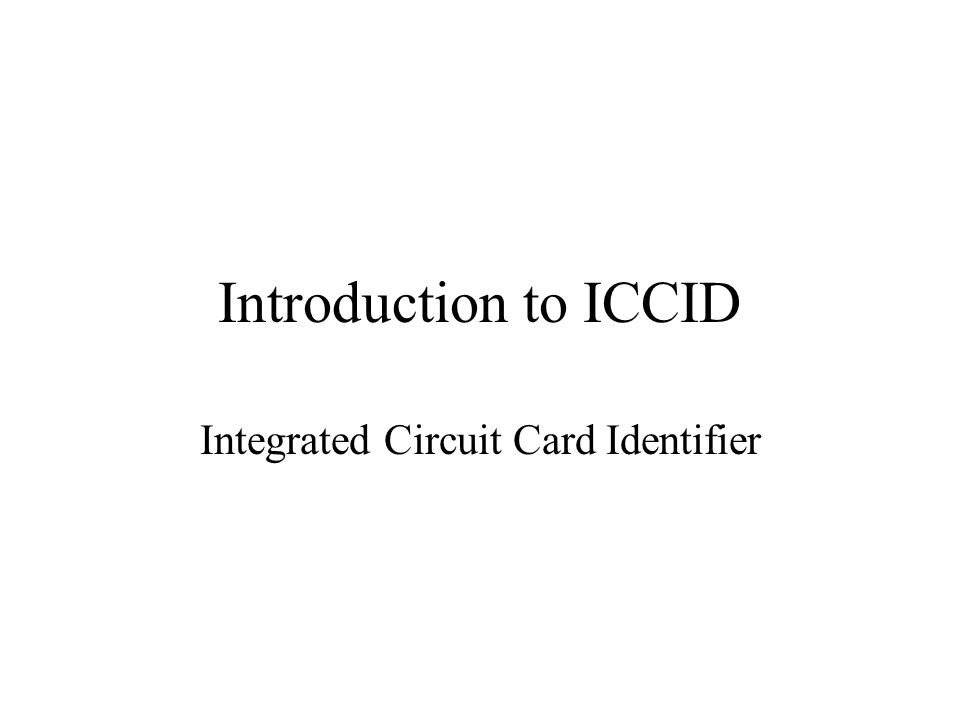

1. Introduction to ICCID Integrated Circuit Card Identifier

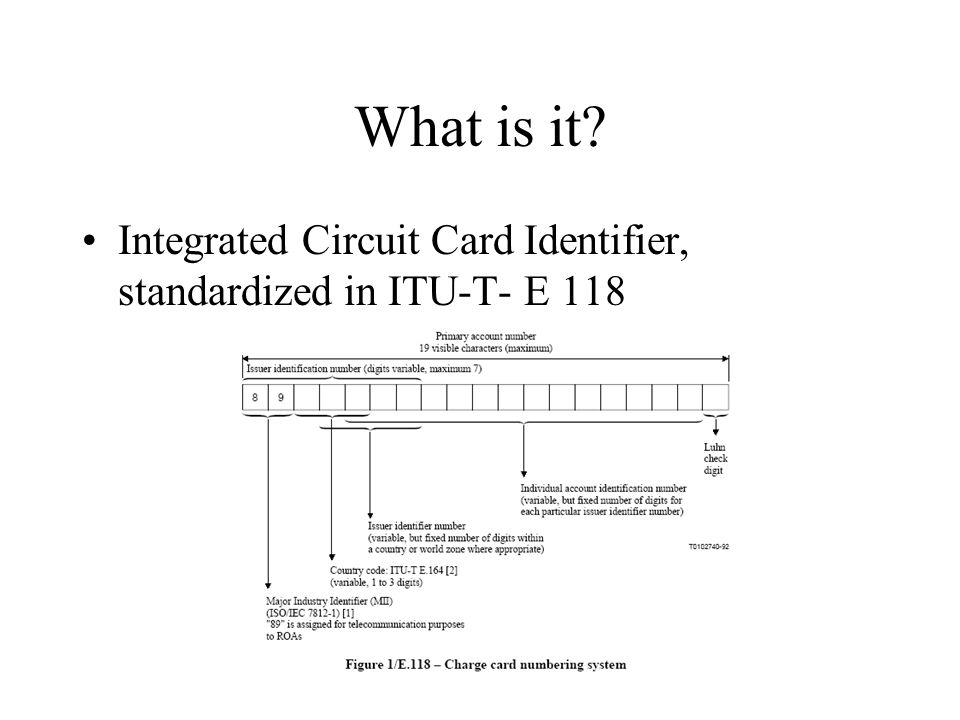

2. What is it? Integrated Circuit Card Identifier, standardized in ITU-T- E 118

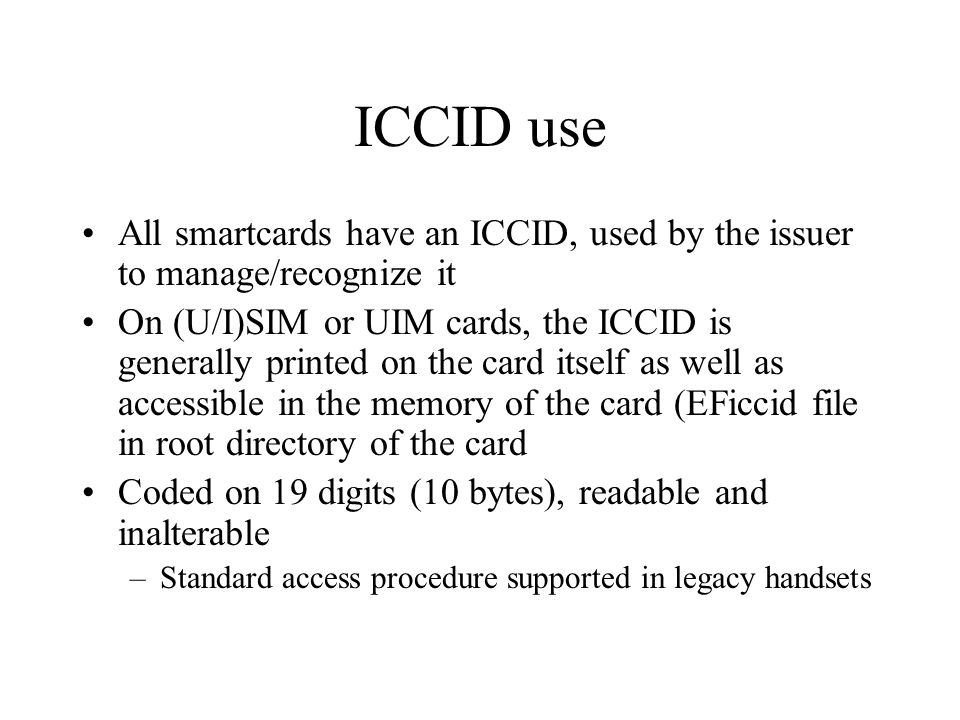

3. ICCID use All smartcards have an ICCID, used by the issuer to manage/recognize it On (U/I)SIM or UIM cards, the ICCID is generally printed on the card itself as well as accessible in the memory of the card (EFiccid file in root directory of the card Coded on 19 digits (10 bytes), readable and inalterable –Standard access procedure supported in legacy handsets

4. ICCID Uniqueness The first 2 digits represent an industry identifier: 89 for telecom cards (ISO/IEC 7812) The following 1 to 3 digit(s) are assigned to each country at the global ITU level –coded according to ITU-T-E164 –Country codes take 1 to 3 digits The following 1 to 4 digit(s) are assigned to each licensed network by each national regulation authority The ICCID construction process ensures the uniqueness of the codes assigned to each operator.

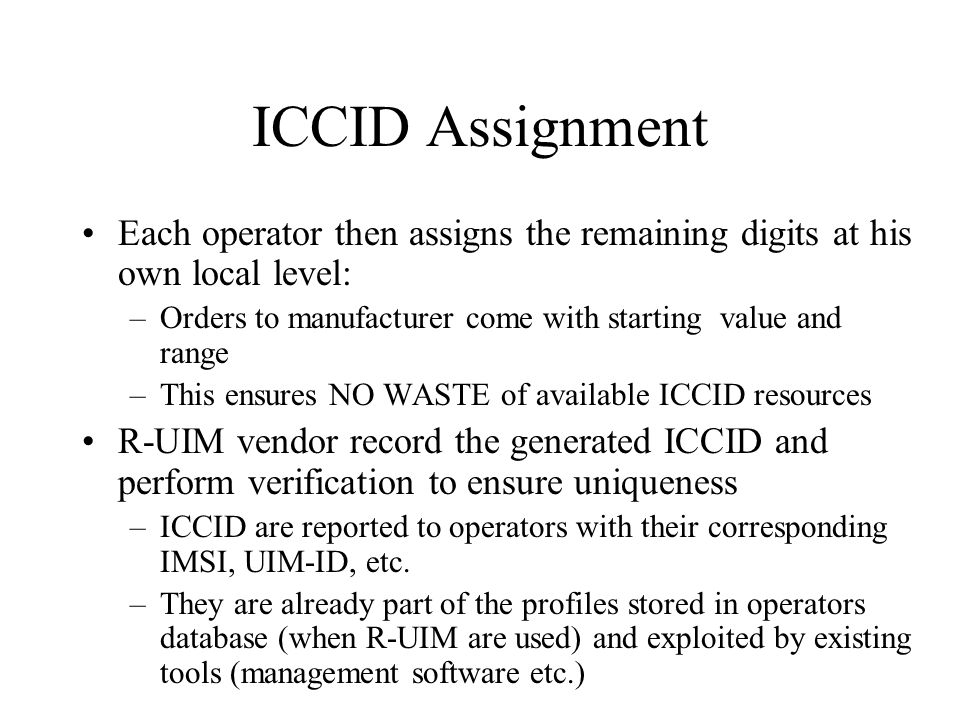

5. ICCID Assignment Each operator then assigns the remaining digits at his own local level: –Orders to manufacturer come with starting value and range –This ensures NO WASTE of available ICCID resources R-UIM vendor record the generated ICCID and perform verification to ensure uniqueness –ICCID are reported to operators with their corresponding IMSI, UIM-ID, etc. –They are already part of the profiles stored in operators database (when R-UIM are used) and exploited by existing tools (management software etc.)

6. ICCID summary There is no global assignment for ICCID worldwide by a global administration However uniqueness is ensured by a hierarchical process, going down to the operator level This ensures no waste of available resources Cost of migration is minimized for R-UIM operators, as ICCIDs are already part of profiles and exploited by existing support tools

7. Country Code List (ITU-T E.164) Country NameCountry Code China86 Indonesia62 Taiwan886 United States1 List of Country Code of some CDMA Network operators:
