4. https://technet.microsoft.com/en-us/library/mt455210.aspx

5. Update BranchDescriptionFeature Update Frequency Security Update Frequency Example Usage Current Channel (Current Branch) Get the latest and greatest monthly! Monthly Early adopters/beta group. Deferred Channel (Current Branch for Business) Compiled updates and new features from 4 months of updates Every 4 months MonthlyGeneral release. First Release for Deferred Channel (First Release for Current Branch for Business) Compiled updates and new features from 4 months of updates, 4 months before CBB. Every 4 months MonthlyDistributed pilot group. https://technet.microsoft.com/en-us/library/mt455210.aspx

6. Cscript.exe //nologo offScrub13.vbs ClientAll /S /Q /NoCancel /Bypass 1,3,4 http://blogs.technet.com/b/odsupport/archive/2011/04/08/how-to-obtain-and-use-offscrub-to- automate-the-uninstallation-of-office-products.aspx

7. OfficeClickToRun.exe (system mode) – ClickToRun Service OfficeClickToRun.exe (user mode)Setup.exe Basic Prereqs Download and Run C2R Client Full Prereqs Install the ClickToRun Svc Launch First Run Experience Last Run task Streaming Integration This service continues running for the life of the product Configuration

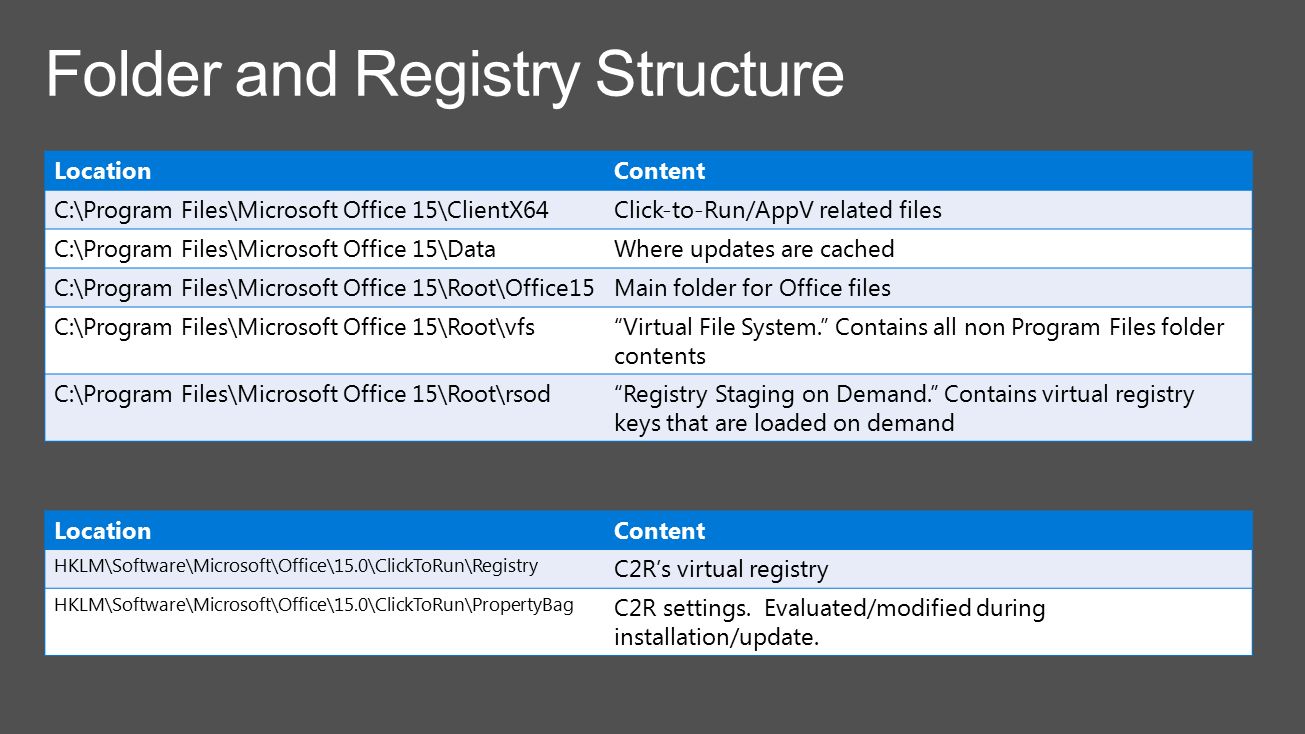

8. LocationContent C:\Program Files\Microsoft Office 15\ClientX64Click-to-Run/AppV related files C:\Program Files\Microsoft Office 15\DataWhere updates are cached C:\Program Files\Microsoft Office 15\Root\Office15Main folder for Office files C:\Program Files\Microsoft Office 15\Root\vfs“Virtual File System.” Contains all non Program Files folder contents C:\Program Files\Microsoft Office 15\Root\rsod“Registry Staging on Demand.” Contains virtual registry keys that are loaded on demand LocationContent HKLM\Software\Microsoft\Office\15.0\ClickToRun\Registry C2R’s virtual registry HKLM\Software\Microsoft\Office\15.0\ClickToRun\PropertyBag C2R settings. Evaluated/modified during installation/update.

9. Runs after logon Runs three nights a week Checks for new builds Runs after login & every 8 hours 10 minute wait 0-240 minute delay Runs daily Validates license System AccountUser account

12. Download Command Line Setup.exe /Download configuration.xml Download Completion dialog – or lack of Contents https://technet.microsoft.com/en-us/library/jj219422.aspx

15. Most Common Path

16. Apply Update (Scenario 1 of 3)

17. Apply Update (Scenario 2 of 3)

18. Apply Update (Scenario 3 of 3)

20. Internal or Cloud source? Outsource your update infrastructure Multiple languages can lead to lots of content Binary delta replication reduces bandwidth needs Network infrastructure can impact decision Automatic Updates or controlled updates? Update management – can it be justified? Hybrid approaches provide flexibility/control Group Policy provides granular control Eg, automatically have “some” people get automatic updates

22. configuration.xml Group Policy Enable the Office 365 Client Management group policy setting. You can find this policy setting under Computer Configuration\Policies\Administrative Templates\Microsoft Office 2016 (Machine)\Updates.

24. Replicate ProPlus package to distributed DFS-R file servers Stage ProPlus binaries from CDN via monthly scheduled task Copy new ProPlus build DFS-R & DFS-N to deploy & update Office 365 Pro Plus Set update paths via GP Use scheduled task to promote new build from Prod to Dev share

25. Also WSUS cannot update Office 365 Pro Plus.

26. Enables Office 365 ProPlus to be used with Remote Desktop Services or shared computers. Activation is temporary and performed with each user session login. Shared Computer Activation does not count against a user’s 5 PC/Mac installation limit.

27. Customize and Manage installations sources, products, and languages combinations. Define deployment configuration options. http://officedev.github.io/Office-IT-Pro-Deployment-Scripts/XmlEditor.html

29. Review the following document for Office 365 URLs and IP address ranges.

31. Validate Sign In Issue Key OLS Activate License SPP

32. Details: Frequency: One time, at sign- in Data sent: User ID Product Key Computer Name Machine ID Initial registration/activation Details: Frequency: Daily* “Heartbeat” to check if subscription is active or has changed Enabled via scheduled task Must succeed once per 30 days Connects to Office Licensing Service (OLS) Data sent: Product Key Subscription status check Details: Frequency: Once/month* Occurs during subscription status check Updates product key information Extends product usage Connects to Activation and Validation Service (AVS) Data sent: Product Key Product Key management http://technet.microsoft.com/en-us/library/dn308544.aspx
