1. FSBU Overview

2. AGENDA FSBU Overview Open Channel Flow Review Hach FL900 Series Flow Meter Family – FL900 Product Overview Flo-Dar – Product Overview – Success Stories Mexico Mining – Chile/Peru – Competition Isco Laser Flow Hach FH950 Samplers 2

3. FSBU OVERVIEW – FLOW METERS FOR THE FUTURE Portable Hach FL900 Series Loggers & Sensors – Battery-powered flow meter for remote applications – Flo-Dar, Sub A/V, Tote III, and Ultrasonic sensors available – Replaces all Marsh McBirney Flo-Loggers and Sigma 900 series blinds – Uses Flo-Ware for programming; translated into Spanish and Portuguese! Configurable Sigma 950 – Applicable in both portable and stationary applications – Unique sensor options: Sub A/V, Ultrasonic, Bubbler level, water quality sensors – Local programming with screen and keypad Stationary Flow Meters – Flo-Station; compatible with either the Flo-Dar or Flo-Tote III – SC200 with Flow Module and U53 Ultrasonic Down-looking Sensor Handheld Hach FH950 – Simplified setup with step-by-step guides and a color screen – Saves time in the field with data logging 3

4. FSBU OVERVIEW – SAMPLERS YOU CAN TRUST Controllers for the basic or advanced user – SD900 – the lowest maintenance on the market – 900MAX – configurable for advanced applications Bases that meet the needs of varied environments and applications – All Weather Refrigerated (AWRS) – Refrigerated – Portable (3 sizes) – None Sampling across vertical markets – Plant Influent/Effluent: WWTP or Industry – Environmental: Stormwater or Runoff Cross sell with Lab, Process or Flow products! 4

5. OPEN CHANNEL FLOW REVIEW

6. WHERE DOES HACH FLOW PLAY? 6 * * The FH950 /MFPro is designed for stream profiling, OTT has flow meters for permanent large outdoor channel installations like rivers and streams. FH950*

7. FLOW MONITORING TOOLS 7 Key Considerations FL900 SeriesFlo-StationSigma 950SC200 PortabilityPortablePermanentPort and PermPermanent PowerBatteryACAC or batteryAC ScreenBlindScreen ProgrammingFLO-WARE UI or InSightUI Sensors Technologies Radar Submerged Doppler Electromagnetic Ultrasonic Level Radar Electromagnetic Submerged Doppler Ultrasonic Bubbler Acoustic Only Pressure Only pH/Temp Ultrasonic Water Quality Sampler, RainYes I/OMODBUSRelay, 4-20 outRelays, 4-20 out, MODBUS Relays, 4-20 out, Analog in, MODBUS

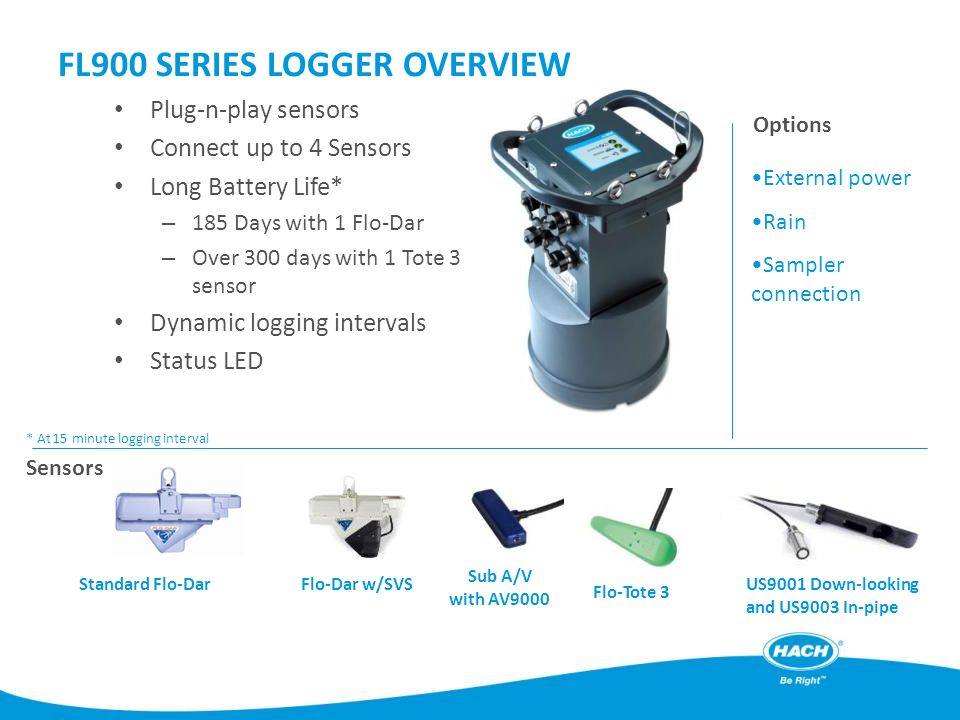

8. FL900 SERIES LOGGER OVERVIEW Plug-n-play sensors Connect up to 4 Sensors Long Battery Life* – 185 Days with 1 Flo-Dar – Over 300 days with 1 Tote 3 sensor Dynamic logging intervals Status LED Options * At 15 minute logging interval External power Rain Sampler connection Sub A/V with AV9000 Standard Flo-DarFlo-Dar w/SVS Flo-Tote 3 US9001 Down-looking and US9003 In-pipe Sensors

9. FL900: COMPREHENSIVE SENSOR OPTIONS SensorFlo-DarSVSSub A/VFlo-Tote 3US9001, US9003 Flow CalcArea/Velocity Depth only Velocity SensorRadarElectromagneticAcoustic DopplerElectromagneticNone Depth SensorUltrasonicPressure Ultrasonic Best Application Longer installations or Difficult water types Short InstallsClean WaterPrimary device Level Monitoring Other Recommended Applications All water types (grease, hi-temp, debris, sludge, corrosive) High Velocity Large Pipe Dry Pipe Surcharge Reverse Flow Backwater Clean Water Slow Flow Reverse Flow All water types (grease, hi-temp, debris, sludge, corrosive) LimitationsSmooth Surface Churning surface Slow Flow Reverse Flow Expensive Clean Water Grease Hi-Temp water High debris Grease Hi-Temp water Abrasive debris Waves Churning surface Surcharge

10. FL900 FLOW METER FAMILY COMPETITORS HACH ISCO ADS NIVUS SystemFL90X Series2100 SeriesFlowShark TritonPCM 4 Velocity Sensors Radar Ultrasonic Cont Electromagnetic Laser Ultrasonic Cont Ultrasonic NC Ultrasonic ContUltrasonic CC Level Sensors Ultrasonic Down Pressure Ultrasonic Down Pressure Ultrasonic Down Pressure Ultrasonic Up Ultrasonic Down Pressure Ultrasonic Up ConfigurationPlug-n-playModularPlug-n-play Blind UI Strength Reliable Diverse Sensors “Proven”IS CertifiedAccurate Weakness to FL900 Modular LaserFlow < Flo-Dar NC sensor is in pipeNo Non-Contact 10

11. FLO-DAR OVERVIEW Non-Contact Sensor; no lost data due to fouling No routine maintenance required; confined space entry reduced by 90% or more No profiling required 3 sensors in standard model (radar, ultrasonic, pressure) 4 sensors in 1 housing with SVS option (radar, ultrasonic, electromagnetic, pressure) Accuracy confirmed by Alden Laboratories and many customers Shown with optional SVS sensor

12. Velocity measurement Radar The sensor measures the surface velocity of the moving liquid by measuring the Doppler Shift. Level Measurement Ultrasonic The FLO-DAR® uses a pulse echo, look-down, ultrasonic transducer to measure the distance from the top of the fluid level to the top of the sensor cradle. HOW THE FLO-DAR® WORKS

13. Pressure Transducer Surcharge Level The FLO-DAR® uses a pressure transducer to measure surcharge level. Flow is calculated using full pipe measurement with Surcharge Velocity Sensor (SVS) option. Surcharge level HOW THE FLO-DAR® WORKS Surcharge Velocity Electromagnetic Sensor Surcharge velocity is measured using the Surcharge Electromagnetic Velocity Sensor. The SVS turns on when the flow is in full pipe or surcharge condition. Optional

14. FLO-DAR INSTALLATIONS

15. CERTIFICATION REQUIREMENTS AND UPDATE March 2014 FLO-DAR approval varies by country, model number and configuration. Some version of FLO-DAR is available in each of the following countries: – Brazil, Peru, Argentina, Mexico, Chile, Columbia, Puerto Rico

16. SUCCESS STORIES – GUADALAJARA, MEXICO Raw water coming into treatment plant. Flow rate and total flow displayed on Flo-Station. Non-contact sensors providing maintenance free flow data.

17. FLO-DAR SUCCESS STORY – MINING THICKENER INFLOW CONTROL Provides process control; optimizes the process saving time/money for operations. Flow is very thick, abrasive, and fast. In-flow sensors, like the Sigma Sub A/V and Isco 2150, cannot withstand the conditions. 17 Iron mining operations Copper mining operations

18. FLO-DAR COMPETITOR REVIEW: ISCO LASERFLOW Announced at Collections Systems Show; June 2012 Featured at WEFTEC; October 2012 Sales Webinars in Oct, Dec Still no quotes or pricing seen

19. ISCO LASERFLOW: HOW IT WORKS Ultrasonic Level Positioned at 45  within enclosure to eliminate deadband Laser Velocity Measures velocity at a determined depth “steerable” laser can measure up to 15 points at different depths/locations Surcharge sensor is their Continuous Wave Doppler mounted upside down on the enclosure

20. ISCO’S POSITION VS. FLO-DAR Isco’s StatementHach Response LaserFlow reads below the surface which is more accurate. 3 rd party data proves Flo-Dar accuracy. No technical reason why surface velocity is a less accurate measurement to derive average velocity. LaserFlow can take multi-point velocity readings. Multi-points result in long measurement time and short battery life. Small (3  ) swing does not add a lot of value. Improved Ultrasonic level with no deadband. Flo-Dar has a pressure sensor that “takes over” when the liquid level enters the deadband and will continue to measure level in surcharge situations. Improved surcharge sensor. Flo-Dar: electromagnetic velocity, pressure level LaserFlow: ultrasound velocity, pressure level Both are proven measurement technologies. vs.

21. ISCO LASERFLOW WEAKNESSES 1.Keeping the laser optical lens clean and clear. a.High likelihood of fouling or fogging. b.Cumbersome to clean. c.Uses “rain-X”, an optional accessory to defog. 2.High measurement time, Low battery life a.1 minute for a single measurement. b.12 weeks life with 15 min intervals, 2 lanterns. c.A LOT of processing needed. 3.Very little field data to prove its practicality. a.Why risk it? Flo-Dar is PROVEN. Conclusion: LaserFlow = Flo-Dar copycat. Laser as a practical sewer velocity technology is questionable. Flo-Dar is proven.

22. HACH FH950 PORTABLE VELOCITY FLOW METER WITH ELECTROMAGNETIC SENSOR Benefits Reduce man-hours 50% -- Data logging and file transfer to PC means no more buddy system or labor intensive transfer of written notes to modeling software Optional pressure transducer for depth measurement Automatically calculates total discharge based on USGS and ISO Lowest maintenance solution on the market electromagnetic velocity sensor with no moving parts never requires mechanical maintenance Data Storage for up to 10 profiles and 32 stations per profile

23. MORE INFORMATION ON FLOW PRODUCTS There is a lot more information available at out website: www.hachflow.com 23 New and Improved

24. AUTOMATIC SAMPLERS REVIEW 24

25. SAMPLER CONTROLLERS FOR A VARIETY OF APPLICATIONS AND ENVIRONMENTS: Portable Bases Indoor Refrigerated Bases All Weather Refrigerated Bases

26. PORTABLE SAMPLERS Accurate & Repeatable Sample Volumes Single or Multiple Bottles in either Bottle tray Sealed NEMA 4x,6 Controller A/C or Battery Operation Simple Menu Based Programming Compact or Standard Bottle Tray Crushed Ice Keeps Samples Cold

27. REFRIGERATED SAMPLERS Accurate & Repeatable Sample Volumes Interchangeable Single or Multiple Bottle Sets Sealed NEMA 4x,6 Controller A/C Operation Simple Menu Based Programming Wrap-around Evaporator Keeps Samples Cold Stainless Steel or Coated Steel Refrigerator

28. ALL WEATHER REFRIGERATED SAMPLERS Accurate & Repeatable Sample Volumes Interchangeable Single or Multiple Bottle Sets Sealed NEMA 4x,6 Controller Simple Menu Based Programming Chemical, fade, scratch and shock resistant LLDPE housing Compressor on Top, Away from Corrosive H2S Gases Microprocessor Controlled Sample Temperature LLDPE – Linear Low Density Polyethylene Improved and environmentally friendly thermal insulation

29. THE SIGMA SAMPLER PRODUCT LINE SD900 Basic sampling, flow or time based; able to interface with Hydrolab sondes. SD900 Portable Compact SD900 Portable Standard SD900 Refrigerated SD900 All-Weather (AWRS) 900 MAX More advanced sampling, flow or time based; water quality parameters for set point sampling. Pressurized sampling. 900 MAX Portable Compact 900 MAX Portable Standard 900 MAX Refrigerated 900 MAX All-Weather (AWRS)

30. MODEL SD900 CONTROLLER Color-coded start/stop keys and intuitive icon keys Composite or discrete samplingoptions Large back lit 5 line display with scrolling menus Auxiliary and serial ports Portable, refrigerated and AllWeather models Easy-access desiccant Spring mounted pumprollers accommodatelarger particles andreduce wear on pumptubing…pump tubinglife is 20,000 cycles Clear pump cover for easyvisual inspection

31. MODEL 900 MAX CONTROLLER Alarm Relays & 4-20mA Outputs Multi Language Support Portable, Refrigerated, All Weather Models Composite and Discrete Sampling Large Backlit Graphics Display Advanced Sampling Routines Remote Communications Water Quality & Rainfall Monitoring Data Logging & Graphing

32. MORE INFORMATION ON SAMPLERS There is a lot more information available at out website: www.hach.com 32

33. IMPORTANT CONTACTS 33 TitleNameE-mail Product Manager - FlowAmit Naganag@hach.com Product Manager SamplersJamie Englishjenglish@hach.com Application ManagerJim Carusojcaruso@hach.com Technical Support – Flowhachflowservice@hach.com Techno Support - Samplerstechhelp@hach.com

34. REFERENCE MATERIALS 34

35. LOGGER SELECTION Purchase Drivers FL900 SeriesSigma 950FLO-STATIONSC200 SensorsFLO-DAR/SVS Sub A/V FLO-TOTE Ultrasonic Sub A/V Ultrasonic Bubbler Acoustic Only Pressure Only Water Quality FLO-DAR/SVS FLO-TOTE Ultrasonic Water Quality Sampler, RainYes I/OMODBUSRelays, 4-20 out, MODBUS Relay, 4-20 outRelays, 4-20 out, Analog in, Modbus PowerBattery or ACAC or batteryAC/DCAC or 24V Data viewing?NoneScreen ProgrammingFLO-WAREUI or InSightFLO-WAREUI (no software) Price$$-$$$ $ Common sequence of decision

36. LOGGER SELECTION

37. 37

38. AV SENSOR SELECTION SensorFLO-DARSub A/VFLO-TOTE 3 Flow CalcArea/Velocity Velocity SensorRadar, EMAcoustic DopplerElectromagnetic Depth SensorUltrasonic, Pressure Best ApplicationLonger Installations Difficult Water Types Submerged Shorter Installations Clean Water Other Recommended Applications All water types (grease, hi-temp, debris, sludge, corrosive) High Velocity Large Pipe Dry Pipe Surcharge Reverse Flow Backwater Clean Water Slow Flow Reverse Flow LimitationsSmooth Surface Churning surface Slow Flow Reverse Flow Clean Water Grease Hi-Temp water High debris Grease Hi-Temp water Abrasive debris

39. SENSOR SELECTION

40. When you boil it down, these 4 application scenarios are what typically drive sensor choice. They are:

41. SENSOR SELECTION 41
