1. Integrated Motor Drive Solutions PDH Promotion – Aug 2012

2. Confidential24.04.2012Page 2Copyright © Infineon Technologies 2012. All rights reserved. Automotive Applications

3. Confidential24.04.2012Page 3Copyright © Infineon Technologies 2012. All rights reserved. Industrial and Commodity Applications

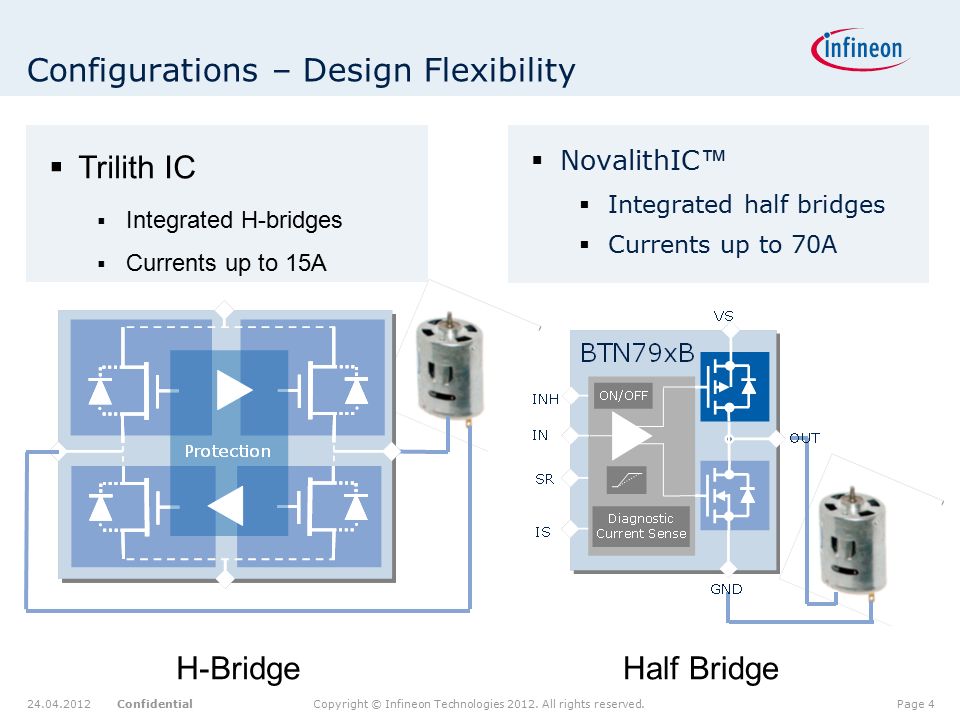

4. Confidential24.04.2012Page 4Copyright © Infineon Technologies 2012. All rights reserved. Configurations – Design Flexibility Half BridgeH-Bridge  NovalithIC ™  Integrated half bridges  Currents up to 70A  NovalithIC ™  Integrated half bridges  Currents up to 70A  Trilith IC  Integrated H-bridges  Currents up to 15A  Trilith IC  Integrated H-bridges  Currents up to 15A

5. Confidential24.04.2012Page 5Copyright © Infineon Technologies 2012. All rights reserved. Trilith IC: Integrated H-bridges Headrest BTM 7700G BTM 7740G BTM 7741G BTM 7710G BTM 7750G BTM 7751G Door-lock Steering wheel adj. Mirror flap BTM 7742G BTM 7745G BTM 7752G BTM 7755G Steering column lock

6. Confidential24.04.2012Page 6Copyright © Infineon Technologies 2012. All rights reserved. Trilith IC Specific Features  Free configurable as bridge or quad-switch  Internal clamp diodes  Operates up to 40 V  PWM frequencies up to 1 kHz  Status flag diagnosis  Open load detection in Off- mode  Small outline, enhanced power PG-DSO-28 package  Free configurable as bridge or quad-switch  Internal clamp diodes  Operates up to 40 V  PWM frequencies up to 1 kHz  Status flag diagnosis  Open load detection in Off- mode  Small outline, enhanced power PG-DSO-28 package Availability: Products released and PPAP available. Availability: Products released and PPAP available.

7. Confidential 24.04.2012Page 7Copyright © Infineon Technologies 2012. All rights reserved. Trilith IC 3 rd Generation - BTM7742/52G  Path resistance 150 mΩ (typ.@25 °C) – BTM7752G  Path resistance 250 mΩ (typ.@25 °C) – BTM7742G  PWM capability up to 25kHz with active freewheeling  Integrated dead time generation  Current sense capability  Switch-mode current limitation for reduced power dissipation in over-current situation  PG-DSO36 package  Path resistance 150 mΩ (typ.@25 °C) – BTM7752G  Path resistance 250 mΩ (typ.@25 °C) – BTM7742G  PWM capability up to 25kHz with active freewheeling  Integrated dead time generation  Current sense capability  Switch-mode current limitation for reduced power dissipation in over-current situation  PG-DSO36 package Availability: Products released and PPAP available. Availability: Products released and PPAP available. BTM7752 VS OUT1 IN2IN1INH Protection Diagnostic Current Sense OUT2 VS GND BTM7742G BTM7752G VS OUT1 IN2IN1INHIS Protection Diagnostic Current Sense OUT2 VS GND IS

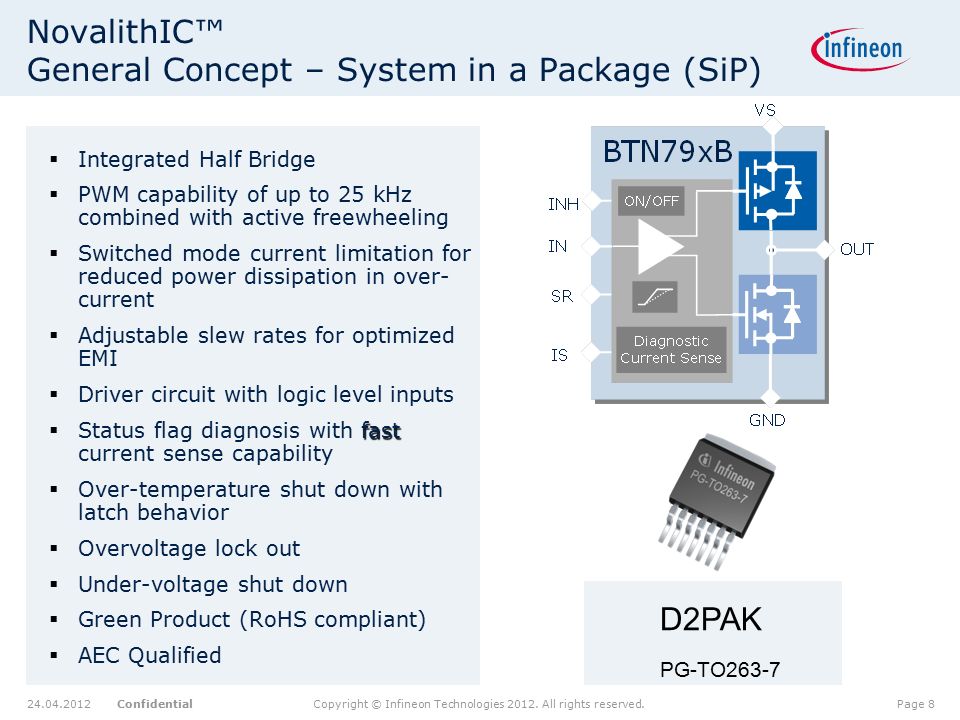

8. Confidential NovalithIC™ General Concept – System in a Package (SiP) 24.04.2012Copyright © Infineon Technologies 2012. All rights reserved.Page 8  Integrated Half Bridge  PWM capability of up to 25 kHz combined with active freewheeling  Switched mode current limitation for reduced power dissipation in over- current  Adjustable slew rates for optimized EMI  Driver circuit with logic level inputs fast  Status flag diagnosis with fast current sense capability  Over-temperature shut down with latch behavior  Overvoltage lock out  Under-voltage shut down  Green Product (RoHS compliant)  AEC Qualified  Integrated Half Bridge  PWM capability of up to 25 kHz combined with active freewheeling  Switched mode current limitation for reduced power dissipation in over- current  Adjustable slew rates for optimized EMI  Driver circuit with logic level inputs fast  Status flag diagnosis with fast current sense capability  Over-temperature shut down with latch behavior  Overvoltage lock out  Under-voltage shut down  Green Product (RoHS compliant)  AEC Qualified D2PAK PG-TO263-7 D2PAK PG-TO263-7

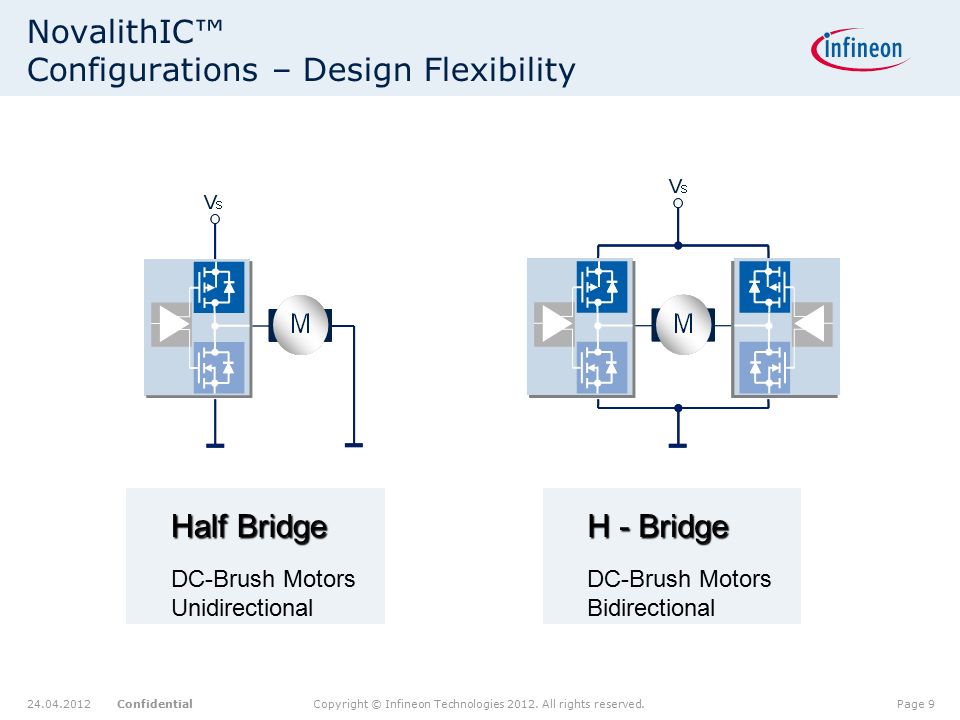

9. Confidential NovalithIC™ Configurations – Design Flexibility 24.04.2012Copyright © Infineon Technologies 2012. All rights reserved.Page 9 Half Bridge DC-Brush Motors Unidirectional Half Bridge DC-Brush Motors Unidirectional H - Bridge DC-Brush Motors Bidirectional H - Bridge DC-Brush Motors Bidirectional

10. Confidential NovalithIC™ Configurations – Design Flexibility 24.04.2012Copyright © Infineon Technologies 2012. All rights reserved.Page 10 B6 - Bridge Brushless DC (BLDC) Motors B6 - Bridge Brushless DC (BLDC) Motors Sharing Half-Bridges Driving two bidirectional DC brush motors with only three half bridges Sharing Half-Bridges Driving two bidirectional DC brush motors with only three half bridges

11. Confidential NovalithIC ™ trends 24.04.2012Copyright © Infineon Technologies 2012. All rights reserved.Page 11 BTN7930 Rdson=28 mΩ (path) Id=32 A (current limitation) BTN7970 Rdson=16 mΩ (path) Id=70 A (current limitation) BTN7960 Rdson=16 mΩ (path) Id=47 A (current limitation) Optimized for higher current applications, i.e. Lower Rdson Faster switching (down to 600ns) Extended operation voltage range down to 4.5V Further optimized for half bridge applications Lower feature set, i.e. no current sense.
