3. The air is made up of molecules.

4. Air molecules are everywhere.

5. Like all matter, air molecules have mass.

6. Gravity pulls the air molecules toward the earth, giving them weight. The weight of the air molecules all around us is called the air pressure.

7. Air pressure is equal in all directions. Pressure = force per unit area

8. High altitudes = lower pressure Low altitudes = higher pressure

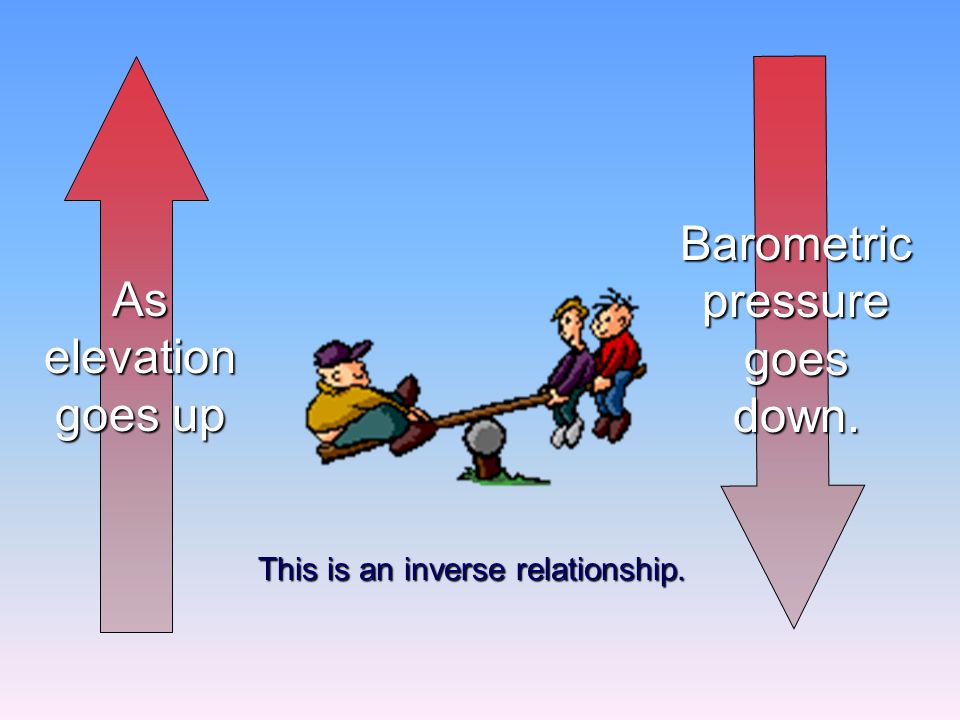

9. As elevation goes up Barometric pressure goes down. This is an inverse relationship.

10. to measure air pressure. A Barometer is used

11. In 1643, Evangelista Torricelli invented the barometer Maybe next I’ll invent spaghetti-flavored toothpaste!

12. Torricelli’s barometer used a glass column suspended in a bowl of mercury. The pressure of the air molecules pushed the mercury up into the glass tube. The weight of the mercury in the tube was equal to the weight of the air pressing down on the mercury in the dish.

13. As atmospheric pressure increases… The mercury in the tube rises.

14. The Mercury Barometer Good:Bad: Simple to construct Simple to construct Highly accurate Highly accurate Glass tube is fragile Glass tube is fragile Mercury is very toxic! Mercury is very toxic! Is there a better way to measure air pressure?

15. The Aneroid Barometer!! No fragile tubes!No fragile tubes! No toxic chemicals!No toxic chemicals! No batteries!No batteries! Never needs winding!Never needs winding! Get yours today!!

16. An aneroid barometer uses a cell which has had most of the air removed. As the air pressure around the cell increases, it presses on the cell, which causes the needle to move. Television weather forecasters usually give barometric pressure in inches of mercury. However, meteorologists measure atmospheric pressure in millibars. MILLIBARS

17. Since pressure changes with altitude… …how does changing altitude affect a barometer?

18. Two types of barometric pressure measurements: Station pressure is the actual pressure at the recording location. It is affected by the local altitude. Sea level pressure is referenced to sea level, so it has the same altitude anywhere in the world.

19. Most aneroid barometers have a needle which can be set to remember the previous reading. Why would this be important?

20. Changing Pressure A rising barometer = increasing air pressure. This usually means:

21. Changing Pressure A falling barometer = decreasing air pressure. This usually means: Where’d the hula dancer go?
