New Product Introduction 2016.04.15
2
New Product Introduction New Product Information in CRM Strategies for Developing New Product Conclusion – Product Suggestions Outline
3
1600W AC/DC 1U height , high power-density 25W/in , replace RSP-1500 RCP/RSP/RPB/RCB-1600 Family Rack PowerEnclosed TypeChargerRack Charger RCP-1600RSP-1600RPB-1600RCB-1600 RCP-1600RSP-1600RPB-1600RCB-1600 Broadcasting Networking Servers LASER Industrial Automation EV charger Marine/boat DC UPS Charging Station RCP/RCB-1600 RSP/RPB-1600 PM BUS Hot Swap
4
RSP-1600 / RPB-1600 Series 1600W , 1U Enclosed Type / Charger RSP Programmable Family: RSP-750/1000/1500/1600/2000/2400/3000 RPB-1600: Intelligent Lead-acid/Li-ion Battery Charger 1U profile, 300 x 85 x 41mm smallest-size with same SPEC. Full range AC input 90~264VAC with PFC Output models: 12V/24V/ 27V & 36V(RSP only) /48V High efficiency up to 93% Output voltage and current programmable by external DC signal Built-in current sharing up to 6 units (RSP-1600) or 3 units (RPB-1600) Built-in programmable 3-stage charging curves; curve programmable via PMBus/CANBus(RPB-1600) Forced fan cooling (temp. control), work temperature -30~+70 ℃ Approvals: UL60950-1, TUV EN60950-1, CB, CE 5 years warranty Application: Automation, testing equipment, burn-in equipment Constant Current: EV charger, and charging stations
5
RCP-1600 / RCB-1600 / RHP-1U Series 1600W Rack-mountable , Rectifier/Charger Rack Power Family: Front end rectifier: RCP-1000/1600/2000 Rack shelf: RCP-1U/RHP-1U/RKP-1U Front end Lead-acid/Li-ion battery charger: RCB-1600 RHP-1U fits 5pc RCP-1600 or 5pc RCB-1600; Up to 8000W per 1 rack, Up to 24000W per 3 racks Full range AC input 90~264VAC with Active PFC Output models: 12V/24V/48V High efficiency up to 93% Support Hot Swap Built-in PMBus protocol (optional CANBus) Output voltage and current programmable by external DC signal Built-in 可程式化 3-stage charging curves (RCB-1600) Forced fan cooling ( 溫度控制 ), work temperature -30~+70 ℃ Approvals: UL60950-1, TUV EN60950-1, CB, CE 5 years warranty Application: Automation, testing equipment, burn-in equipment Constant Current: EV charger, and charging stations
6
Series : TDR-480/960 Three-phase 340~550VAC wide range input Width only 85.5mm High efficiency up to 92% Built-in active PFC 130% peak load capability Protection: Short circuit, OLP(C.C. + 3s delay), OVP, OTP Cooling by free air convection Can be installed on DIN rail TS-35/7.5 or 15 Built-in DC OK relay contact (Optional) -30~+70 ℃ operating range UL508, CB, CE 3 years warranty 85.5*125.2*128.5Mm (W*H*D) TDR-480 Serie 3-Phase Slim DIN Rail Power
7
HDR Series Household Slim DIN Rail Power Family : HDR-15/30/60/100 1U~4U width : 17.5mm/1U (15W), 35mm/2U (30W), 52.5mm/3U (60W), 70mm/4U (100W) Universal AC input 85~264VAC ; Isolation class II (no FG) Protection: Short circuit, OLP, OVP Installed on DIN rail TS-35 / 7.5 or 15 Built-in constant current limiting circuit -30~+70 ℃ operating range Cooling by free air convection NEC class 2/Limited Power Source(LPS) compliant UL508/1310/60950-1, TUV EN60950-1/ 61558-2-16, CB,CE 3 years warranty
8

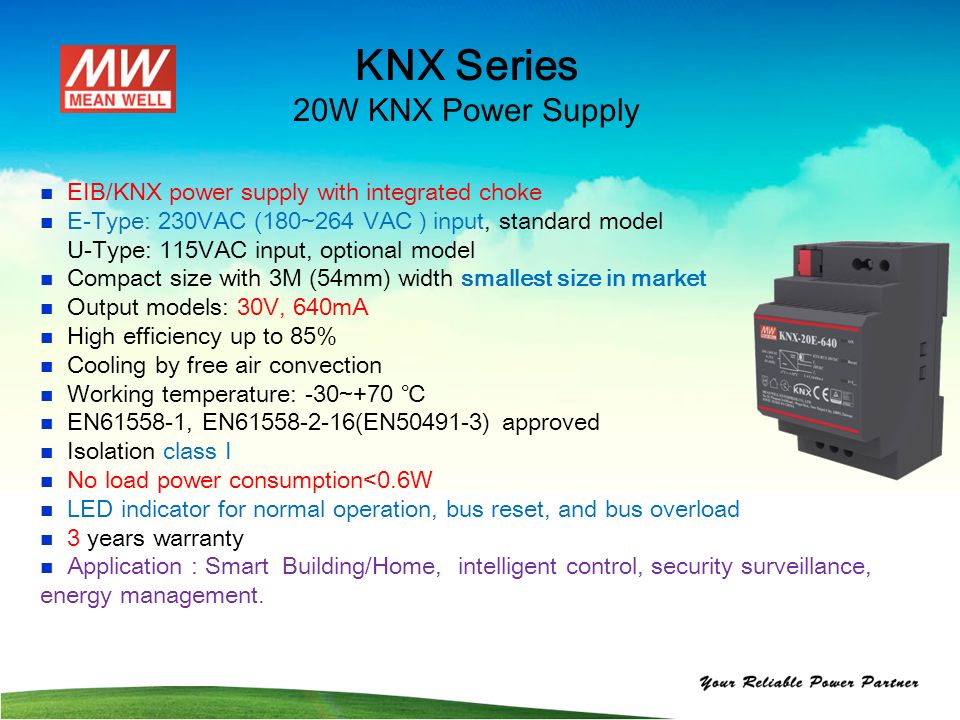

KNX Series 20W KNX Power Supply EIB/KNX power supply with integrated choke E-Type: 230VAC (180~264 VAC ) input, standard model U-Type: 115VAC input, optional model Compact size with 3M (54mm) width smallest size in market Output models: 30V, 640mA High efficiency up to 85% Cooling by free air convection Working temperature: -30~+70 ℃ EN61558-1, EN61558-2-16(EN50491-3) approved Isolation class I No load power consumption<0.6W LED indicator for normal operation, bus reset, and bus overload 3 years warranty Application : Smart Building/Home, intelligent control, security surveillance, energy management.
9
Popular PCB Size & MEAN WELL Product Map 5” x 3” 4” x 2” 3” x 2” RPS-300 EPP-300 MPS-45 PS-45 MPS-65 PS-65 RPS-60 EPS-45/65 RPS-75 RPS-400 EPP-400 RPS-120 EPS-120 EPP-100 RPS-200 EPP-200 EPP-150 RPS-30/45 EPS-25/35 RPS-65 EPS-45S/65S 50W 200W 300W 400W 100W RPS-160 PPS-125/200 MPS-30 PS-35 150W
10
Family : RPS-30/45/60/65/75/120/160/200/300/400 PCB size : 3”x2”(30/45/65W), 4”x2”(60/120/200W),5”x3”(75/160/300/400W) Universal AC input 80~264VAC (RPS-30/45/65/120/200) Leakage current < 100μA @264VAC (RPS-120/200: <190 μA ) No load power consumption <0.1W~0.5W by models High efficiency up to 94% Active PFC function for 200W 以上 Protections: Short circuit, OLP, OVP, OTP Medical: RPS-30/45/65 Class II ; RPS-120/200/400 Class I & II installations ITE: EPS-45S/65S Class II EPS-120/EPP-200/400 Class I & II installations Working temperature: -30~+70 ℃ Certificate: ANSI/AAMI ES60601-1, TUV EN60601-1,CB,CE; EN/UL-60950-1 ITE industry(EPS-45S/65S/120/EPP-200) 3 years warranty RPS-30/45/65/120/200 /400 Medical Open Frame Power Supply
11
Universal AC input 80~264VAC ( RPS-300-C : 90~264VAC) Medical safety approved (2*MOPP level), suitable for BF application Leakage current < 100μA @264VAC (RPS-120/RPS-200: <190 μA ) No load power consumption <0.3W/0.5W by series High efficiency up to 94% Active PFC function for 200W/300W Protections: Short circuit, OLP, OVP, OTP Class I installation Certificate: ANSI/AAMI ES60601-1, TUV EN60601-1,CB,CE Working temperature: -30~+70 ℃ 3 years warranty RPS-120/200/300-C Miniature Medical Enclosed Type
12
Universal AC input 80~264VAC, active PFC function Leakage current < 250μA @264VAC No load power consumption <0.5W High efficiency up to 94% Protections: Short circuit, OLP, OVP, OTP Class I installation Certificate: ANSI/AAMI ES60601-1, TUV EN60601-1,CB,CE Working temperature: -30~+70 ℃ 3 years warranty Multiple styles for choice : RPS-400-C/TF/SF Miniature Medical Enclosed Type RPS-400-C ( Case Type) RPS-400-TF ( Top Fan with case) RPS-400-SF ( Side Fan with case)
13
IRM Family AC/DC Miniature on board type Family: IRM-01/02/03/05/10/15/20/30/45/60 Universal AC input 85~305VAC (IRM-5~60: 85~264VAC, 305VAC 評估中 ) No load power consumption < 0.075W (<0.1W for IRM-5~60) Comply with EN55022 class B without any additional components High efficiency up to 91% Protection: Short circuit, OLP, OVP Isolation class II Withstand 5G vibration test Screw terminal I/O type with base-plate (30~60W only) UL60950-1, TUV EN60950-1, CE Pass LPS 3 years warranty Application : small electronic device, IoT
14
GST Family~ Industrial Adaptor GST18/25/36/40/60/90/120/160/220/280 Meet Level VI / DoE (Enforced :2016/2/16) No-load power-consumption <0.075 ~ 0. 5W Fanless design , operation temperature -30 ~ +70 ℃ Applications: Industrial equipment 、 communication, office machine 、 POS 、 3D printer 、 Mini-ITX…..
15
GSGST Wattage5/6/12/15/18/25/36/ 40/60/90/120/160/220/280 18/25/36/40/60/ 90/120/160/220/280 Style Desktop & Wall-mount (same case as GS) Energy Efficient Level V Level VI & CoC V5 No-load power consumption < 0.3 / 0.5W< 0.075 / 0.15 / 0.5W Efficiency68~94.5%0 ~ 5.5% higher than GS Temperature 0/-20/-30 ~ +50/60/70 ℃ -30 ~ +70 ℃ Warranty 2 year 3 year SafetiesCB/UL/TUV/CCC/ PSE/CE/FCC CB/UL/TUV/CCC/ PSE/RCM/CE/FCC….. (SIRIM/BIS/KC in process) Price ★ ★ GS + 5%(18/25/36w only) Industrial Adaptor Comparison (USA enforced Level VI starting 2016.2 , expecting EU will enforce Level VI in 2017 , gradually phase- out GS after other countries require Level VI.)
16
SGA 12 / 18 / 25 / 40 / 60 (U/E) Wall-mounted type Slim-design, space-saving, easy for travel Universal AC input 90~264VAC No load power consumption < 0.075W(SGA12~40) / 0.15W (SGA60) Energy efficiency Level VI Comply with EISA 2007/DoE, EU ErP High efficiency up to 91% Protection: Short circuit, OLP, OVP UL60950-1, TUV EN60950-1, CE, FCC Working temperature: -20~+50 ℃ 3 years warranty Application: communication, office equipment E-Type U-Type SGA Family~ Slim wall-mount adaptor USB Port ( SGA12-5V only)
17
GSM FAMILY MEDICAL APPROVED ADAPTOR Family: GSM40/60/90/120/ 160 /220 (A & B Type) IEC/EN/ES60601-1/60601-1-11 medical safety approved (MOPP level), suitable for BF application (patient contact) A-type (Class I) with IEC C14 inlet B-type (Class II) with IEC C8 inlet Ultra low leakage current <50μA/100μA @264VAC Applications: household medical equipment, medical monitor, medical POS system, portable medical system, etc
18
Family: GSM40A/60A/90A/120A/160A/220A Class I power (with earth pin) , IEC320-C14 AC inlet Universal AC input 80~264VAC Leakage current <100μA @264VAC No load power consumption <0.075W (GSM90A~120A:<0.15W ) Energy efficiency Level VI (GSM40A/60A: 5~9V Level V) Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5 High efficiency up to 94.5% Active PFC function (90W~220W) Protection: Short circuit, OLP, OVP, OTP Optional lock type DC plug ANSI/AAMI ES60601-1, TUV EN60601-1,CB,CE, FCC Working temperature: -30~+70 ℃ (GSM40A/60A: -30~+60 ℃ ) 3 years warranty Applications: medical monitor, medical POS system, portable medical system, etc GSM A-Type Serie Level VI Green Medical Adaptor
19
Interchangeable AC plugs (plug kit sold separately) Universal AC input 80~264VAC Medical safety approved (MOPP level), suitable for BF application Leakage current < 100μA @264VAC No load power consumption <0.075W Energy efficiency Level VI Comply with EISA 2007/DoE and EU ErP Protections: Short circuit, OLP, OVP Class II power (without earth pin) ANSI/AAMI ES60601-1/60601-1-11, TUV EN60601-1/60601-1-11, CE, FCC Optional lock type DC plug Working temperature: -20~+50 ℃ 3 years warranty Application : Home-healthcare 、 portable healthcare deceive……. GEM18I Family~ AC Interchangeable Green Adaptor 75.5*39.1*56.2mm
20
Family: Power Supply: ENP-*120/*180/*240/*360 Charger: ENC-*120/*180/*240/*360 Land mobile standard width 7.1” Universal AC input 90~264VAC Active PFC & High efficiency up to 94% Energy efficiency Level VI, Comply with EISA 2007/DoE, EU ErP, CoC Version 5(ENP) Vo adjustable (ENP) Built-in 3 stage charging curve (ENC); curve programming option available with software user interface Fanless design, work temperature -30~+70 ℃ Protections: Short circuit, OLP, OVP, OTP UL60950-1, CE approved, design refer to TUV EN60950-1 3 years warranty Application: land mobile radio, surveillance, wireless broadband, caravan power supply or charger, electric vehicle charger ENP-120~360 / ENC-120~360 Series 2 nd -gen Desktop Power Supply / Charger
21
HLG-240/320/480H-C Family: HLG-240H-C/320H-C/480H-C Universal AC input 90~305VAC Active PFC function & Constant current design Protections: Short circuit / OVP/OTP High efficiency up to 93% Io adjustable IP67 / IP65 design 3 in 1 dimming function (0~10Vdc or PWM signal or resistance, Dim-to-off) Suitable for dry / damp / wet location Working temperature: -40~+70 ℃ UL8750, ENEC EN61347-1, -2-13, EN62384 independent, CCC, IP65 or IP67 7 years warranty Application : LED streetlight 、 stadium 、 LED high-bay
22
HVG(C) -240/320/480 Family: HVG & HVGC-240/320/480 Universal AC input 180~528VAC (for North America) Active PFC function Protections: Short circuit : OCP/ OVP/OTP High efficiency up to 95% Withstand 5G vibration test IP67 / IP65 design 3 in 1 dimming function (0~10Vdc or PWM signal or resistance, Dim-to-off ) Suitable for dry / damp / wet location Working temperature: -40~+70 ℃ UL8750, IP65 or IP67 5 years warranty Application : LED streetlight 、 stadium 、 LED high-bay
23
ELG Family – Waterproof Metal-enclosed LED driver Family: ELG-75/100/150/200/240 CV & CC 100~305VAC input (100Vac is applying safeties) Active PFC function No load power consumption <0.5W Protections: Short circuit /Over load/Over voltage/Over temperature OCP point adjustable(A type) 3 in 1 dimming function (B type) (0~10Vdc or PWM signal or resistance) IP65/IP67 Surge Immunity 3kV/6kV( up to 8kV ) High efficiency up to 91% Working temperature: -40~+70 ℃ UL8750, ENEC EN61347-1, -2-13, CCC 5 years warranty Optional dimming features: 3-in-1//DALI/Smart timer dimming /ZigBee Wireless
24

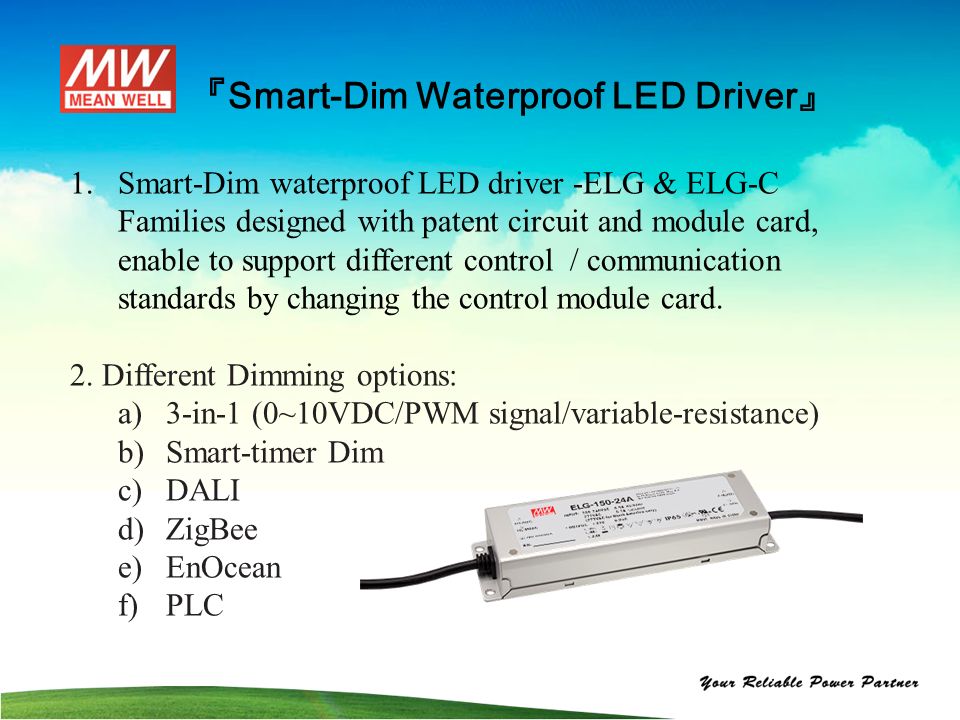

『 Smart-Dim Waterproof LED Driver 』 1.Smart-Dim waterproof LED driver -ELG & ELG-C Families designed with patent circuit and module card, enable to support different control / communication standards by changing the control module card. 2. Different Dimming options: a)3-in-1 (0~10VDC/PWM signal/variable-resistance) b)Smart-timer Dim c)DALI d)ZigBee e)EnOcean f)PLC
25
ELG family includes 75~240W models, with module-card design concept, fixture manufactures can choose different dimming options to meet the actual requirements. Also, manufacture can expand their system using different control standard using the same LED driver without redesigning the fixture.
26
HBG-100P / HBG-160P / HBG-240P Series HBG PCB-Type LED Driver Round form factor HBG Family PCB-Type: HBG-60P/100P/160P/240P C.C. only: HBG-60P; C.V.+C.C.: HBG-100P/160P/240P Full range AC input 90~305VAC (up to 295VAC for HBG-60P) Built-in active PFC function Setup time <500ms High efficiency up to 93% Output current adjustable 60~100% (HBG-100P/160P/240P A-Type) 3 in 1 dimming (HBG-100P/160P/240P B-Type) Working temperature range: -40~+45 ℃ (up to +70 ℃ for HBG-60P) Protections: Short circuit / OLP / OVP / OTP Approvals: UL8750, ENEC EN61347-2-13, CE, CCC 5 years warranty Application: LED high/low bay lighting, stage lighting, spot lighting
27
IDL/IDP/ODL-25/45/65 Series Economical LED Drivers New economical co-design medium-low wattage LED drivers family AC input range: 25W: 90~295VAC 45W: 90~135VAC or 180~295VAC 65W: 180~295VAC only Built-in 2 in 1 dimming function (0~10Vdc or 10V PWM signal) Auxiliary DC output 12V 50mA (-A type) Free air convection; work case temperature -20~+85 ℃ Approvals: UL8750, ENEC EN61347-2-13, CB, CE, CCC 3 years warranty Application: LED strip lighting, LED decorative lighting, LED architecture lighting, LED panel lighting, LED flood lighting *IDLplastic enclosure, IP20Class II power unit25W/45W/65W *IDPPCB type, IP20Class II power unit *ODLplastic case, IP67Class II power unit 45W/65W *IDLV *IDPV *ODLV PWM style, C.V. output*IDLC *IDPC *ODLC General DC, C.C. output
28
IRL-RGB-01/IRL-RGBW-01 SDP-001 LED Strips XOB-30 Smart Home controller AC LED module iTouch Smart timer dimming programmer RFP-M1M3-3A M2M3-3A M5M3-3A M8M4-5A LED Dimmer & Controller I SPD-20 (5KA/10KV) Surge Protect Device WPD-06 (868MHz) EnOcean Dim controller PIR-045/095 PIR LED Accessories & Controller NCL-CL1/IRL-CL1 DALI PWM Converter DAP-04/DAP-04-S01
29
Product information in CRM ★ See “Distributor Network Product ” for details 1. MW Product Tree 2. MW Product Map 3. Announcement of Product Revision 4. Development and Launch Schedule 5. CMRT (Conflict Minerals Report Template)
30
MW Product Tree MW Product Map Product Revision Product information in CRM
31
CMRT Product Launch Schedule Product information in CRM
32
Product Quick Search Improvement
33
Conclusion LED driver and new opportunity: -- high-power/high input votlage(HLG/HVG/HVGC-240/320/480H; LPFH-60 ) -- CV dimmable (PWM-40/60/90/120 , IDLV ) -- Class II 0~10V dimming (NPF-40/60/90/120 , IDLC) Adapter: new regulation and energy saving requirements (MW has worldwide safeties) USA DOE level VI – GSM family + GST family Medical: RPS(-C) 、 GSM-A/B suitable for Home healthcare / Biotech / Medical Examinations Programmable Hi-Power has different feature and communication suitable to new applications/industries Penetrating new industries : security PSC+DRC 、 Harsh environment HEP 、 EV charging GC/PB/RPB/ENC Product information in CRM, understand new product development schedule, and request samples for test. Provide new product suggestion or CDM opportunity
34
Thank You
