1. Git Ready and Git Going By Geoff Weiss Thursday, July 24, 2014

2. Topics ● Free environment for II GS development to support git usage ● Introduction to git ● General purpose git usage ● Apple II GS specific development

3. Free II GS Development Environment Part I

4. Free II GS Development Environment ● MPW II GS is freely available from the Golden Orchard CD ● Apple IIGS development tools ● MPW is freely available from Apple ● Needed to run MPW II GS ● Use Basilisk II JIT emulator ● Use Mac OS System 7.5.5 ● Use Netatalk for file storage ● Use git on host computer

5. Free II GS Development Environment ● Handles Mac Resources ● Uses modern revision control not available for Classic Mac OS ● Does not require a real Macintosh ● Apple software can be used in emulation only ● Cross platform solution for any modern operating system ● Works on Solaris!

6. Free II GS Development Environment ● Basilisk II JIT ● 32-bit ● Solaris packages to be included with presentation when hosted on www.kansasfest.org

7. Free II GS Development Environment: Basilisk II ● Add packages ● pkgadd -d THOTbasilisk2.pkg ● pkgadd -d THOTbasilisk2-desktop.pkg

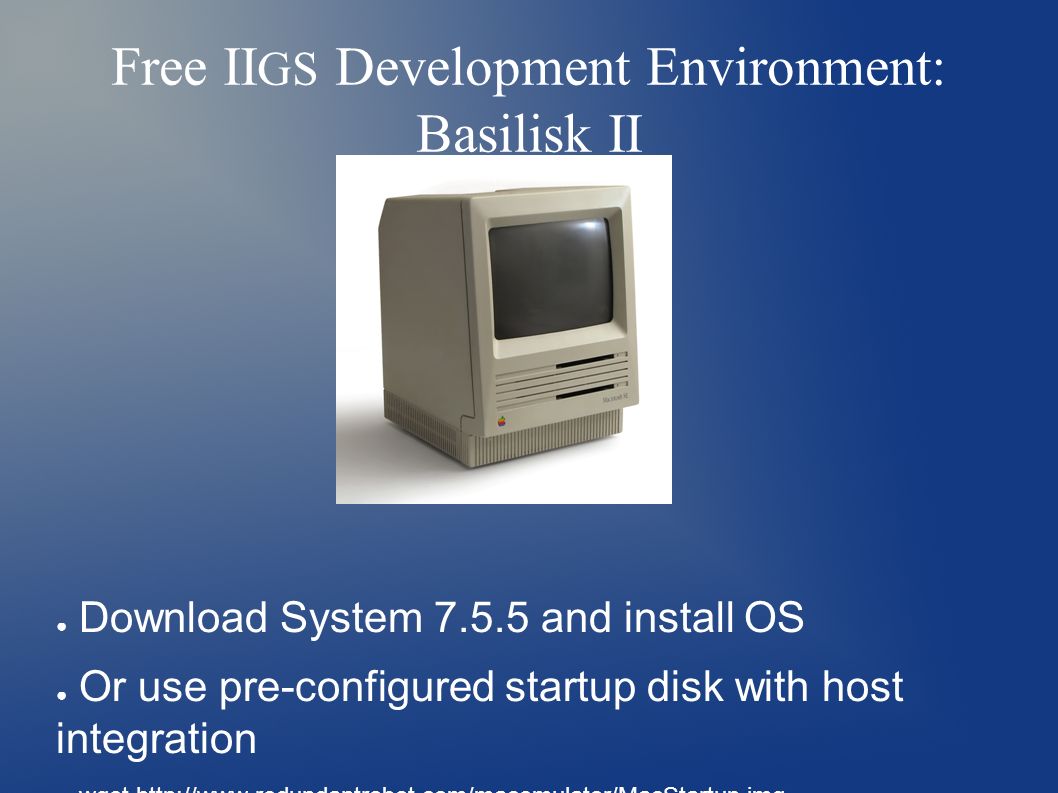

8. Free II GS Development Environment: Basilisk II ● Download System 7.5.5 and install OS ● Or use pre-configured startup disk with host integration ● wget http://www.redundantrobot.com/macemulator/MacStartup.img

9. Free II GS Development Environment: Basilisk II ● Run Basilisk II

10. Free II GS Development Environment: Basilisk II ● Add boot disk image

11. Free II GS Development Environment: Basilisk II ● Configure screen resolution

12. Free II GS Development Environment: Basilisk II ● Configure networking

13. Free II GS Development Environment: Basilisk II ● Configure memory and ROM ● Click Start

14. Free II GS Development Environment: Basilisk II ● Mac desktop boots

15. Free II GS Development Environment: Basilisk II ● Shutdown Mac emulator ● mkfile -n 200m GS.Dev.po ● Add GS.Dev.po disk image to Basilisk II Volumes ● Click Start. Boot Mac OS. ● Format disk. Name GS.Dev

16. Free II GS Development Environment: MPW ● Download MPW 3.5 Installer http://staticky.com/mirrors/ftp.apple.com/developer/Tool_Chest/Core_Ma c_OS_Tools/MPW_etc./MPW-GM_Images/MPW-GM.img.bin

17. Free II GS Development Environment: MPW ● MPW II GS is available on Golden Orchard CD ● Download version 1.0 from http://digisoft.callapple.org/Downloads/GO-G.S-1.0.iso ● Documentation and software for sale from Syndicomm

18. Free II GS Development Environment: MPW ● Extract the Programming partition ● dd if=GO-G.S-1.0.iso of=GO-Programming.iso bs=512 skip=186156 count=256000

19. Free II GS Development Environment: MPW ● Shutdown Mac OS. ● Add GO-Programming.iso to Basilisk II Volumes ● Start to boot Mac OS ● Browse host OS disk (Unix) and copy MPW- GM.img.bin to GS.Dev disk

20. Free II GS Development Environment: MPW ● Unstuff MPW-GM.img.bin with Stuffit Expander ● Open MPW-GM.img ● Open MPW-GM disk ● Copy contents to GS.Dev disk ● Interfaces&Libraries folder ● MPW folder

21. Free II GS Development Environment: MPW Edit GO-Programming:Apple:Development Tools:For MPW IIGS:Installation:Install (Use MPW Editor) ● Find line that has: Duplicate {Option} :Tools:≈ “{MPW}”Tools: ● Above it, add these three lines: if ! `Exists -d “{MPW}”Interfaces`; NewFolder “{MPW}”Interfaces; end if ! `Exists -d “{MPW}”Libraries`; NewFolder “{MPW}”Libraries; end Duplicate {Option} :Libraries:≈ “{MPW}”Libraries:

22. Free II GS Development Environment: MPW ● MPW Shell command: :Installation:Install ● Select No for prompting of overwriting files. ● Manually Edit GS.Dev:MPW:MPW.Help since the installer doesn't do this step. ● After line: Help Miscellaneous# a list of commands in Projector, a projector/source control system ● Add this line: ● Help MPWIIGS# a list of commands for IIgs Cross Development ● Quit MPW

23. Free II GS Development Environment: Networking ● Add packages ● pkgadd -d GSbdb.pkg ● pkgadd -d Gsnetatalk.pkg ● pkgadd -d GSnetatalk-stanza.pkg

24. Free II GS Development Environment: Networking ● Create case insensitive network share: zfs create -o casesensitivity=insensitive rpool/export/iigs chown -R $USER:staff /export/iigs

25. Free II GS Development Environment: Networking ● Configure Apple Filing Protocol echo "- -tcp -noddp -uamlist uams_dhx.so,uams_clrtxt.so,uams_dhx2.so - nosavepassword" > /opt/GSnetatalk/etc/netatalk/afpd.conf

26. Free II GS Development Environment: Networking ● Add the single following line to the penultimate line to /opt/GSnetatalk/etc/netatalk/AppleVolumes.default /export/iigs "IIGS" allow:@staff cnidscheme:dbd options:usedots,invisibledots,upriv,caseinsensitive perm:0770

27. Free II GS Development Environment: Networking ● Netatalk will start automatically on the next boot. It can be manually started with: /etc/init.d/netatalk start

28. Free II GS Development Environment: Networking ● Download: ● http://download.info.apple.com/Apple_Support_Area/Apple_Software_Updates/English- North_American/Macintosh/Networking-Communications/Open_Transport/OT_1.1.2- Net_Install.sea.bin ● http://download.info.apple.com/Apple_Support_Area/Apple_Software_Updates/English- North_American/Macintosh/Networking- Communications/AppleShare_Client/AppleShare_Client_3.7.4.img.bin

29. Free II GS Development Environment: Networking ● Browse host OS disk (Unix) and copy OT_1.1.2- Net_Install.sea.bin and AppleShare_Client_3.7.4.img.bin to GS.Dev disk

30. Free II GS Development Environment: Networking ● Unstuff archived files ● Run Open Transport Installer in the “Net Install” Folder ● Mount the “AppleShare Client 3.7.4.img” disk image and run the Installer on the “AppleShare Client” Disk

31. Free II GS Development Environment: Networking ● Configure TCP/IP Networking

32. Free II GS Development Environment: Networking ● Select Apple – Chooser ● Click AppleShare ● Click “Server IP Address...” ● Enter IP Address from the host's network connection (get IP from ifconfig -a )

33. Free II GS Development Environment: Networking ● Enter host OS username next to “Name:” ● Enter host OS password next to “Password:” ● Click OK ● Select IIGS file system ● Click OK

34. Free II GS Development Environment: Networking ● Manage all files for revision control in the IIGS file system

35. Introduction to Git Part II

36. Introduction to Git ● Revision Control ● Sophisticated ● Distributed ● Scalable ● Great for code management ● Available for all major computer platforms

37. Introduction to Git ● Install git ● Solaris and derivatives pkg install git ● Linux (i.e. Centos, RedHat, Oracle, SUSE) yum install git-core ● Windows http://msysgit.github.io/ ● Mac OS X http://code.google.com/p/git-osx-installer/

38. Introduction to Git ● Cloud storage options ● GitHub ● BitBucket ● Free for personal use ● Share OpenSource projects ● Collaborate with others ● Fork code base ● Pull Requests to integrate changes upstream

39. Introduction to Git ● Have to know only one command: git ● Use arguments for functions and parameters ● Help information available ● git help

40. Introduction to Git: Prepare Git ● Set up name and email address git config --global user.name "Name" git config --global user.email "email@address.com"

41. Introduction to Git: Prepare Git ● Set Line Endings ● Non Windows git config --global core.autocrlf true ● Windows git config --global core.autocrlf input ● II GS development, add filter ●.git/config: [filter "cr"] clean = tr '\\r' '\\n' smudge = tr '\\n' '\\r' ● And.git/info/attributes (or.gitattributes if it should be versioned) * filter=cr

42. Introduction to Git: Create Repo ● Create Repository ● Make a new project ● Create a new directory or cd into one ● git init

43. Introduction to Git: Add file/directory ● Add content to repository ● Create a file or directory ● git add file/directory ● git commit -m “description of change” ● Opens in default editor ● Force git to use a specific editor with this command: ● git config --global core.editor "/full/path/to/editor"

44. Introduction to Git: Add file/directory ● Add content to repository ● Create a file or directory ● git add file/directory ● git -m “description of change” ● Opens in default editor ● Force git to use a specific editor with this command: ● git config --global core.editor "/full/path/to/editor"

45. Introduction to Git: Add file/directory ● Edit content in directory ● Add a new file ● git add ● git commit ● Edit existing file ● git add. ● git commit

46. Introduction to Git: terminology ● working directory/tree ● Directory with the files that are in revision control and any subdirectories ● stage ● active set of changes not yet committed ● Index ● Difference between working tree and stage

47. Introduction to Git: Check Status ● Check status ● git status ● Quickly check the status of the working directory and repository

48. Introduction to Git: Git Log ● View log ● git log ● View full log details ● git log –pretty=oneline ● Place information on a single line ● Other samples ● git log --pretty=oneline --max-count=22 ● git log --pretty=oneline --since='5 minutes ago' ● git log --pretty=oneline --until='5 minutes ago' ● git log --pretty=oneline --author= ● git log --pretty=oneline --grsph ● git log –-pretty=oneline -all

49. Introduction to Git: Git Alias ● Simplify git functions and parameters into a single word ● Provide svn compatibilty ● git config --global alias.co checkout ● git config --global alias.ci commit ● Display a pretty commit tree graph ● git config --global alias.graph "log --graph -- oneline –all" ● Aliases are placed in ~/.gitconfig

50. Introduction to Git: More Info ● More Information ● http://githowto.com

51. Introduction to Git: MPW Use ● Files written to the host system via netatalk will have the data fork and an AppleDouble fork. ● git add filename ● git add.AppleDouble/filename

52. Introduction to Git: Followup ● Assistance with Apple II git usage can be found on the Apple II irc channel.
