1. Navy’s Salvage and SUPSALV Capability Salvage Ship Replacement Mike Herb Head, Salvage Operations and Ocean Engineering Supervisor of Salvage and Diving Naval Sea Systems Command www.supsalv.org Military Divers Training Continuum May 2012

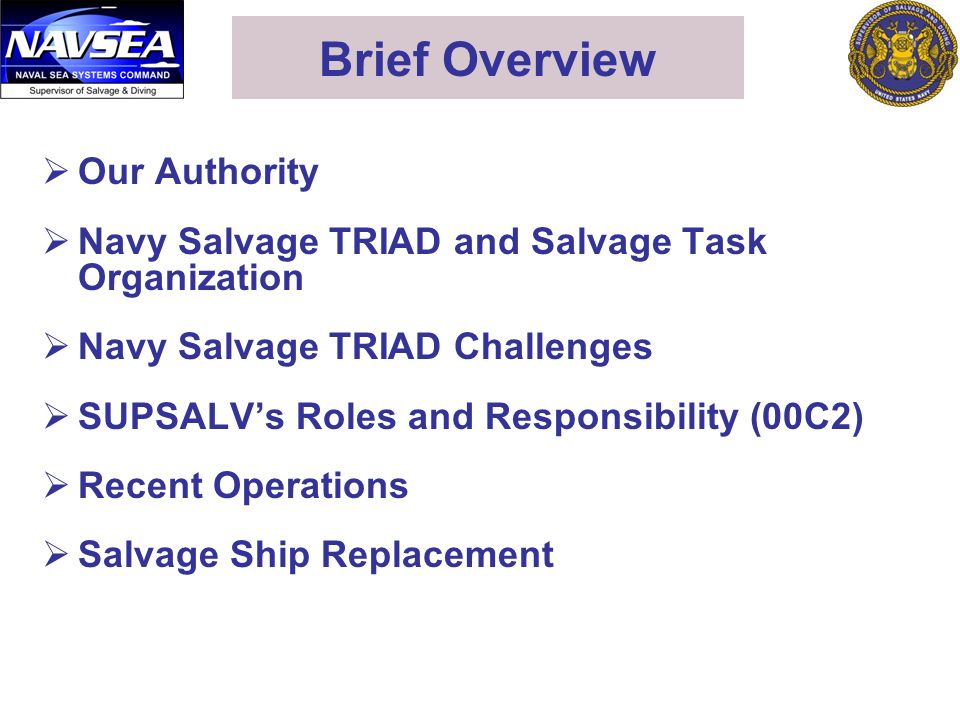

2. Brief Overview  Our Authority  Navy Salvage TRIAD and Salvage Task Organization  Navy Salvage TRIAD Challenges  SUPSALV’s Roles and Responsibility (00C2)  Recent Operations  Salvage Ship Replacement

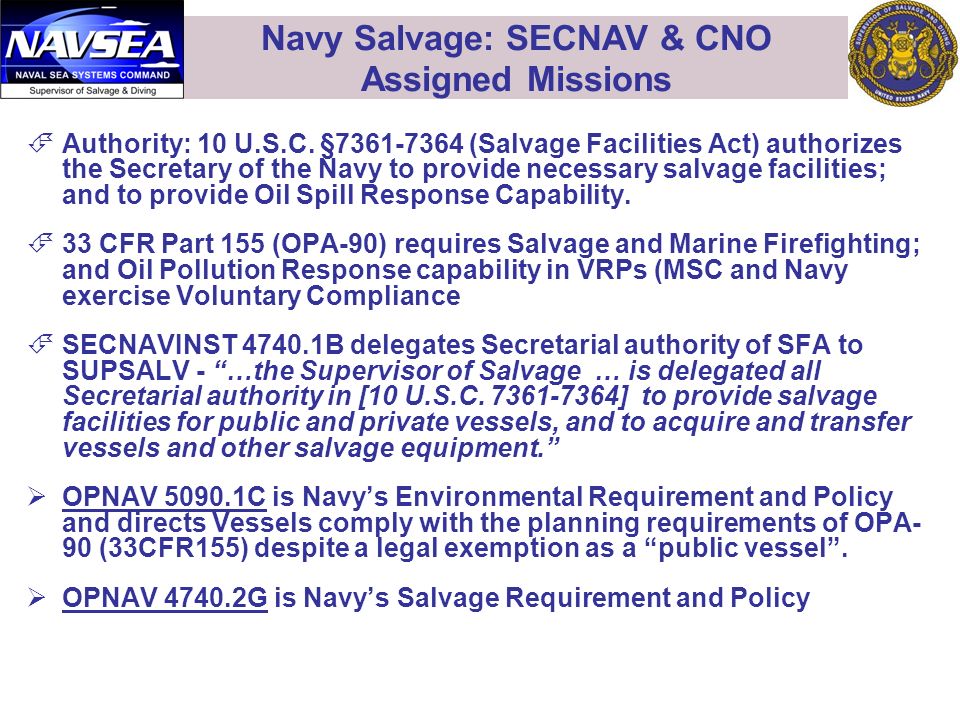

3. Navy Salvage: SECNAV & CNO Assigned Missions  Authority: 10 U.S.C. §7361-7364 (Salvage Facilities Act) authorizes the Secretary of the Navy to provide necessary salvage facilities; and to provide Oil Spill Response Capability.  33 CFR Part 155 (OPA-90) requires Salvage and Marine Firefighting; and Oil Pollution Response capability in VRPs (MSC and Navy exercise Voluntary Compliance  SECNAVINST 4740.1B delegates Secretarial authority of SFA to SUPSALV - “…the Supervisor of Salvage … is delegated all Secretarial authority in [10 U.S.C. 7361-7364] to provide salvage facilities for public and private vessels, and to acquire and transfer vessels and other salvage equipment.”  OPNAV 5090.1C is Navy’s Environmental Requirement and Policy and directs Vessels comply with the planning requirements of OPA- 90 (33CFR155) despite a legal exemption as a “public vessel”.  OPNAV 4740.2G is Navy’s Salvage Requirement and Policy

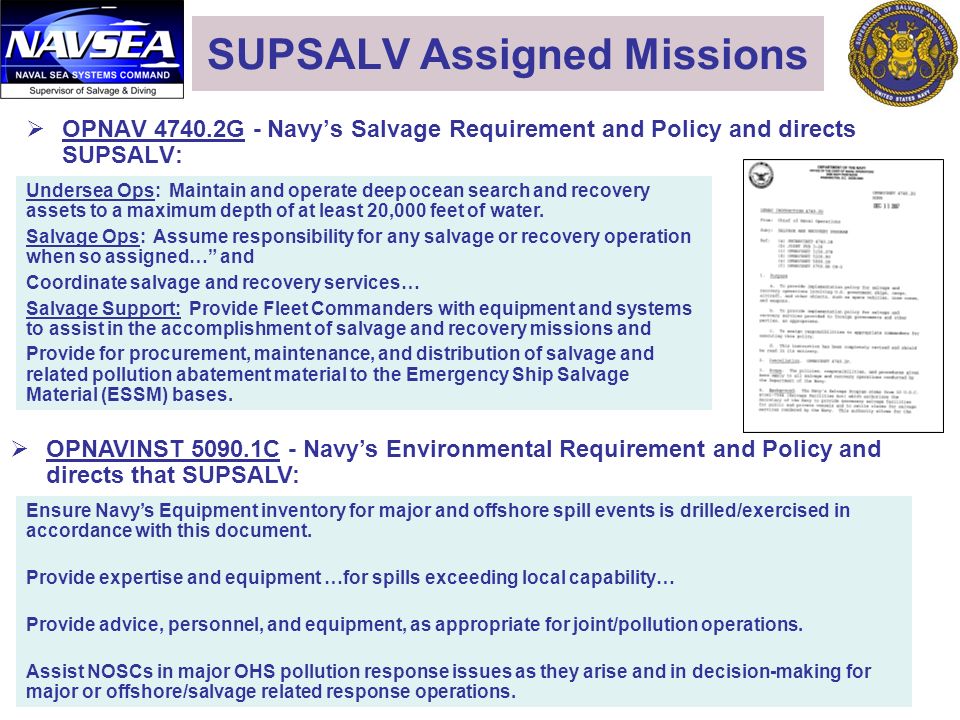

4.  OPNAV 4740.2G - Navy’s Salvage Requirement and Policy and directs SUPSALV: Undersea Ops: Maintain and operate deep ocean search and recovery assets to a maximum depth of at least 20,000 feet of water. Salvage Ops: Assume responsibility for any salvage or recovery operation when so assigned…” and Coordinate salvage and recovery services… Salvage Support: Provide Fleet Commanders with equipment and systems to assist in the accomplishment of salvage and recovery missions and Provide for procurement, maintenance, and distribution of salvage and related pollution abatement material to the Emergency Ship Salvage Material (ESSM) bases. SUPSALV Assigned Missions  OPNAVINST 5090.1C - Navy’s Environmental Requirement and Policy and directs that SUPSALV: Ensure Navy’s Equipment inventory for major and offshore spill events is drilled/exercised in accordance with this document. Provide expertise and equipment …for spills exceeding local capability… Provide advice, personnel, and equipment, as appropriate for joint/pollution operations. Assist NOSCs in major OHS pollution response issues as they arise and in decision-making for major or offshore/salvage related response operations.

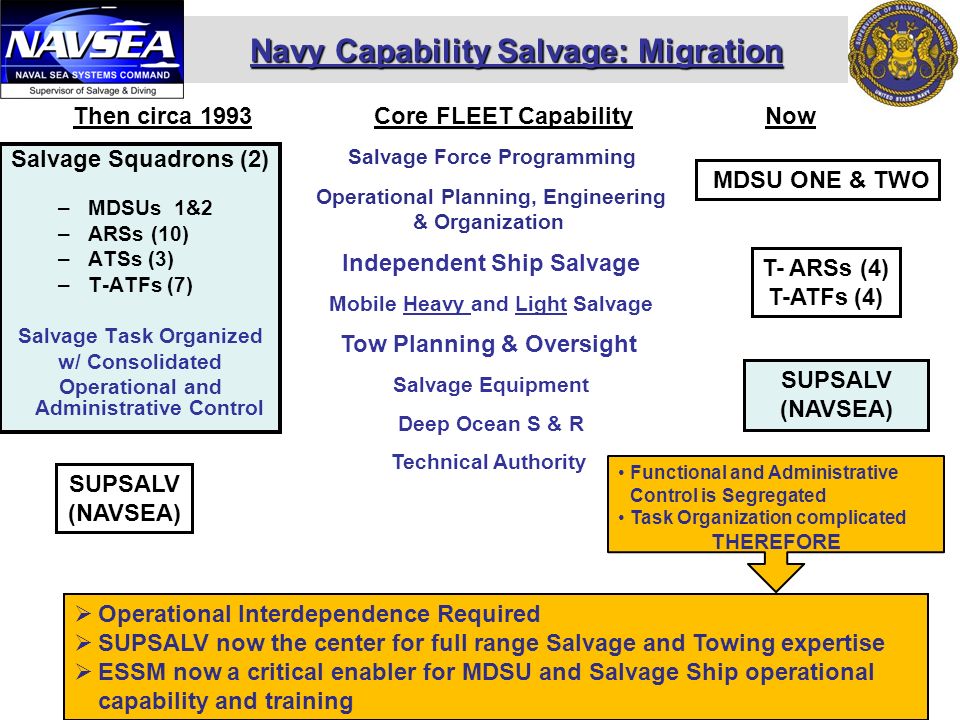

5. 5 Salvage Force Programming Operational Planning, Engineering & Organization Independent Ship Salvage Mobile Heavy and Light Salvage Tow Planning & Oversight Salvage Equipment Deep Ocean S & R Technical Authority Navy Capability Salvage: Migration Salvage Squadrons (2) –MDSUs 1&2 –ARSs (10) –ATSs (3) –T-ATFs (7) Salvage Task Organized w/ Consolidated Operational and Administrative Control SUPSALV (NAVSEA) Then circa 1993 Core FLEET Capability Now MDSU ONE & TWO T- ARSs (4) T-ATFs (4) SUPSALV (NAVSEA)  Operational Interdependence Required  SUPSALV now the center for full range Salvage and Towing expertise  ESSM now a critical enabler for MDSU and Salvage Ship operational capability and training Functional and Administrative Control is Segregated Task Organization complicated THEREFORE

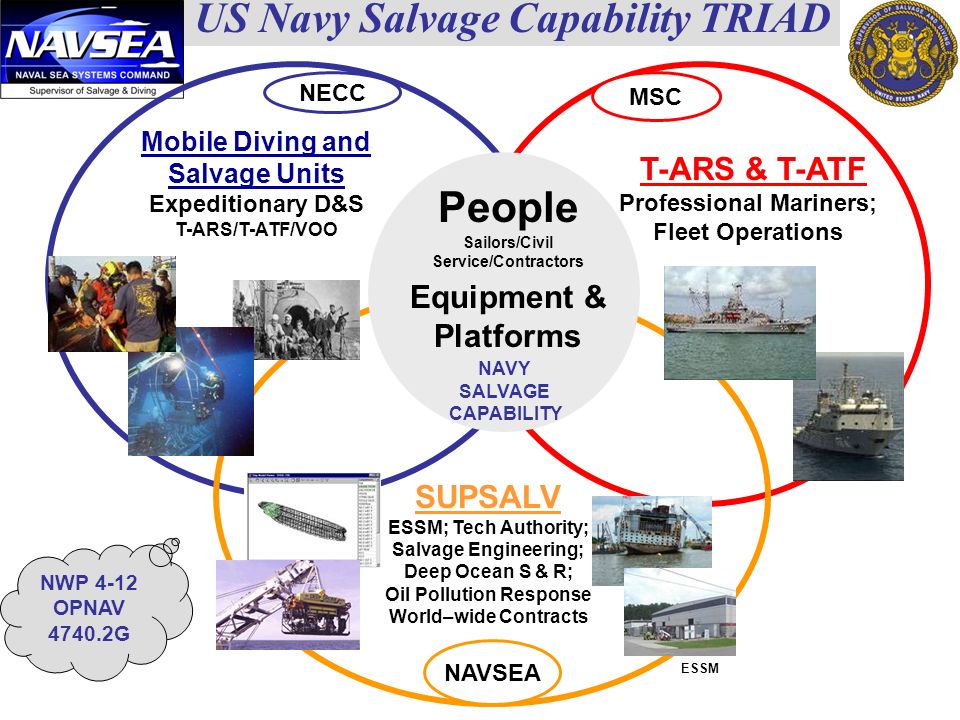

6. T-ARS & T-ATF Professional Mariners; Fleet Operations Mobile Diving and Salvage Units Expeditionary D&S T-ARS/T-ATF/VOO MSC NECC NAVSEA SUPSALV ESSM; Tech Authority; Salvage Engineering; Deep Ocean S & R; Oil Pollution Response World–wide Contracts US Navy Salvage Capability TRIAD People Sailors/Civil Service/Contractors Equipment & Platforms ESSM NAVY SALVAGE CAPABILITY NWP 4-12 OPNAV 4740.2G

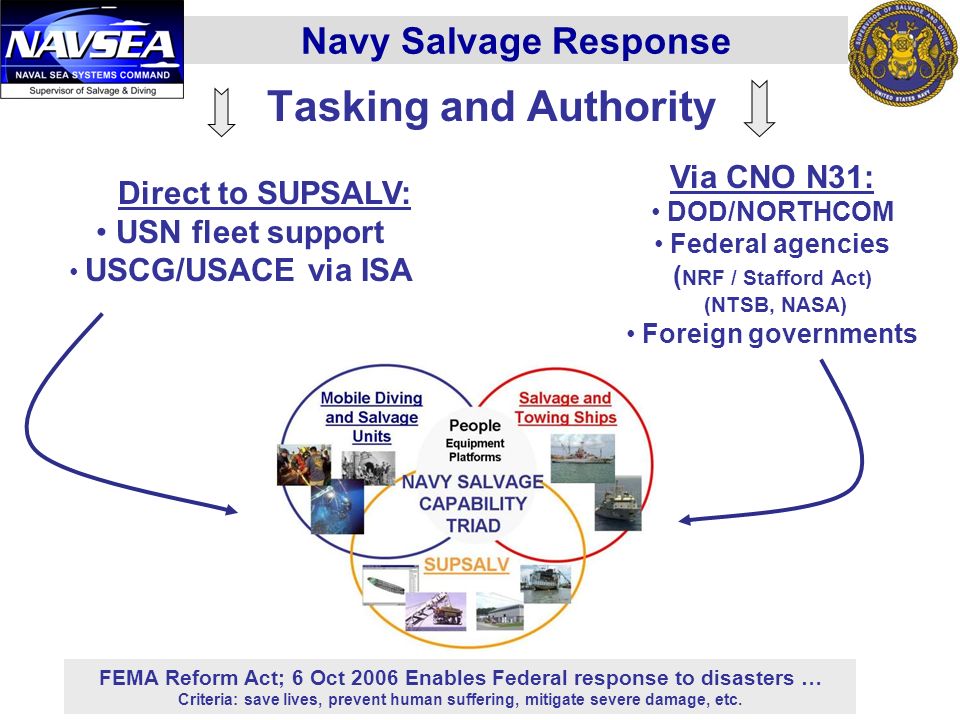

7. Navy Salvage Response Tasking and Authority Direct to SUPSALV: USN fleet support USCG/USACE via ISA Via CNO N31: DOD/NORTHCOM Federal agencies ( NRF / Stafford Act) (NTSB, NASA) Foreign governments FEMA Reform Act; 6 Oct 2006 Enables Federal response to disasters … Criteria: save lives, prevent human suffering, mitigate severe damage, etc.

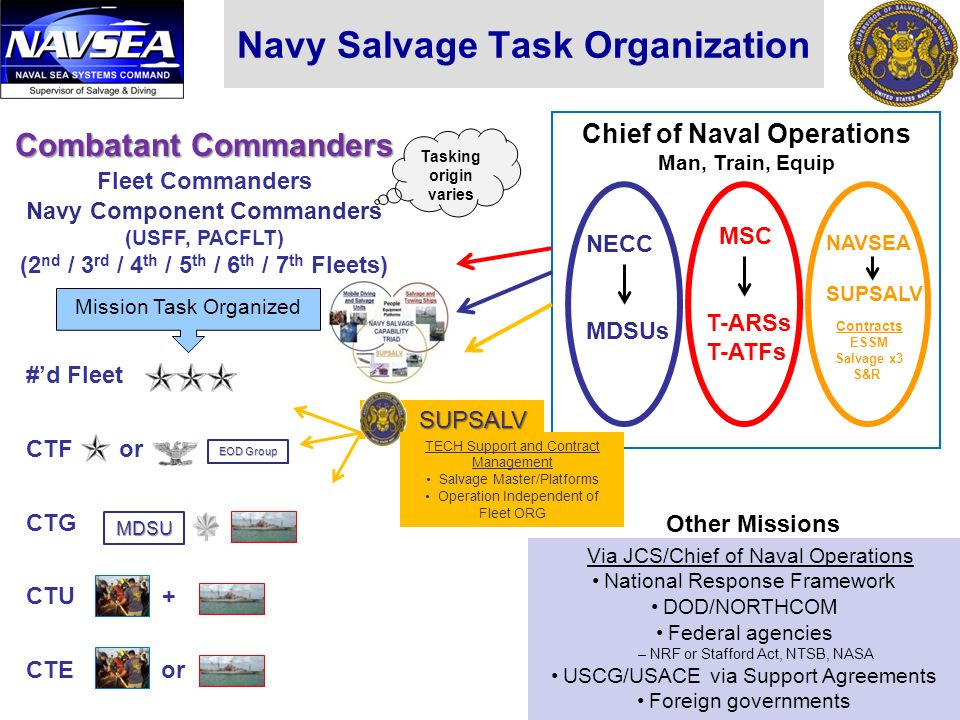

8. Chief of Naval Operations Man, Train, Equip Navy Salvage Task Organization Combatant Commanders Fleet Commanders Navy Component Commanders (USFF, PACFLT) (2 nd / 3 rd / 4 th / 5 th / 6 th / 7 th Fleets) Contracts ESSM Salvage x3 S&R Other Missions NECC MDSUs MSC T-ARSs T-ATFs NAVSEA SUPSALV Mission Task Organized Tasking origin varies #’d Fleet CTF or CTG CTU + CTE or MDSU SUPSALV SUPSALV TECH Support and Contract Management Salvage Master/Platforms Operation Independent of Fleet ORG Via JCS/Chief of Naval Operations National Response Framework DOD/NORTHCOM Federal agencies –NRF or Stafford Act, NTSB, NASA USCG/USACE via Support Agreements Foreign governments EOD Group

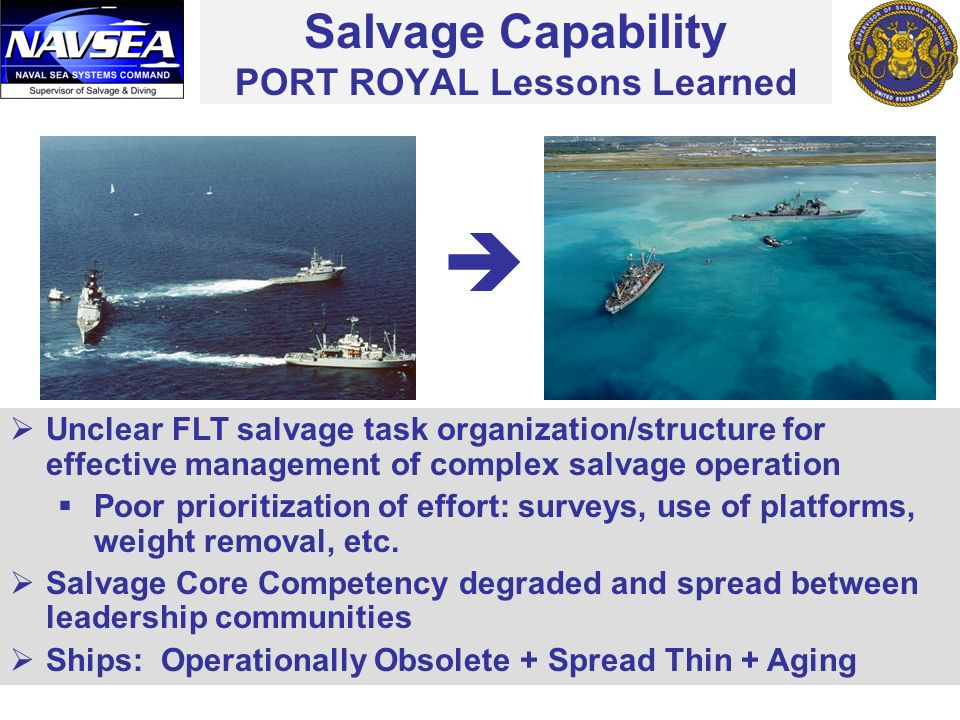

9. 9 Salvage Capability PORT ROYAL Lessons Learned   Unclear FLT salvage task organization/structure for effective management of complex salvage operation  Poor prioritization of effort: surveys, use of platforms, weight removal, etc.  Salvage Core Competency degraded and spread between leadership communities  Ships: Operationally Obsolete + Spread Thin + Aging

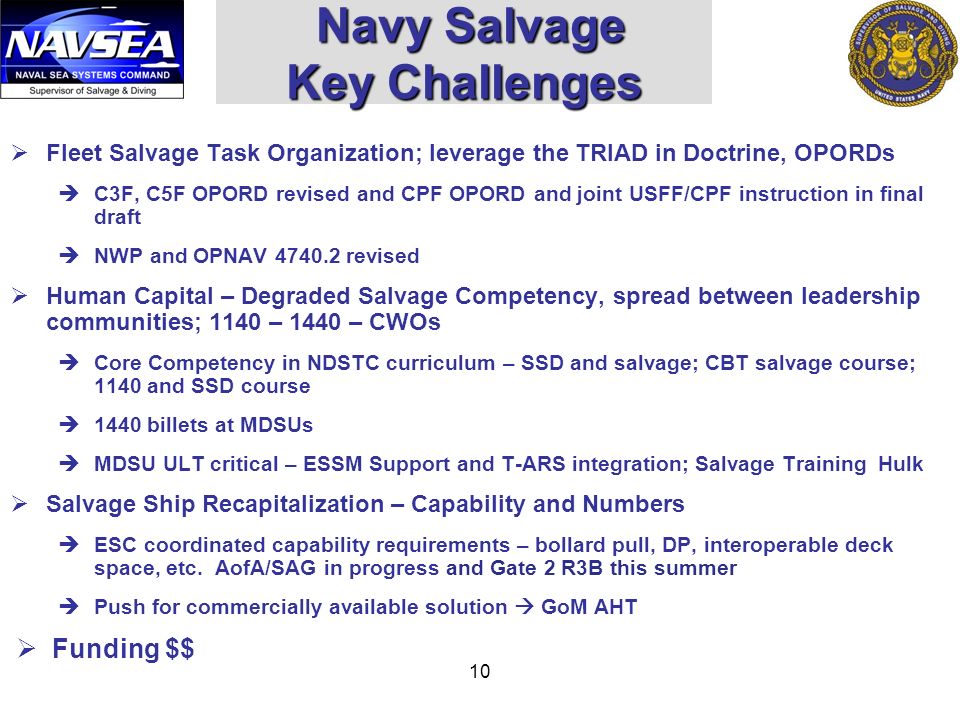

10. 10  Fleet Salvage Task Organization; leverage the TRIAD in Doctrine, OPORDs  C3F, C5F OPORD revised and CPF OPORD and joint USFF/CPF instruction in final draft  NWP and OPNAV 4740.2 revised  Human Capital – Degraded Salvage Competency, spread between leadership communities; 1140 – 1440 – CWOs  Core Competency in NDSTC curriculum – SSD and salvage; CBT salvage course; 1140 and SSD course  1440 billets at MDSUs  MDSU ULT critical – ESSM Support and T-ARS integration; Salvage Training Hulk  Salvage Ship Recapitalization – Capability and Numbers  ESC coordinated capability requirements – bollard pull, DP, interoperable deck space, etc. AofA/SAG in progress and Gate 2 R3B this summer  Push for commercially available solution  GoM AHT  Funding $$ Navy Salvage Key Challenges Navy Salvage Key Challenges

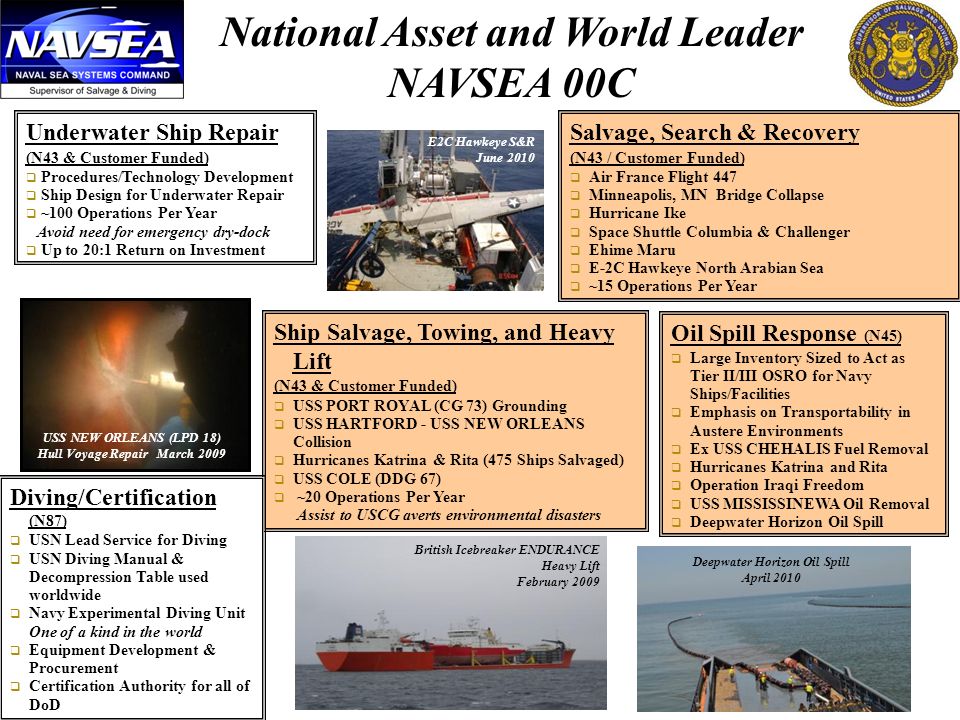

11. Salvage, Search & Recovery (N43 / Customer Funded)  Air France Flight 447  Minneapolis, MN Bridge Collapse  Hurricane Ike  Space Shuttle Columbia & Challenger  Ehime Maru  E-2C Hawkeye North Arabian Sea  ~15 Operations Per Year Ship Salvage, Towing, and Heavy Lift (N43 & Customer Funded)  USS PORT ROYAL (CG 73) Grounding  USS HARTFORD - USS NEW ORLEANS Collision  Hurricanes Katrina & Rita (475 Ships Salvaged)  USS COLE (DDG 67)  ~20 Operations Per Year Assist to USCG averts environmental disasters Diving/Certification (N87)  USN Lead Service for Diving  USN Diving Manual & Decompression Table used worldwide  Navy Experimental Diving Unit One of a kind in the world  Equipment Development & Procurement  Certification Authority for all of DoD Underwater Ship Repair (N43 & Customer Funded)  Procedures/Technology Development  Ship Design for Underwater Repair  ~100 Operations Per Year Avoid need for emergency dry-dock  Up to 20:1 Return on Investment Oil Spill Response (N45)  Large Inventory Sized to Act as Tier II/III OSRO for Navy Ships/Facilities  Emphasis on Transportability in Austere Environments  Ex USS CHEHALIS Fuel Removal  Hurricanes Katrina and Rita  Operation Iraqi Freedom  USS MISSISSINEWA Oil Removal  Deepwater Horizon Oil Spill National Asset and World Leader NAVSEA 00C British Icebreaker ENDURANCE Heavy Lift February 2009 USS NEW ORLEANS (LPD 18) Hull Voyage Repair March 2009 E2C Hawkeye S&R June 2010 Deepwater Horizon Oil Spill April 2010

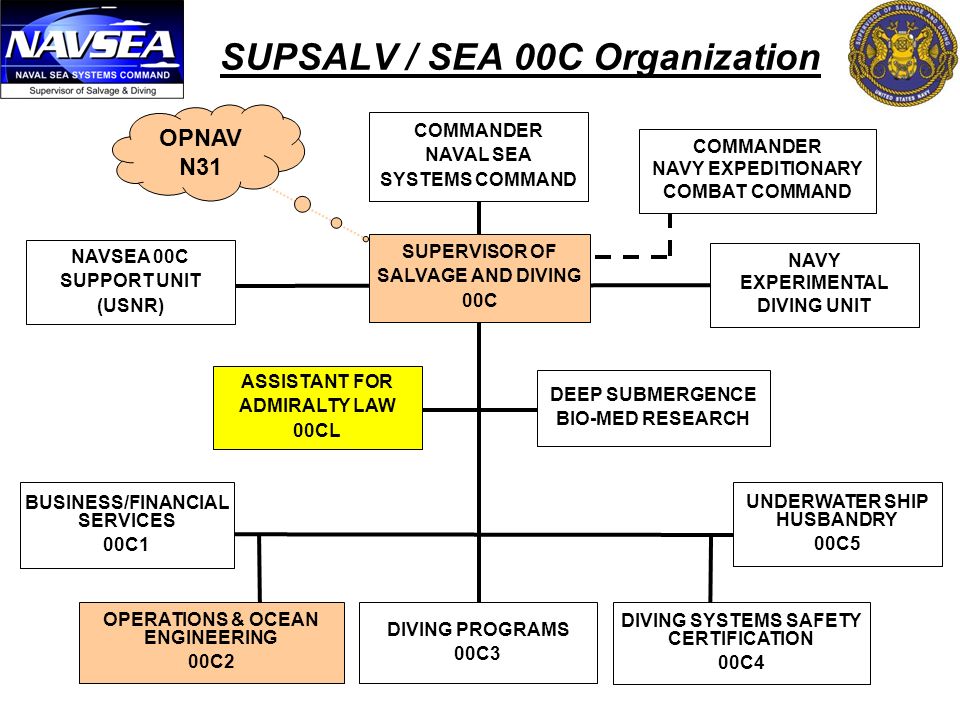

12. SUPSALV / SEA 00C Organization SUPERVISOR OF SALVAGE AND DIVING 00C NAVY EXPERIMENTAL DIVING UNIT NAVSEA 00C SUPPORT UNIT (USNR) ASSISTANT FOR ADMIRALTY LAW 00CL DEEP SUBMERGENCE BIO-MED RESEARCH UNDERWATER SHIP HUSBANDRY 00C5 DIVING PROGRAMS 00C3 BUSINESS/FINANCIAL SERVICES 00C1 OPERATIONS & OCEAN ENGINEERING 00C2 DIVING SYSTEMS SAFETY CERTIFICATION 00C4 COMMANDER NAVAL SEA SYSTEMS COMMAND COMMANDER NAVY EXPEDITIONARY COMBAT COMMAND OPNAV N31

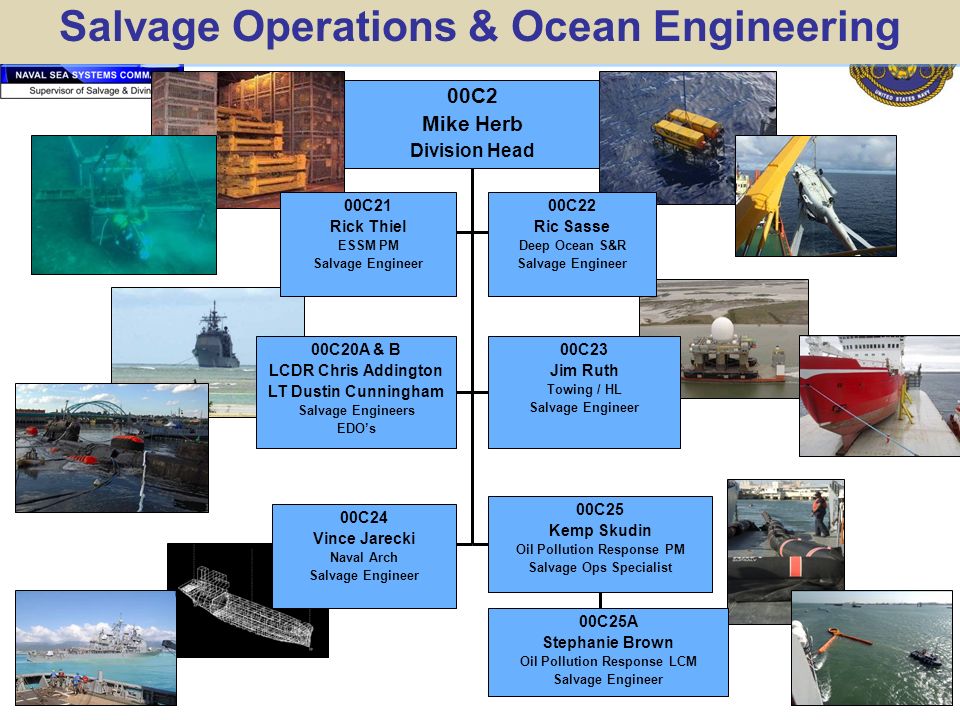

13. 00C2 Mike Herb Division Head 00C25 Kemp Skudin Oil Pollution Response PM Salvage Ops Specialist 00C25A Stephanie Brown Oil Pollution Response LCM Salvage Engineer Salvage Operations & Ocean Engineering 00C21 Rick Thiel ESSM PM Salvage Engineer 00C22 Ric Sasse Deep Ocean S&R Salvage Engineer 00C24 Vince Jarecki Naval Arch Salvage Engineer 00C20A & B LCDR Chris Addington LT Dustin Cunningham Salvage Engineers EDO’s 00C23 Jim Ruth Towing / HL Salvage Engineer

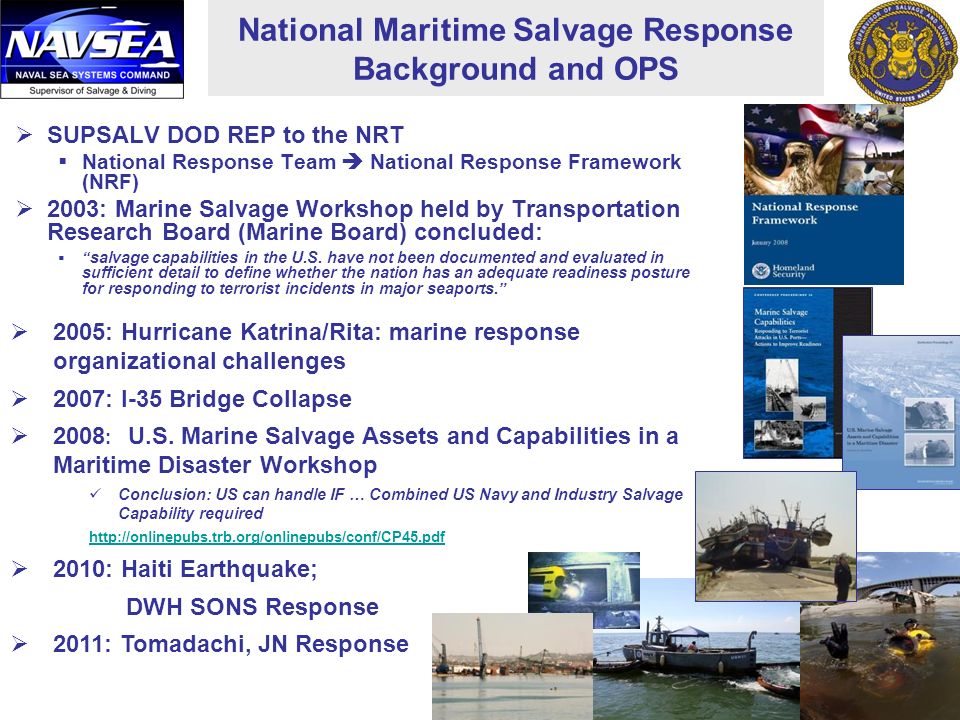

14. National Maritime Salvage Response Background and OPS  SUPSALV DOD REP to the NRT  National Response Team  National Response Framework (NRF)  2003: Marine Salvage Workshop held by Transportation Research Board (Marine Board) concluded:  “ salvage capabilities in the U.S. have not been documented and evaluated in sufficient detail to define whether the nation has an adequate readiness posture for responding to terrorist incidents in major seaports.”  2005: Hurricane Katrina/Rita: marine response organizational challenges  2007: I-35 Bridge Collapse  2008 : U.S. Marine Salvage Assets and Capabilities in a Maritime Disaster Workshop Conclusion: US can handle IF … Combined US Navy and Industry Salvage Capability required http://onlinepubs.trb.org/onlinepubs/conf/CP45.pdf  2010: Haiti Earthquake; DWH SONS Response  2011: Tomadachi, JN Response

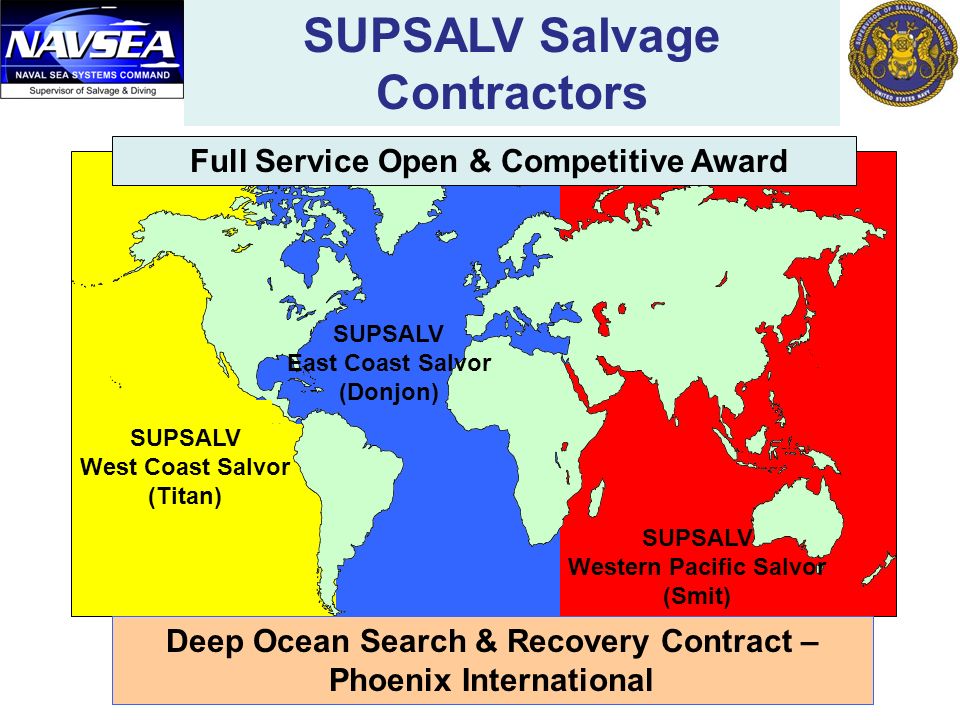

15. SUPSALV Salvage Contractors Deep Ocean Search & Recovery Contract – Phoenix International SUPSALV West Coast Salvor (Titan) SUPSALV East Coast Salvor (Donjon) SUPSALV Western Pacific Salvor (Smit) Full Service Open & Competitive Award

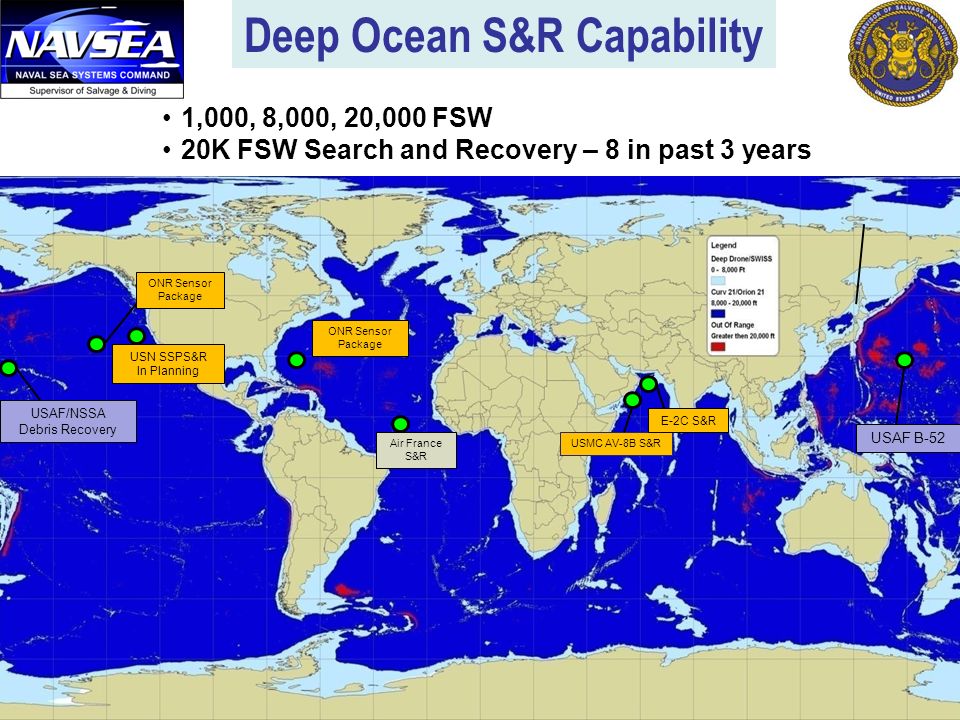

16. USMC AV-8B S&R USAF/NSSA Debris Recovery USN SSPS&R In Planning Deep Ocean S&R Capability 1,000, 8,000, 20,000 FSW 20K FSW Search and Recovery – 8 in past 3 years E-2C S&R USAF B-52 ONR Sensor Package ONR Sensor Package Air France S&R

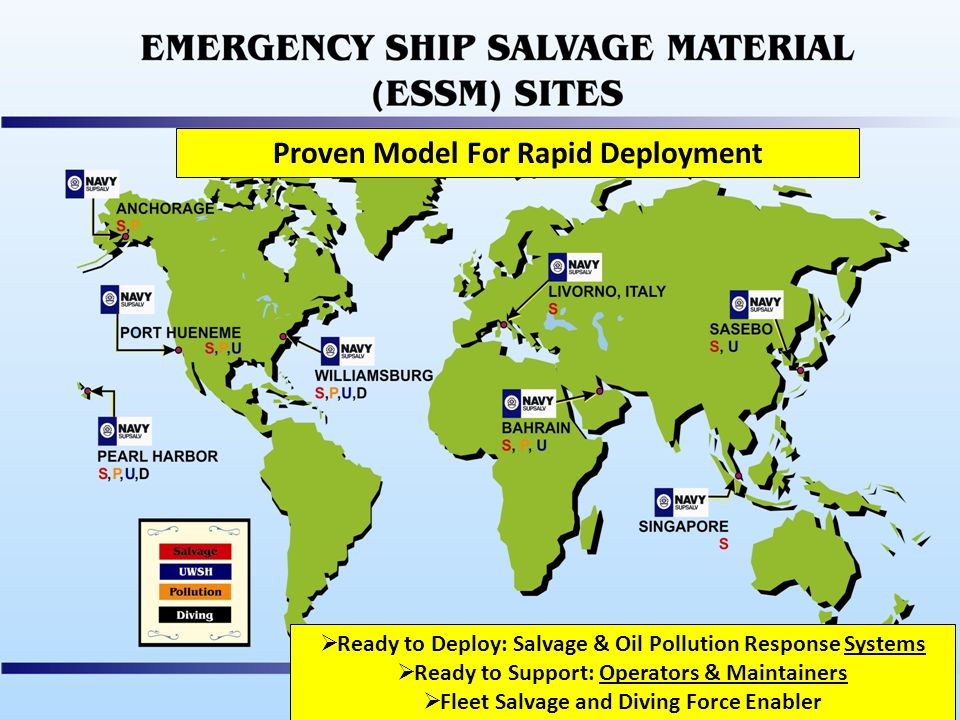

17.  Ready to Deploy: Salvage & Oil Pollution Response Systems  Ready to Support: Operators & Maintainers  Fleet Salvage and Diving Force Enabler Proven Model For Rapid Deployment

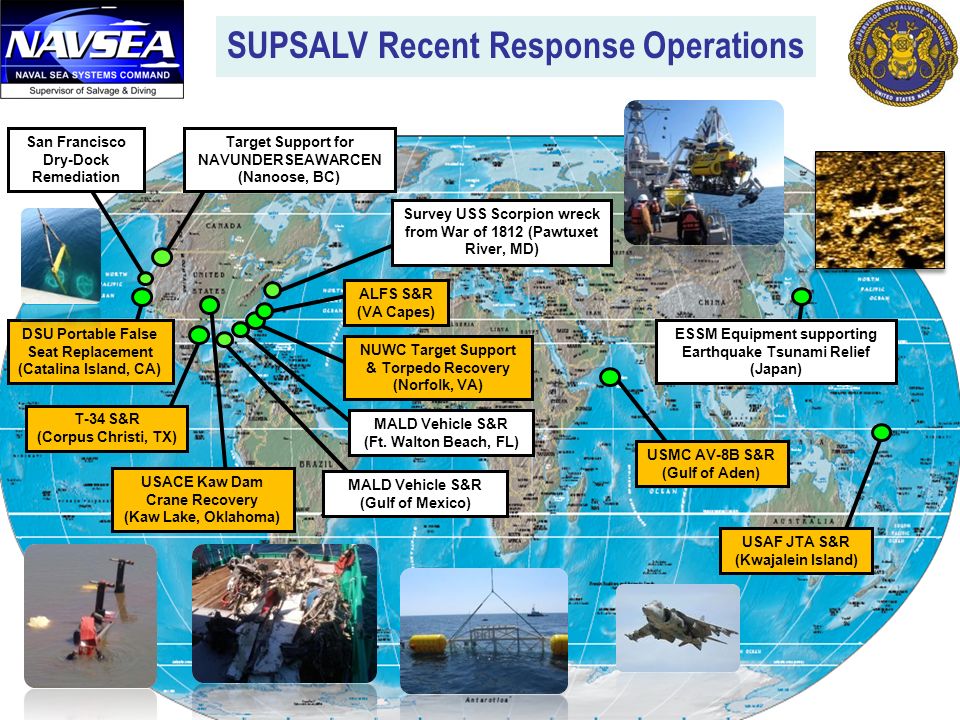

18. Survey USS Scorpion wreck from War of 1812 (Pawtuxet River, MD) USMC AV-8B S&R (Gulf of Aden) USACE Kaw Dam Crane Recovery (Kaw Lake, Oklahoma) ESSM Equipment supporting Earthquake Tsunami Relief (Japan) MALD Vehicle S&R (Ft. Walton Beach, FL) ALFS S&R (VA Capes) T-34 S&R (Corpus Christi, TX) NUWC Target Support & Torpedo Recovery (Norfolk, VA) DSU Portable False Seat Replacement (Catalina Island, CA) MALD Vehicle S&R (Gulf of Mexico) Target Support for NAVUNDERSEAWARCEN (Nanoose, BC) SUPSALV Recent Response Operations San Francisco Dry-Dock Remediation USAF JTA S&R (Kwajalein Island)

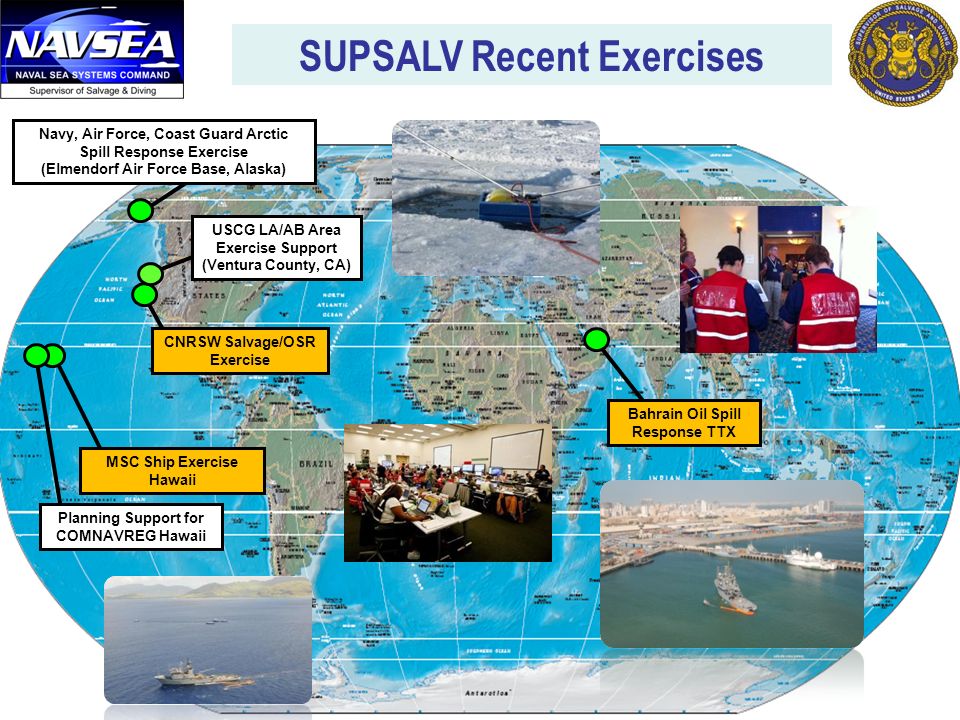

19. Navy, Air Force, Coast Guard Arctic Spill Response Exercise (Elmendorf Air Force Base, Alaska) Bahrain Oil Spill Response TTX Planning Support for COMNAVREG Hawaii CNRSW Salvage/OSR Exercise MSC Ship Exercise Hawaii USCG LA/AB Area Exercise Support (Ventura County, CA) SUPSALV Recent Exercises

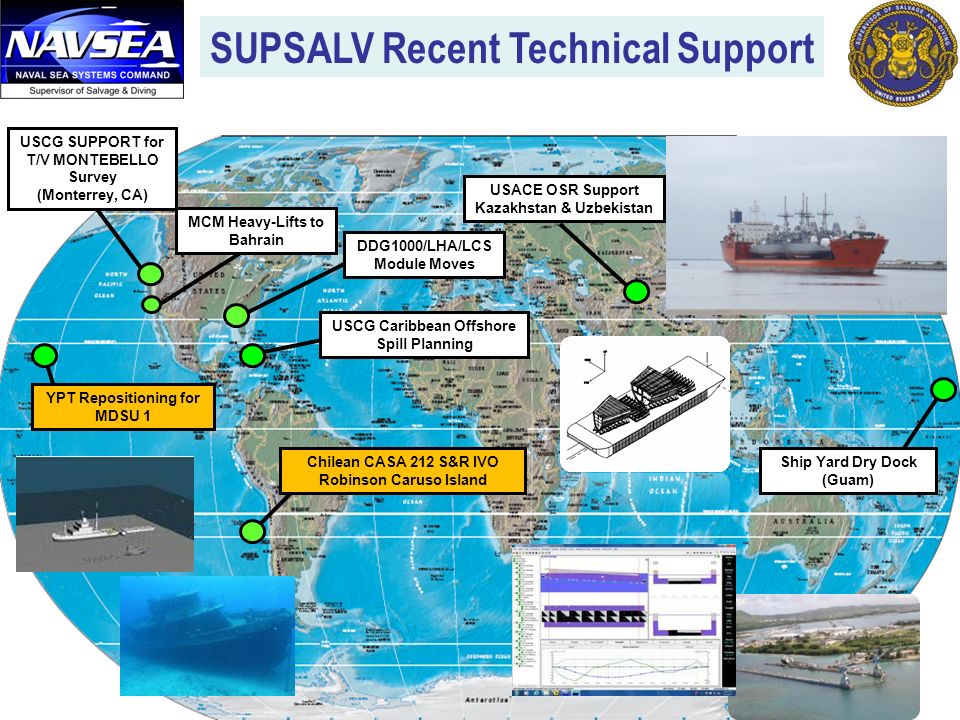

20. USACE OSR Support Kazakhstan & Uzbekistan USCG Caribbean Offshore Spill Planning Chilean CASA 212 S&R IVO Robinson Caruso Island MCM Heavy-Lifts to Bahrain SUPSALV Recent Technical Support USCG SUPPORT for T/V MONTEBELLO Survey (Monterrey, CA) YPT Repositioning for MDSU 1 Ship Yard Dry Dock (Guam) DDG1000/LHA/LCS Module Moves

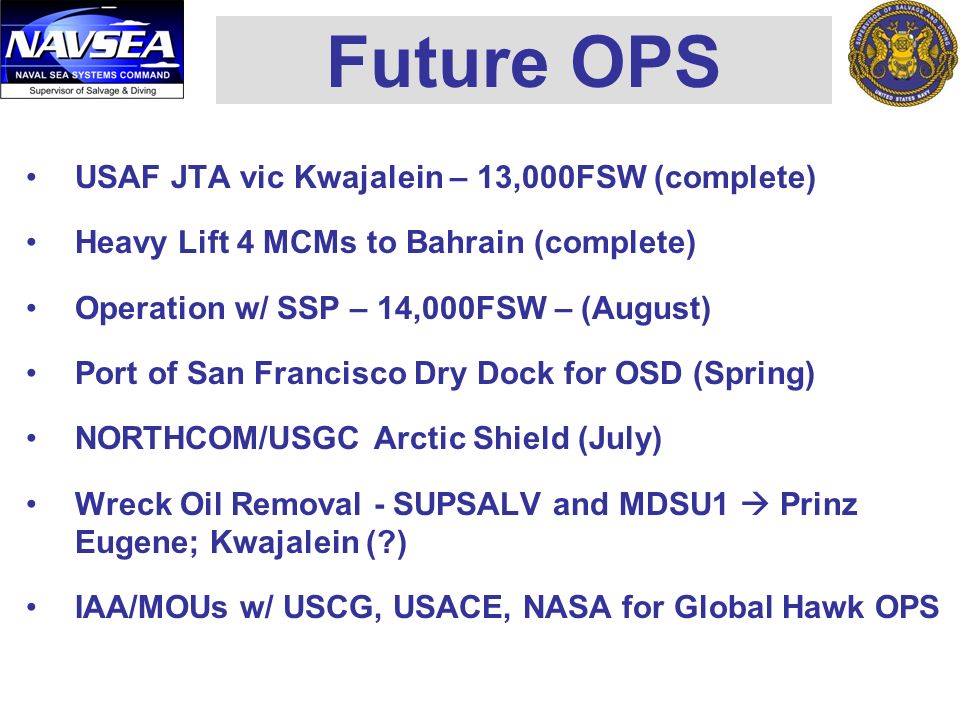

21. Future OPS USAF JTA vic Kwajalein – 13,000FSW (complete) Heavy Lift 4 MCMs to Bahrain (complete) Operation w/ SSP – 14,000FSW – (August) Port of San Francisco Dry Dock for OSD (Spring) NORTHCOM/USGC Arctic Shield (July) Wreck Oil Removal - SUPSALV and MDSU1  Prinz Eugene; Kwajalein (?) IAA/MOUs w/ USCG, USACE, NASA for Global Hawk OPS

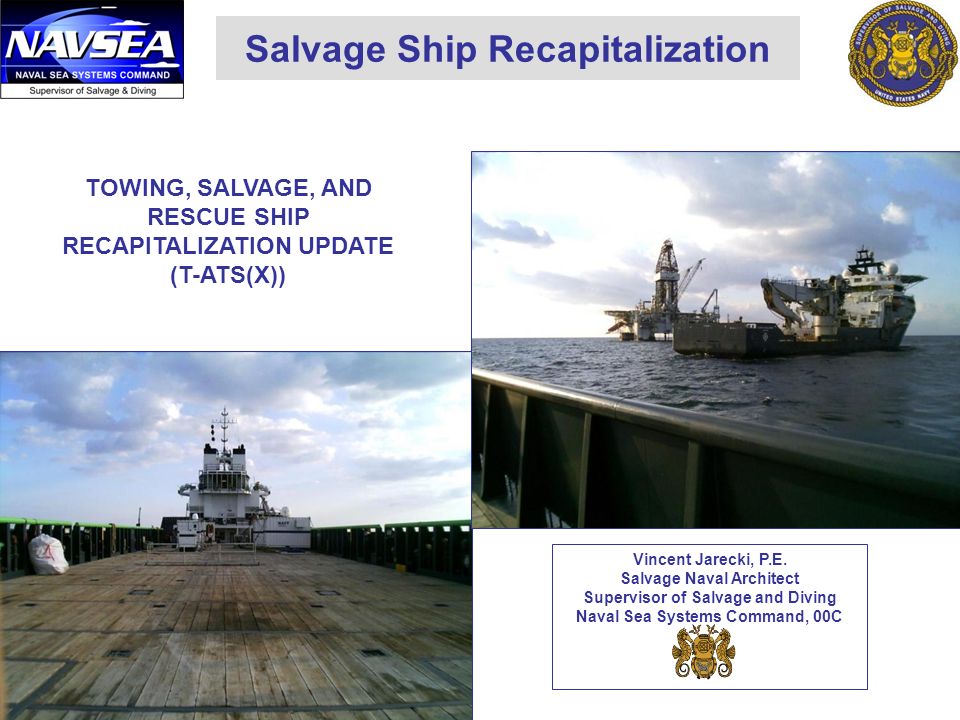

22. Salvage Ship Recapitalization Vincent Jarecki, P.E. Salvage Naval Architect Supervisor of Salvage and Diving Naval Sea Systems Command, 00C TOWING, SALVAGE, AND RESCUE SHIP RECAPITALIZATION UPDATE (T-ATS(X))

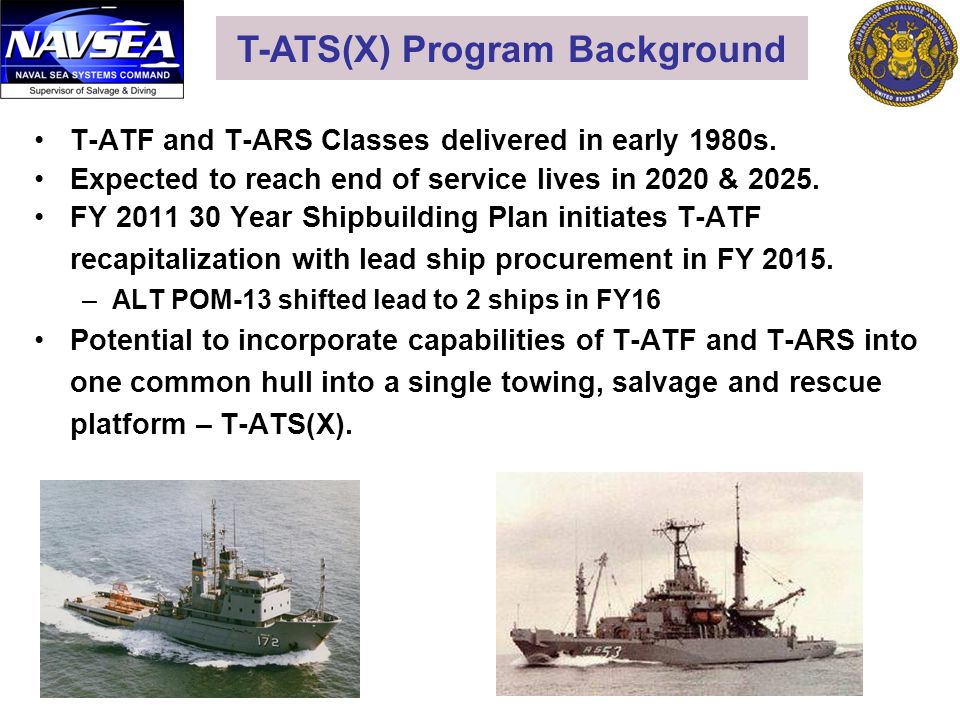

23. 23 T-ATF and T-ARS Classes delivered in early 1980s. Expected to reach end of service lives in 2020 & 2025. FY 2011 30 Year Shipbuilding Plan initiates T-ATF recapitalization with lead ship procurement in FY 2015. –ALT POM-13 shifted lead to 2 ships in FY16 Potential to incorporate capabilities of T-ATF and T-ARS into one common hull into a single towing, salvage and rescue platform – T-ATS(X). T-ATS(X) Program Background

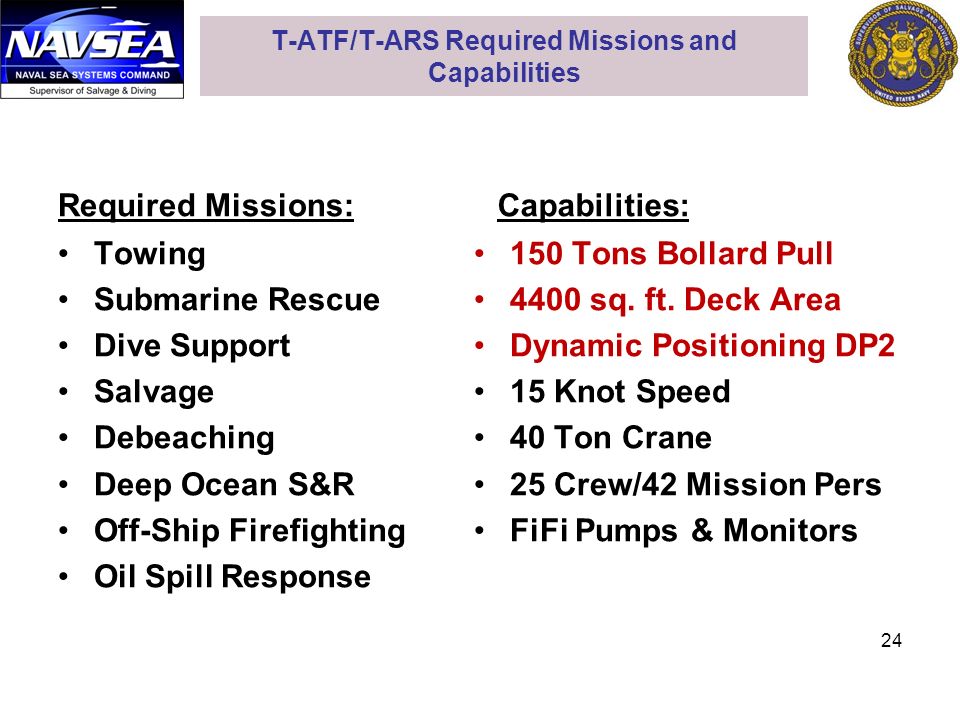

24. 150 Tons Bollard Pull 4400 sq. ft. Deck Area Dynamic Positioning DP2 15 Knot Speed 40 Ton Crane 25 Crew/42 Mission Pers FiFi Pumps & Monitors Towing Submarine Rescue Dive Support Salvage Debeaching Deep Ocean S&R Off-Ship Firefighting Oil Spill Response T-ATF/T-ARS Required Missions and Capabilities 24 Required Missions:Capabilities:

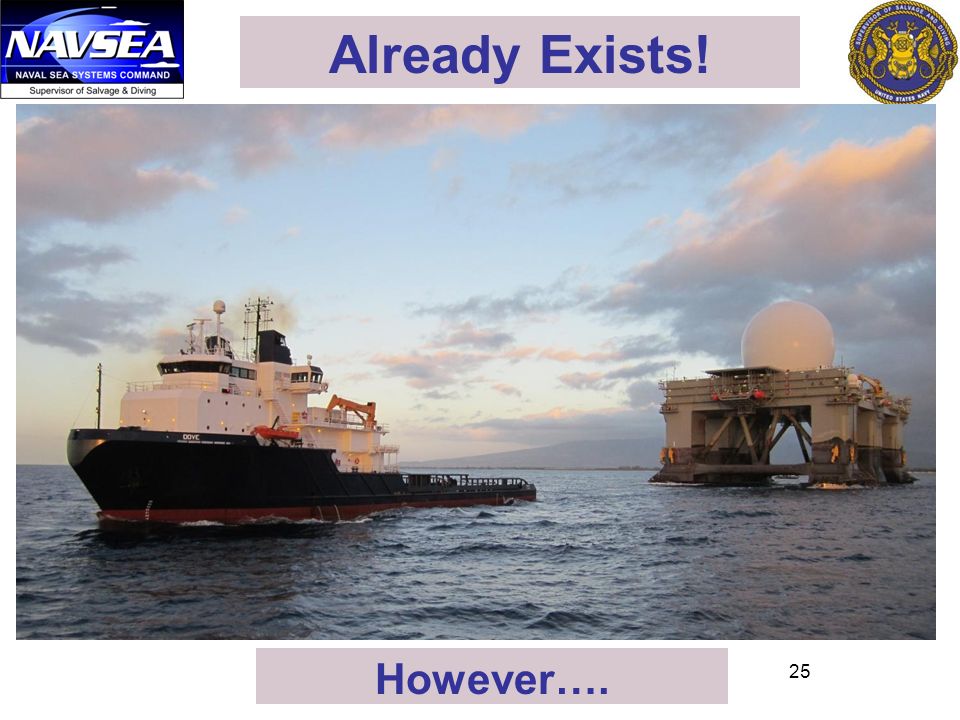

25. 25 Already Exists! However….

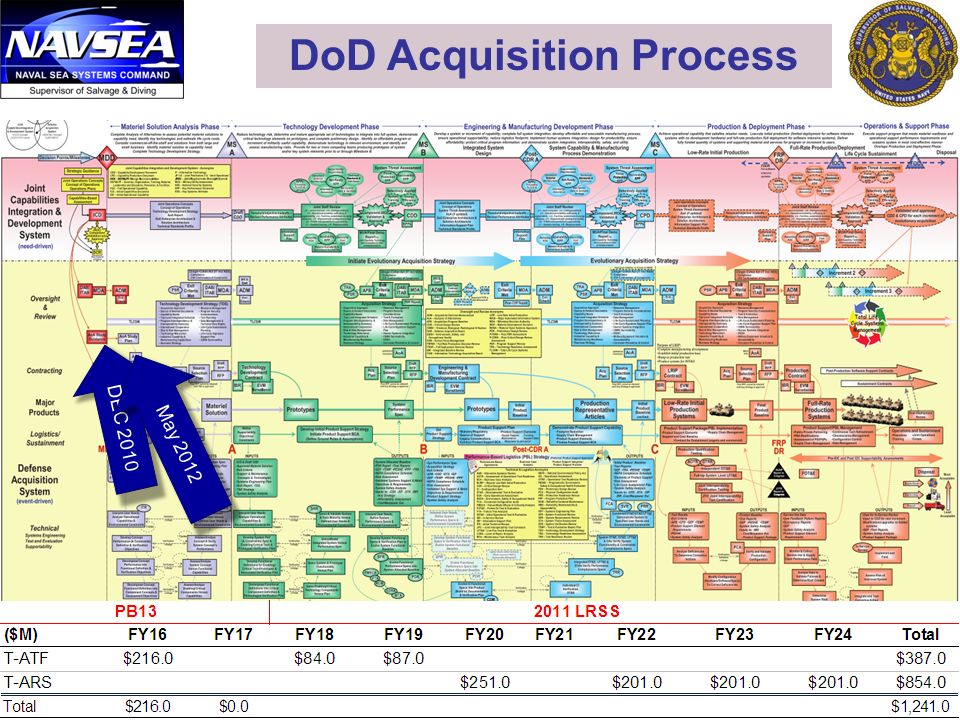

26. 26 DEC 2010 DoD Acquisition Process May 2012

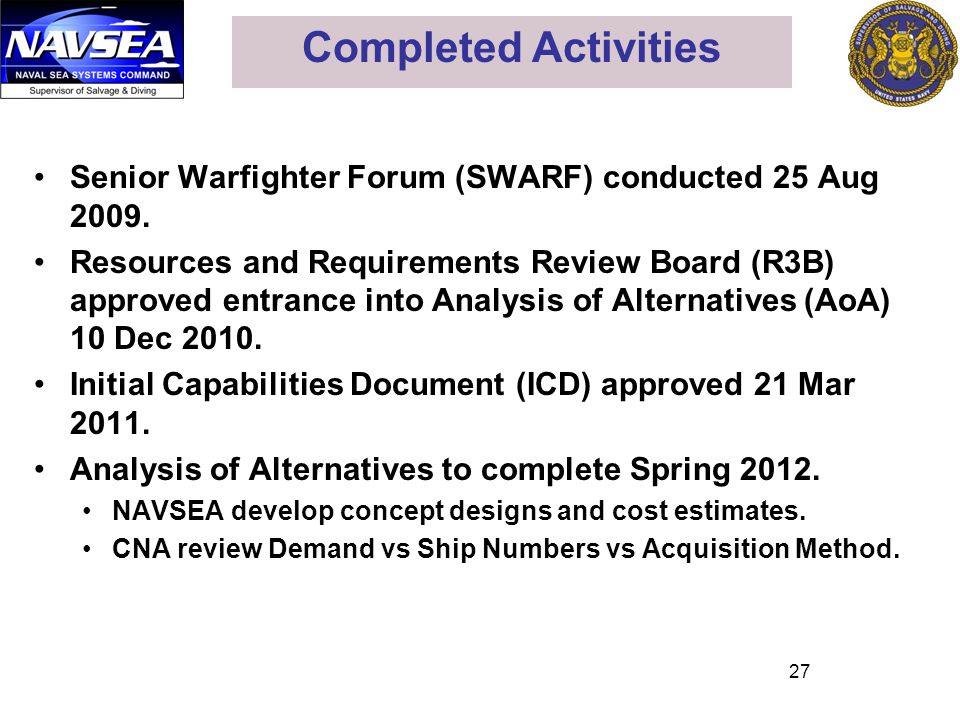

27. 27 Senior Warfighter Forum (SWARF) conducted 25 Aug 2009. Resources and Requirements Review Board (R3B) approved entrance into Analysis of Alternatives (AoA) 10 Dec 2010. Initial Capabilities Document (ICD) approved 21 Mar 2011. Analysis of Alternatives to complete Spring 2012. NAVSEA develop concept designs and cost estimates. CNA review Demand vs Ship Numbers vs Acquisition Method. Completed Activities

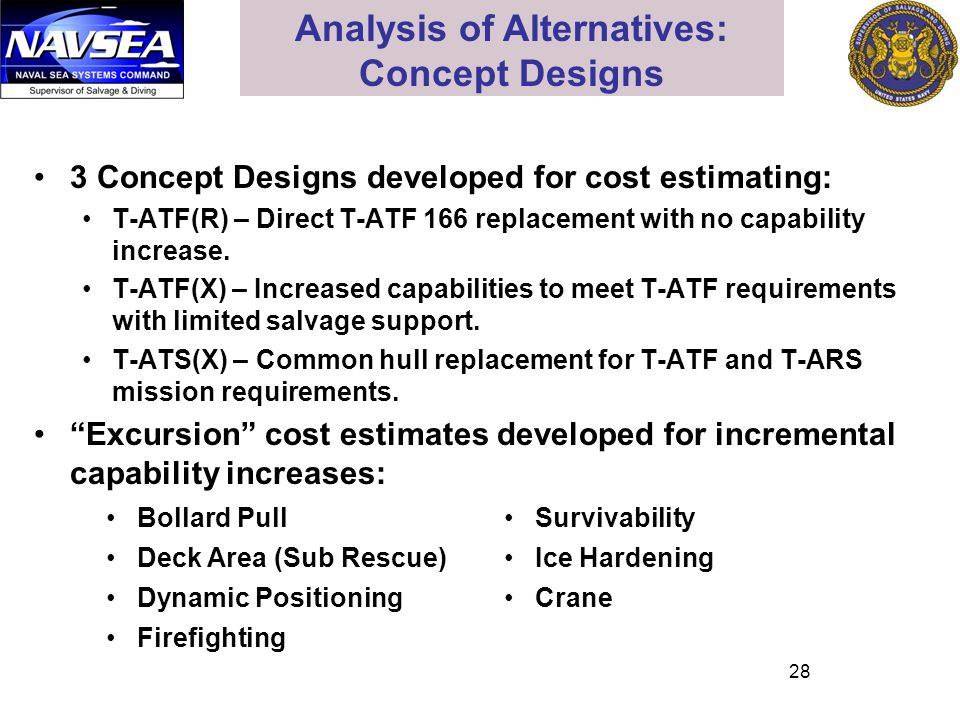

28. 28 3 Concept Designs developed for cost estimating: T-ATF(R) – Direct T-ATF 166 replacement with no capability increase. T-ATF(X) – Increased capabilities to meet T-ATF requirements with limited salvage support. T-ATS(X) – Common hull replacement for T-ATF and T-ARS mission requirements. “Excursion” cost estimates developed for incremental capability increases: Analysis of Alternatives: Concept Designs Bollard Pull Deck Area (Sub Rescue) Dynamic Positioning Firefighting Survivability Ice Hardening Crane

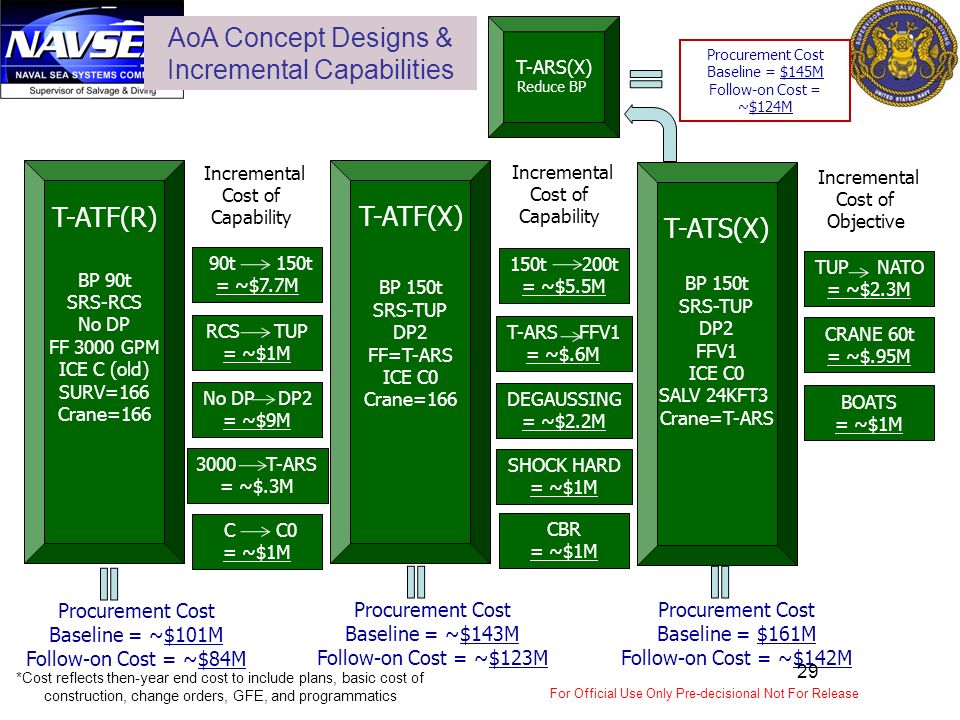

29. AoA Concept Designs & Incremental Capabilities T-ATF(R) BP 90t SRS-RCS No DP FF 3000 GPM ICE C (old) SURV=166 Crane=166 T-ATF(X) BP 150t SRS-TUP DP2 FF=T-ARS ICE C0 Crane=166 T-ATS(X) BP 150t SRS-TUP DP2 FFV1 ICE C0 SALV 24KFT3 Crane=T-ARS Procurement Cost Baseline = ~$143M Follow-on Cost = ~$123M Procurement Cost Baseline = ~$101M Follow-on Cost = ~$84M Procurement Cost Baseline = $161M Follow-on Cost = ~$142M Incremental Cost of Objective Incremental Cost of Capability 90t 150t = ~$7.7M RCS TUP = ~$1M No DP DP2 = ~$9M 3000 T-ARS = ~$.3M C C0 = ~$1M Incremental Cost of Capability 150t 200t = ~$5.5M T-ARS FFV1 = ~$.6M DEGAUSSING = ~$2.2M SHOCK HARD = ~$1M CBR = ~$1M TUP NATO = ~$2.3M CRANE 60t = ~$.95M BOATS = ~$1M T-ARS(X) Reduce BP Procurement Cost Baseline = $145M Follow-on Cost = ~$124M For Official Use Only Pre-decisional Not For Release 29 *Cost reflects then-year end cost to include plans, basic cost of construction, change orders, GFE, and programmatics

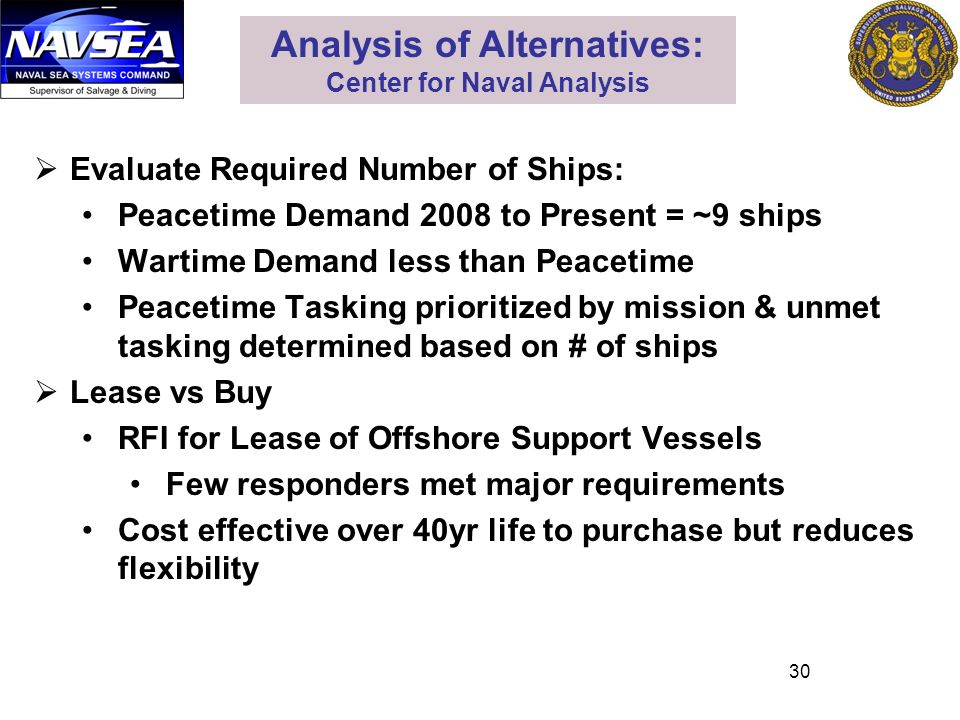

30. 30 Analysis of Alternatives: Center for Naval Analysis  Evaluate Required Number of Ships: Peacetime Demand 2008 to Present = ~9 ships Wartime Demand less than Peacetime Peacetime Tasking prioritized by mission & unmet tasking determined based on # of ships  Lease vs Buy RFI for Lease of Offshore Support Vessels Few responders met major requirements Cost effective over 40yr life to purchase but reduces flexibility

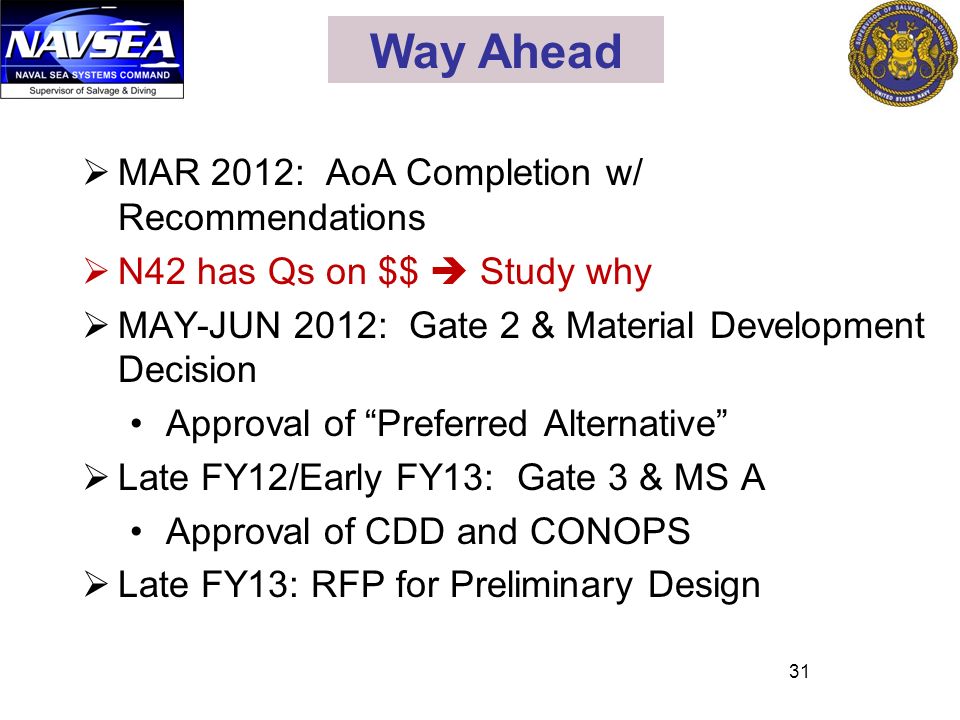

31. 31 Way Ahead  MAR 2012: AoA Completion w/ Recommendations  N42 has Qs on $$  Study why  MAY-JUN 2012: Gate 2 & Material Development Decision Approval of “Preferred Alternative”  Late FY12/Early FY13: Gate 3 & MS A Approval of CDD and CONOPS  Late FY13: RFP for Preliminary Design
