5. © Ixonos Oyj29.3.2007Enter Information Classification here5 Presentation background Objective Identify potential for Java technologies in PL/SQL based applications Review integration strategies and techniques Audience People involved with PL/SQL based application development who see potential for using Java technologies Java developers PL/SQL developers (project managers) Context Web application Java call-out to PL/SQL code

6. © Ixonos Oyj29.3.2007Enter Information Classification here6 Agenda Architectural differences between the two technologies Role of Java and PL/SQL Strategies for introducing Java in PL/SQL based applications Techniques for integrating Java and PL/SQL

7. © Ixonos Oyj29.3.2007Enter Information Classification here7 Strengths of Java and PL/SQL PL/SQL Standard way of implementing stored procedures Tight integration with the database: types, SQL execution etc. Simple development and deployment model Performance (network roundtrips) A key technology for Oracle Java Momentum Developer mindshare Universal adoption – future proof Development tools Peer support Third party libraries and software Strategic technology for Oracle

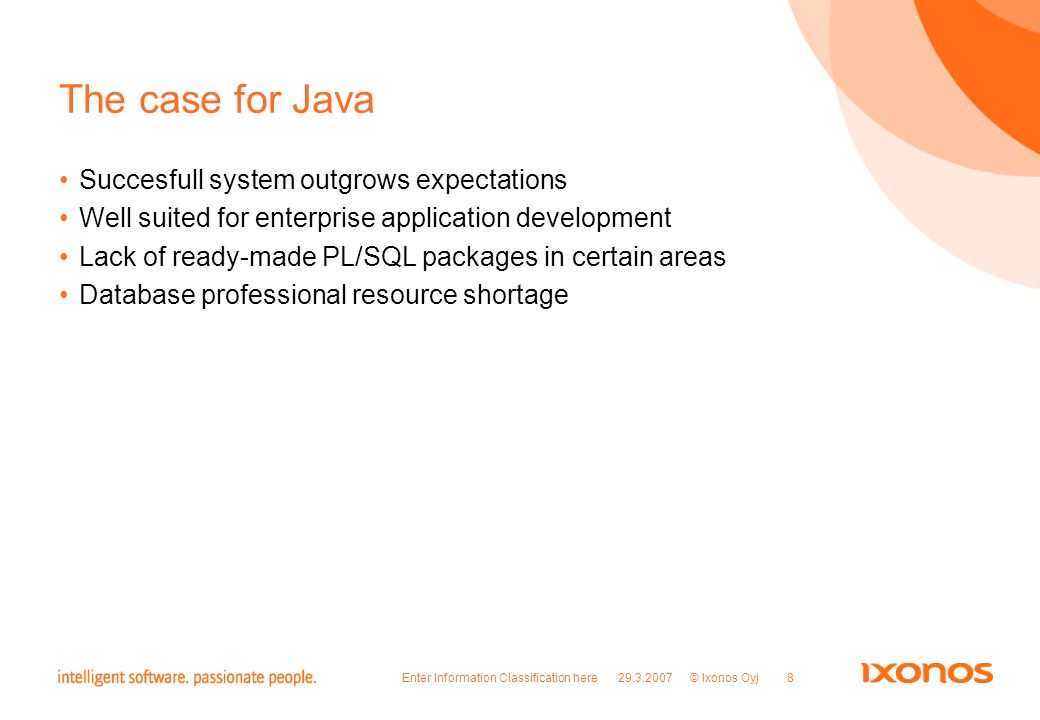

8. © Ixonos Oyj29.3.2007Enter Information Classification here8 The case for Java Succesfull system outgrows expectations Well suited for enterprise application development Lack of ready-made PL/SQL packages in certain areas Database professional resource shortage

9. © Ixonos Oyj29.3.2007Enter Information Classification here9 PL/SQL’s strong points Triggers Adapting ORM and database schemas Higher level data access abstraction layer Sharing and enforcing centralized set of business rules across applications

10. © Ixonos Oyj29.3.2007Enter Information Classification here10 Architectural differences PL/SQLJava EE

11. © Ixonos Oyj29.3.2007Enter Information Classification here11 Development environments PL/SQL Toad, Oracle SQL Developer or text editor Oracle RDBMS Apache or Oracle Web Server Version Control System (CVS, SVN) Java Java JDK JDeveloper OC4J Oracle RDBMS Version Control System (CVS, SVN)

12. © Ixonos Oyj29.3.2007Enter Information Classification here12 JDeveloper Well integrated with Oracle RDBMS and Application Server RAD development with ADF and JSF Java EE support Embedded OC4J PL/SQL package proxy class generation PL/SQL Web Service generation

13. © Ixonos Oyj29.3.2007Enter Information Classification here13 Architectural issues Development process Deployment model Importance of a well designed service layer Performance Licensing

14. © Ixonos Oyj29.3.2007Enter Information Classification here14 Integration approaches and techniques Approaches Re-implement from scratch Horizontal migration Vertical migration Techniques JDBC Database tables Web Services Streams Advanced Queueing Direct server-side stored procedure calls Practical matters Exception handling Oracle object types

15. © Ixonos Oyj29.3.2007Enter Information Classification here15 Re-implement from scratch Costly Risky Slow time to market

16. © Ixonos Oyj29.3.2007Enter Information Classification here16 Horizontal migration Migrate layer at a time From top to bottom Original application should have a layered architecture If not, refactoring required

17. © Ixonos Oyj29.3.2007Enter Information Classification here17 Vertical migration Hybrid architecture: Java and PL/SQL based subsystems collectively implement application feature set Migrate logical application units vertically through all layers HTTP Server routes requests to the appropriate subsystem Database as ”integration bus” Overhead due to plumbing code duplication NB: caching, concurrency, transactions etc. need to be implemented coherently!

18. © Ixonos Oyj29.3.2007Enter Information Classification here18 Vertical migration

19. © Ixonos Oyj29.3.2007Enter Information Classification here19 JDBC based integration Same technique can be used across platforms PL/SQL call from JDBC PL/SQL call with Spring framework PL/SQL call using JPublisher generated code

20. © Ixonos Oyj29.3.2007Enter Information Classification here20 Demo PL/SQL package CREATE OR REPLACE PACKAGE ougf AS FUNCTION hello2(name VARCHAR2) RETURN VARCHAR2; END ougf; CREATE OR REPLACE PACKAGE BODY ougf AS FUNCTION hello2(name VARCHAR2) RETURN VARCHAR2 IS BEGIN RETURN 'hello, ' || name; END hello2; END ougf;

21. © Ixonos Oyj29.3.2007Enter Information Classification here21 PL/SQL call from JDBC Connection c = dataSource.getConnection(); CallableStatement stmt = c.prepareCall("{? = call ougf.hello2(?)}"); stmt.registerOutParameter(1, Types.VARCHAR); stmt.setString(2, “ougf"); stmt.execute(); String msg = stmt.getString(1);

22. © Ixonos Oyj29.3.2007Enter Information Classification here22 PL/SQL call with Spring framework public class Greeter2 extends StoredProcedure { public Greeter2(DataSource ds) { setDataSource(ds); setSql("ougf.hello2"); setFunction(true); declareParameter(new SqlOutParameter("message", Types.VARCHAR)); declareParameter(new SqlParameter("name", Types.VARCHAR)); compile(); } public String getGreeting(String name) { Map params = new HashMap(); params.put("name", name); Map res = execute(params); return (String)res.get("message"); }

23. © Ixonos Oyj29.3.2007Enter Information Classification here23 PL/SQL call with Spring framework – cont. Greeter2 g = new Greeter2(ds); String msg = g.getGreeting(“Larry");

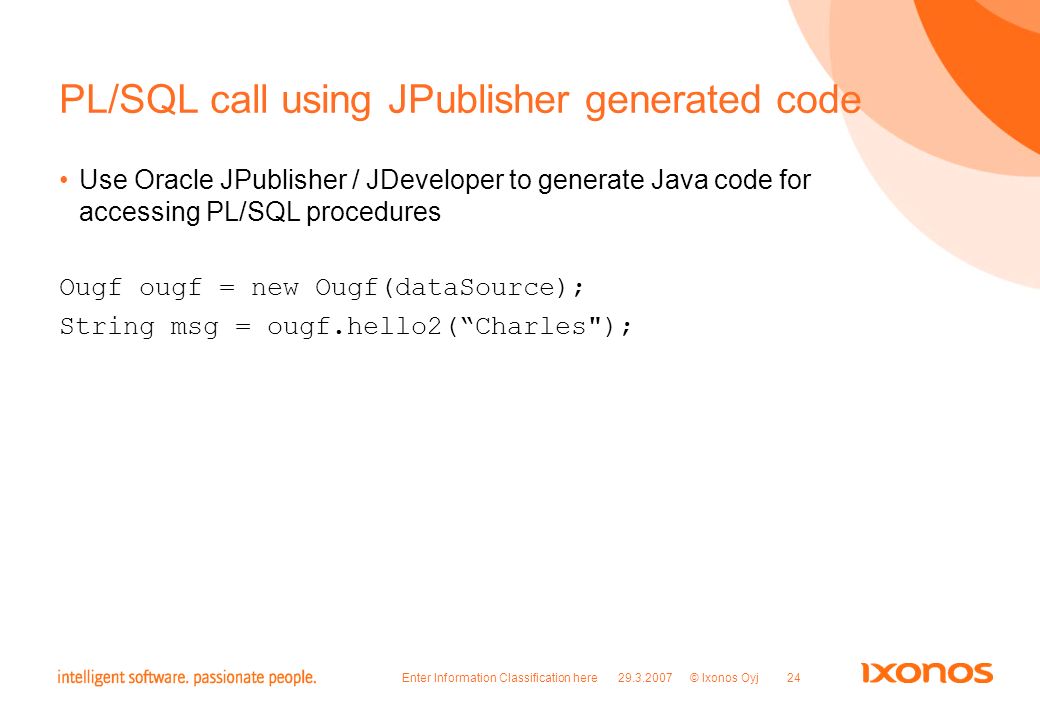

24. © Ixonos Oyj29.3.2007Enter Information Classification here24 PL/SQL call using JPublisher generated code Use Oracle JPublisher / JDeveloper to generate Java code for accessing PL/SQL procedures Ougf ougf = new Ougf(dataSource); String msg = ougf.hello2(“Charles");

25. © Ixonos Oyj29.3.2007Enter Information Classification here25 Direct server-side stored procedure calls Java can be used for implementing stored procedures Typically Java is used in the middle tier Java stored procedures can be called from PL/SQL and vice versa PL/SQL call-out to Java also possible via External Procedure call Is server-side Java going to be supported on the long term? Dependence on DB server Java version

26. © Ixonos Oyj29.3.2007Enter Information Classification here26 Streams Advanced Queueing Asynchronous messaging APIs: JMS + DBMS_AQ et al. + (SOAP)

27. © Ixonos Oyj29.3.2007Enter Information Classification here27 Exception handling

28. © Ixonos Oyj29.3.2007Enter Information Classification here28 SQL exception handling // Spring exception mapping with AspectJ public aspect ExceptionTranslator { private static final SQLErrorCodeSQLExceptionTranslator translator = new SQLErrorCodeSQLExceptionTranslator("Oracle"); after() throwing(SQLException e): call(public * com.ixonos.plsql.jpublish..*(..)) { throw translator.translate(thisJoinPoint.toString(), null, e); }

29. © Ixonos Oyj29.3.2007Enter Information Classification here29 PL/SQL exception handling User-defined exceptions don't include enough information to be processed by the caller (Java) possible to define an exception translator or aspect to extract data from the message Recommended approach use Oracle application errors (raise_application_error) define an exception class for each error condition define error codes for Spring translator (sql-error-codes.xml)

30. © Ixonos Oyj29.3.2007Enter Information Classification here30 How to proceed Business Define business objective and drivers Define IT and architectural drivers Product management Plan feature roadmap Competence management Technology Evaluate existing architecture and code base (esp. layering) Assess reusability Design target architecture (hw + sw, licensing) Choose integration strategy Development process development

31. © Ixonos Oyj29.3.2007Enter Information Classification here31 Summary Java and PL/SQL play well together Both are well supported by Oracle Hybrid architecture for a transition period if ”re-implement from scratch” is not feasible Use JDeveloper/JPublisher generated proxy classes Practical matters Performance Licensing Exception handling Type mapping
