1. Infinite Impulse Response (IIR) Filters

2. Learning Objectives Introduction to the theory behind IIR filters:
Properties.
Coefficient calculation.
Structure selection.
Implementation in Matlab, C and assembly.

3. Introduction
Infinite Impulse Response (IIR) filters are the first choice when:
Speed is paramount.
Phase non-linearity is acceptable.
IIR filters are computationally more efficient than FIR filters as they require fewer coefficients due to the fact that they use feedback or poles.
However feedback can result in the filter becoming unstable if the coefficients deviate from their true values.

4. Properties of an IIR Filter
The general equation of an IIR filter can be expressed as follows:
ak and bk are the filter coefficients.

5. Properties of an IIR Filter
The transfer function can be factorized to give:
Where: z1, z2, …, zN are the zeros,
p1, p2, …, pN are the poles.
The filter is stable iff its poles reside inside the unit circle

6. Properties of an IIR Filter
The transfer function can be factorized to give:
For the implementation of the above equation we need the difference equation:

7. Properties of an IIR Filter
IIR Equation
IIR structure for N = M = 2

8. IIR Filters on a Computer
Filters may be implemented on a computer in 3 possible ways
Using convolution
Using the difference equation
Using the frequency response
For IIR filters only the implementation with the difference equation is possible:
The impulse response is infinite, and direct convolution cannot be calculated
Discrete Fourier Transform exists only for finite signals

9. Design Procedure
To fully design and implement a filter five steps are required:
(1) Filter specification.
(2) Coefficient calculation.
(3) Structure selection.
(4) Simulation (optional).
(5) Implementation.

10. Filter Specification - Step 1

11. Coefficient Calculation - Step 2
There are two different methods available for calculating the coefficients:
Direct placement of poles and zeros.
Using analogue filter design.
Both of these methods are described.

12. Placement Method
All that is required for this method is the knowledge that:
Placing a zero near or on the unit circle in the z-plane will minimize the transfer function at this point.
Placing a pole near or on the unit circle in the z-plane will maximize the transfer function at this point.
To obtain real coefficients, the poles and zeros must either be real or occur in complex conjugate pairs.

13. Placement Method - Example
Use the pole-zero placement method to design an IIR bandpass filter with
Signal rejection at zero frequency and 250Hz
A narrow passband centered at 125Hz
A 3db bandwidth of 10Hz
Assume a sampling frequency of 500Hz
Solution -
Zeroes are placed at angles of 0o and 2p*250/500=p
To have the passband centered at 125Hz, poles should be placed at +/-2p*125/500=+/-p/2
To have real coefficients, the poles should be complex conjugate at

14. Placement Method - Example
Solution continued -
The radius of the poles is determined by the desired bandwidth. An approximate relation between r and BW is given by
BW=10Hz and fs=500Hz, giving r=0.937
The transfer function of the filter is then

15. Analogue to Digital Filter Conversion
This is one of the simplest method.
There is a rich collection of prototype analogue filters with well-established analysis methods.
The method involves designing an analogue filter and then transforming it to a digital filter.
The two principle methods are:
Bilinear transform method
Impulse invariant method

16. Digital Filter Design: Basic Approaches
The common methods for IIR filter design are
directly sampling the impulse response of an analogue filter with the desired specifications
converting the transfer function of an analogue filter with the desired specification into an equivalent digital filter

17. IIR Filter Design Using Sampling
A simple design method for an IIR filter is to sample the impulse response of an analogue filter with the desired specifications
To obtain a reliable design, the analog filter should be band-limited, and the sampling frequency should follow the Nyquist criterion

18. IIR Filter Design Using Sampling
The impulse response of the digital filter, h(nT), is identical to that of the analogue filter, h(t), at the sampling points t=nT

19. IIR Filter Design Using Sampling
A sufficiently high sampling frequency is necessary for the digital frequency response to be close to that of the equivalent analogue filter.
If the sampling frequency follows Nyquist criterion, the digital frequency response is a periodic repetition of that of the analogue filter

20. IIR Filter Design- Conversion Approach

21. IIR Filter Design- Conversion Approach

22. IIR Filter Design- Conversion Approach

23. IIR Filter Design- Conversion Approach

24. IIR Filter Design - Bilinear Transformation Method

25. IIR Filter Design - Bilinear Transformation Method

26. Use of Classical Analogue Filter to Design IIR Digital Filter
In practice, the analogue transfer function, H(s), from which H(z) is obtained (using the bilinear transformation), may not be known.
For standard frequency selective filtering tasks, H(s) may be derived from the classic Butterworth, Chebyshev or elliptic analogue filters discussed before.
The bilinear transformation is then applied to the analogue filter with the desired characteristics selected

27. Use of Classical Analogue Filter - Butterworth IIR Digital Filter
where Wc is the 3db cutoff frequency,
and the filter order N should satisfy

28. Butterworth Filter Design
The following is a table with the coefficients of the Butterworth transfer function H(s) for different order N.
The transfer function is
If , then the modified transfer function is

30. Realization Structures - Step 3
Direct Form I:
Difference equation:
This leads to the following structure…

31. Realization Structures - Step 3
Direct Form I:

32. Realisation Structures - Step 3
Direct Form II canonic realization:
Where:
Taking the inverse of the z-transform of P(z) and Y(z) leads to:

33. Realisation Structures - Step 3
Direct Form II canonic realization:

34. Realization Structures - Step 3
Cascade structure - the transfer function can be factored into a cascade of a second order terms:
The difference equation of each stage:
This leads to the following structure…

35. Realization Structures - Step 3
Cascade structure: A forth order IIR filter with two direct form I sections in cascade
y(n)
x(n)

36. Analysis of Finite Wordlength Effects
The coefficients ak and bk of the designed filter are of an unlimited precision.
However, when such a filter is implemented on a digital system (computer or dedicated hardware) of a small finite wordlength, errors arise in representing the filter coefficients and in performing the arithmetic operations indicated by the difference equation
Before implementing an IIR filter, it is important to ascertain the extent to which its performance is degraded by a finite wordlength, and to make the required corrections, if the degradation is not acceptable

37. Analysis of Finite Wordlength Effects
The main errors in digital IIR filters are:
ADC quantization noise, resulted from representing the samples of the input data by a small number of bits
Coefficient quantization errors, caused by representing the IIR filter coefficients by a finite number of bits
Overflow errors, which result from the arithmetic operations of filtering (multiplication and accumulation) using a limited register length
Product round-off errors, caused when the output samples are truncated to the permissible wordlength

38. Analysis of Finite Wordlength Effects
The extent of filter degradation depends on
The wordlength and type of arithmetic used to perform the filtering
The method used to quantize the filter coefficients
The filter structure
The user must analyze the effects of errors mentioned on the filter performance.
The filter may become unstable, or its specifications altered

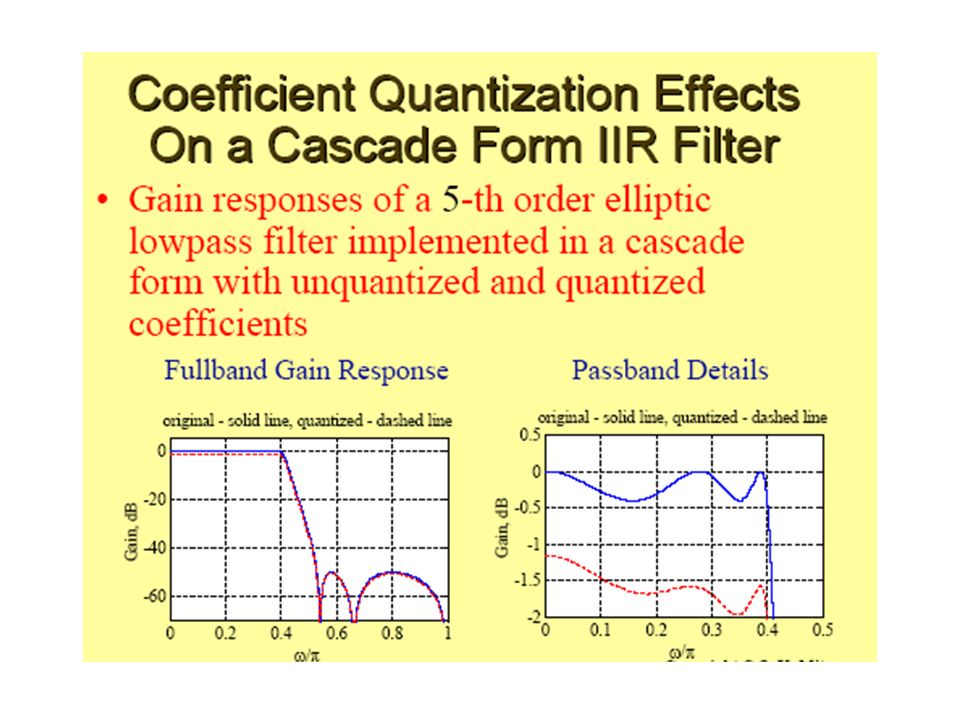

39. Coefficient Quantization Errors
The primary effect of quantizing the filter coefficients into a finite number of bits is to alter the positions of the poles and zeros of H(z) in the z-plane
If, to start with, the filter poles are located near the unit circle, any significant deviation in their position could make the filter unstable
As well as potential instability, deviations in the location of poles and zeroes also leads to the deviation of the filter from the desired frequency response
The quantized filter should be analyzed to ensure that after quantization of its coefficient it is still stable and follows the desired frequency response

44. Overflow Error and Scaling
In 2’s complement arithmetic, the addition of two (or more) large values may produce an overflow, that is a result that exceeds the permissible wordlength.
Because of the recursive nature of IIR filters, an overflow at the output is fed back and used to compute the next output, causing further oveflow.
To avoid or reduce the possibility of overflow, a scaling factor is used to scale down the input to the filter.
Then, to keep the overall filter gain the same, the output is scaled up by the same factor

45. Product Roundoff Error
The basic operation in IIR filtering involves the multiplication of the input samples by the coefficients bk, and the output samples by ak
In practice, the samples and coefficients are commonly represented as fixed point numbers.
The products bkx(n-k) and aky(n-k) is 2B bits long, when the coefficients and samples are B bits long.
For recursive filters, if this result is not reduced, subsequent computations will cause the number of bits to grow without limit

46. Product Roundoff Error
Fortunately, such a problem is avoided in modern DSP processors
These processors support double-wordlength accumulation.
They include a built-in 16x16bit multiplier, with 32bit product register, and allow the products to be accumulated as 32bit numbers
Still, in practice, rounding or truncation at some point within the filter is required, to satisfy the wordlength requirements of the multiplier, data memory or interface with the outside world

47. ADC Quantization Noise
The ADC quantizes the analogue input signal into a finite number of bits.
This gives rise to quantization noise. The quantization error is uniformly distributed in the range [-D/2, D/2], where D is the quantization step
With B quantization bits, D=2-B , the quantization noise power, or variance, is
The noise due to ADC quantization is fed into the IIR filer as an irreversible error

48. IIR Filter Design Using MATLAB
BUTTORD Butterworth filter order selection.
[N, Wn] = BUTTORD(Wp, Ws, Rp, Rs) returns the order N of the lowest
order digital Butterworth filter that loses no more than Rp dB in
the passband and has at least Rs dB of attenuation in the stopband.
Wp and Ws are the passband and stopband edge frequencies, normalized
from 0 to 1 (where 1 corresponds to pi radians/sample). For example,
Lowpass: Wp = .1, Ws = .2
Highpass: Wp = .2, Ws = .1
Bandpass: Wp = [.2 .7], Ws = [.1 .8]
Bandstop: Wp = [.1 .8], Ws = [.2 .7]
BUTTORD also returns Wn, the Butterworth natural frequency (or,
the "3 dB frequency") to use with BUTTER to achieve the specifications.
[N, Wn] = BUTTORD(Wp, Ws, Rp, Rs, 's') does the computation for an
analog filter, in which case Wp and Ws are in radians/second.

49. IIR Filter Design Using MATLAB
BUTTER Butterworth digital and analog filter design.
[B,A] = BUTTER(N,Wn) designs an Nth order lowpass digital
Butterworth filter and returns the filter coefficients in length
N+1 vectors B (numerator) and A (denominator). The coefficients
are listed in descending powers of z. The cutoff frequency
Wn must be 0.0 < Wn < 1.0, with 1.0 corresponding to
half the sample rate.
If Wn is a two-element vector, Wn = [W1 W2], BUTTER returns an
order 2N bandpass filter with passband W1 < W < W2.
[B,A] = BUTTER(N,Wn,'high') designs a highpass filter.
[B,A] = BUTTER(N,Wn,'stop') is a bandstop filter if Wn = [W1 W2].

50. IIR Filtering Using MATLAB
% design an IIR low-pass filter with passband frequency of wp=800 Hz,
% and attenuation of 20db at frequency ws=1600 Hz , considering a sampling
% frequency of fs=8000 Hz
[x1,fs]=wavread('c:\temp\buchelli_res') ;
wp=800/4000 ; ws=1600/4000 ;
rp=1 ; rs=20 ;
[N, wn]=buttord(wp,ws,rp,rs) ;
[b,a]=butter(N,wn) ;
freqz(b,a,512,8000) ;
H=freqz(b,a,512,8000) ;
%plot(abs(H))
x=x1(10000:30000) ;
y=filter(b,a,x) ; % filtering using Matlab function
figure(2)
subplot(311), plot(x(10000:10500))
subplot(312), plot(y(10000:10500))

51. IIR Filtering Using MATLAB
% filtering using the difference equation
y(1:4)=0 ;
for i=length(b):length(x)
sx=sum(b'.*x(i:-1:i-4)) ;
sy=sum(a(2:length(a)).*y1(i-1:-1:i-4)) ;
y(i)=sx-sy ;
end
subplot(312), plot(y1(10000:10500))].

52. IIR Filtering Using MATLAB fdatool
Open a new session

53. IIR Filtering Using MATLAB fdatool
Select IIR Filter and type (e.g. lowpass)

54. IIR Filtering Using MATLAB fdatool
Select filter order, sampling frequency and cutoff frequency

55. IIR Filtering Using MATLAB fdatool
Select Design Filter

56. IIR Filtering Using MATLAB fdatool
Select Edit Convert Structure Direct Form I

57. IIR Filtering Using MATLAB fdatool
Select Target Generate C Header  Specify names and type

58. IIR Filter Design Using MATLAB fdatool
In case that the coefficients are to be modified, e.g., when they have to be converted to integers, they have first to be exported to matlab workspace by
In the workplace, the a coefficients of the first stage are multiplied by the product of the stage gains
Then they are multiplied by a constant (215) and rounded to integer.
Following, they are imported back to fdatool using
Display the modified filter frequency response, and verify that it is close to the original (particularly the passing/stopping gains)
The filter coefficients may be stored in a file or in an two coefficient arrays for a’s and b’s
File Export  to Workspace Coefficients SOS and G
File Import Filter from Workspace

59. IIR Filtering Using C and DSK
// Low pass, Direct Form iir filter of order 5
// and a cutoff frequency of ,,, -FP implementation
#define Na 4
#define Nb 5
#define M 512
float samplex[Nb], sampley[Na] , ai[Na], bi[Nb] ;
short sample_in[M], filt_array[M] ;
float ai[Na]={ , , , } ;
float bi[Nb]={0.0098,0.0393,0.0590,0.0393, } ;
short i, j=0 ;

60. IIR Filtering Using C and DSK
interrupt void c_int11() //interrupt service routine {
int sample_data, filt_samp ;
float filt_sample=0.0, filt_samplex=0, filt_sampley=0.0 ;
sample_data = input_sample() ; //input data
// shift input data buffer
for (i=Nb-2 ; i>=0 ; i--)
samplex[i+1]=samplex[i] ;
samplex[0]=(float)(sample_data) ;
// filtering - 1st stage
for (i=0 ; i<Nb ; i++)
filt_samplex += samplex[i]*bi[i] ;
//filt_sample = ( filt_sample >> 15 ) ; //divide by 2^15 to get 16 bit samples
// filtering - 2nd stage
for (i=0 ; i<Na ; i++)
filt_sampley += sampley[i]*ai[i] ;
filt_sample=filt_samplex-filt_sampley ;

61. IIR Filtering Using C and DSK
// shift output data buffer
for (i=Na-2 ; i>=0 ; i--)
sampley[i+1]=sampley[i] ;
sampley[0]=filt_sample ;
filt_samp=(int)(filt_sample) ;
output_sample(filt_samp); //output data
filt_array[j]=filt_samp ;
sample_in[j]=sample_data ;
j++;
if (j >= M) j=0;
return; }

62. IIR Filtering Using C and DSK
void main() {
int i ;
for (i=0 ; i<Na ; i++)
sampley[i]=0 ;
for (i=0 ; i<Nb ; i++)
samplex[i]=0 ;
comm_intr(); //init DSK, codec, McBSP
while(1); //infinite loop }

63. IIR Filtering Using Cascade form on DSK
//IIR filter using cascaded Direct Form II
//Coefficients a's and b's correspond to b's and a's from MATLAB
#define M 512
#include "DSK6713_AIC23.h" //codec-DSK support file
Uint32 fs=DSK6713_AIC23_FREQ_8KHZ; //set sampling rate
#include "lp2000.cof" 2000 Hz coefficient file
//#include "bs1750.cof" 1750 Hz coefficient file
//#include "bp2000.cof" 2000 Hz coefficient file
short dly[stages][2] = {0}; //delay samples per stage
short sample_in[M], filt_array[M] ;
short j=0 ;
void main() {
comm_intr(); / /init DSK, codec, McBSP
while(1); //infinite loop }

64. IIR Filtering Using Cascade form on DSK
interrupt void c_int11() //ISR {
short i, input;
int un, yn;
input = input_sample(); //input to 1st stage
sample_in[j]=input ;
for (i = 0; i < stages; i++) //repeat for each stage
un=input-((b[i][0]*dly[i][0])>>15) - ((b[i][1]*dly[i][1])>>15);
yn=((a[i][0]*un)>>15)+((a[i][1]*dly[i][0])>>15)+((a[i][2]*dly[i][1])>>15);
dly[i][1] = dly[i][0]; //update delays
dly[i][0] = un; //update delays
input = yn; //intermediate output->input to next stage }
output_sample((short)yn); //output final result for time n
filt_array[j]=(short)yn ;
j++;
if (j >= M) j=0;
return; //return from ISR

65. IIR Filtering Using Cascade form on DSK – Filter Coefficients File
//lp2000.cof IIR lowpass coefficients file, cutoff frequency 2 kHz
#define stages //number of 2nd-order stages
int a[stages][3] = { //numerator coefficients
{304, 608, 304}, //a10, a11, a12 for 1st stage
{32768, 66530, 33778}, //a20, a21, a22 for 2nd stage
{32768, 65518, 32765}, //a30, a31, a32 for 3rd stage
{32768, 64542, 31788} }; //a40, a41, a42 for 4th stage
int b[stages][2] = { //denominator coefficients
{0, 318}, //b11, b12 for 1st stage
{0, 3015}, //b21, b22 for 2nd stage
{0, 9362}, //b31, b32 for 3rd stage
{0, 22070} }; //b41, b42 for 4th stage
