1. Özge Karanfil B.S., MSc. Industrial Engineering, Boğaziçi University, 2002-2005 M.Sc., Physiology, McGill University, 2007 Sandia National Laboratories January 11, 2011 “A Dynamic Simulator for the Management of Disorders of the Body Water Homeostasis”* * Özge Karanfil and Yaman Barlas, A Dynamic Simulator for the Management of Disorders of the Body Water Homeostasis. OPERATIONS RESEARCH 2008 56: 1474-1492.

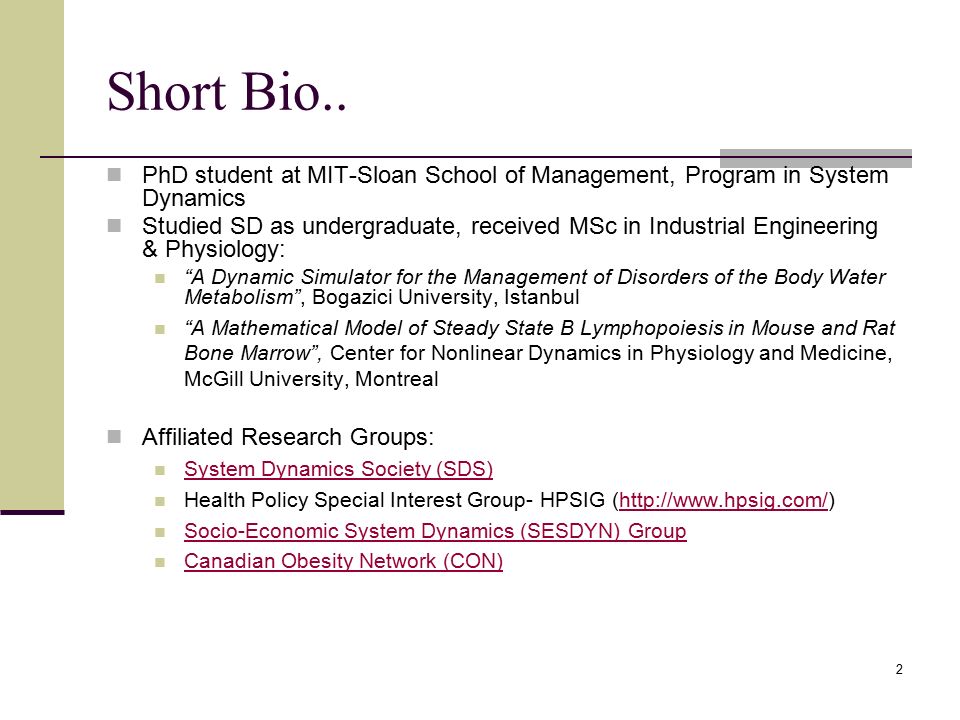

2. 2 Short Bio.. PhD student at MIT-Sloan School of Management, Program in System Dynamics Studied SD as undergraduate, received MSc in Industrial Engineering & Physiology: “A Dynamic Simulator for the Management of Disorders of the Body Water Metabolism”, Bogazici University, Istanbul “A Mathematical Model of Steady State B Lymphopoiesis in Mouse and Rat Bone Marrow”, Center for Nonlinear Dynamics in Physiology and Medicine, McGill University, Montreal Affiliated Research Groups: System Dynamics Society (SDS) Health Policy Special Interest Group- HPSIG (http://www.hpsig.com/)http://www.hpsig.com/ Socio-Economic System Dynamics (SESDYN) Group Canadian Obesity Network (CON)

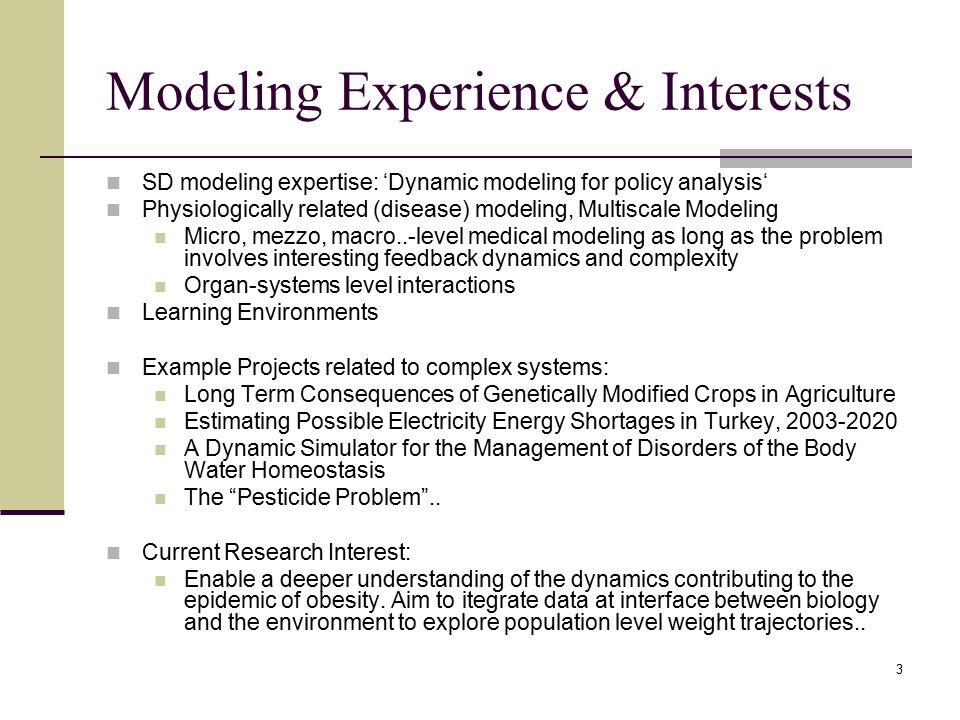

3. 3 Modeling Experience & Interests SD modeling expertise: ‘Dynamic modeling for policy analysis‘ Physiologically related (disease) modeling, Multiscale Modeling Micro, mezzo, macro..-level medical modeling as long as the problem involves interesting feedback dynamics and complexity Organ-systems level interactions Learning Environments Example Projects related to complex systems: Long Term Consequences of Genetically Modified Crops in Agriculture Estimating Possible Electricity Energy Shortages in Turkey, 2003-2020 A Dynamic Simulator for the Management of Disorders of the Body Water Homeostasis The “Pesticide Problem”.. Current Research Interest: Enable a deeper understanding of the dynamics contributing to the epidemic of obesity. Aim to itegrate data at interface between biology and the environment to explore population level weight trajectories..

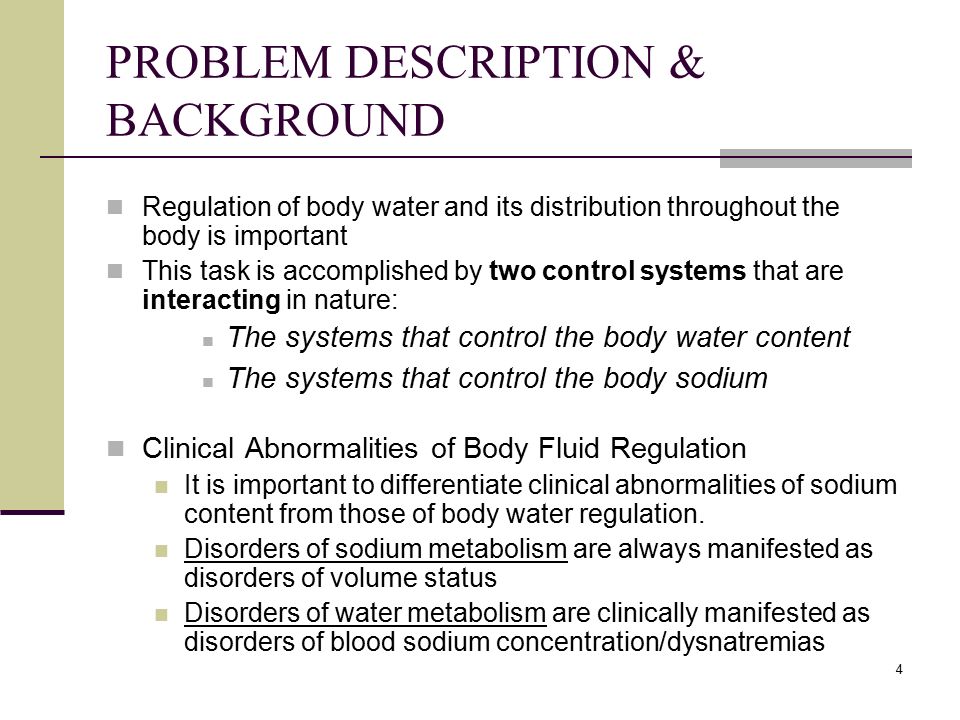

4. 4 PROBLEM DESCRIPTION & BACKGROUND Regulation of body water and its distribution throughout the body is important This task is accomplished by two control systems that are interacting in nature: The systems that control the body water content The systems that control the body sodium Clinical Abnormalities of Body Fluid Regulation It is important to differentiate clinical abnormalities of sodium content from those of body water regulation. Disorders of sodium metabolism are always manifested as disorders of volume status Disorders of water metabolism are clinically manifested as disorders of blood sodium concentration/dysnatremias

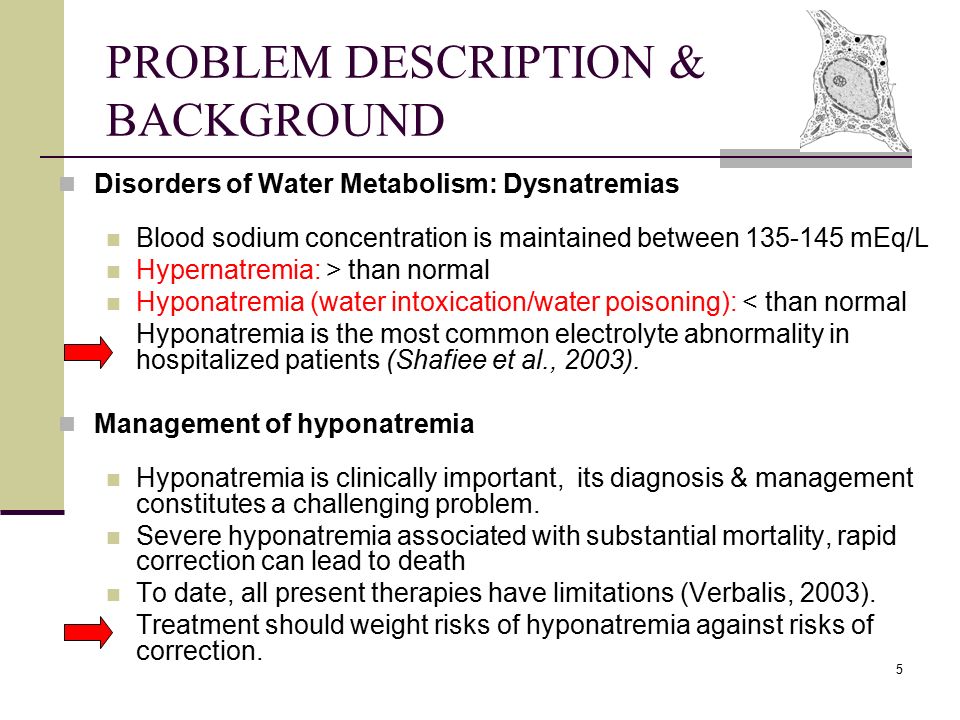

5. 5 PROBLEM DESCRIPTION & BACKGROUND Disorders of Water Metabolism: Dysnatremias Blood sodium concentration is maintained between 135-145 mEq/L Hypernatremia: > than normal Hyponatremia (water intoxication/water poisoning): < than normal Hyponatremia is the most common electrolyte abnormality in hospitalized patients (Shafiee et al., 2003). Management of hyponatremia Hyponatremia is clinically important, its diagnosis & management constitutes a challenging problem. Severe hyponatremia associated with substantial mortality, rapid correction can lead to death To date, all present therapies have limitations (Verbalis, 2003). Treatment should weight risks of hyponatremia against risks of correction.

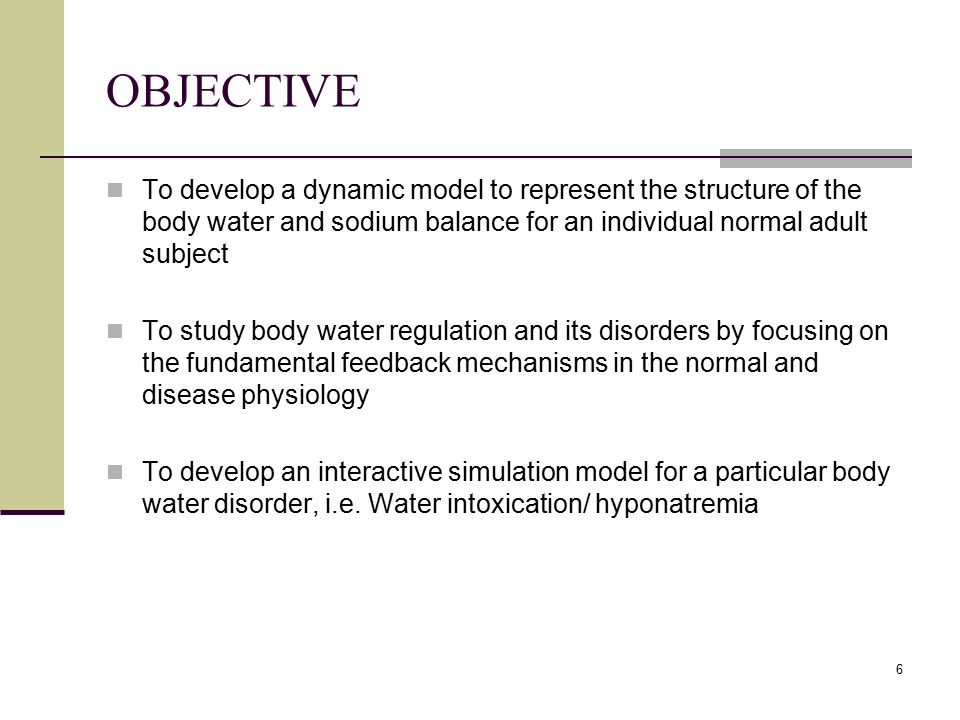

6. 6 OBJECTIVE To develop a dynamic model to represent the structure of the body water and sodium balance for an individual normal adult subject To study body water regulation and its disorders by focusing on the fundamental feedback mechanisms in the normal and disease physiology To develop an interactive simulation model for a particular body water disorder, i.e. Water intoxication/ hyponatremia

7. 7 METHODOLOGY – SYSTEM DYNAMICS A simulation-based procedure Main focus: Identifying internal relations causing system behavior Emphasis in the dynamic pattern as opposed to point prediction System represented by stock, flow (and auxiliary) variables Corresponds to a set of difference/differential equation Operates through circular feedback

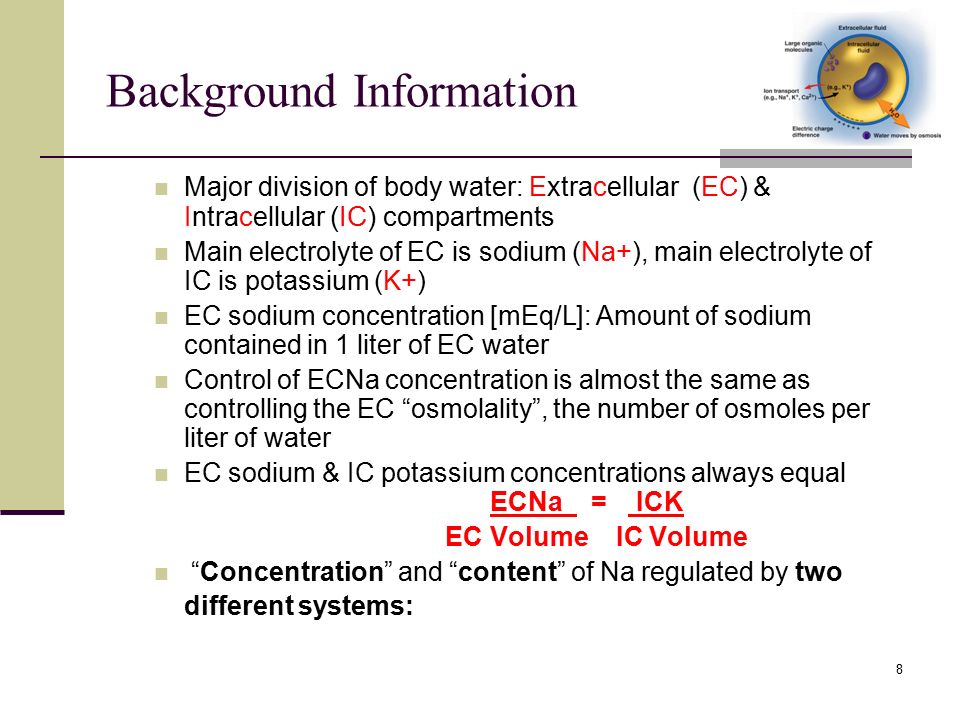

8. 8 Background Information Major division of body water: Extracellular (EC) & Intracellular (IC) compartments Main electrolyte of EC is sodium (Na+), main electrolyte of IC is potassium (K+) EC sodium concentration [mEq/L]: Amount of sodium contained in 1 liter of EC water Control of ECNa concentration is almost the same as controlling the EC “osmolality”, the number of osmoles per liter of water EC sodium & IC potassium concentrations always equal ECNa = ICK EC Volume IC Volume “Concentration” and “content” of Na regulated by two different systems:

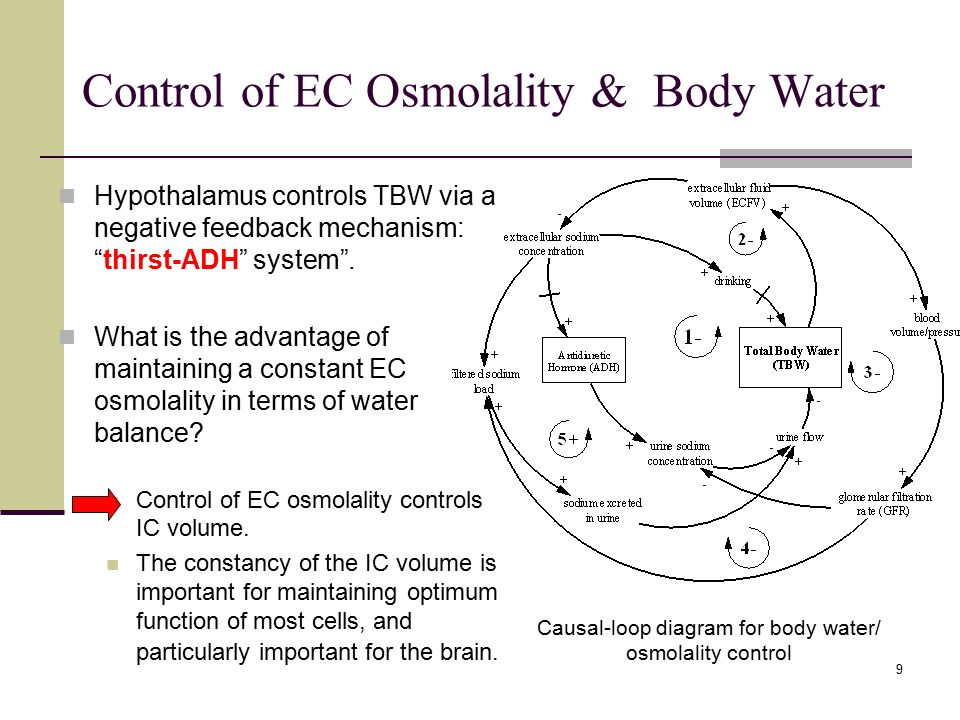

9. 9 Control of EC Osmolality & Body Water Hypothalamus controls TBW via a negative feedback mechanism: “thirst-ADH” system”. What is the advantage of maintaining a constant EC osmolality in terms of water balance? Control of EC osmolality controls IC volume. The constancy of the IC volume is important for maintaining optimum function of most cells, and particularly important for the brain. Causal-loop diagram for body water/ osmolality control

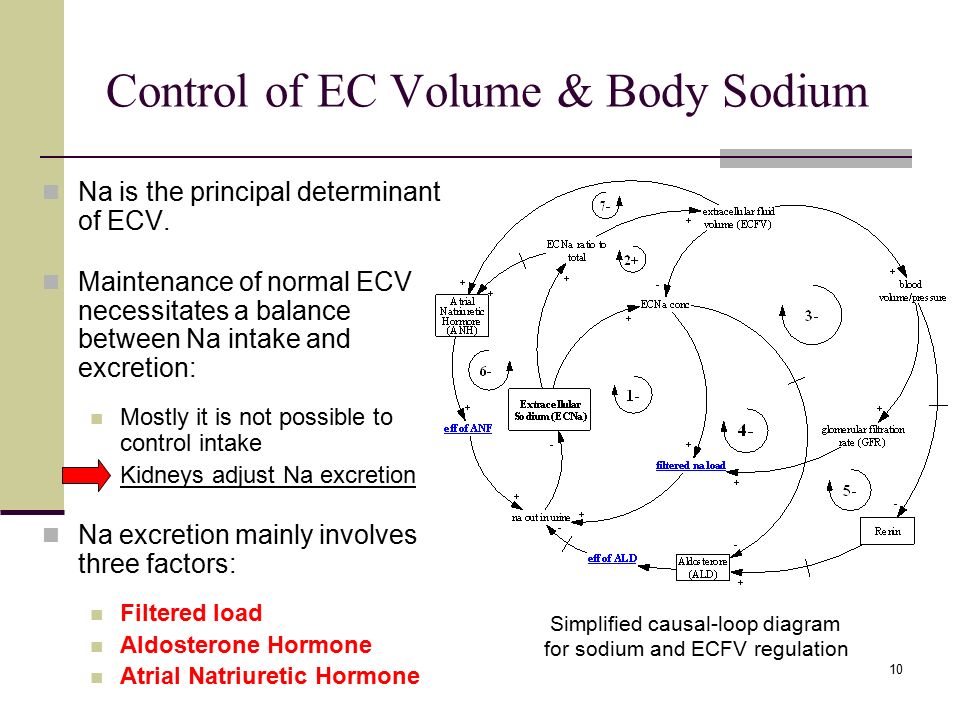

10. 10 Control of EC Volume & Body Sodium Na is the principal determinant of ECV. Maintenance of normal ECV necessitates a balance between Na intake and excretion: Mostly it is not possible to control intake Kidneys adjust Na excretion Na excretion mainly involves three factors: Filtered load Aldosterone Hormone Atrial Natriuretic Hormone Simplified causal-loop diagram for sodium and ECFV regulation

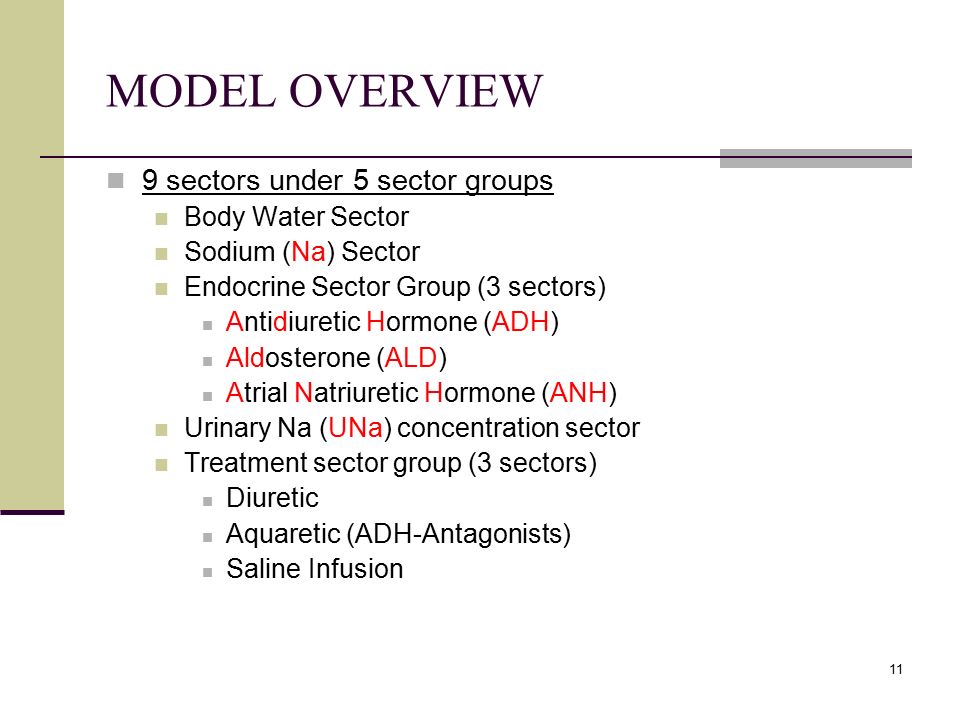

11. 11 MODEL OVERVIEW 9 sectors under 5 sector groups Body Water Sector Sodium (Na) Sector Endocrine Sector Group (3 sectors) Antidiuretic Hormone (ADH) Aldosterone (ALD) Atrial Natriuretic Hormone (ANH) Urinary Na (UNa) concentration sector Treatment sector group (3 sectors) Diuretic Aquaretic (ADH-Antagonists) Saline Infusion

12. 12 High-level Representation of the Model

13. 13 OVERVIEW OF THE MODEL Simplified causal loop diagram of the overall model

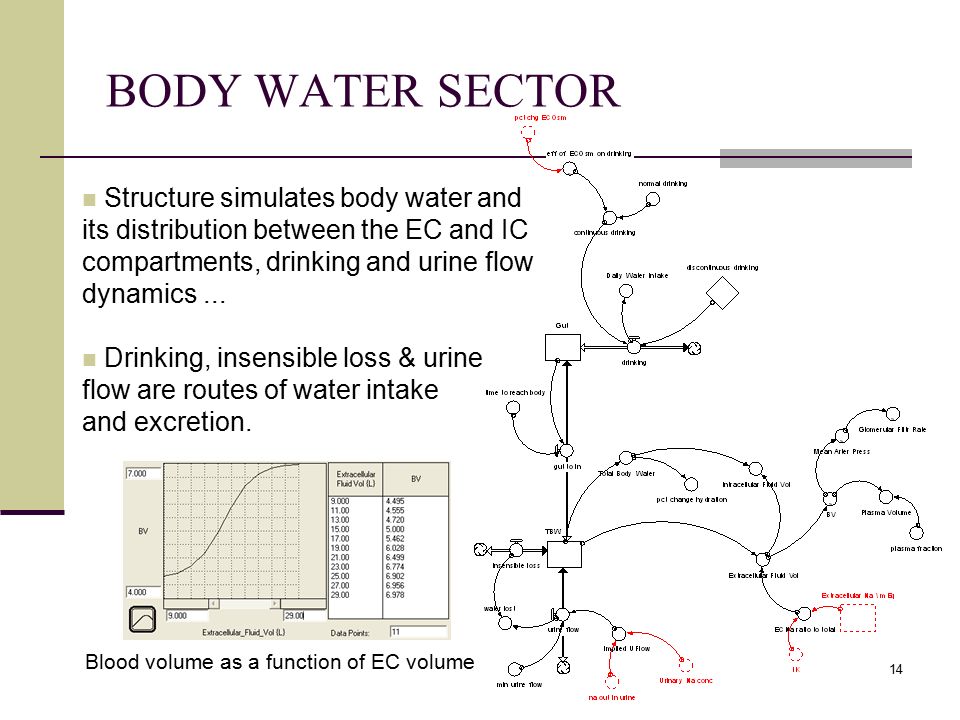

14. 14 BODY WATER SECTOR Structure simulates body water and its distribution between the EC and IC compartments, drinking and urine flow dynamics... Drinking, insensible loss & urine flow are routes of water intake and excretion. Blood volume as a function of EC volume

15. 15 SODIUM (Na) SECTOR Total body Na+ and K+ are restricted mostly to EC & IC compartments, IC K+ does not change easily. ECOsm is always ~ to ECNa conc. and ICOsm is ~ to ICK concentration. Only water can move freely between the IC & EC compartments to equalize their osmolalities. Initial states and parameters are standard values which are quoted frequently in the major medical textbooks and in earlier models.

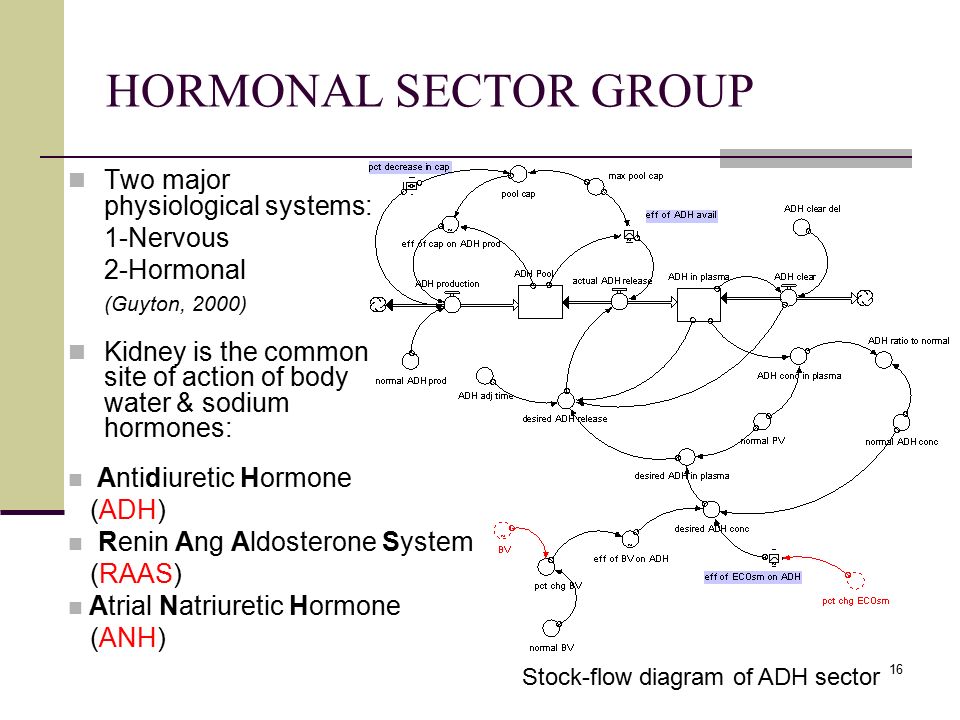

16. 16 HORMONAL SECTOR GROUP Two major physiological systems: 1-Nervous 2-Hormonal (Guyton, 2000) Kidney is the common site of action of body water & sodium hormones: Stock-flow diagram of ADH sector Antidiuretic Hormone (ADH) Renin Ang Aldosterone System (RAAS) Atrial Natriuretic Hormone (ANH)

17. 17 UNa CONCENTRATION SECTOR Why does the kidney play with urine concentration? Conservation of water and elimination of body wastes is essential for our internal environment Forming a small and concentrated urine When there is excess water, a dilute, watery urine is formed What are the factors affecting urine concentration? ADH Glomerular filtration rate Main Assumptions Urine osmolality assumed to be the same as UNa conc

18. 18 Integrated Body Water & Sodium Regulation Overall regulation of body fluids by integrated control of body water & body sodium regulators × ×

19. 19 BASE BEHAVIOR Equilibria of key variables with discontinuous drinking... key variables in the equilibrium run..

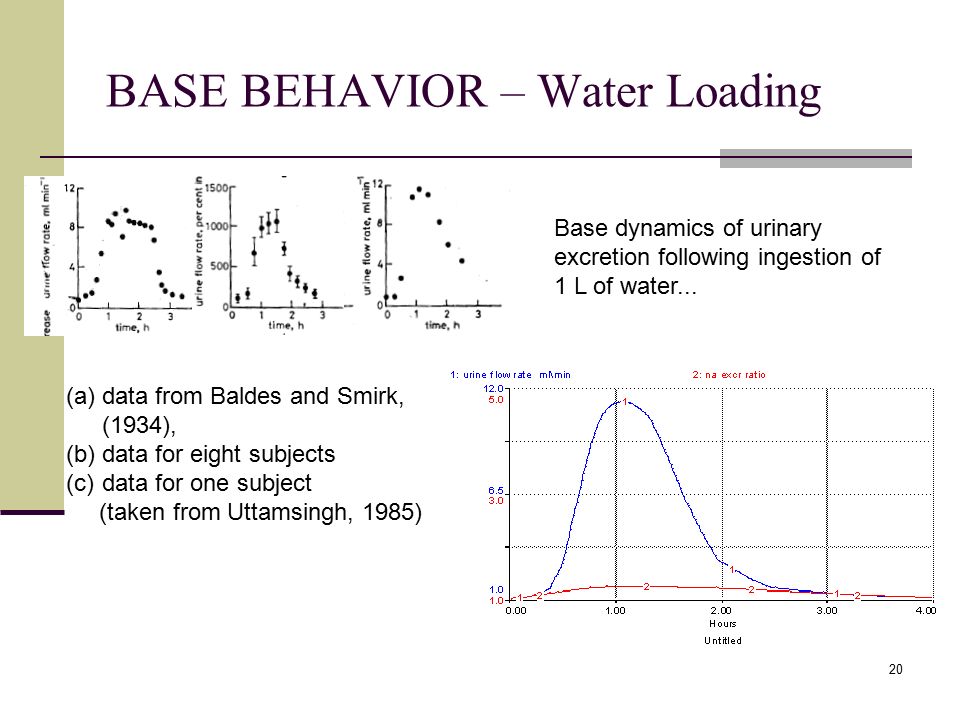

20. 20 BASE BEHAVIOR – Water Loading Base dynamics of urinary excretion following ingestion of 1 L of water... (a)data from Baldes and Smirk, (1934), (b)data for eight subjects (c)data for one subject (taken from Uttamsingh, 1985)

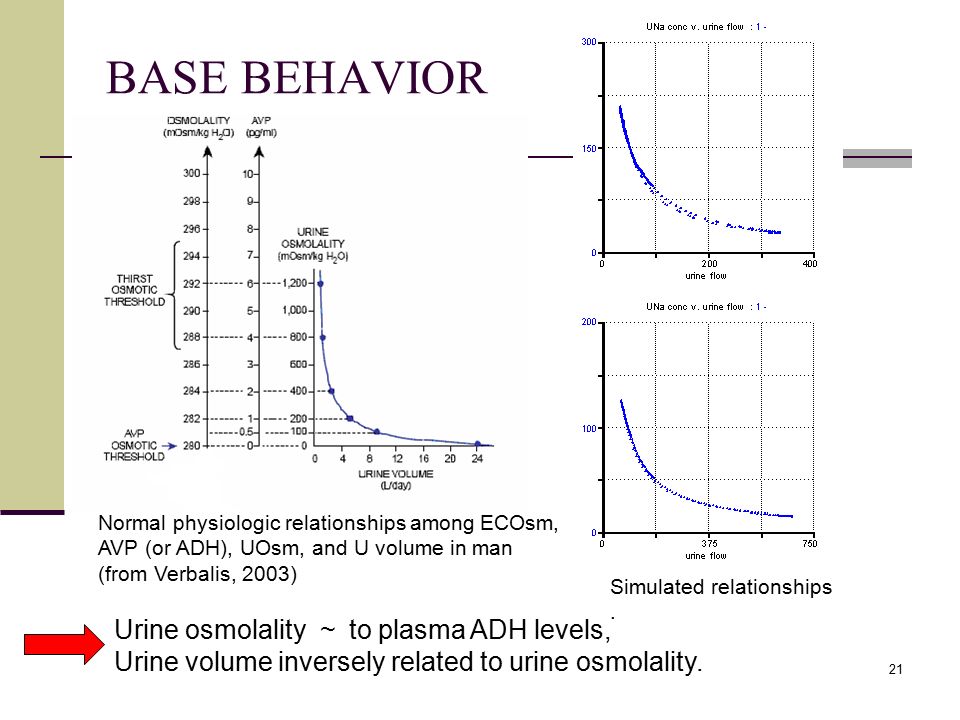

21. 21 BASE BEHAVIOR Urine osmolality ~ to plasma ADH levels, Urine volume inversely related to urine osmolality. Normal physiologic relationships among ECOsm, AVP (or ADH), UOsm, and U volume in man (from Verbalis, 2003) Simulated relationships.

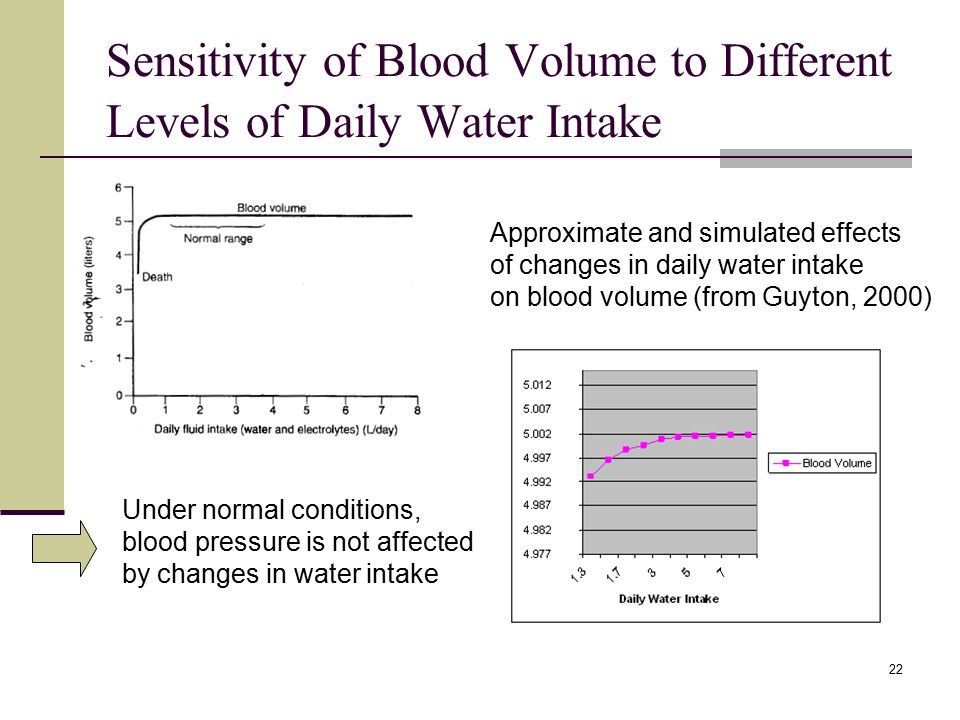

22. 22 Sensitivity of Blood Volume to Different Levels of Daily Water Intake Approximate and simulated effects of changes in daily water intake on blood volume (from Guyton, 2000) Under normal conditions, blood pressure is not affected by changes in water intake

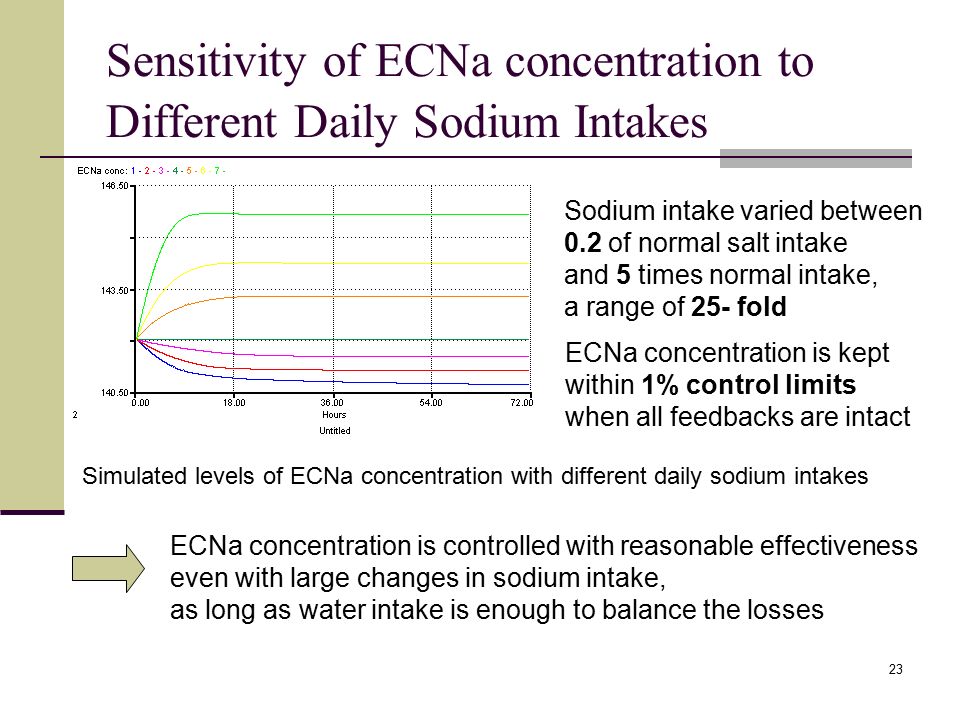

23. 23 Sensitivity of ECNa concentration to Different Daily Sodium Intakes Sodium intake varied between 0.2 of normal salt intake and 5 times normal intake, a range of 25- fold ECNa concentration is kept within 1% control limits when all feedbacks are intact Simulated levels of ECNa concentration with different daily sodium intakes ECNa concentration is controlled with reasonable effectiveness even with large changes in sodium intake, as long as water intake is enough to balance the losses

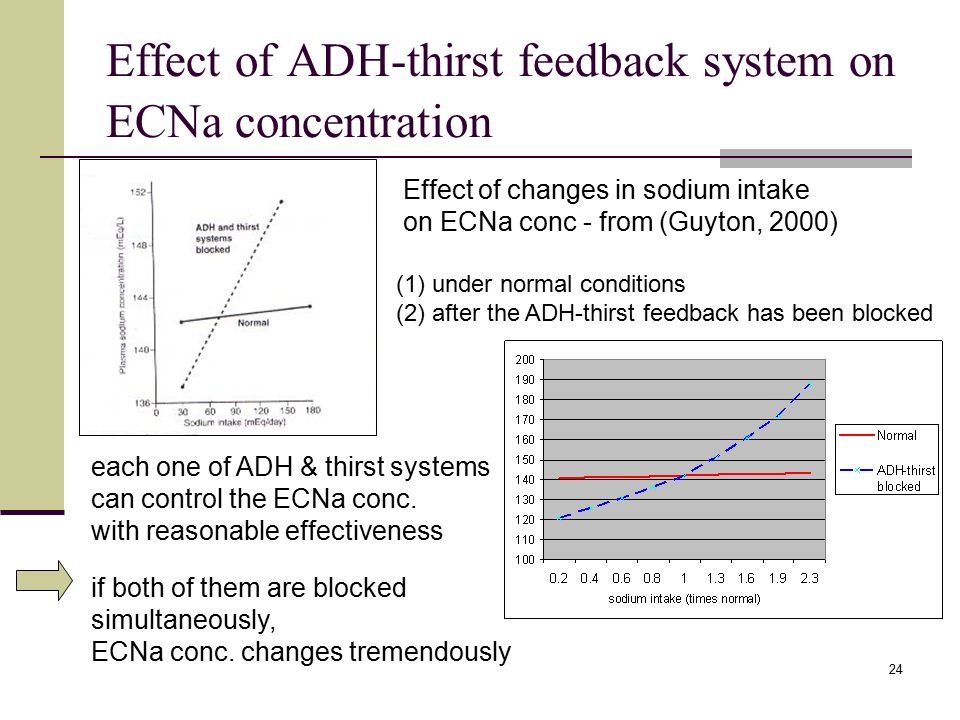

24. 24 Effect of ADH-thirst feedback system on ECNa concentration Effect of changes in sodium intake on ECNa conc - from (Guyton, 2000) (1)under normal conditions (2)after the ADH-thirst feedback has been blocked each one of ADH & thirst systems can control the ECNa conc. with reasonable effectiveness if both of them are blocked simultaneously, ECNa conc. changes tremendously

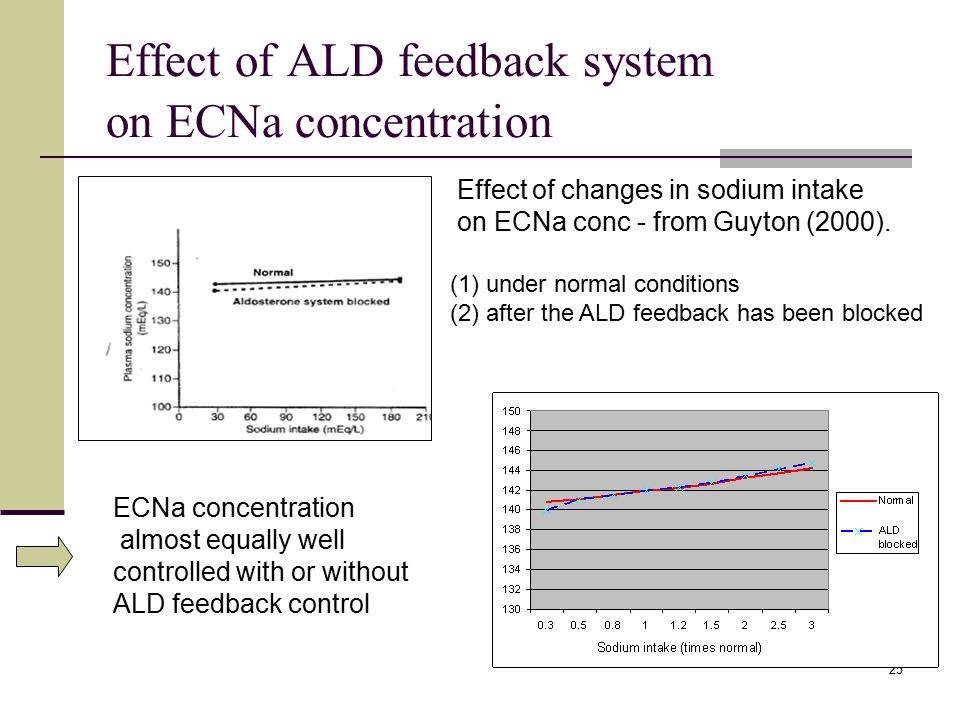

25. 25 Effect of ALD feedback system on ECNa concentration Effect of changes in sodium intake on ECNa conc - from Guyton (2000). (1)under normal conditions (2)after the ALD feedback has been blocked ECNa concentration almost equally well controlled with or without ALD feedback control

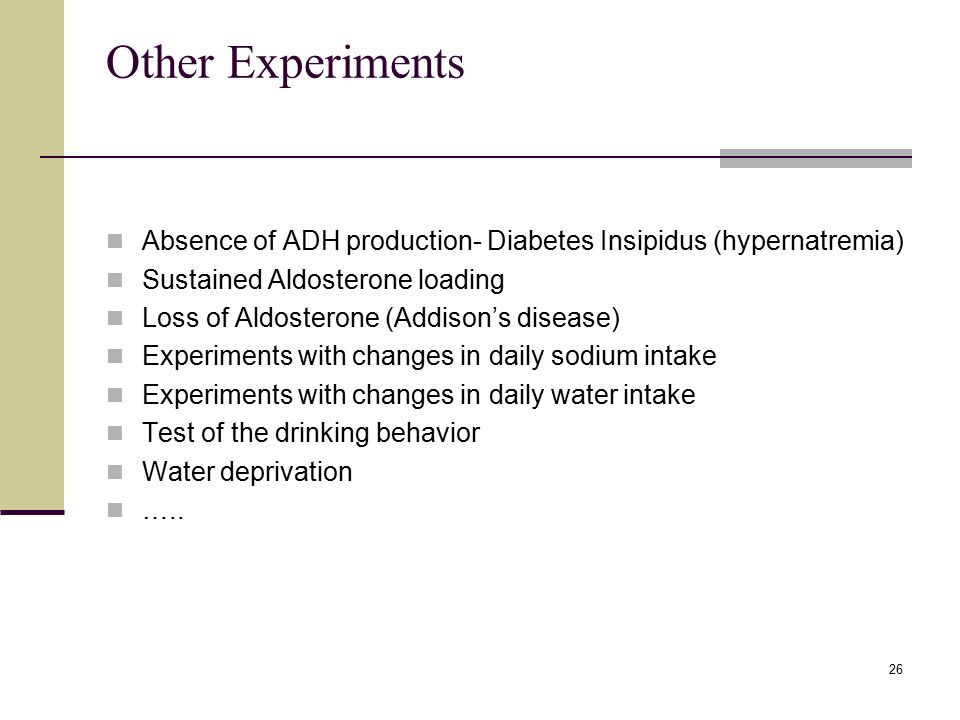

26. 26 Other Experiments Absence of ADH production- Diabetes Insipidus (hypernatremia) Sustained Aldosterone loading Loss of Aldosterone (Addison’s disease) Experiments with changes in daily sodium intake Experiments with changes in daily water intake Test of the drinking behavior Water deprivation …..

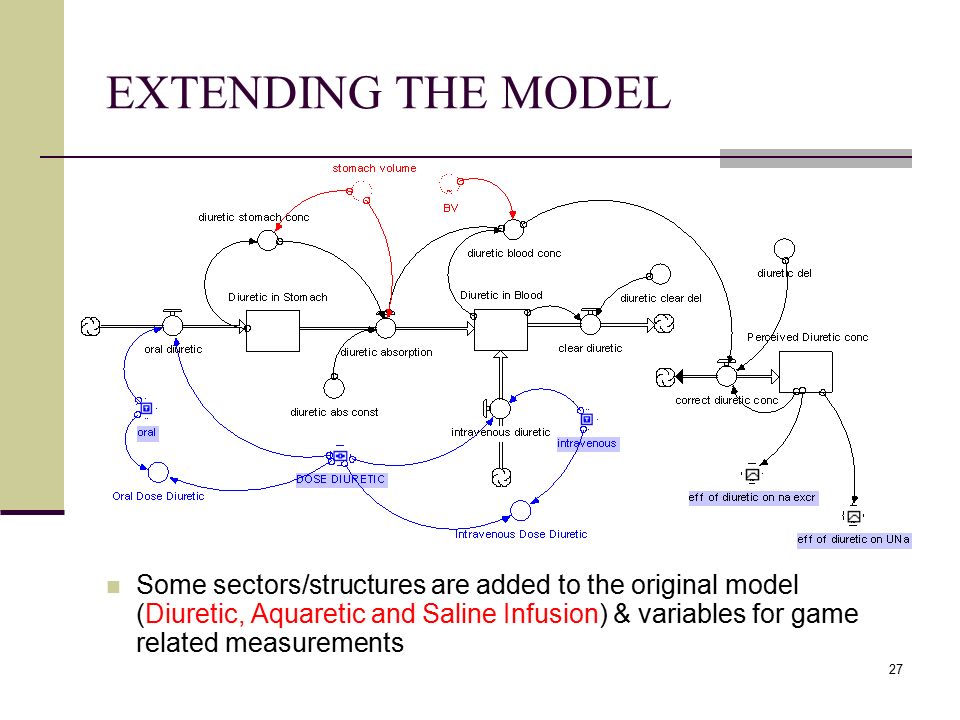

27. 27 EXTENDING THE MODEL Some sectors/structures are added to the original model (Diuretic, Aquaretic and Saline Infusion) & variables for game related measurements

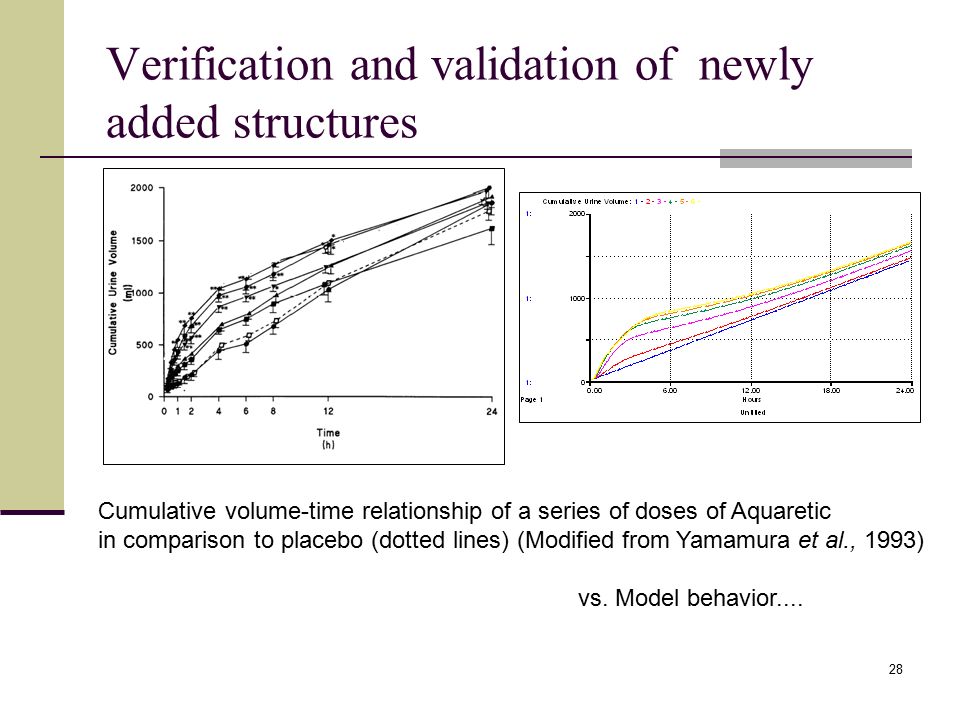

28. 28 Verification and validation of newly added structures Cumulative volume-time relationship of a series of doses of Aquaretic in comparison to placebo (dotted lines) (Modified from Yamamura et al., 1993) vs. Model behavior....

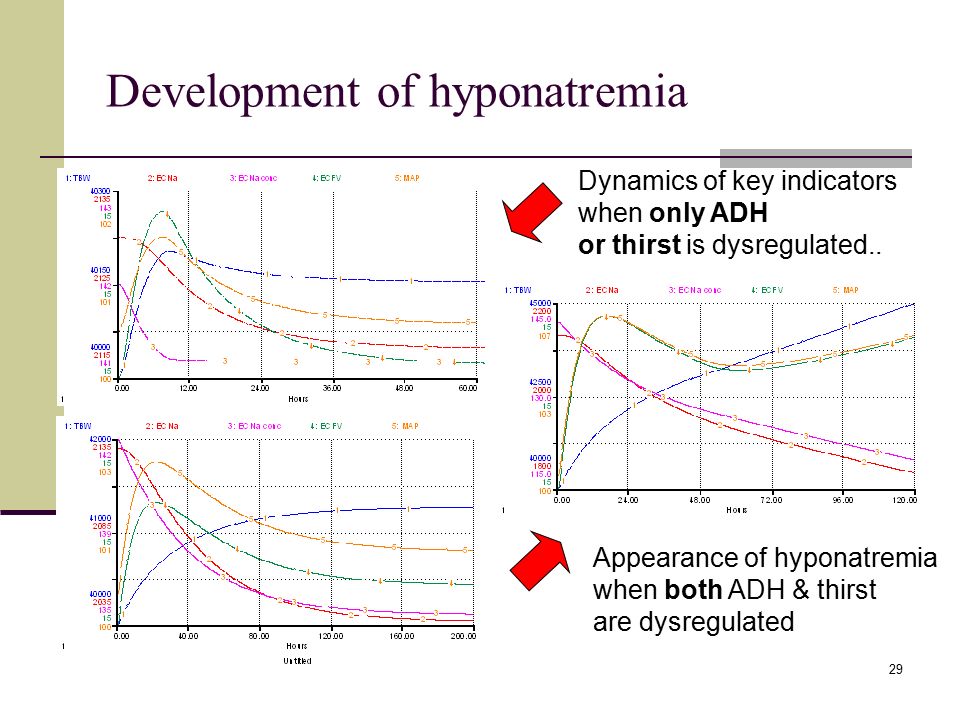

29. 29 Development of hyponatremia Dynamics of key indicators when only ADH or thirst is dysregulated.. Appearance of hyponatremia when both ADH & thirst are dysregulated

30. 30 THE INTERACTIVE DYNAMIC SIMULATOR (BWATERGAME)

31. 31 Results of the Game Tests by Players ECNa concentration Total body water Blood pressure Saline infusion decisions

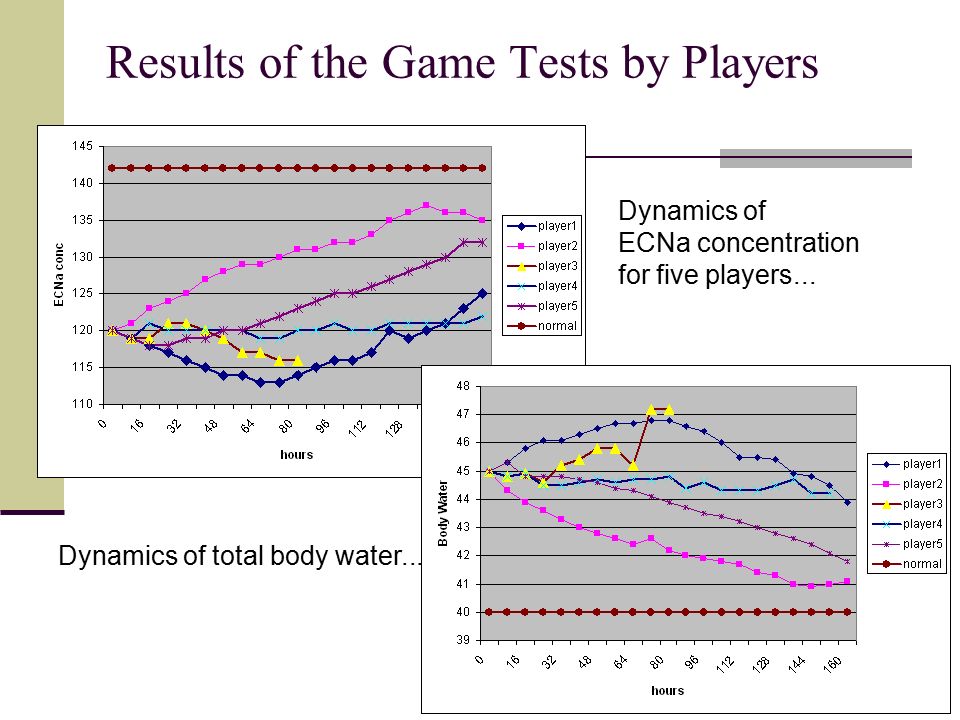

32. 32 Results of the Game Tests by Players Dynamics of ECNa concentration for five players... Dynamics of total body water...

33. 33 Results of the Game Tests by Players Dynamics of hourly correction rate.. Dynamics of mean arterial pressure for five players..

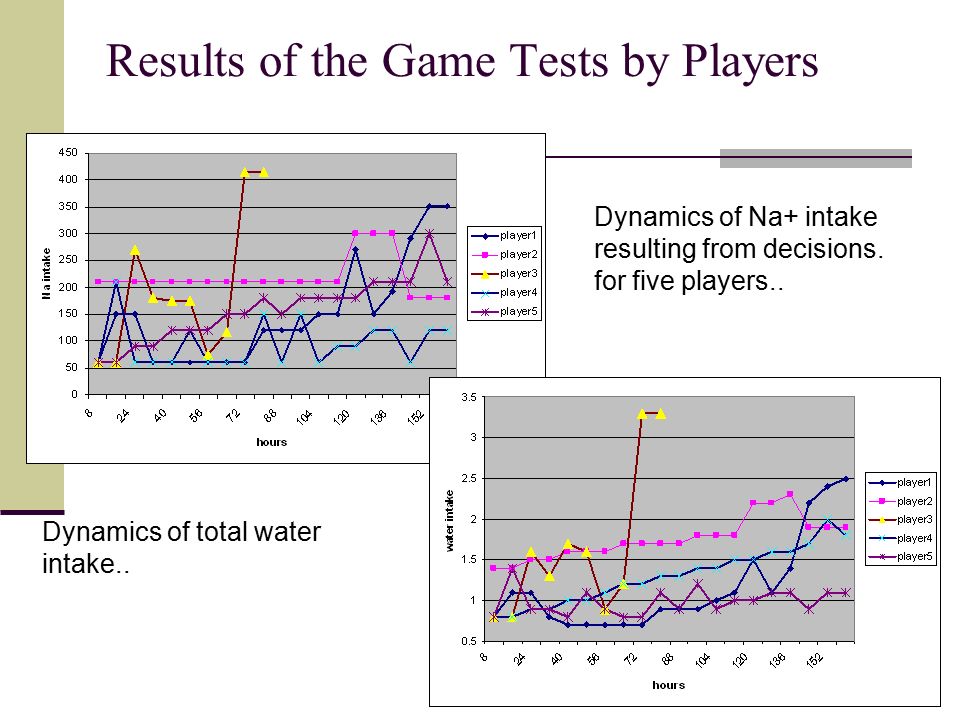

34. 34 Results of the Game Tests by Players Dynamics of total water intake.. Dynamics of Na+ intake resulting from decisions. for five players..

35. 35 CONTRIBUTIONS.. ADH is extremely important for control of Na concentration, yet it has a relatively mild effect on the control of blood volume/pressure. Arterial pressure is mainly determined by “Na intake”, rather than water intake. Effective correction of the SIADH can only be attained if a negative water balance can be maintained. Replacing the sodium deficits alone is worthless. ADH-Antagonists are superior over diuretics in SIADH, and safer than other methods The model and the game version constitute an experimental laboratory for a closed-loop therapy approach to hyponatremia. The game version can be used as a learning and teaching environment for renal physiology, especially for the differentiation between the concepts of “Na content” and “Na concentration”, and related disorders.

36. 36 FUTURE WORK Conversion of current game model for treatment of severe hyponatremia in an intensive care unit setting Changing the initial conditions of the modified model and the treatment options Model may be extended to incorporate K+ dynamics Na+ and K+ regulation is coupled with levels of aldosterone Incorporation of urea Urea contributes to 40 percent of the urine osmolality Urea is used for the therapy of SIADH; oral urea is efficient in producing a high osmotic diuresis in patients with the SIADH (Decaux, 1981). Improved structures for drinking, e.g. short term gastric inhibition........

37. 37 Acknowledgments Prof. Yaman Barlas, Industrial Engineering, Bogazici University Socio-Economic System Dynamics Research Group (SESDYN): Examples: Educational problems, Public budget deficits, Environment Fast business growth followed by collapse, Intervention dilemma: quick relief vs long-term effects, Inventory/Business cycles Systemic medical problems: Long term hypertension progression, drug use/drug dependency, regulation of thyroid hormones, cholesterol dynamics, body weight regulation & obesity..

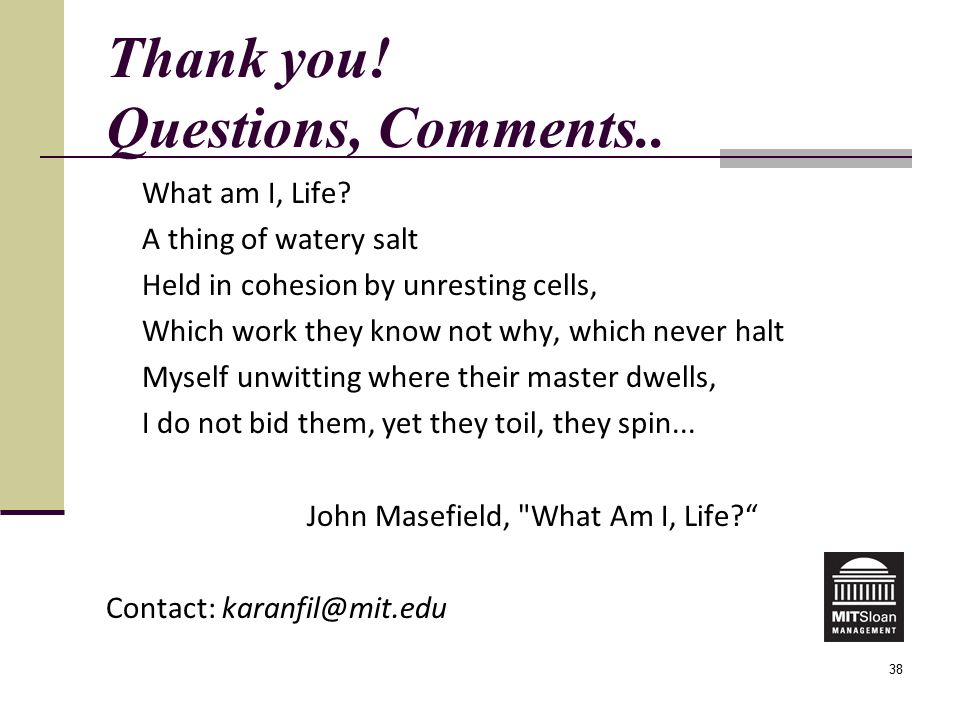

38. 38 Thank you! Questions, Comments.. What am I, Life? A thing of watery salt Held in cohesion by unresting cells, Which work they know not why, which never halt Myself unwitting where their master dwells, I do not bid them, yet they toil, they spin... John Masefield, "What Am I, Life?“ Contact: karanfil@mit.edu

39. 39 BASE BEHAVIOR –continuous version key variables in the equilibrium run.. hormonal variables in the equilibrium run..

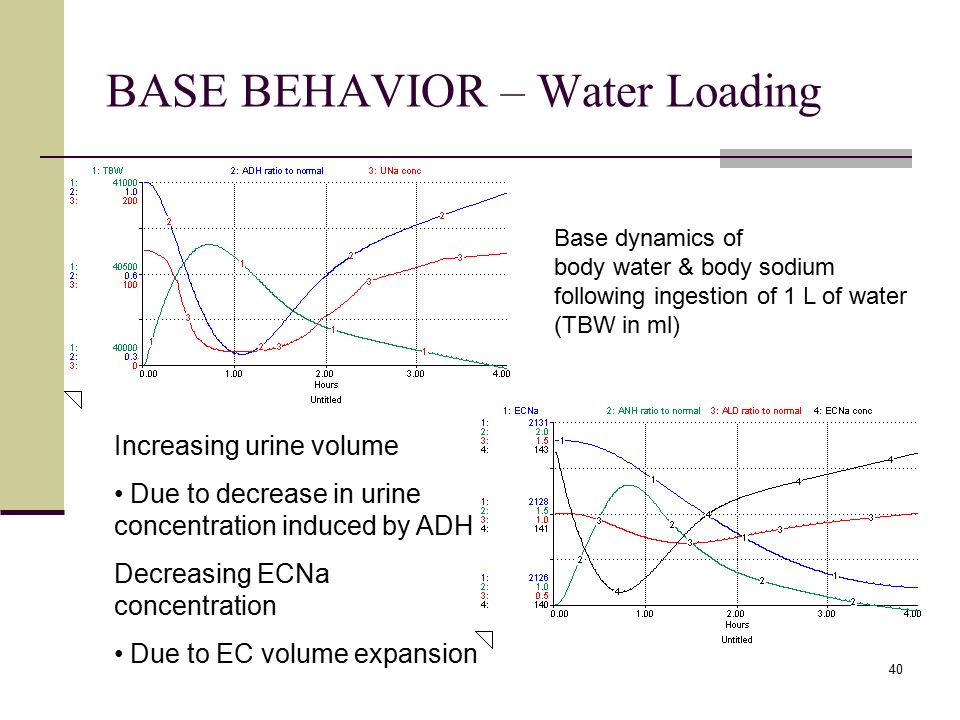

40. 40 BASE BEHAVIOR – Water Loading Base dynamics of body water & body sodium following ingestion of 1 L of water (TBW in ml) Increasing urine volume Due to decrease in urine concentration induced by ADH Decreasing ECNa concentration Due to EC volume expansion

41. 41 BASE BEHAVIOR– discont. version Equilibria of hormonal dynamics with discontinuous drinking.. ADH is the most variable hormone under normal conditions. The variation in ADH prevents higher fluctuations in the ECNa concentration Almost no variation in ALD, responsible for the long term dynamics for EC volume and sodium control. Medium fluctuation in ANH during the day

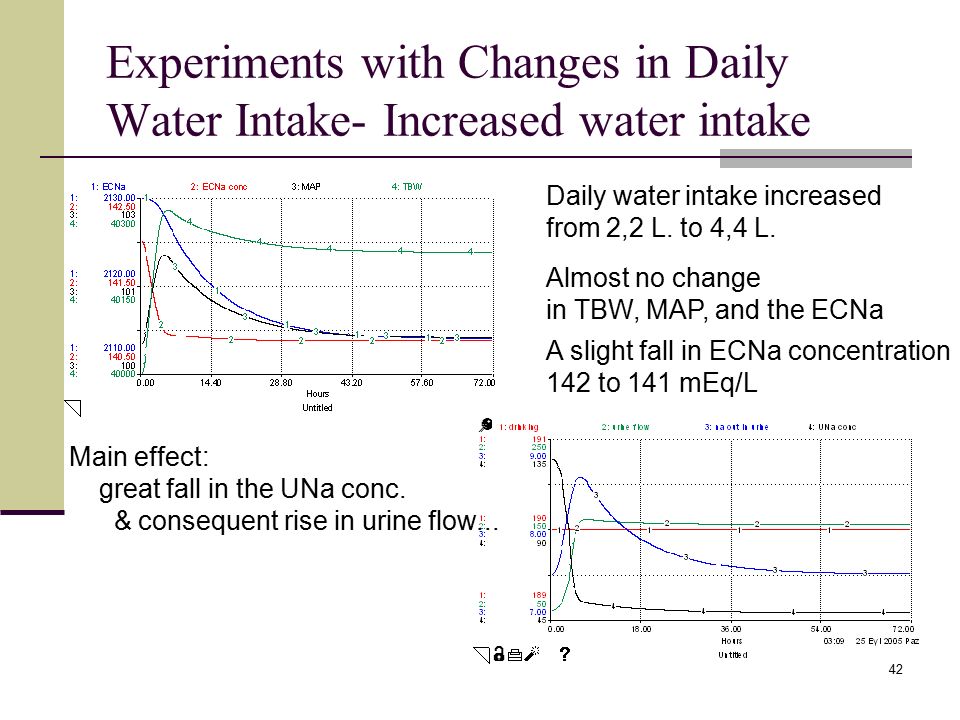

42. 42 Experiments with Changes in Daily Water Intake- Increased water intake Daily water intake increased from 2,2 L. to 4,4 L. Almost no change in TBW, MAP, and the ECNa A slight fall in ECNa concentration 142 to 141 mEq/L Main effect: great fall in the UNa conc. & consequent rise in urine flow...

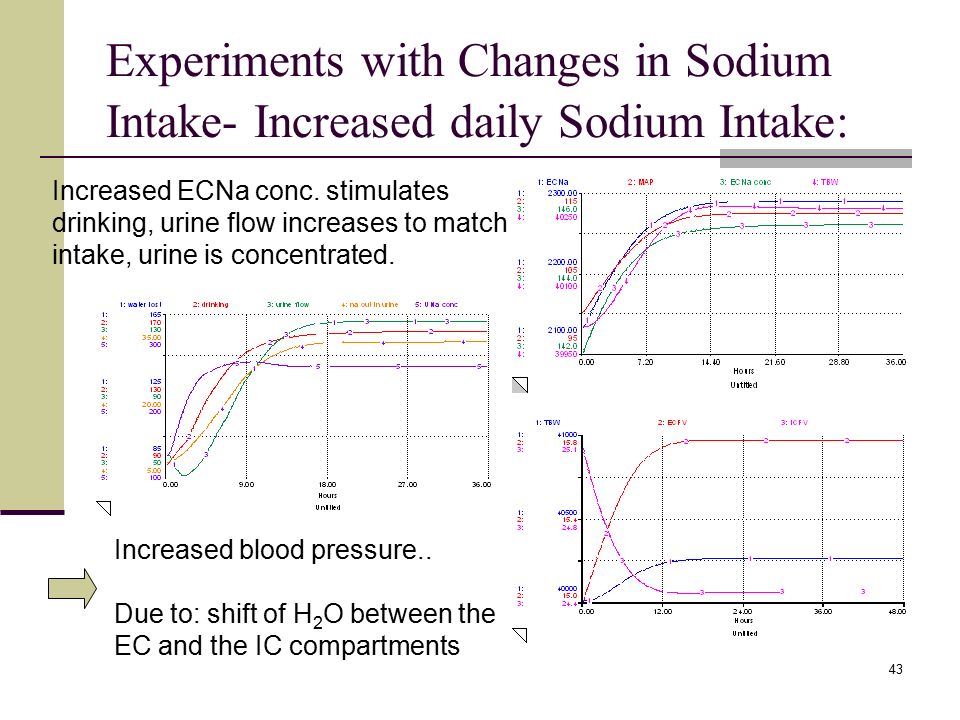

43. 43 Experiments with Changes in Sodium Intake- Increased daily Sodium Intake: Daily sodium intake elevated: from 180mEq/d to 235 mEq/d. Increased ECNa conc. stimulates drinking, urine flow increases to match intake, urine is concentrated. Increased blood pressure.. Due to: shift of H 2 O between the EC and the IC compartments

44. 44 Water Deprivation Water intake decreased to 0 Urine flow is minimized by maximally concentrating urine, but continuous loss of water cannot be compensated without an external source of water ECNa conc. increases & TBW decreases continuously... nonlethal range of ECNa conc. is 115 to 175 mEq/L.

45. 45 Sustained Aldosterone Loading Open circles indicate experimental data of Relman and Schwartz (1952); solid circles indicate experimental data of Davis and Howell (1953); Taken from (Uttamsingh, 1985) Model generated outputs

46. 46 Absence of ADH production- Diabetes Insipidus TBW can no longer be conserved ECNa conc. is kept at elevated level Hypernatremia Blood pressure kept constant Drinking behavior & urinary excretion.........periods became very frequent & UNa concentration is very low Increased water turnover: From 2-3 L/d up to 10-20 L/d

47. 47 Sustained Aldosterone Loading- cont. ALD escape prevents excessive volume increases in patients who have excess amounts of ALD ALD conc. is increased to 4 times its normal and then maintained at this elevated level Initial sodium retention and volume expansion due to decreased na excretion rate Increase in TBW, ECFV, and MAP are limited due to “aldosterone escape” accomplished by combined increase in the GFR, Filtered sodium, and ANH ECNa concentration hardly changes from 142 mEq/L to 143 mEq/L.

48. 48 ADH-Induced Hyponatremia (SIADH) Hyponatremia can be classified into 3 basic types: Normovolemic: clinically normal, Hypervolemic: elevated, Hypovolemic: decreased EC volume The most common causes of hyponatremia are: The SIADH (38%), Incorrect hydration (19%) Diuretic treatment (30%) (Halperin and Bohn, 2002).

49. 49 References Abbrecht, P.H., 1980, “Regulation of Extracellular Fluid Volume and Osmolality”, Annals of Biomedical Engineering, Vol: 8, pp. 461-472. Bagby, S.P. and W. M. Bennett, 1998, “Differentiating Disorders of ECF Volume/ NaContent Regulation versus Disorders of Total Body Fluid Osmolarity/ Water Regulation”, Advances in Physiology Education, Vol. 20, No: 1, pp. 169-184. Bankir, L., 2001, “Antidiuretic Action of Vasopressin: Quantitative Aspects and Interaction between V1a and V2 Receptor-Mediated Effects”, Cardiovascular Research, Vol. 51, pp. 372-390. Barlas, Y., 1996, “Formal Aspects of Model Validity and Validation in System Dynamics”, System Dynamics Review, Vol.12, No.3, pp. 183-210. Bray, J.J, P.A. Cragg, and A.D.C. Macknight, 1989, Lecture Notes on Human Physiology, Oxford, Boston: Blackwell Scientific Publications; Chicago, Ill.: Distributor, USA, Year Book Medical Publishers, c1989. Brandis, K., 2005, “Fluid Physiology - an on-line text“ http://www.anaesthesiamcq.com/FluidBook/index.php. Bricker, N.S., 1967, “The Control of Sodium Excretion with Normal and Reduced Nephron Populations. The Pre-eminence of Third Factor”, The American Journal of Medicine, Vol: 43, pp. 313-321. Cameron, W. H., 1977, “A Model Framework for Computer Simulation of Overall Renal Function”, Journal of Theoretical Biology, Vol: 66, pp. 551-572. Cannon, W, 1939, The Wisdom of the Body, N.Y. Norton. Carson, E.R., C. Cobelli and L. Finkelstein, 1983, The Mathematical Modeling of Metabolic and Endocrine Systems, New York: Wiley. Cogan, E., M.F. Debieve, T. Pepersack, M. Abramov, 1988, “Natriuresis and Atrial Natriuretic Factor Secretion during Inappropriate Antidiuresis”, The American Journal of Medicine, Vol. 84, pp. 409-418. Coleman, T.G. and J. E. Hall, 1992, “A Mathematical Model of Renal Hemodynamics and Excretory Function”, in Structuring Biological Systems- A ComputerModeling Approach, edited by S. Sitharama Iyengar, CRC Press.

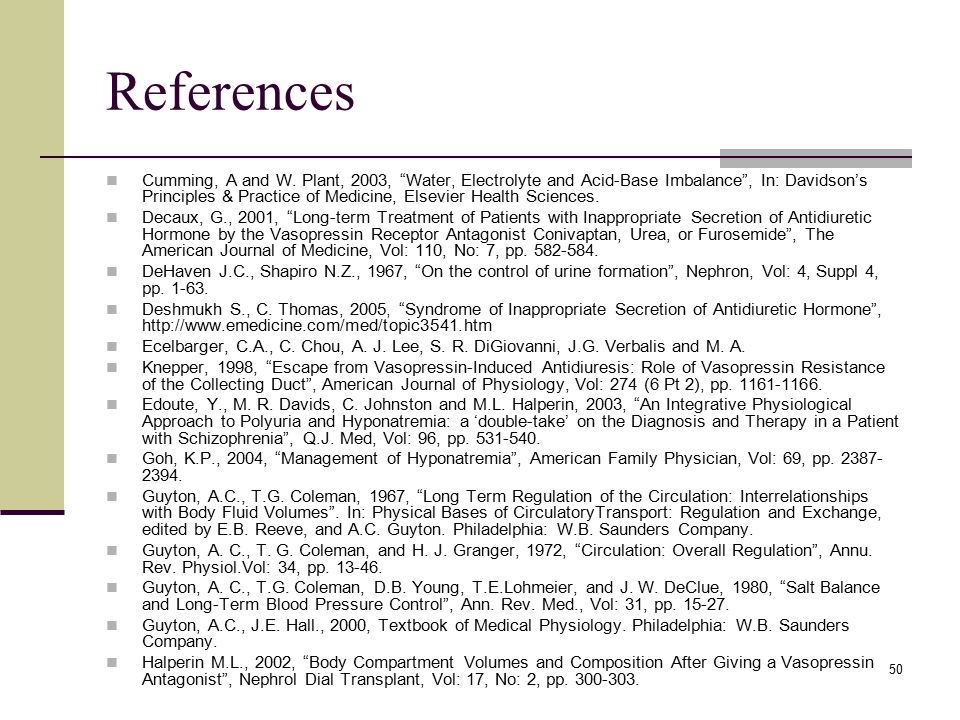

50. 50 References Cumming, A and W. Plant, 2003, “Water, Electrolyte and Acid-Base Imbalance”, In: Davidson’s Principles & Practice of Medicine, Elsevier Health Sciences. Decaux, G., 2001, “Long-term Treatment of Patients with Inappropriate Secretion of Antidiuretic Hormone by the Vasopressin Receptor Antagonist Conivaptan, Urea, or Furosemide”, The American Journal of Medicine, Vol: 110, No: 7, pp. 582-584. DeHaven J.C., Shapiro N.Z., 1967, “On the control of urine formation”, Nephron, Vol: 4, Suppl 4, pp. 1-63. Deshmukh S., C. Thomas, 2005, “Syndrome of Inappropriate Secretion of Antidiuretic Hormone”, http://www.emedicine.com/med/topic3541.htm Ecelbarger, C.A., C. Chou, A. J. Lee, S. R. DiGiovanni, J.G. Verbalis and M. A. Knepper, 1998, “Escape from Vasopressin-Induced Antidiuresis: Role of Vasopressin Resistance of the Collecting Duct”, American Journal of Physiology, Vol: 274 (6 Pt 2), pp. 1161-1166. Edoute, Y., M. R. Davids, C. Johnston and M.L. Halperin, 2003, “An Integrative Physiological Approach to Polyuria and Hyponatremia: a ‘double-take’ on the Diagnosis and Therapy in a Patient with Schizophrenia”, Q.J. Med, Vol: 96, pp. 531-540. Goh, K.P., 2004, “Management of Hyponatremia”, American Family Physician, Vol: 69, pp. 2387- 2394. Guyton, A.C., T.G. Coleman, 1967, “Long Term Regulation of the Circulation: Interrelationships with Body Fluid Volumes”. In: Physical Bases of CirculatoryTransport: Regulation and Exchange, edited by E.B. Reeve, and A.C. Guyton. Philadelphia: W.B. Saunders Company. Guyton, A. C., T. G. Coleman, and H. J. Granger, 1972, “Circulation: Overall Regulation”, Annu. Rev. Physiol.Vol: 34, pp. 13-46. Guyton, A. C., T.G. Coleman, D.B. Young, T.E.Lohmeier, and J. W. DeClue, 1980, “Salt Balance and Long-Term Blood Pressure Control”, Ann. Rev. Med., Vol: 31, pp. 15-27. Guyton, A.C., J.E. Hall., 2000, Textbook of Medical Physiology. Philadelphia: W.B. Saunders Company. Halperin M.L., 2002, “Body Compartment Volumes and Composition After Giving a Vasopressin Antagonist”, Nephrol Dial Transplant, Vol: 17, No: 2, pp. 300-303.
