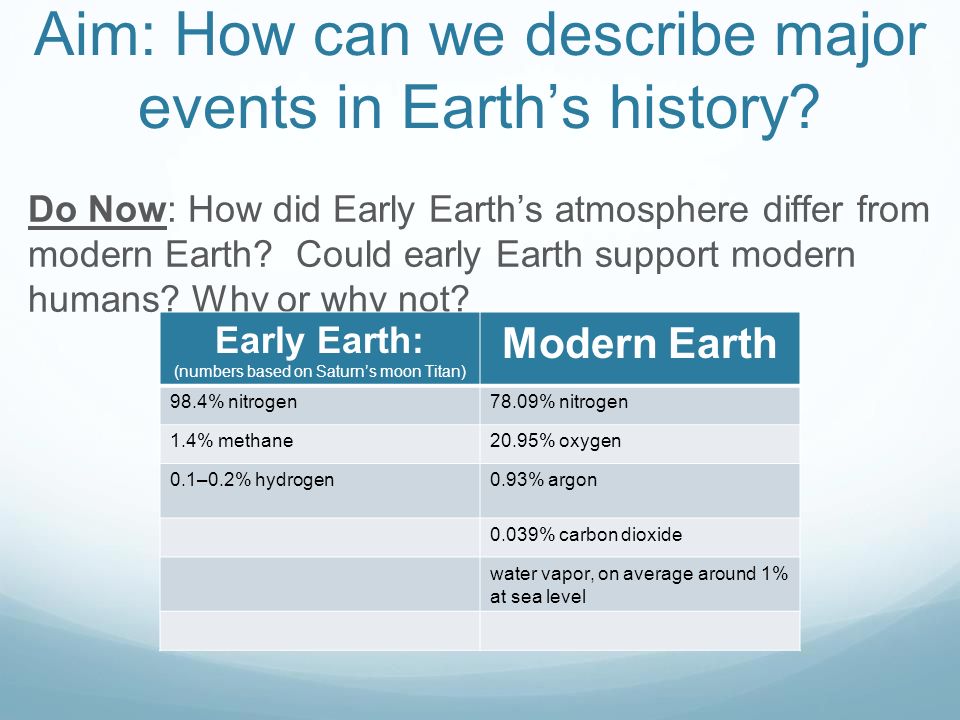

Aim: How can we describe major events in Earth’s history? Do Now: How did Early Earth’s atmosphere differ from modern Earth? Could early Earth support modern humans? Why or why not? Early Earth: (numbers based on Saturn’s moon Titan) Modern Earth 98.4% nitrogen78.09% nitrogen 1.4% methane20.95% oxygen 0.1–0.2% hydrogen0.93% argon 0.039% carbon dioxide water vapor, on average around 1% at sea level
4
4.6 Billion Years Ago
5
2.6 billion to 400 Million Years ago
6
400 million to 290 million years ago
7
290 million years ago to now
8

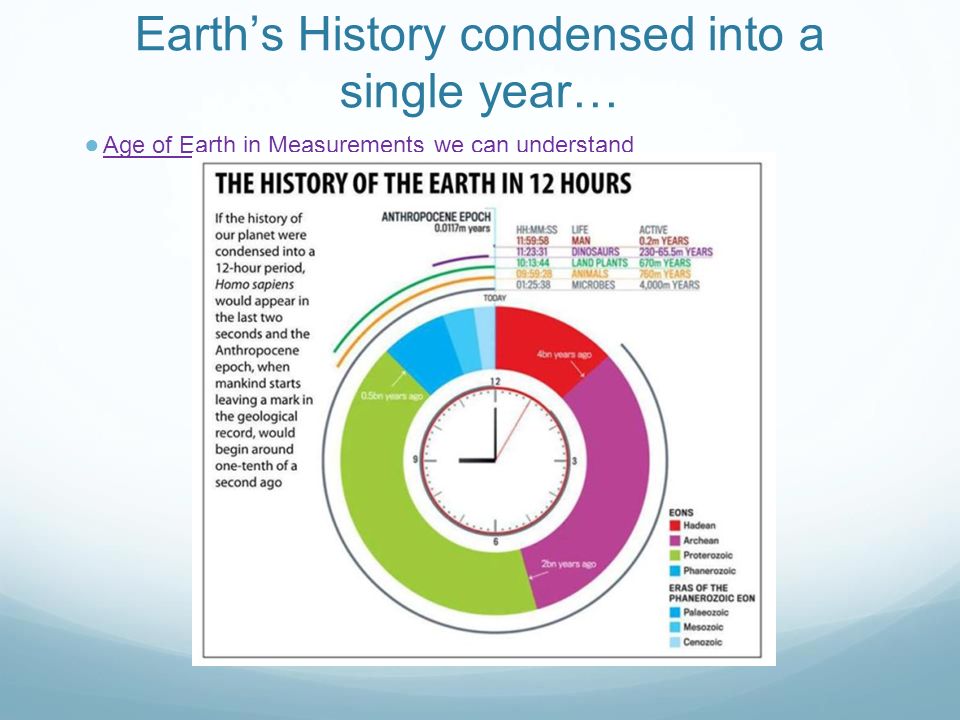

Earth’s History condensed into a single year… ● Age of Earth in Measurements we can understand Age of Earth in Measurements we can understand
9
Choose one of the following time periods to report on ● PreCambrian Time ● Paleozoic ● Mesozoic ● Cenozoic
10
Activity: Using pages 420-424 (or p. 615-623 ) answer the following: 1. What are the dates of your time period? 2. What marks the beginning and end of your time period? 3. What are the major geologic events of your time period? 4. What are the major biologic events of your time period?
11
● Law of Superposition ● Law of Original Horizontality ● Law of Uniformity Geologic History Laws
12
● Law of Superposition: ____________________________________________ ____________________________________________ __________
13
● Law of Original Horizontality ____________________________________________ ____________________________________________ __________
14
● Law of Uniformitarianism ____________________________________________ ____________________________________________ __________
15
Do Now: ● Create two LEVEL TWO questions based on page 8 and 9 of the ESRT. ● Answer your questions. Aim: How can we apply the rules of geologic history to sequence events?
16
Match the definitions to the laws that are pictured on the sheet. Geo History Laws Activity
17
● ESRT ESRT
18
● Law of Superposition ● Law of Original Horizontality ● Law of Uniformity ● REVIEW Geologic History Laws
19
● Law of Superposition: ____________________________________________ ____________________________________________ __________
20
● Law of Original Horizontality ____________________________________________ ____________________________________________ __________
21
● Law of Uniformity____________________________________ ____________________________________________ __________________
22
Easy Right?
23
● There are events that can occur that move rock and make it difficult to determine the age and history Unique Features
24

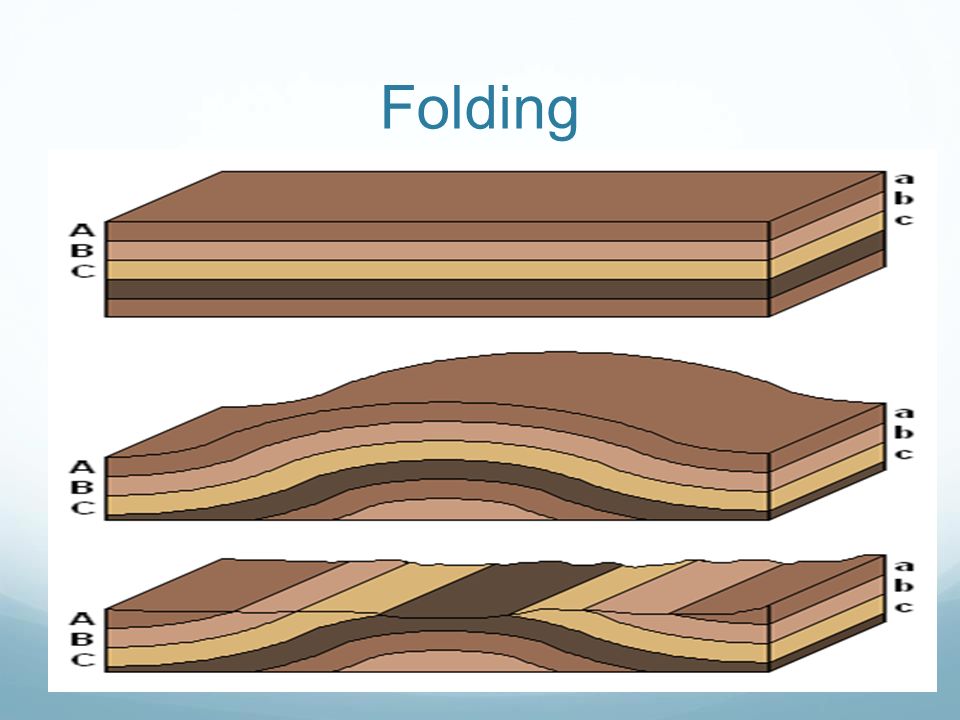

Folding
25
● Which layer is the youngest? Intrusion
27
Fault ● What caused the layers to shift?
28
Fault
29
● Which rock layer is the oldest? Tilting
31
● Blank sheet of paper ● Reference Table ● 1 Minute per question Entry Quiz Aim: How can we apply the rules of geologic history to sequence events?
32
● What letter identifies the index fossil “Condor”? Question 1
33
● Which rock layer is the youngest? Question 2
34
● Which statement correctly describes the law of super positioning? 1. Rocks that contain fossil are always sedimentary rocks 2. Rock layers become older as depth increases 3. Rock layers can tilt or become folded 4. Geologic history sequencing can only be achieved by using absolute dating Question 3
35
● In what era do humans live? Question 4
36
● In what period did the earliest dinosaurs emerge? Question 5
37

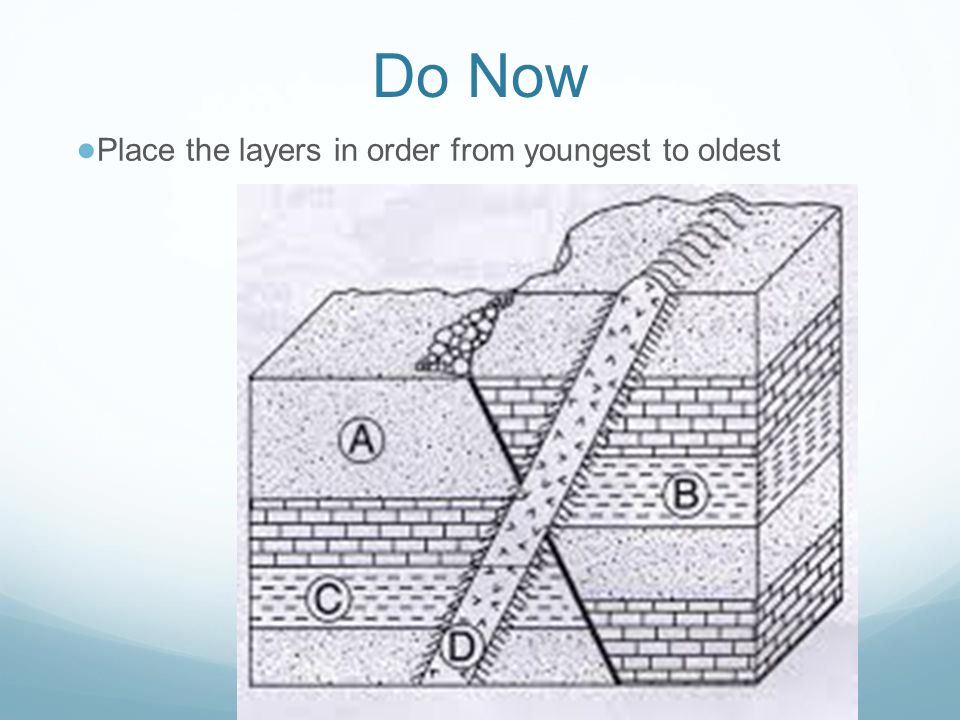

● Place the layers in order from youngest to oldest Do Now
38
● Intrusion Unique Geologic Laws
39
● Fault Unique Geologic Laws
40
Which rock layer is the oldest? Tilting
41
When the rock record doesn’t “conform” to the previous laws. 2 types of unconformity: 1. disconformity and 2. nonconformity Unconformity
42

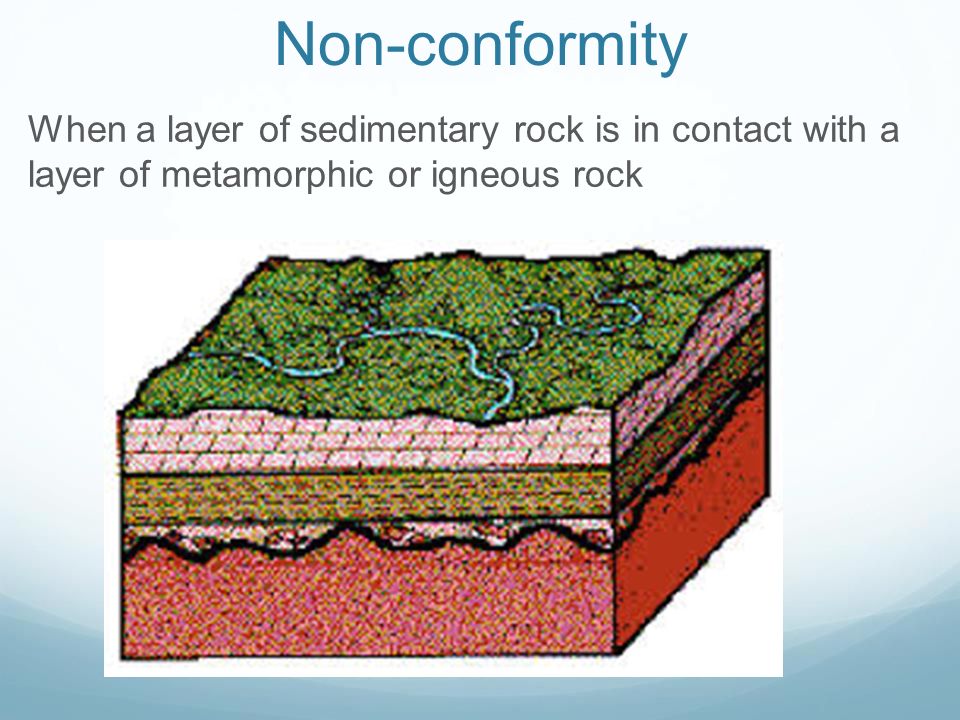

Non-conformity When a layer of sedimentary rock is in contact with a layer of metamorphic or igneous rock
43
Disconformity layers are “missing” How could this occur?
44
● With your partner, determine the relative ages of the rocks layers. ● Which laws are you using to make your determination? Practice
45
Aim: How can we use index fossils to help describe the age of rock layers? Do Now: 1.Describe 2 ways a fossil can form. 2.Using your ESRT, select the fossil that has been extinct for the longest period of time.
46
Aim: How can we sequence rock layers that come from different locations? Do Now: Under the “sequence of events” with 8 steps, what evidence supports the statements that… A)The granite was eroded. B) The fault happened after the basalt, limestone and sandstone formed. C) The basalt was not eroded. D) The top layer was formed by a glacier. (Hint: How would the sediments be sorted?)
47
New test Correction procedure
48
Faulting – When did it happen? Faults cut through all existing layers. Any layers formed after the fault will not be shifted or broken. All layers formed before the fault will be shifted and broken.
49
Aim: How can we use index fossils to help describe the age of rock layers? Do Now: 1.Describe 2 ways a fossil can form. 2.Using your ESRT, select the fossil that has been extinct for the longest period of time.
50
Correlate the 3 rock sequences to make a single rock column for the geologic history of the region. (oldest on bottom)
52
Each black vertical bar represent the existence of a group of organisms. Extinction First appearance
53
KEY CONCEPT Specific environmental conditions are necessary in order for fossils to form.
54
● Specific conditions are needed for fossilization. ● Only a tiny percentage of living things became fossils. Fossils can form in several ways.
61
Time capsule
62
Index Fossils Must be: 1. Easily recognizable 2. Widespread 3. Exist for a short time
63
Correlation means _____________ We can match: o rock types o rock sequences o ash layers from volcanic eruptions o index fossils
64
Correlating or matching index fossils from three outcrops.
65
Correlate the 3 rock sequences to make a single rock column for the geologic history of the region. (oldest on bottom)
66
Oldest Youngest
67
Page 8 & 9 of the Reference Tables.
