1. A look at our nearest neighbor in Space! The Moon Free powerpoints at http://www.worldofteaching.comhttp://www.worldofteaching.com

2. What is the Moon? A natural satellite One of more than 96 moons in our Solar System The only moon of the planet Earth

3. Location, location, location! About 384,000 km (240,000 miles) from Earth 3,468 km (2,155 miles) in diameter (about ¼ the size of Earth)

4. 4 About 384,000 km (240,000 miles) from Earth 360,000 km 406,000 km 224,000 miles 252,000 miles Orbits (revolves around) Earth every 27.3 days Elliptical orbit (not a perfect circle)

5. Birth of the Moon “Born” 4-5 billion years ago Formed from impact of Mars-sized “planetesimal” on Earth Debris from both objects melted together to form the Moon

6. Cut to the Core 3 major divisions of the Lunar interior Crust - average thickness of about 70 kilometers Mantle Core - radius is between 300 and 425 kilometers

7. The Moon’s Surface No atmosphere No liquid water Extreme temperatures –Daytime = 130  C (265°F) –Nighttime = -190  C (-310  F) 1/6 the gravity of Earth

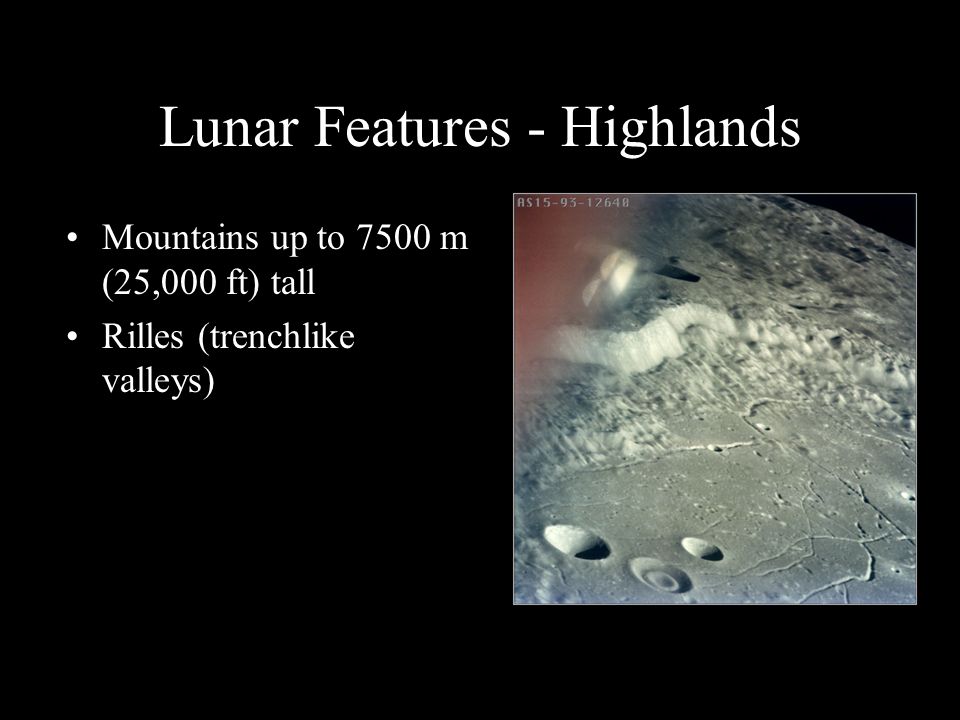

8. Lunar Features - Highlands Mountains up to 7500 m (25,000 ft) tall Rilles (trenchlike valleys)

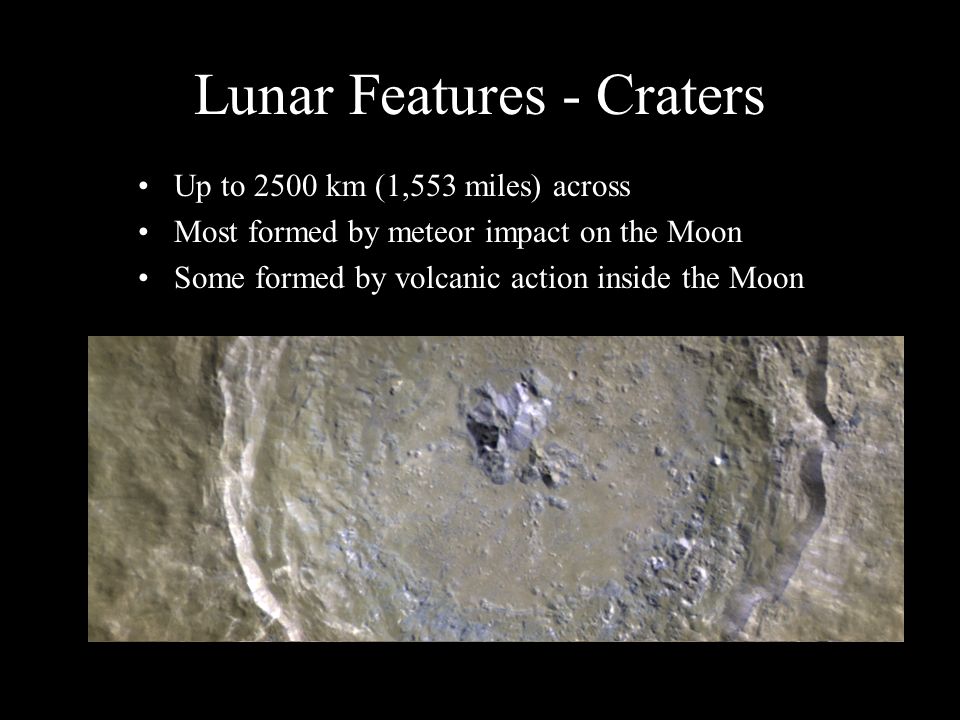

9. Lunar Features - Craters Up to 2500 km (1,553 miles) across Most formed by meteor impact on the Moon Some formed by volcanic action inside the Moon

10. Lunar Features - Maria Originally thought to be “seas” by early astronomers Darkest parts of lunar landscape Filled by lava after crash of huge meteors/asteroids on lunar surface 3-4 billion years ago Mostly basalt rock

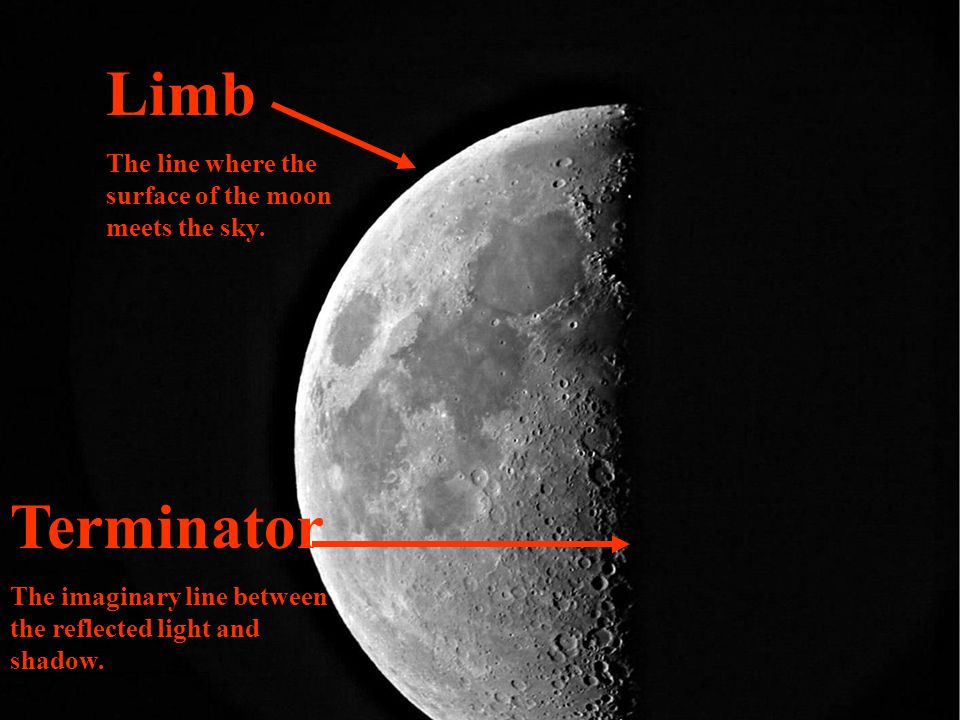

11. Limb The line where the surface of the moon meets the sky. Terminator The imaginary line between the reflected light and shadow.

12. Maria Craters Can you see the rays? Does this photo show us a limb or terminator line?

13. Movements of the Moon Revolution – Moon orbits the Earth every 27 1/3 days The moon rises in the east and sets in the west The moon rises and sets 50 minutes later each day Rotation – Moon turns on its axis every 27 days Same side of Moon always faces Earth

14. Far Side of the Moon First seen by Luna 3 Russian space probe in 1959 Surface features different from near side –More craters –Very few maria –Thicker crust

15. It’s Just a Phase Moonlight is reflected sunlight Half the moon’s surface is always reflecting light From Earth we see different amounts of the Moon’s lit surface The amount seen is called a “phase”

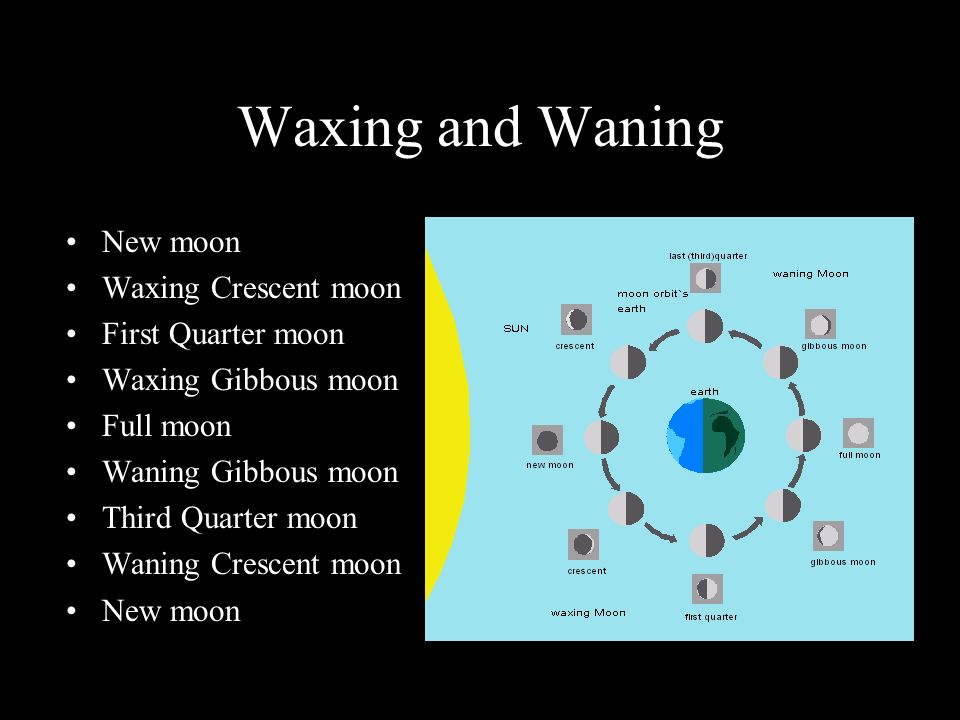

16. Waxing and Waning New moon Waxing Crescent moon First Quarter moon Waxing Gibbous moon Full moon Waning Gibbous moon Third Quarter moon Waning Crescent moon New moon

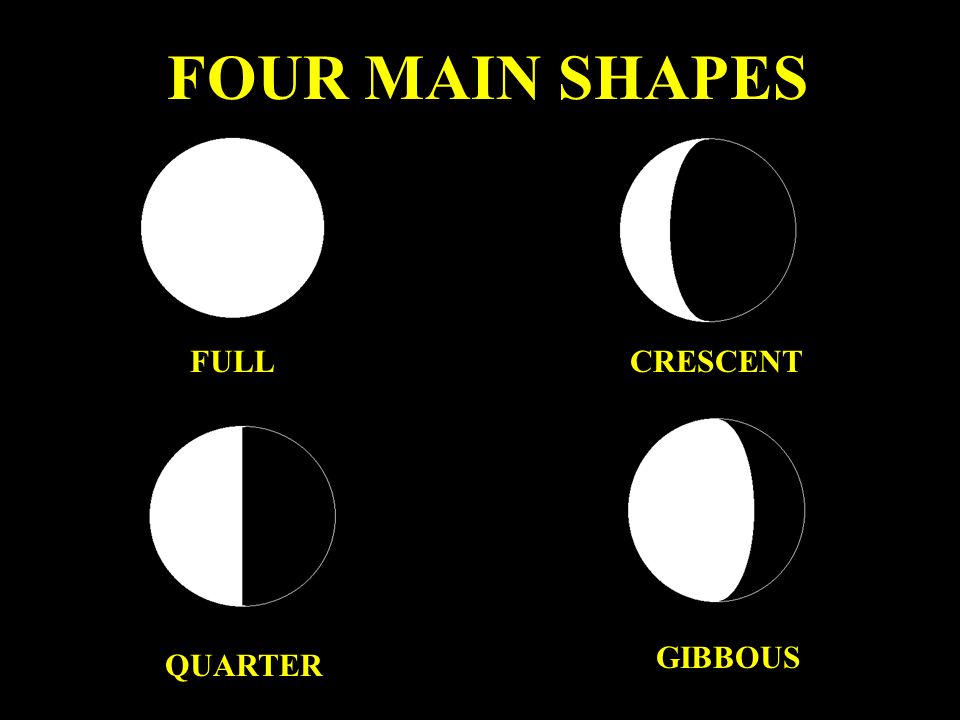

17. FULL QUARTER CRESCENT GIBBOUS FOUR MAIN SHAPES

19. Moon rise times: The New Moon always rises at sunrise. The first quarter Moon rises at noon. The Full Moon rises at sunset. The last quarter Moon rises at midnight. Moonrise takes place about 50 minutes later each day than the day before.

22. Earth Moon Plane of earth’s orbit Plane of lunar orbit

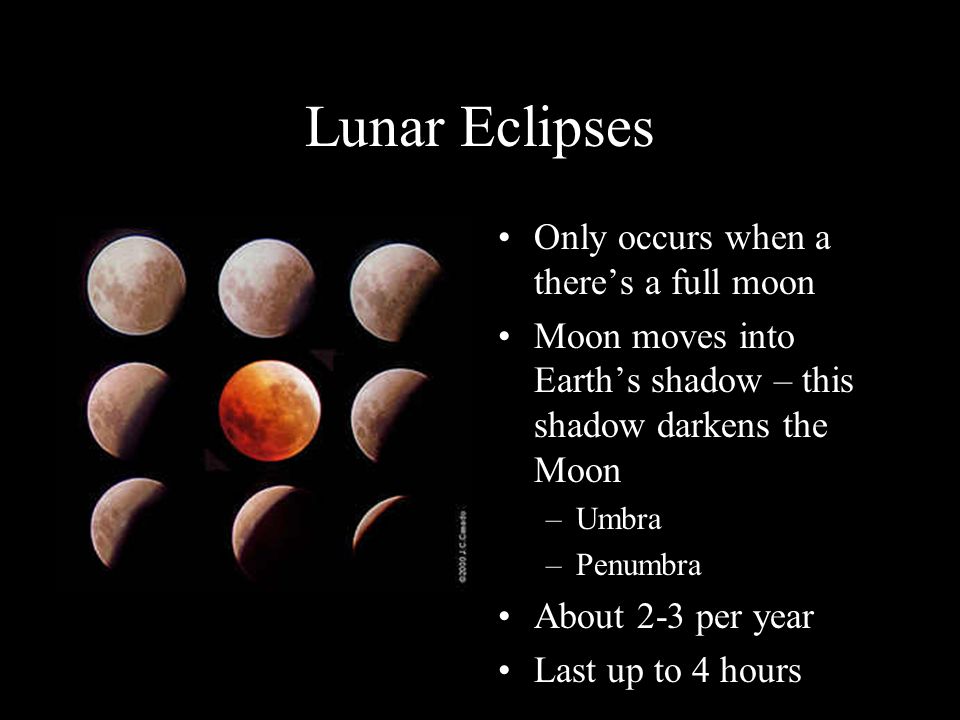

23. Lunar Eclipses Only occurs when a there’s a full moon Moon moves into Earth’s shadow – this shadow darkens the Moon –Umbra –Penumbra About 2-3 per year Last up to 4 hours

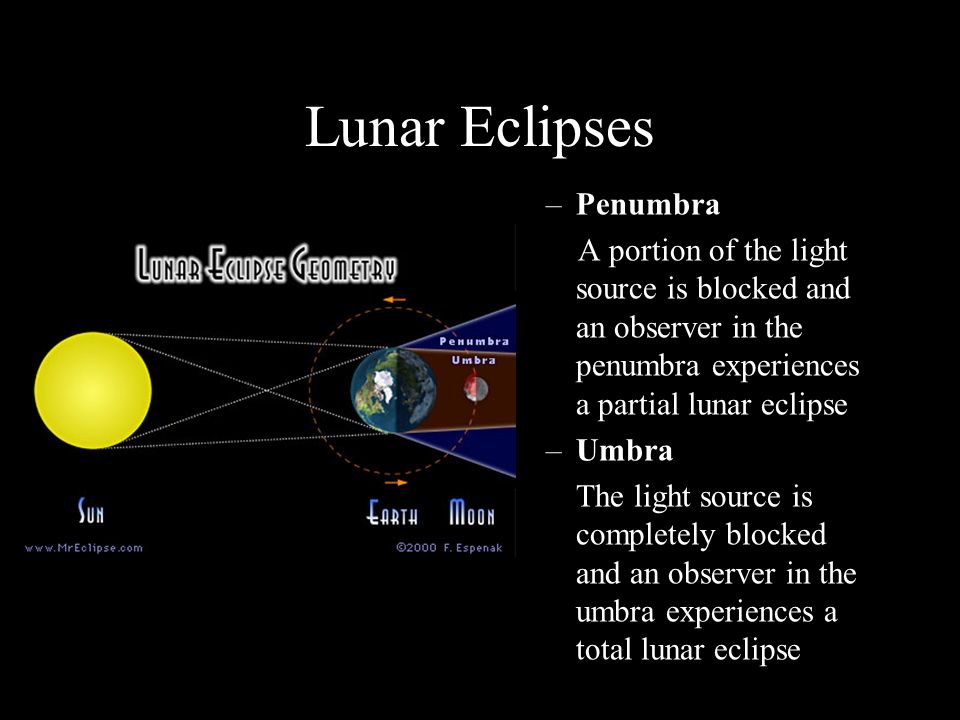

24. Lunar Eclipses –Penumbra A portion of the light source is blocked and an observer in the penumbra experiences a partial lunar eclipse –Umbra The light source is completely blocked and an observer in the umbra experiences a total lunar eclipse

25. Lunar Eclipses Why is the moon red during a lunar eclipse?

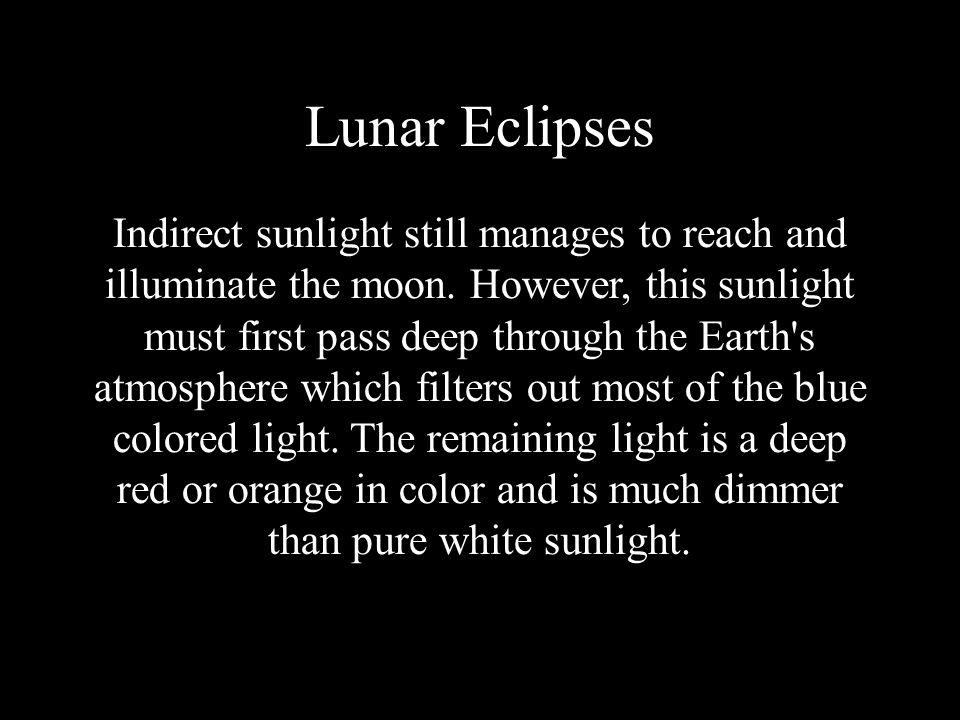

26. Lunar Eclipses Indirect sunlight still manages to reach and illuminate the moon. However, this sunlight must first pass deep through the Earth's atmosphere which filters out most of the blue colored light. The remaining light is a deep red or orange in color and is much dimmer than pure white sunlight.

27. Solar Eclipses Moon moves between Earth and Sun Moon casts a shadow on part of the Earth Total eclipses rare – only once every 360 years from one location!

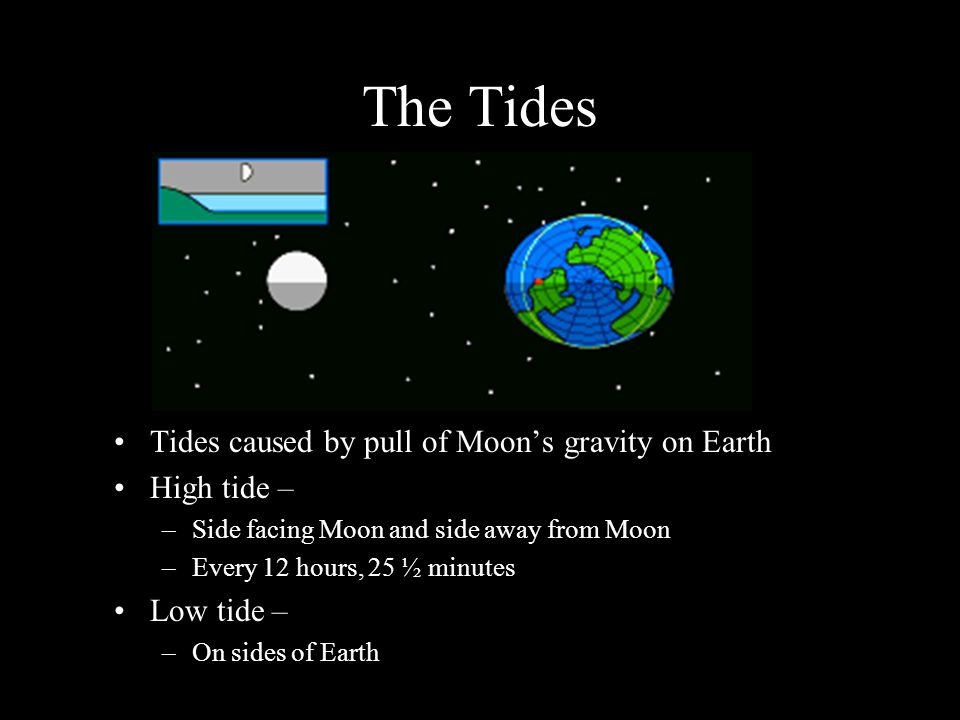

28. The Tides Tides caused by pull of Moon’s gravity on Earth High tide – –Side facing Moon and side away from Moon –Every 12 hours, 25 ½ minutes Low tide – –On sides of Earth

29. Exploring the Moon 1950s to 1960s - probes Neil Armstrong First man on the Moon – July 20, 1969 Six Apollo missions (1969-1972) –382 kg (842 lbs) rocks 12 Americans have walked on the moon

32. When will we return?

33. Ice on the Moon? 1994 – Clementine probe 1998 – Lunar Prospector

34. Moon base of the future? What would you need to live there?

38. Name this phase! Full Moon What time does this phase rise and set?

39. Name these features. Craters Maria

40. Does this image show us the near side or far side of the moon? Far Side How can you tell?

41. Is this line the limb or terminator? Limb Terminator

42. Name this phase! First Quarter

43. Name this phase! Waxing Crescent

44. Does this image show the near side or the far side of the moon? Near Side

45. Name this phase! Waning Gibbous

46. Name this phase! Third Quarter

47. From what direction does the moon rise? The East

48. Name this phase! Waxing Gibbous

49. Name this phase! Waning Crescent

50. What might be happening in this image? Lunar Eclipse

51. Is this line the limb or the terminator? Limb

52. Name this phase! Look closely! Waxing Gibbous

53. True or False: The Far Side and the Dark Side of the moon are the same thing. False!

54. Name this phase! Full Moon

55. Name this phase! New Moon

56. Does the moon rise or set in the west? It sets in the west.

57. Name this phase! Waning Gibbous

58. Name this phase! Waning Crescent

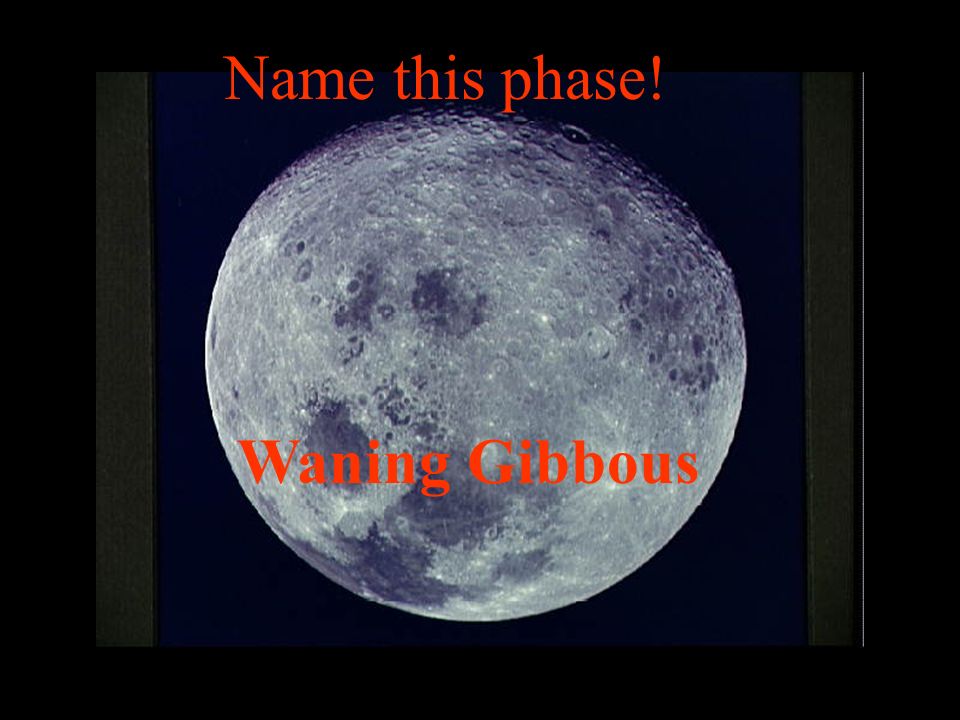

59. Name this phase! Waning Gibbous
