1. Enrollment no. : 130540109081 Darshan Institute of Engineering & Technology - Rajkot Department of Electrical Engineering ANALOG ELECTRONICS (2130902) Topic: Operational Amplifiers

2. Objective of Lecture Describe how an ideal operational amplifier (op amp) behaves. Define voltage gain, current gain, transresistance gain, and transconductance gain. Explain the operation of an ideal op amp in a voltage comparator and inverting amplifier circuit.

3. Op Amps Applications Audio amplifiers Speakers and microphone circuits in cell phones, computers, mpg players, boom boxes, etc. Instrumentation amplifiers Biomedical systems including heart monitors and oxygen sensors. Power amplifiers Analog computers Combination of integrators, differentiators, summing amplifiers, and multipliers

4. Symbols for Ideal and Real Op Amps OpAmpuA741 LM111LM324

5. Terminals on an Op Amp Non-inverting Input terminal Inverting input terminal Output terminal Positive power supply (Positive rail) Negative power supply (Negative rail)

6. v d = v 2 – v 1 A is the open-loop voltage gain v2v2 v1v1 Voltage controlled voltage source

7. Typical Op Amp Parameters ParameterVariableTypical Ranges Ideal Values Open-Loop Voltage Gain A10 5 to 10 8 ∞ Input Resistance Ri 10 5 to 10 13  ∞ ∞  Output Resistance Ro 10 to 100  0  Supply Voltage Vcc/V + -Vcc/V - 5 to 30 V -30V to 0V N/A

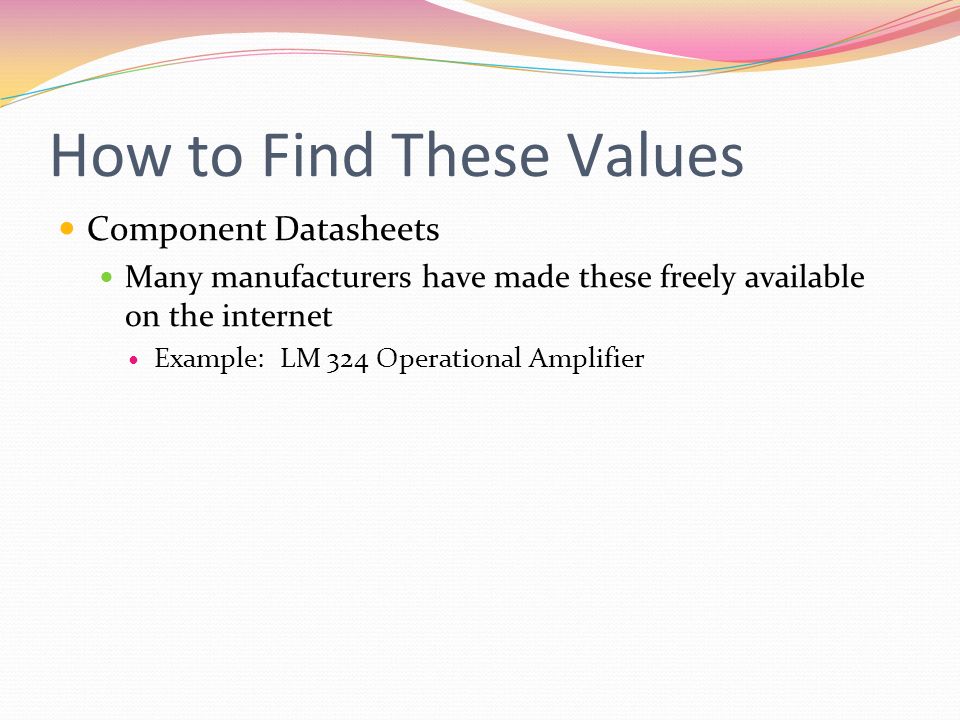

8. How to Find These Values Component Datasheets Many manufacturers have made these freely available on the internet Example: LM 324 Operational Amplifier

11. Large Signal Voltage Gain = A Typical A = 100 V/mV = 100V/0.001V = 100,000 Minimum A = 25 V/mV = 25 V/0.001V = 25,000

12. Open Circuit Output Voltage v o = A v d Ideal Op Amp v o = ∞ (v d )

13. Open Circuit Output Voltage Real Op Amp Voltage Range Output Voltage Positive SaturationA v d > V + v o ~ V + Linear RegionV - < A v d < V + v o = A v d Negative Saturation A v d < V - v o ~ V - The voltage produced by the dependent voltage source inside the op amp is limited by the voltage applied to the positive and negative rails.

14. Voltage Transfer Characteristic Range where we operate the op amp as an amplifier. vdvd

15. Ideal Op Amp i 2 = 0 i 1 = 0 Because Ri is equal to ∞ , the voltage across Ri is 0V. v 1 = v 2 v d = 0 V v1v1 v2v2

16. Almost Ideal Op Amp Ri = ∞  Therefore, i 1 = i 2 = 0A Ro = 0  Usually, v d = 0V so v 1 = v 2 The op amp forces the voltage at the inverting input terminal to be equal to the voltage at the noninverting input terminal if there is some component connecting the output terminal to the inverting input terminal. Rarely is the op amp limited to V - < v o < V +. The output voltage is allowed to be as positive or as negative as needed to force v d = 0V.

17. Summary The output of an ideal op amp is a voltage from a dependent voltage source that attempts to force the voltage at the inverting input terminal to equal the voltage at the non- inverting input terminal. Almost ideal op amp: Output voltage limited to the range between V + and V -. Ideal op amp is assumed to have Ri = ∞  and  Ro = 0  Almost ideal op amp: v d = 0 V and the current flowing into the output terminal of the op amp is as much as required to force v 1 = v 2 when V + < v o < V -. Operation of an op amp was used in the analysis of voltage comparator and inverting amplifier circuits. Effect of Ri 0  was shown.
