1. Introduction to Technical Drawing Adapted from Project Lead the Way, Principles of Engineering

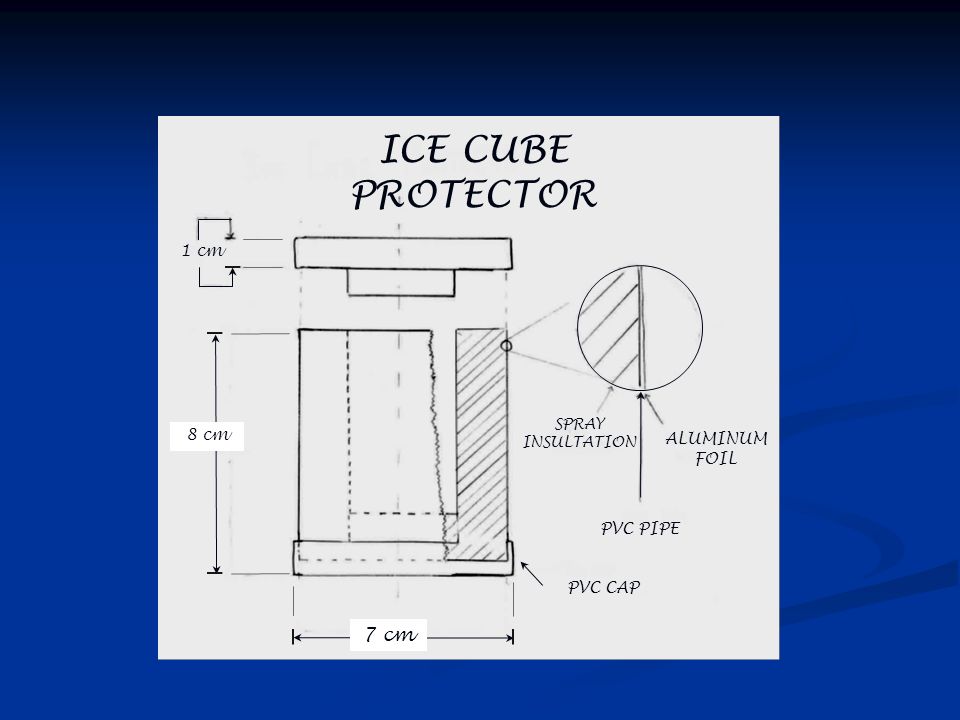

2. 1 cm 8 cm 7 cm ALUMINUM FOIL PVC PIPE SPRAY INSULTATION PVC CAP ICE CUBE PROTECTOR

3. 1 cm 8 cm 7 cm ALUMINUM FOIL PVC PIPE SPRAY INSULTATION PVC CAP ICE CUBE PROTECTOR Alphabet of Lines Object line Thick lines (0.6 mm) that show the visible edges of an object

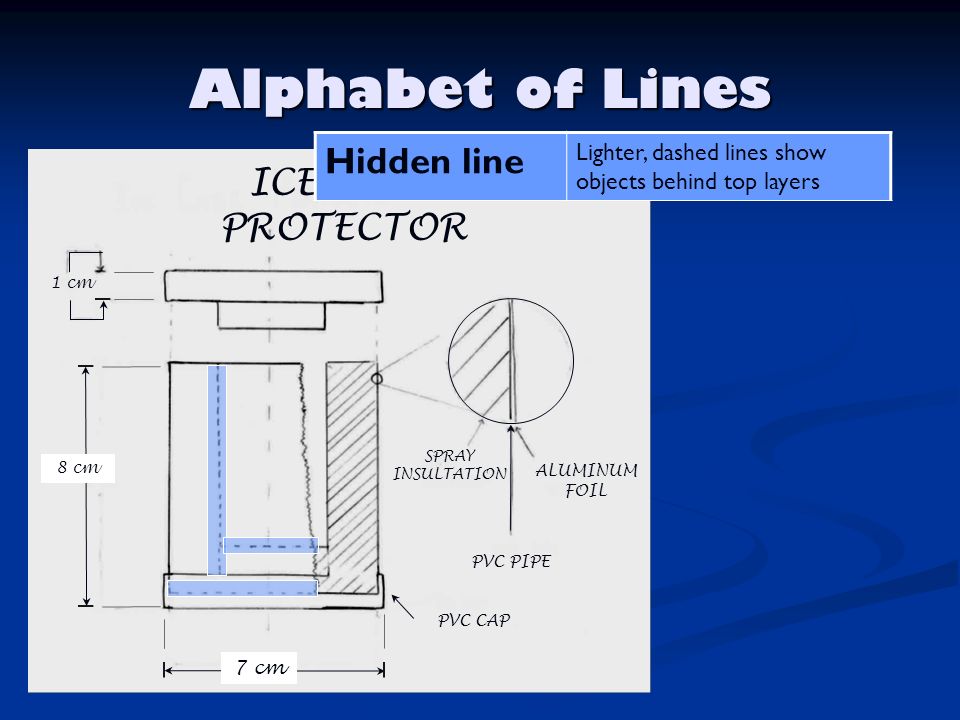

4. 1 cm 8 cm 7 cm ALUMINUM FOIL PVC PIPE SPRAY INSULTATION PVC CAP ICE CUBE PROTECTOR Alphabet of Lines Hidden line Lighter, dashed lines show objects behind top layers

5. 1 cm 8 cm 7 cm ALUMINUM FOIL PVC PIPE SPRAY INSULTATION PVC CAP ICE CUBE PROTECTOR Alphabet of Lines Short break line A freehand drawn line that shows where a part is broken to reveal detail behind the part

6. 1 cm 8 cm 7 cm ALUMINUM FOIL PVC PIPE SPRAY INSULTATION PVC CAP ICE CUBE PROTECTOR Alphabet of Lines Section lines Lines used to define where there is material after part of the object is cut away

7. 1 cm 8 cm 7 cm ALUMINUM FOIL PVC PIPE SPRAY INSULTATION PVC CAP ICE CUBE PROTECTOR Alphabet of Lines Center lines Lines that define the center of arcs, circles, or symmetrical part, 0.3 mm thick

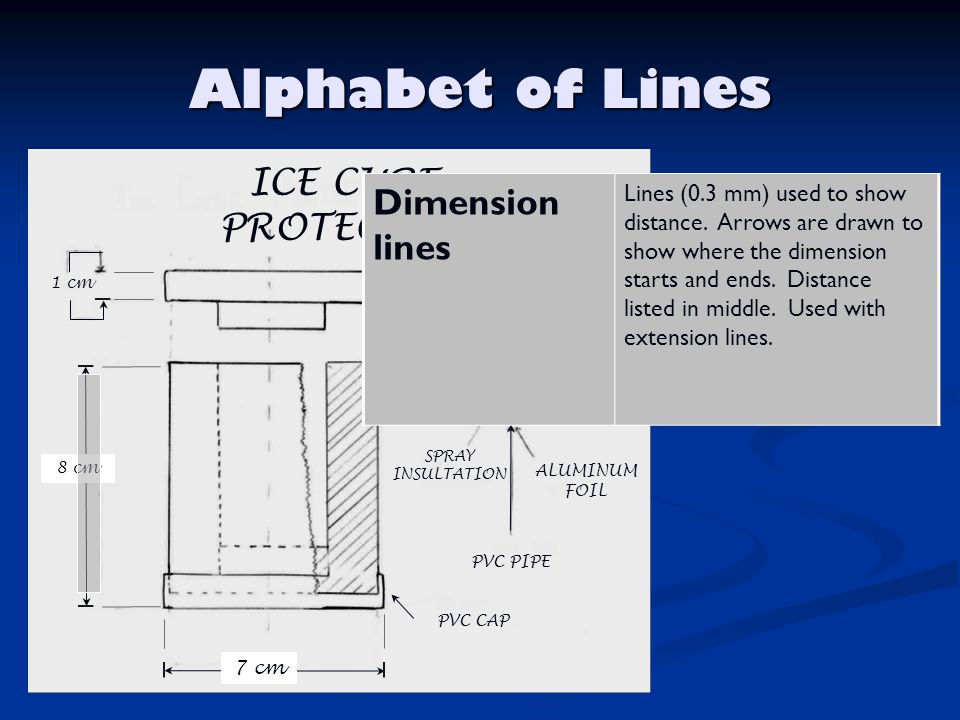

8. 1 cm 8 cm 7 cm ALUMINUM FOIL PVC PIPE SPRAY INSULTATION PVC CAP ICE CUBE PROTECTOR Alphabet of Lines Dimension lines Lines (0.3 mm) used to show distance. Arrows are drawn to show where the dimension starts and ends. Distance listed in middle. Used with extension lines.

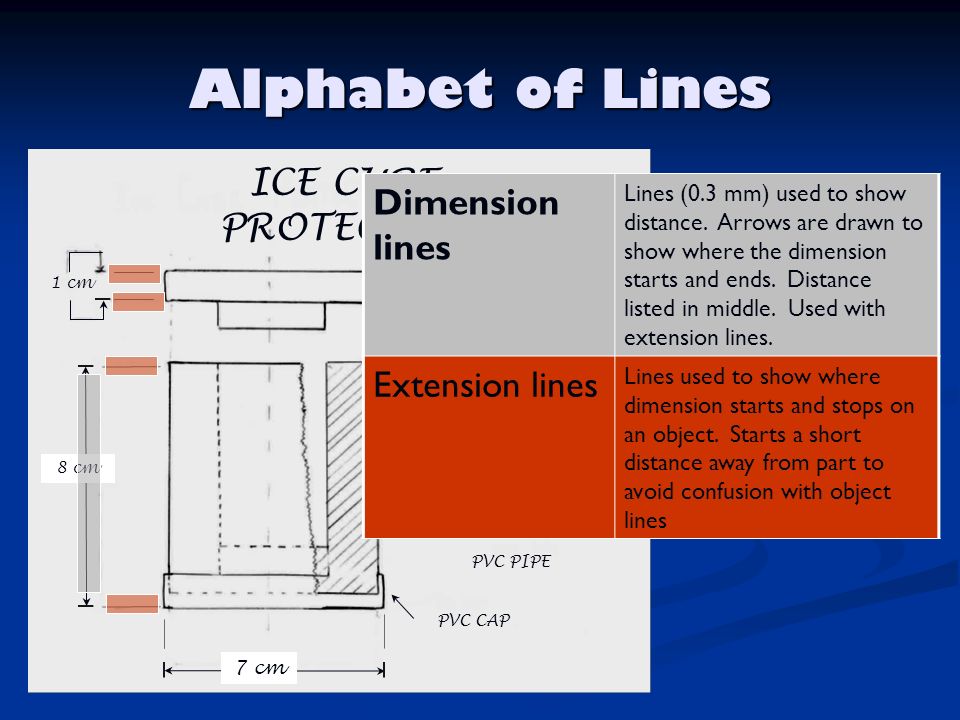

9. 1 cm 8 cm 7 cm ALUMINUM FOIL PVC PIPE SPRAY INSULTATION PVC CAP ICE CUBE PROTECTOR Alphabet of Lines Dimension lines Lines (0.3 mm) used to show distance. Arrows are drawn to show where the dimension starts and ends. Distance listed in middle. Used with extension lines. Extension lines Lines used to show where dimension starts and stops on an object. Starts a short distance away from part to avoid confusion with object lines

10. 1 cm 8 cm 7 cm ALUMINUM FOIL PVC PIPE SPRAY INSULTATION PVC CAP ICE CUBE PROTECTOR Alphabet of Lines Phantom lines Lines used to identify alternate positions that a part may take, e.g., lid raises

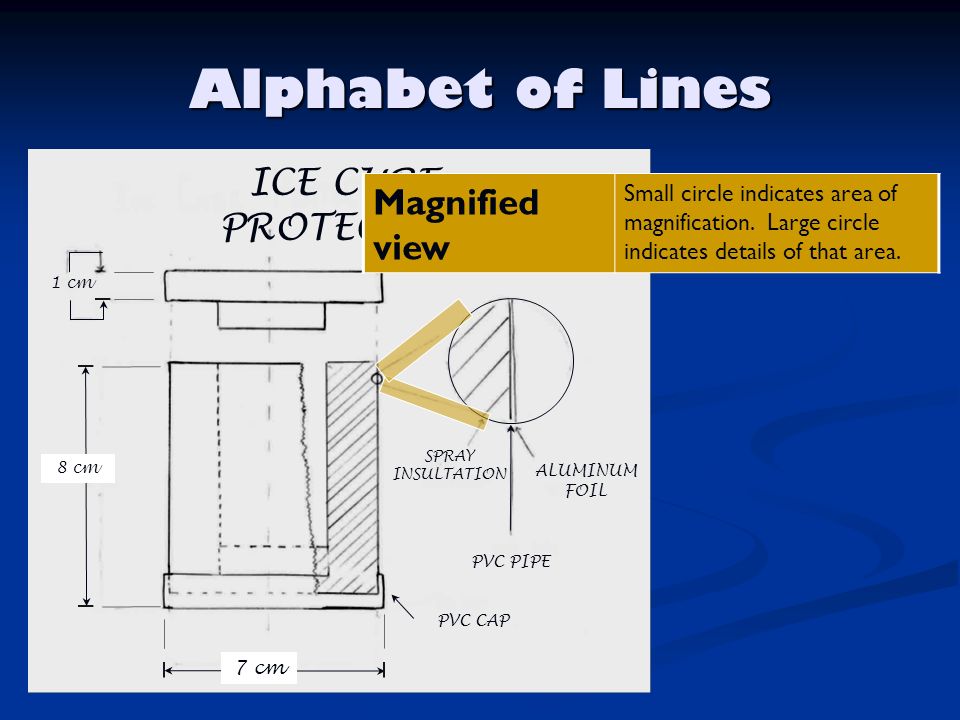

11. 1 cm 8 cm 7 cm ALUMINUM FOIL PVC PIPE SPRAY INSULTATION PVC CAP ICE CUBE PROTECTOR Alphabet of Lines Magnified view Small circle indicates area of magnification. Large circle indicates details of that area.

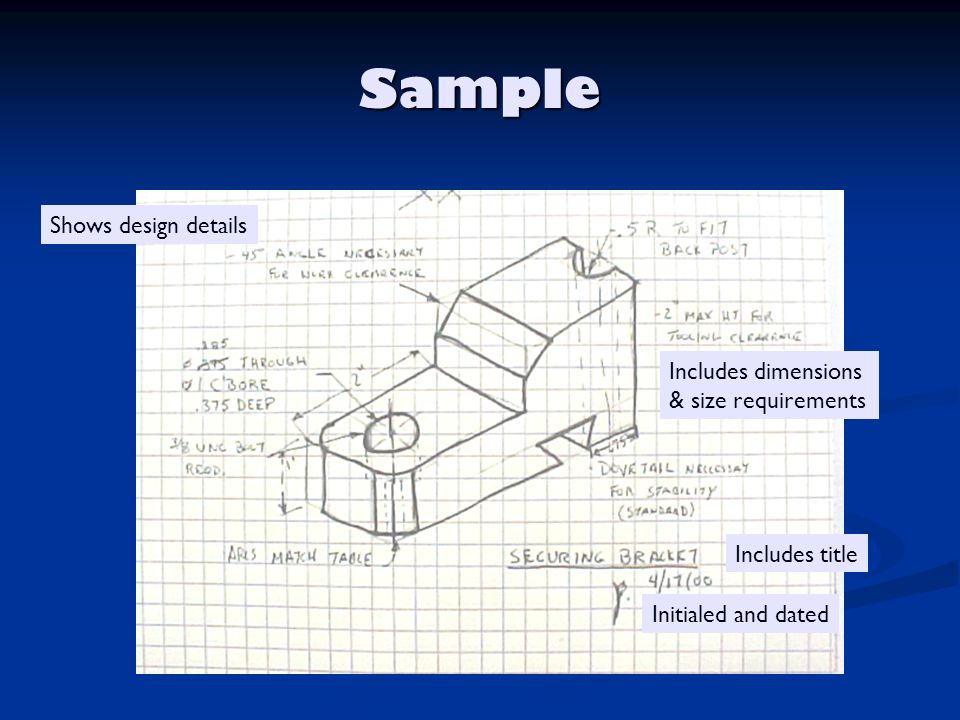

12. Sample Shows design details Includes dimensions & size requirements Initialed and dated Includes title

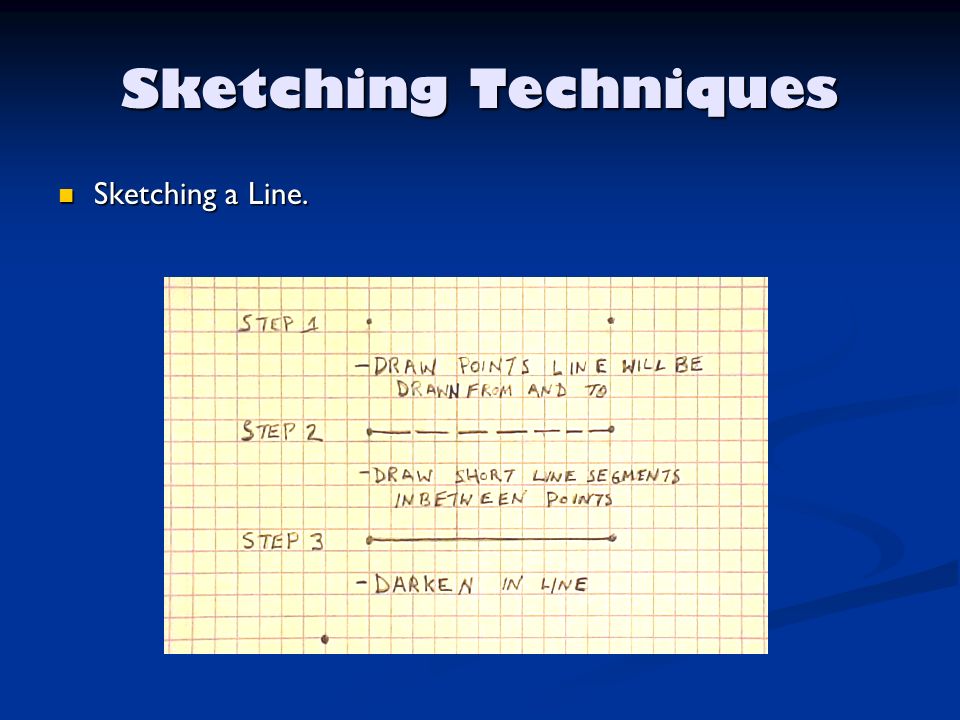

13. Sketching Techniques Sketching a Line. Sketching a Line.

14. Orthographic (Multiview Drawings) Orthographic projection is a way to project a view based on a line of sight that is perpendicular to that view. Orthographic projection is a way to project a view based on a line of sight that is perpendicular to that view. There are six of these views to any object. There are six of these views to any object.

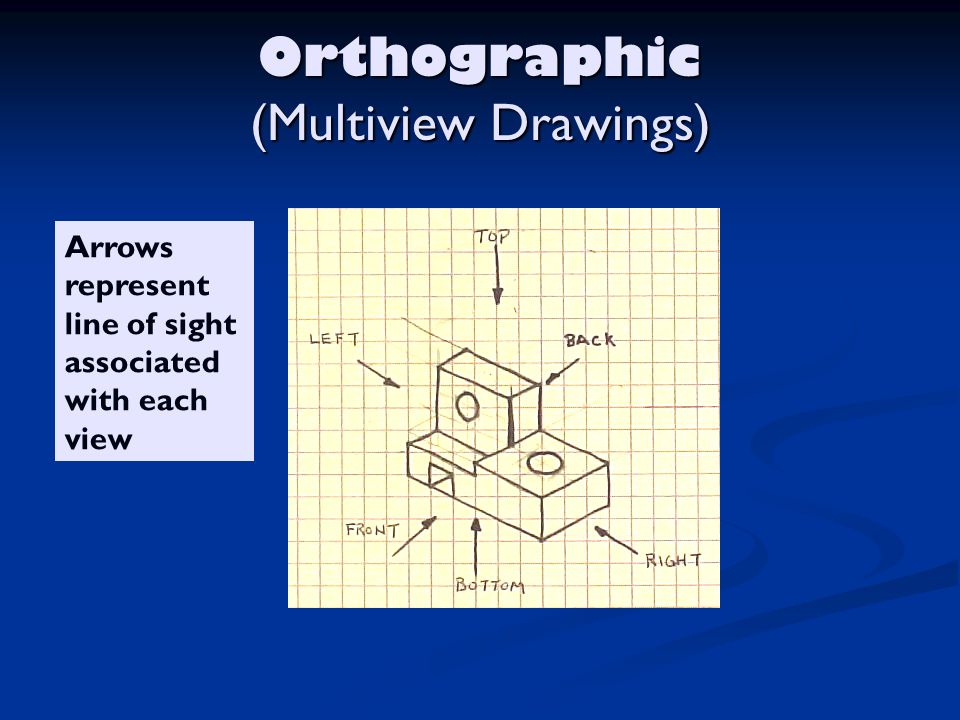

15. Orthographic (Multiview Drawings) Arrows represent line of sight associated with each view

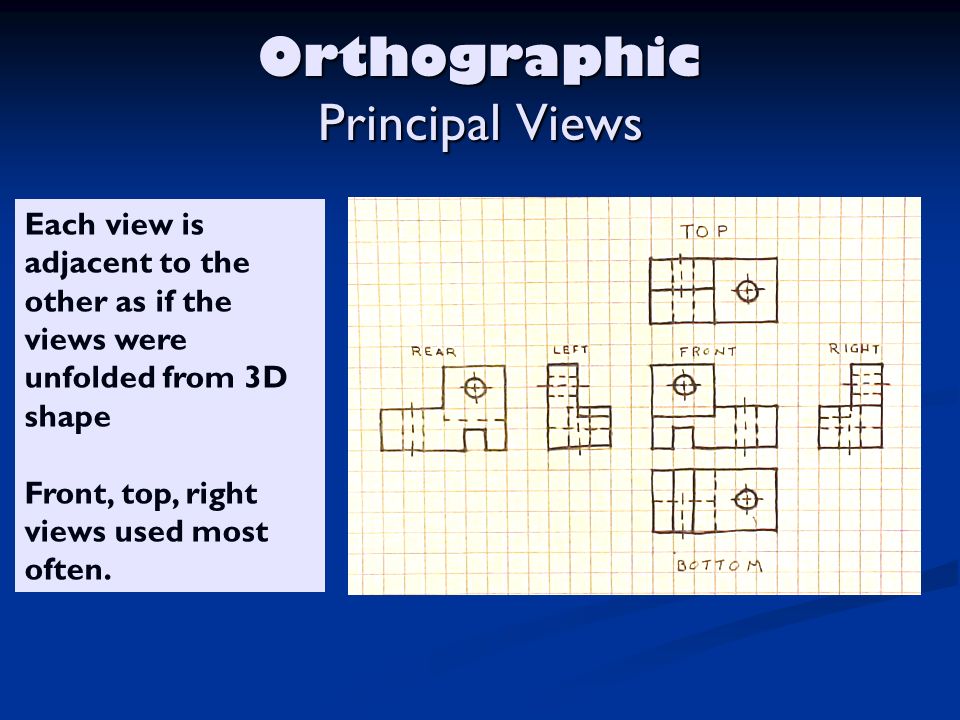

16. Orthographic Principal Views Each view is adjacent to the other as if the views were unfolded from 3D shape Front, top, right views used most often.

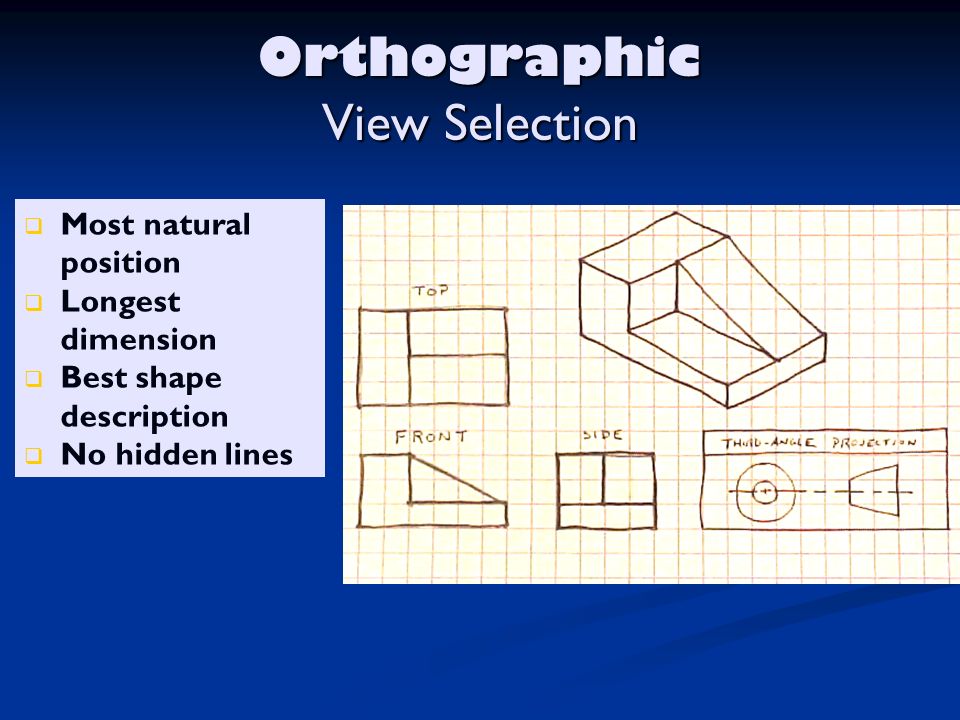

17. Orthographic View Selection  Most natural position  Longest dimension  Best shape description  No hidden lines

18. Orthographic View Selection Numbers Another decision on view selection you need to make is how many views. Another decision on view selection you need to make is how many views. You usually do not need more than three but you may only need one or two. You usually do not need more than three but you may only need one or two.

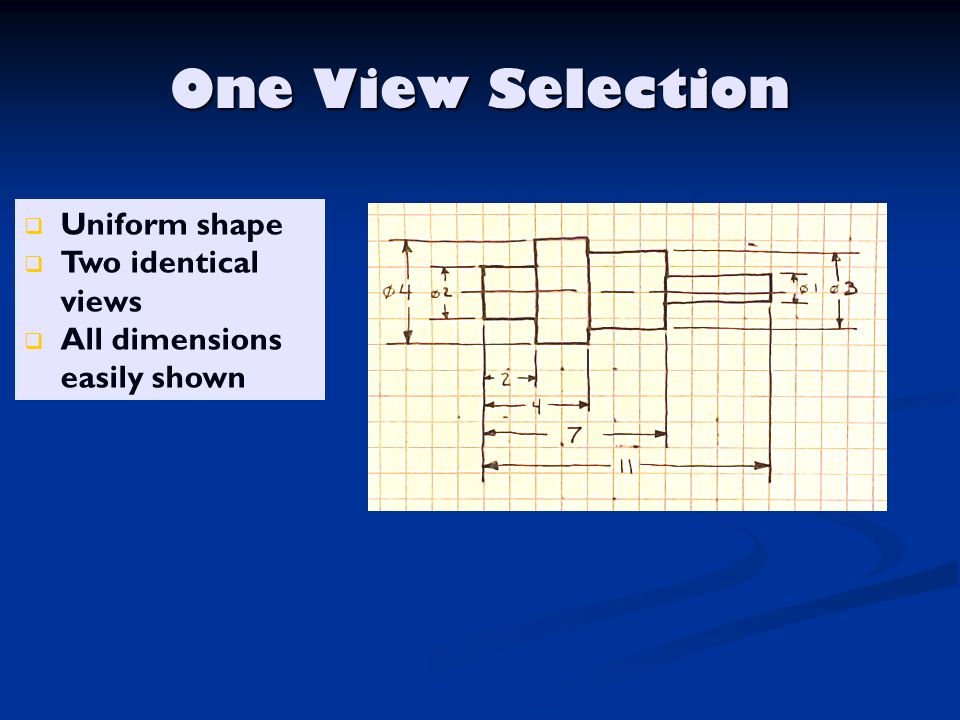

19. One View Selection  Uniform shape  Two identical views  All dimensions easily shown

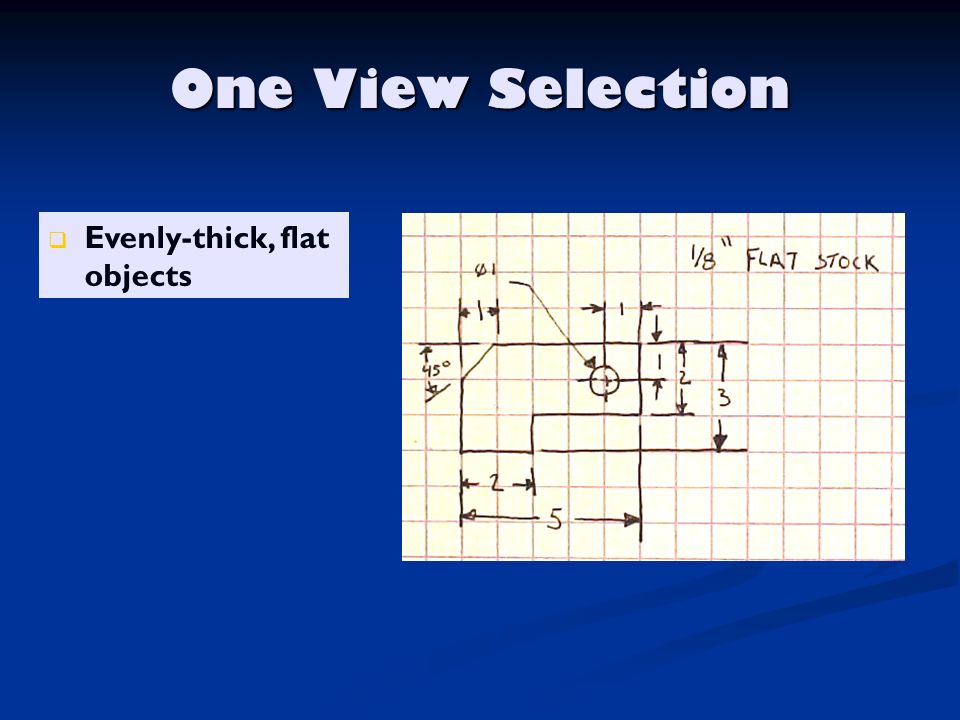

20. One View Selection  Evenly-thick, flat objects

21. Two View Selection  Symmetrical parts (third view identical to other views)  Second view necessary for depth
