1

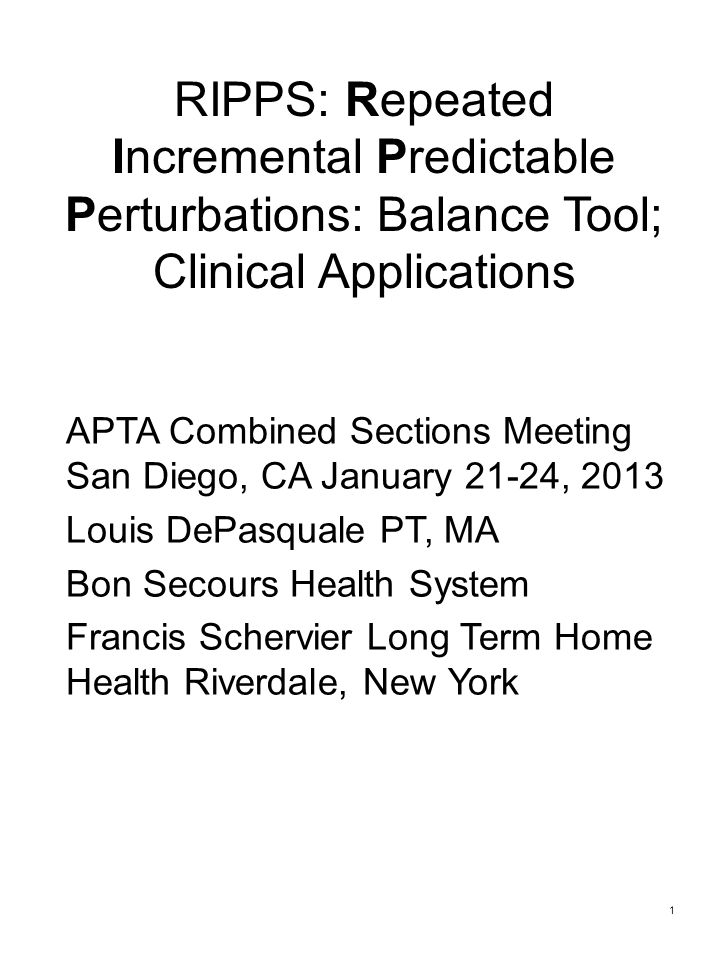

RIPPS: Repeated Incremental Predictable Perturbations: Balance Tool; Clinical Applications APTA Combined Sections Meeting San Diego, CA January 21-24, 2013 Louis DePasquale PT, MA Bon Secours Health System Francis Schervier Long Term Home Health Riverdale, New York 1

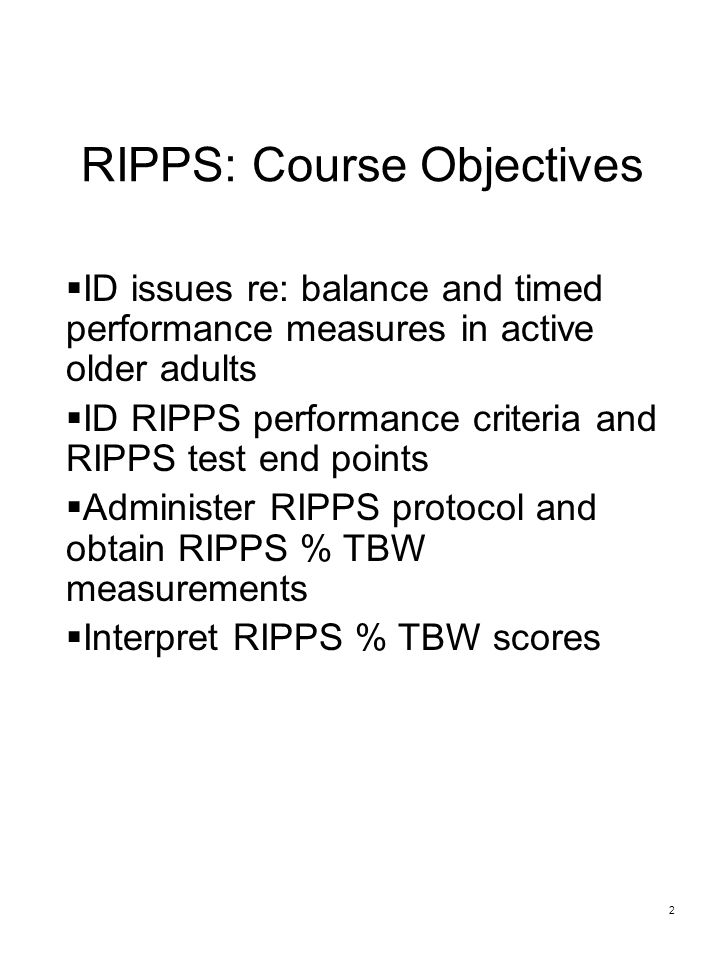

2
RIPPS: Course Objectives ID issues re: balance and timed performance measures in active older adults ID RIPPS performance criteria and RIPPS test end points Administer RIPPS protocol and obtain RIPPS % TBW measurements Interpret RIPPS % TBW scores 2

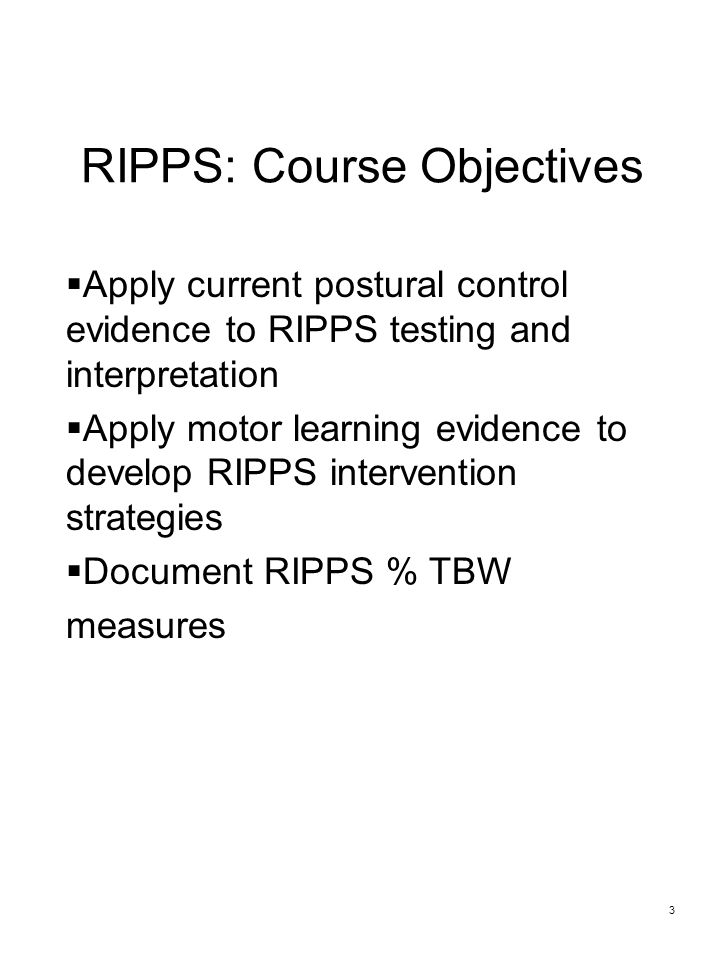

3
RIPPS: Course Objectives Apply current postural control evidence to RIPPS testing and interpretation Apply motor learning evidence to develop RIPPS intervention strategies Document RIPPS % TBW measures 3
4

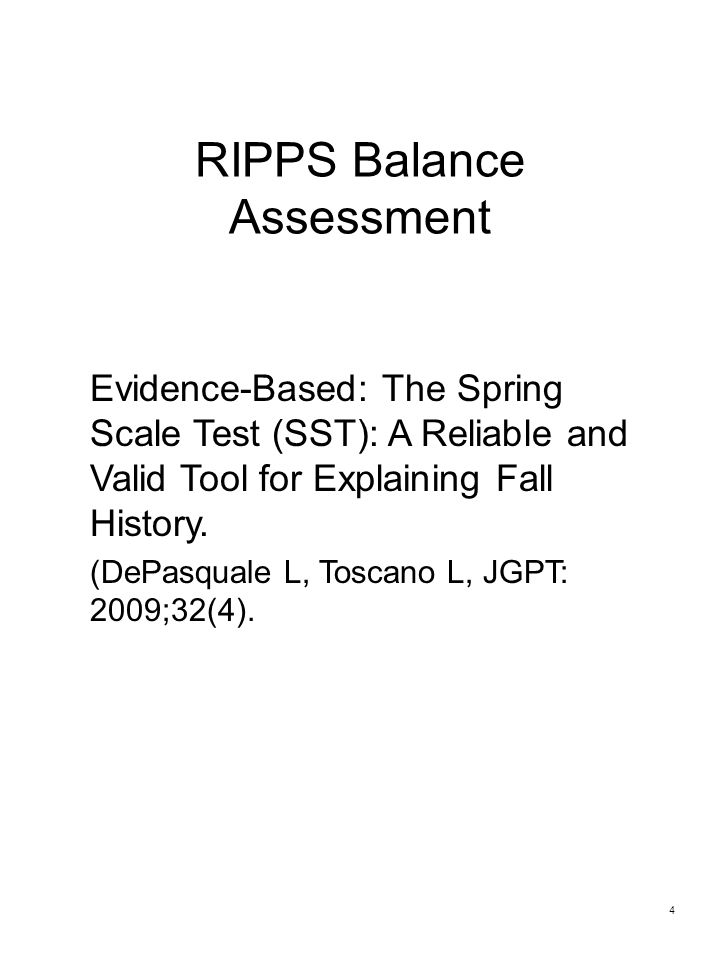

RIPPS Balance Assessment Evidence-Based: The Spring Scale Test (SST): A Reliable and Valid Tool for Explaining Fall History. (DePasquale L, Toscano L, JGPT: 2009;32(4). 4
5

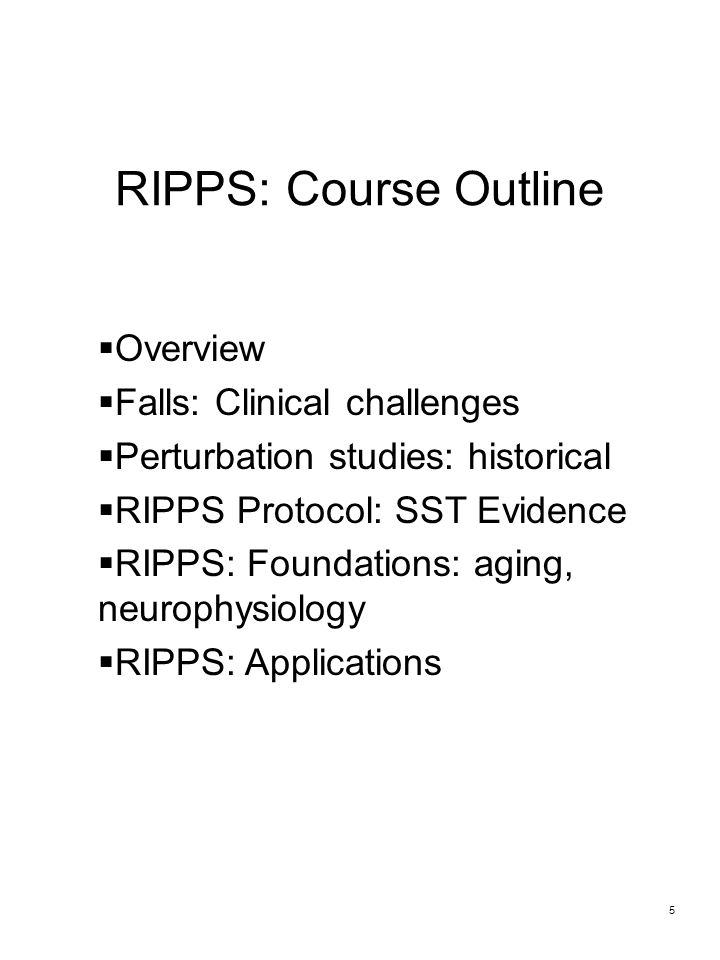

RIPPS: Course Outline Overview Falls: Clinical challenges Perturbation studies: historical RIPPS Protocol: SST Evidence RIPPS: Foundations: aging, neurophysiology RIPPS: Applications 5
6

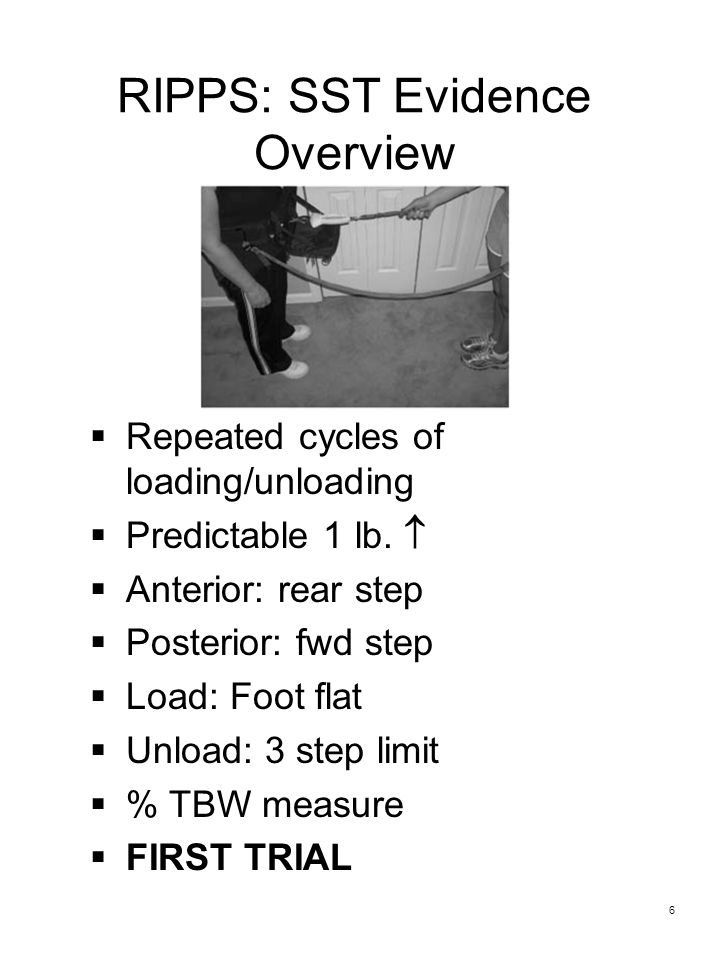

RIPPS: SST Evidence Overview Repeated cycles of loading/unloading Predictable 1 lb. Anterior: rear step Posterior: fwd step Load: Foot flat Unload: 3 step limit % TBW measure FIRST TRIAL 6
7
Why RIPPS? Falls and Risks Most falls occur while walking, requiring proactive and reactive postural responses. (Harris J, et al. PTJ, 2005). 1 Incidence and prevalence of gait disorders is high in community- residing older adults. Early ID of gait impairment may ID high-risk individuals and provide opportunity to provide interventions to progression of impairment. (Verghese J, et al. J Am Ger Soc. 2006). 2 7
8

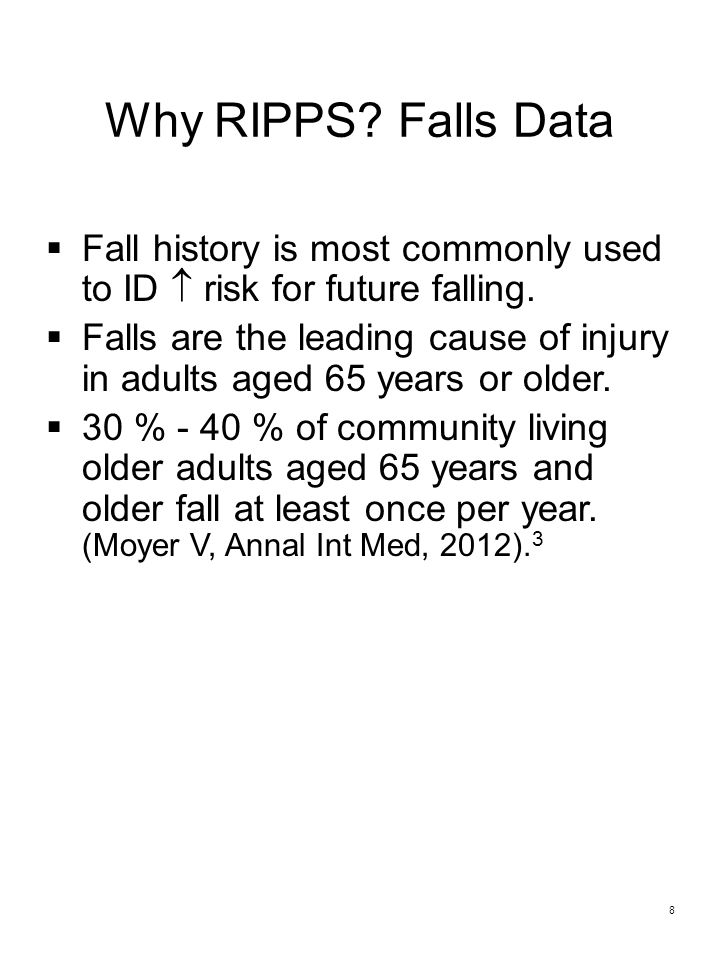

Why RIPPS? Falls Data Fall history is most commonly used to ID risk for future falling. Falls are the leading cause of injury in adults aged 65 years or older. 30 % - 40 % of community living older adults aged 65 years and older fall at least once per year. (Moyer V, Annal Int Med, 2012). 3 8
9

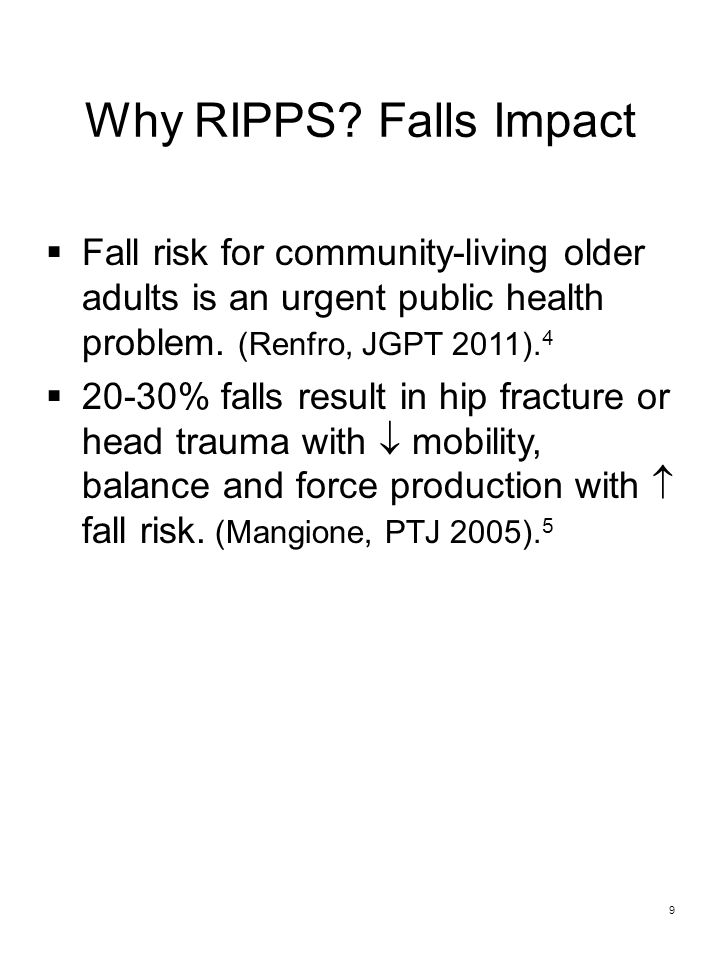

Why RIPPS? Falls Impact Fall risk for community-living older adults is an urgent public health problem. (Renfro, JGPT 2011). 4 20-30% falls result in hip fracture or head trauma with mobility, balance and force production with fall risk. (Mangione, PTJ 2005). 5 9

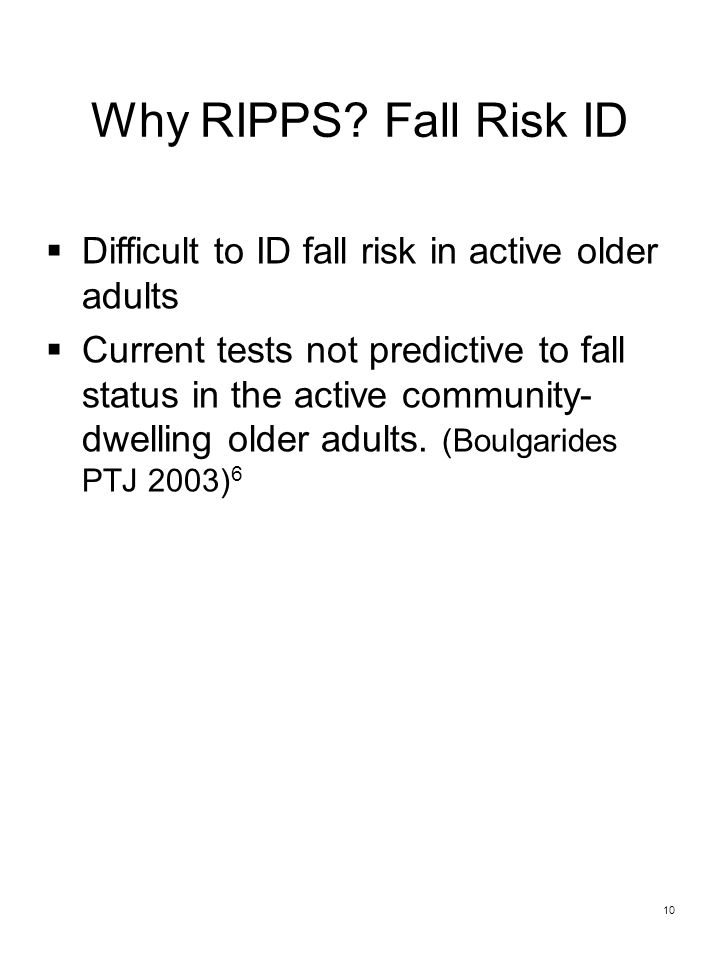

10
Why RIPPS? Fall Risk ID Difficult to ID fall risk in active older adults Current tests not predictive to fall status in the active community- dwelling older adults. (Boulgarides PTJ 2003) 6 10
11

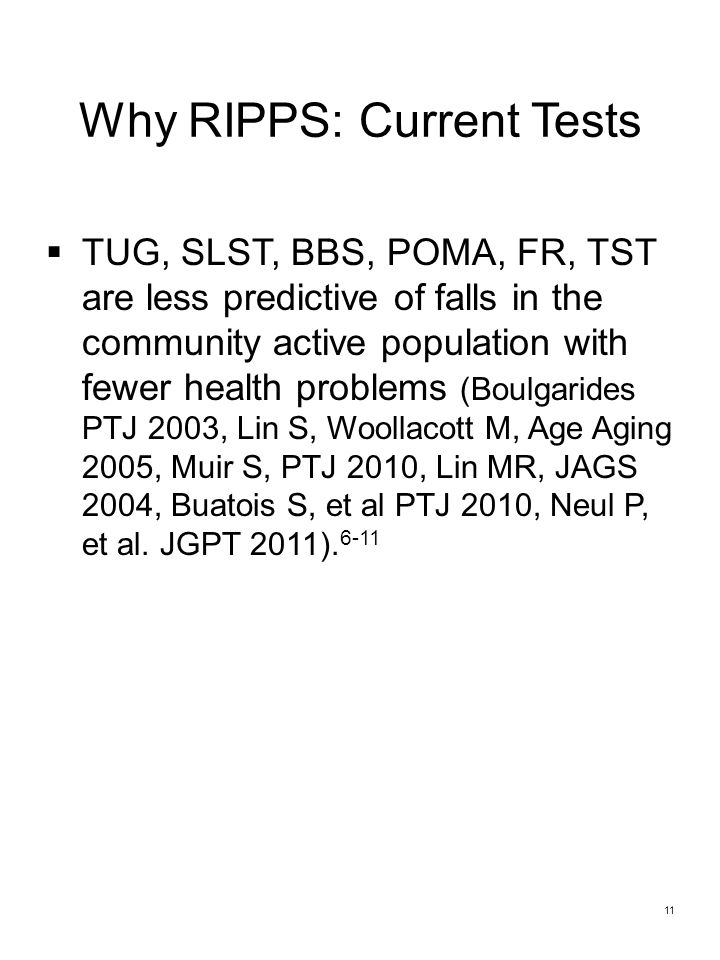

Why RIPPS: Current Tests TUG, SLST, BBS, POMA, FR, TST are less predictive of falls in the community active population with fewer health problems (Boulgarides PTJ 2003, Lin S, Woollacott M, Age Aging 2005, Muir S, PTJ 2010, Lin MR, JAGS 2004, Buatois S, et al PTJ 2010, Neul P, et al. JGPT 2011). 6-11 11
12

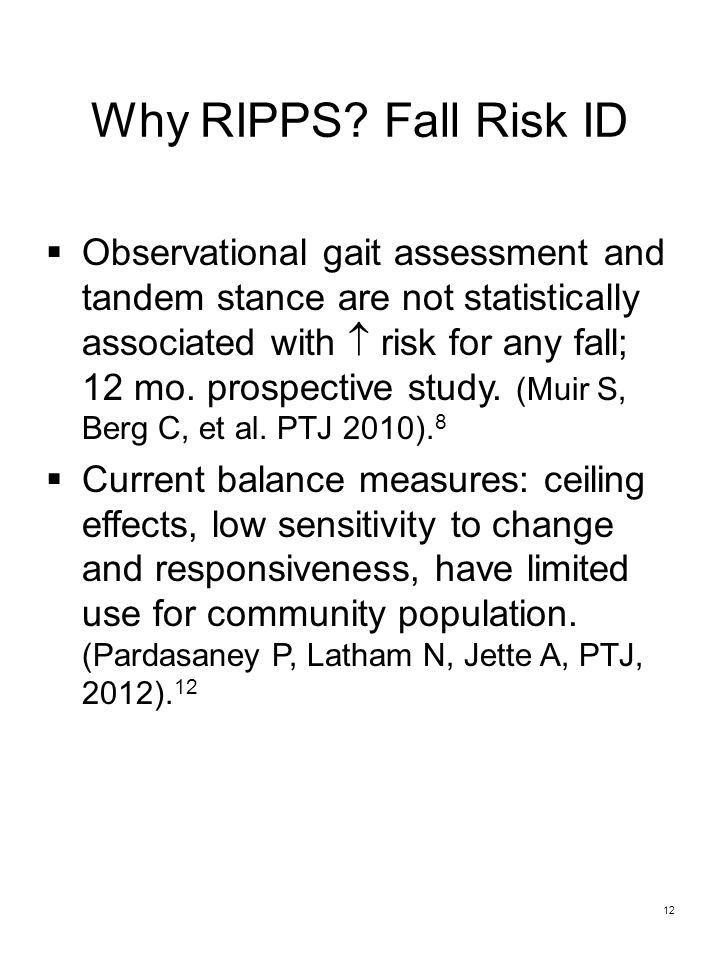

Why RIPPS? Fall Risk ID Observational gait assessment and tandem stance are not statistically associated with risk for any fall; 12 mo. prospective study. (Muir S, Berg C, et al. PTJ 2010). 8 Current balance measures: ceiling effects, low sensitivity to change and responsiveness, have limited use for community population. (Pardasaney P, Latham N, Jette A, PTJ, 2012). 12 12
13

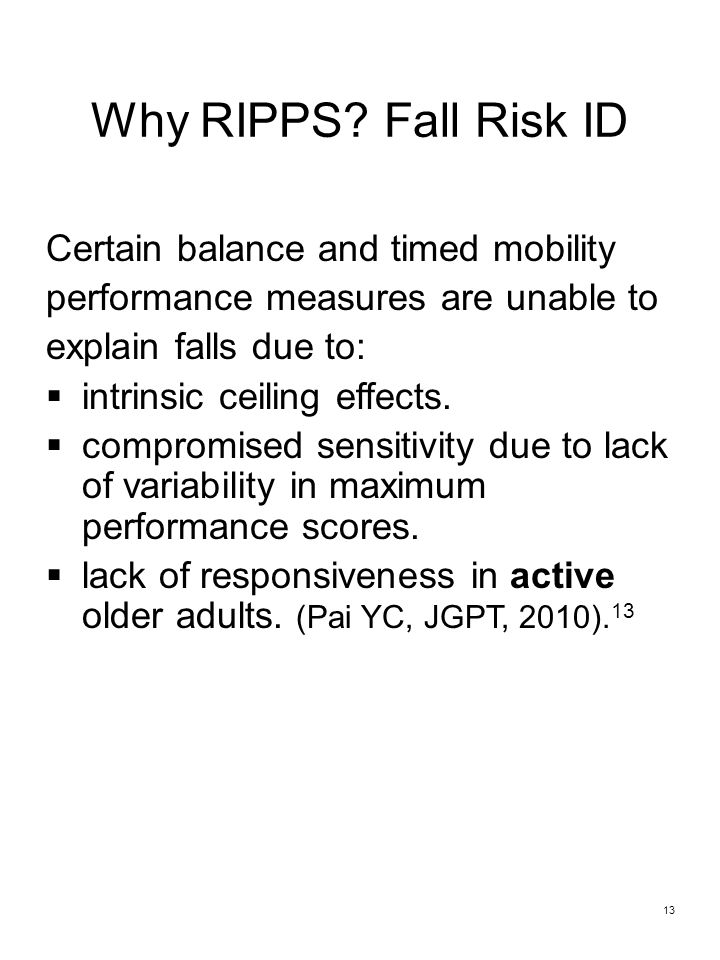

Why RIPPS? Fall Risk ID Certain balance and timed mobility performance measures are unable to explain falls due to: intrinsic ceiling effects. compromised sensitivity due to lack of variability in maximum performance scores. lack of responsiveness in active older adults. (Pai YC, JGPT, 2010). 13 13
14

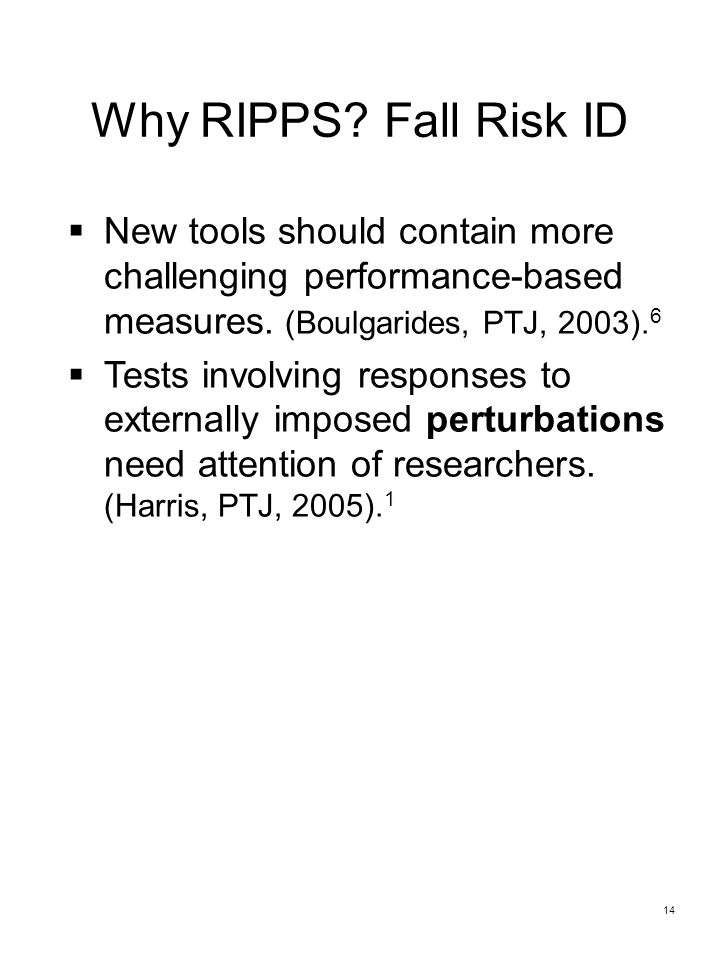

Why RIPPS? Fall Risk ID New tools should contain more challenging performance-based measures. (Boulgarides, PTJ, 2003). 6 Tests involving responses to externally imposed perturbations need attention of researchers. (Harris, PTJ, 2005). 1 14
15

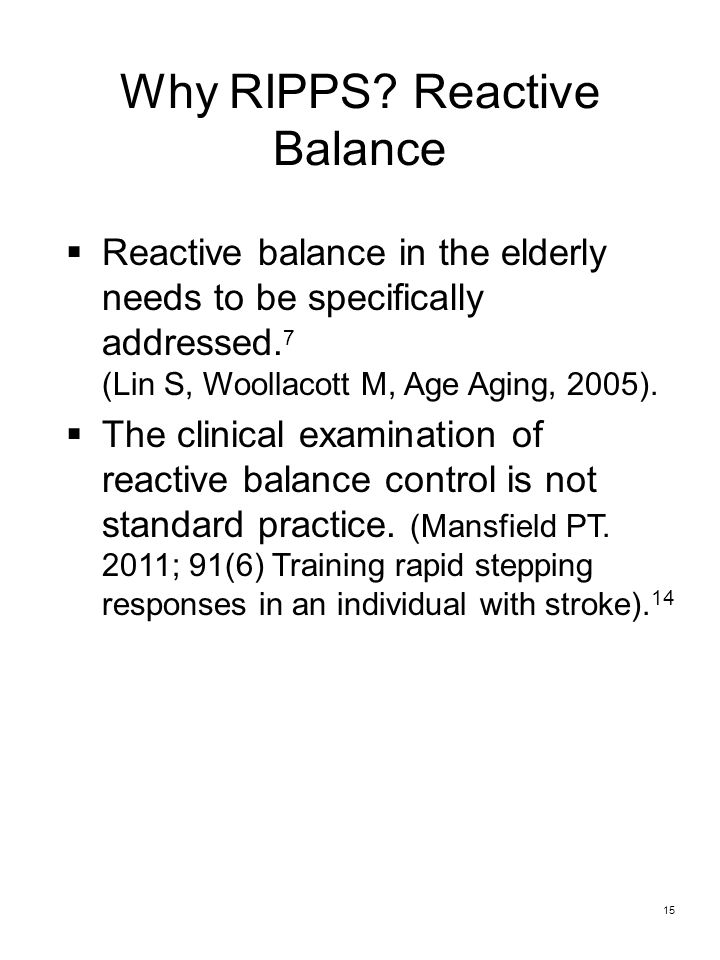

Why RIPPS? Reactive Balance Reactive balance in the elderly needs to be specifically addressed. 7 (Lin S, Woollacott M, Age Aging, 2005). The clinical examination of reactive balance control is not standard practice. (Mansfield PT. 2011; 91(6) Training rapid stepping responses in an individual with stroke). 14 15
16

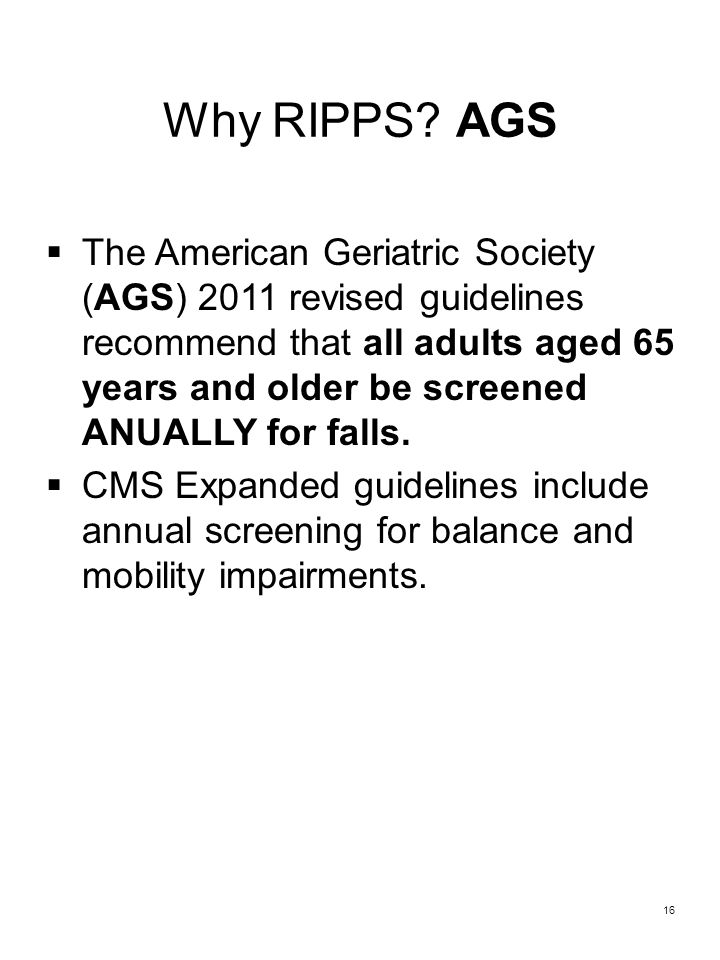

Why RIPPS? AGS The American Geriatric Society (AGS) 2011 revised guidelines recommend that all adults aged 65 years and older be screened ANUALLY for falls. CMS Expanded guidelines include annual screening for balance and mobility impairments. 16
17

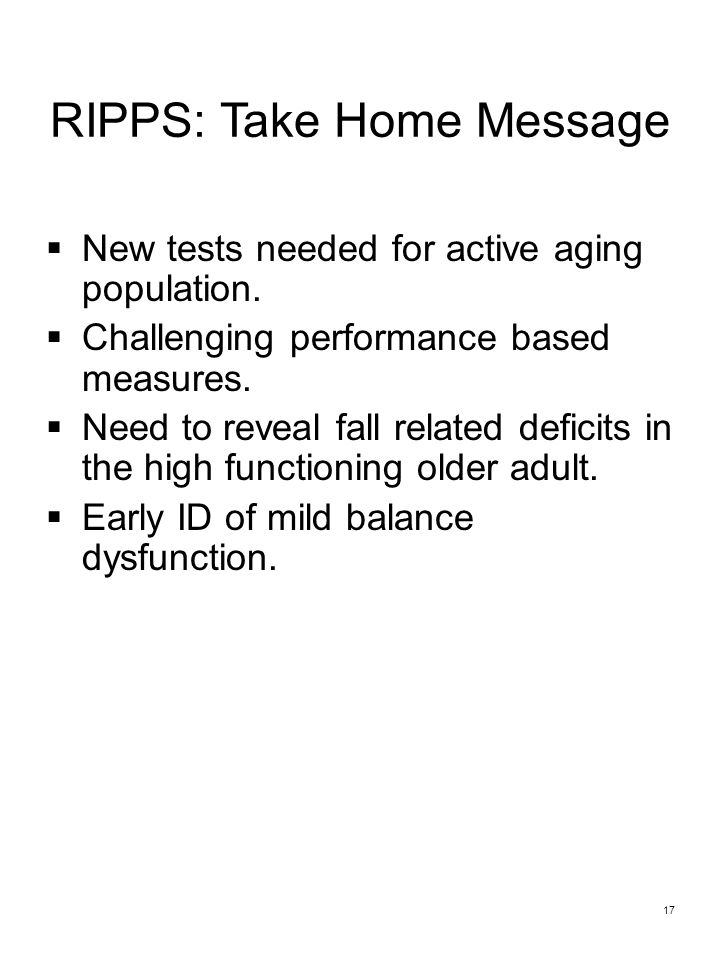

RIPPS: Take Home Message New tests needed for active aging population. Challenging performance based measures. Need to reveal fall related deficits in the high functioning older adult. Early ID of mild balance dysfunction. 17
18
Perturbation Studies Historical Perspective 18
19

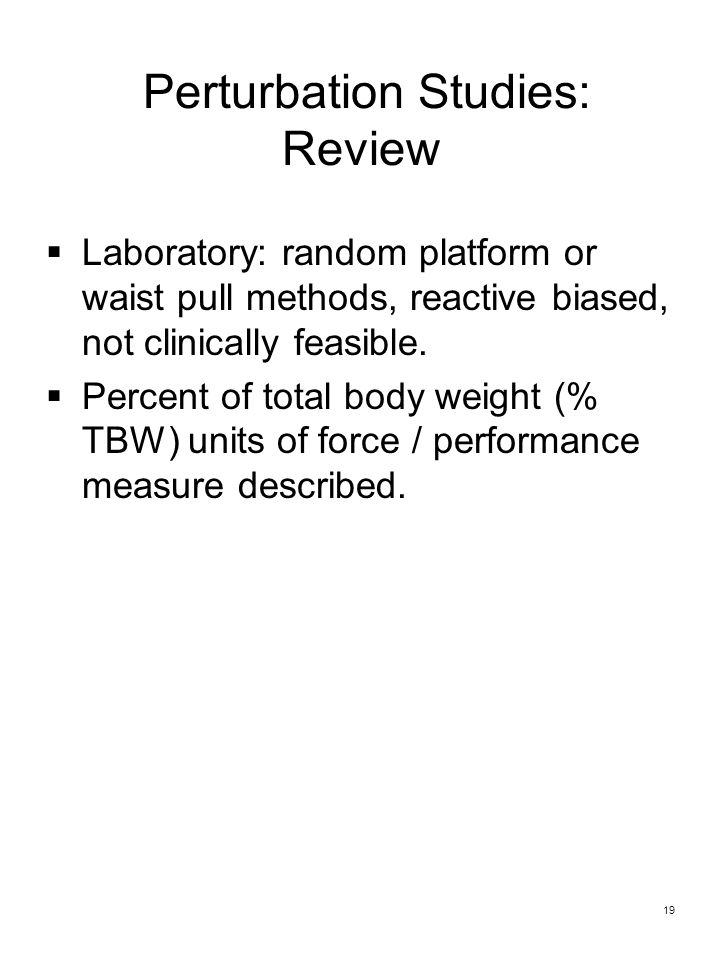

Perturbation Studies: Review Laboratory: random platform or waist pull methods, reactive biased, not clinically feasible. Percent of total body weight (% TBW) units of force / performance measure described. 19
20

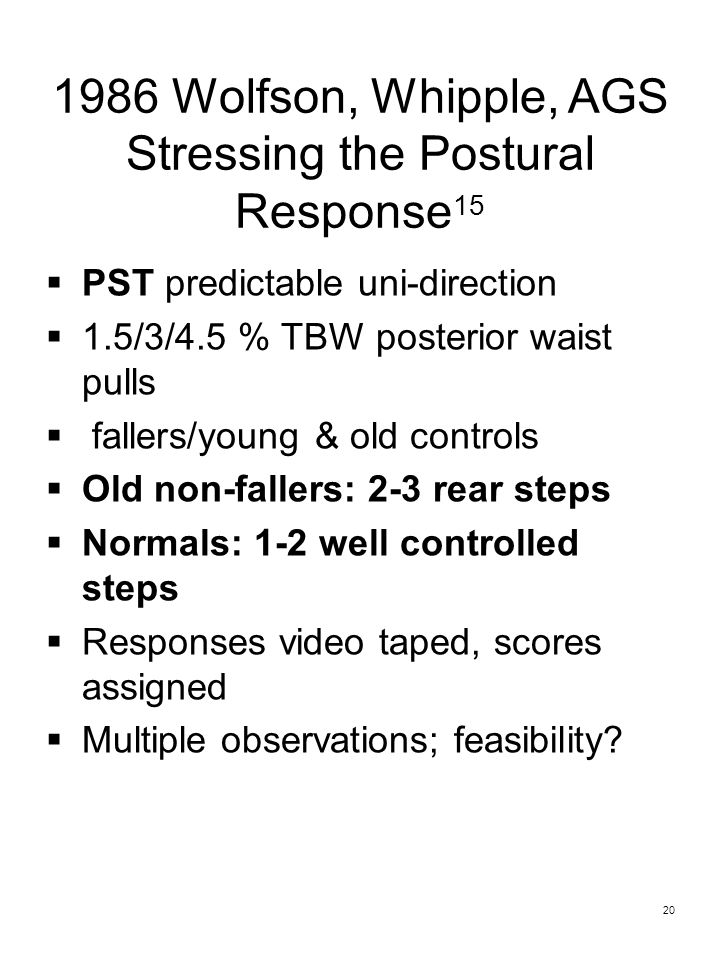

1986 Wolfson, Whipple, AGS Stressing the Postural Response 15 PST predictable uni-direction 1.5/3/4.5 % TBW posterior waist pulls fallers/young & old controls Old non-fallers: 2-3 rear steps Normals: 1-2 well controlled steps Responses video taped, scores assigned Multiple observations; feasibility? 20
21

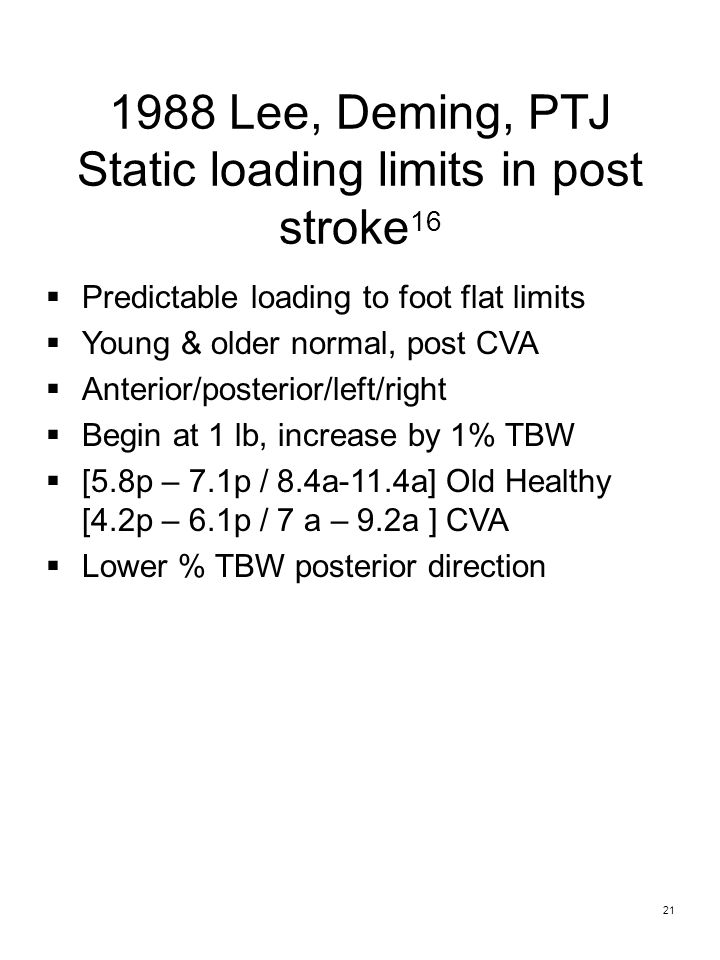

1988 Lee, Deming, PTJ Static loading limits in post stroke 16 Predictable loading to foot flat limits Young & older normal, post CVA Anterior/posterior/left/right Begin at 1 lb, increase by 1% TBW [5.8p – 7.1p / 8.4a-11.4a] Old Healthy [4.2p – 6.1p / 7 a – 9.2a ] CVA Lower % TBW posterior direction 21
22

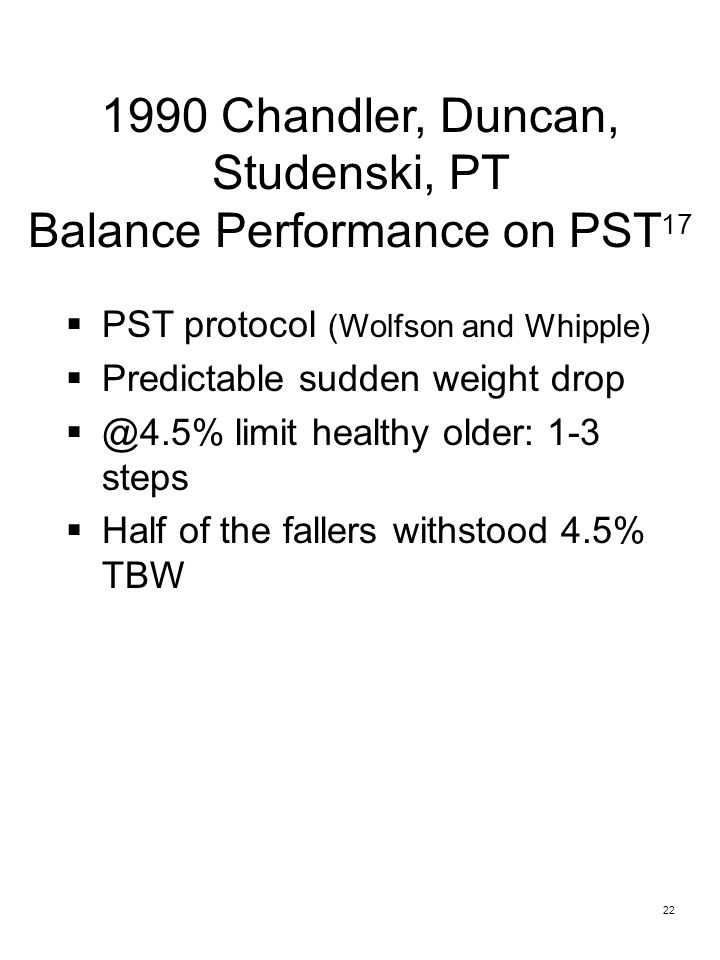

1990 Chandler, Duncan, Studenski, PT Balance Performance on PST 17 PST protocol (Wolfson and Whipple) Predictable sudden weight drop @4.5% limit healthy older: 1-3 steps Half of the fallers withstood 4.5% TBW 22

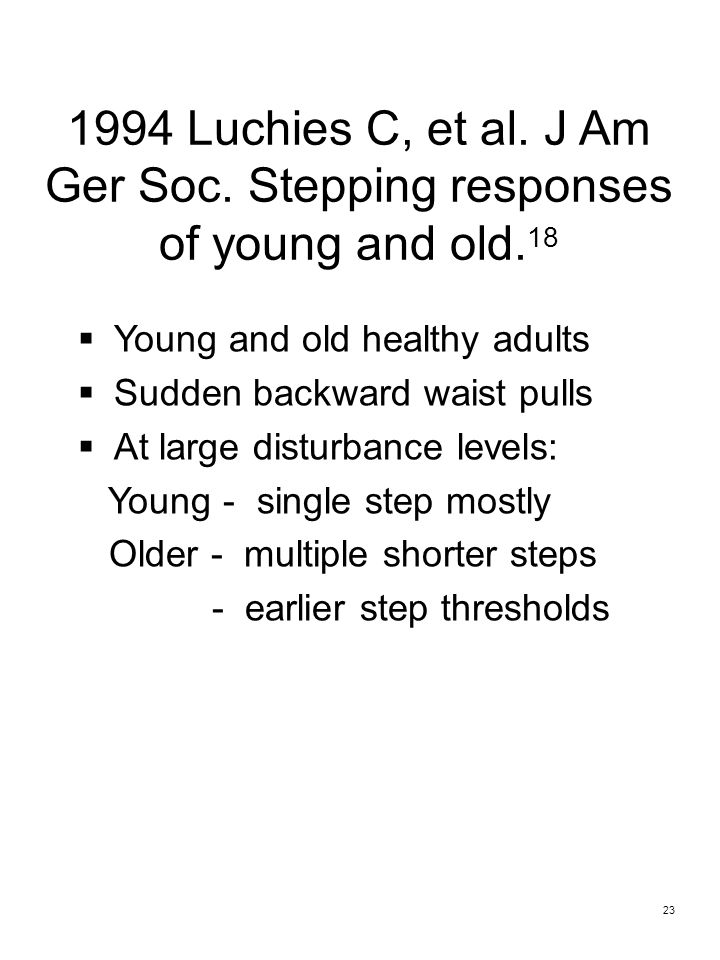

23
1994 Luchies C, et al. J Am Ger Soc. Stepping responses of young and old. 18 Young and old healthy adults Sudden backward waist pulls At large disturbance levels: Young - single step mostly Older - multiple shorter steps - earlier step thresholds 23
24

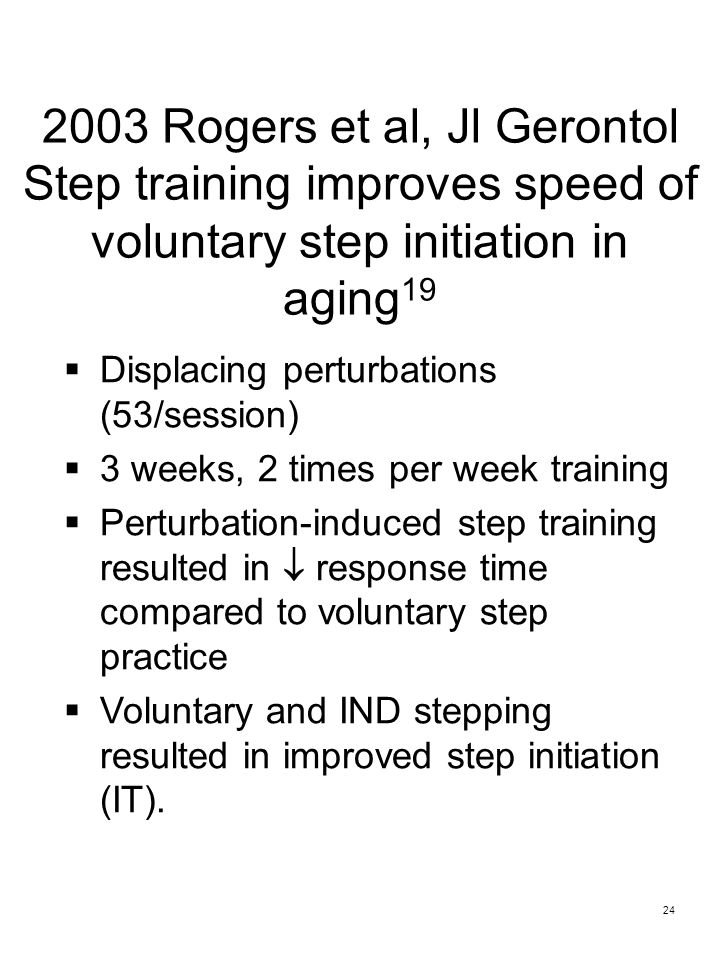

2003 Rogers et al, Jl Gerontol Step training improves speed of voluntary step initiation in aging 19 Displacing perturbations (53/session) 3 weeks, 2 times per week training Perturbation-induced step training resulted in response time compared to voluntary step practice Voluntary and IND stepping resulted in improved step initiation (IT). 24
25

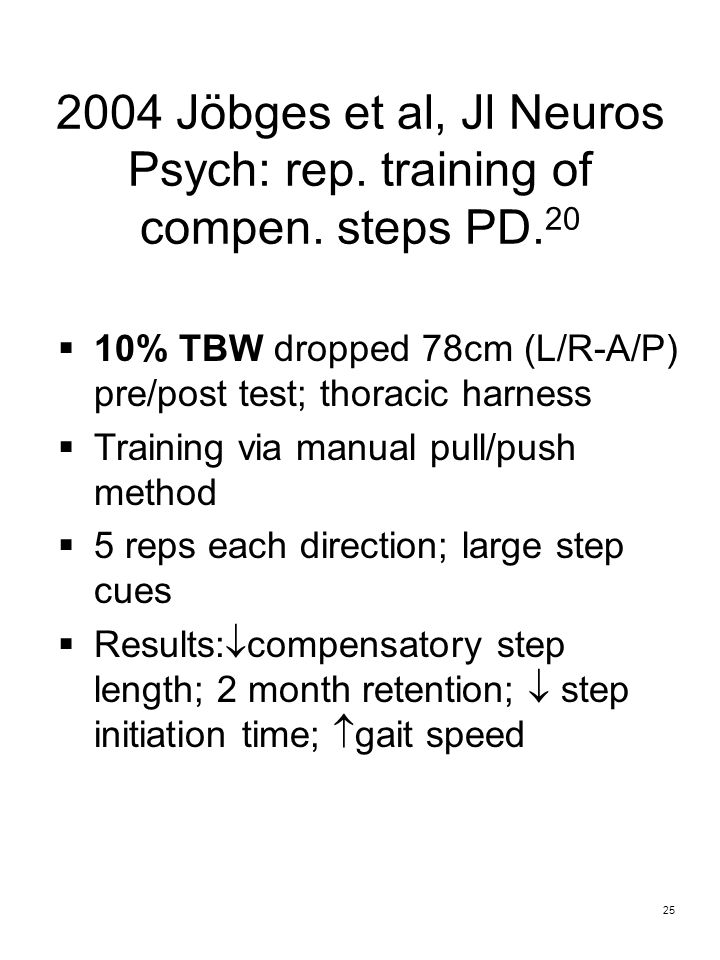

2004 Jöbges et al, Jl Neuros Psych: rep. training of compen. steps PD. 20 10% TBW dropped 78cm (L/R-A/P) pre/post test; thoracic harness Training via manual pull/push method 5 reps each direction; large step cues Results: compensatory step length; 2 month retention; step initiation time; gait speed 25
26

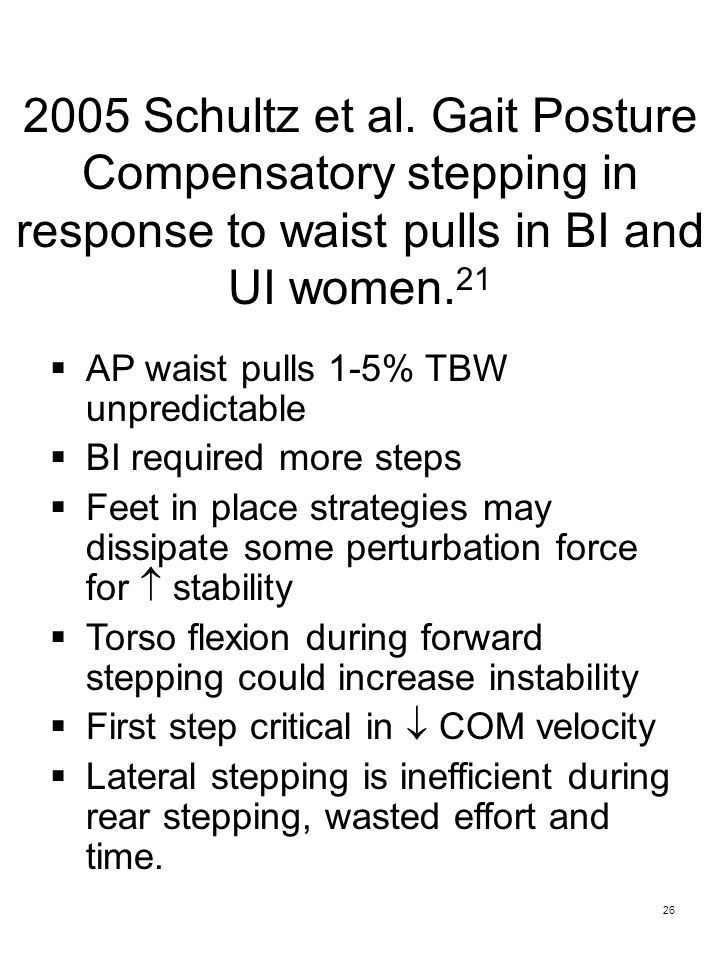

2005 Schultz et al. Gait Posture Compensatory stepping in response to waist pulls in BI and UI women. 21 AP waist pulls 1-5% TBW unpredictable BI required more steps Feet in place strategies may dissipate some perturbation force for stability Torso flexion during forward stepping could increase instability First step critical in COM velocity Lateral stepping is inefficient during rear stepping, wasted effort and time. 26
27

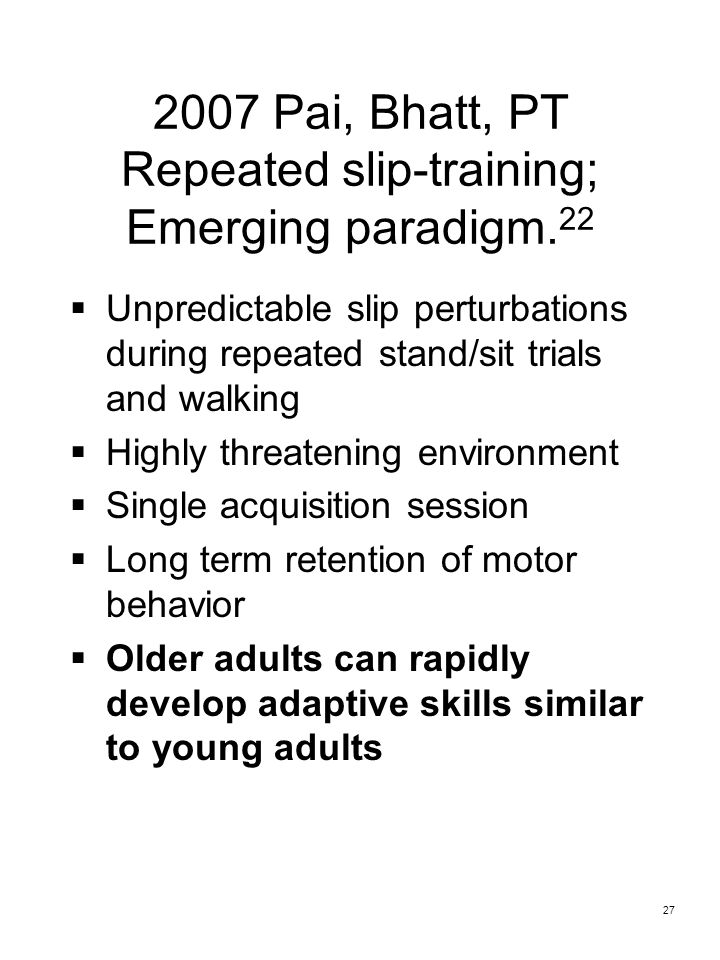

2007 Pai, Bhatt, PT Repeated slip-training; Emerging paradigm. 22 Unpredictable slip perturbations during repeated stand/sit trials and walking Highly threatening environment Single acquisition session Long term retention of motor behavior Older adults can rapidly develop adaptive skills similar to young adults 27
28
2009 DePasquale L,Toscano L, JGPT (SST). 23 Predictable 1 lb anterior/posterior Active independent living older adults Fallers and non-fallers clinical setting Reliable and valid clinical tool for ID fall history RIPP forces 10 % TBW critical threshold for ID fall risk. Feasible 28
29

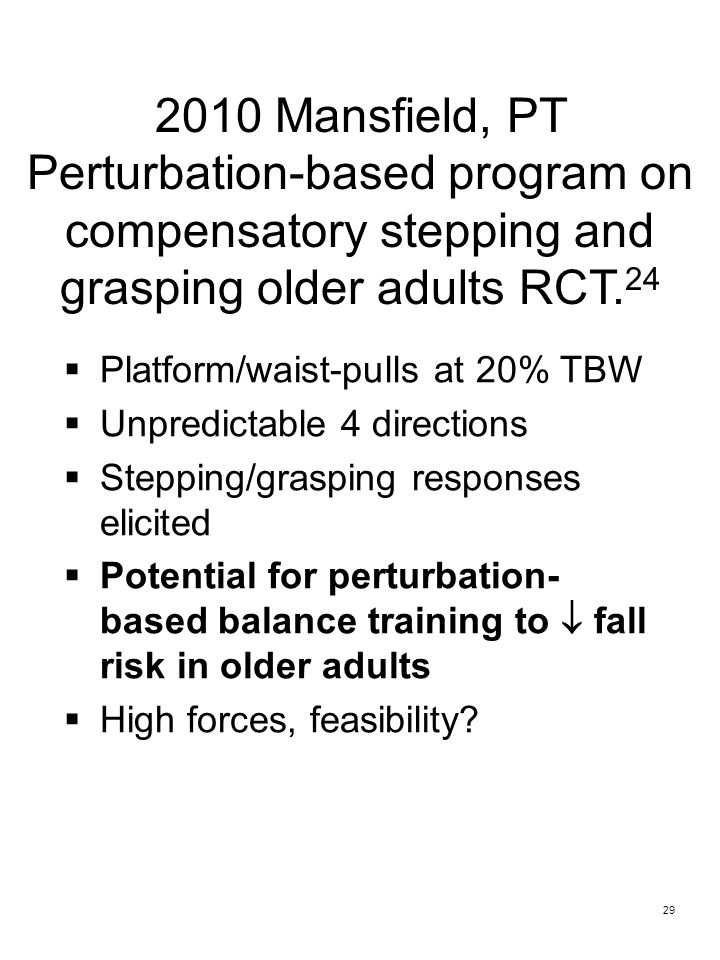

2010 Mansfield, PT Perturbation-based program on compensatory stepping and grasping older adults RCT. 24 Platform/waist-pulls at 20% TBW Unpredictable 4 directions Stepping/grasping responses elicited Potential for perturbation- based balance training to fall risk in older adults High forces, feasibility? 29
30
2010 Pai et al. JGPT Adaptability to perturbation as a predictor of future falls: Preliminary prospective. 13 Slip perturbations during rapid repeated stand/sit trials unannounced Slip/non-slip blocks total 14 trials Adaptations to perturbations may be linked to fall risk High risk method, feasibility? 30
31

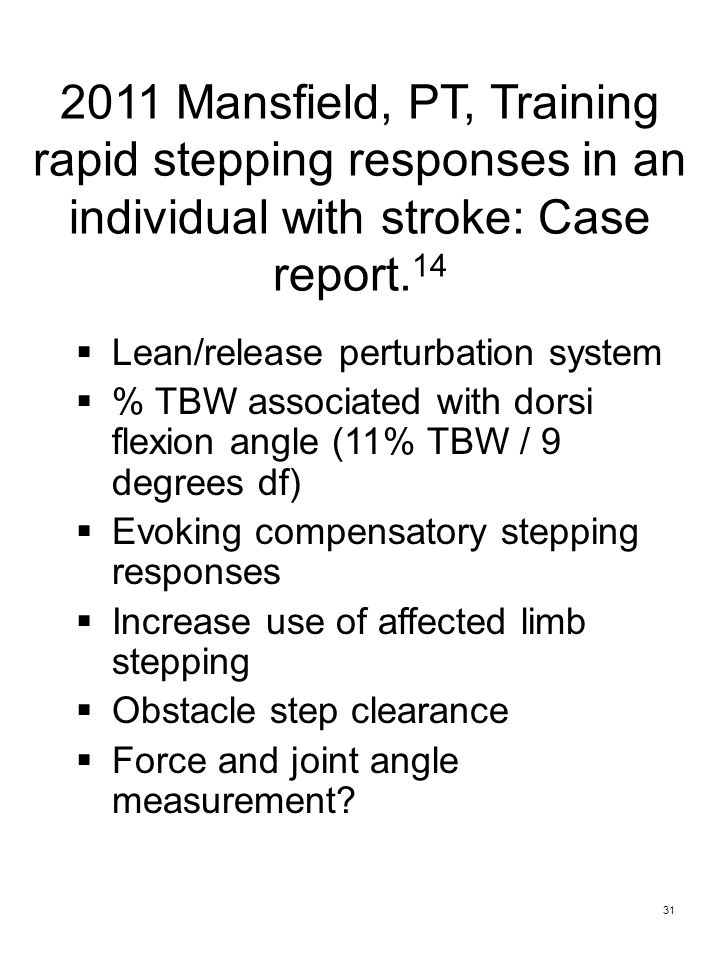

2011 Mansfield, PT, Training rapid stepping responses in an individual with stroke: Case report. 14 Lean/release perturbation system % TBW associated with dorsi flexion angle (11% TBW / 9 degrees df) Evoking compensatory stepping responses Increase use of affected limb stepping Obstacle step clearance Force and joint angle measurement? 31
32

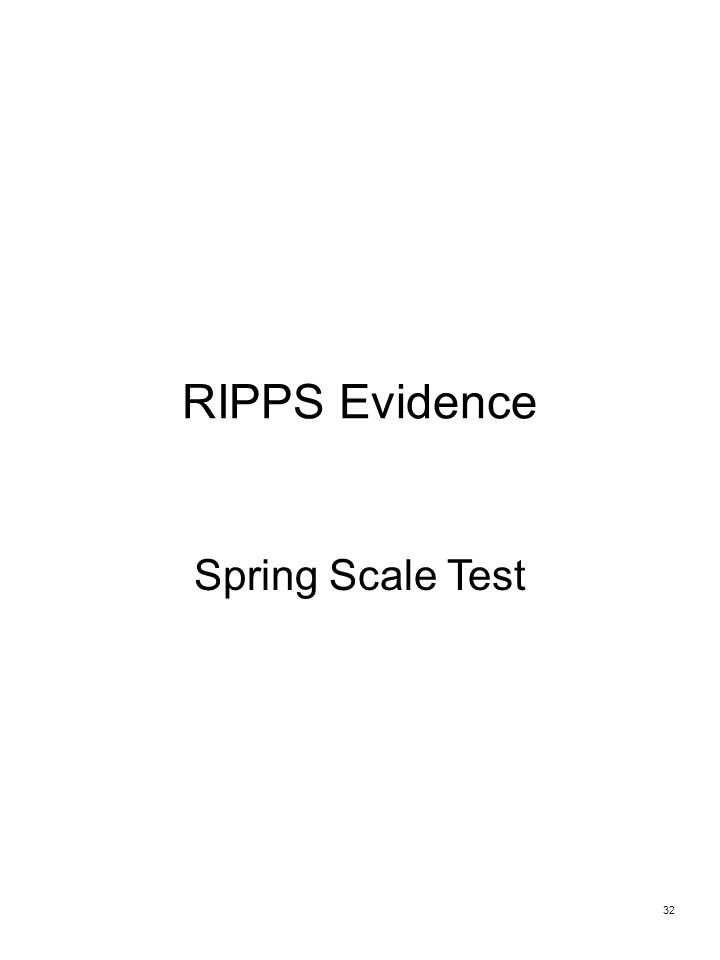

RIPPS Evidence Spring Scale Test 32
33

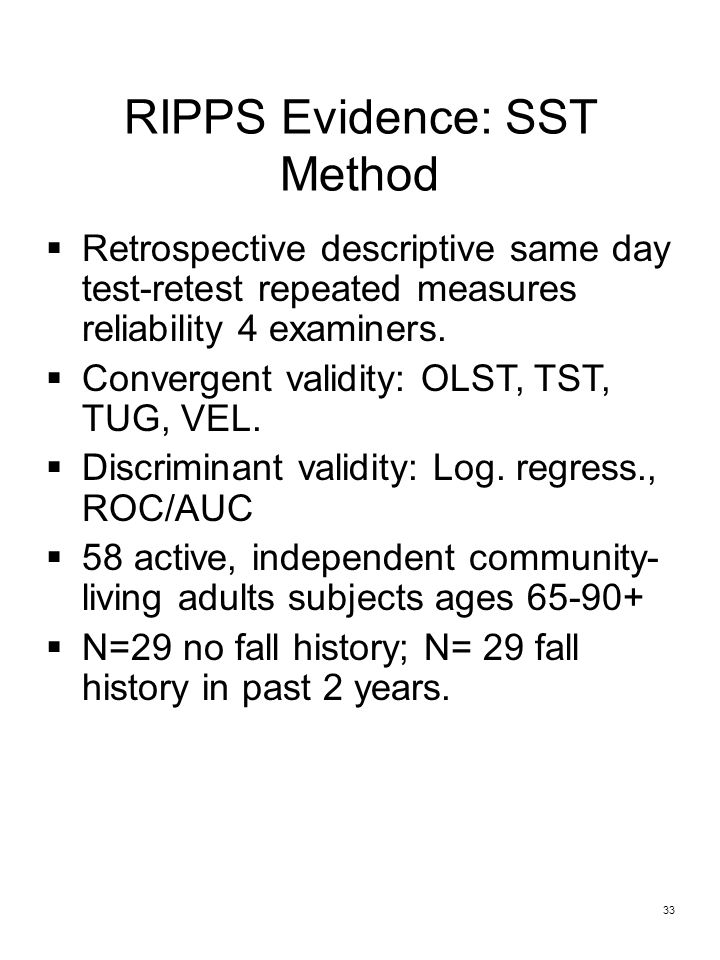

RIPPS Evidence: SST Method Retrospective descriptive same day test-retest repeated measures reliability 4 examiners. Convergent validity: OLST, TST, TUG, VEL. Discriminant validity: Log. regress., ROC/AUC 58 active, independent community- living adults subjects ages 65-90+ N=29 no fall history; N= 29 fall history in past 2 years. 33
34
RIPPS Evidence: SST Method Decade Distribution Data 6 @ 65 to 69 yrs. 16 @ 70 to 79 yrs. 30 @ 80 to 89 yrs. 6 @ 90 + yrs. 34
35
RIPPS: SST Evidence Faller Characteristics N = 29MinimumMaximumMeanStd. Dev. Age759483.65.55 Weight (lb) 106200145.826.4 Weight (kg) 48.190.766.2211.97 Height (m) 1.351.851.640.11 BMI (index) 17.834.424.53.27 SF-36 score 25.095.063.318.58 35
36
RIPPS: SST Evidence Non-faller Characteristics N = 29MinimumMaximumMeanStd. Dev. Age659078.07.75 Weight (lb) 103200153.028.8 Weight (kg) 46.790.769.412.78 Height (m) 1.481.831.670.089 BMI (index) 19.432.524.93.12 SF-36 score 55.0100.086.212.15 36
37

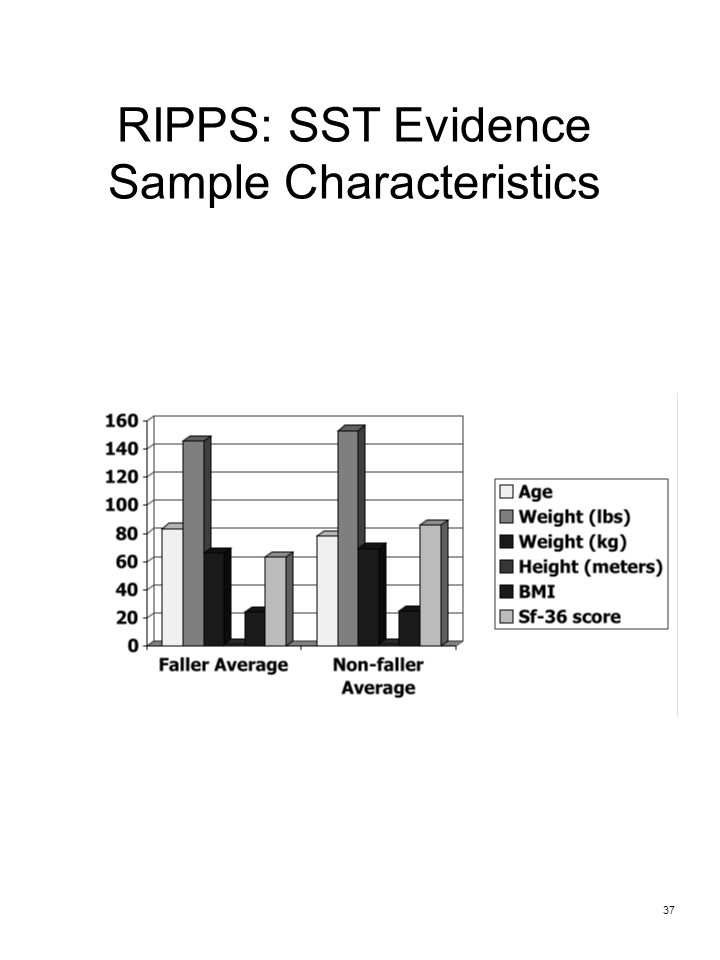

RIPPS: SST Evidence Sample Characteristics 37
38

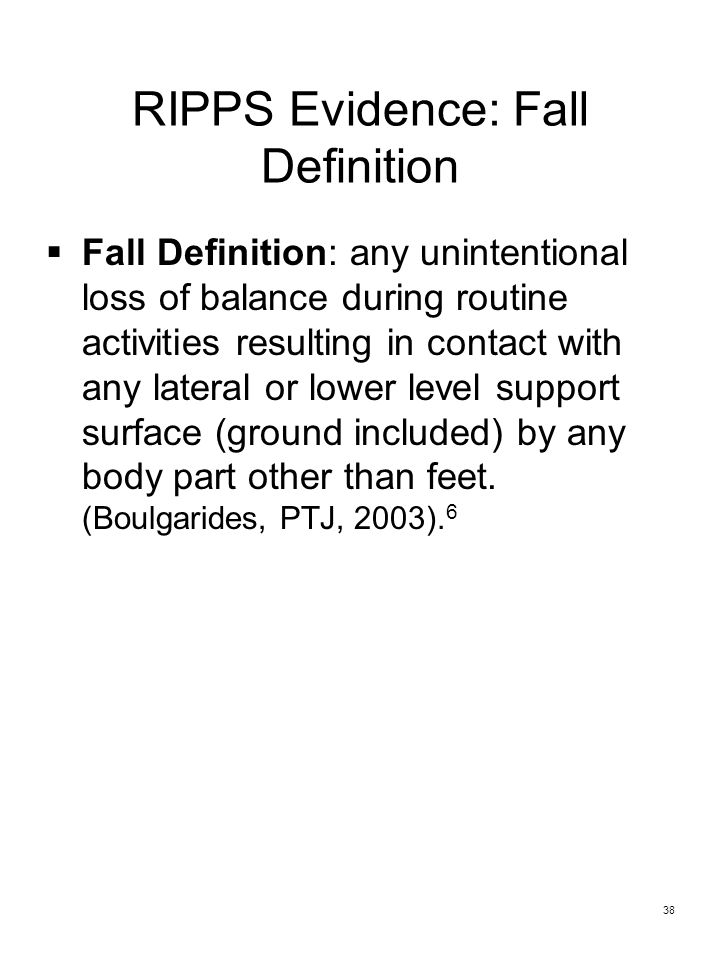

RIPPS Evidence: Fall Definition Fall Definition: any unintentional loss of balance during routine activities resulting in contact with any lateral or lower level support surface (ground included) by any body part other than feet. (Boulgarides, PTJ, 2003). 6 38
39
RIPPS: SST Evidence Participant Inclusion TUGT under 14 seconds Ability to walk independently 1+ blocks No walker devices, canes OK (n=3) Medically stable no pain / 3 mos. post hosp/fx 200 pounds body weight limit Ankle DF 3/5 and AROM 10 degrees Heel height and floor surfaces controlled 39
40

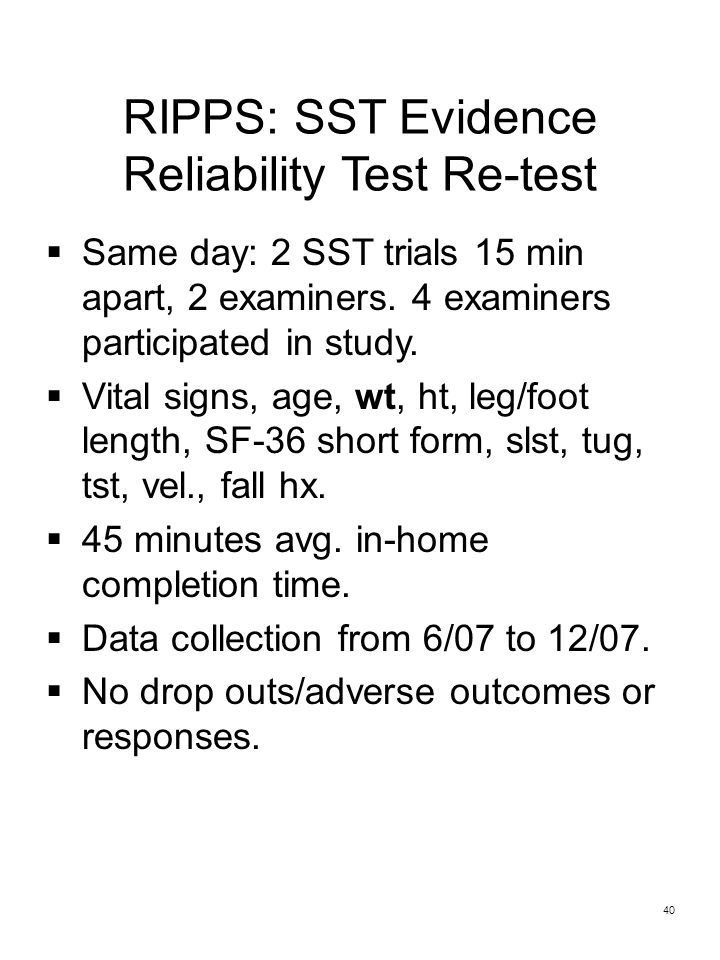

RIPPS: SST Evidence Reliability Test Re-test Same day: 2 SST trials 15 min apart, 2 examiners. 4 examiners participated in study. Vital signs, age, wt, ht, leg/foot length, SF-36 short form, slst, tug, tst, vel., fall hx. 45 minutes avg. in-home completion time. Data collection from 6/07 to 12/07. No drop outs/adverse outcomes or responses. 40
41

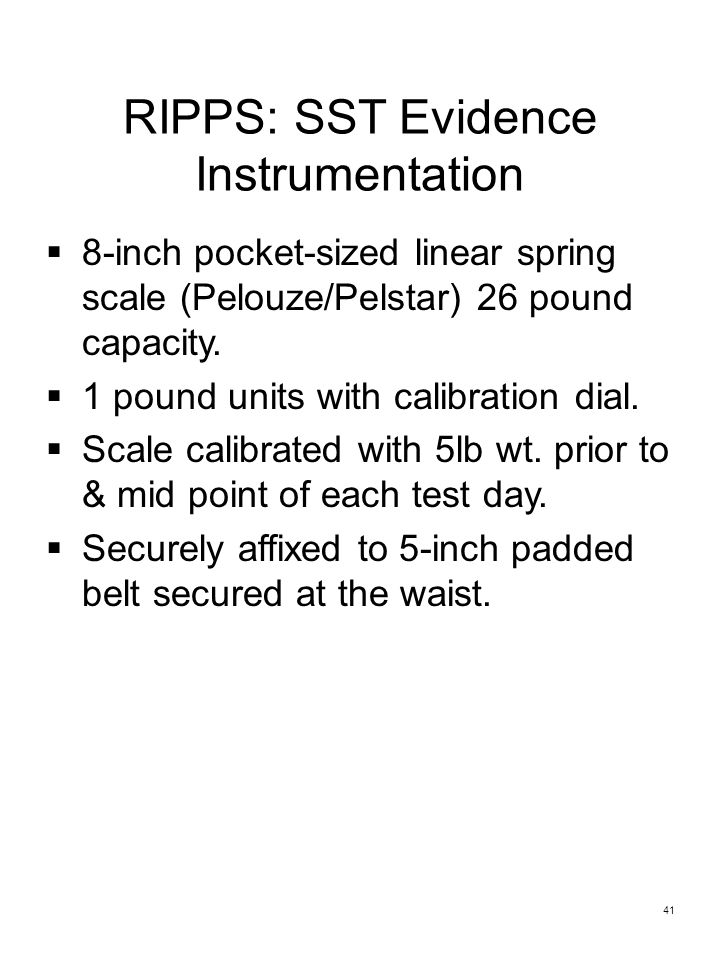

RIPPS: SST Evidence Instrumentation 8-inch pocket-sized linear spring scale (Pelouze/Pelstar) 26 pound capacity. 1 pound units with calibration dial. Scale calibrated with 5lb wt. prior to & mid point of each test day. Securely affixed to 5-inch padded belt secured at the waist. 41
42

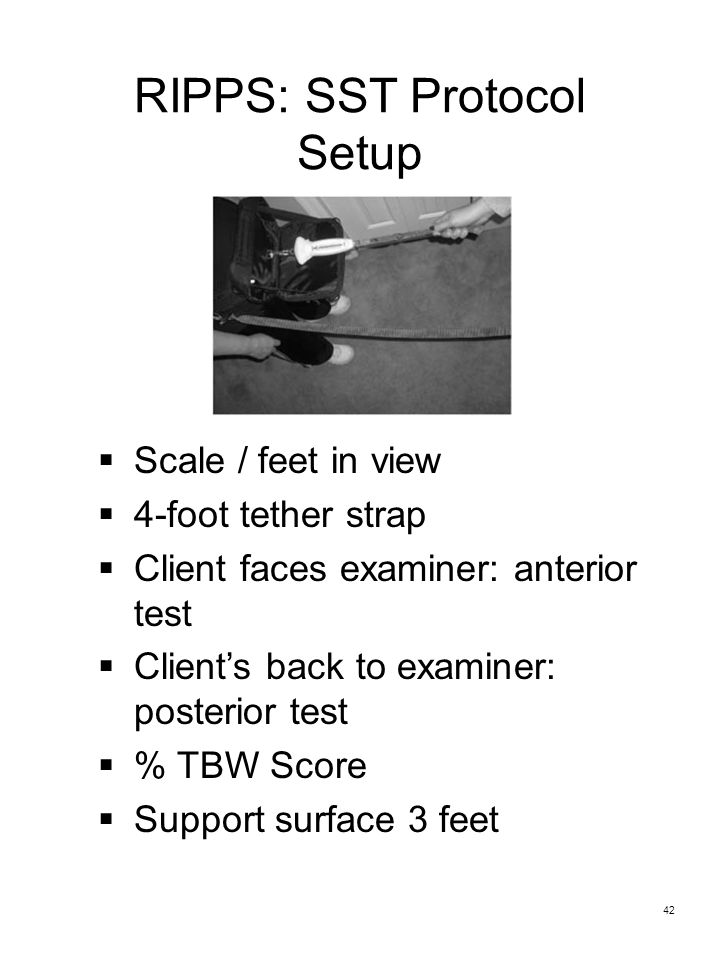

42 RIPPS: SST Protocol Setup Scale / feet in view 4-foot tether strap Client faces examiner: anterior test Client’s back to examiner: posterior test % TBW Score Support surface 3 feet
43

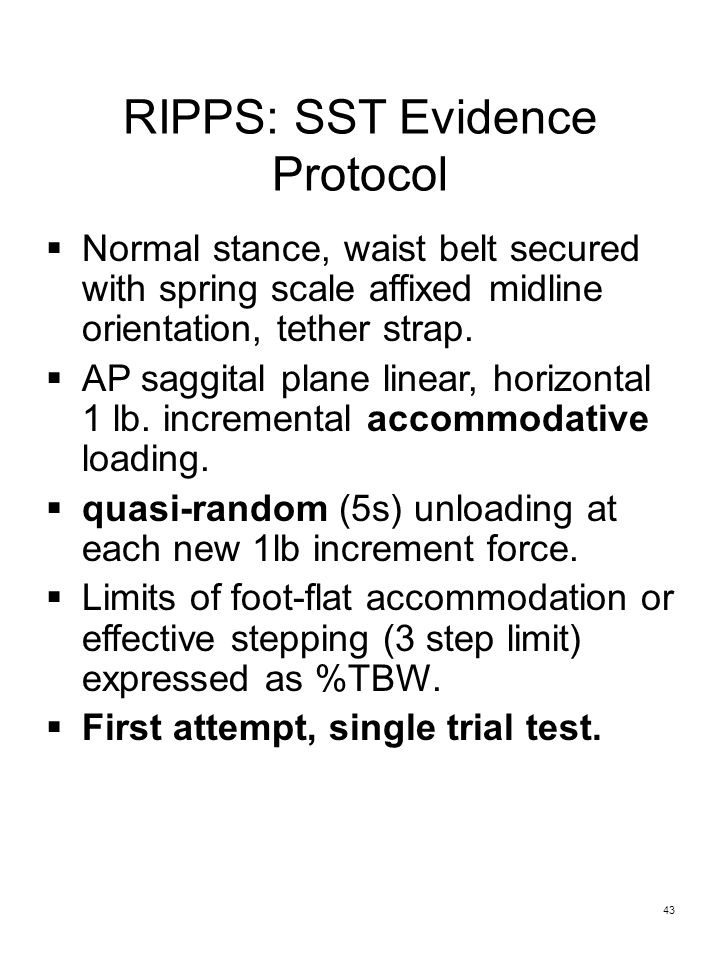

RIPPS: SST Evidence Protocol Normal stance, waist belt secured with spring scale affixed midline orientation, tether strap. AP saggital plane linear, horizontal 1 lb. incremental accommodative loading. quasi-random (5s) unloading at each new 1lb increment force. Limits of foot-flat accommodation or effective stepping (3 step limit) expressed as %TBW. First attempt, single trial test. 43
44
RIPPS: SST Anterior DLT - Loading Continuous / cyclic Accommodative 1 lb. increments Ongoing instruction % TBW score End point: heel lift or fwrd. step 44
45
RIPPS: SST Anterior DLT Unloading - Rear Stepping 1 pound increments Quasi-random release 5 second window 3 step limit criteria % TBW score End point: + 3 steps or contact with compliant surface 45
46
RIPPS: SST Posterior DLT Loading Continuous / cyclic 1 pound increments Accommodative Ongoing instruction End point: Sole lift or rear step % TBW score 46
47
RIPPS: SST Posterior DLT Unloading - Forward Step 5 sec quasi-random 1 pound increments 3 step limit criteria Forward step limits % TBW score End point: + 3 steps or contact with compliant surface 47
48

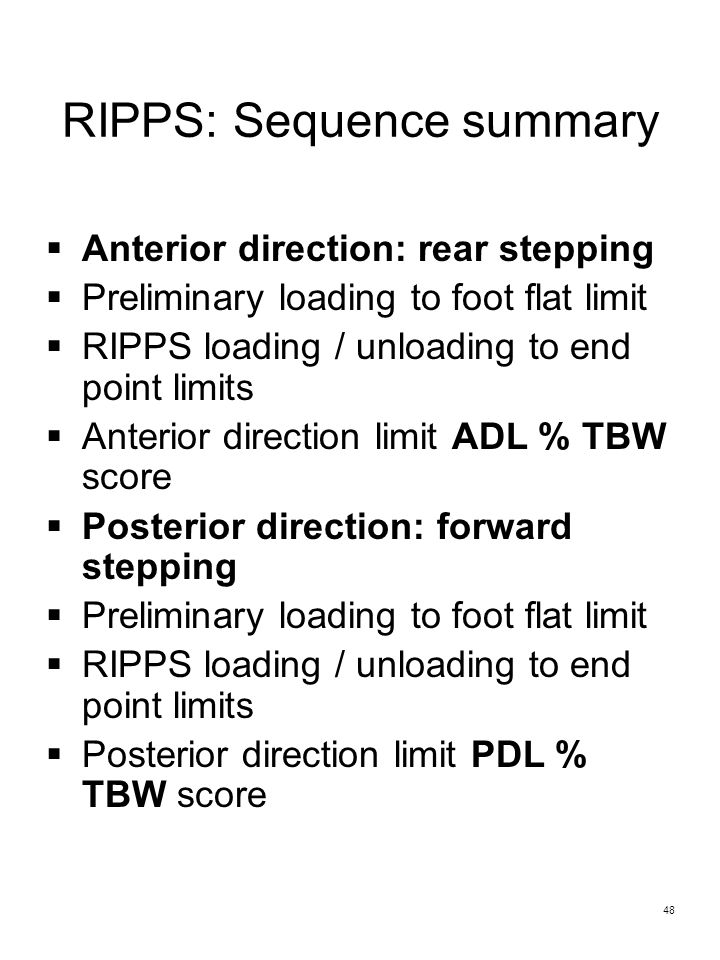

RIPPS: Sequence summary Anterior direction: rear stepping Preliminary loading to foot flat limit RIPPS loading / unloading to end point limits Anterior direction limit ADL % TBW score Posterior direction: forward stepping Preliminary loading to foot flat limit RIPPS loading / unloading to end point limits Posterior direction limit PDL % TBW score 48
49
RIPPS: % TBW Clinical Performance Measure 2 Direction Limit (DL)%TBW scores: anterior and posterior. RIPPS % TBW clinical performance measure = Lower DL % TBW score. % TBW = limit force in pounds divided by obtained body weight. 49

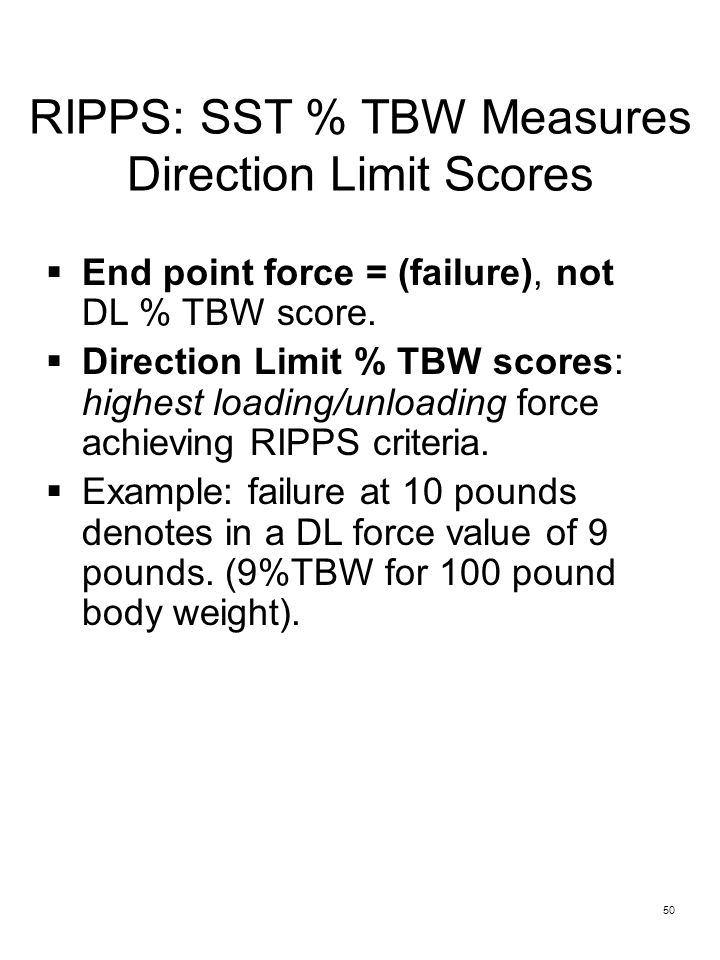

50
RIPPS: SST % TBW Measures Direction Limit Scores End point force = (failure), not DL % TBW score. Direction Limit % TBW scores: highest loading/unloading force achieving RIPPS criteria. Example: failure at 10 pounds denotes in a DL force value of 9 pounds. (9%TBW for 100 pound body weight). 50
51

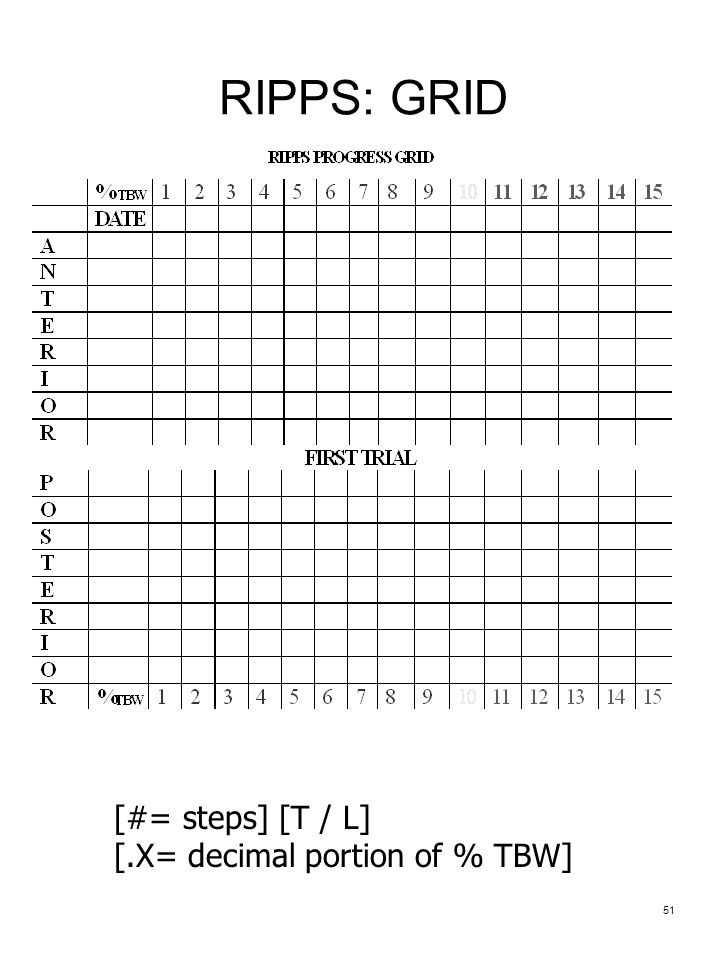

RIPPS: GRID 51 [#= steps] [T / L] [.X= decimal portion of % TBW]
52
RIPPS: Documentation Ideas RIPPS % TBW score = lower DL % TBW DL: % TBW values both directions DL: number of steps 10% TBW number steps Threshold % TBW / # steps Trials 1-2? Ankle / hip strategy % TBW limits 52
53

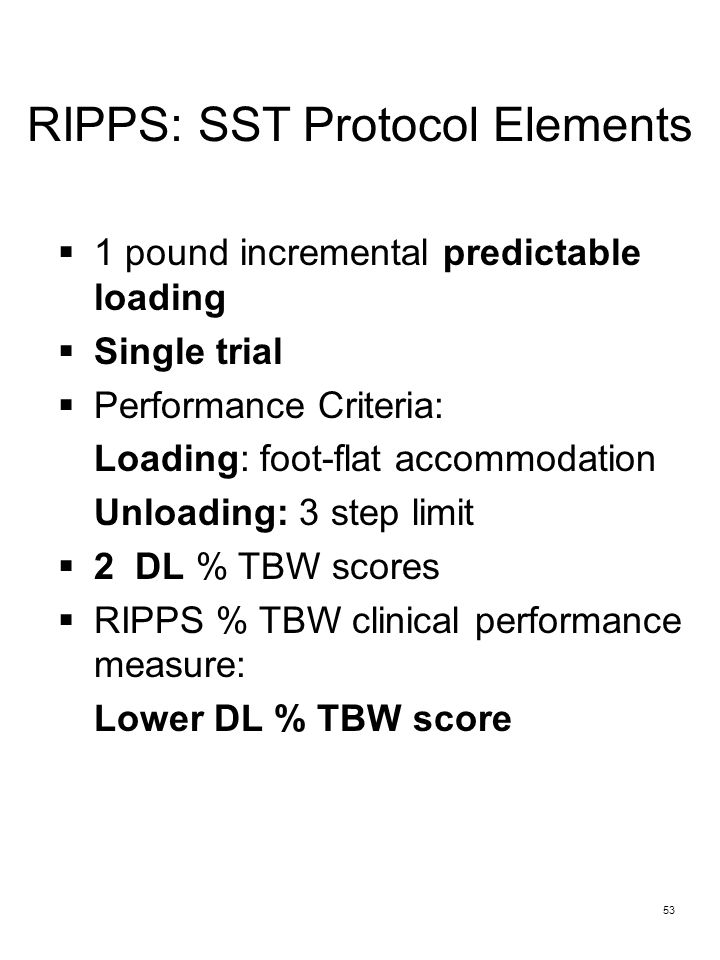

53 RIPPS: SST Protocol Elements 1 pound incremental predictable loading Single trial Performance Criteria: Loading: foot-flat accommodation Unloading: 3 step limit 2 DL % TBW scores RIPPS % TBW clinical performance measure: Lower DL % TBW score
54
RIPPS: Technique Notes Demonstration Obtain body weight Continuous instructions and reminders Loading gently scaled, accommodative Unloading abrupt, snap like Tether strap held in free hand, on slack Resist impulse to prevent fall response Step toward client during unloading 54
55

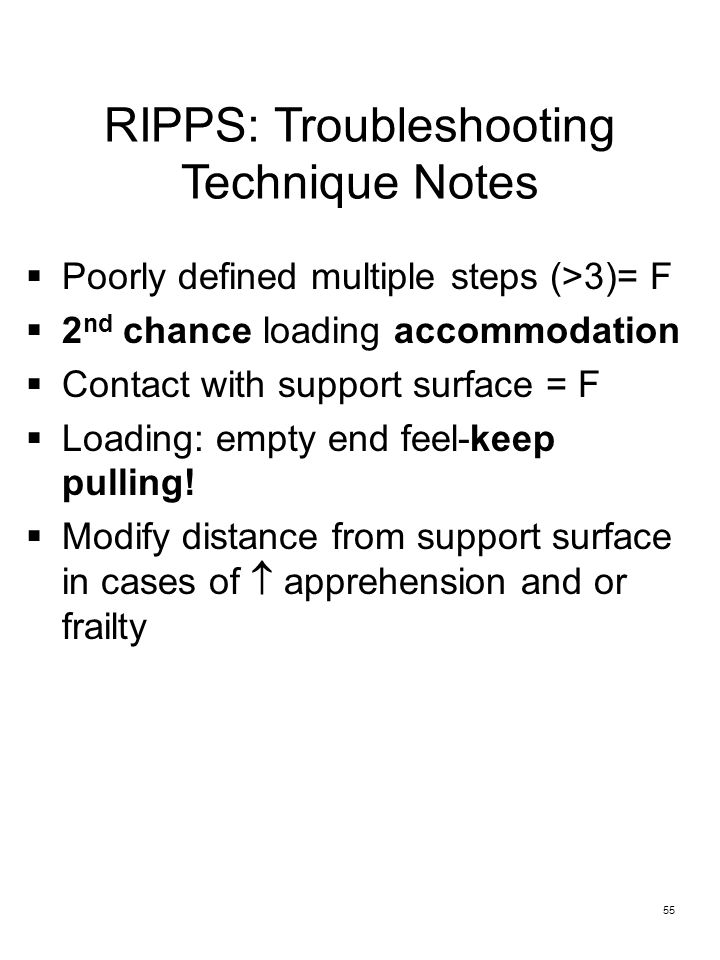

RIPPS: Troubleshooting Technique Notes Poorly defined multiple steps (>3)= F 2 nd chance loading accommodation Contact with support surface = F Loading: empty end feel-keep pulling! Modify distance from support surface in cases of apprehension and or frailty 55
56
RIPPS: Restrictions RIPPS not advised in presence of: Acute orthopedic “healing” issues Acute surgical “healing” issues Unstable medical conditions Painful lower limb bearing issues Disproportionate anxiety 56
57
RIPPS: Scale calibration 57 Known weight (5lbs) attached to scale suspended in vertical orientation. Scale measurement should equal known weight. Calibration achieved via adjustable locking turn knob mechanism feature.
58
58 BREAK
59

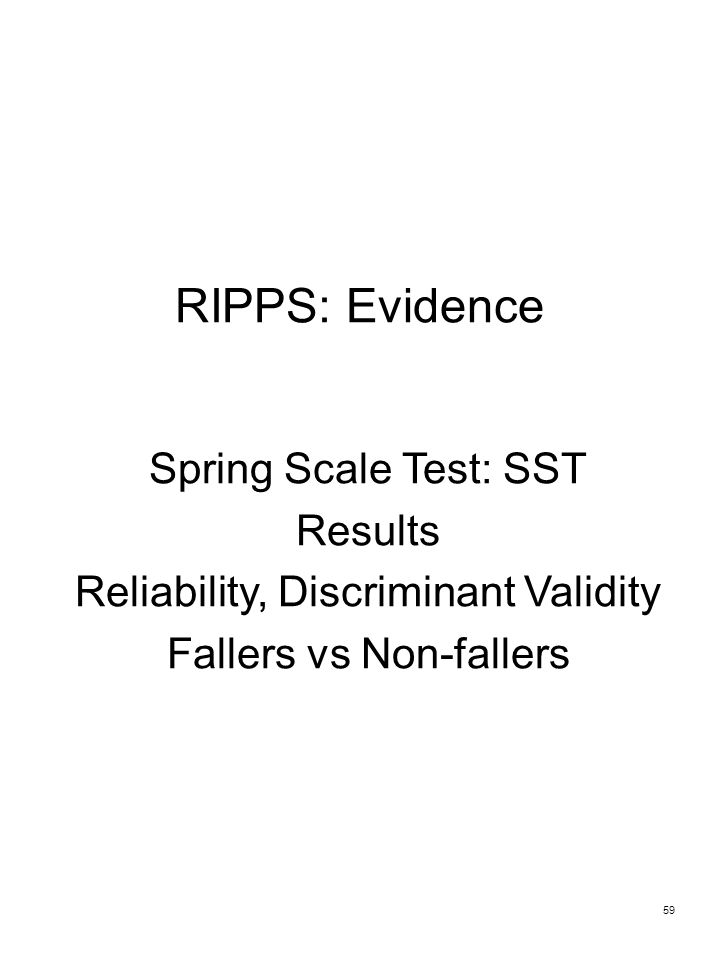

RIPPS: Evidence Spring Scale Test: SST Results Reliability, Discriminant Validity Fallers vs Non-fallers 59
60

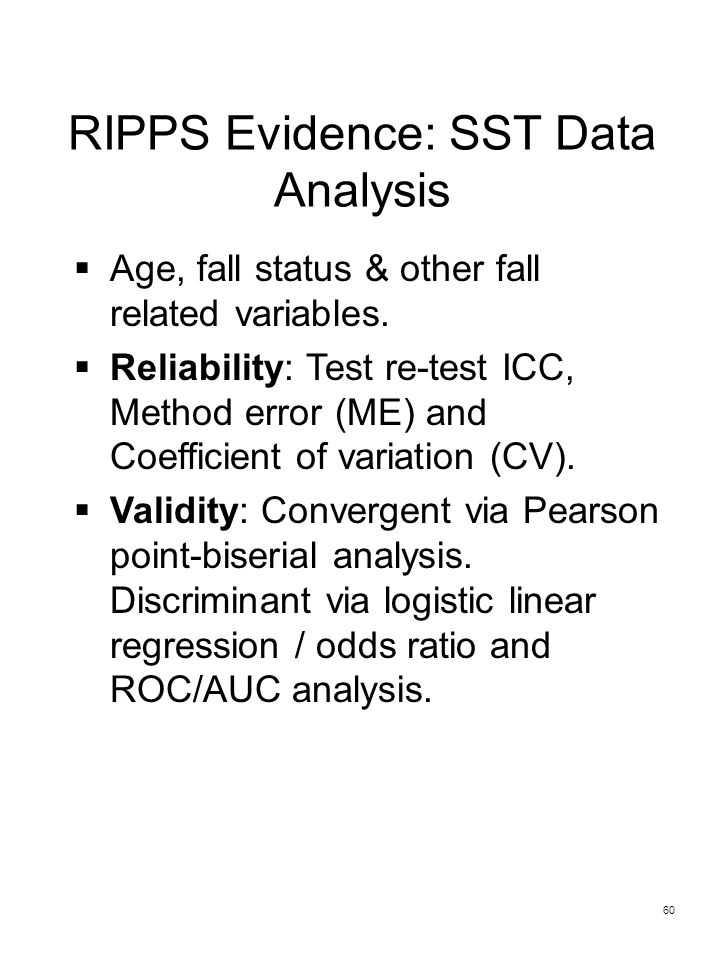

60 RIPPS Evidence: SST Data Analysis Age, fall status & other fall related variables. Reliability: Test re-test ICC, Method error (ME) and Coefficient of variation (CV). Validity: Convergent via Pearson point-biserial analysis. Discriminant via logistic linear regression / odds ratio and ROC/AUC analysis.
61

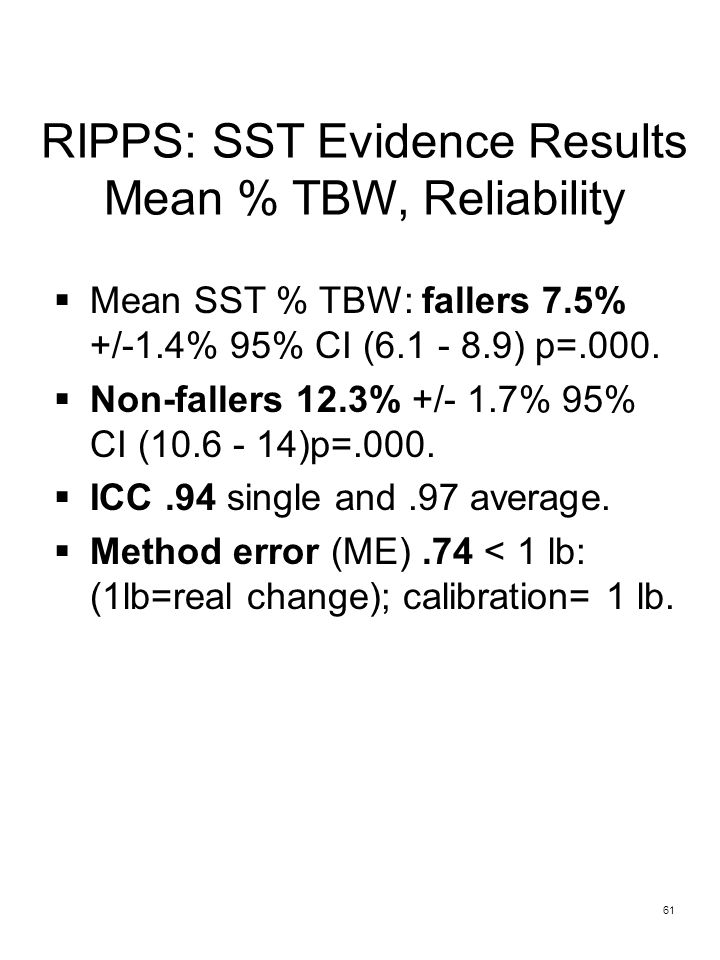

61 RIPPS: SST Evidence Results Mean % TBW, Reliability Mean SST % TBW: fallers 7.5% +/-1.4% 95% CI (6.1 - 8.9) p=.000. Non-fallers 12.3% +/- 1.7% 95% CI (10.6 - 14)p=.000. ICC.94 single and.97 average. Method error (ME).74 < 1 lb: (1lb=real change); calibration= 1 lb.
62

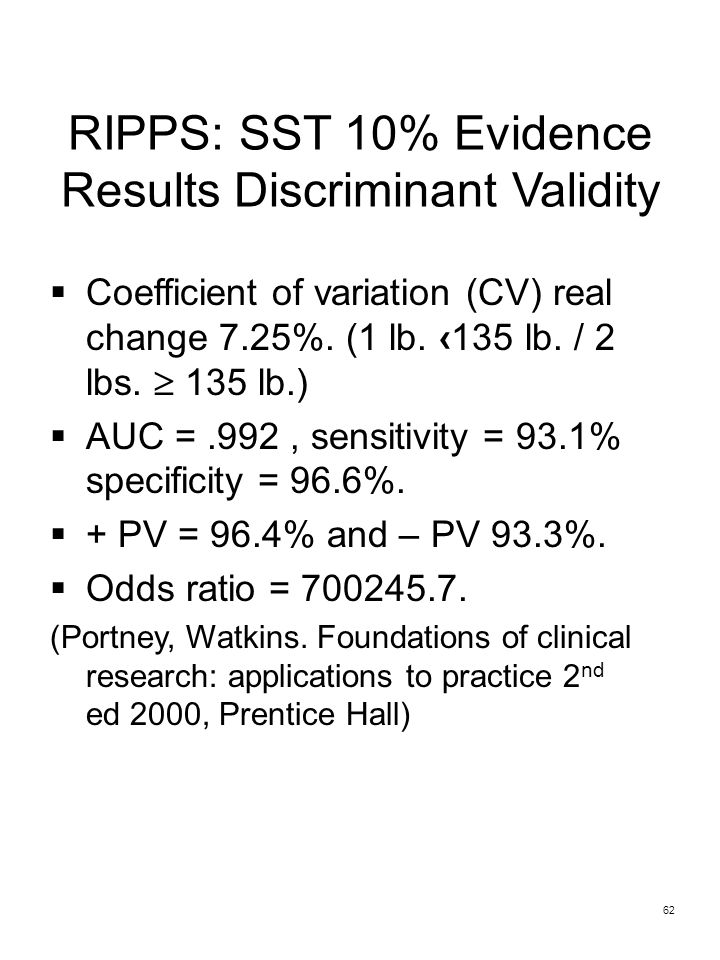

62 RIPPS: SST 10% Evidence Results Discriminant Validity Coefficient of variation (CV) real change 7.25%. (1 lb. ‹135 lb. / 2 lbs. 135 lb.) AUC =.992, sensitivity = 93.1% specificity = 96.6%. + PV = 96.4% and – PV 93.3%. Odds ratio = 700245.7. (Portney, Watkins. Foundations of clinical research: applications to practice 2 nd ed 2000, Prentice Hall)
63
Table 2. Comparison of Measurements Obtained from 58 Older Adults Classified as Fallers (n=29) or Non-fallers (n=29) VariableFallerMe an±S Non-fall Mean±S T-test T (p) ROC Results** Area Under Curve Cut Point Sensitivity/ Specificity (%) Age (yr)83.5±5.578.0±7.8-3.18 (.003).694 80 75.9 / 51.7 SST (% weight)*7.5±1.412.3±1.711.63 (.000).992 10.093.1 / 96.6 Gait speed (m/s)1.0±.21.3±.24.623 (.000).820 1.265.5 / 75.9 Timed Up & Go (s)9.2±1.37.0±.9-7.22 (.000).916 7.479.3 / 93.1 Single limb stance (s)3.2±3.310.3±9.63.78 (.001).766 6.548.3 / 89.7 Tandem stance (s)12.7±10.823.9±9.94.12 (.000).765 22.072.4 / 75.9 Physical functioning (%) 63.3±18.686.3±12.25.56 (.000).850 77.572.4 / 79.3 *% TBW **ROC = Receiver operating characteristic curve 63
64
Table 1. Pearson Correlations (Probabilities) Between Variables Predicting Falls AgeSST%GSTUGSLSTS SST%-.471 (.000) Gait speed (GS)-.389 (.003).532 (.000) Timed Up & Go (TUG).399 (.002) -.671 (.000) -.513 (.000) Single limb stance (SLS) -.582 (.000).539 (.000).340 (.009) -.477 (.000) Tandem stance (TS) -.355 (.006).552 (.000).364 (.005) -.458 (.000).498 (.000) Physical functioning (PF) -.400 (.002).623 (.000).746 (.000) -.696 (.000).416 (.001).406 (.002) 64
65

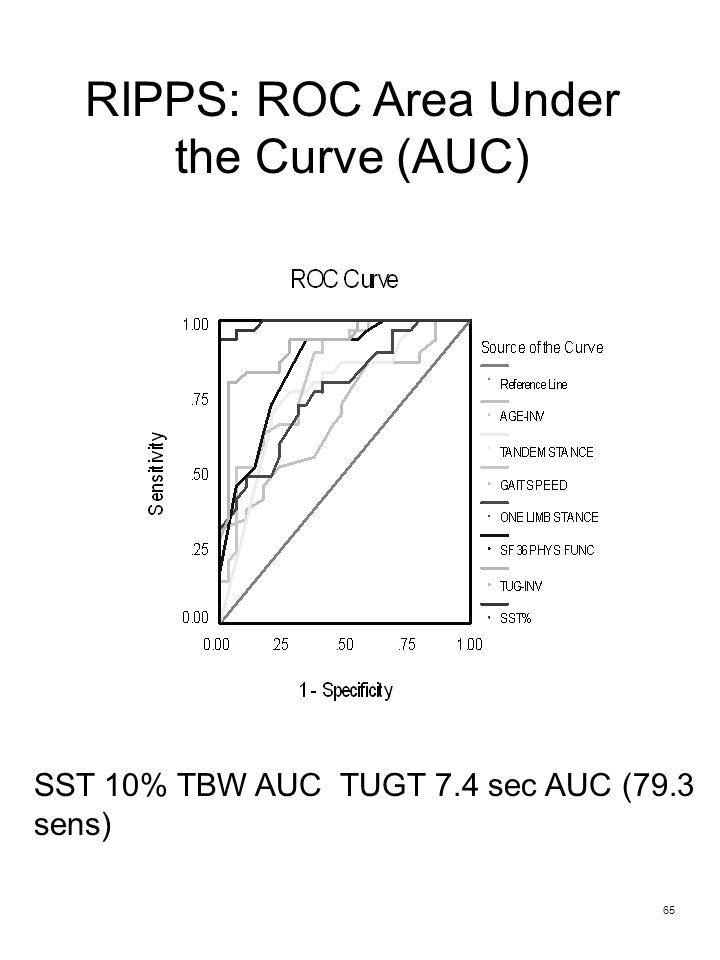

65 SST 10% TBW AUC TUGT 7.4 sec AUC (79.3 sens) RIPPS: ROC Area Under the Curve (AUC)
66

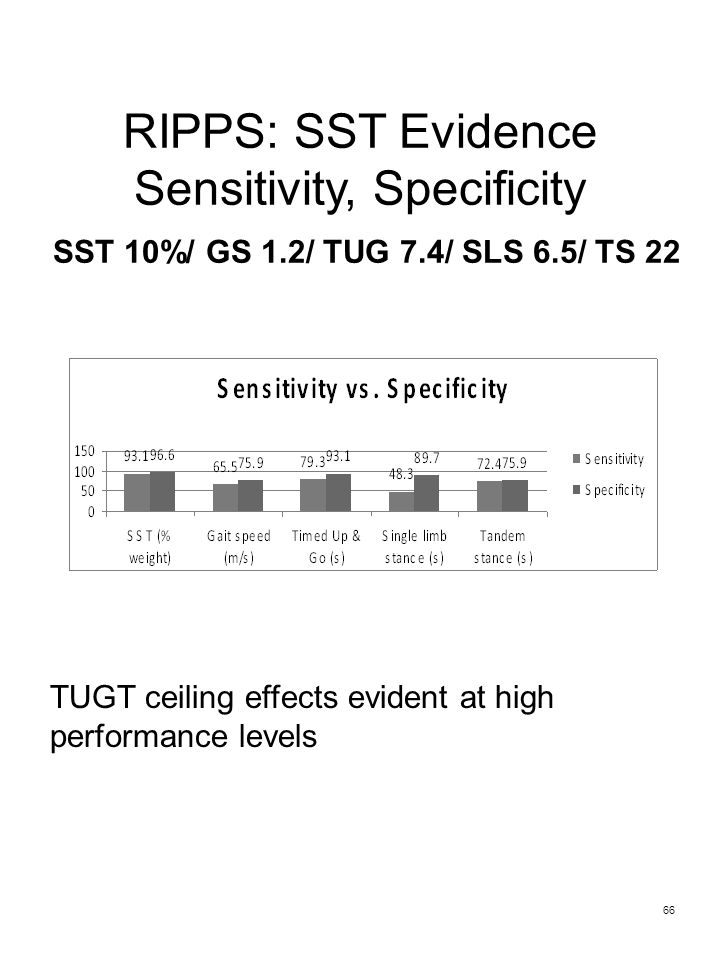

66 RIPPS: SST Evidence Sensitivity, Specificity SST 10%/ GS 1.2/ TUG 7.4/ SLS 6.5/ TS 22 TUGT ceiling effects evident at high performance levels
67
RIPPS: SST Evidence Balance-Related Measures TUGT: fallers; 28/29 (97%) within norm published decade specific 95% CI (Bohannon, JGPT’09). 26 SLST: correctly ID fallers 35%; non- fallers falsely ID 38% based on published 95% CI (Bohannon, Top Ger Rehab’06). 27 67
68
RIPPS: SST Evidence Balance-Related Measures TST: 10 sec. Cutoff failed to ID 52% fallers; false + ID 14% non-fallers. (Guralnik, 2000). 28 Gait speed: mean vel. >1.0m/sec for both groups significant for community walking (Fritz, Lusardi JGPT’ 09). 29 68
69

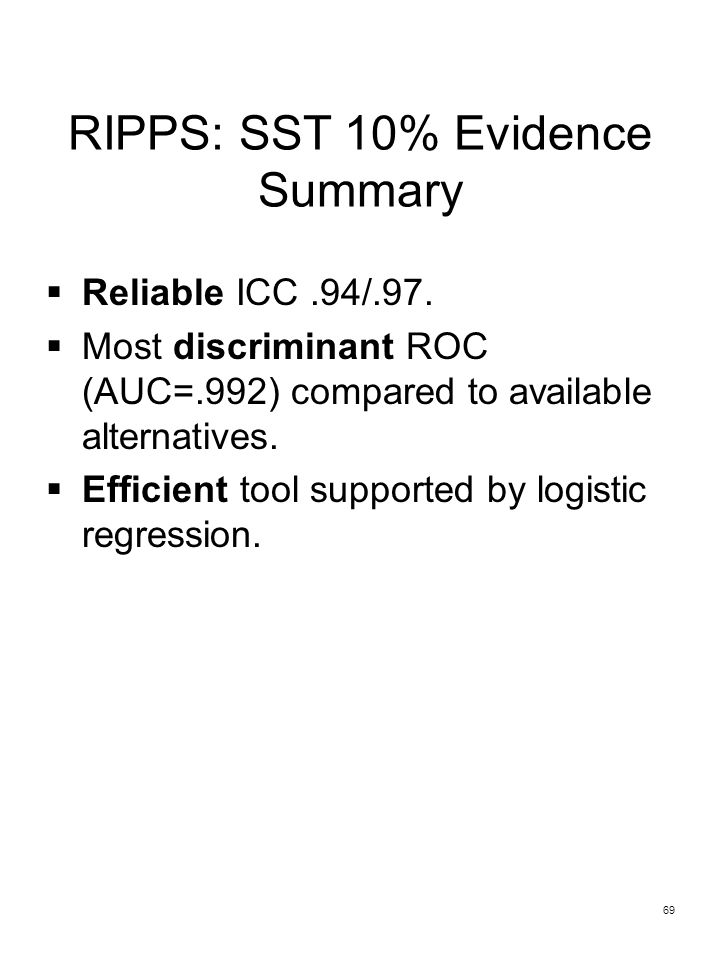

RIPPS: SST 10% Evidence Summary Reliable ICC.94/.97. Most discriminant ROC (AUC=.992) compared to available alternatives. Efficient tool supported by logistic regression. 69
70
RIPPS: Stepping Applications Threshold and Direction Limits Stepping 70
71
RIPPS: SST Evidence (n=58) Directional Threshold Steps 71 N AFANFPFPNF Rear Stepping Forward Stepping Fallers exhibit higher frequency multiple steps Fallers exhibit threshold steps
72

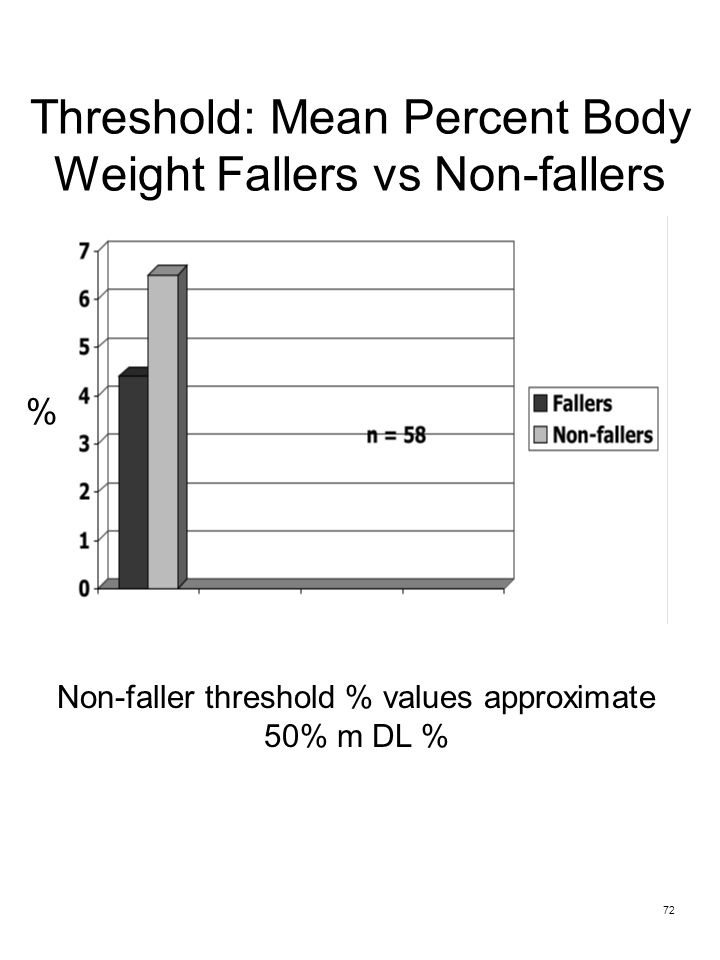

Threshold: Mean Percent Body Weight Fallers vs Non-fallers 72 % Non-faller threshold % values approximate 50% m DL %
73
RIPPS Threshold Application Fallers: lower % TBW threshold Fallers: multiple step threshold responses (>50%) RIPPS intervention goal: threshold % TBW force and # steps 73
74

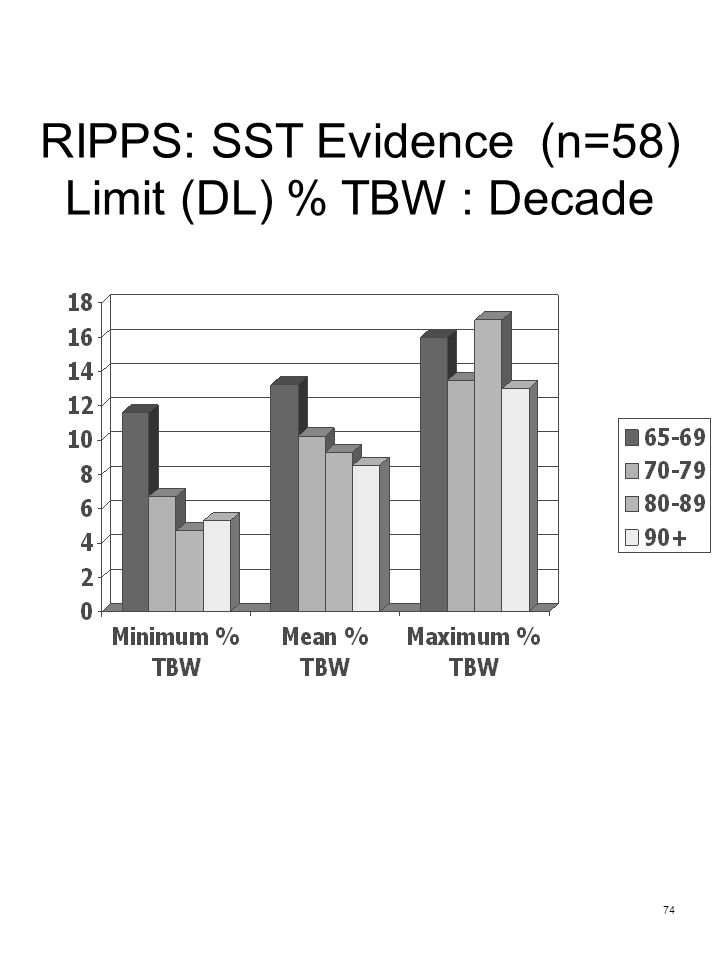

RIPPS: SST Evidence (n=58) Limit (DL) % TBW : Decade 74
75
RIPPS: SST Evidence DL Step Responses 75 N Rear Stepping Forward Stepping Fallers: stepping frequency
76
Mean Limit % Body Weight: Fallers vs Non-fallers (n=58) 76 % 10 % TBW achieved by all decades
77

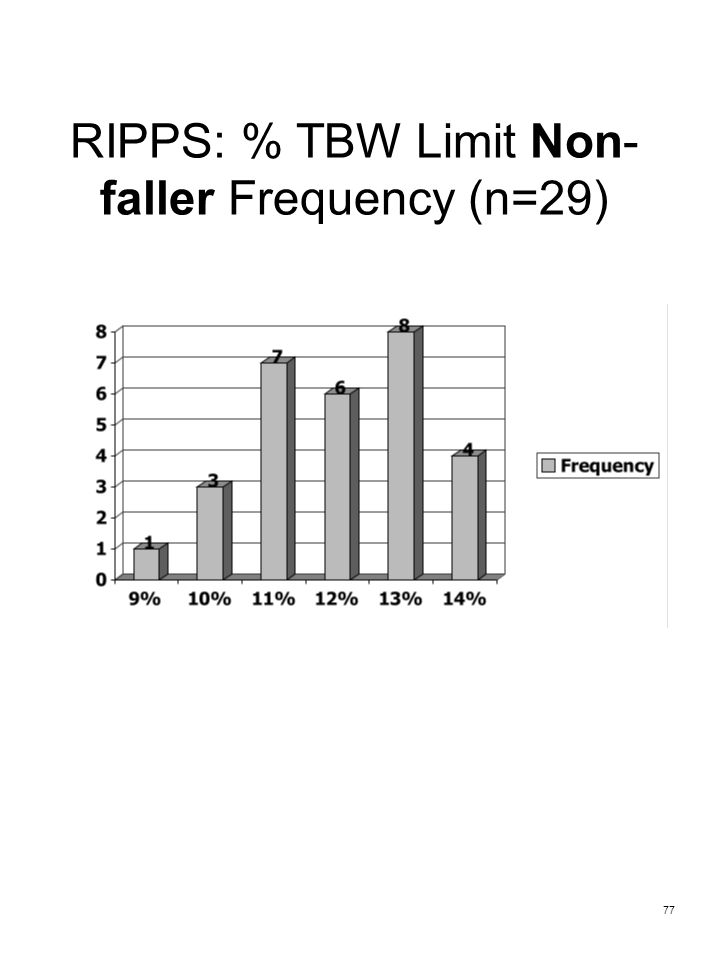

RIPPS: % TBW Limit Non- faller Frequency (n=29) 77
78

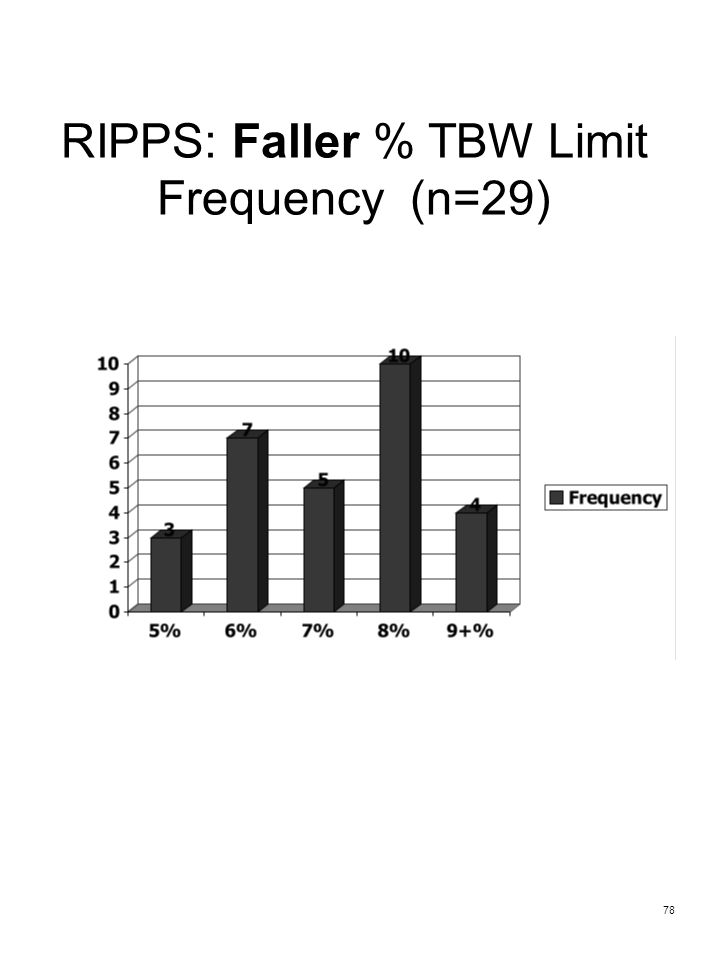

RIPPS: Faller % TBW Limit Frequency (n=29) 78
79
RIPPS: SST Evidence Step Responses in Old and Young 5% TBW:UI (un-impaired) 1.14f/1.60r steps vs BI (balance impaired) 1.63f/2.11r steps. (Schultz,’05). 21 SST: NF:1.43r/1.45f, F: 2.41r/2.17f Of note: Young adults: 10% TBW (avg. thresh) 1.07/1.0(r/f). (Unpub. IRB study). SST results in agreement with lab-based random method study by Schultz. 79
80
RIPPS: Stepping Significance Multi-step responses are not innocuous. Each additional step is destabilizing presenting additional opportunity for adverse responses, increasing fall risk. (Maki B, et al. J Gerontol A Bio Sci Med Sci. 2000). 42 80
81
RIPPS: Stepping Significance Altered stepping may be viewed as an emergent feature of multiple impairments associated with falls. (Hanke, JGPT, 2006). 40 Aging affects stepping responses. Following perturbation training a reduction of 0.5 steps will have functional significance. (Mansfield A, BMC Ger. 2007). 41 81
82
RIPPS: Application DL Stepping RIPPS goals: number DL steps DL % TBW DL step length 82
83
Non-fallers Fallers Anticipatory anxiety, efficient strategy shift Smooth, proportional scaling accommodation (loading) Fewer, well defined steps 5% TBW threshold 12.3% DL mean Reactive anxiety, inefficient Hip strategy, UE Disproportionate scaling Multiple shorter, poorly defined steps low threshold % TBW 7.5% DL mean 83
84
RIPPS: 10 % TBW Stepping Responses Clinical Significance Evidence 84
85
RIPPS 10% TBW Step Responses: Fallers vs Non-fallers 85 3 1-2 step response common at 10% TBW [Younger adults exhibit threshold at 10% TBW] STEPS N
86
RIPPS: 10% TBW Non-faller Responses Anticipatory, well – defined 1-2 steps Anticipatory, min-reactive, low anxiety Should not be DL value (reserve) Report subjective significant effort 86
87
RIPPS: SST Evidence 10% TBW Discussion Valid and reliable. Most discriminant to fall history. Excellent positive and negative predictive values for ID fall status. Sensitivity (snout) and specificity (spin) > 90% useful as a diagnostic tool. 87
88
RIPPS Applications: Functional mobility correlates RIPPS 10% DL : ID stepping reserve deficits requiring intervention. (no device) RIPPS scores 8.5 (FOF); restricted, familiar environment community integration with cane. < 8.0%; walker @ level 6 or cane level 4/5 assist. (further study). 88
89
RIPPS: SST Evidence 10% TBW Discussion Efficient ID fall status in active older persons with less pronounced deficits. Applications in both wellness and impaired populations. Assessment and treatment application. Early detection of ‘concealed’ deficits. Appropriate for various clinical settings 89
90

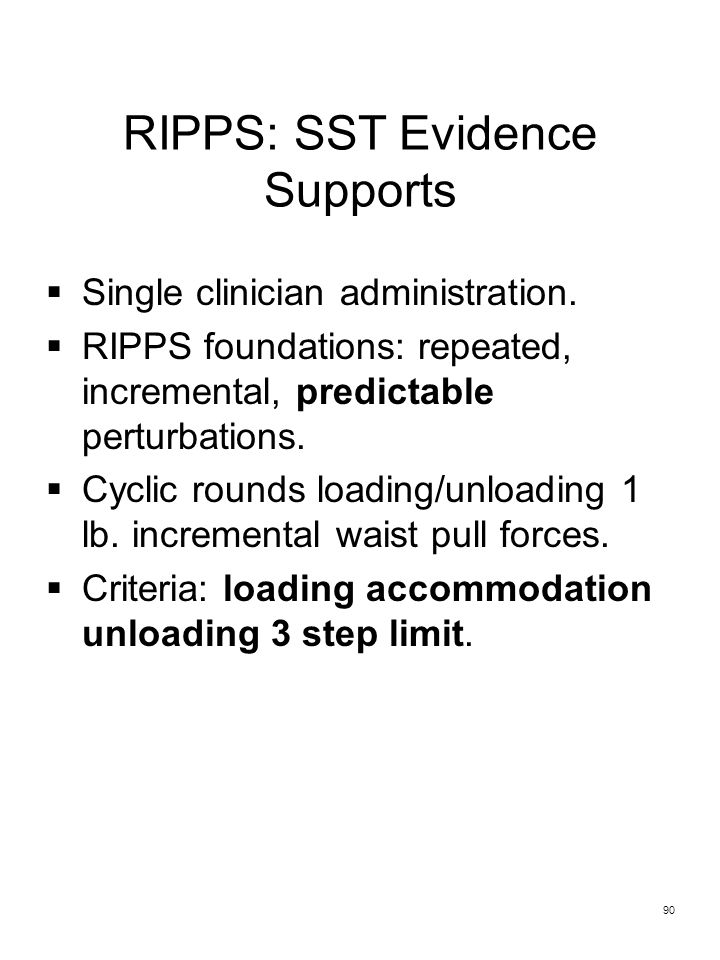

RIPPS: SST Evidence Supports Single clinician administration. RIPPS foundations: repeated, incremental, predictable perturbations. Cyclic rounds loading/unloading 1 lb. incremental waist pull forces. Criteria: loading accommodation unloading 3 step limit. 90
91
RIPPS: SST Evidence Summary Quantifies stepping balance domain, not currently in clinical use. (Mansfield). 14 Percent of total body weight (% TBW) as a quantitative balance “measuring stick” 91
92

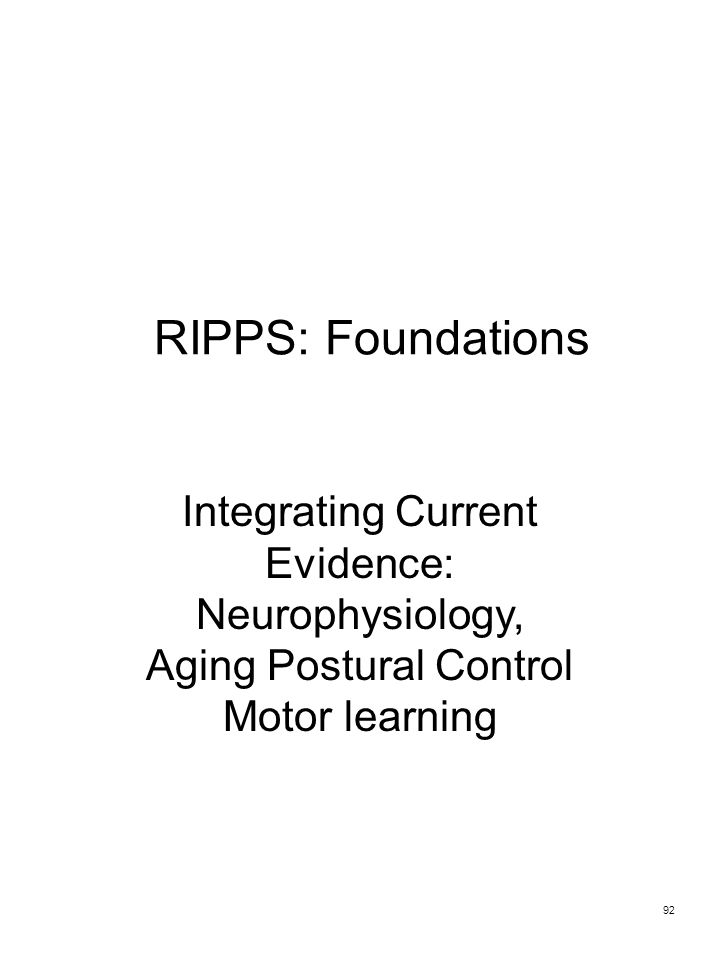

RIPPS: Foundations Integrating Current Evidence: Neurophysiology, Aging Postural Control Motor learning 92
93
RIPPS Foundation: Aging Neuromuscular changes Selective atrophy type II ftm fibers. number of muscle fibers & spinal cord axons. 1/3 muscle mass by age 80. reaction time, latency, response amplitude, NCV. Later motor fiber loss Selective loss in anatomical structure and physiologic function of large A myelinated fibers (spindles, GTO, joint afferents, proprioceptor/kinethesia). Vestibular hair cell loss 93
94

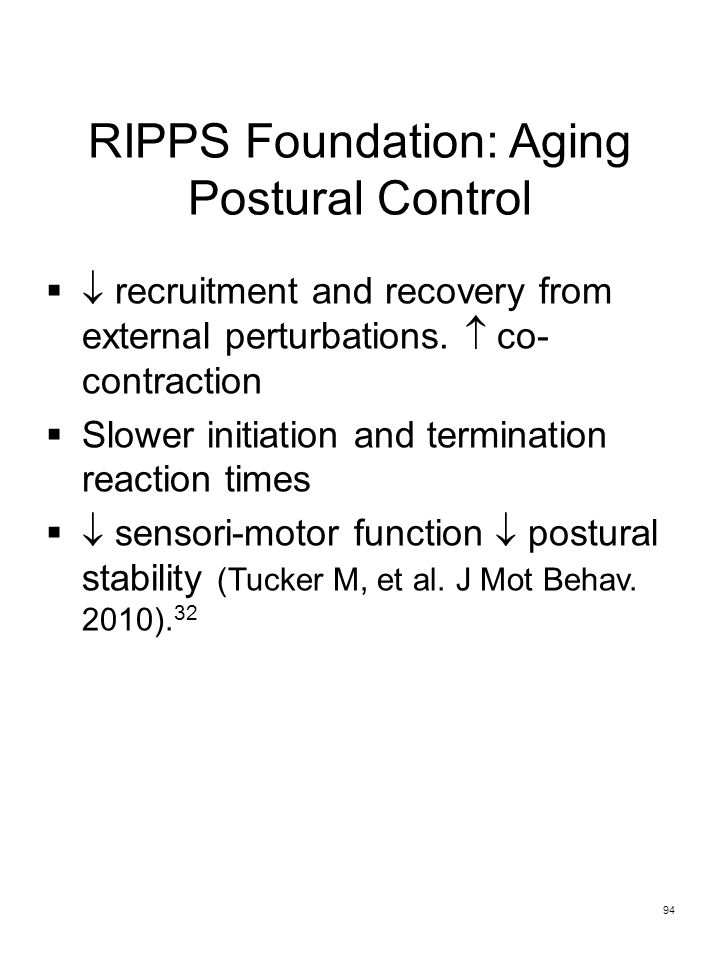

RIPPS Foundation: Aging Postural Control recruitment and recovery from external perturbations. co- contraction Slower initiation and termination reaction times sensori-motor function postural stability (Tucker M, et al. J Mot Behav. 2010). 32 94
95
RIPPS Neurophysiology: Scaling Scaling of automatic postural responses occurs in direct proportion to the magnitude of the imposed disequilibrium utilizing anticipatory predictive mechanisms based upon prior experience. (Horak, PTJ, 1997). 38 Scaling is based on both the direct sensory characteristics such as initial perturbation speed and anticipatory mechanisms. 95
96
RIPPS Foundation: Single Trial First Trial Reactions (Oude L, et al. J Neurophys, 2009). 30 Does inclusion of first trial reactions add extra information in discriminating between normal and balance impaired individuals? Message: FTR’s are significant within a predictable context incorporating SINGLE TRIAL format. 96
97
RIPPS Foundation: Single Trial First Trial Response FTR (Allum J, et al. Hum Mov Sci. 2011). 31 FTRs associated with trunk flexion, exaggerated postural responses Associated with postural instability Vestibular modulating, no trigger role Proprioceptive triggering, [unresolved] Link between FTRs and balance? RIPPS first trial performance criteria 97
98
RIPPS: Neurophysiology: Proactive - Reactive Control Proactive and reactive responses play key role in dynamic standing balance control via feed forward control to continuously update internal model of COM stability region (Pai, Jl. Neurophys, 2003). 33 98
99
RIPPS Neurophysiology: Reactive Proactive May be dominant in avoiding a fall when perturbations are less certain. Pavol 34 Reactive stepping has a critical importance in fall prevention. Pai 33 reliance on reactive response in uncertain conditions. Pavol 34 stability with a reliance on reactive responses. Pai 22 99
100
RIPPS Neurophysiology: Reactive Proactive Generated via sensorimotor feedback (VISION) unpredictable. Can modify behavior in progress, automatic (trip) or volitional step. (Tseng et al. Jl Gerontolol A Biol Sci Med Sci 2009). 35 Based on a feed- forward movement plan, predictable. Highly effective when perturbation direction is foreseeable. Pai 33 100
101

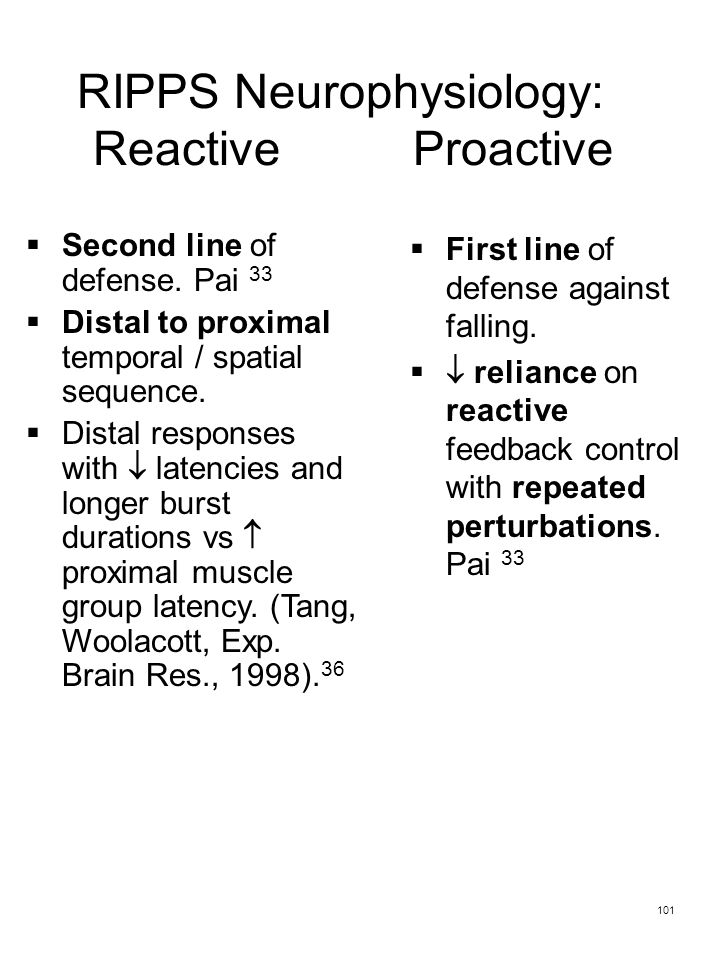

RIPPS Neurophysiology: Reactive Proactive Second line of defense. Pai 33 Distal to proximal temporal / spatial sequence. Distal responses with latencies and longer burst durations vs proximal muscle group latency. (Tang, Woolacott, Exp. Brain Res., 1998). 36 First line of defense against falling. reliance on reactive feedback control with repeated perturbations. Pai 33 101
102

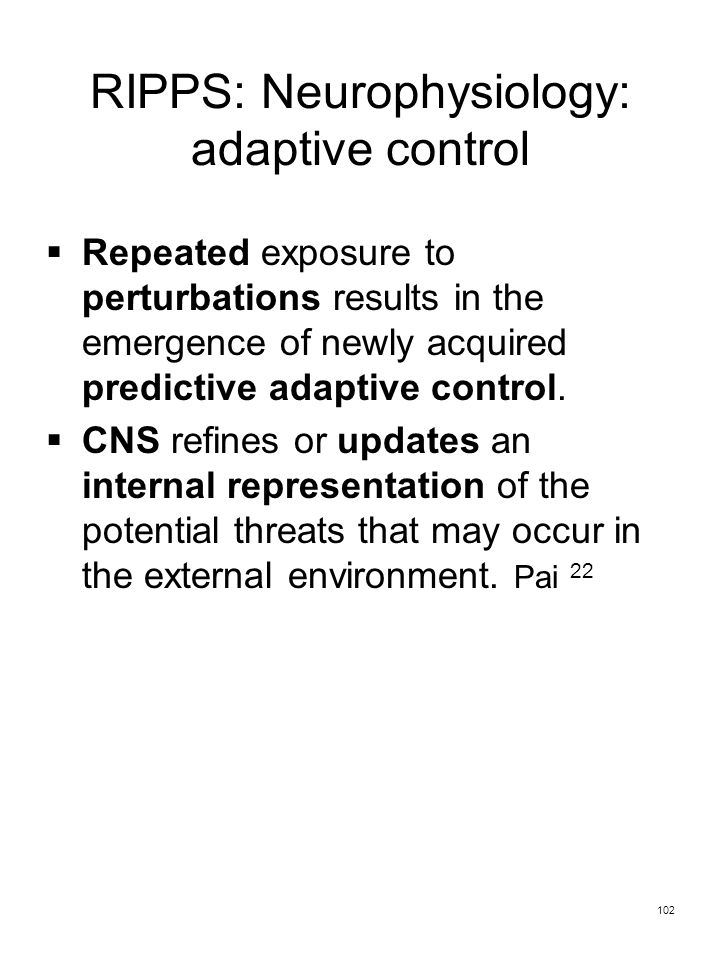

RIPPS: Neurophysiology: adaptive control Repeated exposure to perturbations results in the emergence of newly acquired predictive adaptive control. CNS refines or updates an internal representation of the potential threats that may occur in the external environment. Pai 22 102
103

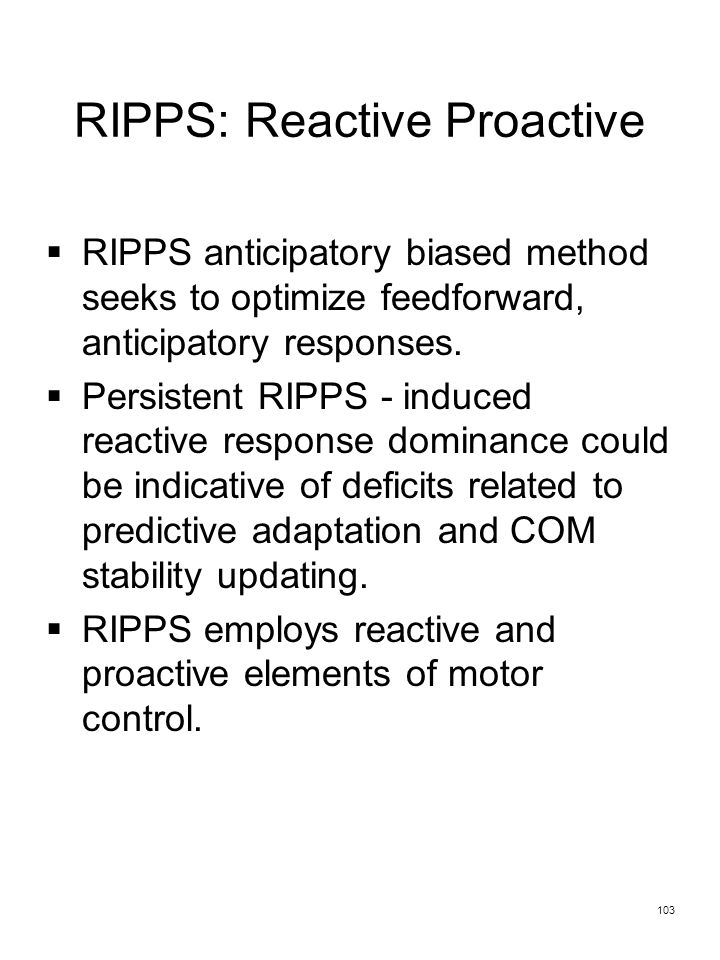

RIPPS: Reactive Proactive RIPPS anticipatory biased method seeks to optimize feedforward, anticipatory responses. Persistent RIPPS - induced reactive response dominance could be indicative of deficits related to predictive adaptation and COM stability updating. RIPPS employs reactive and proactive elements of motor control. 103
104

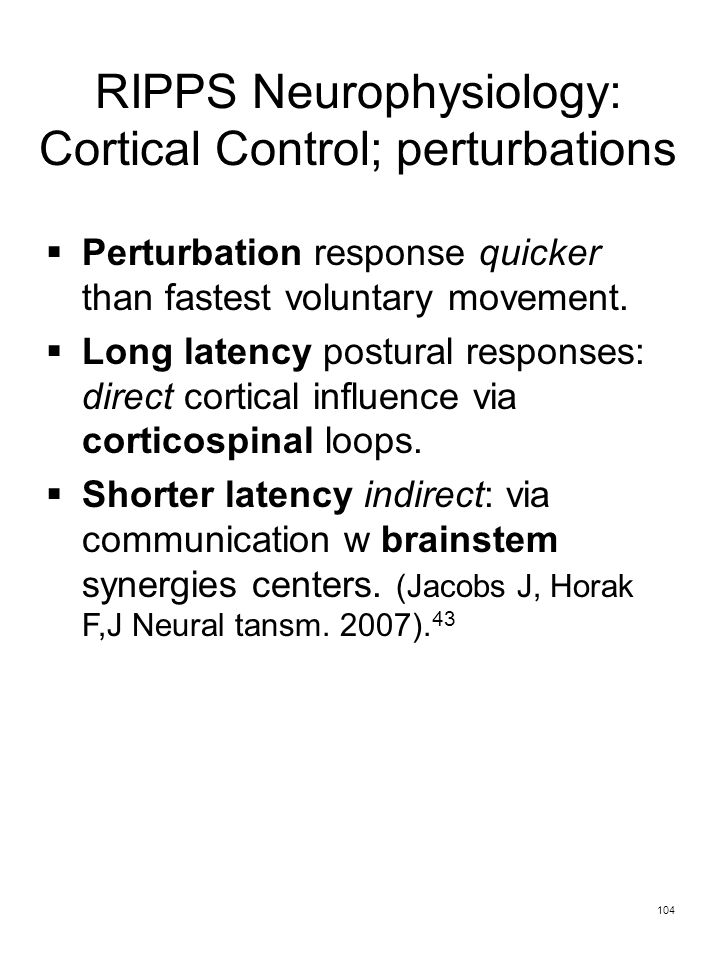

RIPPS Neurophysiology: Cortical Control; perturbations Perturbation response quicker than fastest voluntary movement. Long latency postural responses: direct cortical influence via corticospinal loops. Shorter latency indirect: via communication w brainstem synergies centers. (Jacobs J, Horak F,J Neural tansm. 2007). 43 104
105

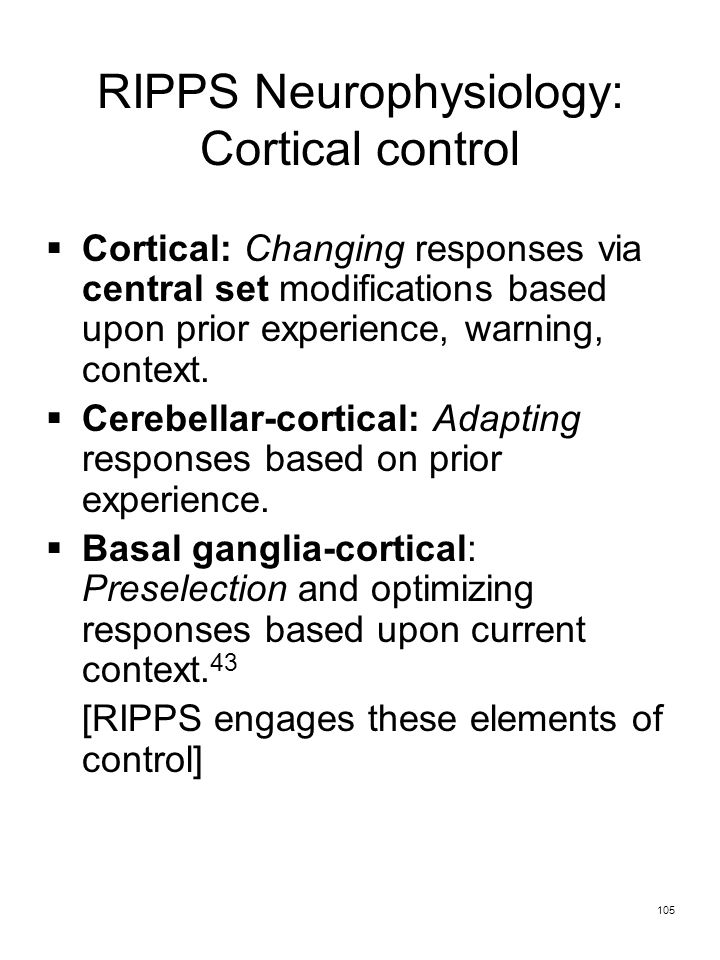

RIPPS Neurophysiology: Cortical control Cortical: Changing responses via central set modifications based upon prior experience, warning, context. Cerebellar-cortical: Adapting responses based on prior experience. Basal ganglia-cortical: Preselection and optimizing responses based upon current context. 43 [RIPPS engages these elements of control] 105
106

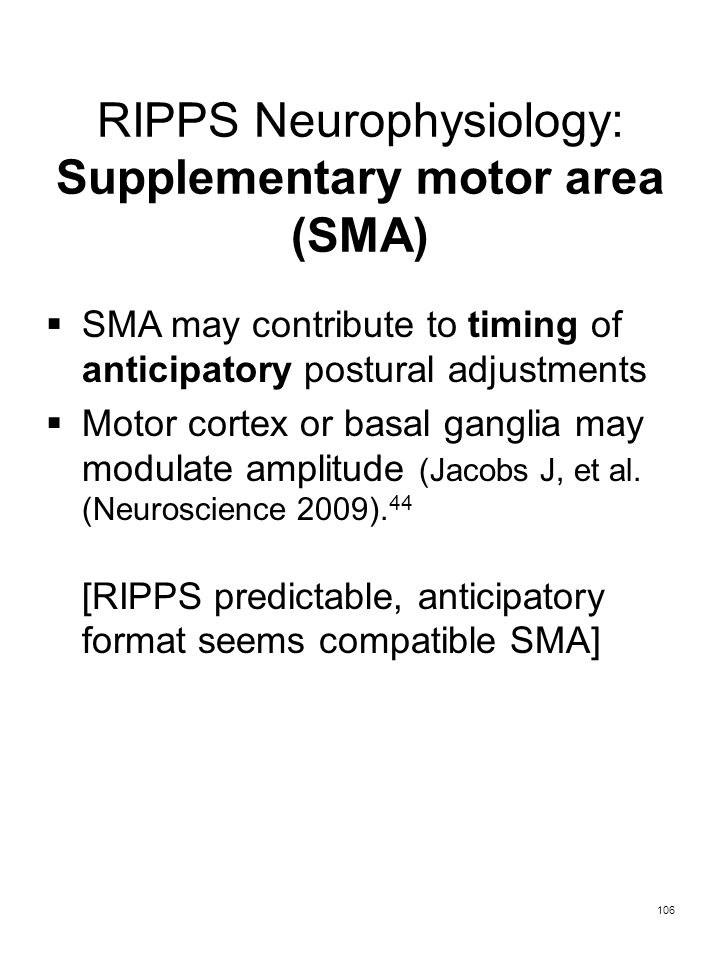

RIPPS Neurophysiology: Supplementary motor area (SMA) SMA may contribute to timing of anticipatory postural adjustments Motor cortex or basal ganglia may modulate amplitude (Jacobs J, et al. (Neuroscience 2009). 44 [RIPPS predictable, anticipatory format seems compatible SMA] 106
107

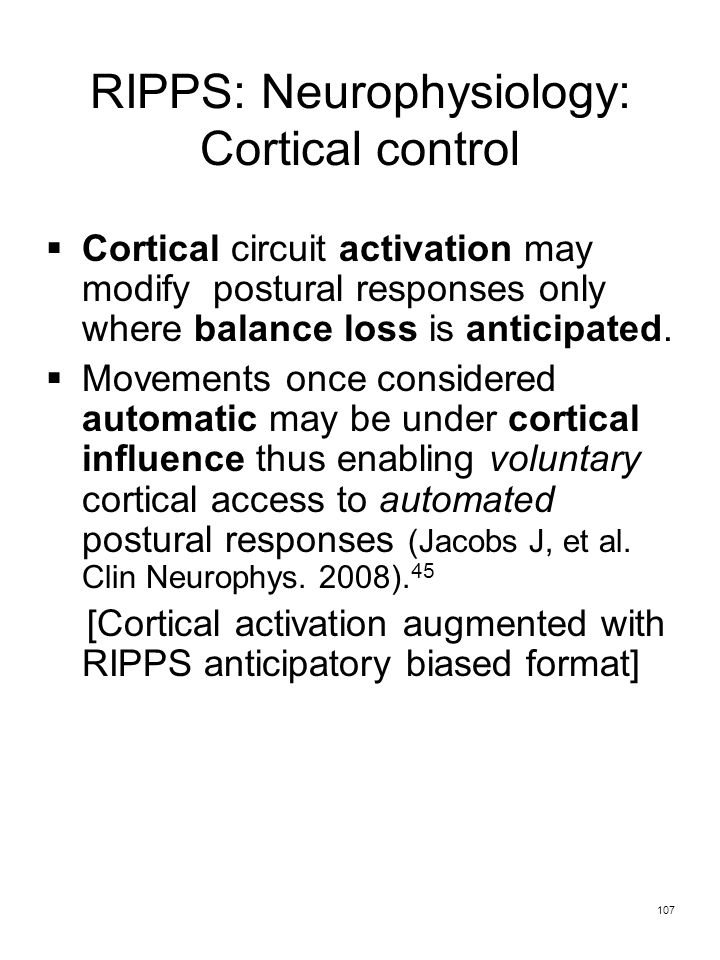

RIPPS: Neurophysiology: Cortical control Cortical circuit activation may modify postural responses only where balance loss is anticipated. Movements once considered automatic may be under cortical influence thus enabling voluntary cortical access to automated postural responses (Jacobs J, et al. Clin Neurophys. 2008). 45 [Cortical activation augmented with RIPPS anticipatory biased format] 107
108

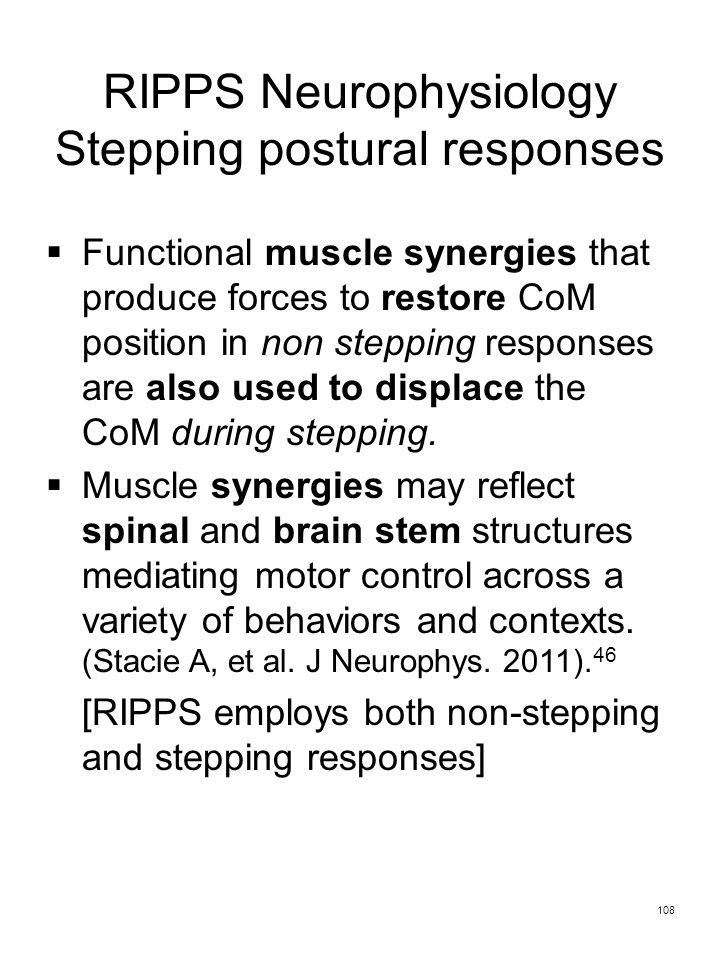

RIPPS Neurophysiology Stepping postural responses Functional muscle synergies that produce forces to restore CoM position in non stepping responses are also used to displace the CoM during stepping. Muscle synergies may reflect spinal and brain stem structures mediating motor control across a variety of behaviors and contexts. (Stacie A, et al. J Neurophys. 2011). 46 [RIPPS employs both non-stepping and stepping responses] 108
109
RIPPS: Neurophysiology Voluntary vs Induced Stepping Reactive voluntary time stepping: 1.waist pull perturbation 2.SOM waist tug 3.audible cue Perturbation training resulted in greater IT improvement vs AUD transfer cue task. Repeated application of stimuli could enhance the synaptic effectiveness of step pathways in common neural circuits with voluntary stepping. (Rogers,Jl Gerontol’03). 19 109
110

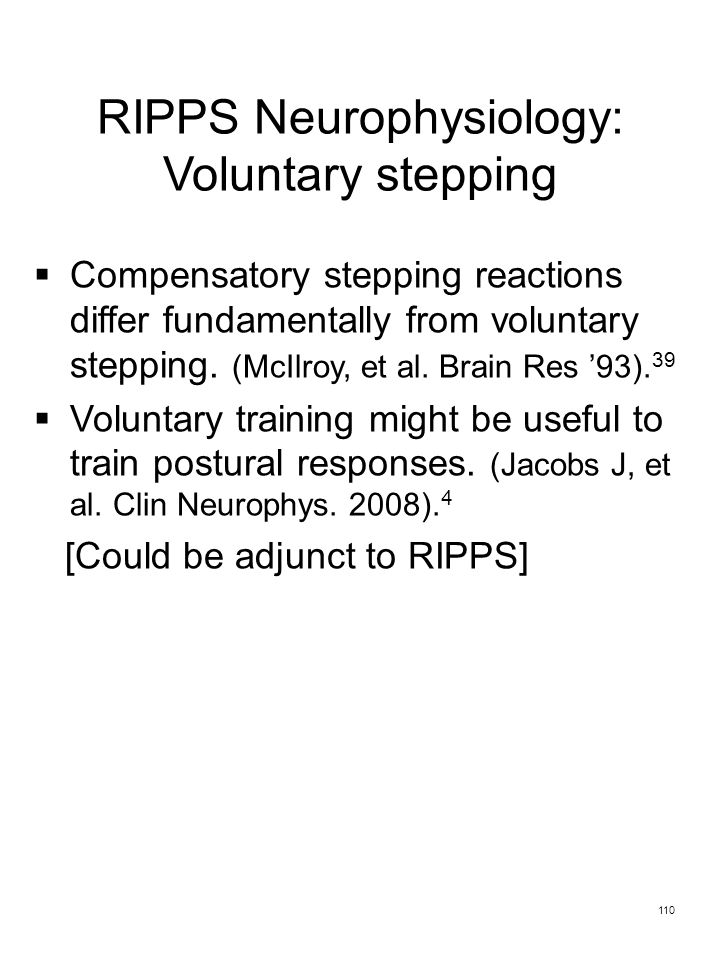

RIPPS Neurophysiology: Voluntary stepping Compensatory stepping reactions differ fundamentally from voluntary stepping. (McIlroy, et al. Brain Res ’93). 39 Voluntary training might be useful to train postural responses. (Jacobs J, et al. Clin Neurophys. 2008). 4 [Could be adjunct to RIPPS] 110
111

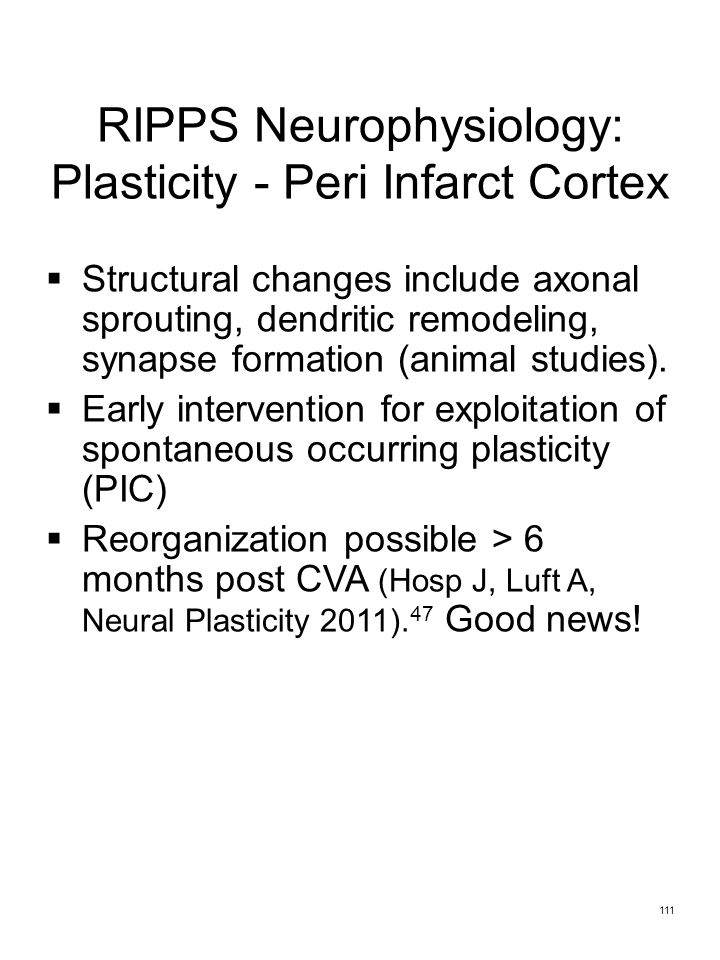

RIPPS Neurophysiology: Plasticity - Peri Infarct Cortex Structural changes include axonal sprouting, dendritic remodeling, synapse formation (animal studies). Early intervention for exploitation of spontaneous occurring plasticity (PIC) Reorganization possible > 6 months post CVA (Hosp J, Luft A, Neural Plasticity 2011). 47 Good news! 111
112

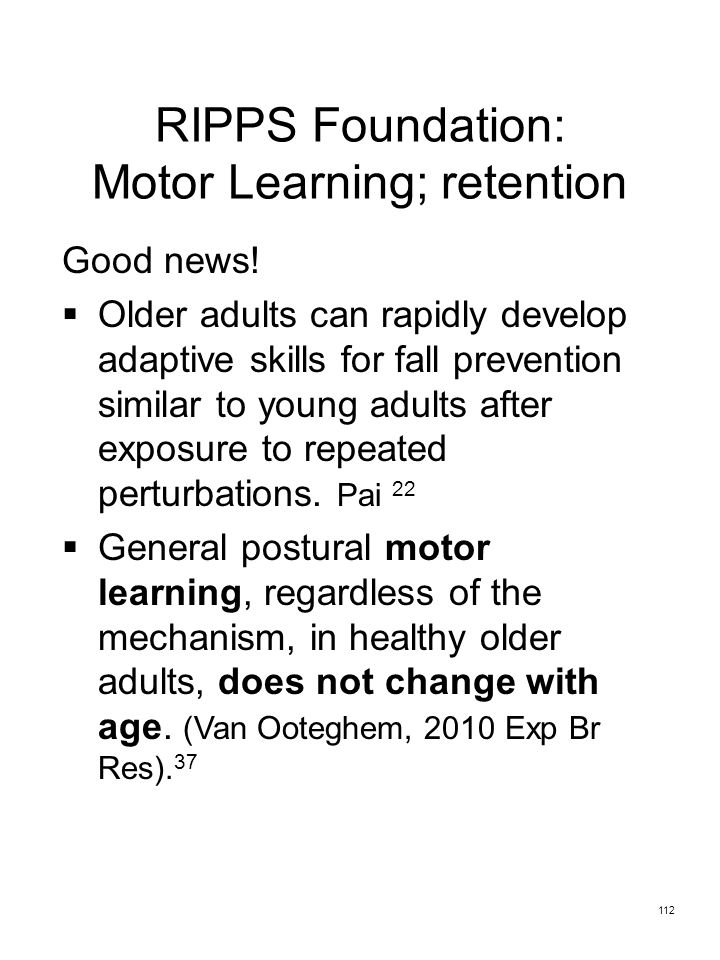

RIPPS Foundation: Motor Learning; retention Good news! Older adults can rapidly develop adaptive skills for fall prevention similar to young adults after exposure to repeated perturbations. Pai 22 General postural motor learning, regardless of the mechanism, in healthy older adults, does not change with age. (Van Ooteghem, 2010 Exp Br Res). 37 112
113

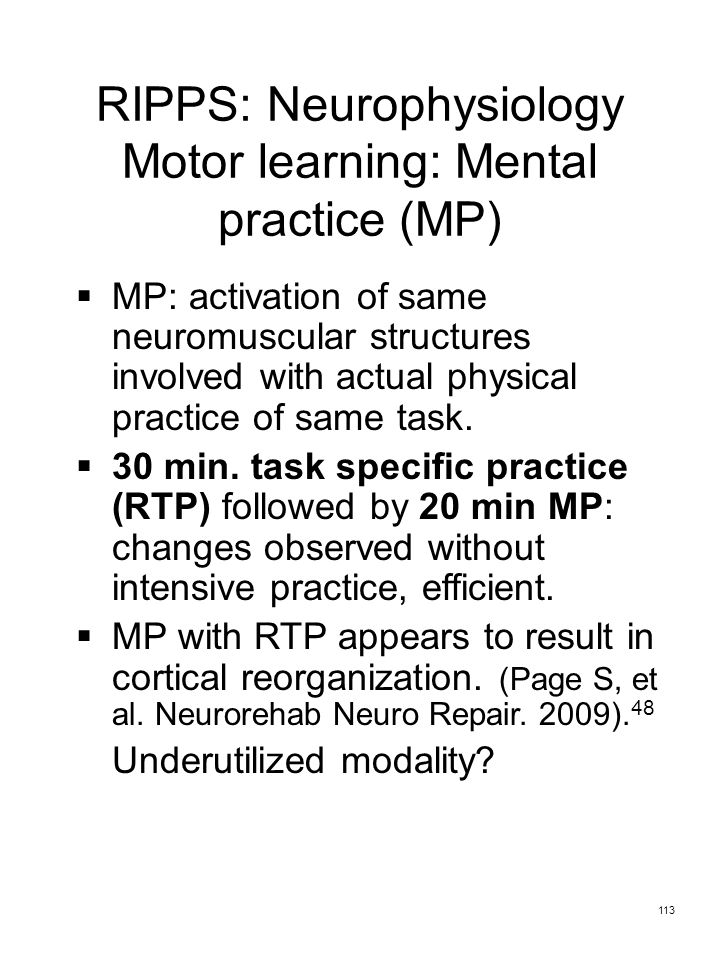

RIPPS: Neurophysiology Motor learning: Mental practice (MP) MP: activation of same neuromuscular structures involved with actual physical practice of same task. 30 min. task specific practice (RTP) followed by 20 min MP: changes observed without intensive practice, efficient. MP with RTP appears to result in cortical reorganization. (Page S, et al. Neurorehab Neuro Repair. 2009). 48 Underutilized modality? 113
114

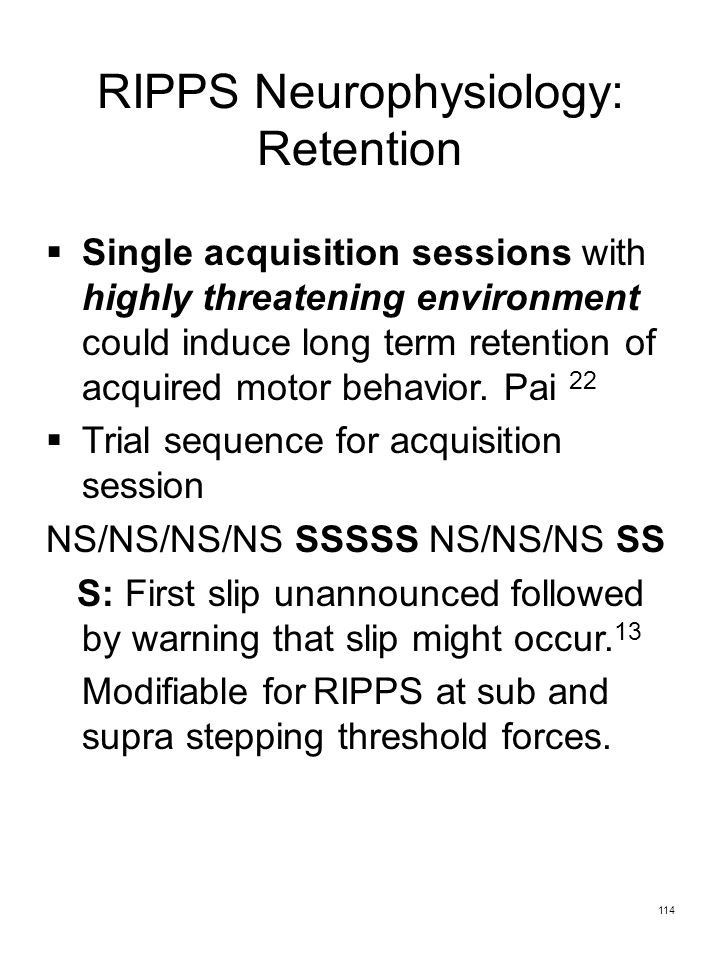

RIPPS Neurophysiology: Retention Single acquisition sessions with highly threatening environment could induce long term retention of acquired motor behavior. Pai 22 Trial sequence for acquisition session NS/NS/NS/NS SSSSS NS/NS/NS SS S: First slip unannounced followed by warning that slip might occur. 13 Modifiable for RIPPS at sub and supra stepping threshold forces. 114
115
RIPPS Neurophysiology Motor learning Perturbation-based training combined with power/high-velocity resistance training may have the potential to improve neuromuscular capacities for balance - threatening conditions. (Granacher U, et al. Sports med. 2011). 49 [RIPPS specificity for induced stepping] 115
116

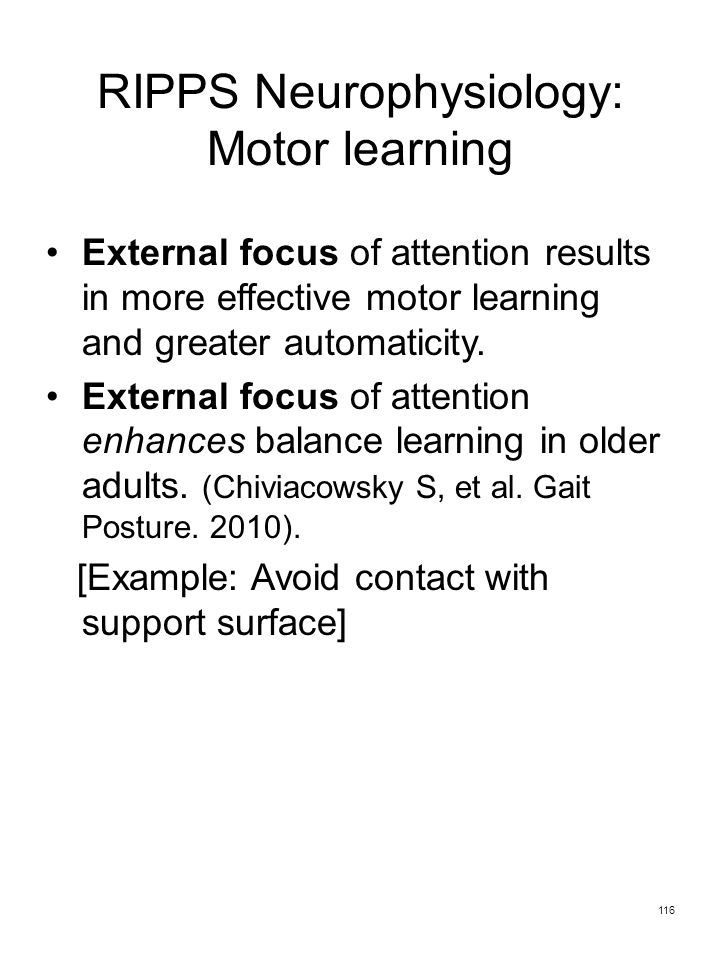

RIPPS Neurophysiology: Motor learning External focus of attention results in more effective motor learning and greater automaticity. External focus of attention enhances balance learning in older adults. (Chiviacowsky S, et al. Gait Posture. 2010). [Example: Avoid contact with support surface] 116
117

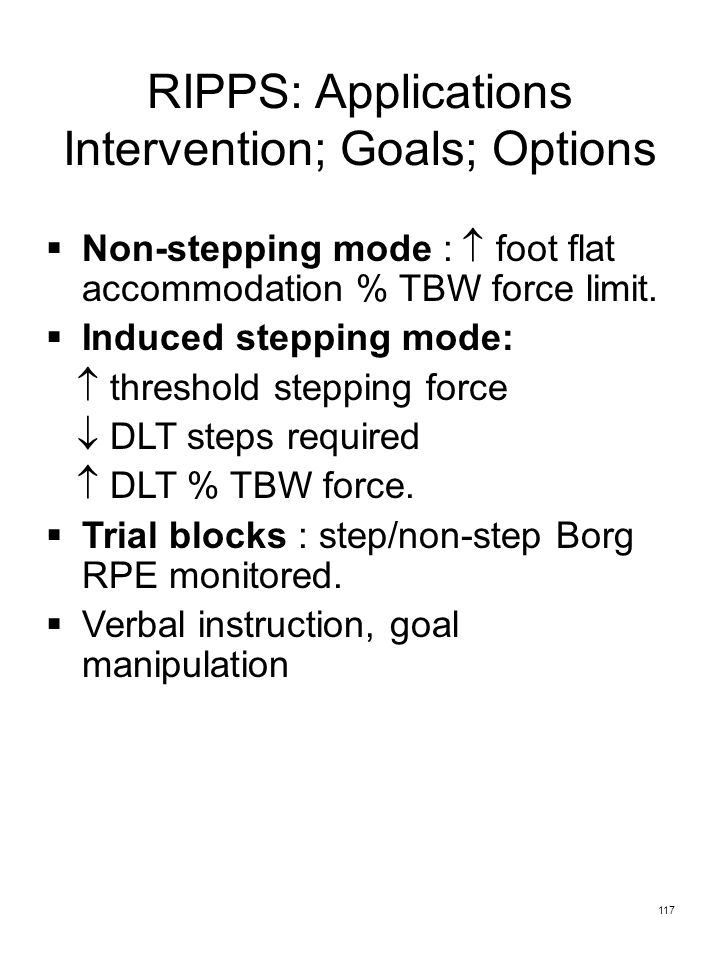

RIPPS: Applications Intervention; Goals; Options Non-stepping mode : foot flat accommodation % TBW force limit. Induced stepping mode: threshold stepping force DLT steps required DLT % TBW force. Trial blocks : step/non-step Borg RPE monitored. Verbal instruction, goal manipulation 117
118
RIPPS Applications: Retention Goal: 10% TBW directional limit scores, anterior and posterior. Retention observed for 3 consecutive sessions for 2 week interval. (personal experience, further study). 118
119
RIPPS Applications: Outside the Box Ideas Lateral stepping RIPPS % TBW (dominant foot in rear heel step stance) Non stepping limits via ankle / hip Seated RIPPS for trunk control via continuous or load / unload methods > 1lb intervals for reactive effect Protracted quasi-random 5s window 119
120

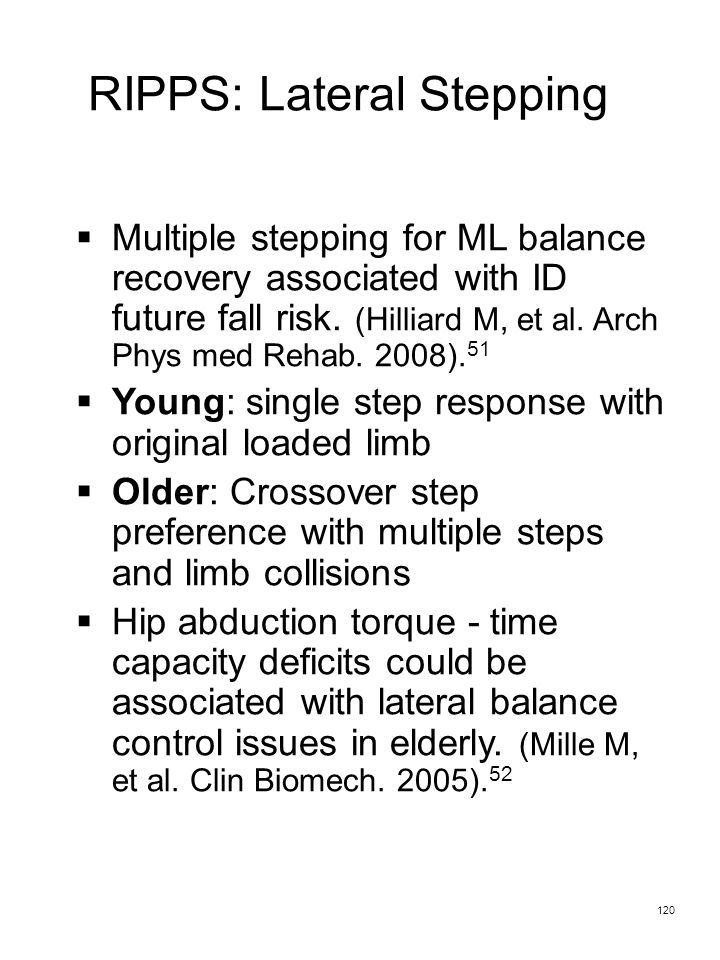

RIPPS: Lateral Stepping Multiple stepping for ML balance recovery associated with ID future fall risk. (Hilliard M, et al. Arch Phys med Rehab. 2008). 51 Young: single step response with original loaded limb Older: Crossover step preference with multiple steps and limb collisions Hip abduction torque - time capacity deficits could be associated with lateral balance control issues in elderly. (Mille M, et al. Clin Biomech. 2005). 52 120
121

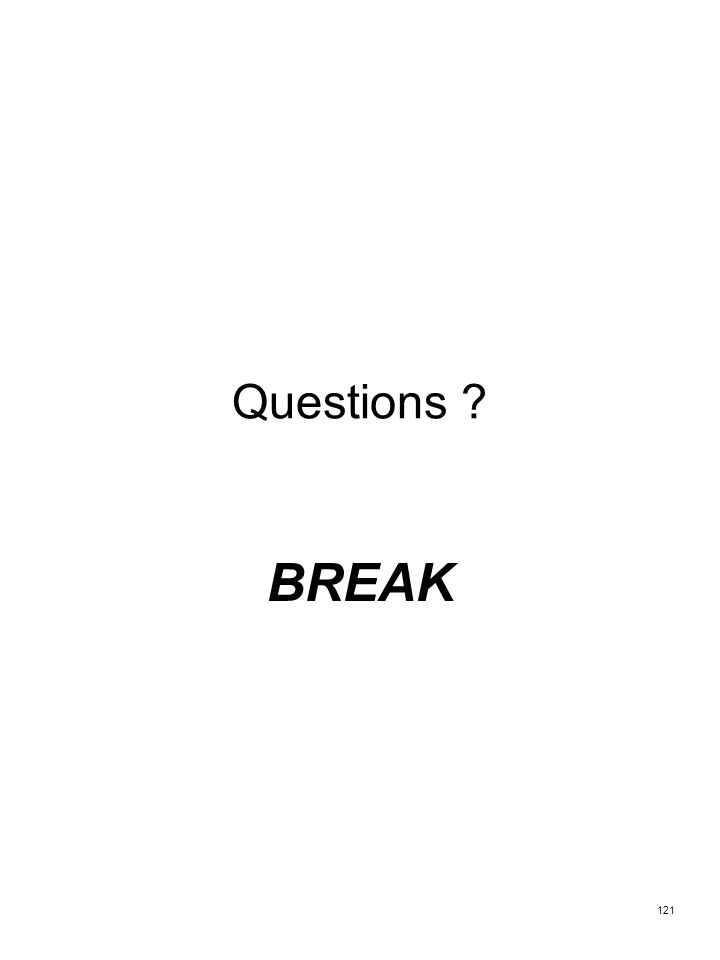

Questions ? BREAK 121
122

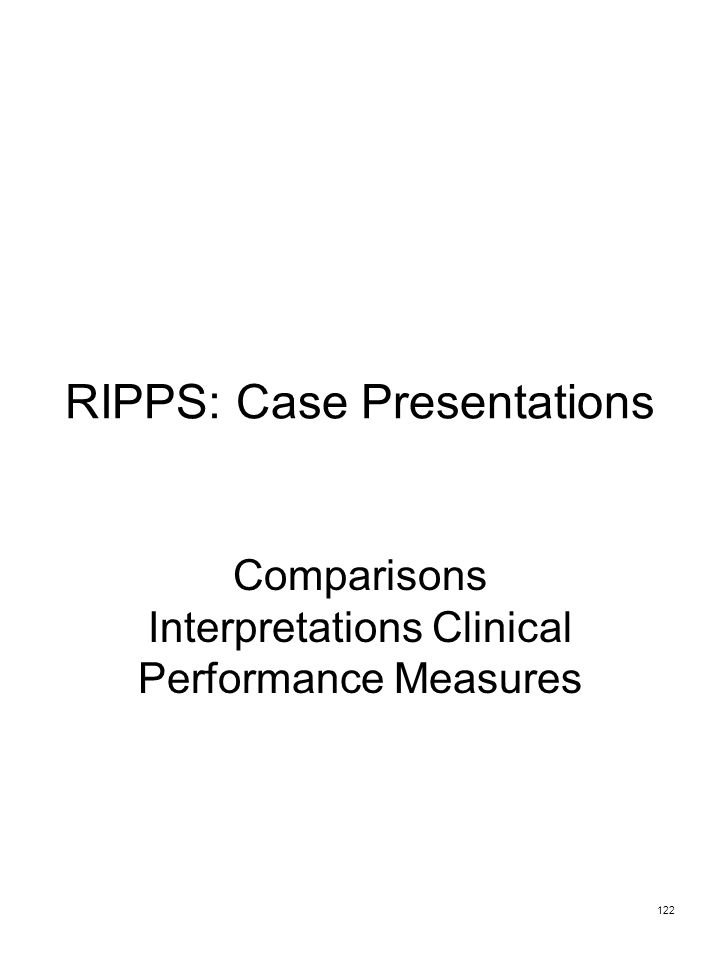

RIPPS: Case Presentations Comparisons Interpretations Clinical Performance Measures 122
123

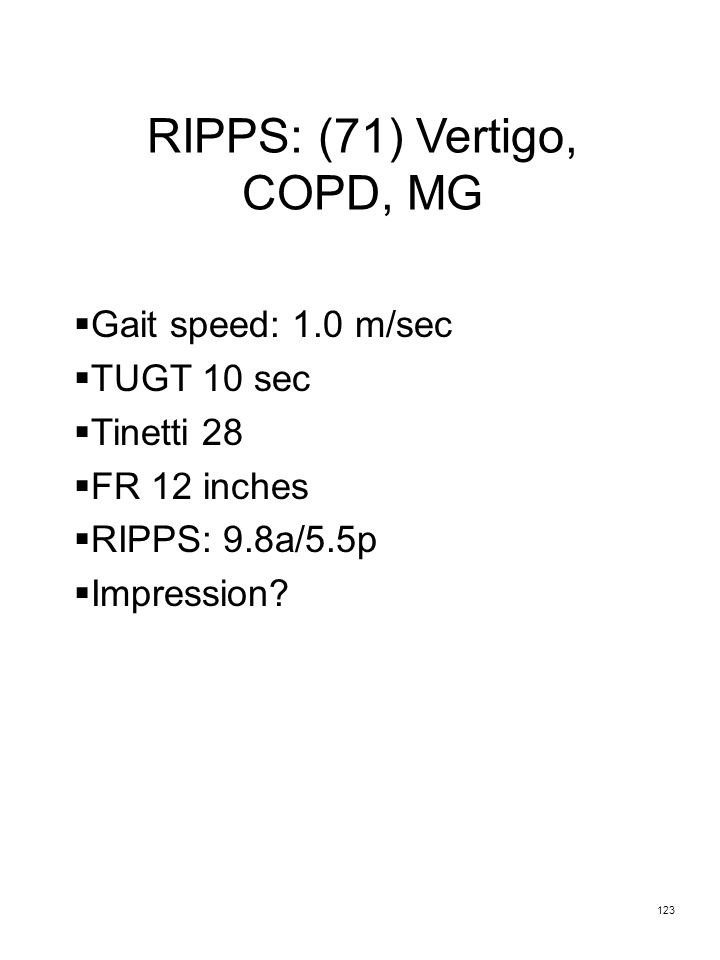

RIPPS: (71) Vertigo, COPD, MG Gait speed: 1.0 m/sec TUGT 10 sec Tinetti 28 FR 12 inches RIPPS: 9.8a/5.5p Impression? 123
124

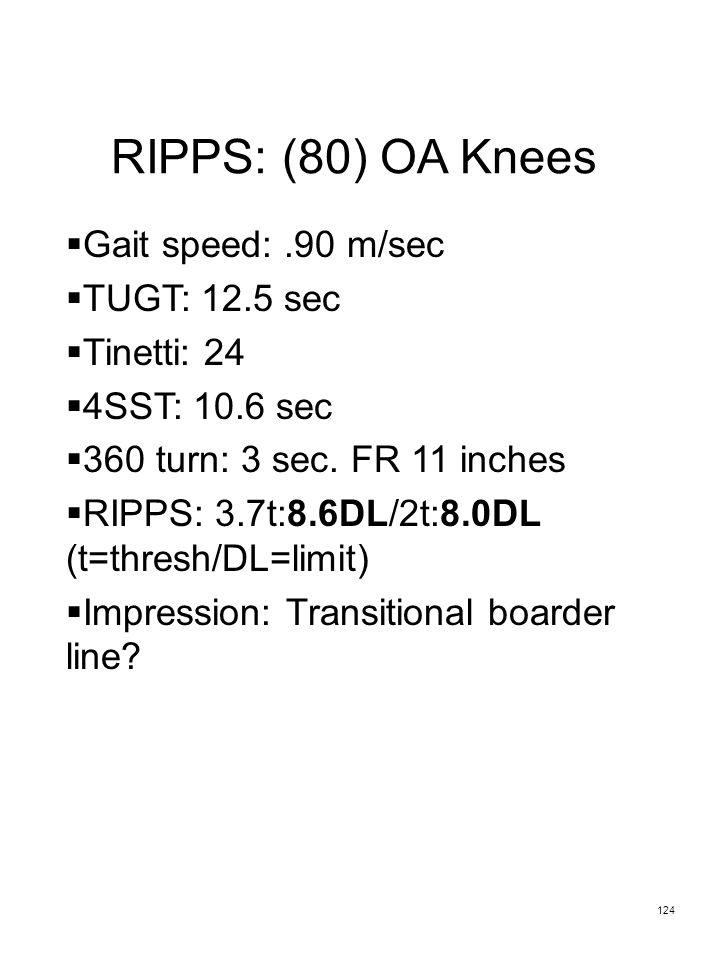

RIPPS: (80) OA Knees Gait speed:.90 m/sec TUGT: 12.5 sec Tinetti: 24 4SST: 10.6 sec 360 turn: 3 sec. FR 11 inches RIPPS: 3.7t:8.6DL/2t:8.0DL (t=thresh/DL=limit) Impression: Transitional boarder line? 124
125

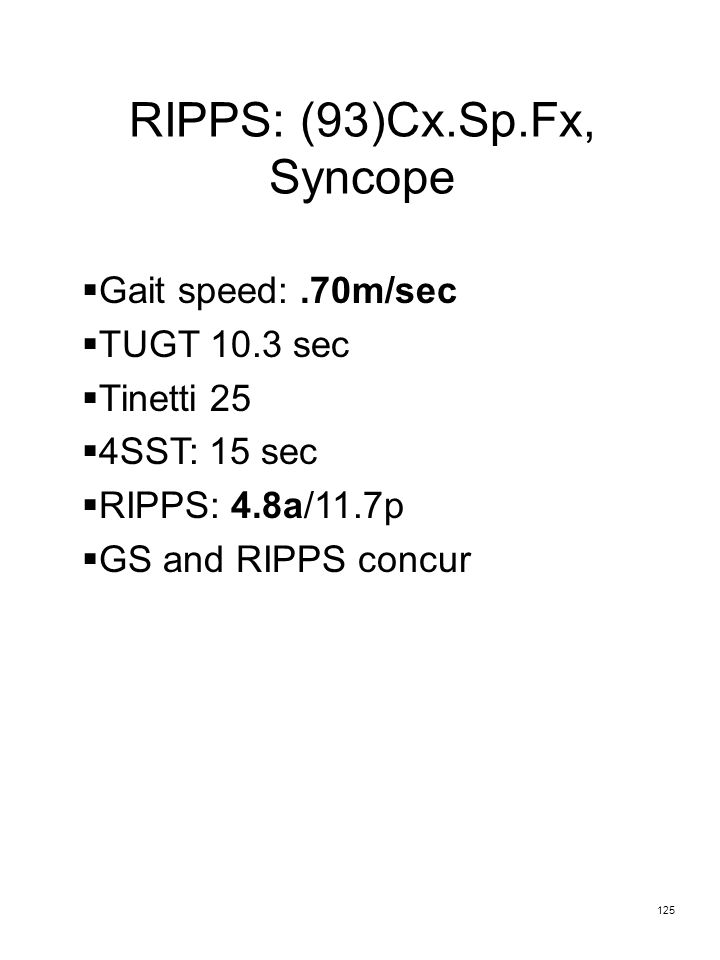

RIPPS: (93)Cx.Sp.Fx, Syncope Gait speed:.70m/sec TUGT 10.3 sec Tinetti 25 4SST: 15 sec RIPPS: 4.8a/11.7p GS and RIPPS concur 125
126
RIPPS: Cancer/Chemotherapy Gait speed: 1.0 TUGT 8.4 sec. 5XSST: 10 sec. Tinetti 28 FR: 11 inches RIPPS: 11a/10.9p Impression ? 126
127
RIPPS: (90) Hip HA Gait speed: 1.15m/sec TUGT: 8 sec 4SST: 10.5 sec Tinetti: 28 RIPPS: 8a/11.1p FTR apprehension Impression? Too fast for own good? 127
128

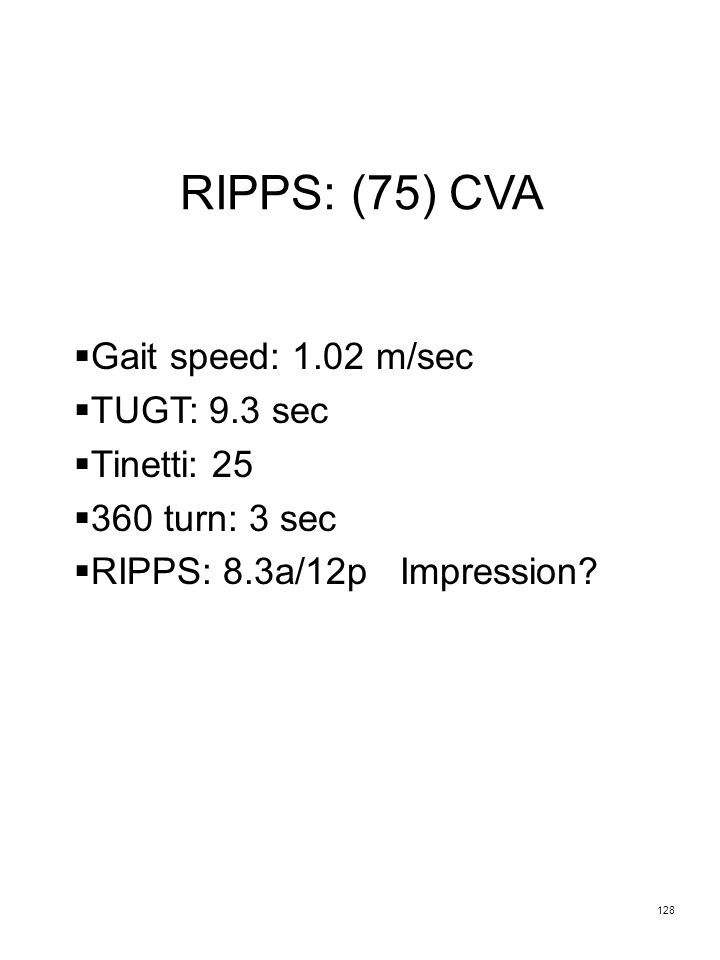

RIPPS: (75) CVA Gait speed: 1.02 m/sec TUGT: 9.3 sec Tinetti: 25 360 turn: 3 sec RIPPS: 8.3a/12p Impression? 128
129

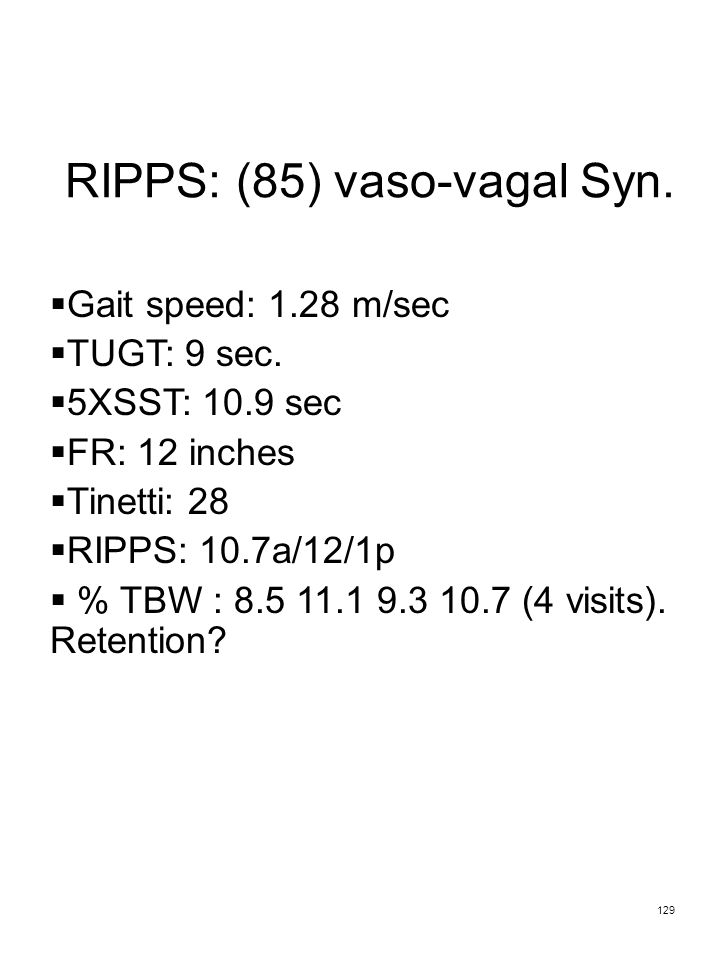

RIPPS: (85) vaso-vagal Syn. Gait speed: 1.28 m/sec TUGT: 9 sec. 5XSST: 10.9 sec FR: 12 inches Tinetti: 28 RIPPS: 10.7a/12/1p % TBW : 8.5 11.1 9.3 10.7 (4 visits). Retention? 129
130
RIPPS: (94) OA Knee Gait speed: 1.04 m/sec TUGT 9.5 sec. Tinetti 28 4SST: 11.9 sec RIPPS: 8.5a/11.5p Impression (cane/car 1 yr later) 130
131

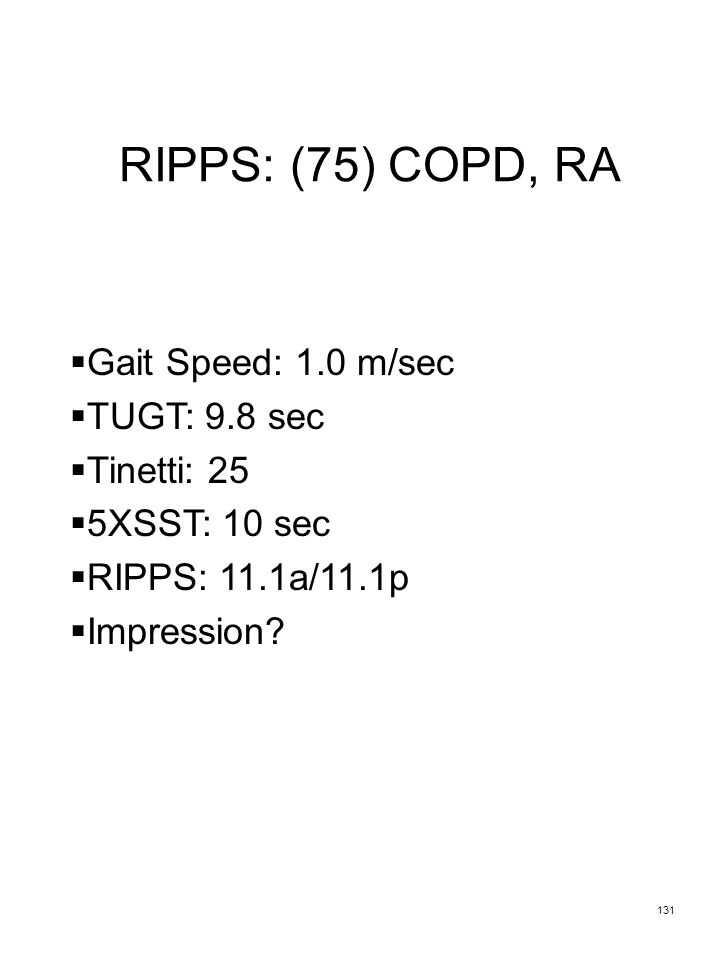

RIPPS: (75) COPD, RA Gait Speed: 1.0 m/sec TUGT: 9.8 sec Tinetti: 25 5XSST: 10 sec RIPPS: 11.1a/11.1p Impression? 131
132

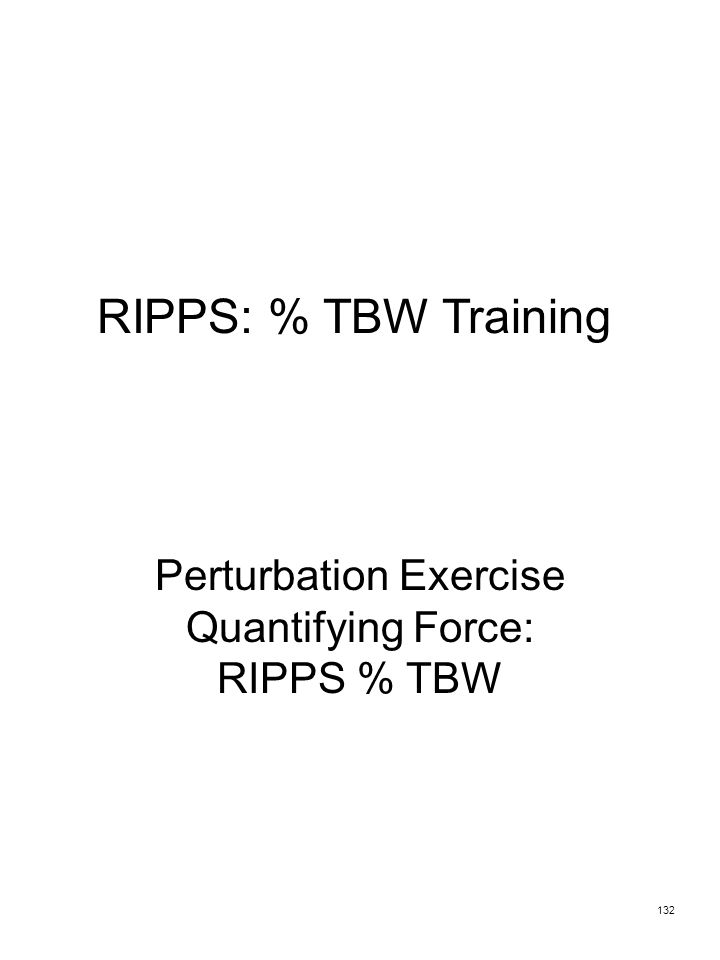

RIPPS: % TBW Training Perturbation Exercise Quantifying Force: RIPPS % TBW 132
133

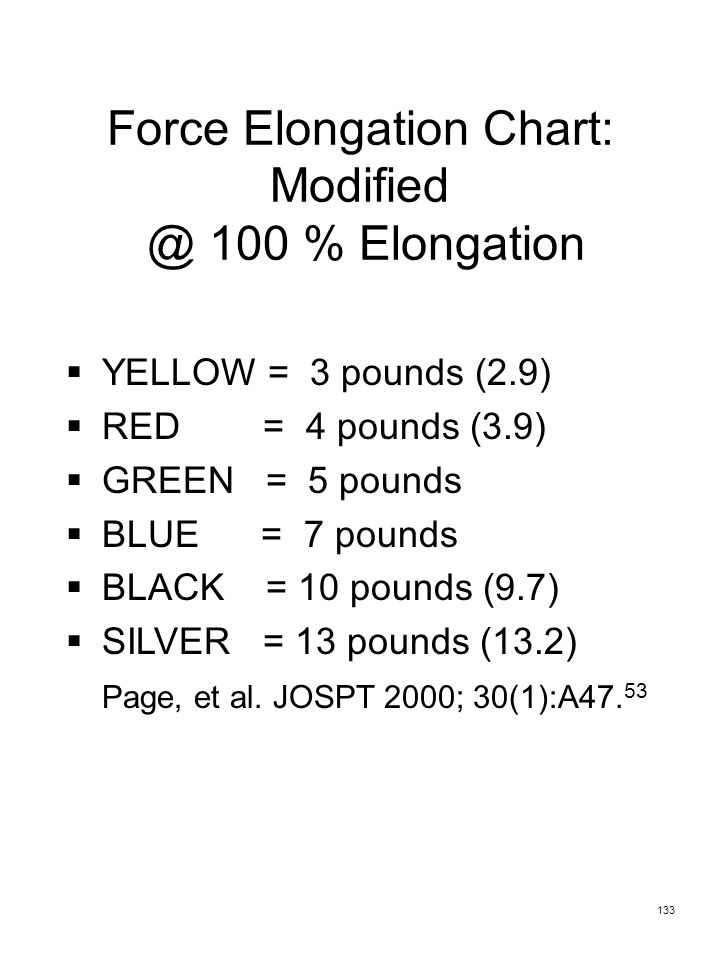

Force Elongation Chart: Modified @ 100 % Elongation YELLOW = 3 pounds (2.9) RED = 4 pounds (3.9) GREEN = 5 pounds BLUE = 7 pounds BLACK = 10 pounds (9.7) SILVER = 13 pounds (13.2) Page, et al. JOSPT 2000; 30(1):A47. 53 133

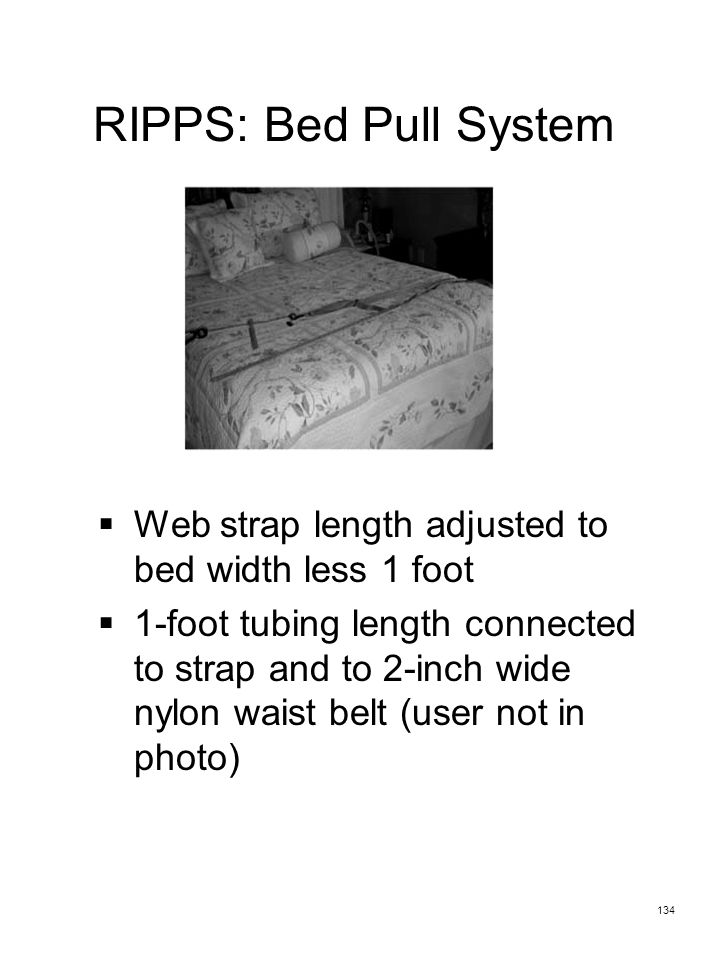

134
RIPPS: Bed Pull System Web strap length adjusted to bed width less 1 foot 1-foot tubing length connected to strap and to 2-inch wide nylon waist belt (user not in photo) 134
135

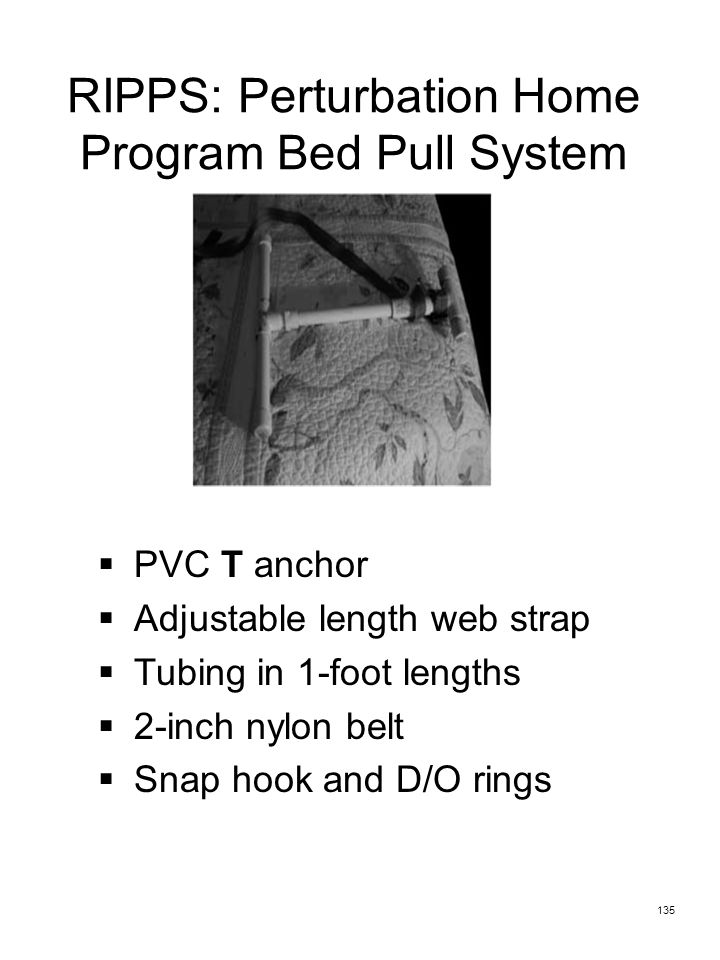

RIPPS: Perturbation Home Program Bed Pull System PVC T anchor Adjustable length web strap Tubing in 1-foot lengths 2-inch nylon belt Snap hook and D/O rings 135
136

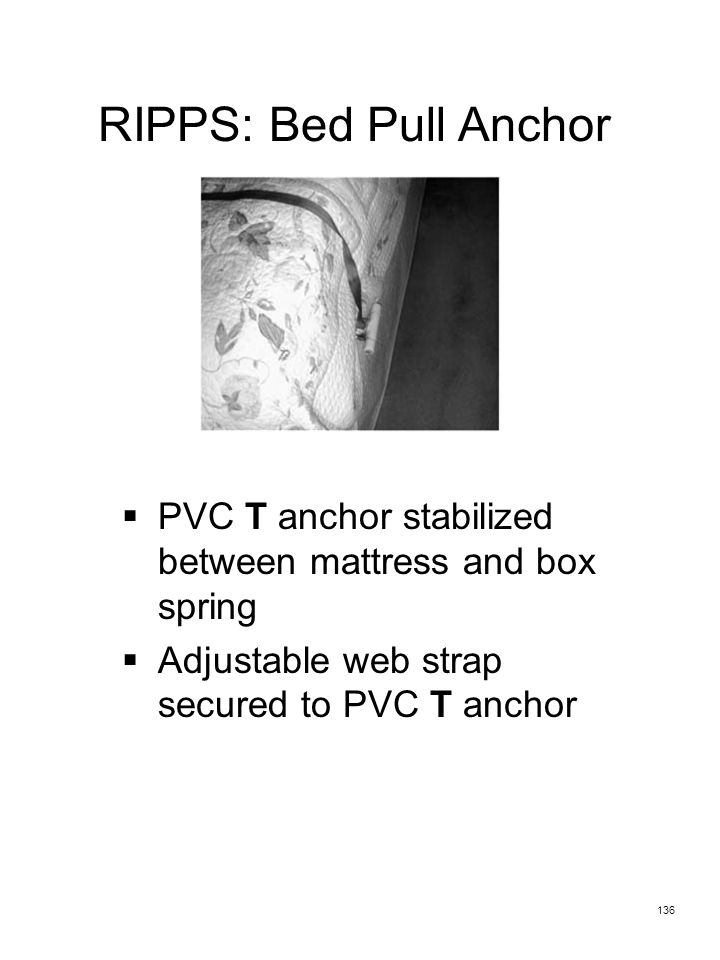

RIPPS: Bed Pull Anchor PVC T anchor stabilized between mattress and box spring Adjustable web strap secured to PVC T anchor 136
137

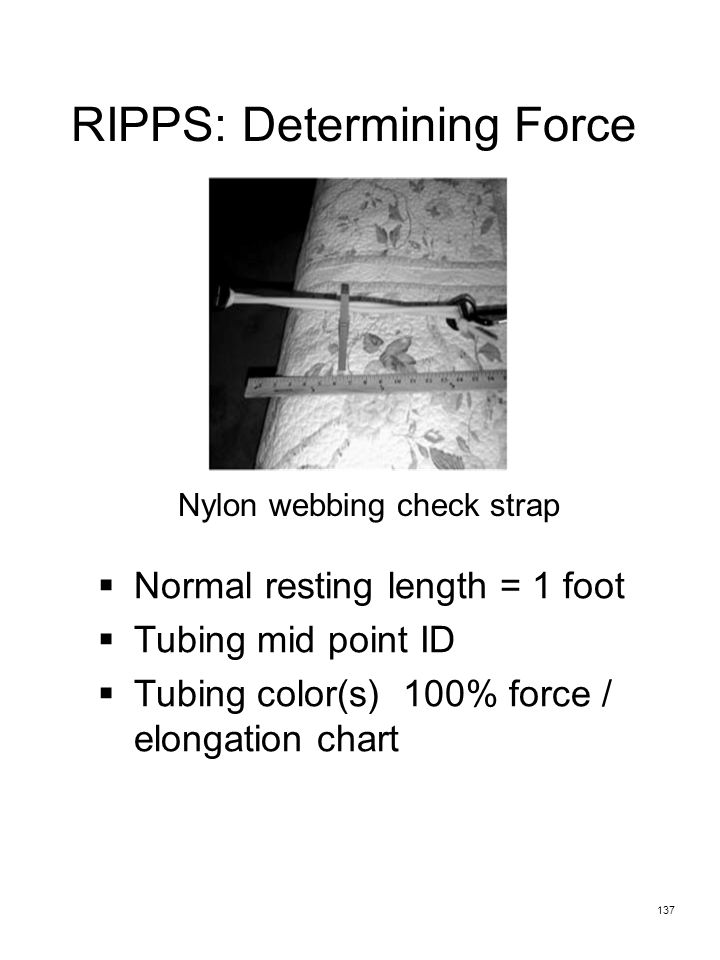

RIPPS: Determining Force Normal resting length = 1 foot Tubing mid point ID Tubing color(s) 100% force / elongation chart 137 Nylon webbing check strap
138

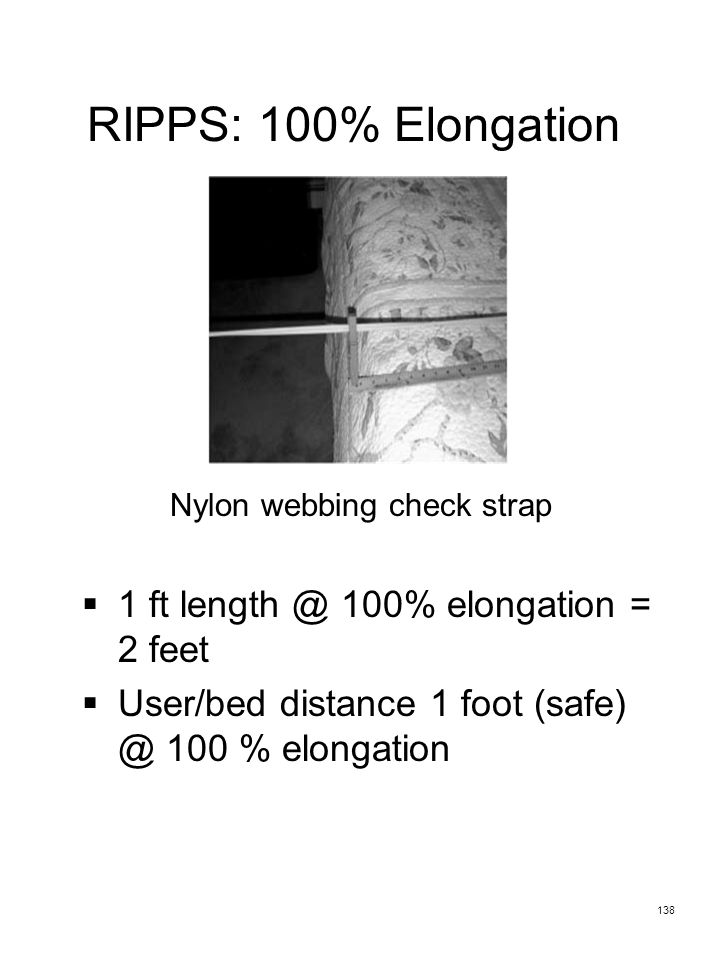

RIPPS: 100% Elongation 1 ft length @ 100% elongation = 2 feet User/bed distance 1 foot (safe) @ 100 % elongation 138 Nylon webbing check strap

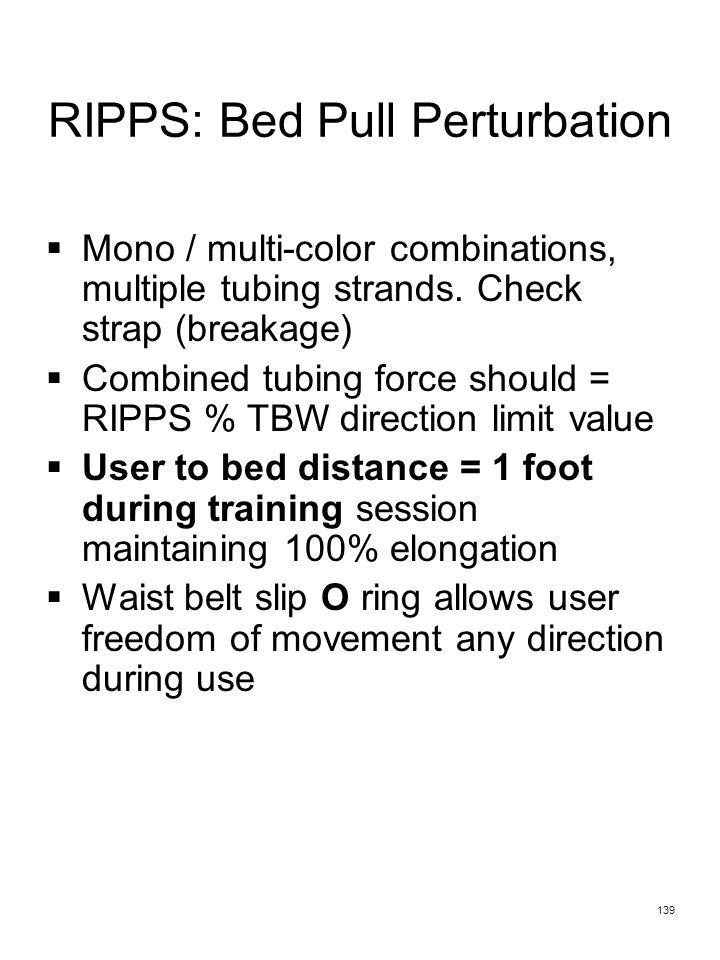

139
RIPPS: Bed Pull Perturbation Mono / multi-color combinations, multiple tubing strands. Check strap (breakage) Combined tubing force should = RIPPS % TBW direction limit value User to bed distance = 1 foot during training session maintaining 100% elongation Waist belt slip O ring allows user freedom of movement any direction during use 139
140
RIPPS: Perturbation Training Advantages Safety Quantification Compliance Goal driven Specificity training Documentation 140
141

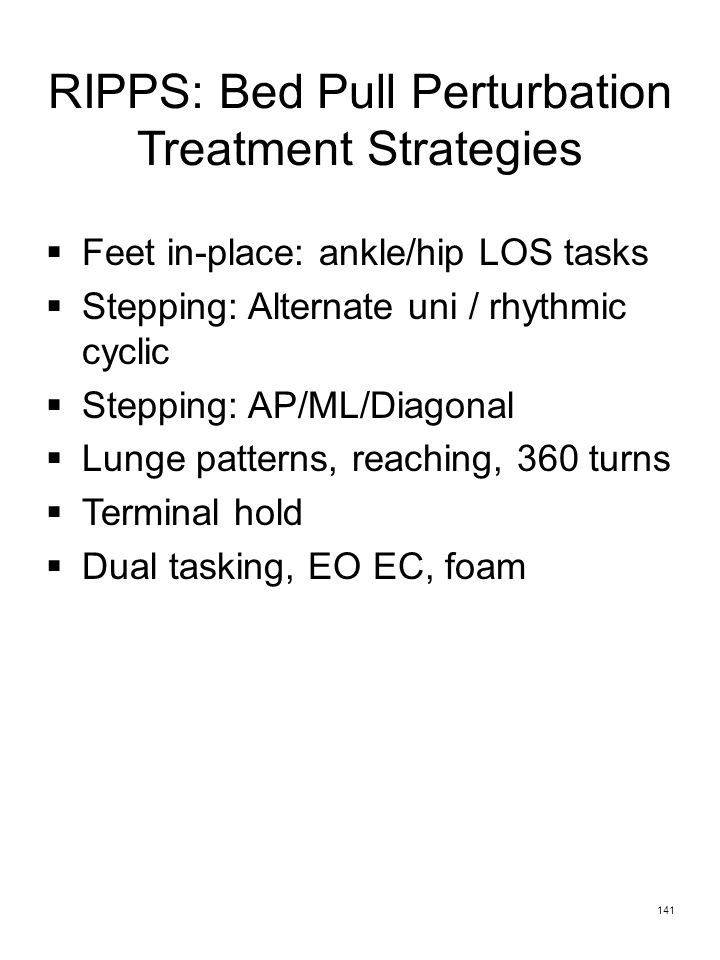

RIPPS: Bed Pull Perturbation Treatment Strategies Feet in-place: ankle/hip LOS tasks Stepping: Alternate uni / rhythmic cyclic Stepping: AP/ML/Diagonal Lunge patterns, reaching, 360 turns Terminal hold Dual tasking, EO EC, foam 141
142

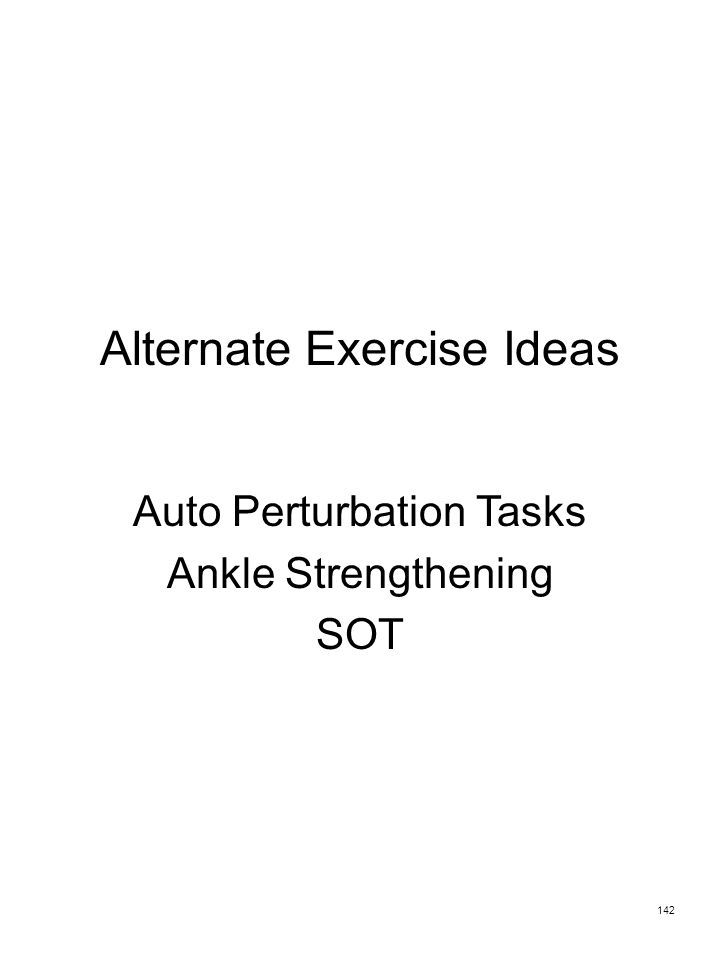

Alternate Exercise Ideas Auto Perturbation Tasks Ankle Strengthening SOT 142
143
Balance Exercise Ideas Ankle strengthening / stretching Compliant Surface: DBA tasks MSL tasks (SL:LEL) Four Square Step Test SOT #6? 143
144
Ankle Ideas PVC T DESIGN Resisted PF/DF PF Stretching Maximizes short lever mechanics Swifter/sponge mop seated 144
145
Auto Perturbation Options: Compliant Surface Task SHAPES/DENSITIES Incline Orientation SLOW/FAST AP ANKLE STRATEGY CANE/BROOMSTICK DIAMETERS/HEEL HT 145
146
Cylinder Ankle Rock Tasks SOLID/FOAM OR FOAM OVERLAY DIAMETER SIZES ANKLE/HIP/STEP Terminal holding Pro/Re ACTIVE Speed 146
147

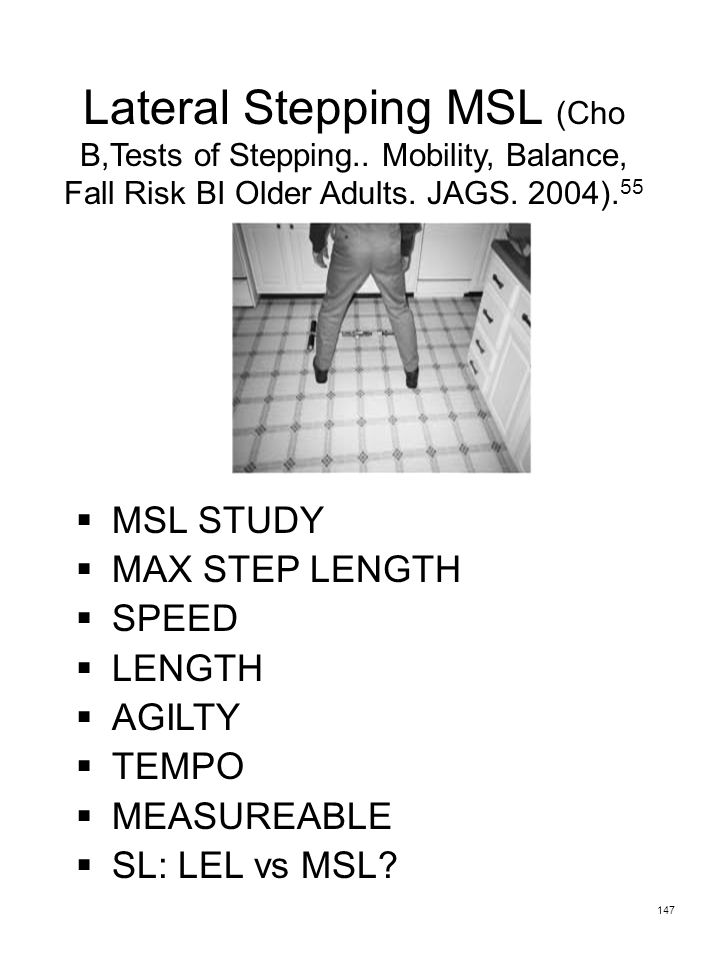

Lateral Stepping MSL (Cho B,Tests of Stepping.. Mobility, Balance, Fall Risk BI Older Adults. JAGS. 2004). 55 MSL STUDY MAX STEP LENGTH SPEED LENGTH AGILTY TEMPO MEASUREABLE SL: LEL vs MSL? 147
148

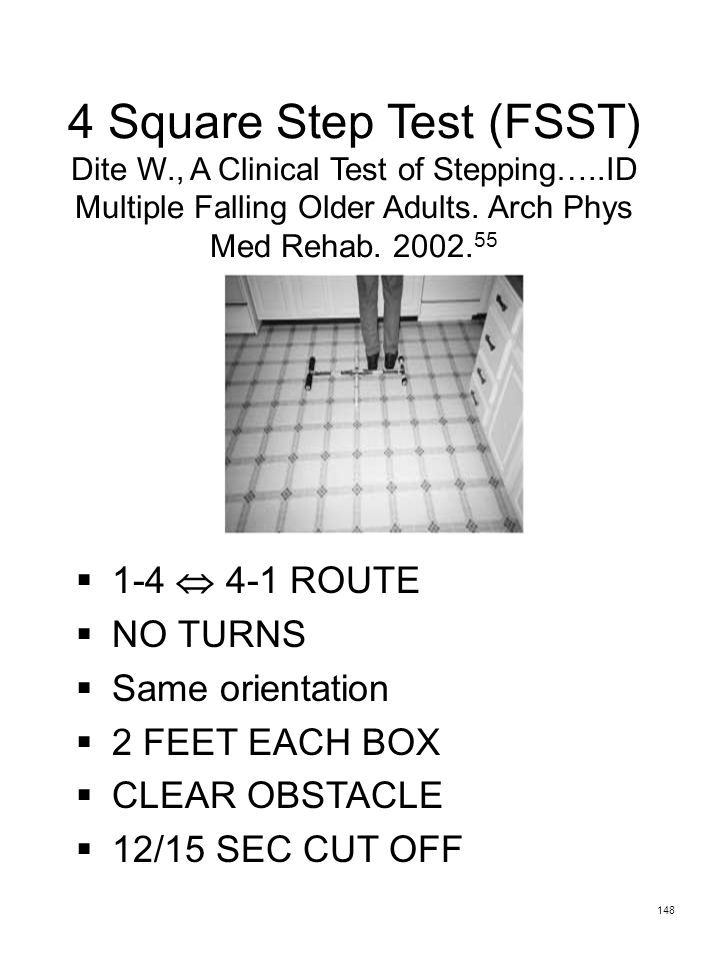

4 Square Step Test (FSST) Dite W., A Clinical Test of Stepping…..ID Multiple Falling Older Adults. Arch Phys Med Rehab. 2002. 55 1-4 4-1 ROUTE NO TURNS Same orientation 2 FEET EACH BOX CLEAR OBSTACLE 12/15 SEC CUT OFF 148

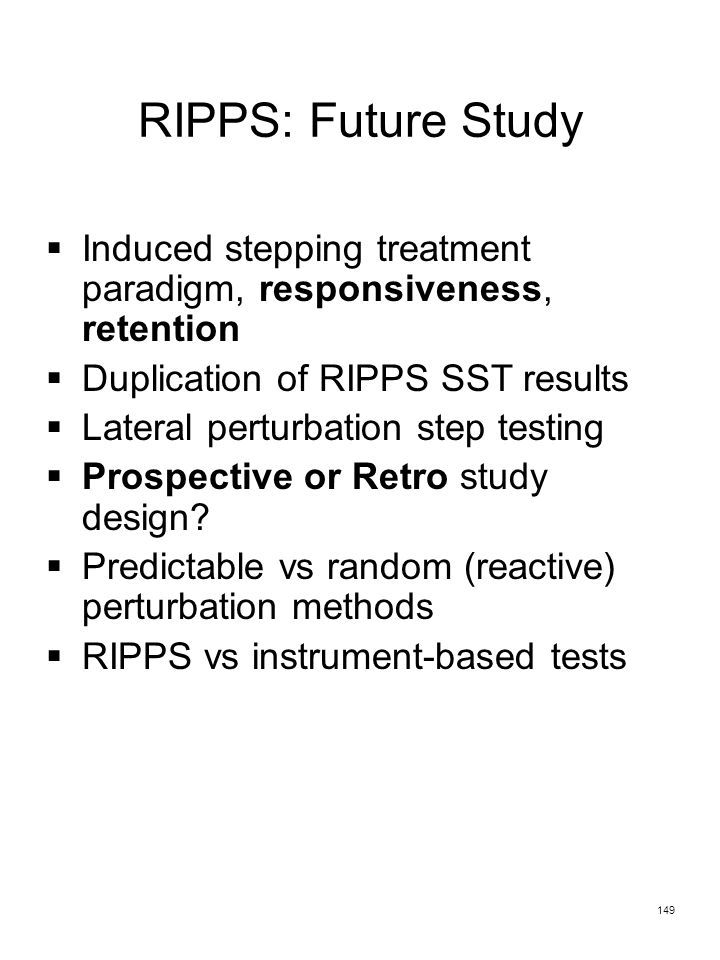

149
RIPPS: Future Study Induced stepping treatment paradigm, responsiveness, retention Duplication of RIPPS SST results Lateral perturbation step testing Prospective or Retro study design? Predictable vs random (reactive) perturbation methods RIPPS vs instrument-based tests 149
150

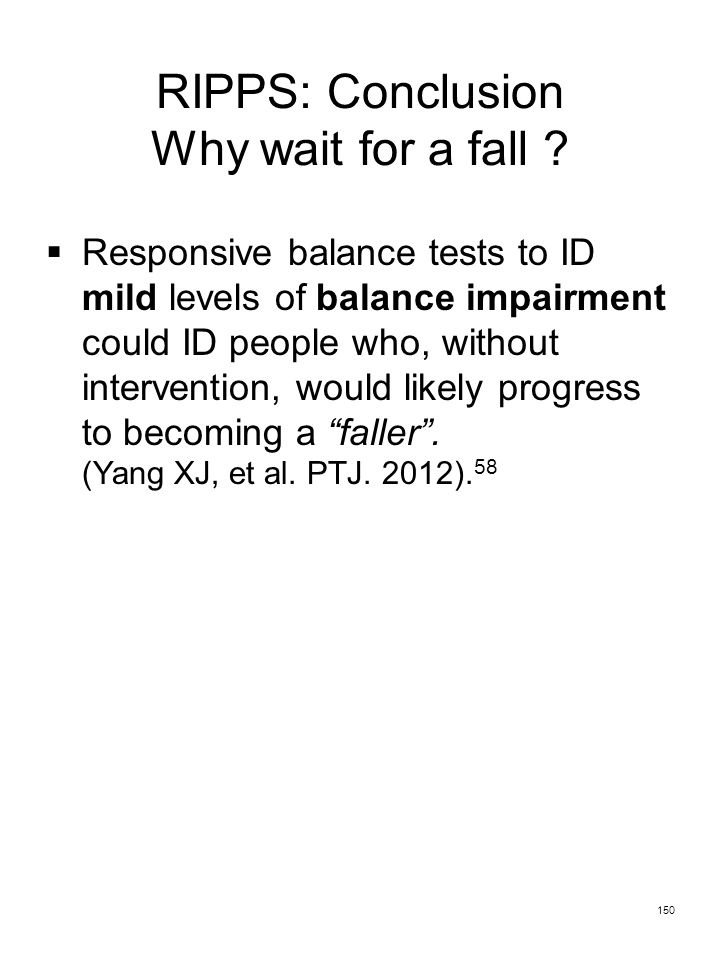

RIPPS: Conclusion Why wait for a fall ? Responsive balance tests to ID mild levels of balance impairment could ID people who, without intervention, would likely progress to becoming a “faller”. (Yang XJ, et al. PTJ. 2012). 58 150
151

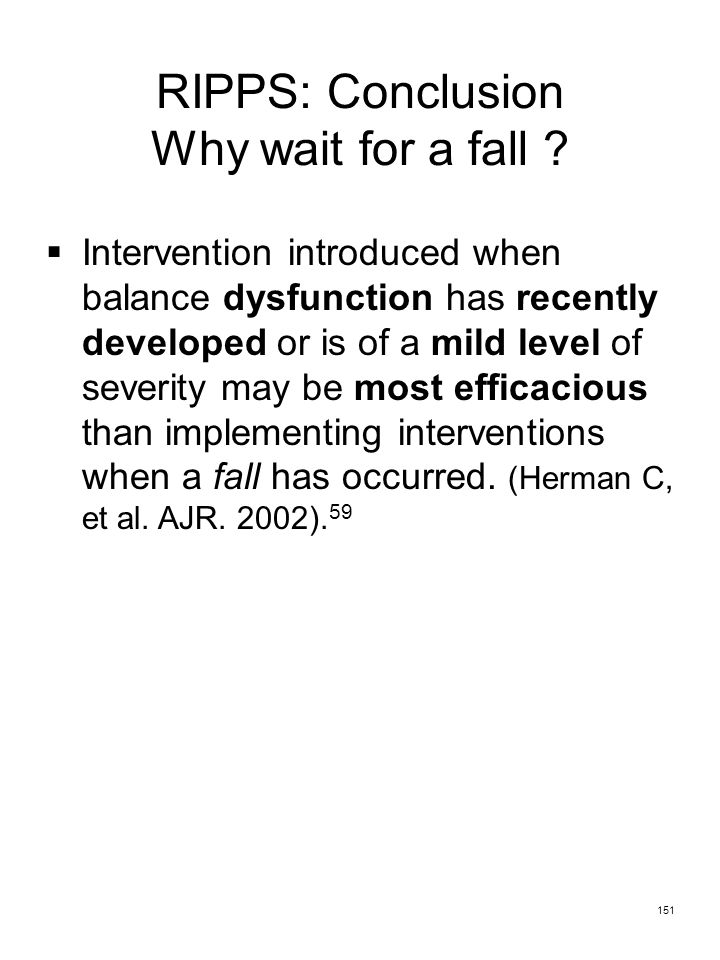

RIPPS: Conclusion Why wait for a fall ? Intervention introduced when balance dysfunction has recently developed or is of a mild level of severity may be most efficacious than implementing interventions when a fall has occurred. (Herman C, et al. AJR. 2002). 59 151
152

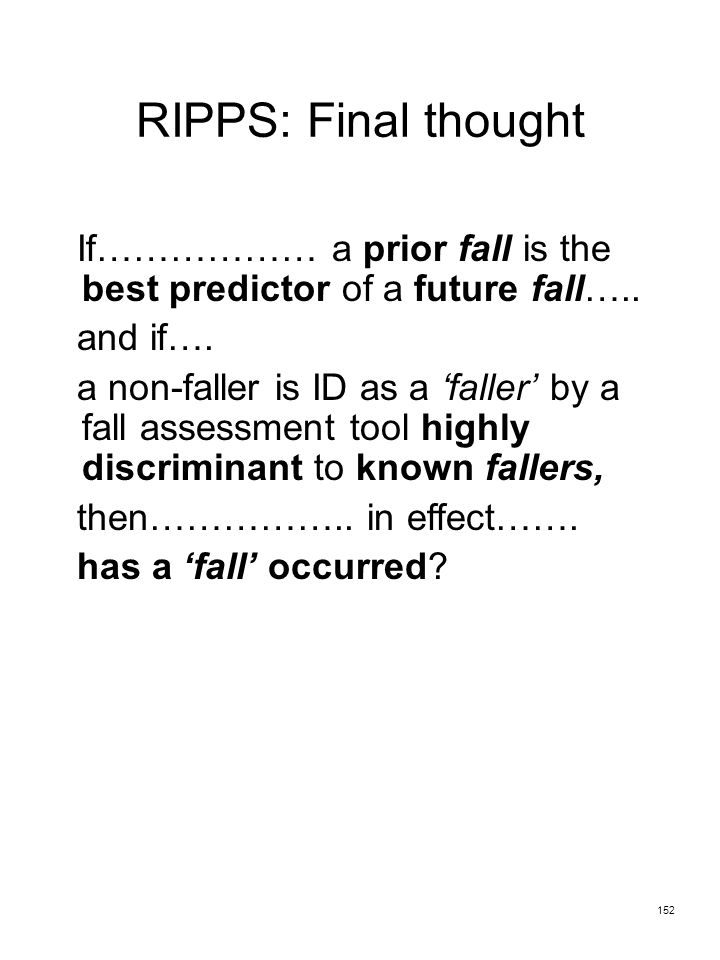

RIPPS: Final thought If……………… a prior fall is the best predictor of a future fall….. and if…. a non-faller is ID as a ‘faller’ by a fall assessment tool highly discriminant to known fallers, then…………….. in effect……. has a ‘fall’ occurred? 152
153
RIPTS: Repeated Incremental Peeling Tomatoes (mom, 2013) Questions Discussion Further study Ideas Innovation 153 Peeling in the years
154
Spring at Cold Spring “You can’t follow all your dreams….you might.....…get…..lost”….. Always be……….. “working on a dream”…. From……. “a day dream believer”…. “long may you run”! ( borrowed lyrics ) 154
155
References 155 1.Harris JE, et al. Relationship of balance and mobility to fall incidence in people with chronic stroke. Phys Ther. 2005; 85: 150-158. 2.Verghese J, et al. Epidemiology of gait disorders in community-residing older adults. J Am Geriatr Soc. 2006; 54(2): 255-61. 3.Moyer V, Prevention of falls in community-dwelling older adults: U.S. preventive services task force recommendation statement. Ann of Intern Med 2012; 157(3). 4.Renfro MO, Fehrer S. Multifactorial screening for fall risk in community- dwelling older Adults in the primary care office: development of the fall risk & screening tool. JGPT. 2011; 34: 1-10
156

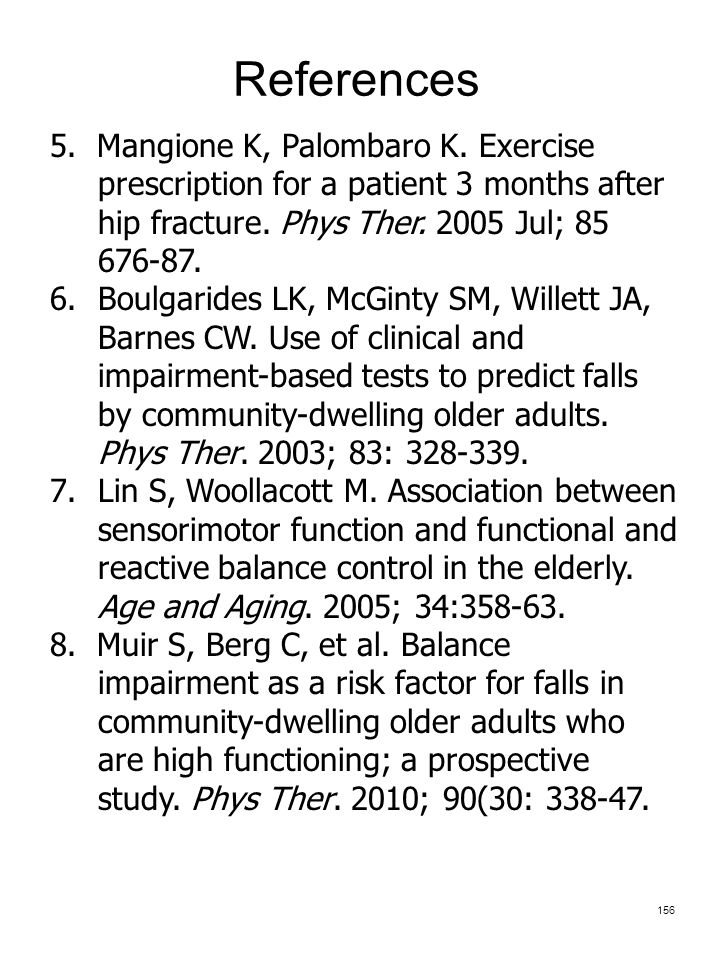

References 156 5. Mangione K, Palombaro K. Exercise prescription for a patient 3 months after hip fracture. Phys Ther. 2005 Jul; 85 676-87. 6.Boulgarides LK, McGinty SM, Willett JA, Barnes CW. Use of clinical and impairment-based tests to predict falls by community-dwelling older adults. Phys Ther. 2003; 83: 328-339. 7.Lin S, Woollacott M. Association between sensorimotor function and functional and reactive balance control in the elderly. Age and Aging. 2005; 34:358-63. 8. Muir S, Berg C, et al. Balance impairment as a risk factor for falls in community-dwelling older adults who are high functioning; a prospective study. Phys Ther. 2010; 90(30: 338-47.
157
References 157 9. Lin MR, Hwang HF. Et al. Psychometric comparisons of the timed “up and go”, one-leg stand, functional reach and Tinetti balance measures in community- dwelling older people. J Am Geriatr Soc. 2004; 52: 1343-1348. 10. Buatois S, et al. A simple clinical scale to stratify risk of recurrent-falls in community-dwelling adults 65 years and older. Phys Ther. 2010; 90(4): 550-60. 11. Neuls P, et al. Usefulness of the Berg Balance Scale to predict falls in the elderly. Jl Geriatr Phys Ther. 2011; 34(1): 3-10. 12. Pardasaney PK. Latham NK, Jette AM et al. Sensitivity to change and responsiveness of four balance measures for community-dwelling older adults. Phys Ther. 2012; 92: 1-10.
158

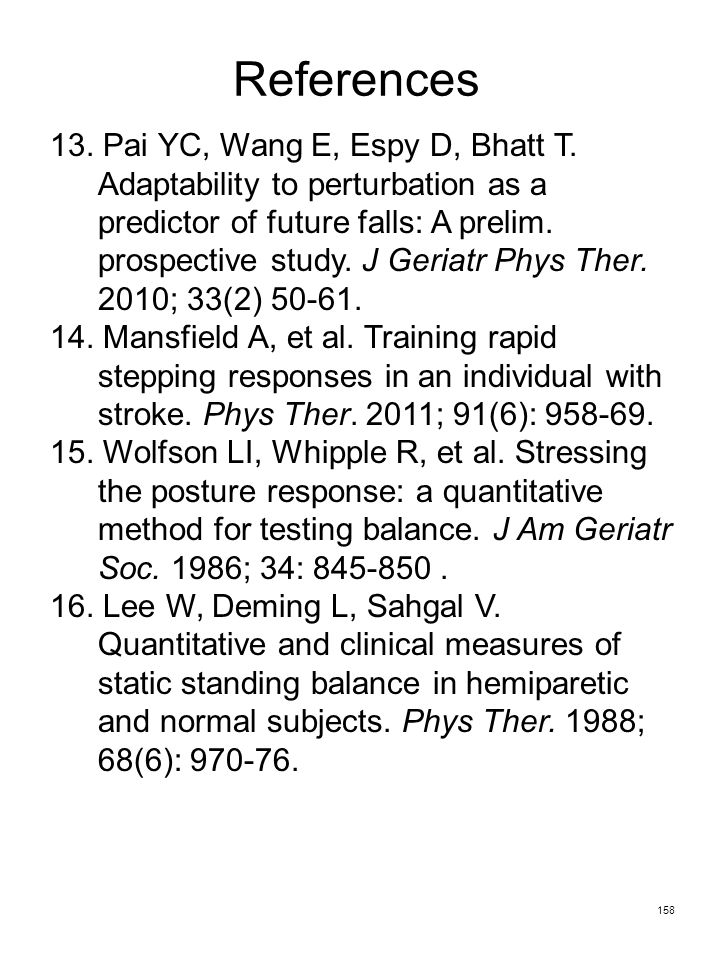

References 158 13. Pai YC, Wang E, Espy D, Bhatt T. Adaptability to perturbation as a predictor of future falls: A prelim. prospective study. J Geriatr Phys Ther. 2010; 33(2) 50-61. 14. Mansfield A, et al. Training rapid stepping responses in an individual with stroke. Phys Ther. 2011; 91(6): 958-69. 15. Wolfson LI, Whipple R, et al. Stressing the posture response: a quantitative method for testing balance. J Am Geriatr Soc. 1986; 34: 845-850. 16. Lee W, Deming L, Sahgal V. Quantitative and clinical measures of static standing balance in hemiparetic and normal subjects. Phys Ther. 1988; 68(6): 970-76.
159

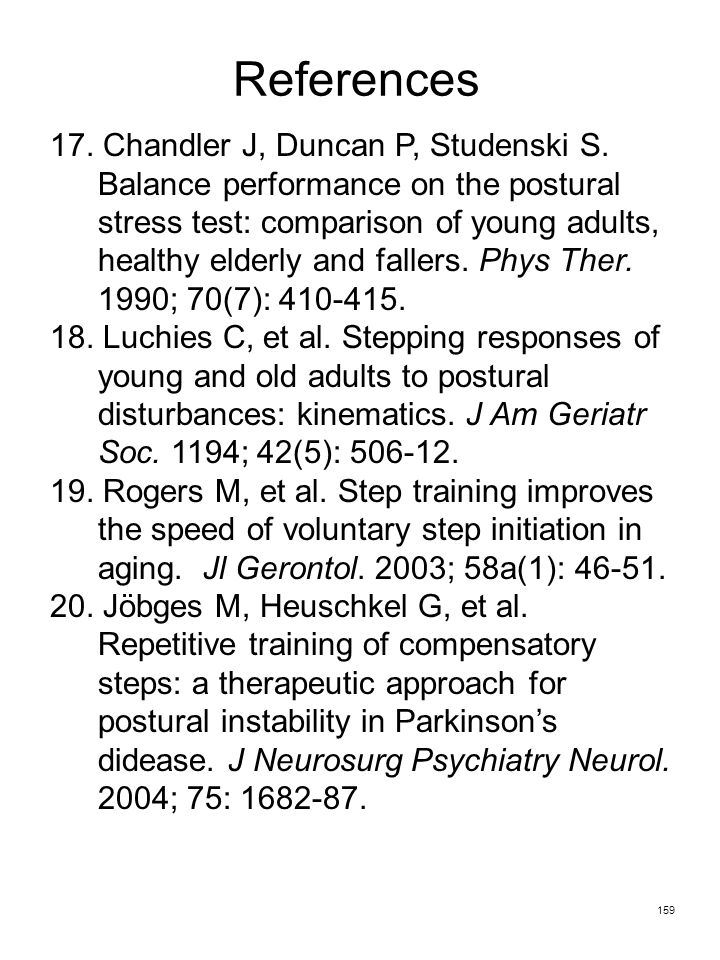

References 159 17. Chandler J, Duncan P, Studenski S. Balance performance on the postural stress test: comparison of young adults, healthy elderly and fallers. Phys Ther. 1990; 70(7): 410-415. 18. Luchies C, et al. Stepping responses of young and old adults to postural disturbances: kinematics. J Am Geriatr Soc. 1194; 42(5): 506-12. 19. Rogers M, et al. Step training improves the speed of voluntary step initiation in aging. Jl Gerontol. 2003; 58a(1): 46-51. 20. Jöbges M, Heuschkel G, et al. Repetitive training of compensatory steps: a therapeutic approach for postural instability in Parkinson’s didease. J Neurosurg Psychiatry Neurol. 2004; 75: 1682-87.
160

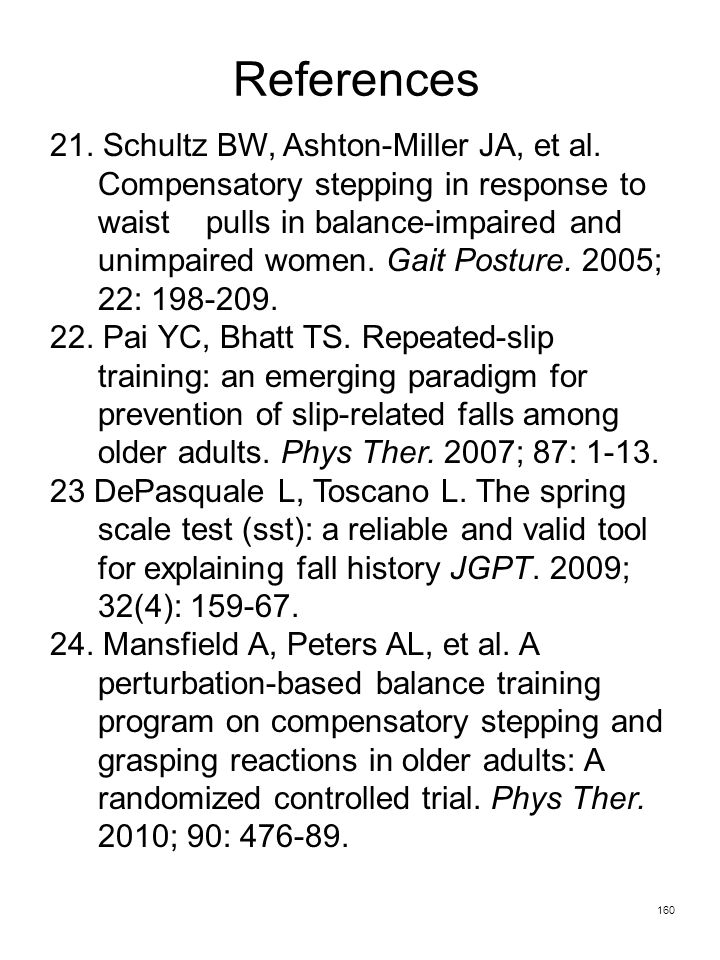

References 160 21. Schultz BW, Ashton-Miller JA, et al. Compensatory stepping in response to waist pulls in balance-impaired and unimpaired women. Gait Posture. 2005; 22: 198-209. 22. Pai YC, Bhatt TS. Repeated-slip training: an emerging paradigm for prevention of slip-related falls among older adults. Phys Ther. 2007; 87: 1-13. 23 DePasquale L, Toscano L. The spring scale test (sst): a reliable and valid tool for explaining fall history JGPT. 2009; 32(4): 159-67. 24. Mansfield A, Peters AL, et al. A perturbation-based balance training program on compensatory stepping and grasping reactions in older adults: A randomized controlled trial. Phys Ther. 2010; 90: 476-89.
161

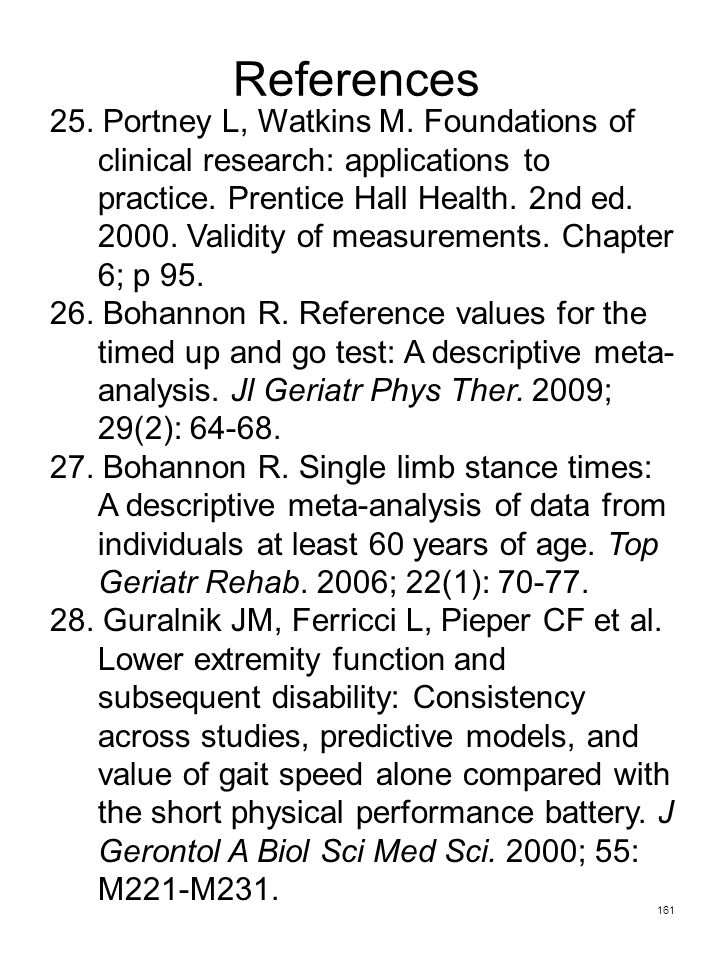

References 161 25. Portney L, Watkins M. Foundations of clinical research: applications to practice. Prentice Hall Health. 2nd ed. 2000. Validity of measurements. Chapter 6; p 95. 26. Bohannon R. Reference values for the timed up and go test: A descriptive meta- analysis. Jl Geriatr Phys Ther. 2009; 29(2): 64-68. 27. Bohannon R. Single limb stance times: A descriptive meta-analysis of data from individuals at least 60 years of age. Top Geriatr Rehab. 2006; 22(1): 70-77. 28. Guralnik JM, Ferricci L, Pieper CF et al. Lower extremity function and subsequent disability: Consistency across studies, predictive models, and value of gait speed alone compared with the short physical performance battery. J Gerontol A Biol Sci Med Sci. 2000; 55: M221-M231.
162

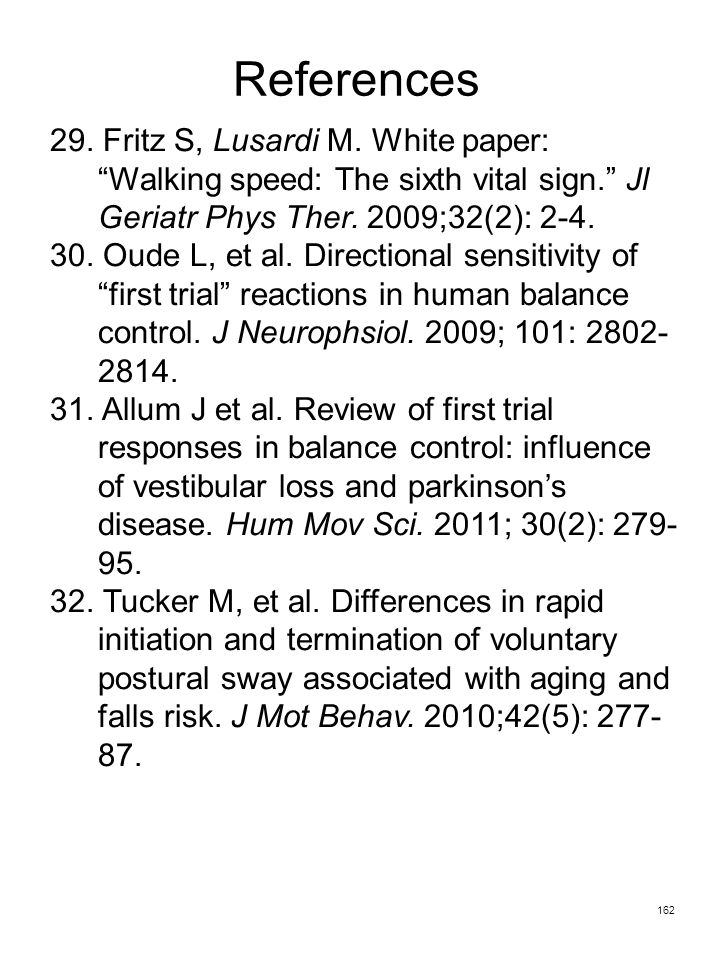

References 162 29. Fritz S, Lusardi M. White paper: “Walking speed: The sixth vital sign.” Jl Geriatr Phys Ther. 2009;32(2): 2-4. 30. Oude L, et al. Directional sensitivity of “first trial” reactions in human balance control. J Neurophsiol. 2009; 101: 2802- 2814. 31. Allum J et al. Review of first trial responses in balance control: influence of vestibular loss and parkinson’s disease. Hum Mov Sci. 2011; 30(2): 279- 95. 32. Tucker M, et al. Differences in rapid initiation and termination of voluntary postural sway associated with aging and falls risk. J Mot Behav. 2010;42(5): 277- 87.
163

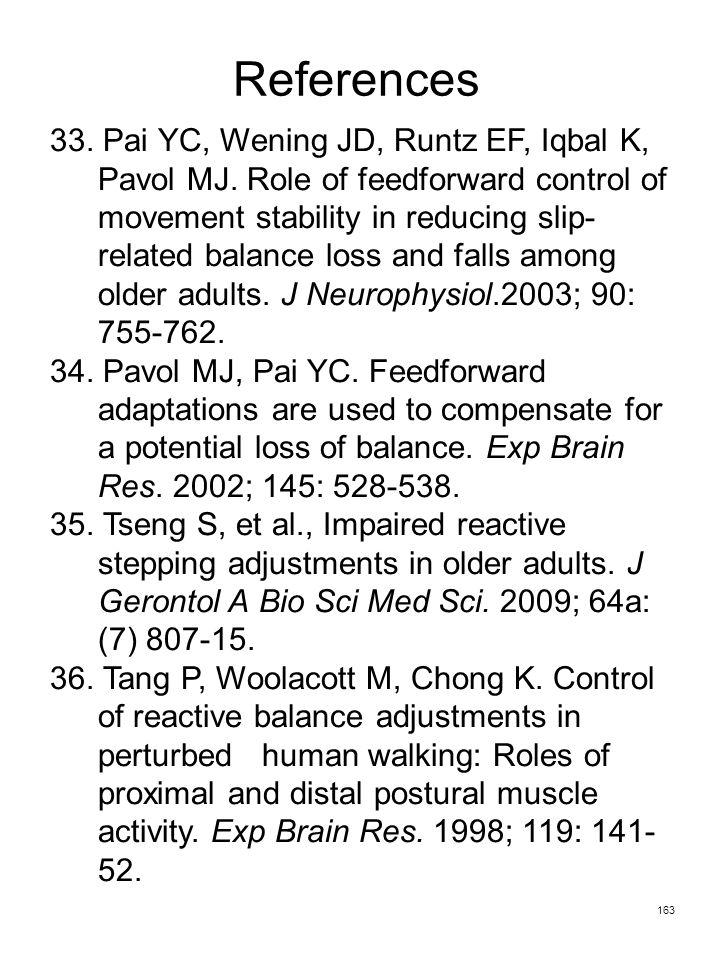

References 163 33. Pai YC, Wening JD, Runtz EF, Iqbal K, Pavol MJ. Role of feedforward control of movement stability in reducing slip- related balance loss and falls among older adults. J Neurophysiol.2003; 90: 755-762. 34. Pavol MJ, Pai YC. Feedforward adaptations are used to compensate for a potential loss of balance. Exp Brain Res. 2002; 145: 528-538. 35. Tseng S, et al., Impaired reactive stepping adjustments in older adults. J Gerontol A Bio Sci Med Sci. 2009; 64a: (7) 807-15. 36. Tang P, Woolacott M, Chong K. Control of reactive balance adjustments in perturbed human walking: Roles of proximal and distal postural muscle activity. Exp Brain Res. 1998; 119: 141- 52.
164

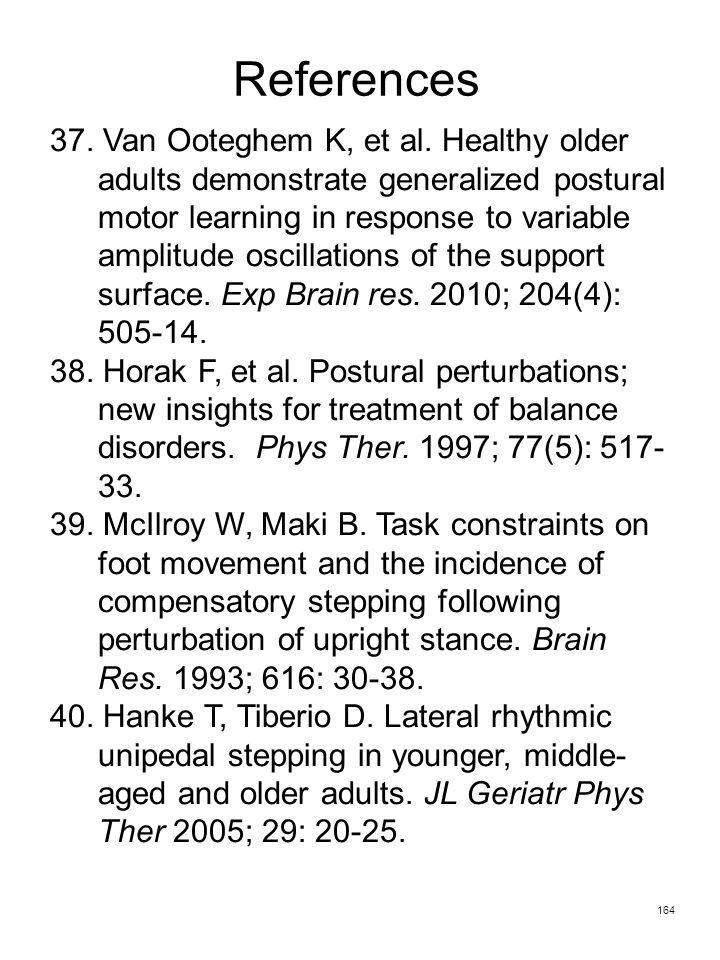

References 164 37. Van Ooteghem K, et al. Healthy older adults demonstrate generalized postural motor learning in response to variable amplitude oscillations of the support surface. Exp Brain res. 2010; 204(4): 505-14. 38. Horak F, et al. Postural perturbations; new insights for treatment of balance disorders. Phys Ther. 1997; 77(5): 517- 33. 39. McIlroy W, Maki B. Task constraints on foot movement and the incidence of compensatory stepping following perturbation of upright stance. Brain Res. 1993; 616: 30-38. 40. Hanke T, Tiberio D. Lateral rhythmic unipedal stepping in younger, middle- aged and older adults. JL Geriatr Phys Ther 2005; 29: 20-25.
165

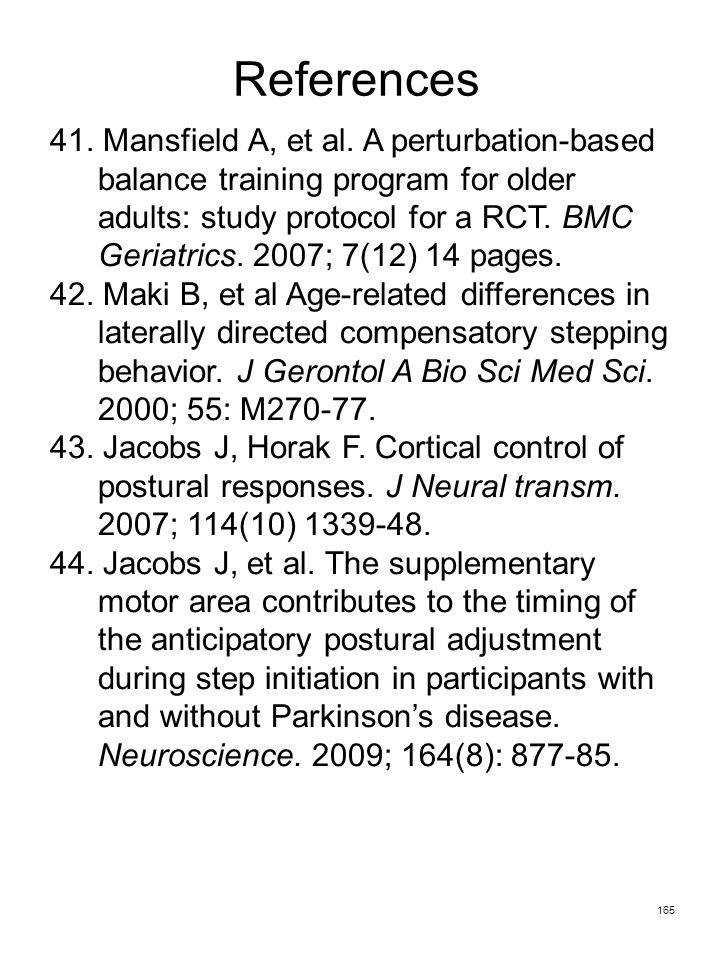

References 165 41. Mansfield A, et al. A perturbation-based balance training program for older adults: study protocol for a RCT. BMC Geriatrics. 2007; 7(12) 14 pages. 42. Maki B, et al Age-related differences in laterally directed compensatory stepping behavior. J Gerontol A Bio Sci Med Sci. 2000; 55: M270-77. 43. Jacobs J, Horak F. Cortical control of postural responses. J Neural transm. 2007; 114(10) 1339-48. 44. Jacobs J, et al. The supplementary motor area contributes to the timing of the anticipatory postural adjustment during step initiation in participants with and without Parkinson’s disease. Neuroscience. 2009; 164(8): 877-85.
166

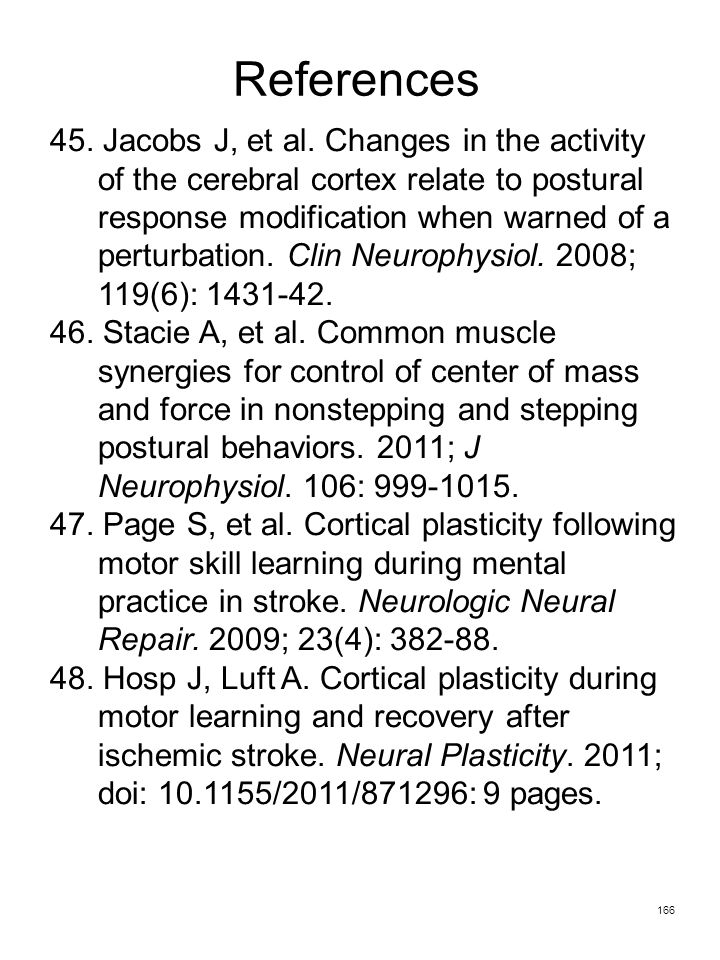

References 166 45. Jacobs J, et al. Changes in the activity of the cerebral cortex relate to postural response modification when warned of a perturbation. Clin Neurophysiol. 2008; 119(6): 1431-42. 46. Stacie A, et al. Common muscle synergies for control of center of mass and force in nonstepping and stepping postural behaviors. 2011; J Neurophysiol. 106: 999-1015. 47. Page S, et al. Cortical plasticity following motor skill learning during mental practice in stroke. Neurologic Neural Repair. 2009; 23(4): 382-88. 48. Hosp J, Luft A. Cortical plasticity during motor learning and recovery after ischemic stroke. Neural Plasticity. 2011; doi: 10.1155/2011/871296: 9 pages.
167

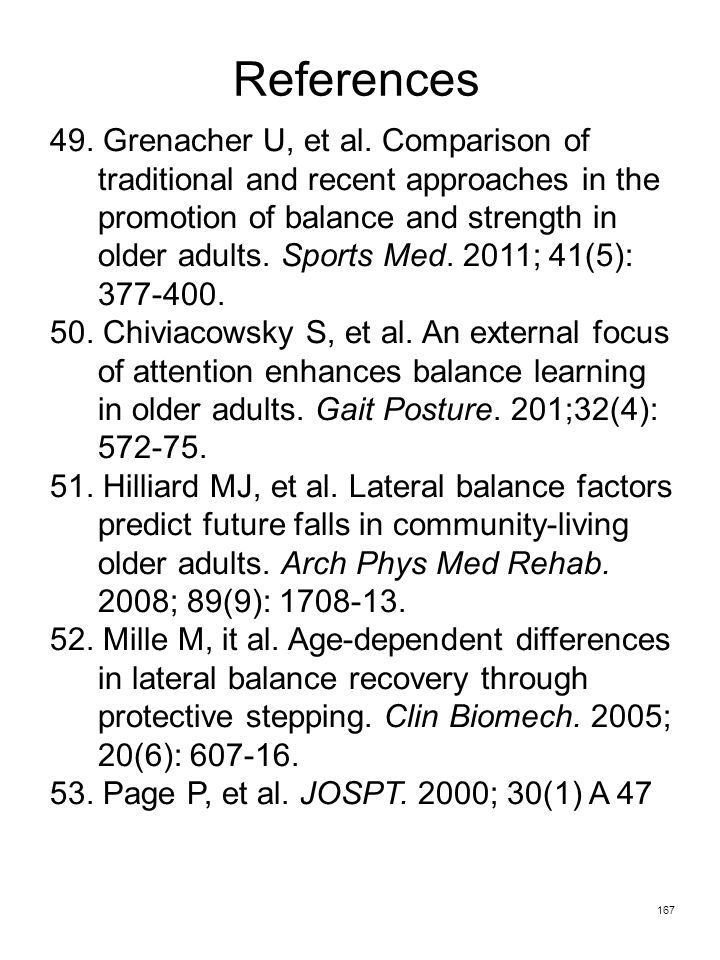

References 167 49. Grenacher U, et al. Comparison of traditional and recent approaches in the promotion of balance and strength in older adults. Sports Med. 2011; 41(5): 377-400. 50. Chiviacowsky S, et al. An external focus of attention enhances balance learning in older adults. Gait Posture. 201;32(4): 572-75. 51. Hilliard MJ, et al. Lateral balance factors predict future falls in community-living older adults. Arch Phys Med Rehab. 2008; 89(9): 1708-13. 52. Mille M, it al. Age-dependent differences in lateral balance recovery through protective stepping. Clin Biomech. 2005; 20(6): 607-16. 53. Page P, et al. JOSPT. 2000; 30(1) A 47
168

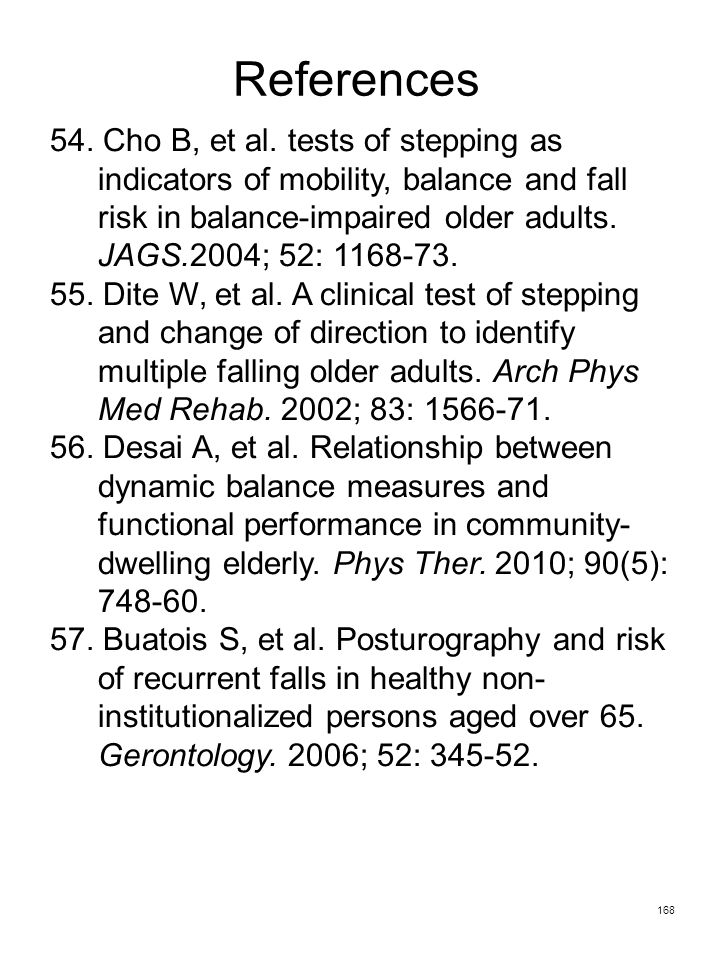

References 168 54. Cho B, et al. tests of stepping as indicators of mobility, balance and fall risk in balance-impaired older adults. JAGS.2004; 52: 1168-73. 55. Dite W, et al. A clinical test of stepping and change of direction to identify multiple falling older adults. Arch Phys Med Rehab. 2002; 83: 1566-71. 56. Desai A, et al. Relationship between dynamic balance measures and functional performance in community- dwelling elderly. Phys Ther. 2010; 90(5): 748-60. 57. Buatois S, et al. Posturography and risk of recurrent falls in healthy non- institutionalized persons aged over 65. Gerontology. 2006; 52: 345-52.
169

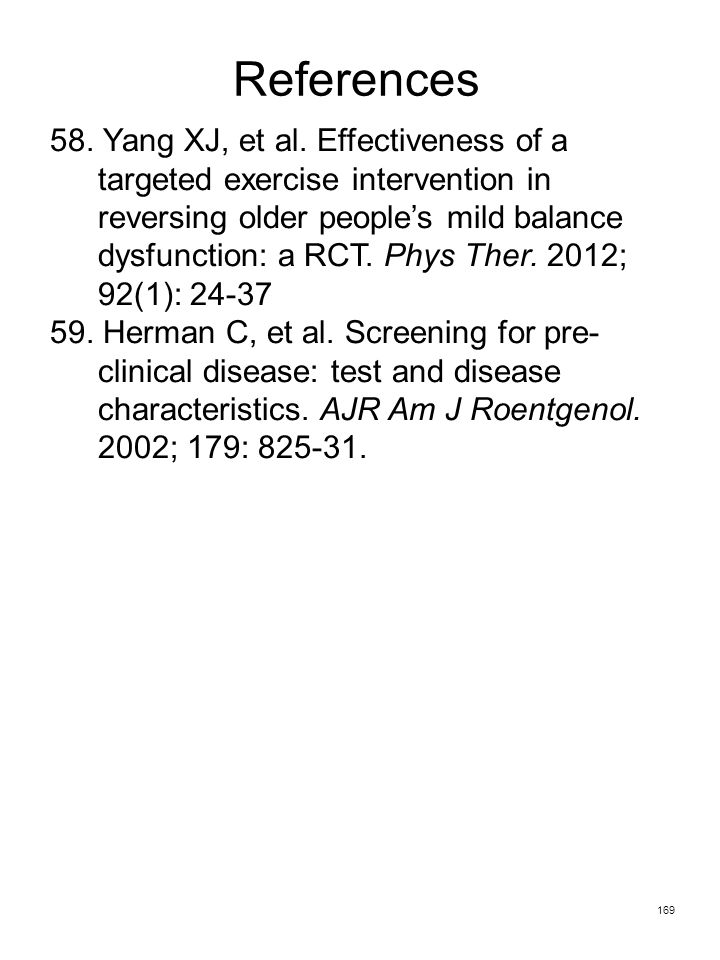

References 169 58. Yang XJ, et al. Effectiveness of a targeted exercise intervention in reversing older people’s mild balance dysfunction: a RCT. Phys Ther. 2012; 92(1): 24-37 59. Herman C, et al. Screening for pre- clinical disease: test and disease characteristics. AJR Am J Roentgenol. 2002; 179: 825-31.
Similar presentations
© 2025 SlidePlayer.com Inc.
All rights reserved.
