1. 1 Introduction to Monitoring I/O for SQL Server: The Counters That Count Jimmy May, MCM SQL Server Solutions Architect jimmy.may@sandisk.com @aspiringgeek

2. 2 Data Propulsion Laboratory — DPL Copyright © 2015 SanDisk. All rights reserved.

3. 3 C:\>sqlservr.exe /faster Copyright © 2015 SanDisk. All rights reserved.

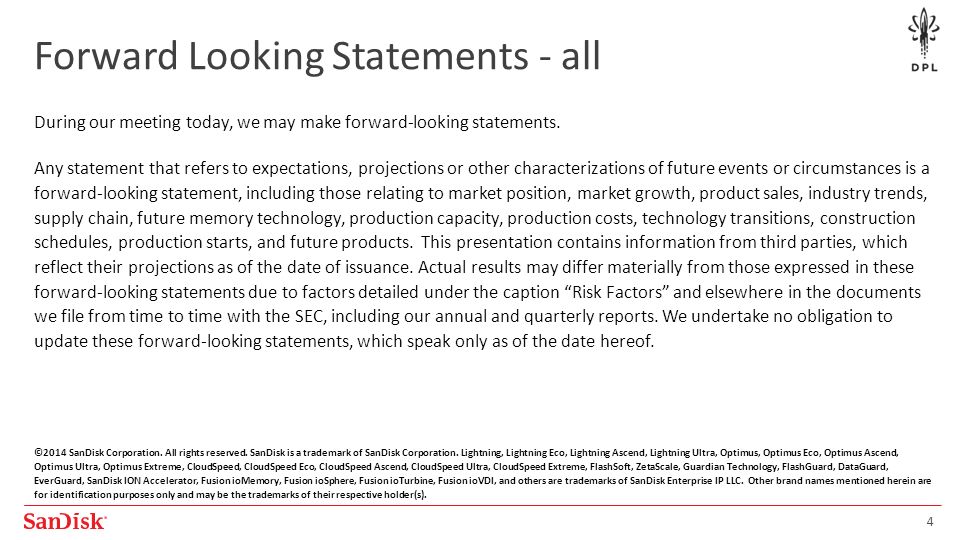

4. 4 Forward Looking Statements - all During our meeting today, we may make forward-looking statements. Any statement that refers to expectations, projections or other characterizations of future events or circumstances is a forward-looking statement, including those relating to market position, market growth, product sales, industry trends, supply chain, future memory technology, production capacity, production costs, technology transitions, construction schedules, production starts, and future products. This presentation contains information from third parties, which reflect their projections as of the date of issuance. Actual results may differ materially from those expressed in these forward-looking statements due to factors detailed under the caption “Risk Factors” and elsewhere in the documents we file from time to time with the SEC, including our annual and quarterly reports. We undertake no obligation to update these forward-looking statements, which speak only as of the date hereof. ©2014 SanDisk Corporation. All rights reserved. SanDisk is a trademark of SanDisk Corporation. Lightning, Lightning Eco, Lightning Ascend, Lightning Ultra, Optimus, Optimus Eco, Optimus Ascend, Optimus Ultra, Optimus Extreme, CloudSpeed, CloudSpeed Eco, CloudSpeed Ascend, CloudSpeed Ultra, CloudSpeed Extreme, FlashSoft, ZetaScale, Guardian Technology, FlashGuard, DataGuard, EverGuard, SanDisk ION Accelerator, Fusion ioMemory, Fusion ioSphere, Fusion ioTurbine, Fusion ioVDI, and others are trademarks of SanDisk Enterprise IP LLC. Other brand names mentioned herein are for identification purposes only and may be the trademarks of their respective holder(s).

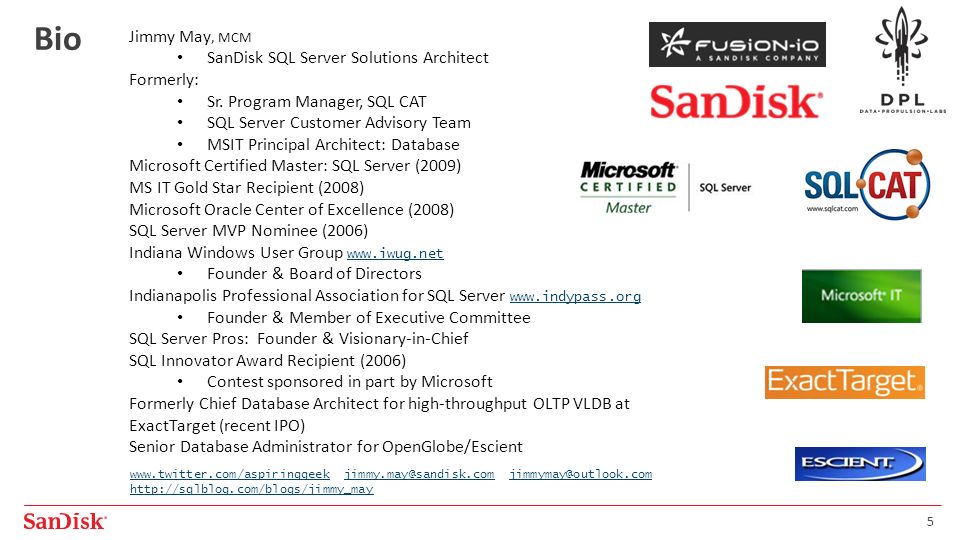

5. 5 Jimmy May, MCM SanDisk SQL Server Solutions Architect Formerly: Sr. Program Manager, SQL CAT SQL Server Customer Advisory Team MSIT Principal Architect: Database Microsoft Certified Master: SQL Server (2009) MS IT Gold Star Recipient (2008) Microsoft Oracle Center of Excellence (2008) SQL Server MVP Nominee (2006) Indiana Windows User Group www.iwug.net www.iwug.net Founder & Board of Directors Indianapolis Professional Association for SQL Server www.indypass.org www.indypass.org Founder & Member of Executive Committee SQL Server Pros: Founder & Visionary-in-Chief SQL Innovator Award Recipient (2006) Contest sponsored in part by Microsoft Formerly Chief Database Architect for high-throughput OLTP VLDB at ExactTarget (recent IPO) Senior Database Administrator for OpenGlobe/Escient www.twitter.com/aspiringgeekwww.twitter.com/aspiringgeek jimmy.may@sandisk.com jimmymay@outlook.comjimmy.may@sandisk.comjimmymay@outlook.com http://sqlblog.com/blogs/jimmy_may Bio

6. 6 Who: Jimmy May & MS MTC Director Ross LoForte What: #DataDriven: MS MTC Studio Live Webinar: Mission Critical Performance leveraging SQL Server 2016 on SanDisk Flash When: Thursday 7 April 2016 @10a PDT Where: http://bit.ly/MTCPerfhttp://bit.ly/MTCPerf

7. 7 Intro to I/O Monitoring

8. 8 Flash: Don’t be this guy. Don’t be in this org. Hat tip to Bob Pusateri (@SQLBob)@SQLBob via Jason Horner (@jasonhorner) & Argenis Fernandez (@DBArgenis )@jasonhorner@DBArgenis

9. 9 Flash is Revolutionizing Enterprise Storage

10. 10 What if I told you......the only good I/O is the one for which you do not ask?

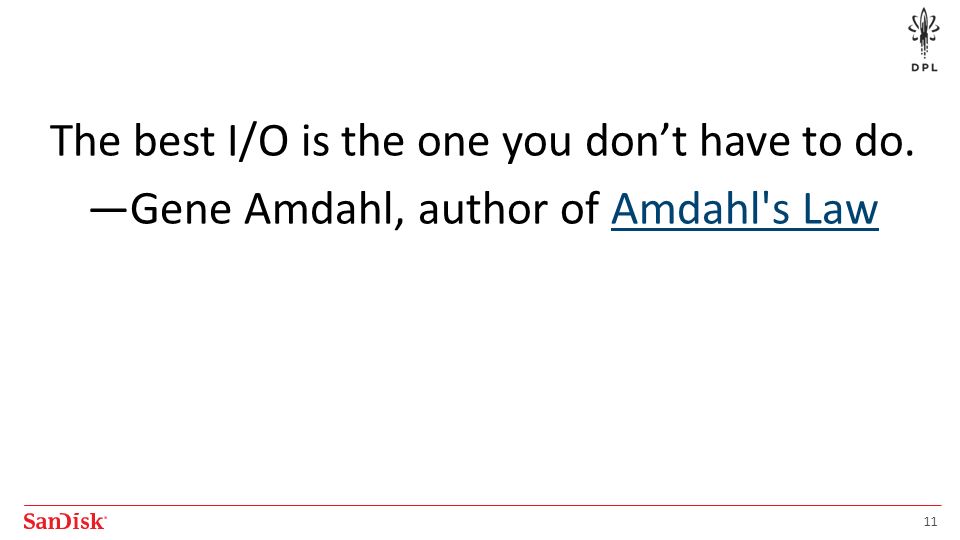

11. 11 The best I/O is the one you don’t have to do. —Gene Amdahl, author of Amdahl's LawAmdahl's Law

12. 12 Caching Algorithms: Your Experience May Vary...

13. 13 SQL Server I/O Sizes

14. 14 SQL I/O: Common Read/Write Sizes  512B – 60KB: Log File Sequential Writes – Very small block to small block – Do not randomize by intermingling with other workloads! – The lesser of 112 outstanding IO’s or 3,840KB outstanding volume.  8KB: Data File Random Reads – Multiples thereof up to 64KB  64KB: Data File Reads & fragmented scans  1024KB (Enterprise Edition) / 512KB (Standard Edition) Readahead – Data file reads (sequential row store scans, columnstore)  Up to 256KB: Checkpoint Writes (one thread per NUMA node)  Pivots – Small block vs. Big block – Reads vs. Writes – Random vs. Sequential

15. 15 Demo: SQL Server I/O Sizes

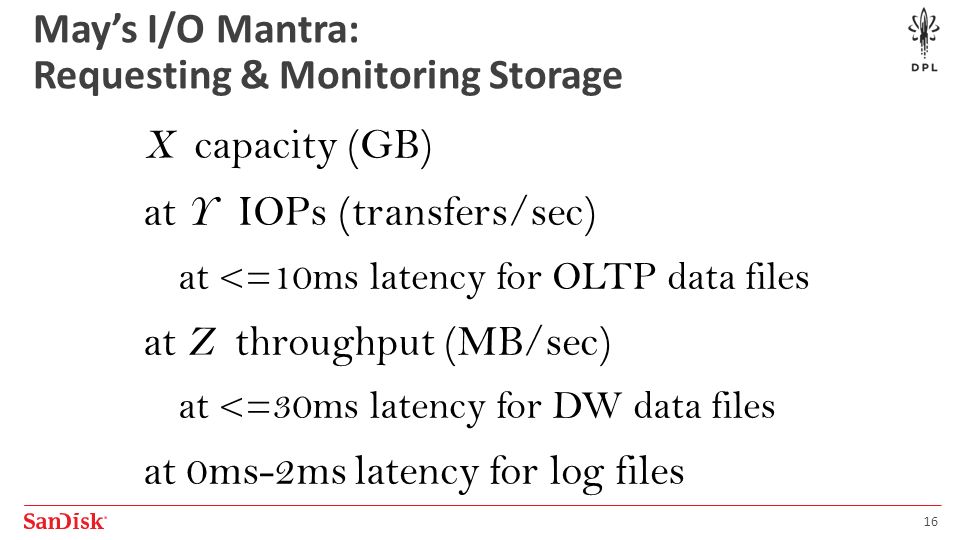

16. 16 May’s I/O Mantra: Requesting & Monitoring Storage X capacity (GB) at Y IOPs (transfers/sec) at <=10ms latency for OLTP data files at Z throughput (MB/sec) at <=30ms latency for DW data files at 0ms-2ms latency for log files

17. 17 I/O Metrics: PerfMon Counters That Count Performance Monitor: Logical Disk  Latency – Measured in milliseconds (ms) – Measured in microseconds (µs) – Performance Monitor: Logical Disk Avg. Disk sec/Transfer Avg. Disk sec/Read Avg. Disk sec/Write  IOPS Disk Transfers/sec Disk Read/sec Disk Writes/sec  Throughput Disk Bytes/sec Disk Read Bytes/sec Disk Write Bytes/sec  Transfer Size – Measured in KB Avg. Disk Bytes/Transfer Avg. Disk Read Bytes/Transfer Avg. Disk Write Bytes/Transfer  Disk Queue Length – Unitless Current Disk Queue Length Avg. Disk Queue Length Avg. Disk Read Queue Length Avg. Disk Write Queue Length Capacity – The easy one! – Measured in MB/GB/TB % Free Space Free Megabytes

18. 18 Perfmon Counters – Explained 64 KB 8 KB 8 KB ½B½B ½B½B Avg Disk Bytes / Transfer 8 KB 8 KB 8 KB 8 KB 64 KB 64 KB 64 KB ½B½B ½B½B Disk Bytes / sec = Throughput 152 KB Disk Bytes / sec = Throughput 152 KB 1 2 345 678 9 10 Time (sec) n T = 0 T = 1 Disk Transfers/sec = IOPs Current Disk Queue Length = n ”in-flight” I/O Avg. Disk sec/Transfer = Average amount of time within the unit of measure the I/O takes to complete (Latency) Transfers 8 KB 8 KB Inspired by Thomas Kejser, SQL CAT, ex-Fusion-io CTO

19. 19 Perfmon

20. 20 Windows Performance Monitor (perfmon)  Microsoft Management Console (MMC) snap-in that provides tools for analyzing system performance  From a single console: – Monitor application and hardware performance in real time – Customize what data collected in logs – Define thresholds for alerts and automatic actions – Generate reports – View past performance data

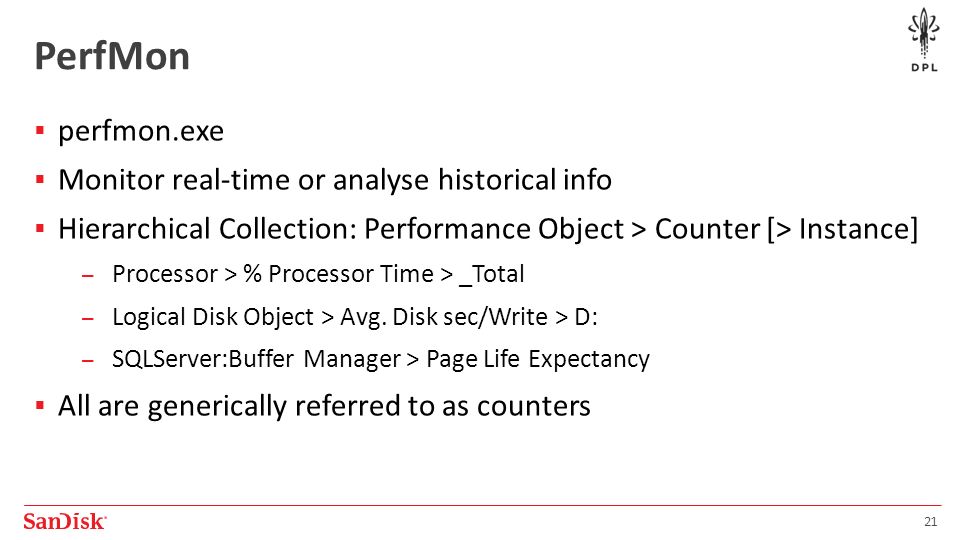

21. 21 PerfMon  perfmon.exe  Monitor real-time or analyse historical info  Hierarchical Collection: Performance Object > Counter [> Instance] – Processor > % Processor Time > _Total – Logical Disk Object > Avg. Disk sec/Write > D: – SQLServer:Buffer Manager > Page Life Expectancy  All are generically referred to as counters

22. 22 Real-time: Adding Counters View Current Activity (Ctrl+T) Add Counters (Ctrl+N) Confirm Computer Select Performance Object(s) & Counter(s) Select Instance(s) Click OK

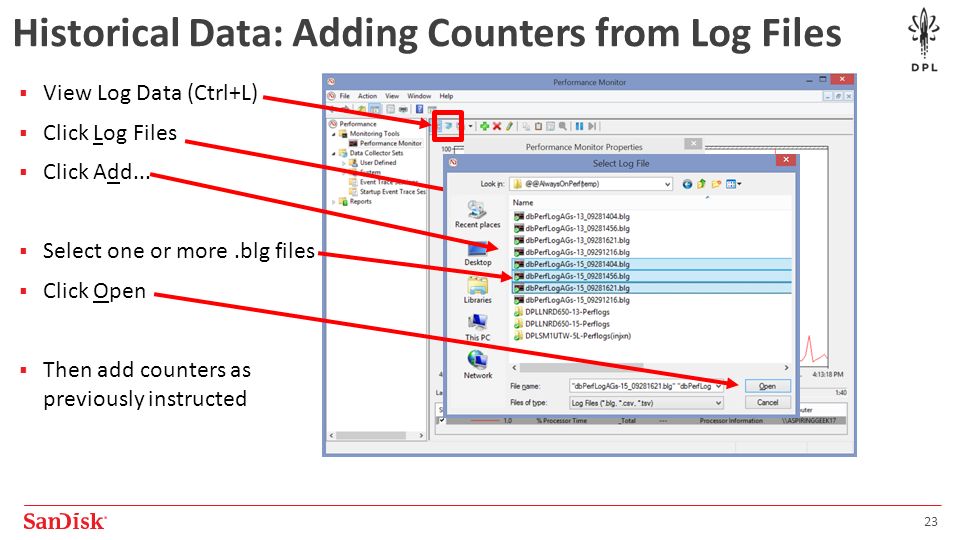

23. 23  View Log Data (Ctrl+L)  Click Log Files  Click Add...  Select one or more.blg files  Click Open  Then add counters as previously instructed Historical Data: Adding Counters from Log Files

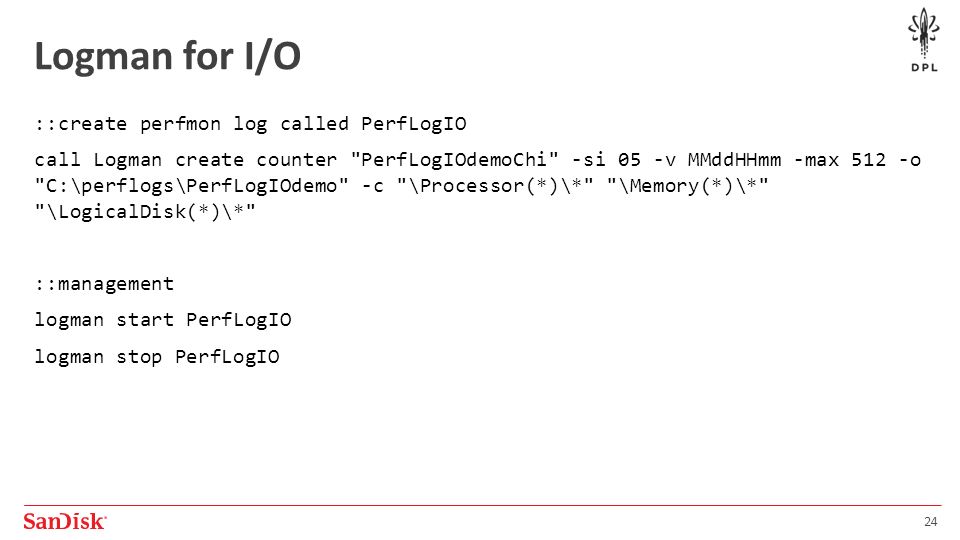

24. 24 Logman for I/O ::create perfmon log called PerfLogIO call Logman create counter "PerfLogIOdemoChi" -si 05 -v MMddHHmm -max 512 -o "C:\perflogs\PerfLogIOdemo" -c "\Processor(*)\*" "\Memory(*)\*" "\LogicalDisk(*)\*" ::management logman start PerfLogIO logman stop PerfLogIO

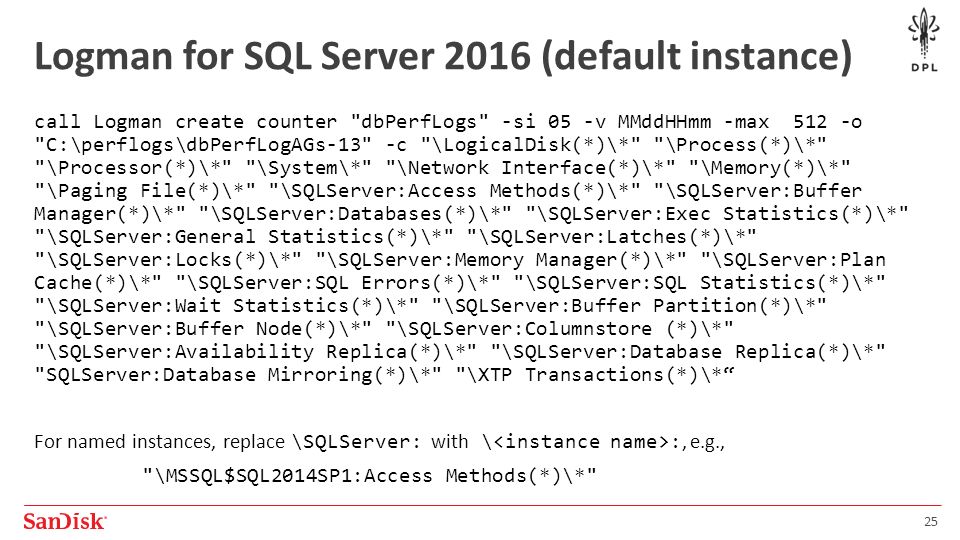

25. 25 Logman for SQL Server 2016 (default instance) call Logman create counter "dbPerfLogs" -si 05 -v MMddHHmm -max 512 -o "C:\perflogs\dbPerfLogAGs-13" -c "\LogicalDisk(*)\*" "\Process(*)\*" "\Processor(*)\*" "\System\*" "\Network Interface(*)\*" "\Memory(*)\*" "\Paging File(*)\*" "\SQLServer:Access Methods(*)\*" "\SQLServer:Buffer Manager(*)\*" "\SQLServer:Databases(*)\*" "\SQLServer:Exec Statistics(*)\*" "\SQLServer:General Statistics(*)\*" "\SQLServer:Latches(*)\*" "\SQLServer:Locks(*)\*" "\SQLServer:Memory Manager(*)\*" "\SQLServer:Plan Cache(*)\*" "\SQLServer:SQL Errors(*)\*" "\SQLServer:SQL Statistics(*)\*" "\SQLServer:Wait Statistics(*)\*" "\SQLServer:Buffer Partition(*)\*" "\SQLServer:Buffer Node(*)\*" "\SQLServer:Columnstore (*)\*" "\SQLServer:Availability Replica(*)\*" "\SQLServer:Database Replica(*)\*" "SQLServer:Database Mirroring(*)\*" "\XTP Transactions(*)\*“ For named instances, replace \SQLServer: with \ :, e.g., "\MSSQL$SQL2014SP1:Access Methods(*)\*"

26. 26 Demo: Logman

27. 27 Perfmon References PerfMon Objects, Counters, Thresholds, & Utilities for SQL Server http://blogs.msdn.com/b/jimmymay/archive/2008/10/15/perfmon-objects-counters-thresholds- utilities-for-sql-server.aspx http://blogs.msdn.com/b/jimmymay/archive/2008/10/15/perfmon-objects-counters-thresholds- utilities-for-sql-server.aspx Customizing the Default Counters for Performance Monitor www.sqlskills.com/blogs/erin/customizing-the-default-counters-for-performance-monitor www.sqlskills.com/blogs/erin/customizing-the-default-counters-for-performance-monitor Performance Monitor Tips and Tricks with John Rodriguez http://blogs.technet.com/b/neiljohn/archive/2012/01/16/performance-monitor-tips-and-tricks-with- john-rodriguez.aspx http://blogs.technet.com/b/neiljohn/archive/2012/01/16/performance-monitor-tips-and-tricks-with- john-rodriguez.aspx

28. 28 Related Tools References  Excellent hands-on intros – Ask the Performance Team blog: Two Minute Drills logman.exe http://blogs.technet.com/b/askperf/archive/2008/05/13/two-minute-drill-logman-exe.aspx http://blogs.technet.com/b/askperf/archive/2008/05/13/two-minute-drill-logman-exe.aspx typeperf.exe http://blogs.technet.com/b/askperf/archive/2009/05/12/two-minute-drill-typeperf.aspx http://blogs.technet.com/b/askperf/archive/2009/05/12/two-minute-drill-typeperf.aspx relog.exe http://blogs.technet.com/b/askperf/archive/2008/05/20/two-minute-drill-relog-exe.aspx http://blogs.technet.com/b/askperf/archive/2008/05/20/two-minute-drill-relog-exe.aspx

29. 29 Virtual File Stats

30. 30 Virtual File Stats sys.dm_io_virtual_file_stats (Transact-SQL) https://msdn.microsoft.com/en-us/library/ms190326.aspx  Syntax  Usage

31. 31 VFS: Column Names  num_of_writes  num_of_bytes_written  io_stall_write_ms  io_stall_queued_write_ms io_stall  size_on_disk_bytes  file_handle  database_id  file_id  sample_ms  num_of_reads  num_of_bytes_read  io_stall_read_ms  io_stall_queued_read_ms

32. 32 Virtual File Stats: Derived Columns  virtual file latency: stalls ÷ I/O count – total – read – write  avg bytes per I/O (transfer size): bytes ÷ I/O count – total – read – write  drive letter – note: doesn’t account for mount points  db_name  physical file name (via sys.master_files)  Filter by – db_id – db_name – type_desc = 'LOG', 'DATA' (via sys.master_files)

33. 33 Virtual File Stats à la DMV All-Stars

34. 34 Wait Stats

35. 35 Wait Stats sys.dm_os_wait_stats (Transact-SQL) https://msdn.microsoft.com/en-us/library/ms179984.aspx  Usage (trivial, not recommended)  Usage (improved)

36. 36 Wait Stats: Columns & Derived Columns  wait_type  waiting_tasks_count  wait_time_ms  max_wait_time_ms  signal_wait_time_ms  resource_wait_time_ms  signal_wait_time_per_wait  resource_wait_time_per_wait

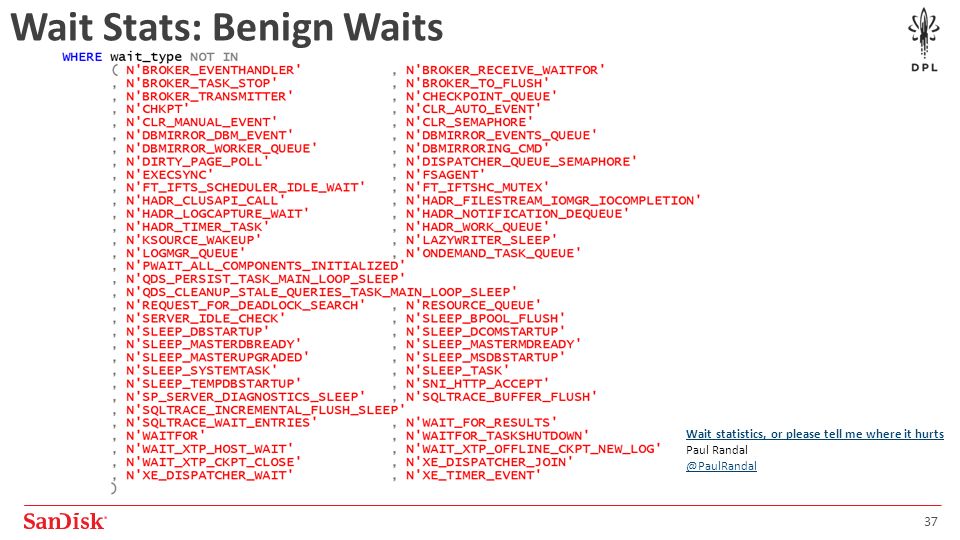

37. 37 Wait Stats: Benign Waits Wait statistics, or please tell me where it hurts Wait statistics, or please tell me where it hurts Paul Randal @PaulRandal @PaulRandal

38. 38 I/O-related Wait Stats  PAGEIOLATCH_xx – Disk-to-memory transfers – PAGELATCH_SH: Most commonly reading/writing data file pages – PAGELATCH_EX: Typically PFS or SGAM contention or last-page-insert  WRITELOG – Waiting for log buffer to flush to disk  ASYNC_IO_COMPLETION & BACKUP_IO – Typically (not always) related to backup  IO_COMPLETION, WRITE_COMPLETION – Typically not top waits

39. 39 References  Download from TechNet: Diskspd, a Robust Storage Testing Tool, Now Publically Available https://gallery.technet.microsoft.com/DiskSpd-a-robust-storage-6cd2f223 https://gallery.technet.microsoft.com/DiskSpd-a-robust-storage-6cd2f223  Drum Roll, Please...The Debut of The SQL DMV All-Stars Dream Team! Drum Roll, Please...The Debut of The SQL DMV All-Stars Dream Team! http://blogs.msdn.com/b/jimmymay/archive/2008/10/30/drum-roll-please-the-debut-of-the-sql-dmv-all-stars-dream-team.aspx http://blogs.msdn.com/b/jimmymay/archive/2008/10/30/drum-roll-please-the-debut-of-the-sql-dmv-all-stars-dream-team.aspx Jimmy May @AspiringGeek @AspiringGeek  Revised File & Wait Statistics Procedures Revised File & Wait Statistics Procedures http://sqlblog.com/blogs/andrew_kelly/archive/2015/09/02/revised-file-wait-statistics-procedures.aspx http://sqlblog.com/blogs/andrew_kelly/archive/2015/09/02/revised-file-wait-statistics-procedures.aspx Andrew Kelley @GunneyK @GunneyK  Wait statistics, or please tell me where it hurts Wait statistics, or please tell me where it hurts http://www.sqlskills.com/blogs/paul/wait-statistics-or-please-tell-me-where-it-hurts http://www.sqlskills.com/blogs/paul/wait-statistics-or-please-tell-me-where-it-hurts Paul Randal @PaulRandal @PaulRandal  Anatomy of an I/O Tuning Exercise Anatomy of an I/O Tuning Exercise http://www.sqlsaturday.com/446/Sessions/Details.aspx?sid=40420 http://www.sqlsaturday.com/446/Sessions/Details.aspx?sid=40420 Theresa Iserman @TheresaIserman @TheresaIserman

40. 40 Demo: Wait Stats & Virtual Files Stats

41. 41 I/O Subsystem Validation & Testing

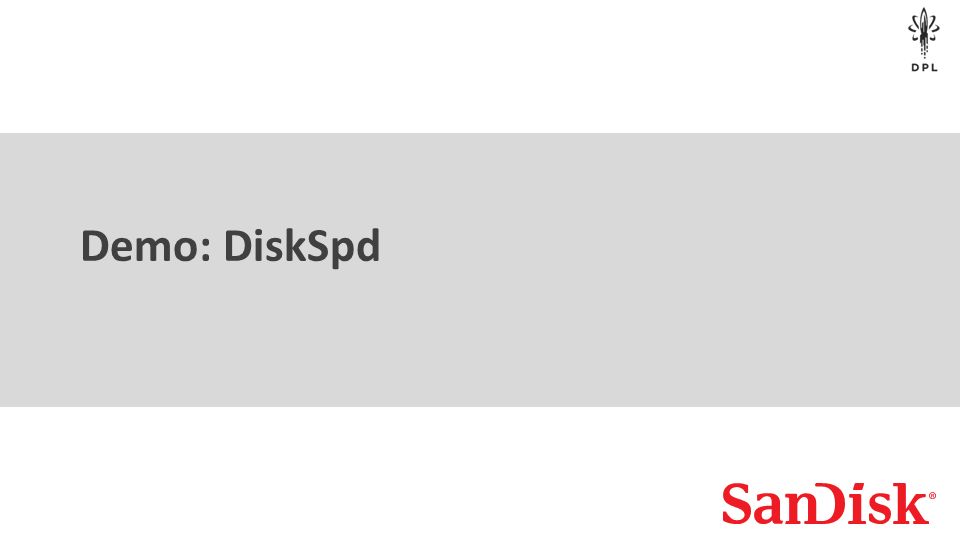

42. 42 Demo: DiskSpd

43. 43 References  Download from TechNet: Diskspd, a Robust Storage Testing Tool, Now Publically Available https://gallery.technet.microsoft.com/DiskSpd-a-robust-storage-6cd2f223  Storage Benchmarking with DiskSpd Storage Benchmarking with DiskSpd www.davidklee.net/2015/04/01/storage-benchmarking-with-diskspd www.davidklee.net/2015/04/01/storage-benchmarking-with-diskspd David Klee, MVP @kleegeek@kleegeek  Automating Storage Benchmarking with DiskSpd and PowerShell Automating Storage Benchmarking with DiskSpd and PowerShell http://www.sqlskills.com/blogs/paul/wait-statistics-or-please-tell-me-where-it-hurts http://www.sqlskills.com/blogs/paul/wait-statistics-or-please-tell-me-where-it-hurts David Klee, MVP @kleegeek Michael Fall @mike_fal@kleegeek@mike_fal  DiskSpd, PowerShell and storage performance: measuring IOPs, throughput and latency for both local disks and SMB file shares DiskSpd, PowerShell and storage performance: measuring IOPs, throughput and latency for both local disks and SMB file shares http://blogs.technet.com/b/josebda/archive/2014/10/13/diskspd-powershell-and-storage-performance-measuring-iops- throughput-and-latency-for-both-local-disks-and-smb-file-shares.aspx http://blogs.technet.com/b/josebda/archive/2014/10/13/diskspd-powershell-and-storage-performance-measuring-iops- throughput-and-latency-for-both-local-disks-and-smb-file-shares.aspx Jose Berreto, MCM @JoseBerreto @JoseBerreto

44. 44 Thank You!
