1. Web Services Dr.Kwanchai Eurviriyanukul kwanchai@rmutl.ac.th The contents of this slide set are obtained from various sources including W3School, WIKIPEDIA etc.

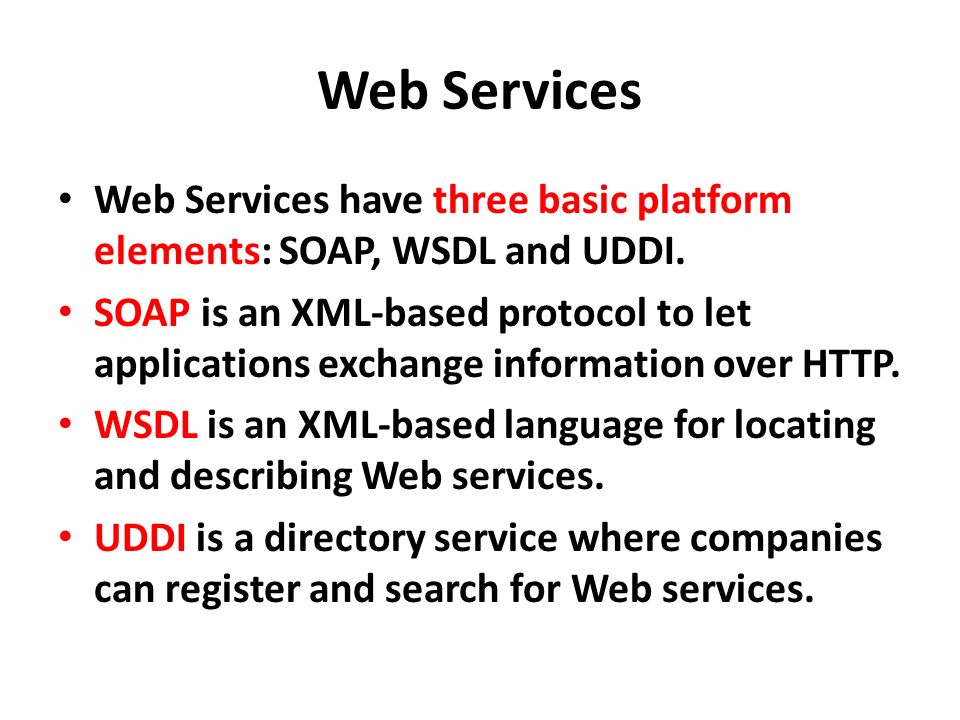

2. Web Services Web Services have three basic platform elements: SOAP, WSDL and UDDI. SOAP is an XML-based protocol to let applications exchange information over HTTP. WSDL is an XML-based language for locating and describing Web services. UDDI is a directory service where companies can register and search for Web services.

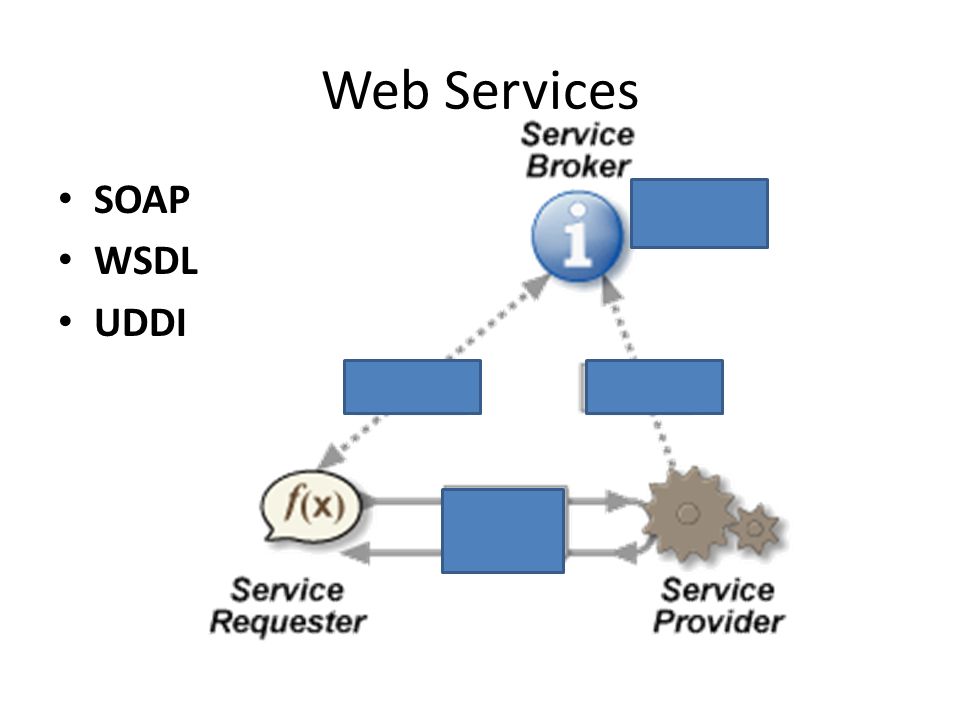

3. Web Services SOAP WSDL UDDI

4. Web Services SOAP WSDL UDDI

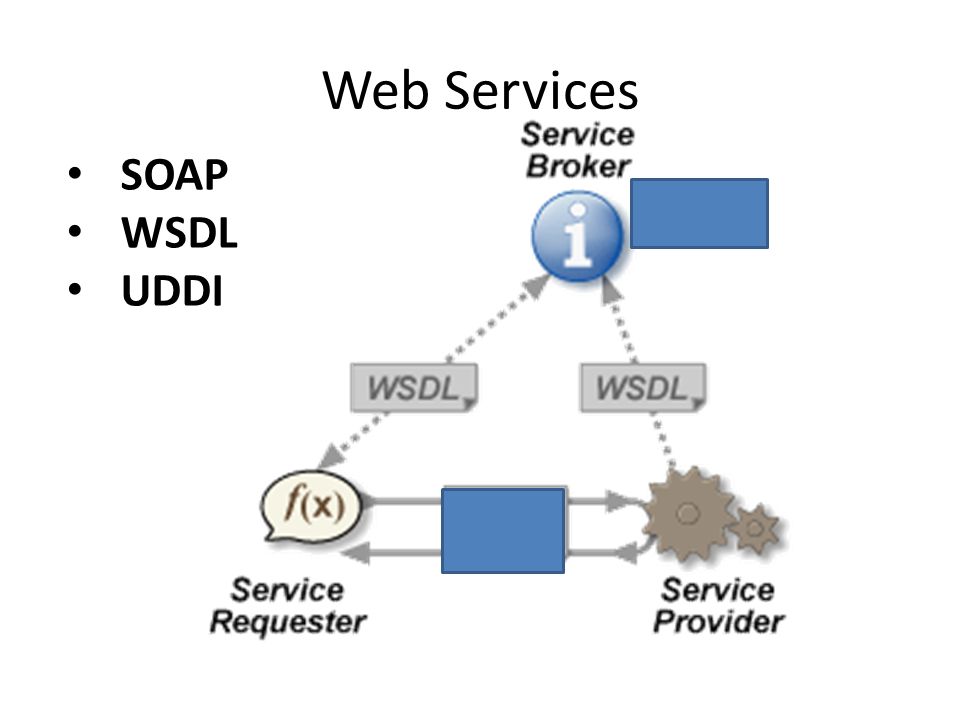

5. Web Services SOAP WSDL UDDI

6. Web Services SOAP WSDL UDDI

7. Web Services SOAP WSDL UDDI

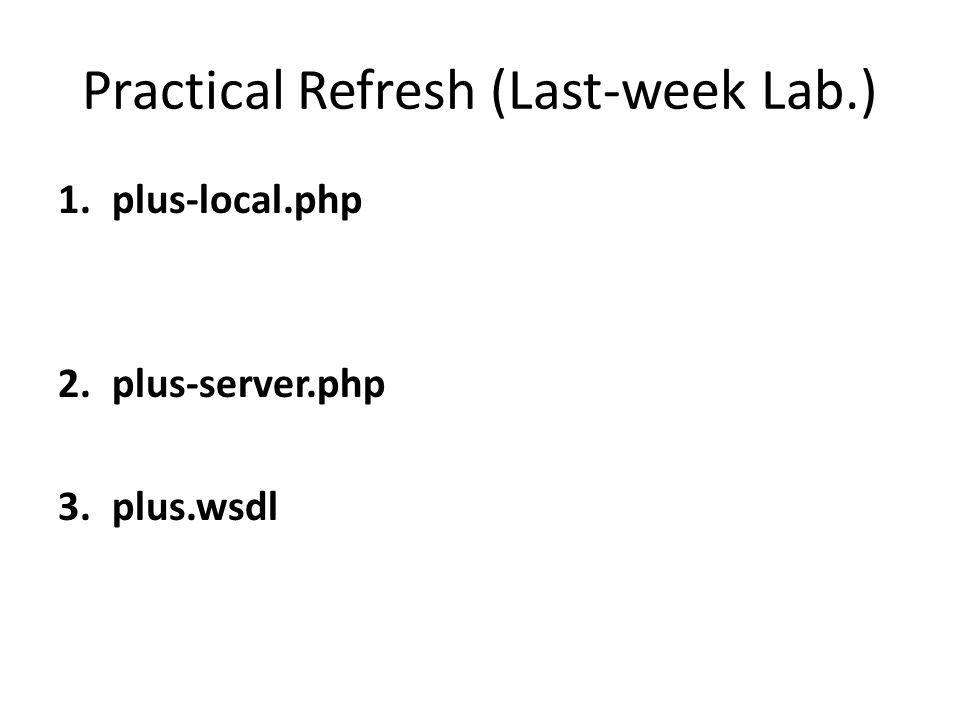

8. Practical Refresh (Last-week Lab.) 1.plus-local.php 2.plus-server.php 3.plus.wsdl

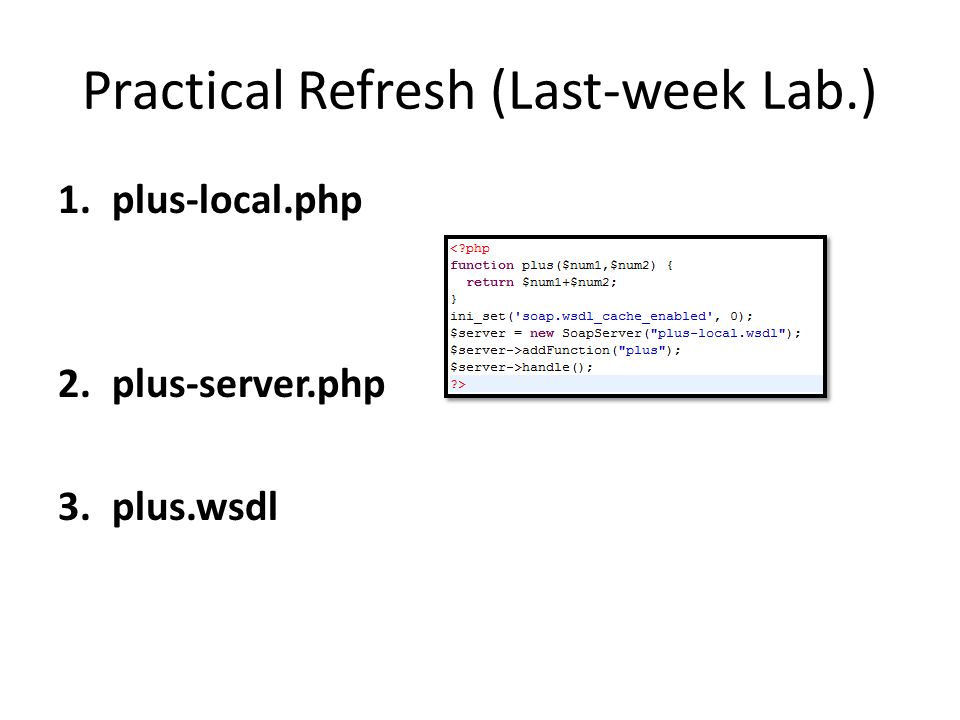

9. Practical Refresh (Last-week Lab.) 1.plus-local.php 2.plus-server.php 3.plus.wsdl

10. Practical Refresh (Last-week Lab.) 1.plus-local.php 2.plus-server.php 3.plus.wsdl

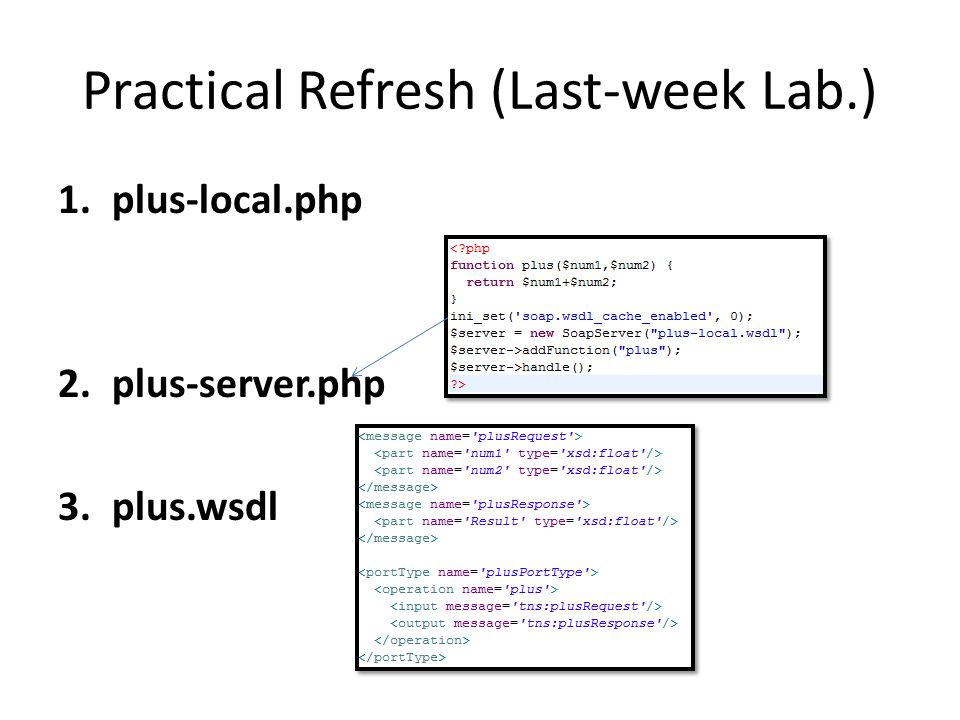

11. Practical Refresh (Last-week Lab.) 1.plus-local.php 2.plus-server.php 3.plus.wsdl

12. Practical Refresh (Last-week Lab.) 1.plus-local.php 2.plus-server.php 3.plus.wsdl

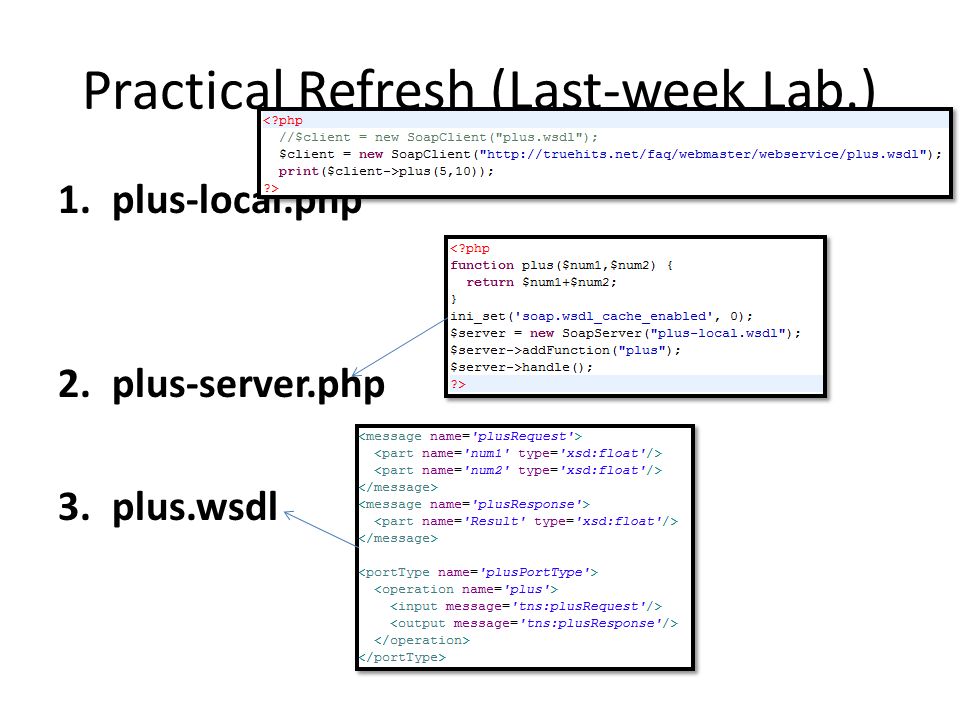

13. Practical Refresh (Last-week Lab.) 1.plus-local.php 2.plus-server.php 3.plus.wsdl

14. Practical Refresh (Last-week Lab.) 1.plus-local.php 2.plus-server.php 3.plus.wsdl

15. Practical Refresh (Last-week Lab.) 1.plus-local.php 2.plus-server.php 3.plus.wsdl

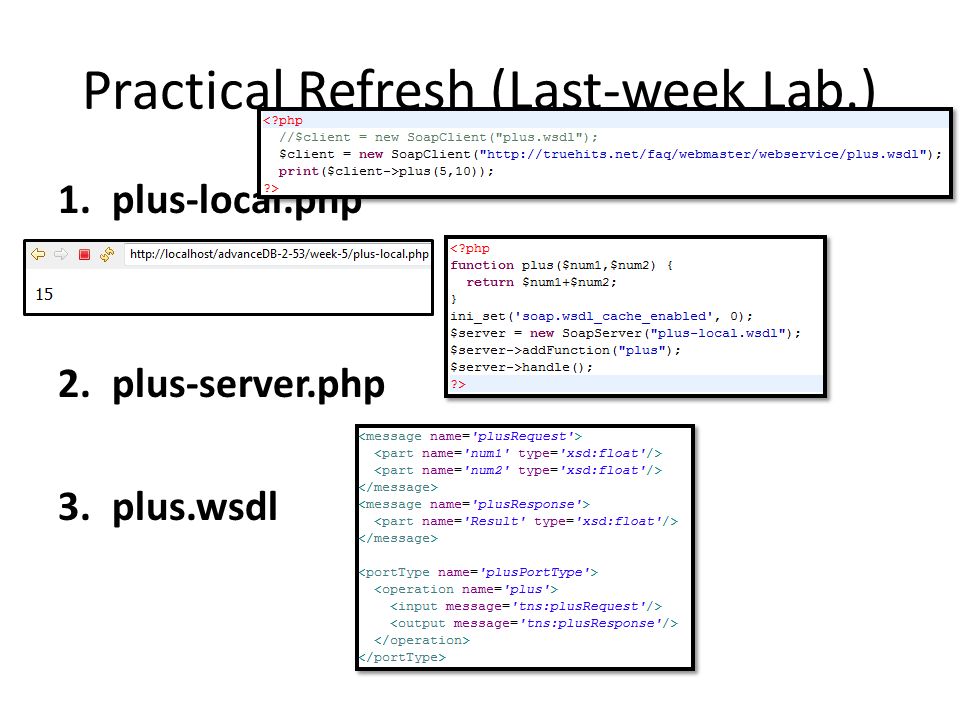

16. Practical Refresh (Last-week Lab.) 1.plus-local.php 2.plus-server.php 3.plus.wsdl

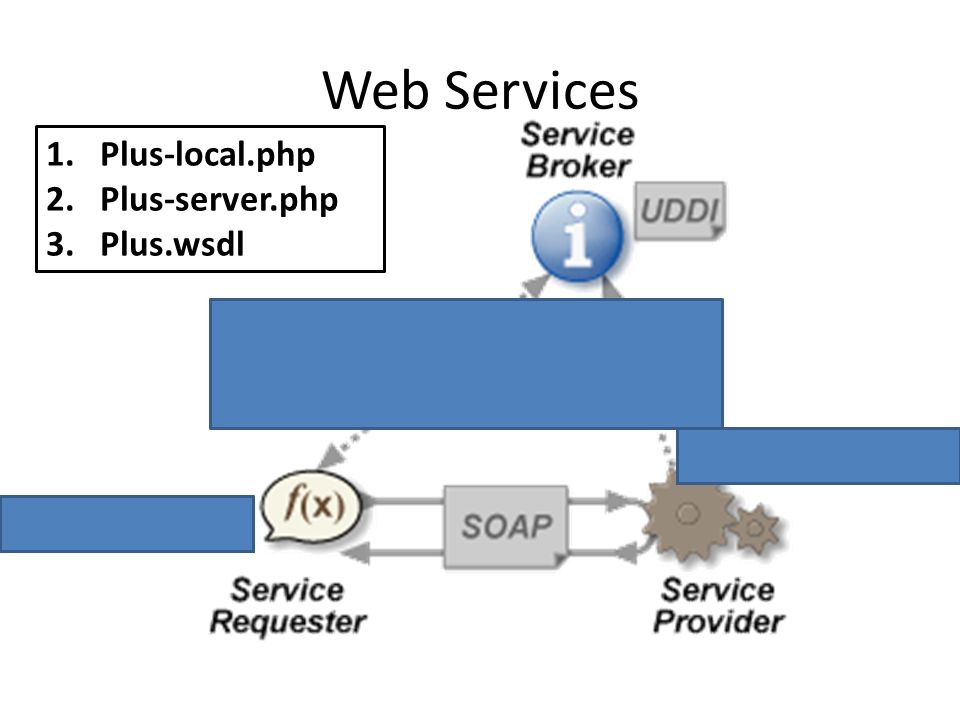

17. Web Services plus.wsdl plus-server.php plus-local.php 1.Plus-local.php 2.Plus-server.php 3.Plus.wsdl

18. Web Services plus.wsdl plus-server.php plus-local.php 1.Plus-local.php 2.Plus-server.php 3.Plus.wsdl

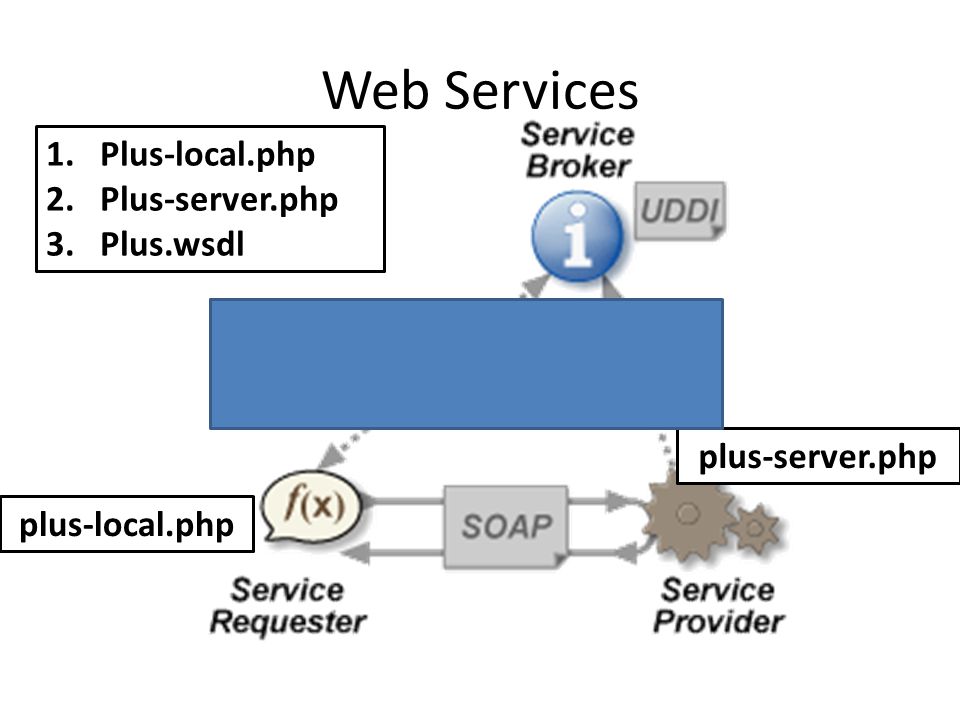

19. Web Services plus.wsdl plus-server.php plus-local.php 1.Plus-local.php 2.Plus-server.php 3.Plus.wsdl

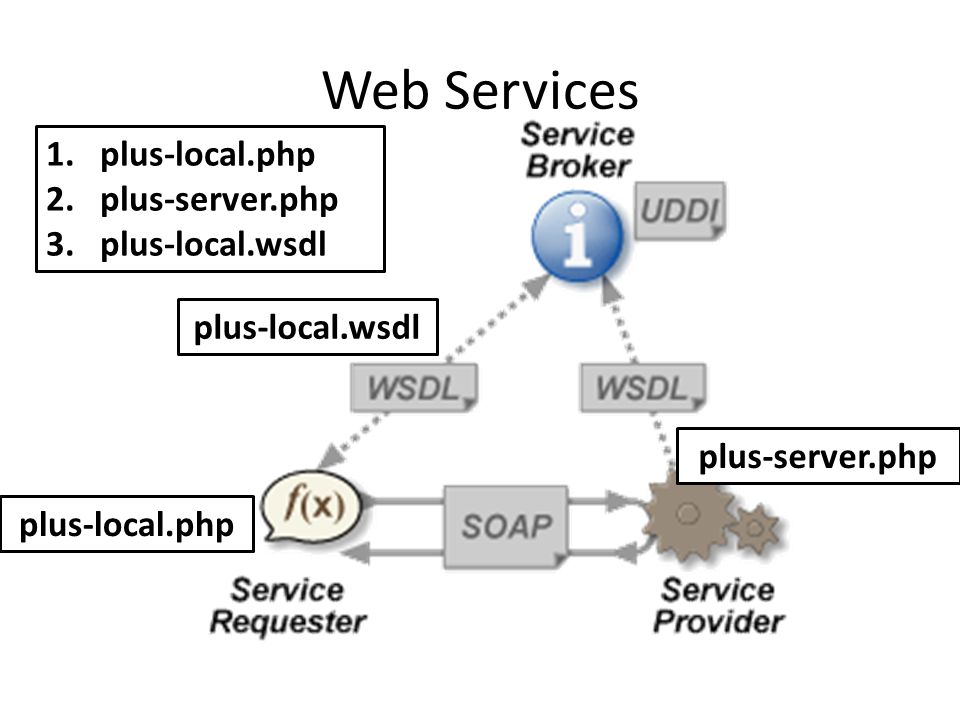

20. Web Services plus-local.wsdl plus-server.php plus-local.php 1.plus-local.php 2.plus-server.php 3.plus-local.wsdl

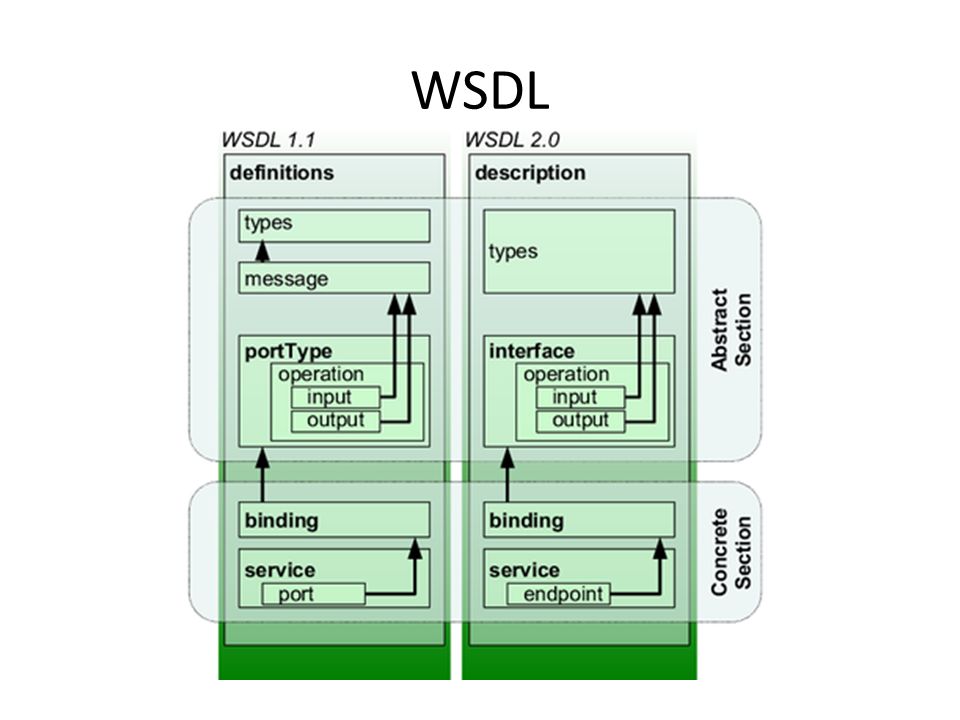

21. WSDL

22. Locate your service plus-local.wsdl 1.….. 2. 3. 4. 5. 6. 7.

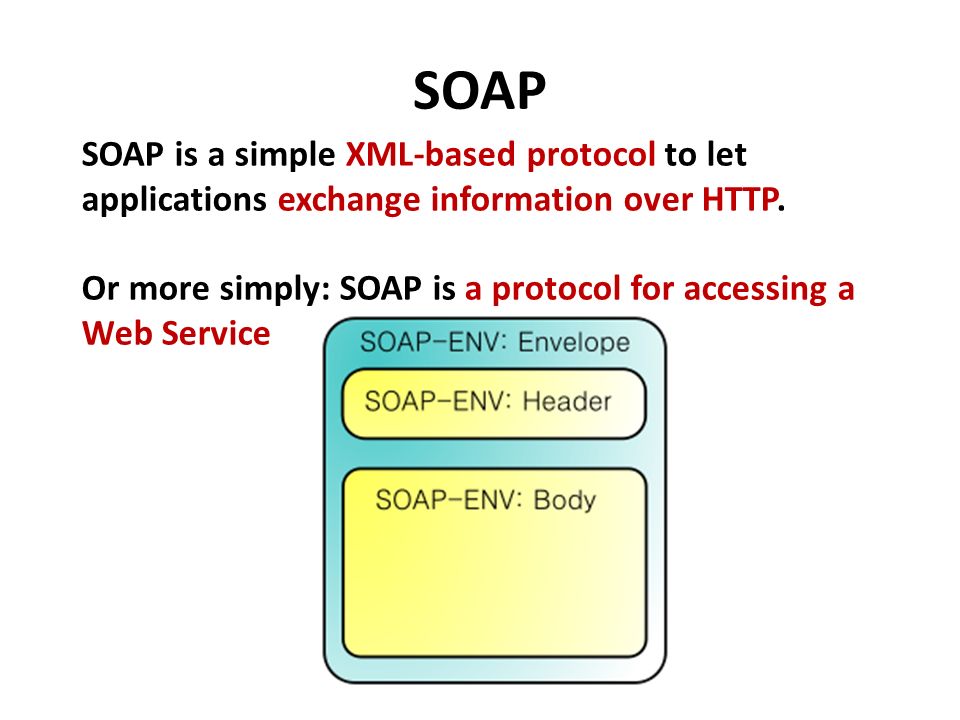

23. SOAP SOAP is a simple XML-based protocol to let applications exchange information over HTTP. Or more simply: SOAP is a protocol for accessing a Web Service

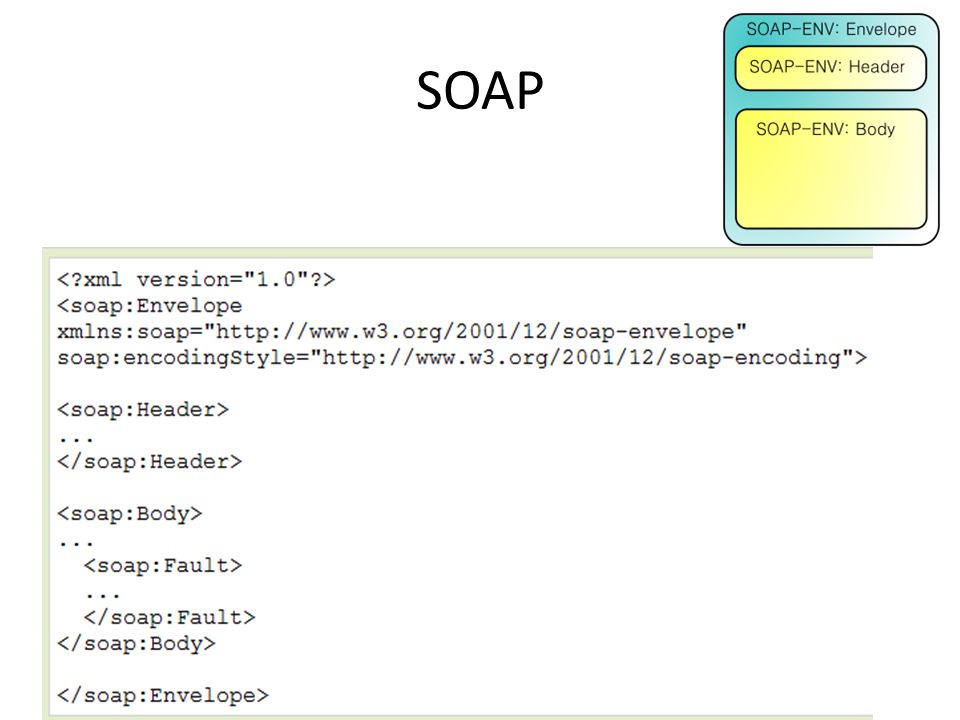

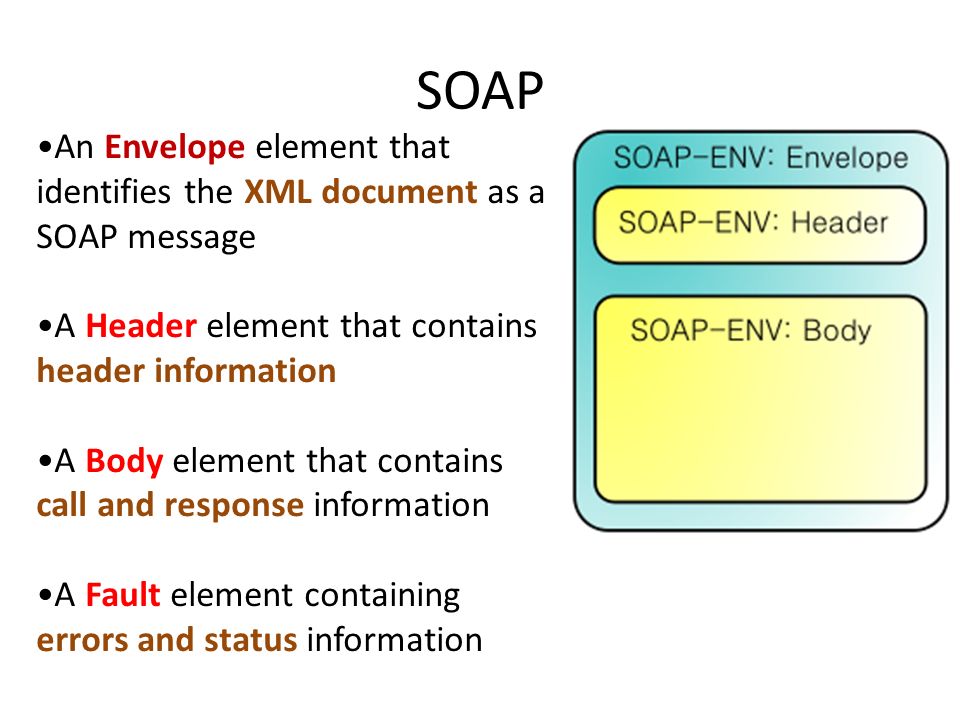

24. SOAP An Envelope element that identifies the XML document as a SOAP message A Header element that contains header information A Body element that contains call and response information A Fault element containing errors and status information

25. SOAP

26. SOAP Example Plus-2.php 1.<?php 2. $client = new SoapClient("plus-local.wsdl",array( 3. "trace" => 1, "exceptions" => 0)); 4. print "plus result = ". $client- >plus(10,20 ). " "; 5. print "Request : ".htmlspecialchars ($client- >__getLastRequest() )." "; 6. print "Response: ".htmlspecialchars ($client- >__getLastResponse() )." "; 7.?>

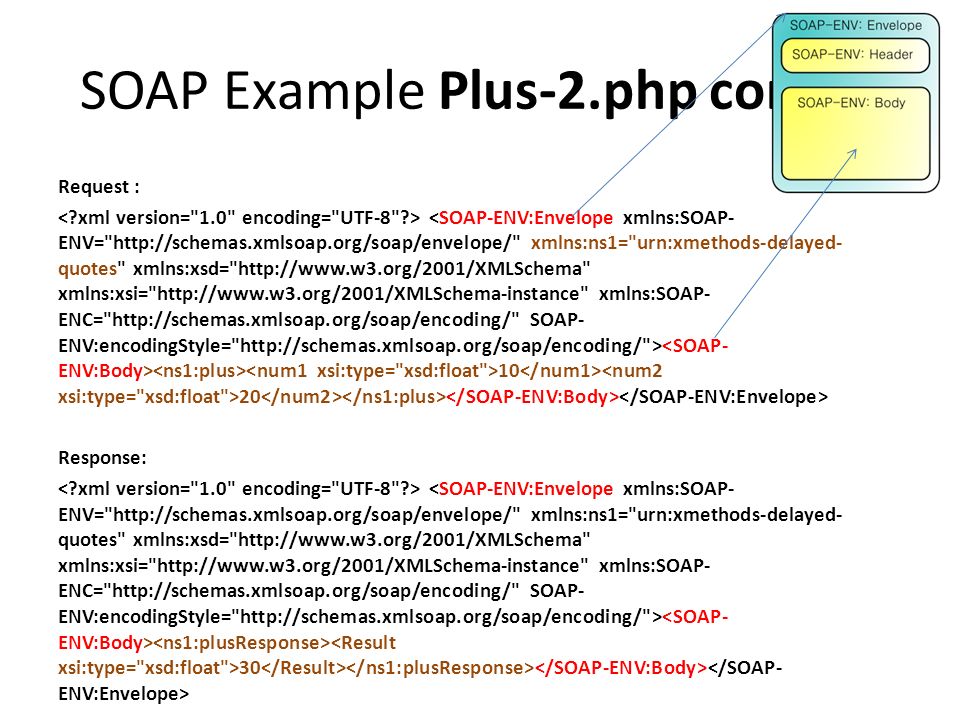

27. SOAP Example Plus-2.php cont.-2 Request : 10 20 Response: 30

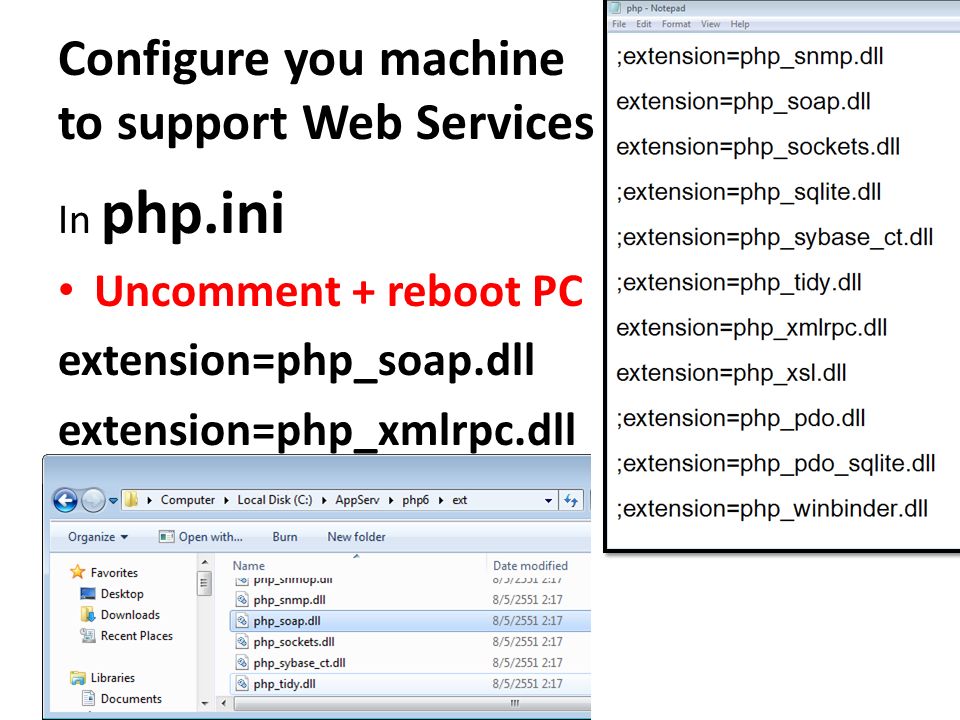

28. Configure you machine to support Web Services In php.ini Uncomment + reboot PC extension=php_soap.dll extension=php_xmlrpc.dll

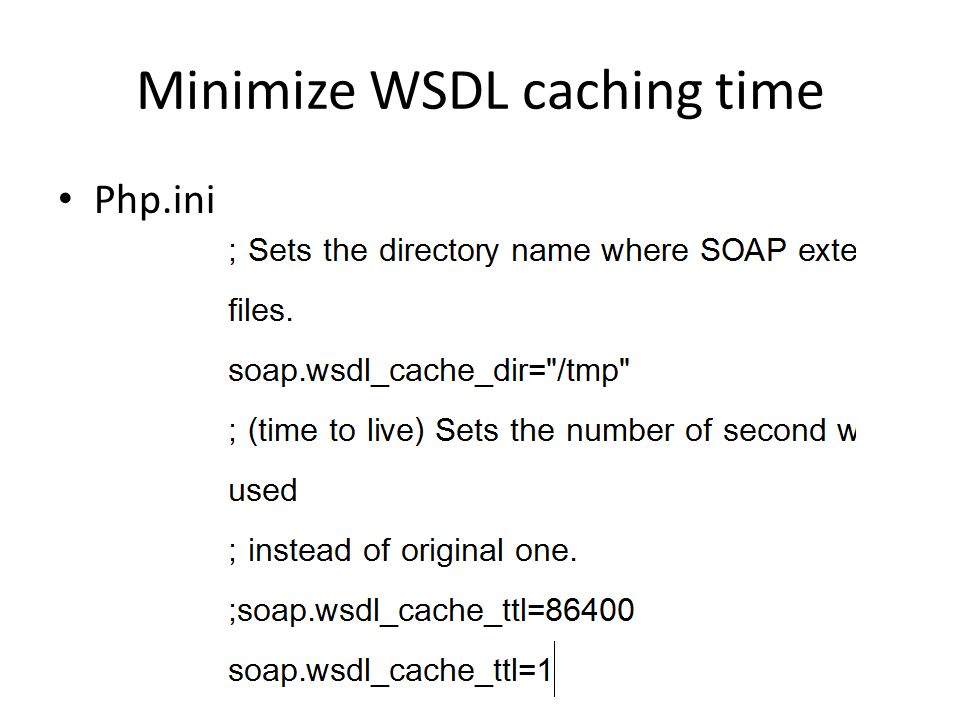

29. Minimize WSDL caching time Php.ini

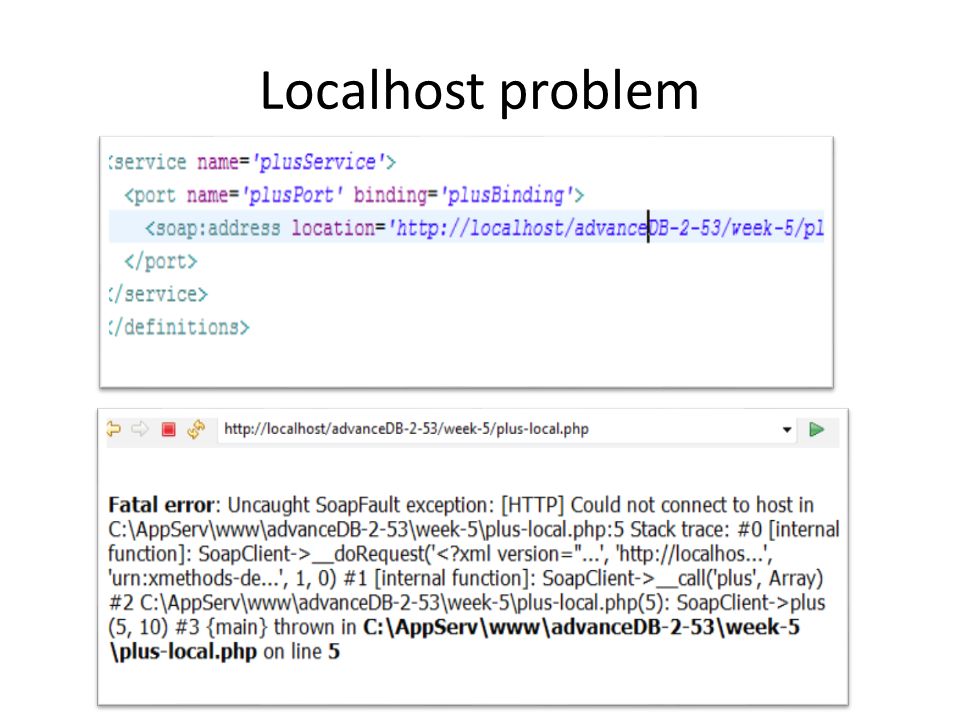

30. Localhost problem

31. Change localhost=>127.0.0.1 Localhost => 127.0.0.1 127.0.0.1 is a loop-back IP address for your machine.

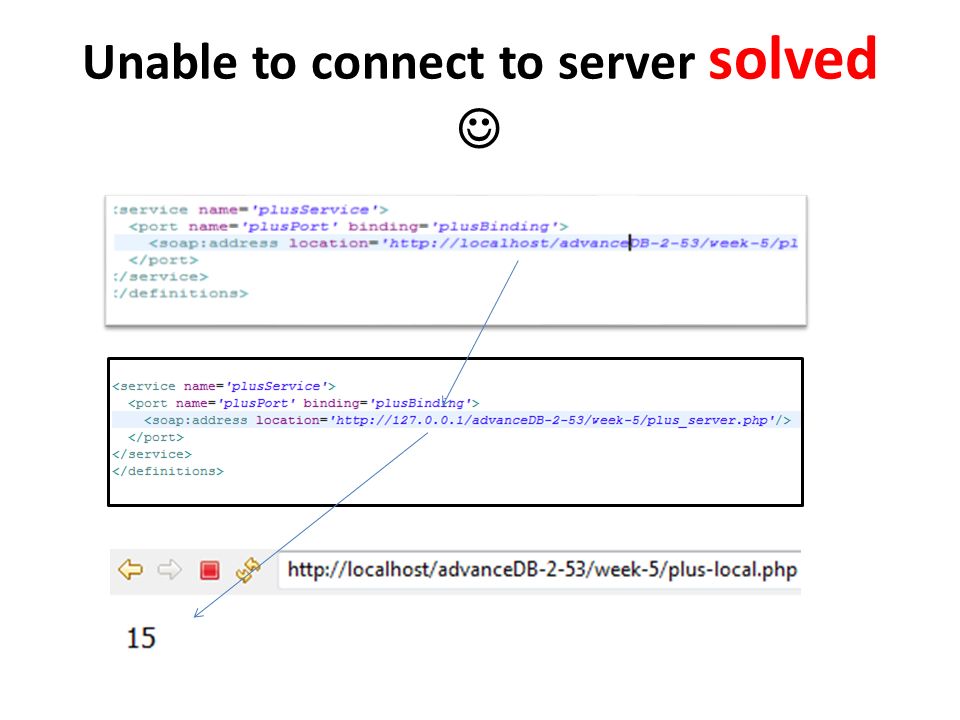

32. Unable to connect to server solved

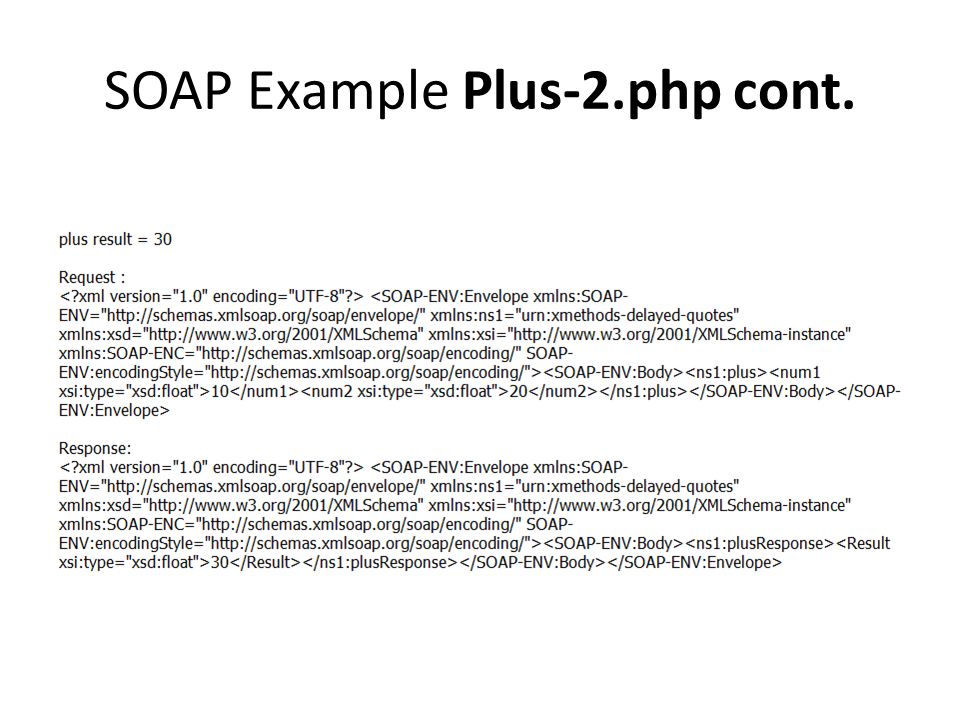

33. SOAP Example Plus-2.php cont.

34. Hands-on lecture Let’s implement the web services.

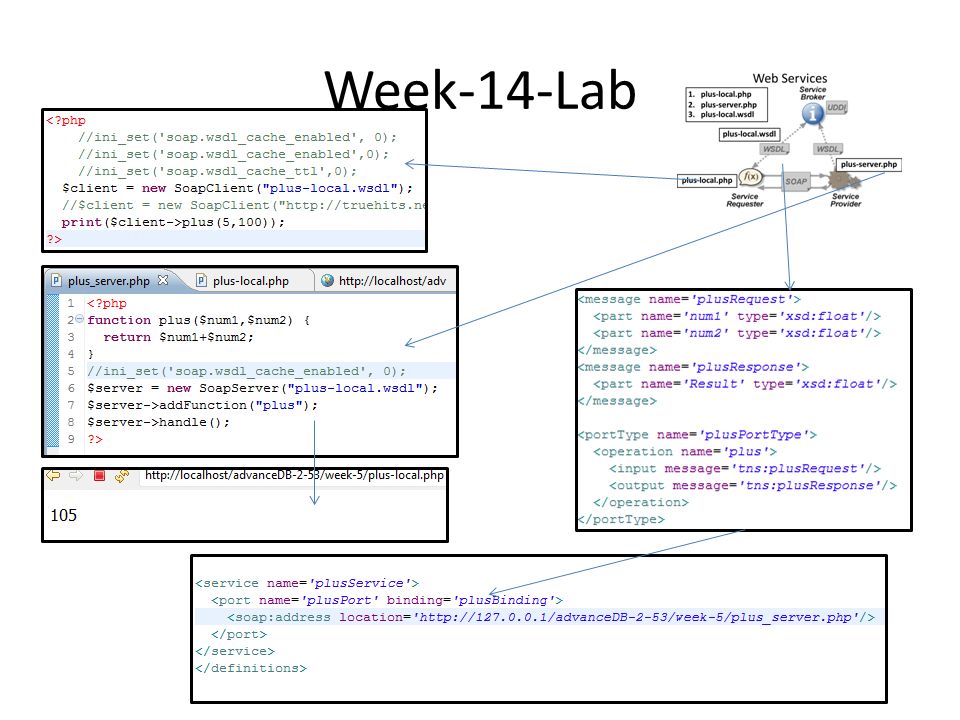

35. Week-14-Lab

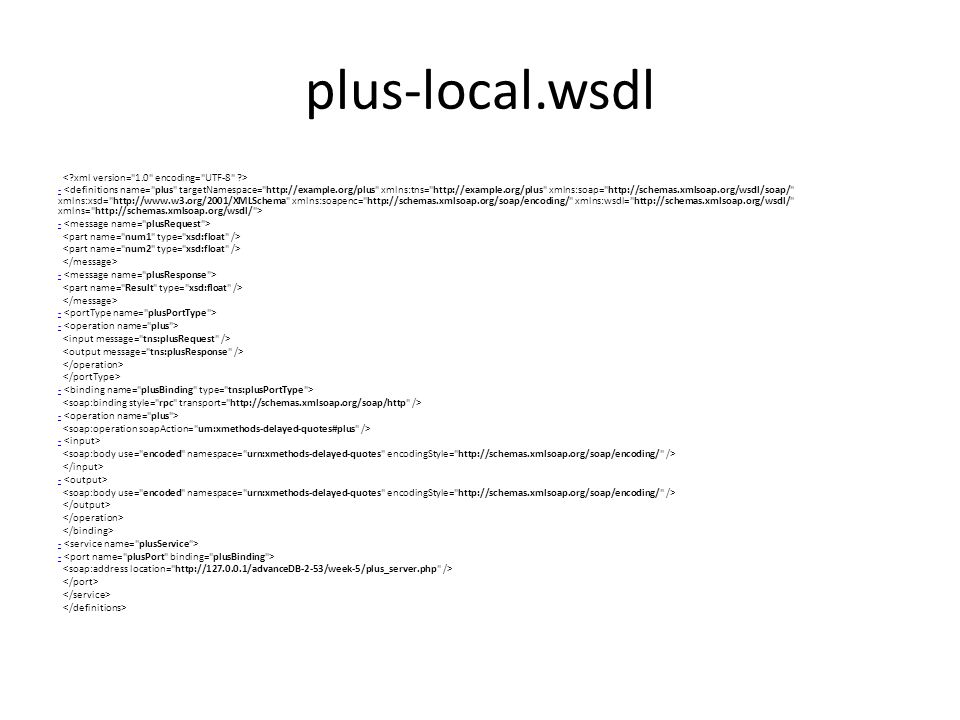

37. plus-local.wsdl - - - - - - - -

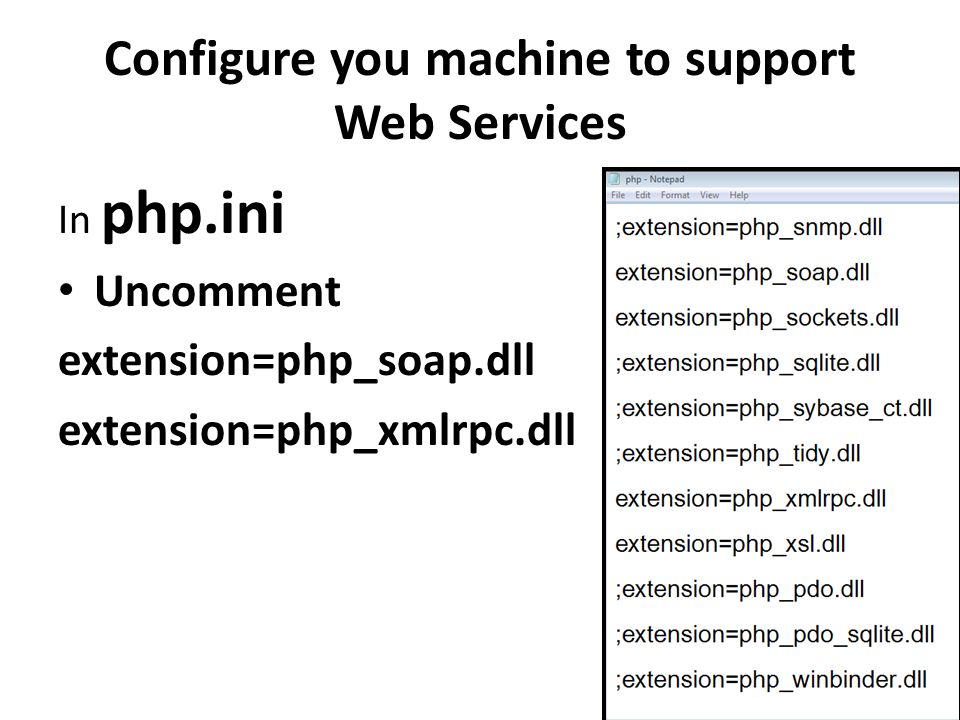

38. Configure you machine to support Web Services In php.ini Uncomment extension=php_soap.dll extension=php_xmlrpc.dll
