1. Measures Theo Witjes Theo.witjes@witteveenbos.com 5 May 20151

2. Programme of today Short overview of status modelling and data RBE and measures Long list of measures Strategies (afternoon) 5 May 20152

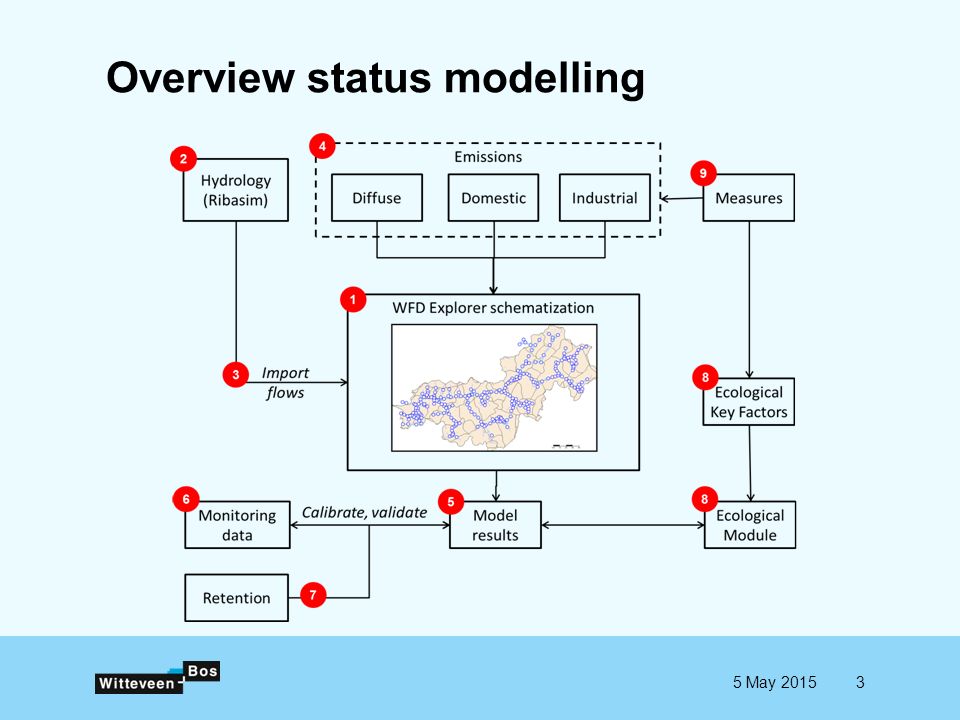

3. Overview status modelling 5 May 20153

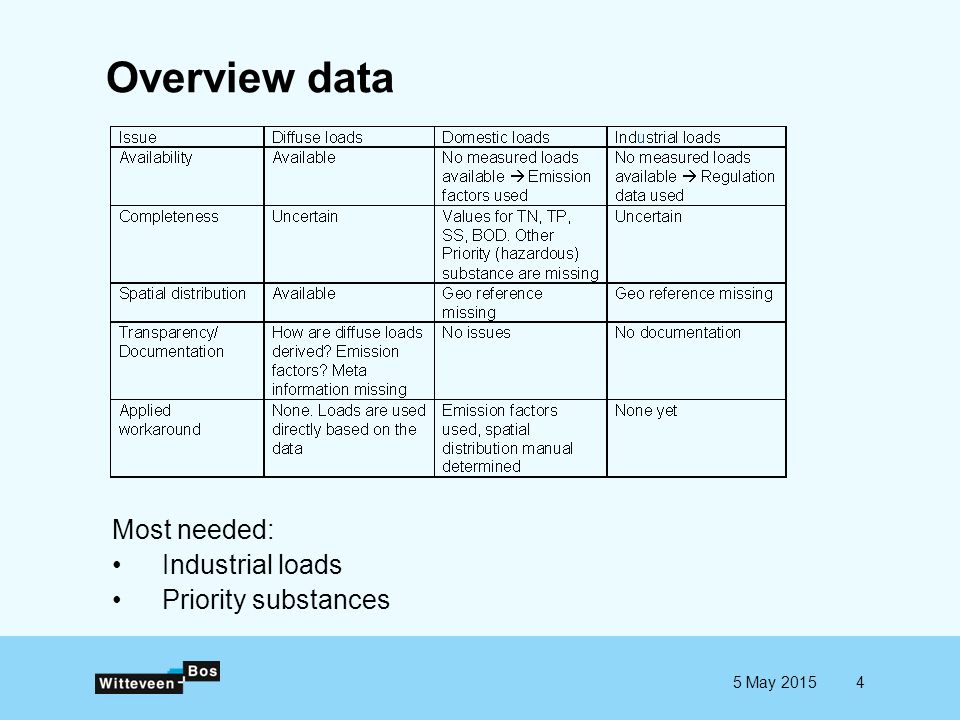

4. Overview data 5 May 20154 Most needed: Industrial loads Priority substances

5. RBE and measures 5 May 20155

6. Measures Measures have to be defined in relation to ecological key factors Three types of measures: point sources diffuse sources ecological measures Cost of measures 5 May 20156

7. Definition of measures in RBE Top left: general characteristics: ID (user defined) Name (user defined) Type (point source, diffuse source, ecological measure) Objects (automatically) Variables (automatically) Top right: detailed information: Type of emission source (agriculture/WWTP/...) Substance affected by measure Lower half: measures are assigned to nodes by table or map 5 May 20157

8. Cost module in RBE In the cost module the following data can be specified: Investment: costs for financing the measure or measure collection Depreciation period: this is the life span over which the value of the measure or measure collection is reduced to 0 and should be equal to the time period needed to pay back the investment. Maintenance: costs to maintain the measure or measure collection. The assumption is made that maintenance is perpetual. Land costs: for some measures or measure collections acquisition of land is necessary. Depreciation period of land: normally these costs are very low, but it is included for the sake of transparency Data about costs must still be gathered. Homework! 5 May 20158

9. Ecological key factors (first version) 5 May 20159 RIVERSLAKES fast flowing permane nt high fast flowing temporal high fast flowing permane nt low fast flowing temporal low slow flowing permane nt high slow flowing temporal high slow flowing permanent low slow flowing temporal low saline deep freshwater deep saline shallow freshw ater shallow CODXXXXXXXXXXXX TEMPXXXXXXXXXXXX NXXXXXXXX P ORTHO/ TOTXXXXXXXX MAINTENANCExxxxxxxxxxxX EMBANKMENTxxXXXXXX INVASIVE SPECIESXXXX MEANDERINGXXXX Cl (SALINITY)XXXXXX TOXIC ELEMENTSXXXXXXXXXXXX DAMS/OBSTRUCTIONSXXXXXXXX DAM OPERATIONXXXX SUBSTRATEXXXXXXXXXXXX

10. Ecological key factors (last version) 1025 februari 2010 riverslakes fast flowing, high rivers fast flowing perma- nent low fast flowing temporal low Slow flowing rivers Deep lakes (saline and fresh) CODXXXXX TemperatureXXXX tot-NXX tot-PXX ModificationsXXXX ConductivityXX Toxic elementsXXXXX Artificial flow regime X XXX Suspended solids X XXXX

11. Let’s start ! Starting point: long list of measures in Draft Büyük Menderes RBMP Check on completeness of existing long list In two groups we’ll make a matrix with the measures and additional information about the measures Plenary presentation of the results 5 May 201511

12. Matrix with measures example 5 May 201512
