1. AMPDEV IMSTRACE V4.3 Tony Shediak Ampdev P/L www.Ampdev.com

2. Overview The Ampdev IMSTRACE utility intercepts all DL/I calls issued by a Load Module and reports: Function issued Segment Search Arguments Status Code Response Time Module Offset Module name and call chain Key feedback Area IMS/DC messages Segment I/O Area Contents  WITHOUT re-compilation. IMSTRACE works only off the executable load module.

3. Use it to - Track down bugs in the code – as you can see the DL/I calls, SSAs, and the resulting Status Code Look at performance – as you can see the Response Time of each call Understand what the program is doing – as you can see each DL/I call in the sequence it was issued Analyse the correctness and the quality of the code - as you can see how each database is being manipulated by the program and the navigation through each segment View input/output IMS messages – as you can see each input TRAN and OUTPUT message processed View Segment I/O Content to ensure correctness of data ALL this WITHOUT Re-compilation

4. Use it to - Locating the Message Processing Region where your program was SCHEDULED when executing under an IMSPLEX running multiple IMS systems across a SYSPLEX. It can be difficult for programmers to find their program output within a IMSPLEX (IMS Shared Q) environment as a transaction can process in multiple regions across multiple LPARS. When IMSTRACE is enabled for a IMS/TM Program, the LOCATE option (IMSTRACE ISPF main menu option 4) will list the last 12 SCHEDULES of the program within the IMSPLEX and will identify the Message Region and IMS System that executed the program. ALL this WITHOUT Re-compilation

5. ISPF Panel - Main

6. Attach Trace Load Module Name Take it from this Library Attach Trace and put new Load in this Library

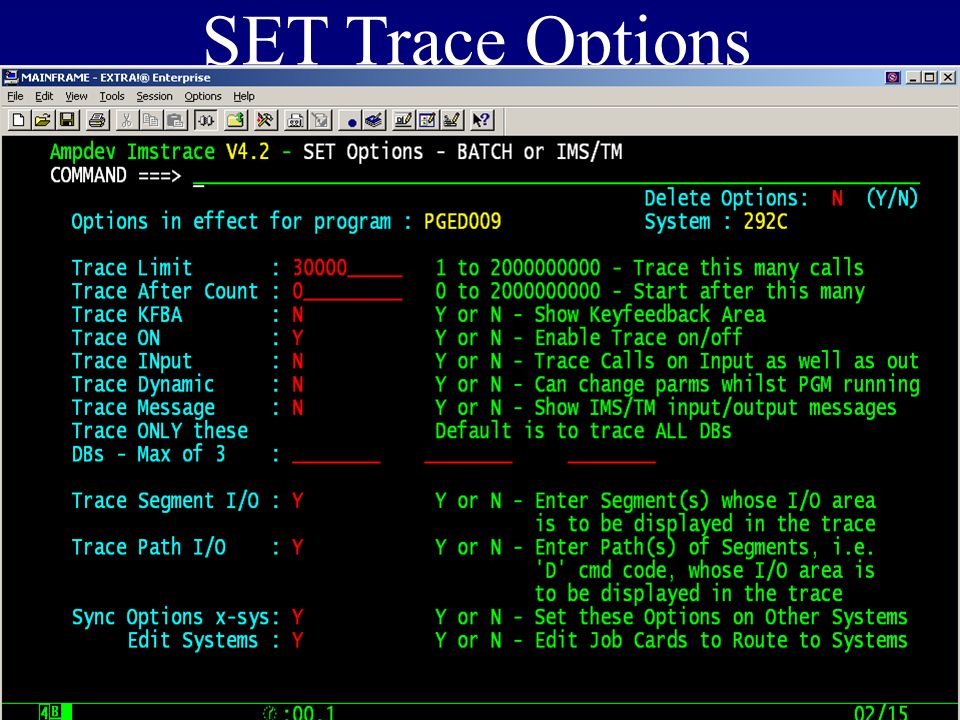

7. SET Trace Options

9. Segment I/O Trace

10. Path I/O Trace For database DBCAR display the I/O area when the program issues a PATH call (D command code) specifying the segments COMPANY, MODEL and OPTION. Same for DB512 with segments SG19480 and SG19481. The start and length dictate which portions of the I/O area to display

11. SYNC with LPARs Batch job will automatically be submitted on LPAR 296A every time the run-time options are updated on the current LPAR 292C to Synchronise options across both LPARs

12. Detach Trace Load Module Name Take it from this Library Remove Trace and put new Load in this Library

13. LOCATE Output Shows Last 12 SCHEDULEs of this program across the IMSPLEX and identifies the IMS System and REGION which executed your program. Selecting the REGION will take you to SDSF where you can view the trace output within that REGION job output – DD $TRGOUT

14. LOCATE Output

15. Trace output Dynamically allocated in MPR under $TRGOUT

16. Trace Output $TRGOUT For any BATCH Job or IMS/TM Message Processing Region, the trace output will be DYNAMICALLY allocated under DDname $TRGOUT. For CICS the output is stored in a dataset and can be extracted as required.

18. Call details: PCB Name (if AIB) Call Number Function Database Status Code “( )” SSA or sub-function A – AIBTDLI call Module issuing call – and offset of call within code Response Time

19. SSA key value shown in hex if unprintable SSA values 2 nd PCB for this DB Enter subroutine PGET32MX called from PGETTS1

20. DL/I call was issued at offset 0005DC within module IMSC2D which was called from IMSOP which was called from IMSC1 which was called from IMSMC1

21. Segment I/O Trace for PATH SG19480 and SG19481 starting at 1 for 63 and 64 for 65

22. Show IMS/DC input and output messages including length (LL) and reserved area (ZZ) Show Key feedback area including Segment Level (SL), Name (SN) and concatenated key (KFBA)

23. New in V4.3 – Loadlib Trace Steplib/Joblib DSN which contains the executing load module

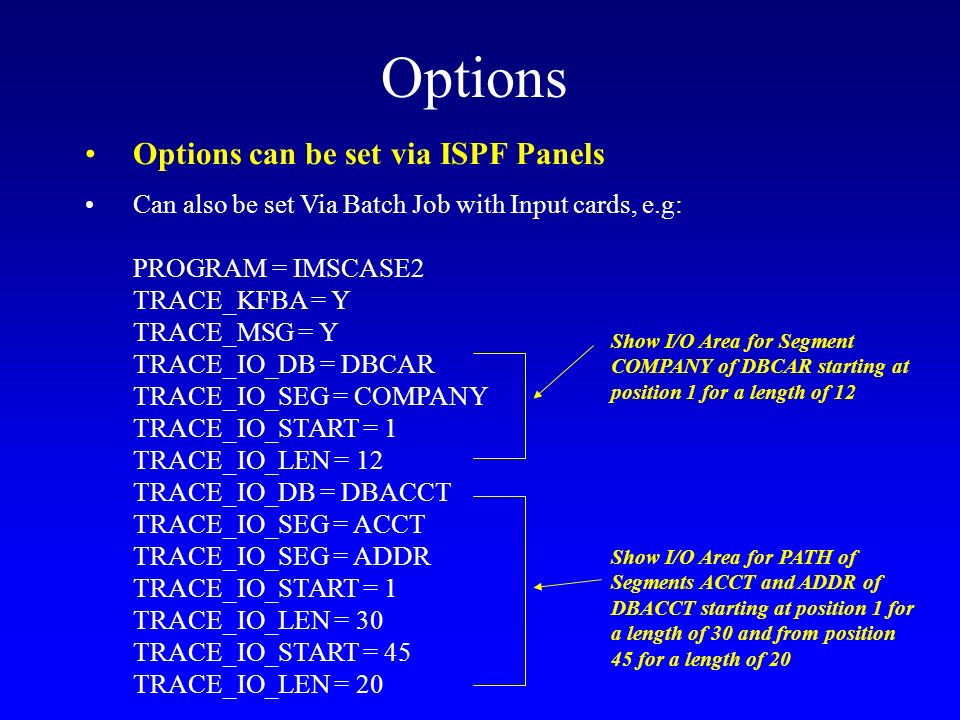

24. Options Options can be set via ISPF Panels Can also be set Via Batch Job with Input cards, e.g: PROGRAM = IMSCASE2 TRACE_KFBA = Y TRACE_MSG = Y TRACE_IO_DB = DBCAR TRACE_IO_SEG = COMPANY TRACE_IO_START = 1 TRACE_IO_LEN = 12 TRACE_IO_DB = DBACCT TRACE_IO_SEG = ACCT TRACE_IO_SEG = ADDR TRACE_IO_START = 1 TRACE_IO_LEN = 30 TRACE_IO_START = 45 TRACE_IO_LEN = 20 Show I/O Area for Segment COMPANY of DBCAR starting at position 1 for a length of 12 Show I/O Area for PATH of Segments ACCT and ADDR of DBACCT starting at position 1 for a length of 30 and from position 45 for a length of 20

25. Options TRACE_LIMIT = nnnnnnnnn where nnnnnnnnn = max number of calls to trace for this program Default is 30000 TRACE_AFTER_CNT = nnnnnnnnn where nnnnnnnnn = number of calls to skip before tracing Default is 0 TRACE_KFBA = Y or N show the Key-feedback information, Segment name and Segment level per DB call. For example an additional 2 lines per DB call might be: + SL SN + KFBA EFFFFFFFFFF9346 76797890234183C If the Key-feedback contains unprintable characters then it will also be displayed in hex Default is N

26. Options TRACE_DYNAMIC = Y or N allow run-time options to be changed whilst the programming is running. Normally options are applied at program startup, but with TRACE_DYNAMIC = Y options will be applied EVERY time a DL/I call is intercepted by IMSTRACE. This is useful for long-running or pre-loaded programs where you want to turn the trace ON or OFF dynamically (using TRACE_ON = Y/N) or alter any other option on the fly. There is a slight overhead per DL/I call to support this option Default is N TRACE_ON = Y or N turn IMSTRACE On or Off for this program. So even a program with the trace attached can be run with the trace enabled/disabled as required Default is Y

27. Options TRACE_IN = Y or N display DL/I call on INPUT (before passing to the DL/I routine) and OUTPUT (after returning from DL/I). Without this option enabled the DL/I call is displayed on return from the DL/I routine. This is useful when diagnosing an ABEND (e.g. U476 or U200) within a DL/I call, as IMSTRACE will tell you which call caused the abend by the absence of the output line. Below is an example of the input and output display of a DL/I call C SUB001 0001E8 1 GU ????????(??) ACCTSEG *P--(ACCTNUM.. BRNCHSEG*--- C OUTPUT==> 0.000025 0001E8 1 GU DB457 ( ) ACCTSEG *P--(ACCTNUM.. BRNCHSEG*--- Default is N

28. Options TRACE_MSG = Y or N display IMS/DC messages read or inserted by the program including the length value (LL) and reserved area (ZZ). For example: C PGM001 000108 1 GU LT0012 + LL ZZ MSG Default is N TRACE_DB = xxxxxxxx where xxxxxxxx = DB name to be traced. With this enabled only the database calls referencing THIS DB name will be traced. This can be useful when focusing on a specific database and how it is used. A maximum of 3 TRACE_DB statements can be specified per program Default is trace everything

29. Options TRACE_IO_DB= xxxxxxxx where xxxxxxxx = DB name for which Segment I/O will be traced TRACE_IO_SEG = xxxxxxxx where xxxxxxxx = Segment Name for which I/O area will be traced for database defined with TRACE_IO_DB TRACE_IO_START = nnnnn where nnnnn = starting position within I/O Area to be displayed TRACE_IO_LEN = nnnnn where nnnnn = Length from Start within I/O Area to be displayed For Example Show DBCAR segment COMPANY from 1 for 12 bytes : A A IMSC2 0.740731 00040C 1 GU DBCAR ( ) COMPANY *-- DB=DBCAR SEG I/O=|COMPANY | DATA ( 1, 12) ----+----1-- HOLDEN CDDCCD444444 863455000000

30. Can be Enabled via Batch Set program name, input/output Loadlib And LKD53 is created in the TEST load lib with the IMSTRACE enabled

31. What about CICS? CICS feature is available as an option to support IMS programs (call level only) running under the CICS environment. When enabled for a CICS program the IMSTRACE will direct all output to a VSAM dataset (RRDS format). The trace report can then be requested using a simple one step reporting Job. As CICS regions process many different transactions, the reporting job allows trace information to be selected by any/all of: - Program name - Transaction name - User - Terminal - From Date/Time - To Date/Time

32. What about CICS? Trace is enabled via ISPF Panel or batch job, just like non-CICS. Trace options set the same way as non-CICS, via ISPF Panel or batch job. Obviously TRACE_MSG not allowed in CICS. Trace output looks the same, and UIB codes shown for PCB: ***************************************************************************************** * USER TRAN TERM PGM DATE TIME == A IMSC2 0.000047 00040C 6 GU DBCAR ( ) COMPANY *-- A CASE2 0.000049 00098E 7 GN DBCAR ( ) COMPANY *--(MANUF = A MODEL *-- A CASE2 0.000012 000A26 8 GNP DBCAR (GE) OPTION *-- A CASE2 0.000014 000B06 9 GNP DBCAR (GE) COLOUR *-- A CASE2 0.000040 000BDE 10 GN DBCAR ( ) COMPANY *--(MANUF = A MODEL *--.. A IMSP1 0.000194 0002CC 12 GU DBCAR (AJ) COMPANY *--(MANUF=XXXX). C TS001 0.008555 000870 14 TERM

33. Extract CICS Report Extract Trace Records depending on selection criteria

34. Westpac usage - Analysis Help analyse program function, especially within complex programs. This usage was extensive within the “DECAP Project” where old CAP/COBOL code was being rewritten to standard COBOL. The process that was followed was to IMSTRACE the old load, run the relevant test cases, and capture the trace output. This was used as part of the analysis phase. When we see that the CAP/COBOL code generated was full of calls like: CALL "CBLTDLI" USING DP003-PARMCOUNT DP003-FUNCTION DE053A-DBPCB DILGDATA-WORK DP003-SSA1 DP003-SSA2 DP003-SSA3 DP003-SSA4 DP003-SSA5 DP003-SSA6 You can appreciate the complexity. In addition to this, the project team significantly improved the performance of each program by removing redundant/repeated calls which they could easily see in the IMSTRACE output.

35. Westpac usage - Analysis For example:.. 18 GU DE018 ( ) SG22900 *P--(GR30002 EQM037120122060).... 57 GU DE018 ( ) SG22900 *P--(GR30002 EQM037120122060).... 78 GU DE018 ( ) SG22900 *P--(GR30002 EQM037120122060).... 112 GU DE018 ( ) SG22900 *P--(GR30002 EQM037120122060). In many cases the new code (Decapped code) achieved a reduction in the number of DL/I calls by 40 – 50%. This combined with efficient navigation through each database achieved significant performance improvements.

36. Westpac usage – Testing/Debugging/Training P PGHB04A 0.000059 000212 1 GU JL979 ( ) A == == == == A AOMD6C 0.000005 00012A 2 INQY DB639 ( ) FIND DB639 A AOMD6C 0.000098 000168 3 GU DB639 ( ) SG13259 *---(EL24332 EQIOU1) A == == == == A UTDBMPB 0.000066 0009F6 4 GU DB039 ( ) SG01140 *---(EL01140 = IQTDB1TB) SG01141 *--- A == == == == == A A000_RETR_DE039_ALL 0.009733 0000C6 5 GU DE039 (GE) SG19812 *---(EL24611 EQ ) 03014900000 32327200000 A A000_RETR_DE039_ALL 0.000033 0001D0 6 GNP DE039 (GP) SG19813 *--- No Parentage Established Because NOT set Use IMSTRACE whilst testing and check call sequence is becoming the standard within the bank. If this can’t help then use DISPLAYs or Debuggers.

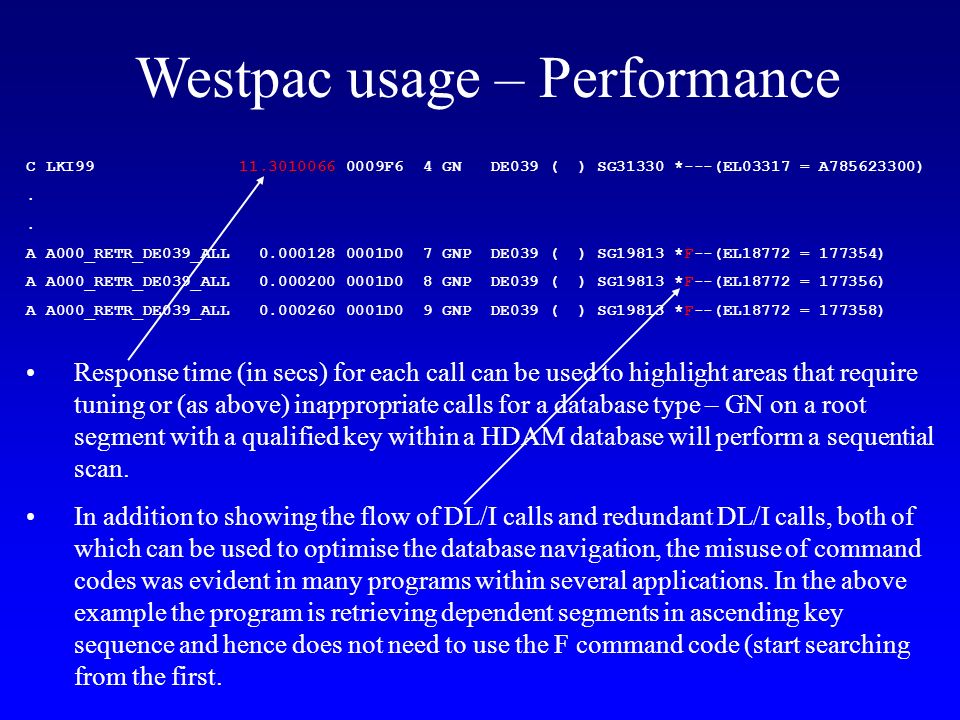

37. Westpac usage – Performance C LKI99 11.3010066 0009F6 4 GN DE039 ( ) SG31330 *---(EL03317 = A785623300). A A000_RETR_DE039_ALL 0.000128 0001D0 7 GNP DE039 ( ) SG19813 *F--(EL18772 = 177354) A A000_RETR_DE039_ALL 0.000200 0001D0 8 GNP DE039 ( ) SG19813 *F--(EL18772 = 177356) A A000_RETR_DE039_ALL 0.000260 0001D0 9 GNP DE039 ( ) SG19813 *F--(EL18772 = 177358) Response time (in secs) for each call can be used to highlight areas that require tuning or (as above) inappropriate calls for a database type – GN on a root segment with a qualified key within a HDAM database will perform a sequential scan. In addition to showing the flow of DL/I calls and redundant DL/I calls, both of which can be used to optimise the database navigation, the misuse of command codes was evident in many programs within several applications. In the above example the program is retrieving dependent segments in ascending key sequence and hence does not need to use the F command code (start searching from the first.

38. Westpac usage – QA A A LKJ34 0.000010 0019C6 1 INQY DB815 ( ) FIND DB815A C LKJ34 0.001046 005510 2 GU DE019 ( ) SG22905 *---(GR30003EQ45) C LKJ34 0.000029 0058EC 3 GNP DE019 ( ) SG22907 *--- A == A LKJ38 0.000012 000C24 4 INQY DB815 ( ) FIND DB815A C LKJ38 0.001043 001518 5 GU DE020 ( ) SG22923 *---(EL30033 EQ *) 05 7C C C LKJ34 0.000062 0085B8 6 GU DE020 ( ) SG22923 *---(EL30033 EQ *) 05 7C C == C LKIP019 0.000038 002FE2 7 GU DE020 ( ) SG22923 *P--(EL30033 EQ... Review/Walkthru of the IMSTRACE report is conducted within some Application teams to ensure, as much as possible, efficient, standard and quality IMS programs are lodged into production.

39. Some Stories from Westpac Programmer spent 1 week debugging PL/I IMS program with no success. After enabling the IMSTRACE it was found that a lower-level module was not checking the status code but was actually getting AJ status (invalid SSA). Took 5 mins to find the problem with IMSTRACE. Program performing badly prior to production lodgement. IMSTRACE enabled and within minutes the offending call (reported with a response time of 11 secs) was a GN on a root segment specifying a key value on a HDAM database. HDAM databases are scanned sequentially when used in this manner. Programmer spent 3 days debugging COBOL IMS program by using DISPLAY statements. IMSTRACE enabled and within 1 minute it was found that the wrong SSA was being displayed (as it was the one suspected). The problem was the wrong key in another unrelated SSA.

40. Some Stories from Westpac New version of a program (just lodged) was causing problems. IMSTRACE showed status code AK (invalid field name) on a call that “appeared” to be working. Inspecting the program it was found that the wrong PCB was being used in a call and hence the status code checking for that call appeared to be OK. As this is a complex program the staff were quoted as saying “we solved the problem in minutes. Without the IMSTRACE it would have taken days as we never would have suspected that part of the program and we would have assumed the problem was environmental”. “We estimate that the IMSTRACE saved us 25% in the total project cost by significantly reducing our analysis, testing and debug time whilst also improving the overall system quality & performance. This is a big saving. It is so easy to use, is enabled in a couple of seconds without the need to recompile the program, and we can (and have) used it in production if required” – Glenn Bowden, Project Manager Decapping Project, Westpac banking Corporation.

41. Why AMPDEV IMSTrace? Works off EXECUTABLE LOAD module. –You never re-compile (cause that is risky, and a hassle). –No source changes required. Can be enabled in a few seconds. Supports PL/I, COBOL and ASM running under Language Environment (LE) Supports IMS/DB, IMS/DC (or IMS/TM), CICS with IMS DBCTL NO JCL changes required to execute the trace Run-time options can be set dynamically
