1. Schema Refinement and Normal Forms

2. Review: Database Design
Requirements Analysis
user needs; what must database do?
Conceptual Design
high level description (often done w/ER model)
Logical Design
translate ER into DBMS data model
Schema Refinement
consistency, normalization
Physical Design - indexes, disk layout
Security Design - who accesses what

3. Design Steps
Step (3) to step (4) is based on a “design theory” for relations and is called “normalization”. It is important for two reasons:
Automatic mappings from ER to relations may not produce the best relational design possible.
Database designers may go directly from (1) to (3), in which case, the relational design can be really bad.

4. Informal guidelines Semantics of the attributes
easy to explain relation
doesn’t mix concepts
Reducing the redundant values in tuples
Choosing attribute domains that are atomic
Reducing the null values in tuples
Disallowing spurious tuples

5. 1. Semantics of Attributes
Semantics of attributes specify how to interpret the attributes values stored in a tuple of the relation.
In other words, how the attributes’ values in a tuple are related to one another.
Guideline 1:
Design a relation schema so that it is easy to explain its meaning.
Do not combine attributes from multiple entity types and relationship types into a single relation.

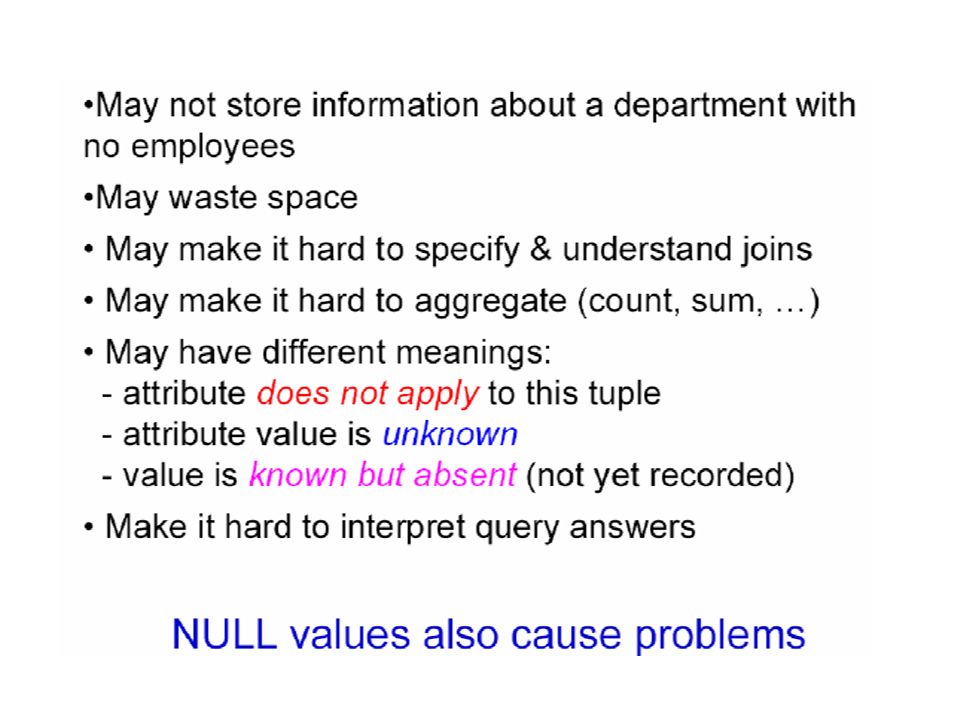

6. 2. Null Values Guideline 2:
If many of the attributes do not apply to all tuples in the relation, we end up with many null values (no value) in those tuples.
This leads to wasted space and misunderstandings.
Guideline 2:
As much as possible, avoid placing attributes in a relation whose values may frequently be null.
If nulls are unavoidable, make sure that they apply in exceptional cases, and do not apply to the majority of tuples in the relation.

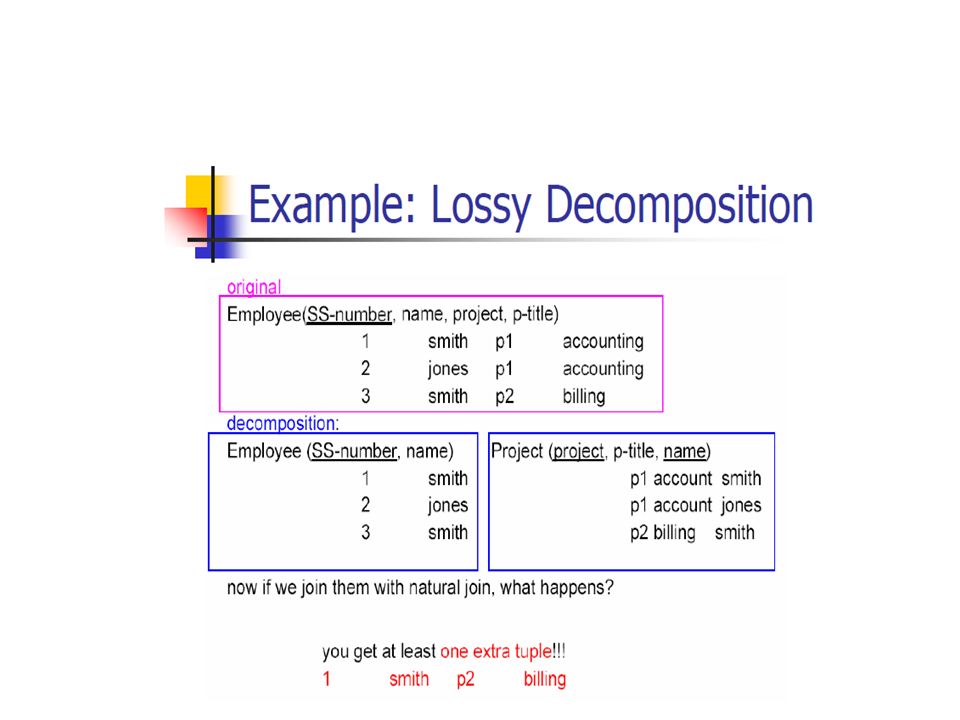

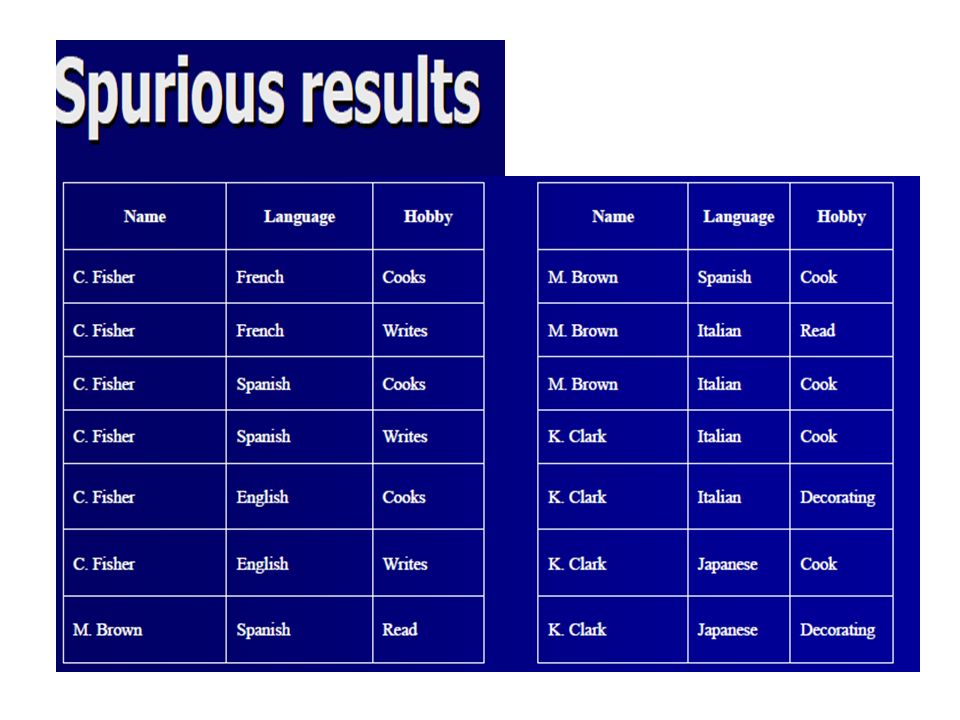

8. 3. Spurious Tuples

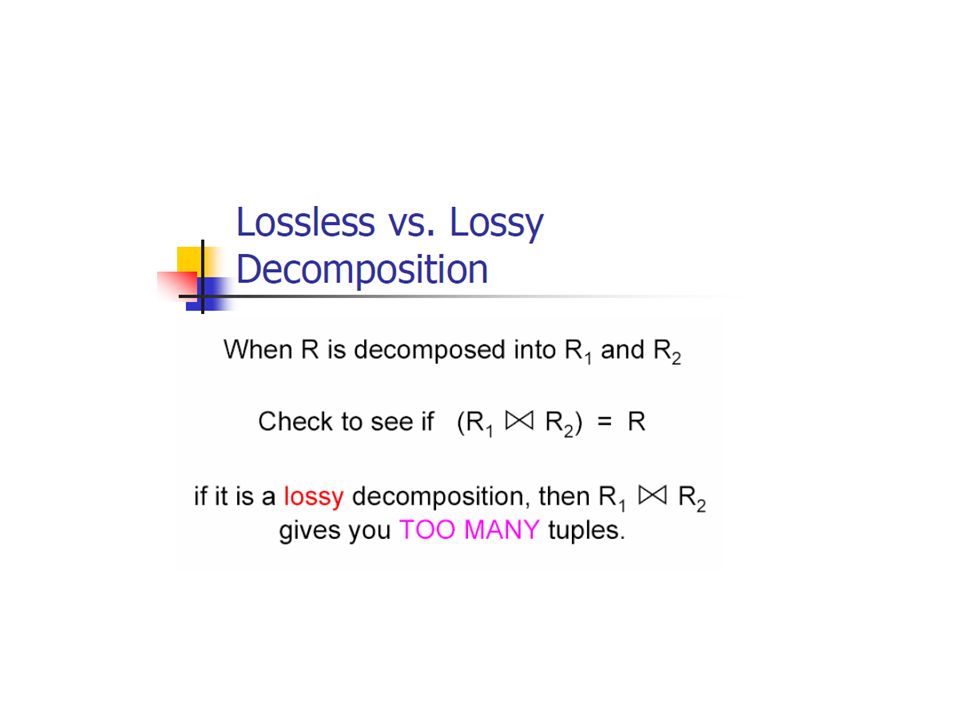

Additional tuples that were not in the original relation are called spurious tuples because they represent spurious or wrong information that is not valid.

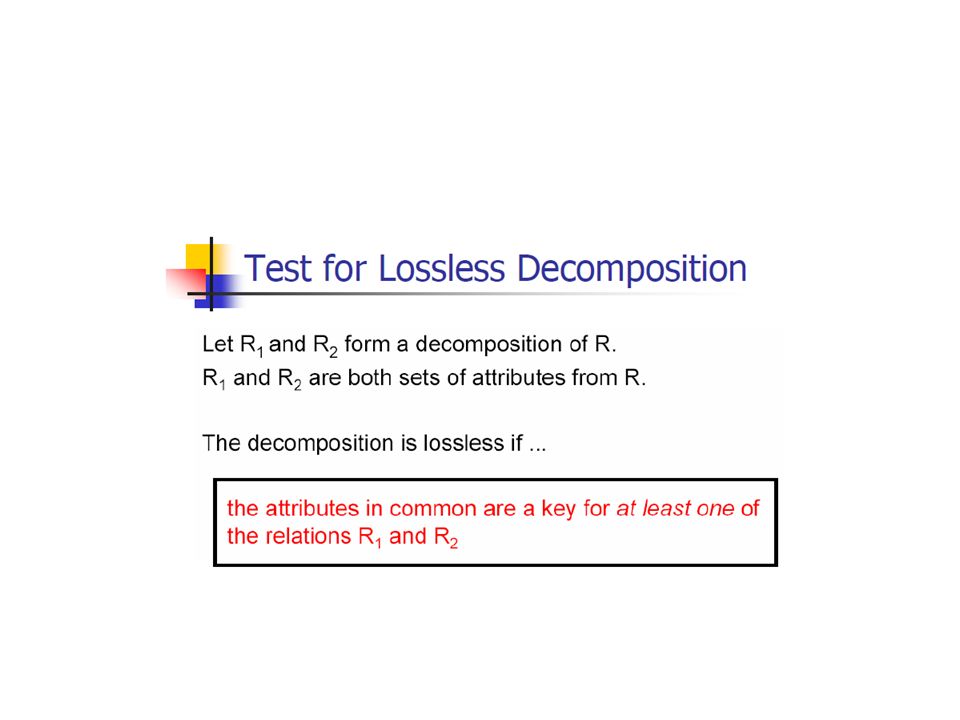

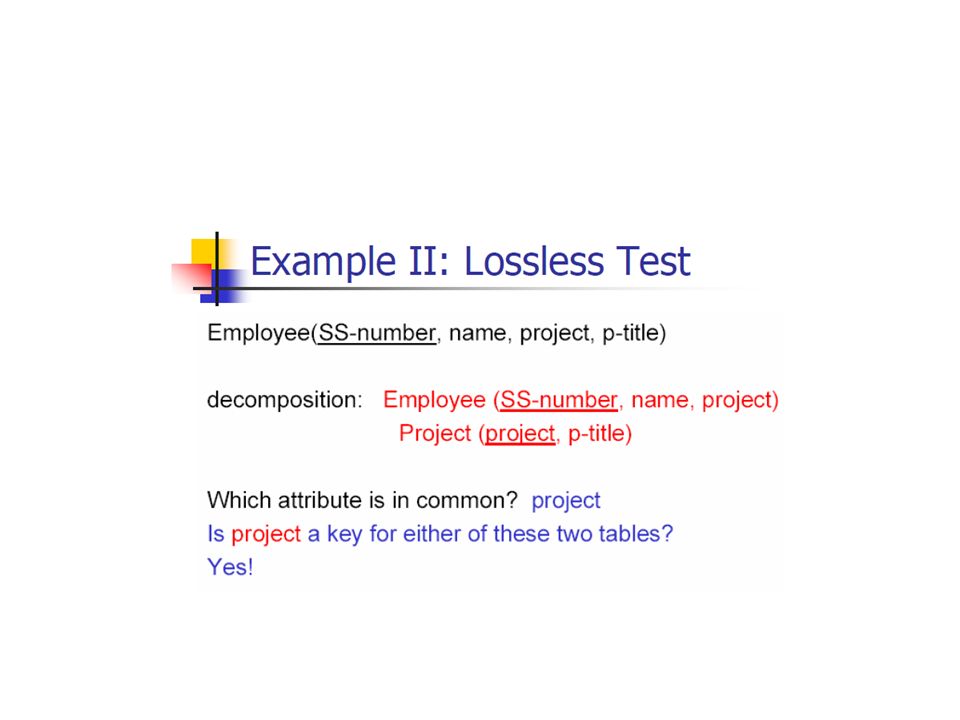

This is called the lossless join property.
Guideline 3:
Design relation schemas so that they can be JOINed (with equality condition on attributes that are either primary keys or foreign keys) in a way that guarantees that no spurious tuples are generated.

9. 3. Spurious Tuples cont. CustomerID Title Price Kind Date True Lies
0001
3.25 D
0002
The Lion King
4.00 C
Henry V
1.75
0003

10. 3. Spurious Tuples cont. Bad Relational Schema: CustomerID Price Date
True Lies
Title
Price
Kind
3.25 D
The Lion King C
Henry V
1.75
0001
3.25
0002
3.25
0003
3.25
0001
1.75
CustomerID
True Lies
Title
Price
Kind
Date
0001
3.25 D
0002
The Lion King C
Henry V
1.75
0003
The
Join
Of the
Above
2 Relations

11. 3. Spurious Tuples cont. Good Relational Schema: CustomerID True Lies
Title
Date
0001
0002
The Lion King
Henry V
0003
True Lies
Title
Price
Kind
3.25 D
The Lion King C
Henry V
1.75
The
Join
Of the
Above
2 Relations
CustomerID
True Lies
Title
Price
Kind
Date
0001
3.25 D
0002
The Lion King C
Henry V
1.75
0003

12. 4. Reducing Redundancies cont.
Modification Anomalies:
CustomerID
True Lies
Title
Price
Kind
Date
0001
3.25 D
0002
The Lion King
4.00 C
Henry V
1.75
0003
Insertion Anomaly:
Cannot insert information about a film if it has not been rented yet.
Update Anomaly:
Updating the rental price for “True Lies” to $4, requires changing it in several typles (if not, it will cause inconsistencies).
Deletion Anomaly:
Deleting the rental information will cause the film information to disappear.

13. 4. Reducing Redundancies
Redundancies in a relation schema result in:
Waste of space
Potential for inconsistent data (loss of data integrity)
Potential for modification anomalies (unusual behavior):
Insertion anomalies
Update anomalies
Deletion anomalies
Guideline 4:
Design the relation schemas so that no insertion, modification, or modification anomalies occur.

14. Refinements

15. Integrity constraints, in particular functional dependencies, can be used to identify schemas with such problems and to suggest refinements.
Decomposition should be used judiciously:
Is there reason to decompose a relation?
What problems (if any) does the decomposition cause?

16. Q1)answered by applying various Normal forms Q2)answered by properties of decomposition that interests us are lossless-join ( enables us to recover any instance of the decomposed relation from corresponding instances of the smaller relations) dependency-preservation ( enables us to enforce any constraint on the original relation by simply enforcing some constraints on each of the smaller relations. We do not have to perform join of smaller relation to check if a constraint on original relation is violated.

17. From Performance point of view
If queries over the original relation are common then decomposing is not acceptable
In some cases the decomposition is improves performance when queries and updates examine only decomposed relations.

18. A BAD Relational Schema
An Improved Schema

19. What’s a Good Design? Three properties:
No anomalies.
Can reconstruct all original information.
Ability to check all FDs within a single relation.
Role of FDs in detecting redundancy:
Consider a relation R with 3 attributes, ABC.
No FDs hold: There is no redundancy here.
Given A B: Several tuples could have the same A value, and if so, they’ll all have the same B value!

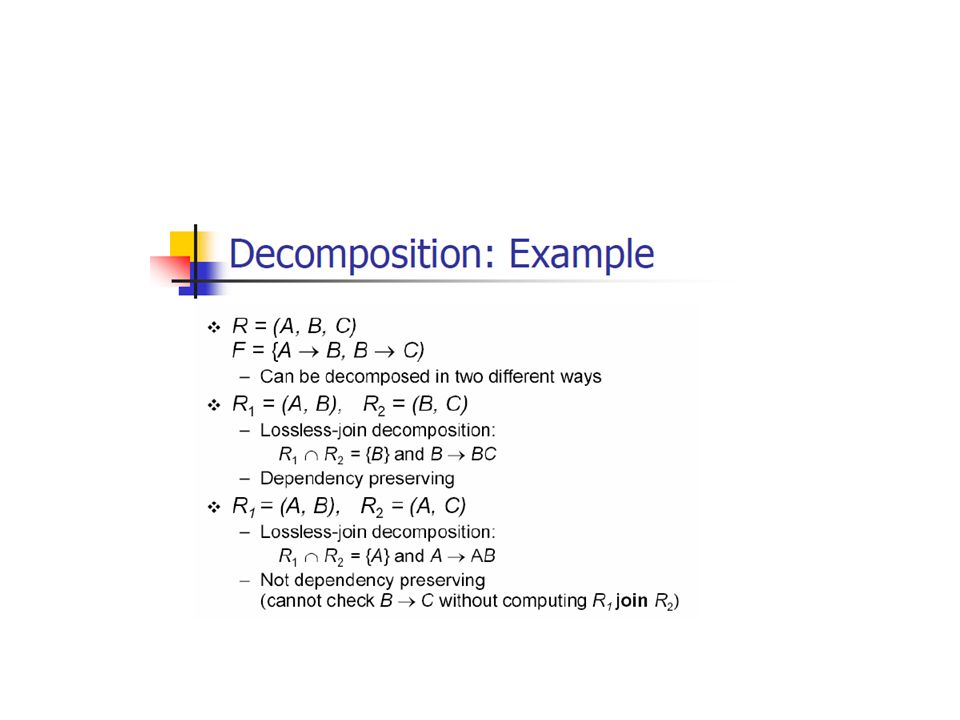

20. Decomposition of a Relation Scheme
Suppose that relation R contains attributes A1 ... An. A decomposition of R consists of replacing R by two or more relations such that:
Each new relation scheme contains a subset of the attributes of R (and no attributes that do not appear in R), and
Every attribute of R appears as an attribute of one of the new relations.
Intuitively, decomposing R means we will store instances of the relation schemes produced by the decomposition, instead of instances of R.
E.g., Can decompose SNLRWH into SNLRH and RW.

21. Functional Dependency
A functional dependency (FD) is a constraint between two sets of attributes in relation R.
It is denoted by: X  Y
Reads:
Y is functionally dependent on X
X (functionally) determines Y
Means:
If two tuples in R agree on their X-value, they must necessarily agree on their Y-value.

22. Functional Dependencies (FDs)
A functional dependency X  Y holds over relation R if, for every allowable instance r of R:
i.e., given two tuples in r, if the X values agree, then the Y values must also agree. (X and Y are sets of attributes.)

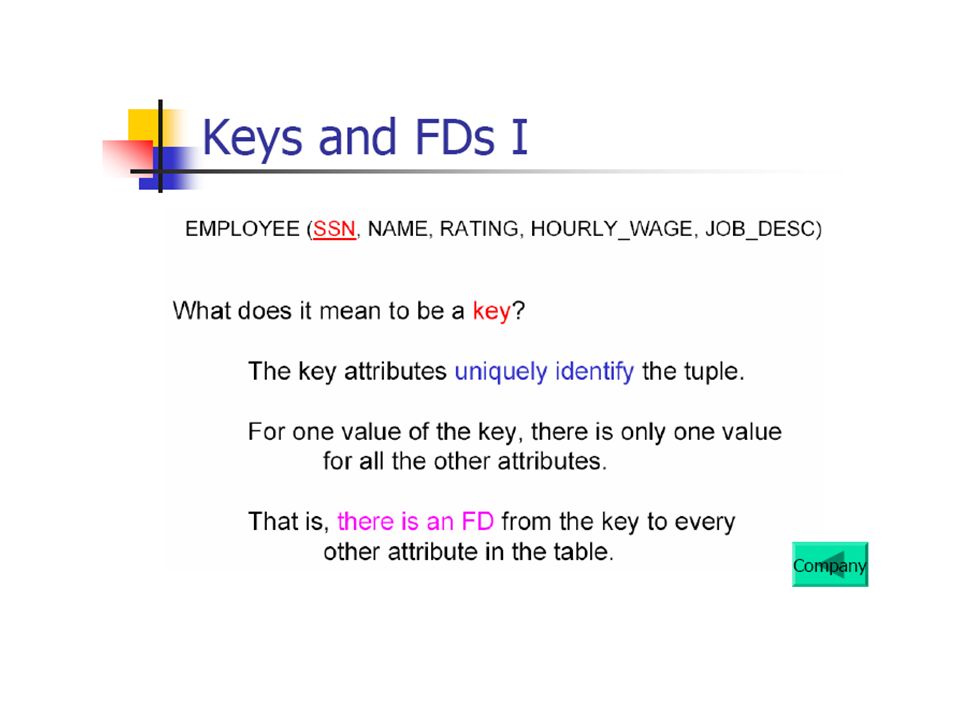

K is a key for relation R if:
1. K determines all attributes of R.
2. For no proper subset of K is (1) true.
If K satisfies only (1), then K is a superkey.
K is a candidate key for R means that K  R
However, K  R does not require K to be minimal!

23. Functional Dependencies (FDs)
A functional dependency X  Y holds over relation schema R if, for every allowable instance r of R:
t1  r, t2  r, pX (t1) = pX (t2)
implies pY (t1) = pY (t2)
(where t1 and t2 are tuples;X and Y are sets of attributes)
In other words: X  Y means
Given any two tuples in r, if the X values are the same, then the Y values must also be the same. (but not vice versa)
Read “” as “determines”

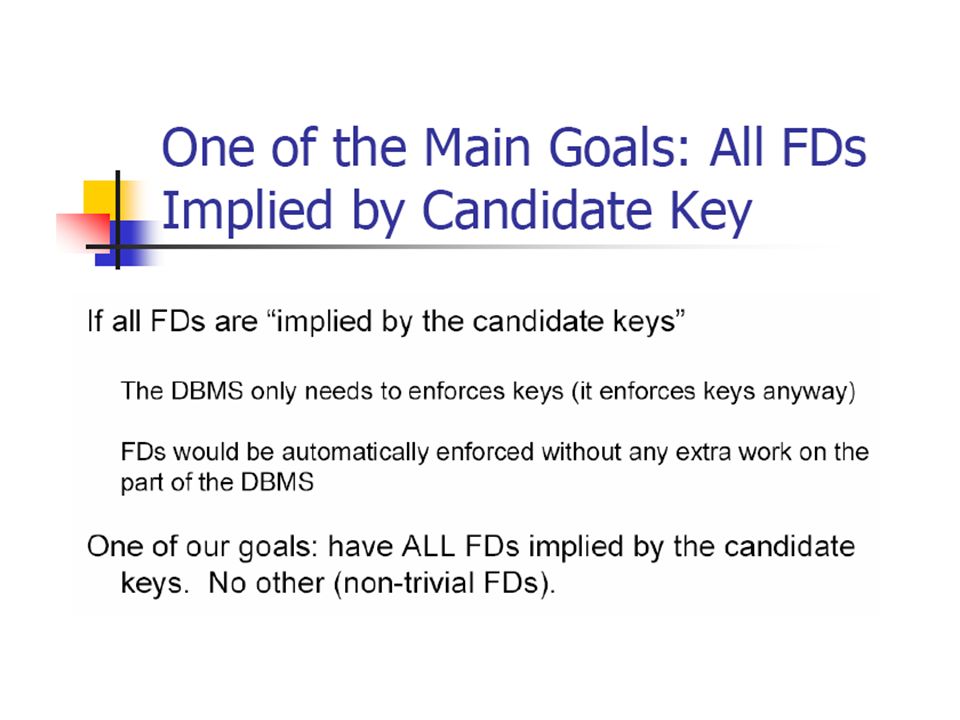

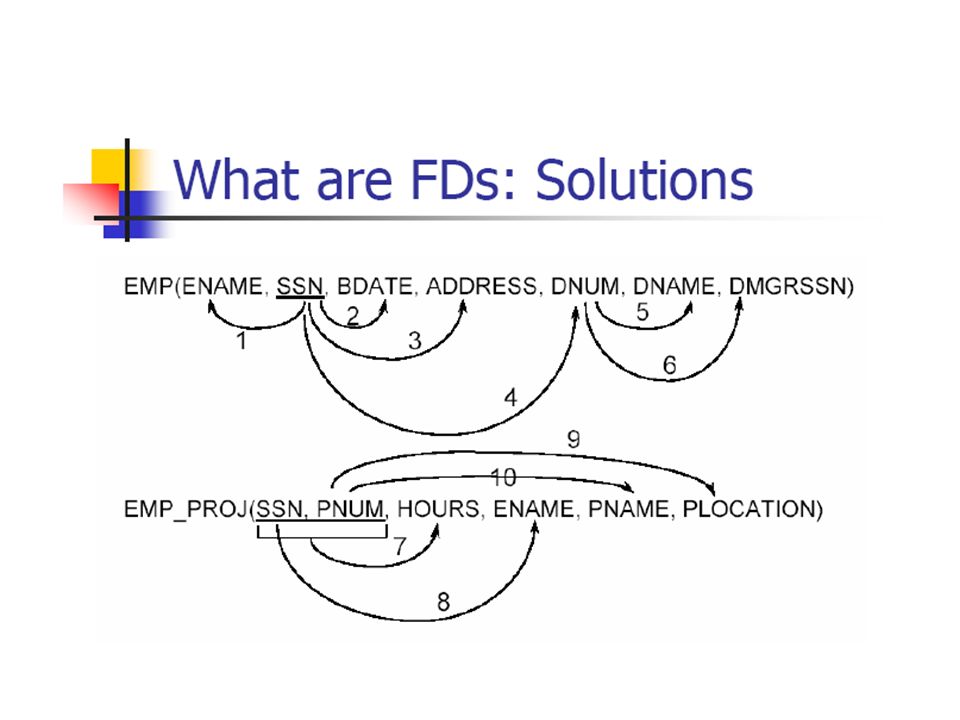

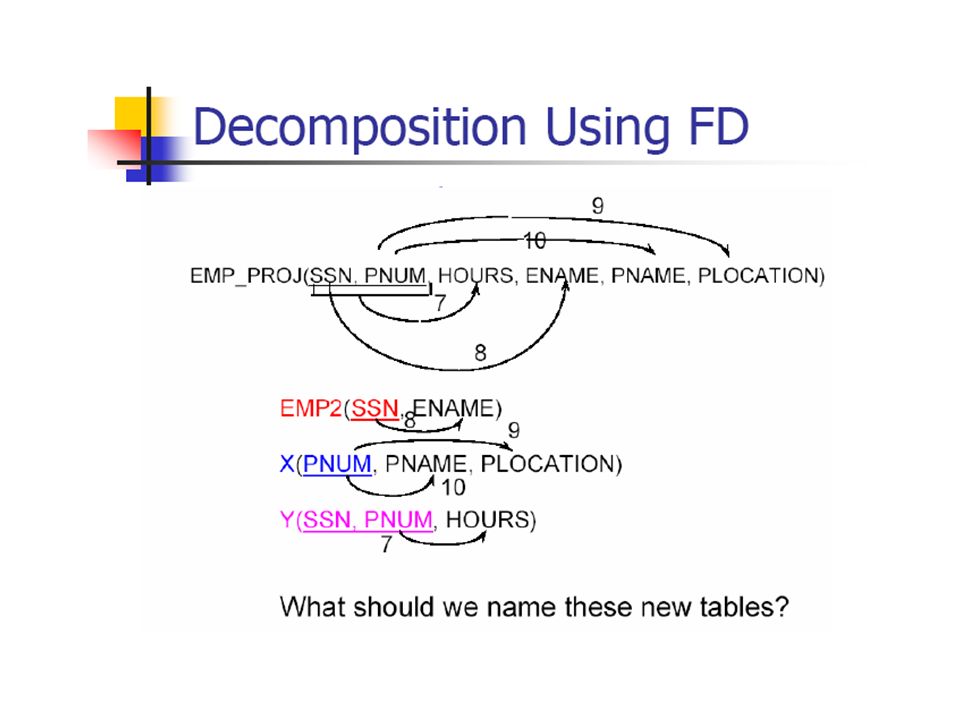

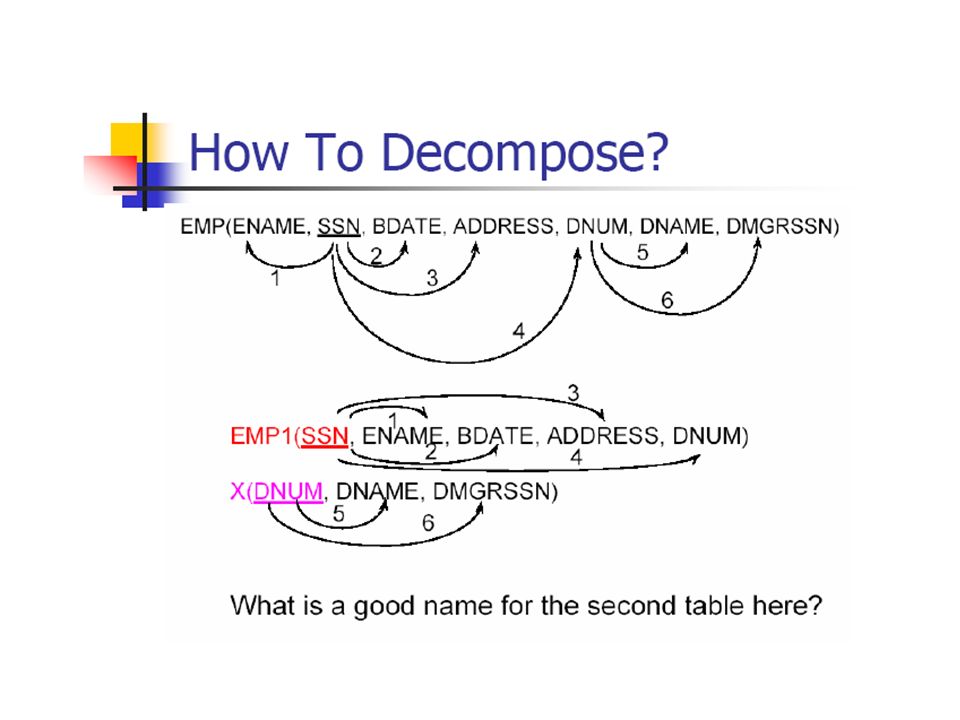

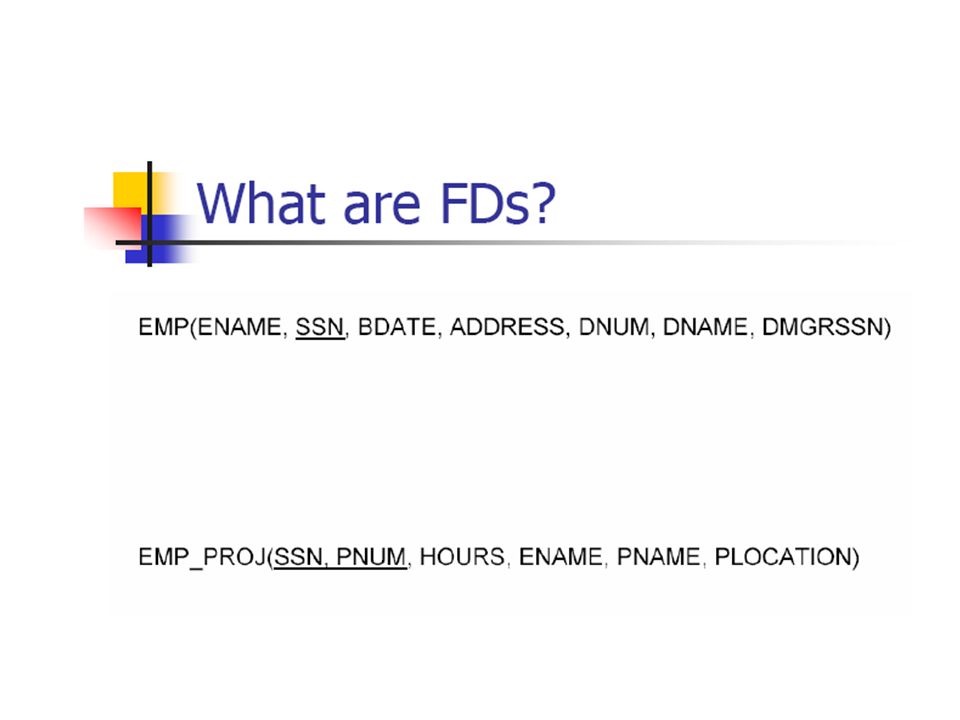

33. FD Examples cont. Can Assert the FDs FD Diagram
EMP_PROJ (SSN, PNUMBER, HOURS, ENAME , PNAME, PLOCATION)
Can Assert the FDs
SSN  ENAME
PNUMBER  { PNAME, PLOCATION }
{ SSN, PNUMBER }  HOURS
FD Diagram

34. Example
Consider relation Hourly_Emps:
Hourly_Emps (ssn, name, lot, rating, hrly_wages, hrs_worked)
FD is a key:
ssn is the key
S  SNLRWH

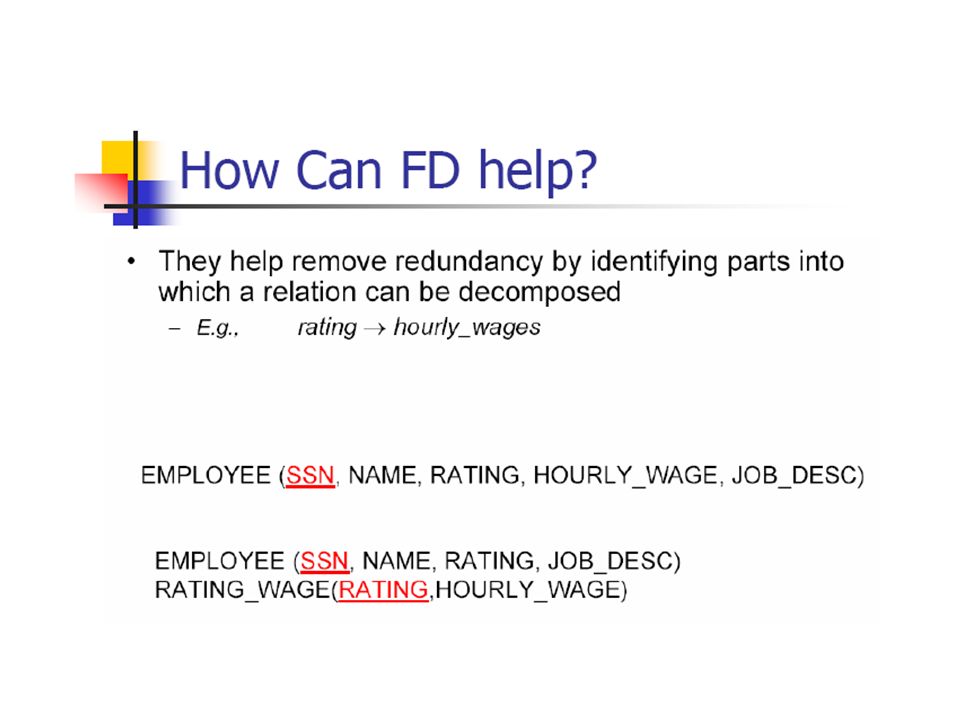

FDs give more detail than the mere assertion of a key.
rating determines hrly_wages
R  W

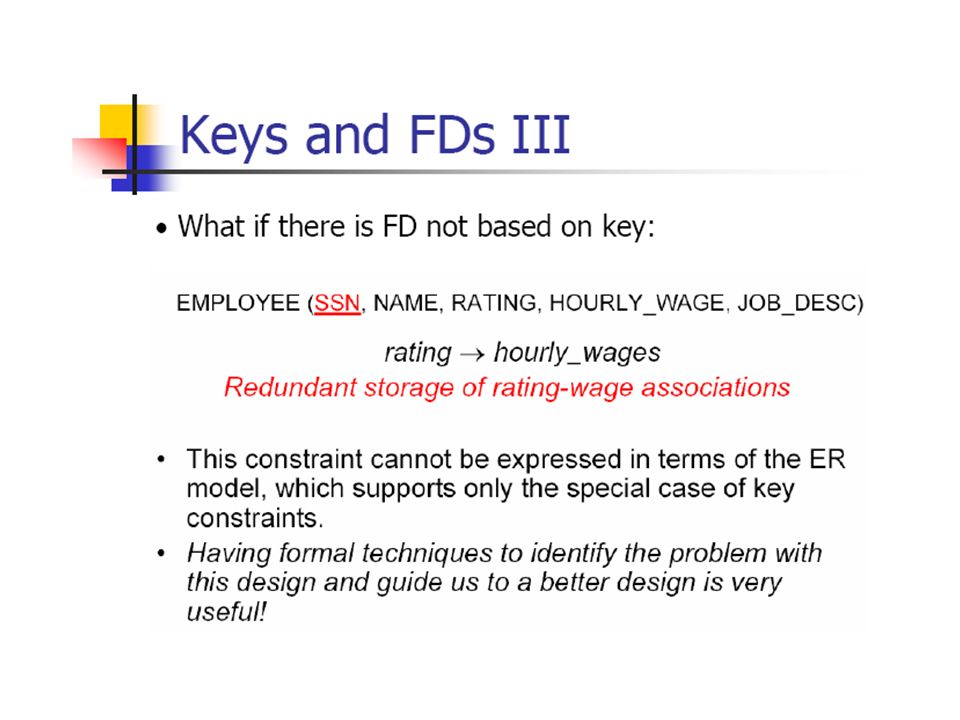

35. FD’s Continued An FD is a statement about all allowable relations.
Must be identified based on semantics of application.
Given some instance r1 of R, we can check if r1 violates some FD f, but we cannot determine if f holds over R.

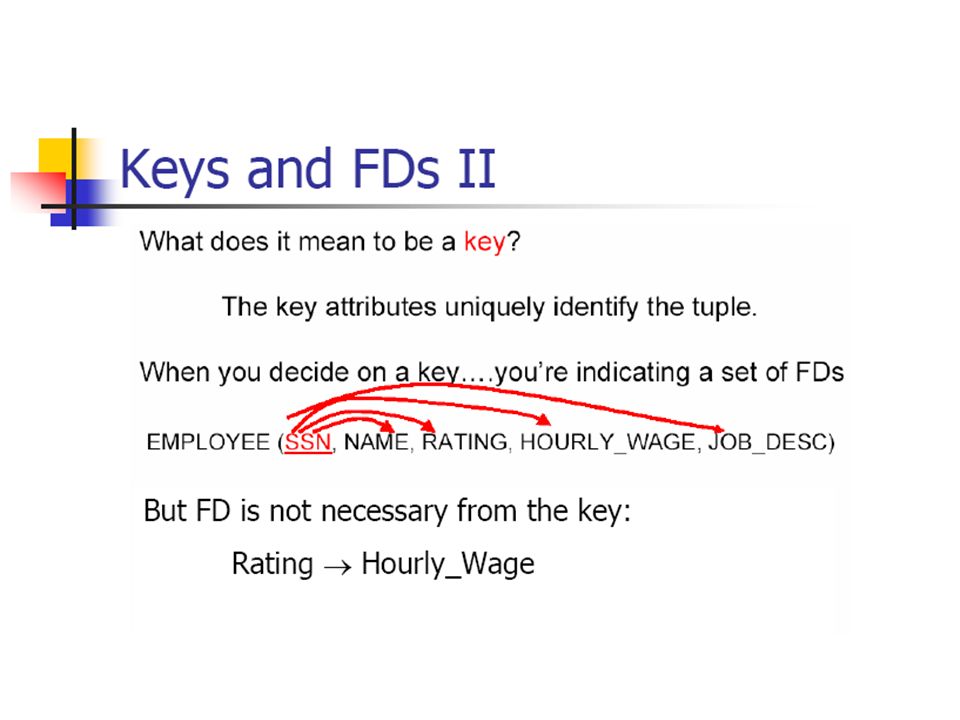

FDs are a generalization of keys.

36. Try This One A B C FD T/F A  B F A  C T B  A F a1 b1 c1 b2 a2 b3 c3
Assuming that all the FDs in the relation are apparent in the following instance of the relation:
A  B F
A  C T
B  A F A B C a1 b1 c1 b2 a2 b3 c3 a3 b4 c4 a4 c5 a5 b5 c2
B  C F
C  A T
C  B F
AB  C T
AC  B F
BC  A T
AB  C
is equivalent to
{A, B}  C

37. … and This One Can Assert the FDs
R (SID, CourseID, TotalCreditHours, Grade , SName, Status)
Can Assert the FDs
SID  { SName, TotalCreditHours, Status }
{ SID, CourseID }  Grade
TotalCreditHours  Status

38. Notes about FDs An FD X  Y is trivial if Y  X (subset) Examples:
Functional dependencies are constraints that hold on the whole relation R, not on any particular instance of the relation.
An FD X  Y is trivial if Y  X (subset)
Examples:
StuID  StuID
{ StuID, CourseID }  CourseID
X  Y does not mean Y  X (an FD is not reversible)

39. X  Y (X in this case) is called a determinant.
Notes about FDs cont.
The left-hand-side (LHS) of any FD
X  Y (X in this case) is called a determinant.
Even though we can write X  YZ (standard form), you should always remember that this is TWO FDs in one: X  Y and X  Z (canonical form).
We can write the above formally as:
X  YZ |= { X  Y , X  Z }
( |= denotes “logical implication”)

40. Notes about FDs cont.
We denote by F the set of functional dependencies that are specified on a relation schema R.
R (SID, CourseID, TotalCreditHours, Grade , SName, Status)
F = { SID  { SName, TotalCreditHours, Status },
{ SID, CourseID }  Grade
TotalCreditHours  Status }

41. Notes about FDs cont.
If X  Y is an FD that holds in R, we say that Y is fully FD on X if removal of any attribute from X means that the FD does not hold any more; otherwise, we say Y is partially FD on X.
Notice that if X is a single attribute, then for sure Y is fully FD on X.
R (SID, CourseID, TotalCreditHours, Grade , SName, Status)
SID  SName
{SID, CourseID}  Grade
{SID, CourseID}  SName
{SID, CourseID}  Status
SName is fully FD on SID
Grade is fully FD on {SID, CourseID}
SName is NOT fully FD on {SID, CourseID}
Status is NOT fully FD on {SID, CourseID}

42. Reasoning About FDs
Given some FDs, we can usually infer additional FDs:
ssn  did, did  lot implies ssn  lot
An FD f is implied by a set of FDs F if f holds whenever all FDs in F hold.
F+ = closure of F is the set of all FDs that are implied by F.
Armstrong’s Axioms (X, Y, Z are sets of attributes):
Reflexivity: If Y X, then X  Y
Augmentation: If X  Y, then XZ  YZ for any Z
Transitivity: If X  Y and Y  Z, then X  Z
These are sound and complete inference rules for FDs!

43. FD Inference Rules IR1 (Reflexivity): X  Y |= X  Y
X is superset of Y
The trivial dependency rule (e.g. AB  B); useful for derivations.
IR2 (Augmentation): X  Y  |=  XZ  YZ
If a dependency holds, then we can freely expand its left hand side.
IR3 (Transitivity): X Y, Y  Z  |= X  Z
The most powerful inference rule; useful in multi-step derivations.

44. FD Inference Rules cont.
Armstrong inference rules (also called Armstrong’s Axioms) are:
Sound:
meaning that given a set of FDs F specified on a relation schema R, any FD that we can infer from F by using IR1 through IR3 holds on every relation state (instance) of R that satisfies the dependencies in F.
Complete:
meaning that using IR1 through IR3 repeatedly to infer FDs, until no more FDs can be inferred, results in the complete set of all possible FDs that can be inferred from F (closure of F, denoted as F+).

45. IR Proofs (decomposition or projective rule IR4) Prove or Disprove:
X YZ  |= X  Y and X  Z
(decomposition or projective rule IR4)
X  YZ (given)
YZ  Y (using IR1 and knowing that YZ Y)
X  Y (using IR3 on 1 and 2)

46. Reasoning About FDs (Cont.)
Couple of additional rules (that follow from AA):
Union IR5: If X  Y and X  Z, then X  YZ
Proof of Union:
X  Y (given)
X  XY (augmentation using X)
X  Z (given)
XY  YZ (augmentation)
X  YZ (transitivity)

47. IR Proofs (pseudotransitive rule IR6) Prove or Disprove:
X  Y, WY  Z  |= WX  Z
(pseudotransitive rule IR6)
X  Y (given)
WY  Z (given)
WX  WY (using IR2 on 1 by augmenting with W)
WX  Z (using IR3 (transitivity) on 3 and 2)

48. Reasoning About FDs
Computing the closure of a set of FDs can be expensive. (Size of closure is exponential in # attrs!)
Typically, we just want to check if a given FD X  Y is in the closure of a set of FDs F. An efficient check:
Compute attribute closure of X (denoted X+) wrt F:
Set of all attributes A such that X  A can be inferred using the Armstrong Axioms
There is a linear time algorithm to compute this.
Check if Y is in X+
Does F = {A  B, B  C, C D  E } imply A  E?
i.e, is A  E in the closure F+ ? Equivalently, is E in A+ ?

49. Finding All Implied FDs
Motivation: Suppose we have a relation ABCD with some FDs F. If we decide to decompose ABCD into ABC and AD, what are the FDs for ABC, AD?
Example: F = AB  C, C  D, D  A. It looks like just
AB  C holds in ABC, but in fact C  A follows from F and applies to relation ABC.
Problem is exponential in worst case.
Algorithm to find F+:
For each set of attributes X of R, compute X+.

50. Closure of Attributes X+ := X repeat oldX+ := X+
Given a set of FDs F in relation R, the set of all the attributes that can be determined (directly or indirectly) from a given attribute (or set of attributes) X is called the closure of X, denoted by X+
X+ can be determined using the simple algorithm:
X+ := X
repeat
oldX+ := X+
for each FD Y  Z in F do
if Y  X+ then X+ := X+  Z
until oldX+ = X+

51. Example
A  B, BC  D
A+ = AB
C+ = C
(AC)+ = ABCD
Thus, AC is a key.

52. Example F = AB  C, C  D, D  A. What FDs follow?
A+ = A; B+ = B (nothing)
C+ = ACD (add C  A)
D+ = AD (nothing new)
(AB)+ = ABCD (add AB  D; skip all supersets of AB).
(BC)+ = ABCD (nothing new; skip all supersets of BC).
(BD)+ = ABCD (add BD  C; skip all supersets of BD).
(AC)+ = ACD; (AD)+ = AD; (CD)+ = ACD (nothing new).
(ACD)+ = ACD (nothing new).
All other sets contain AB, BC, or BD, so skip.
Thus, the only interesting FDs that follow from F are:
C  A, AB  D, BD  C.

53. IR Proofs cont. Prove or Disprove: X  Z, Y  Z |= X  Y X  Y
We will disprove this by presenting a relation instance that satisfies the FDs in the LHS of the rule, but does not satisfy the FDs in the RHS: X Y Z
It is clear from those two records that the FD
X  Y
does not hold x1 z1 y2 y3 x3 x2 ? ? y1 z2

54. Try This
Prove or Disprove: X  Y, X  W, WY  Z |= X  Z

55. X  Y (given)
X  W (given)
WY  Z (given)
X  XY (using IR2 on 1 (augmenting with X; XX=X))
XY  WY (using IR2 on 2 (augmenting with Y))
X  WY (using IR3 on 4 and 5)
X  Z (using IR3 on 6 and 3)

56. … and This Prove or Disprove: XY Z, Z  W |= X  W
We will disprove this by presenting a relation instance that satisfies the FDs in the LHS of the rule, but does not satisfy the FDs in the RHS:
Notice the choices for values X Y Z W x1 y1 z1 x1 x2 y3 y2 w2 ?
It is clear from those two records that the FD
X  W
does not hold ? z2 w1

57. Closure Example R(A, B, C, D, E, F) with FDs: Compute {A, B}+
(can also be written as AB+)
Visit C
You Get
E  CF
Visit
You Get F
B  E
Visit
You Get E
CD  EF A B
You Have A C B
You Have E A C B
You Have F A C B
You Have E
End of Shopping
AB+ = ABCEF (i.e. {A,B}+ = {A,B,C,E,F})

58. Try This R(A, B, C, D, E, F) with FDs: Compute: A  BC E  CF B  E
AD+
ABCD+
ABCEF C
BCEF
ABCDEF
ABCDEF

59. Attribute Closure (example)
R = {A, B, C, D, E}
F = { B CD, D  E, B  A, E  C, AD B }
Is B  E in F+ ?
B+ = B
B+ = BCD
B+ = BCDA
B+ = BCDAE … Yes!
and B is a key for R too!
Is D a key for R?
D+ = D
D+ = DE
D+ = DEC
… Nope!
Is AD a key for R? AD+ = AD
AD+ = ABD and B is a key, so Yes!
Is AD a candidate key for R?
A+ = A, D+ = DEC
… A,D not keys, so Yes!
Is ADE a candidate key for R?
… No! AD is a key, so ADE is a superkey, but not a cand. key

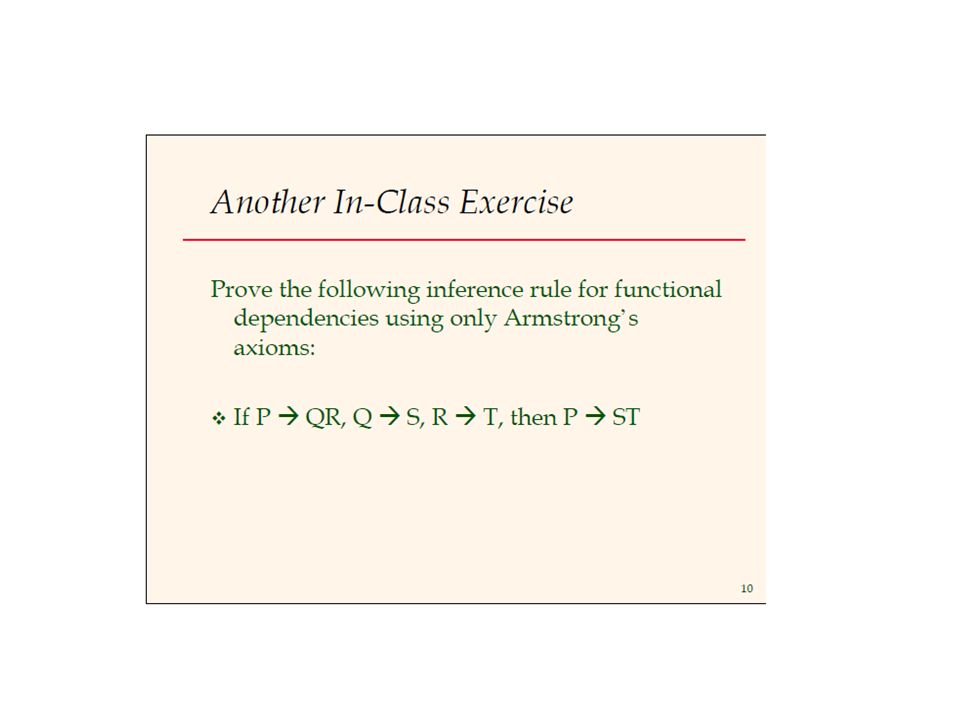

61. Given P QR Q S Using augmentation, QR  RS PQR, QR RS hence PRS RT (given) RS  ST (augmentation) By transitivity PRS, RS ST hence PST

62. Equivalence of sets of functional dependencies
A set of FD F is said to cover another set of FD E if every FD in E is also in F+. i.e if every dependency in E can be inferred from F, alternately we can say that E is covered by F
Two sets of FD E and F are equivalent if
E+ = F+
.i.e E covers F and F covers E

63. A Note About Closures
We have just seen that given a set of FDs that hold in R, we can calculate the closure of a set of attributes
The reverse process is also possible. In other words, given a closure of a set of attributes we can infer the non-trivial FDs that hold in R

64. Note About Closure cont.
Given R(A, B, C, D, E, F), and: B+
B C E F
It can be easily inferred that the following FD holds on R:
B  C E F
A  BC
CD  EF
B  E
E  CF
As a matter of fact, it can even be proven, using inference rules, if we knew it only came from the relation in the previous example

65. Minimal Cover for an FD Set
One can imagine the number of FDs that can be inferred from a given set of FDs (using inference rules).
Thus, we need minimal set of FDs that maintains the relationships between all the attributes and with no redundancies

66. Minimal Cover cont. A set of FDs F is minimal iff:
Every FD in F has a single attribute for its RHS
We cannot replace any FD AB in F with an FD CB, where C is a proper subset of A, and still have a set of FDs that is equivalent to F
We cannot remove any FD in F, and still have a set of FDs that is equivalent to F

67. Algorithm to Find Minimal Cover
Step 1: Make the RHS of every FD singular. In other words, replace every FD of the type A  BC with A  B and A  C
Step 2: For every FD A  B where A is not singular. Remove any attribute (or set of attributes) X from A, and check if A+ = {A-X}+. If the answer is yes, then replace A  B with {A-X}  B
Step 3: For every FD A  B, cover it with your finger (i.e. imagine it not there), and ask if A+ includes B without it. If the answer is yes, eliminate A  B permanently
Note: For each step, You can use the resulting FDs from the previous step.

68. Minimal Cover Example R(A, B, C, D) with FDs: A  BCD CD B AD  C
Step 2
CD B
remove C
is D+=CD+? no
Results
Step 1
remove D
is C+=CD+? no
A  B
AD  C
CD B
A  C
A  D
AD  C
remove A
is D+=AD+? no
remove D
is A+=AD+?
yes
A  C
A  C
A  D
CD B
Step 3
A  B
CD B
A  C
A  D
cover it:
is B in A+?
yes
cover it:
is C in A+? no
cover it:
is D in A+? no
cover it:
is B in CD+? no

69. Try This One R(A, B, C, D, E) with FDs: D  ACE A B AB  C Step 2
Results
Step 1
AB C
remove A
is B+=AB+? no
D  A
AB  C
A B
D  C
D  E
D  A
remove B
is A+=AB+?
yes
A  C
Step 3
D  E
A B
D  A
A B
D  C
D  E
A  C
cover it:
is A in D+? no
A  C
cover it:
is C in D+?
yes
cover it:
is E in D+? no
cover it:
is B in A+? no
cover it:
is C in A+? no

70. Note on Minimal Cover Algorithm
In Step 2: For every FD A  B where A is not singular. Remove any attribute (or set of attributes) X from A, and check if A+ = {A-X}+. If the answer is yes, then replace A  B with {A-X}  B.
Step 2
Results ….
ABC  D
ABC D
remove AB
is C+=ABC+? no
remove AC
is B+=ABC+? no
remove BC
is A+=ABC+?
yes no
A  D
BC  D
B  D
ABC  D
remove A
is BC+=ABC+? no
yes
BC D
remove B
is C+=BC+? no
remove C
is B+=BC+?
yes

71. Keys
If X+ (the closure of the attribute (or set of attributes) X) includes all the attributes in a relation R, then X is a superkey (SK) for the relation R
If X is a superkey for R, and the removal of any attribute from X will cause X not to be a superkey anymore, then X is called the key for R
The difference between a key and a superkey is that a key has to be minimal

72. Keys cont.
If R has more than one key, then each is called a candidate key (CK) for R
The terms key and candidate key are used interchangeably
One of the candidate keys for R is (arbitrarily) designated to be the primary key (PK) for R, and the others are called secondary keys
Secondary keys are used for indexing purposes to improve performance

73. Keys Example R(A, B, C, D, E, F) with FDs: A  CDE CD  F AD  E
B  CE
BD  A
CDE  ABD A AD BD CD
CDE SK CK D+ B+ D
CBE C+ C D+ D E+ E
CE+ CE …
…….. A+
ABCDEF B+
CBE
AD+
ABCDEF
BD+
ABCDEF
CD+
CDF
CDE+
ABCDEF

74. Finding CKs Systematically
To systematically find all the candidate keys for any relation is a brute force algorithm that requires trying all the possible combinations of the attributes:
Single attribute: take the closure of every single attribute. If the closure gives you all the attributes in the relation, then the attribute is a CK.
Two attributes: Take the closure of the 2-attributes combinations not including the ones you found in the previous step above.
Three attributes: Take the closure of the 3-attributes combinations not including the ones you found in the previous step above.
Four attributes: ……… Continue as above

75. Finding CKs Example1
Find the CKs for the relation R (A, B, C, D, E, F) with FDs:
FD1: B  CE FD2: AD  E FD3: CD  F FD4: BD  A
FD5: A  CDE FD6: CDE  ABD
Answer:
Single attribute: A+ = ABCDEF  A is a CK
Then we try B+, C+, D+, E+, F+ (but they will not work)
Two attributes: (all combinations not including A because no future CK can contain A which is itself a CK):
BD+ = ABCDEF  BD is a CK
Then we try BE+, BF+, CD+, CE+ ………… etc.
Three attributes: (all combinations not including A or BD)
CDE+ = ABCDEF  CDE is a CK
Then we try BCE+, BCF+, BEF+ ………… etc.
Four attributes: (all combinations not including A, BD or CDE)
BCEF+ = ….
Final Results: The only CKs are: A, BD & CDE.

76. Hints on Finding CKs
Look at the RHS of the FDs. If an attribute does not appear on the RHS of all the FDs, then such attribute must be part of the CK. Why?
It makes your life easier if you start with the minimal cover instead of the given FDs.
Do not be fooled by trying ONLY the attributes (or combination of attributes) that appear on the LHS of the FDs. (An example will show you why?)

77. Finding CKs Example2
Find the CKs for the relation R (A, B, C, D, E) with FDs:
FD1: B  D FD2: E  C FD3: AC  D
FD4: CD  A FD5: BE  A
Answer:
Because any candidate key must have B and E in its closure, but B and E do not appear at the RHS of any FDs, thus B and E can only be determined by themselves.
Therefore B and E must be part of the candidate key (1)
Single attribute: not applicable because of (1)
Two attributes: only BE is possible because of (1)
BE+ = ABCDE  BE is a CK
Three attributes: because BE was fund to be a CK, thus no future candidate key can contain BE, but because of (1) any CK must contain BE, this is a contradiction
Final Results: The only CK is BE.

78. Finding CKs Example3
Find the CKs for the relation R (A, B, C, D, E) with FDs:
FD1: E  A FD2: D  BE FD3: C  D FD4: AB  C
Answer:
Single attribute: A+ = A, B=B, E +=AE+
C+ = ABCDE  C is a CK
D+ = ABCDE  D is a CK
Two attributes: (all combinations not including C or D)
AE+ = AE
AB+ = ABCDE  AB is a CK
BE+ = ABCDE  BE is a CK
Three attributes: (all combos not including C, D, AB or BE) None can be found
Notice: If you would have tried only the LHS of the FDs, then BE would not have been found as a CK.

79. Prime or Nonprime
An attribute that is part (member) of any candidate key is called a prime attribute
An attribute is called nonprime if it not a prime attribute

80. Database Normalization
Database normalization is the process of removing redundant data from your tables in order to improve storage efficiency, data integrity, and scalability.
In the relational model, methods exist for quantifying how efficient a database is. These classifications are called normal forms (or NF), and there are algorithms for converting a given database between them.
Normalization generally involves splitting existing tables into multiple ones, which must be re-joined or linked each time a query is issued.

81. History
Edgar F. Codd first proposed the process of normalization and what came to be known as the 1st normal form in his paper A Relational Model of Data for Large Shared Data Banks Codd stated:
“There is, in fact, a very simple elimination procedure which we shall call normalization. Through decomposition nonsimple domains are replaced by ‘domains whose elements are atomic (nondecomposable) values.’”

82. Normal Form
Edgar F. Codd originally established three normal forms: 1NF, 2NF and 3NF. There are now others that are generally accepted, but 3NF is widely considered to be sufficient for most applications. Most tables when reaching 3NF are also in BCNF (Boyce-Codd Normal Form).

83. Normal forms
Universe of relations
1 NF
2NF
3NF
BCNF

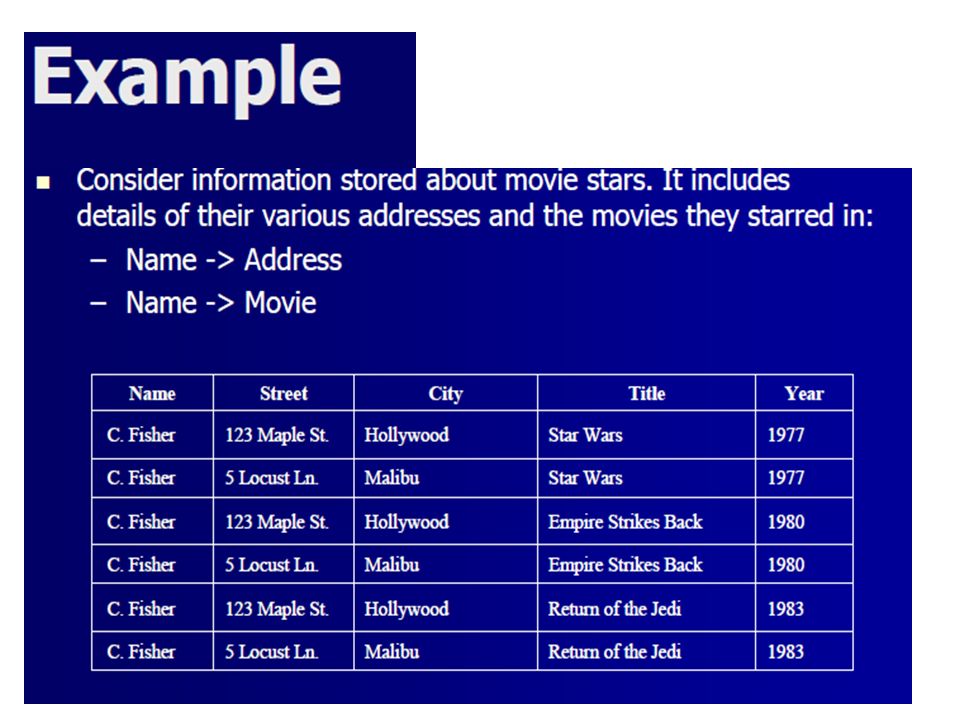

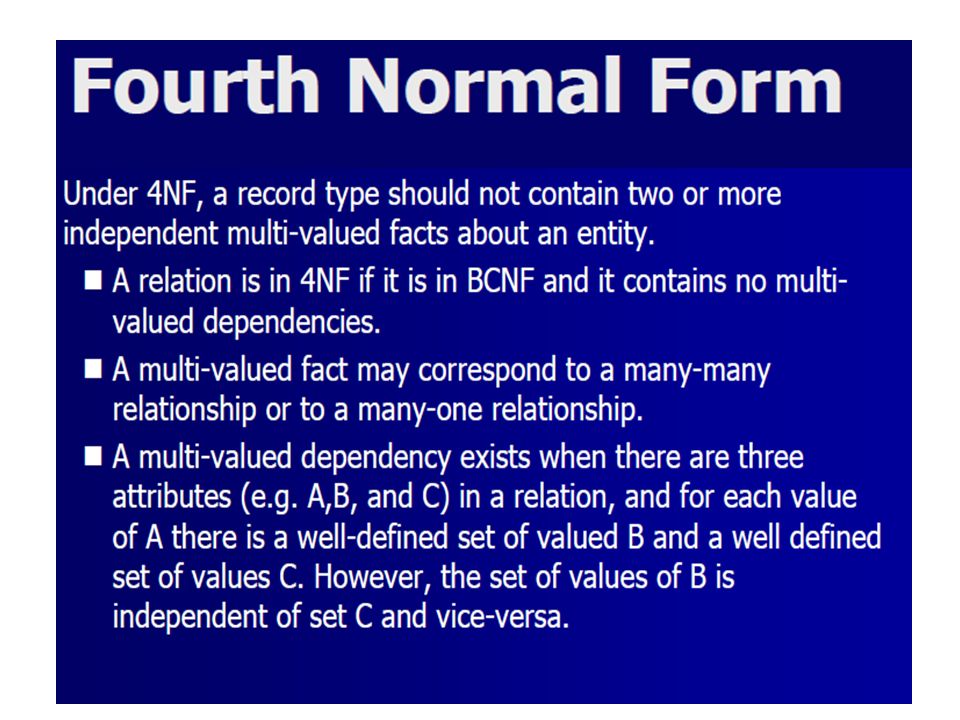

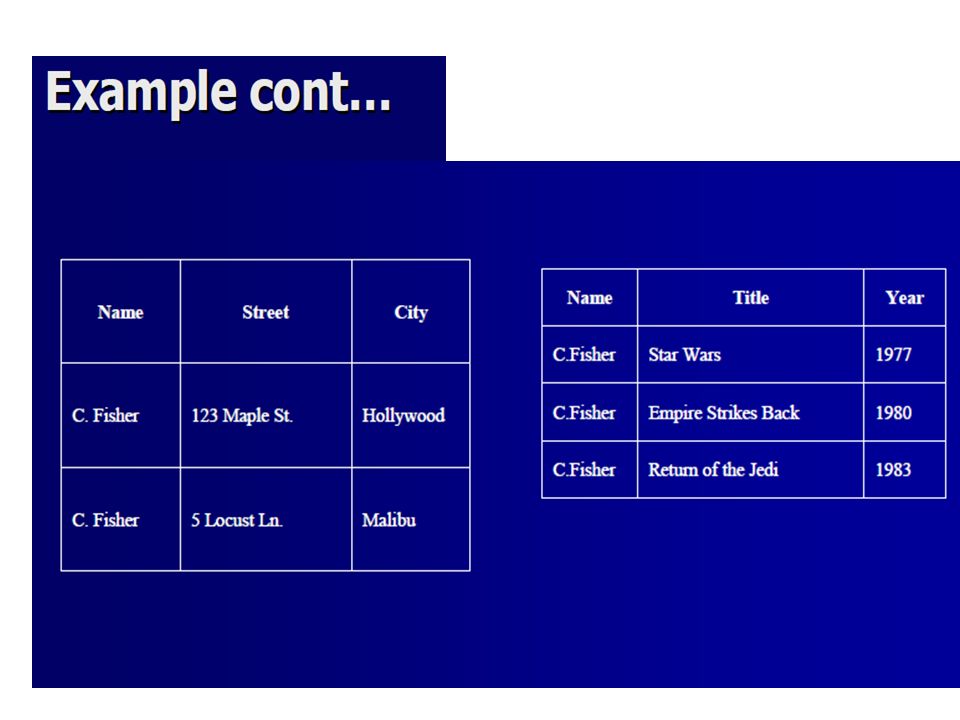

4NF
5NF

84. First Normal Form
A relation is in 1NF iff (if and only if) every attribute is single valued for each tuple (i.e. no multivalued attributes).
In other words, a relation is in 1NF if it has the characteristics of a table:
Has the rows and columns format
Each data value is atomic
Each column has a domain
Has at least one key (i.e. no duplicate records)
Order of rows is not important
Order of columns is not important

85. First Normal Form cont. To put a relation in 1NF:
EmpName
ChildName
SpouseName
SpouseAge
John Newton
Alice
Peter
Mary Joe 29
Nancy Corn
George
Paul Atlas 46
Joe Johnson
Nora
John
Sally
Pat Thomas 38
To put a relation in 1NF:
Make the multivalued attribute as part of the key, and duplicate all the other information.

86. First Normal Form cont. For all our purposes:
EmpName
ChildName
SpouseName
SpouseAge
John Newton
Alic
Mary Joe 29
Peter
Nancy Corn
George
Paul Atlas 46
Joe Johnson
Nora
Pat Thomas 38
John
Sally
For all our purposes:
All relations are in 1NF (i.e. 1NF is of no value other than historical).

87. Second Normal Form
A relation R is in 2NF iff every nonprime attribute is fully FD on every candidate key in R
In other words, a relation R is in 2NF iff every nonprime attribute is not partially FD on any candidate key in R
In other words, R is not in 2NF if it contain an FD of the form: prime  nonprime
Remember:
A prime is any attribute that is part of any CK.
For X  Y, Y is fully FD on X if Y is not FD on any part of X.

88. 2NF Example1 Is R in 2NF? Answer: The key is {EmpName, ChildName}
R (EmpName, SpouseName, ChildName, SpouseAge) with FDs:
FD1: EmpName  SpouseName
FD2: SpouseName  SpouseAge
FD3: {EmpName, ChildName}  {SpouseName, SpouseAge}
Is R in 2NF?
Answer:
The key is {EmpName, ChildName}
In FD1, SpouseName is a nonprime that is FD on a prime EmpName (i.e. SpouseName is not fully FD on the key)
That is an explicit violation to 2NF
R is not in 2NF.

89. 2NF Example2 R (A, B, C, D, E, F, G, H) with FDs: Is R in 2NF? Answer:
FD1: AE  GH FD2: A  BC
FD3: C  D FD4: E  F
Is R in 2NF?
Answer:
The key is AE
In FD2, B is a nonprime that is FD a prime A (i.e. B is not fully FD on the key)
That is an explicit violation to 2NF
R is not in 2NF.

90. Third Normal Form
A relation R is in 3NF iff the set of FDs for R does not contain any transitive FD.
An FD is transitive if it has a nonprime on both of its sides.
In other words, R is not in 3NF if it contain an FD of the form:
nonprime  nonprime

91. 3NF Example1 R (A, B, C, D, E) with FDs: Is R in 3NF? Answer:
FD1: A  B FD2: AB  C
FD3: D  ACE
Is R in 3NF?
Answer:
The CK is D
In FD2, a nonprime C is FD on another nonprime AB
That is an explicit violation to 3NF
R is not in 3NF.
Question: Is R in 2NF?

92. 3NF Example2 R (A, B, C, D, E, F, G) with FDs: Is R in 3NF? Answer:
FD1: GE  AD FD2: G  BF
FD3: E  C
Is R in 3NF?
Answer:
The key is GE
There is no explicit violation to 3NF
In FD2, a nonprime BF is FD on a prime G
This is an explicit violation to 2NF, and an implicit violation to 3NF
R is not in 3NF.

93. Boyce-Codd Normal Form
A relation R is in BCNF iff every determinant is a superkey.
To find a violation to BCNF, just find a determinant that is not a superkey.
Remember:
A determinant is the LHS of any FD.
A superkey for a relation R is an attribute (or set of attributes) whose closure gives all the attributes of the relation R.

94. BCNF Example R (A, B, C, D) with FDs: Is R in BCNF? Answer: A+ = AB
FD1: A  B FD2: BC  D
FD3: D  BC FD4: C  A
Is R in BCNF?
Answer:
A+ = AB
A is a determinant in FD1, but A is not a superkey
This is an explicit violation to BCNF
R is not in BCNF.
Question: Is R in 2NF?
Question: Is R in 3NF?

95. Notes on BCNF: Every relation that has only two attributes is in BCNF.
Every relation that has only 1 candidate key, if it is in 3NF, then it is in BCNF; except in the very rare case:
if an FD X  A exists in R with X not a super key, and A is a prime attribute, then R will be in 3NF but not in BCNF.
If the relation has only one candidate key, if you manage to put the relation in 3NF then you will achieve BCNF automatically except in the above rare case.

96. Normalizing a Relation
To normalize a relation, means to rid the relation of the modifications anomalies.
This usually means breaking up the relation into two (or more) relations. This is called decomposition.
Two normalization algorithms are available:
3NF Algorithm:
Guarantees every resulting relation is in 3NF
Guarantees Lossless Join property
Guarantees FD perseverance
BCNF Algorithm:
Guarantees every resulting relation is in BCNF

97. 3NF Algorithm
Step 1: Get the minimal cover for the FDs, and work with it instead of the original FDs.
Step 2: Combine the attributes on RHSs of any FDs that have the same LHS (i.e A  B and A  C will be combined into A  BC (standard form))
Step 3: Find the candidate key(s).
Step 4: Output each of the FDs as a relation by itself (i.e. the FD AB  C will be outputted as the relation (A, B, C)).
Step 5: If none of the relations (from step 4) contains a key (i.e. we need at least one key), then create one more relation that contains the attributes that form a key.

98. Notes on 3NF Algorithm:
If two relations have the same set of attributes, then eliminate one of them.
Always underline a key in each of the new decomposed relations.
The key for a new decomposed relation is the determinant of the FD that the relation has resulted from (i.e. AB  C will result in the relation (A, B, C)).

99. 3NF Algorithm Example1
Normalize the relation R (A, B, C, D, E) with FDs:
FD1: B  D FD2: E  C FD3: AC  D FD4: CD  A
Answer:
Step 1: As above (no change).
Step 2: As above (no change).
Step 3: The key is BE
Step 4: FD1  R1(B, D) FD2  R2(E, C)
FD3  R3(A, C, D) FD4  R4(A, C, D) duplicate
Step 5: None of the relations contains the key, we need
another relation: R4(B, E)
Final results: R1(B, D), R2(C, E), R3(A, C, D), and R4(B, E)

100. Old FD Diagram A B C D E R

101. New FD Diagram B D A C D R1 R3 E C R2 B E R4

102. 3NF Algorithm Example2 Answer:
Normalize the relation R (EmpName, SpouseName, ChildName, SpouseAge) with FDs: FD1: EmpName  SpouseName
FD2: SpouseName  SpouseAge
Answer:
Step 1: As above (no change).
Step 2: As above (no change).
Step 3: The key is {EmpName, ChildName}
Step 4: FD1  R1(EmpName, SpouseName)
FD2  R2(SpouseName, SpouseAge)
Step 5: None of the relations contains the key, we need
another relation: R3(EmpName, ChildName)
Final results: R1, R2 and R3 as above.

103. Old FD Diagram
EmpName
SpouseName
SpouseAge
ChildName R

104. New FD Diagram R1 R2 R3 EmpName ChildName EmpName SpouseName
SpouseAge R3

105. 3NF Algorithm Example3
Normalize the relation R (A, B, C, D, E) with FDs:
FD1: A  B FD2: BC  D FD3: D ACE
Answer:
Step 1: FD1: A  B, FD2: BC  D , FD3: D  A ,
FD4: D  C , FD4: D  E
Step 2: FD1: A  B, FD2: BC  D , FD3: D  ACE
Step 3: The CK is D
Step 4: FD1  R1(A, B) FD2  R2(B, C, D)
FD3  R3(A, C, D, E)
Step 5: The CK is in relation R3 above
Final results: R1(A, B), R2(B, C, D) and R3(A, C, D, E)

106. BCNF Algorithm
Step 1: Find an FD that violates BCNF (explicit and implicit)
Step 2: Split R into:
R1 which contains the attributes of the violating FD.
R2 which contains all the attributes in the original relation except the attributes on the RHS of the violating FD.
Step 3: Check each of the new relations and repeat steps 1 and 2 on each one of them when the violation is found.

107. Notes on BCNF Algorithm:
This is a universal algorithm that can work to put any relation into 2NF, 3NF or BCNF.
(i.e. if you want to put a relation into 2NF, then in step 1 of the algorithm, find an FD that violates 2NF).
It is better (but not a must) to start with the minimal cover as it gives less FDs to work with.
It is better (but not a must) to apply the algorithm to higher violations first (i.e. start with FDs that explicitly violate BCNF, then FDs that explicitly violate 3NF … etc.).

108. BCNF Algorithm Notes cont.
If you want to preserve the FDs of a relation, then be satisfied with 3NF
You can try to apply 3NF (which guarantees that every resulting relation is in 3NF), then check each resulting relation if it is in BCNF. If so, then GREAT; otherwise, you can try applying the BCNF algorithm and risk loosing some of the FDs

109. BCNF Algorithm Example
Normalize the relation R (EmpName, SpouseName, ChildName, SpouseAge) with FDs: FD1: EmpName  SpouseName
FD2: SpouseName  SpouseAge
Answer: Remember: The key is {EmpName, ChildName}.
Since EmpNname  SpouseName is an explicit violation to 2NF
and SpouseName  SpouseAge is a explicit violation to 3NF
We start with the highest violation first:
We will split SpouseName and SpouseAge into a separate relation:
R3(SpouseName, SpouseAge)
Now: what remains in R is what was there originally except what is on the right hand side of the violating FDs (i.e. we exclude SpouseAge): R(EmpName, ChildName, SpouseName)

110. BCNF Algorithm Example cont.
Normalize the relation R (EmpName, SpouseName, ChildName, SpouseAge) with FDs: FD1: EmpName  SpouseName
FD2: SpouseName  SpouseAge
Answer cont.: So far we have: R3(SpouseName, SpouseAge)
and R(emp-name, child-name).
Now we consider the other violation:
We will split EmpName and SpouseName into a separate relation:
R2(EmpName, SpouseName)
Now: what remains in R is what was there originally except what is on the right hand side of the violating FDs (i.e. we exclude SpouseName): R(EmpName, ChildName)

111. Normalize the relation R(A,B,C,D,E) with FDs: D->B, CE->A
1. BCNF decomposition
Normalize the relation R(A,B,C,D,E)
with FDs: D->B, CE->A
DCE is a minimal key.
R violates BCNF since D (in itself) is not a key.
D+=DB and we split by D->B. The result is DB, DCEA
DCEA violates BCNF since CE is not a key. CE+=CEA and we split by CE->A. The result is CEA, CED
CEA, CED do not violate BCNF.
R1(D,B), R2(C,E,A) , R3(C,E,D)

112.   Normalize the relation S(A,B,C,D,E)
With FDs: A->E, BC->A, DE->B
DCE, DCB, DCA are minimal keys
    S violates BCNF since A is not a key
    A+=AE and we split by A->E. The result is AE, ABCD
    ABCD violates BCNF since BC is not a key
    BC+=BCA and we split by BC->A. The result is BCA, BCD.
BCA, BCD do not violate BCNF
Answer: AE, BCA, BCD

113. R(A,B,C,D,E); D->B, CE->A DCE is a minimal key
2. 3NF decomposition
  R(A,B,C,D,E); D->B, CE->A
DCE is a minimal key
 The first condition is already violated (as above for BCNF)
  R violates 3NF since B is not a prime (part of a key)
  D+=DB and we split by D->B. The result is DB, DCEA
DCEA violates 3NF since A is not a prime.
CE+=CEA and we split by CE->A. The result is CEA, CED
CEA, CED do not violate 3NF.
Answer: DB, CEA, CED

114. S(A,B,C,D,E); A->E, BC->A, DE->B
DCE, DCB, DCA are minimal keys
S does not violate 3NF since each right side of given FDs is a prime (part of a key)
 Answer: ABCDE


115. Successive Normalization Example
Normalize the relation R (A, B, C, D, E, F) with FDs:
FD1: AB  CDEF FD2: B  C FD3: D  F
Notice: The Key is AB
R1(B, C)
R (A, B, D, E, F)
Remove 2NF
Violation: B  C
R (A, B, C, D, E, F)
R1(B, C)
R1(D, F)
R (A, B, D, E)
Remove 3NF
Violation: D  F
R (A, B, D, E, F)
with FDs: AB  DEF & D  F is in 2NF. Why?
R1(D, F) with FD: D  F is in BCNF. Why?
R (A, B, D, E)
with FD: AB  DE is in BCNF. Why?
R1(B, C) with FD: B  C is in BCNF. Why?

116. Try this …… IMPORTANT
Assume that AC is the key for the relation R (A,B,C,D,E), and in addition the following FDs hold on the relation R:
FD1: A  B
FD2: D  E
What is the best normal form for the relation R?
Normalize the relation R.

117. Final Word …
It is not always possible to get a BCNF decomposition that preserves the functional dependencies of a relation, as this example will show.
R (A, B, C) with FDs: FD1: AB  C FD2: C  B
Discussion:
The CKs are: AB and AC
C is a determinant in FD2, but C is not a superkey
This is an explicit violation to BCNF, so R is not in BCNF.
Problem: Any decomposition of R will fail to preserve the FD AB  C (FD1).
