1 Simple Harmonic Motion (SHM)

2 Mass on a Spring Periodic Motion – any repeated motion.
pendulum

3 Mass on a Spring Equilibrium Position F = 0, a = 0, v = max Compressed
Notice: F always points towards equilibrium (x=0). This is called a restoring force. Compressed F = max, a = max, v = 0 If there were friction, the mass would slow down and stop. This is called damping. Stretched F = max, a = max, v = 0

4 Hooke’s Law http://phet.colorado.edu/en/simulation/mass-spring-lab
Force is proportional to displacement SHM occurs whenever the restoring force is proportional to displacement k = spring constant (N/m) measures the stiffness of the spring x = displacement from equilibrium (m) When might we want damped oscillations?

5 1. If a mass of 0.55 kg attached to a vertical spring stretches the spring 2.0 cm from its original equilibrium position, what is the spring constant?

6 2. Suppose the spring in problem #1 is replaced with a spring that stretches 36cm from its equilibrium position. What is the new spring’s spring constant? Is the spring stiffer or less stiff than the spring in problem #1?

7 Pendulums Amplitude (A) = max displacement from equilibrium
Period (T) = time to complete one cycle of motion (back and forth) measured in seconds Frequency (f) = number of cycles per second (Hertz – Hz)

8 Pendulums Period (T) depends on Length of string (L)
Period (T) depends on Length of string (L) acceleration due to gravity (g) Notice: T does not depend on m or A

9 Mass on a Spring Period (T) depends on mass (m) spring constant (k)
Period (T) depends on mass (m) spring constant (k) Notice: T does not depend on A

10 Energy of SHM

11 9. a) You need to know the height of a tower, but darkness obscures the ceiling. You note that a pendulum extending from the ceiling almost touches the floor and its period is 12 s. How tall is the tower?

12 Wave Motion A wave is the movement of a disturbance through a medium
A medium is the material the wave travels through - mechanical waves require a medium - electromagnetic waves do not require a medium

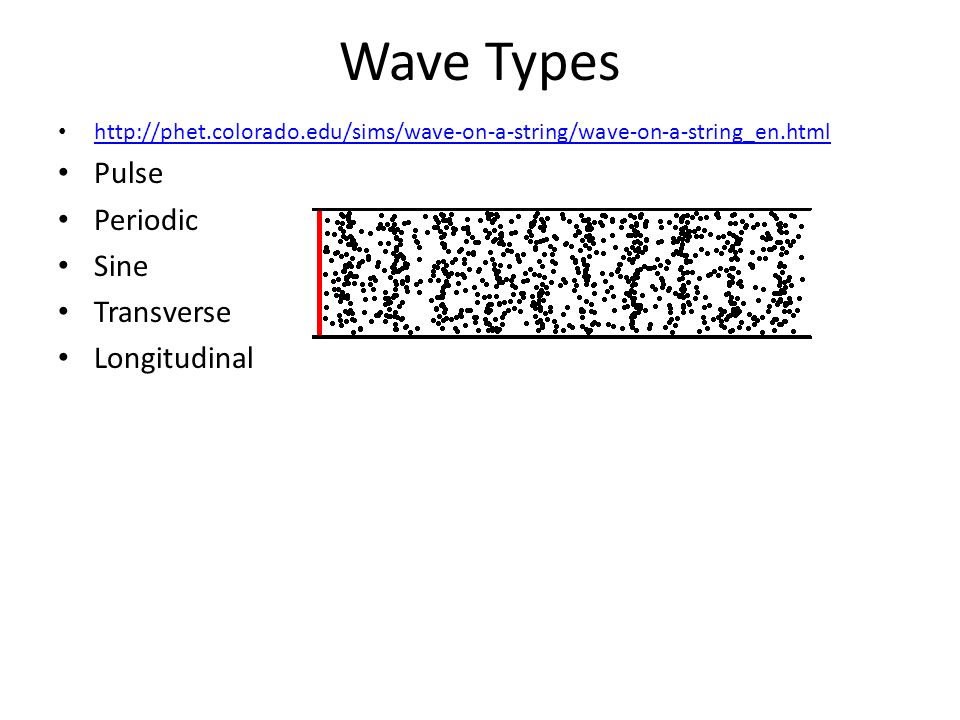

13 Wave Types Pulse Periodic Sine Transverse Longitudinal
Pulse Periodic Sine Transverse Longitudinal

14 Transverse Wave

15 Longitudinal Wave

16 Waves Energy of a wave is proportional to A2
Wave Speed (v) depends on the medium Wave Frequency (f) depends on the source # of crests passing each second

17 Superposition & Interference

18 Superposition & Interference

19

20 Reflection

21 Interference Pattern

22 Standing Waves

23 Standing Waves

24 Standing Waves Harmonic Series:
