1. Silberschatz, Galvin and Gagne ©2009Operating System Concepts – 8 th Edition Chapter 4: Threads (7 th Edition)

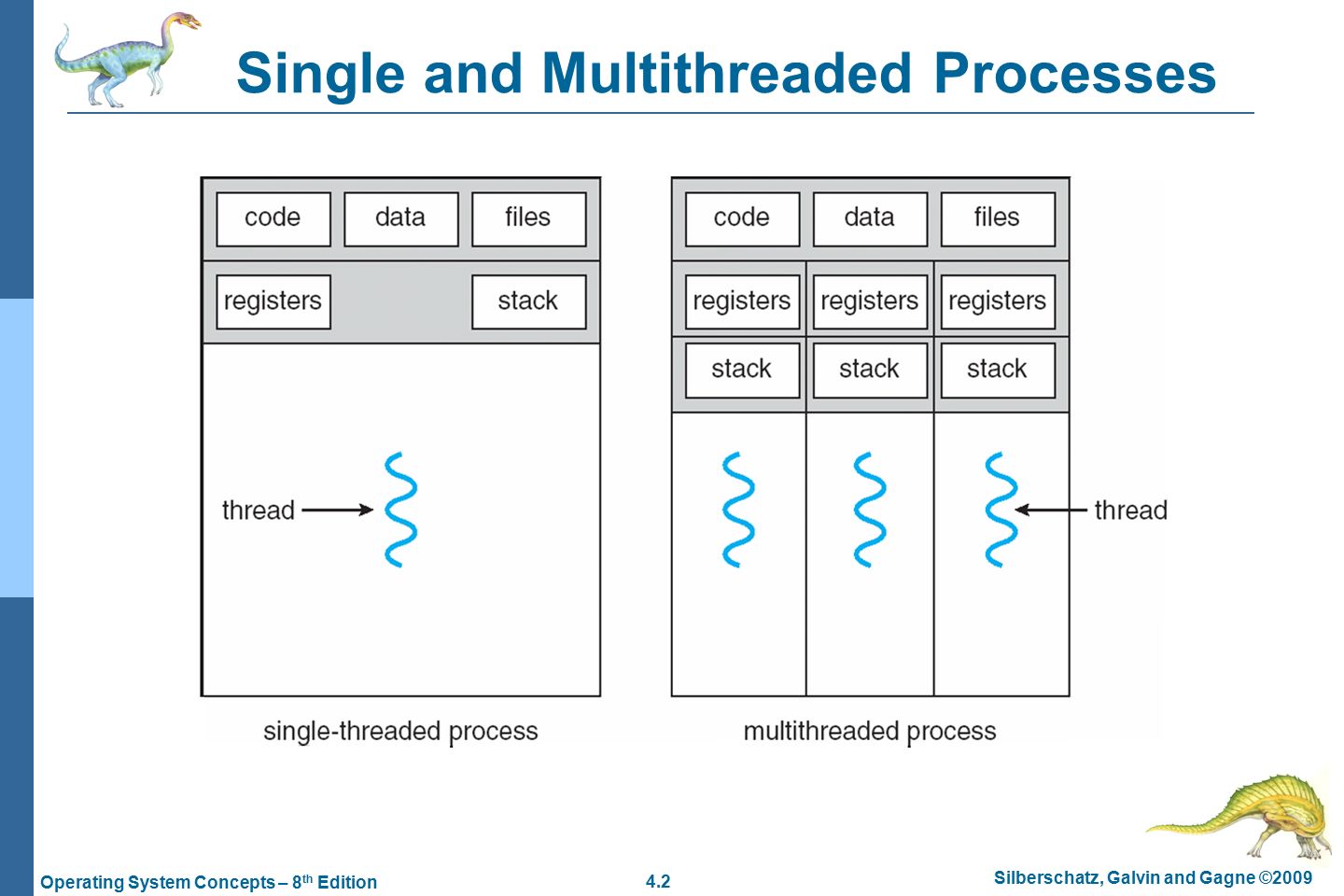

2. 4.2 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Single and Multithreaded Processes

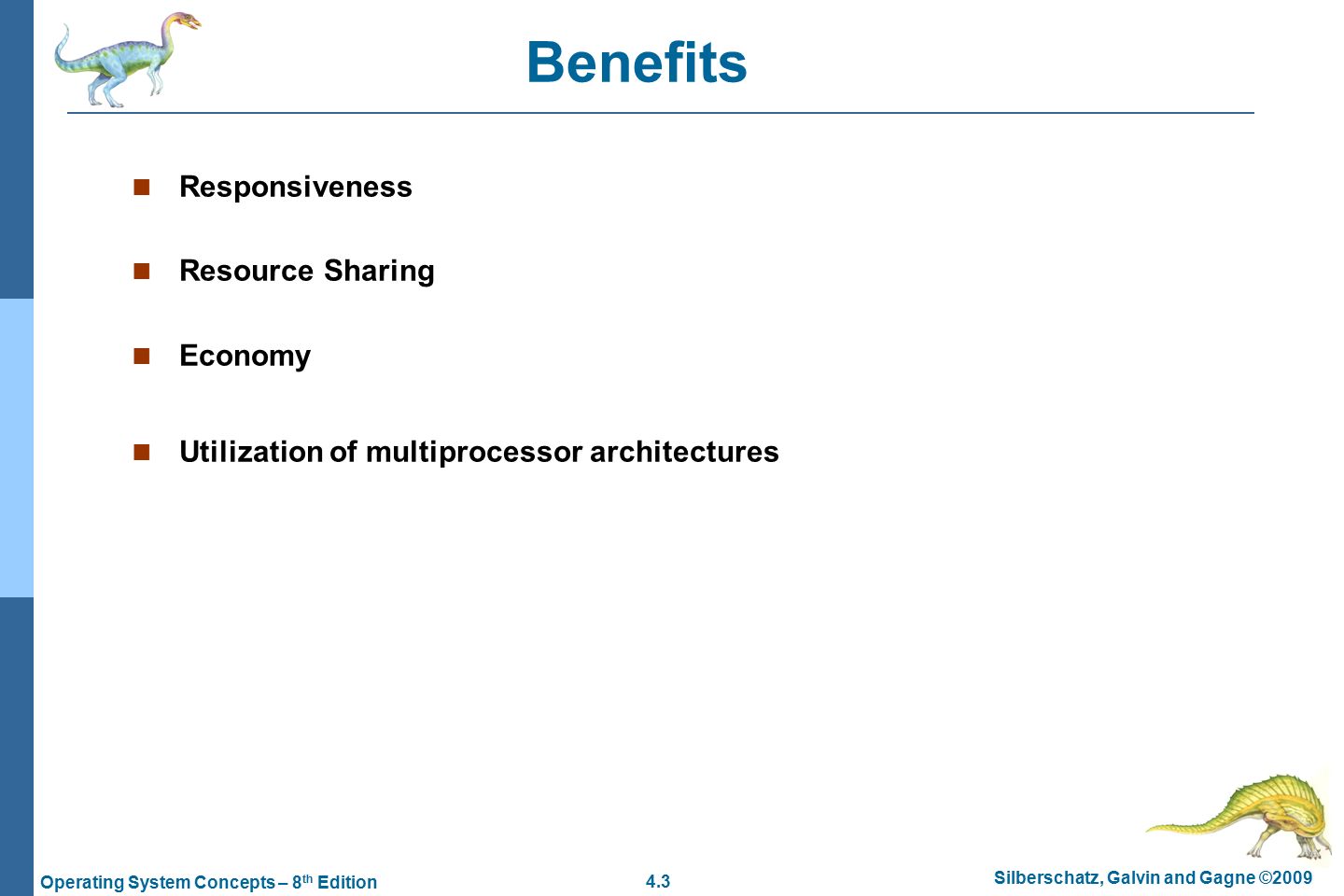

3. 4.3 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Benefits Responsiveness Resource Sharing Economy Utilization of multiprocessor architectures

4. 4.4 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition User Threads Thread management done by user-level threads library Three primary thread libraries: POSIX Pthreads Win32 threads Java threads

5. 4.5 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Kernel Threads Supported by the Kernel Examples Windows XP/2000 Solaris Linux Tru64 UNIX Mac OS X There must exists a relationship between user thread and kernel thread.

6. 4.6 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Multithreading Models Many-to-One One-to-One Many-to-Many

7. 4.7 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Many-to-One Many user-level threads mapped to single kernel thread Examples: Solaris Green Threads GNU Portable Threads

8. 4.8 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Many-to-One Model

9. 4.9 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition One-to-One Each user-level thread maps to kernel thread Examples Windows NT/XP/2000 Linux Solaris 9 and later

10. 4.10 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition One-to-one Model

11. 4.11 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Many-to-Many Model Allows many user level threads to be mapped to many kernel threads Allows the operating system to create a sufficient number of kernel threads Solaris prior to version 9 Windows NT/2000 with the ThreadFiber package

12. 4.12 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Many-to-Many Model

13. 4.13 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Threading Issues Thread cancellation of target thread (page 139) Asynchronous Cancellation Deferred Cancellation Signal handling (page 139)  Synchronous and asynchronous received signal.

14. 4.14 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Threading Issues (Cont.) Thread pools (page 141) Thread-specific data (page 142) Create Facility needed for data private to thread

15. 4.15 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Thread Cancellation Terminating a thread before it has finished Two general approaches: Asynchronous cancellation terminates the target thread immediately Deferred cancellation allows the target thread to periodically check if it should be cancelled

16. 4.16 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Signal handling  Synchronous and asynchronous received signal.  Every Signal may be handled by one of two possible handlers: A default signal handler A user-defined signal handler

17. 4.17 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Thread Pools Create a number of threads in a pool where they await for work Advantages: Usually slightly faster to service a request with an existing thread than create a new thread Allows the number of threads in the application(s) to be bound to the size of the pool

18. 4.18 Silberschatz, Galvin and Gagne ©2009 Operating System Concepts – 8 th Edition Thread Specific Data Allows each thread to have its own copy of data Useful when you do not have control over the thread creation process (i.e., when using a thread pool)

19. Silberschatz, Galvin and Gagne ©2009Operating System Concepts – 8 th Edition End of Chapter 4 NAT
