1 Lecture 41 IEEE 802.15.4/ZigBee Dr. Ghalib A. Shah
Wireless Networks Lecture 41 IEEE /ZigBee Dr. Ghalib A. Shah

2 Outlines Overview of ZigBee IEEE 802.15.4
Whats is ZigBee, Zigbee in Wireless World, Architecture, Characteristics IEEE Basics, Type of Devices Topology, Addressing Phy Layer Channel Access Mechanisms Slotted/Unslotted CSMA/CA Data Transfer Model Superframe Structure

3 Last Lecture IP Over Bluetooth Bluetooth Security WPAN Standards
IEEE Overview Topology Coordination Starting a Piconet Handing over control of piconet Creating child piconet Ending a Piconent Association/Disassociation Medium Access (Superframe) Channel Time Management Power management MAC Frame format

4 What is ZigBee Alliance?
An organization with a mission to define reliable, cost effective, low-power, wirelessly networked, monitoring and control products based on an open global standard The alliance provides interoperability, certification testing, and branding.

5 IEEE 802.15.4: What is ZigBee? A standard for mesh networking
Reliability through meshed connectivity Designed for low power applications Very long battery life Low data rate 20-250Kb/sec (depending on band) Very Secure AES-128 encryption available Self configuring Allows ad hoc networks Ease of installation and configuration

6 ZigBee in the wireless world
Chart Copyright ZigBee Alliance 2004

7 ZigBee/IEEE 802.15.4 Market Feature
Low power consumption Low cost Low offered message throughput Supports large network orders (<= 65k nodes) Low to no QoS guarantees Flexible protocol design suitable for many applications

8 LIGHT COMMERCIAL CONTROL
ZigBee Target Markets Security HVAC AMR Lighting Control Access Control BUILDING AUTOMATION CONSUMER ELECTRONICS TV VCR DVD/CD RF Remotes PC & PERIPHERALS PERSONAL HEALTH CARE ZigBee Wireless Control that Simply Works Patient monitoring Fitness monitoring INDUSTRIAL CONTROL RESIDENTIAL/ LIGHT COMMERCIAL CONTROL Security HVAC Lighting Control Access Control Lawn & Garden Irrigation Asset Mgt Process Control Environmental Energy Mgt Chart Copyright ZigBee Alliance 2004

9 ZigBee/ Architecture

10 ZigBee/802.15.4 Technology: General Characteristics
Data rates of 250 kbps , 20 kbps and 40kpbs. Star or Peer-to-Peer operation. Support for low latency devices. CSMA-CA channel access. Dynamic device addressing. 16 channels in the 2.4GHz ISM band, 10 channels in the 915MHz ISM band and one channel in the European 868MHz band.

11 IEEE Basics is a simple packet data protocol for lightweight wireless networks Channel Access is via Carrier Sense Multiple Access with collision avoidance and optional time slotting

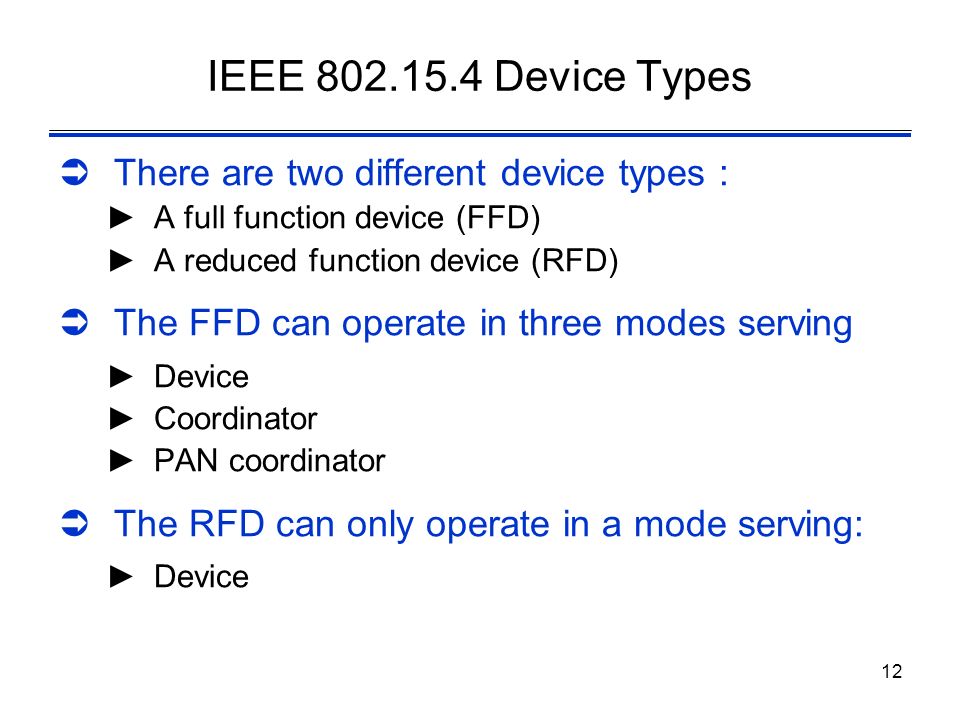

12 IEEE 802.15.4 Device Types There are two different device types :
A full function device (FFD) A reduced function device (RFD) The FFD can operate in three modes serving Device Coordinator PAN coordinator The RFD can only operate in a mode serving:

13 FFD vs RFD Full function device (FFD) Reduced function device (RFD)
Any topology Network coordinator capable Talks to any other device Reduced function device (RFD)

14 Star Topology Network Network coordinator coordinator Master/slave
Full Function Device (FFD) Reduced Function Device (RFD) Communications Flow

15 Peer-Peer Topology Full Function Device (FFD) Communications Flow
Point to point Tree Full Function Device (FFD) Communications Flow

16 Combined Topology Full Function Device (FFD)
Reduced Function Device (RFD) Communications Flow

17 Extending ZigBee Networks
ZED (ZigBee Extension Device) A ZigBee router with a wire interface Joins two or more radio disjoint PANs Provides a “wormhole” within a single PAN A low cost, high reliability link within the radio network “Extends” the ZigBee network layer

18 Device Addressing Each independent PAN will select a unique PAN identifier Addressing modes: star: Network (64 bits) + device identifier (16 bits) peer-to-peer: Source/destination identifier (64 bits)

19 IEEE 802.15.4 PHY Overview PHY functionalities:
Activation and deactivation of the radio transceiver Energy detection within the current channel Link quality indication for received packets Clear channel assessment for CSMA-CA Channel frequency selection Data transmission and reception

20 IEEE 802.15.4 PHY Overview Operating Frequency Bands 868MHz/ 915MHz
2.4 GHz 868.3 MHz Channel 0 Channels 1-10 Channels 11-26 GHz 928 MHz 902 MHz 5 MHz 2 MHz

21 Frequency Bands and Data Rates
The standard specifies two PHYs : 868 MHz/915 MHz direct sequence spread spectrum (DSSS) PHY (11 channels) 1 channel (20Kb/s) in European 868MHz band 10 channels (40Kb/s) in 915 ( )MHz ISM band 2450 MHz direct sequence spread spectrum (DSSS) PHY (16 channels) 16 channels (250Kb/s) in 2.4GHz band

22 General Radio Specifications
Transmit Power Capable of at least –3dBm Receiver Sensitivity -85 dBm (2.4GHz) / -91dBm (868/915MHz) Link quality indication The measurement may be implemented using Signal to noise ratio estimation Receiver energy detection

23 Channel Access Mechanism
Two type channel access mechanism, based on the network configuration: In non-beacon-enabled networks  unslotted CSMA/CA channel access mechanism In beacon-enabled networks  slotted CSMA/CA channel access mechanism The super frame structure will be used.

24 CSMA/CA Algorithm Each device shall maintain three variables for each transmission attempt NB: number of slots the CSMA/CA algorithm is required to backoff while attempting the current transmission. BE: the backoff exponent which is related to how many backoff periods a device shall wait before attempting to assess a channel CW: (a special design)

25 Data Transfer Model Data transferred from device to coordinator
Network Device Coordinator Network Device Beacon Data Data Acknowledgement Acknowledgement (Optional) (Optional) Communication to a coordinator In a beacon-enabled network Communication to a coordinator In a non beacon-enabled network

26 Data Transfer Model Data transferred from coordinator to device
Beacon Coordinator Network Device Data Request Acknowledgement Data Communication from a coordinator In a beacon-enabled network

27 Data Transfer Model Data transferred from coordinator to device
Network Device Data Request Acknowledgement Data Acknowledgement Communication from a coordinator in a non beacon-enabled network

28 Superframe

29 Superframe Structure (cont.)
In CFP, a GTS may consist of multiple slots, all of which are assigned to a single device, for either transmission (t-GTS) or reception (r-GTS). GTS = guaranteed time slots In CAP, the concept of slots is not used. Each “contention slot” is of 20 symbols long.
