1 Chapter 10 Waves and Vibrations Simple Harmonic Motion SHM

2 Observing Oscillating Systems  Questions to observe: Does the rate of oscillation depend on the amplitude of the motion? Does the rate of oscillation depend on the mass being oscillated?

3 Periodic Motion  Periodic motion- a motion that is repeated with some set frequency.  Two common types: pendulum Spring and mass Source: Wikipedia

4 Describing Periodic Motion

5 Describing Simple Harmonic Motion  Frequency is the reciprocal of period, so: Source: Wikipedia

6 Spring & mass oscillator - Review From chapter 6 (Hooke’s Law), we know that the force exerted by the spring is opposite the displacement, and can be expressed as

7  SHM mass and ball SHM mass and ball  SHM – Waves SHM – Waves  SHM - Waves 2 SHM - Waves 2  SHM - Waves 3 (2:50-3:17) SHM - Waves 3 (2:50-3:17) Spring & mass oscillator – Review Wave motion

8 DISPLACEMENT

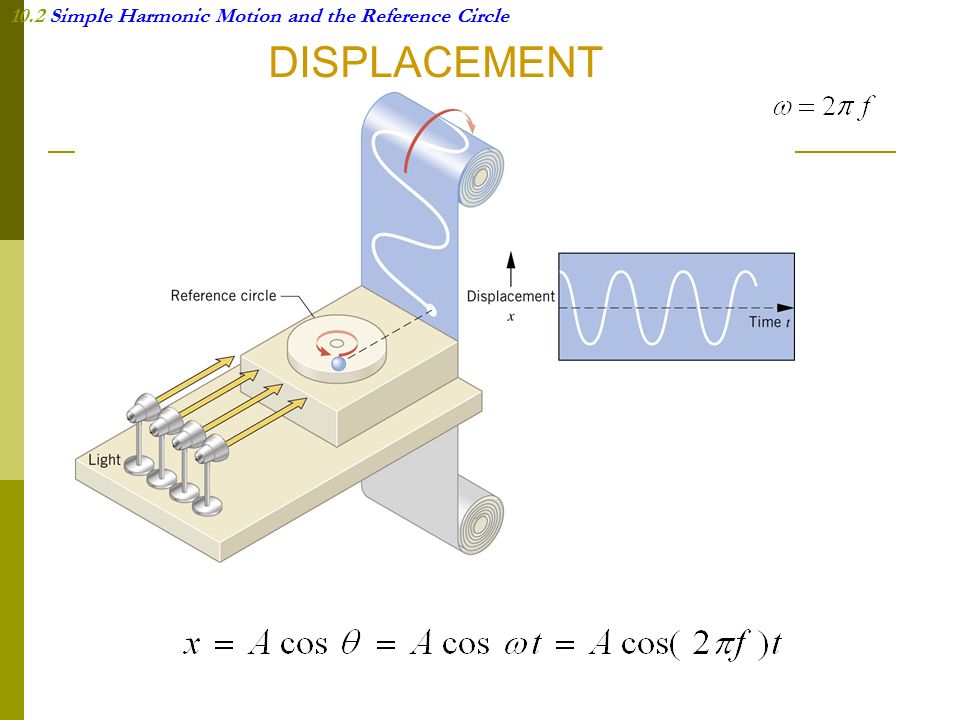

9 10.2 Simple Harmonic Motion and the Reference Circle DISPLACEMENT

10 10.2 Simple Harmonic Motion and the Reference Circle

11 DISPLACEMENT

12 10.2 Simple Harmonic Motion and the Reference Circle period T: the time required to complete one cycle frequency f: the number of cycles per second (measured in Hz) amplitude A: the maximum displacement

13 Velocity (ω in rad/s)

14 Oscillating Spring/mass Systems © 2002 HRW

15  The velocity is at a maximum when the displacement is zero. Maxima and Minima for SHM

16 Maxima and minima for SHM The restoring force, and thus the acceleration, are at a maximum when displacement is maximum.

17

18 10.2 Simple Harmonic Motion and the Reference Circle VELOCITY

19 Example 1 The Maximum Speed of a Loudspeaker Diaphragm 10.2 Simple Harmonic Motion and the Reference Circle (b)The maximum speed occurs midway between the ends of its motion.

20 Acceleration (ω in rad/s)

21 10.2 Simple Harmonic Motion and the Reference Circle ACCELERATION

22 Hooke’s Law  F elastic = -kx where F elastic is the force of the spring. k is the spring constant, Units: N/m x is the displacement from equilibrium. F elastic ©2008 by W.H. Freeman and Company

23 Frequency and Period of a Spring and Mass System ( ꙍ=angular frequency)  The frequency and period for a spring and mass are

24  What determines the period of a torsional pendulum? Simple Harmonic Motion Example: The Torsion Pendulum

25 10.2 Simple Harmonic Motion and the Reference Circle FREQUENCY OF VIBRATION

26 CONCEPTUAL REVIEW (AP – TYPE MC QUESTIONS) Simple Harmonic Motion

27 Graphs of SHM  Displacement:  Velocity:  Acceleration

28 CLASS ASSIGNMENT Section 1 Assignment

29 Waves and Vibrations Measuring Simple Harmonic Motion

30 Oscillating Spring/Mass Systems  Springs can vibrate horizontally (on a frictionless surface) or vertically. HorizontalSpring and Mass Animation source: Wikipedia

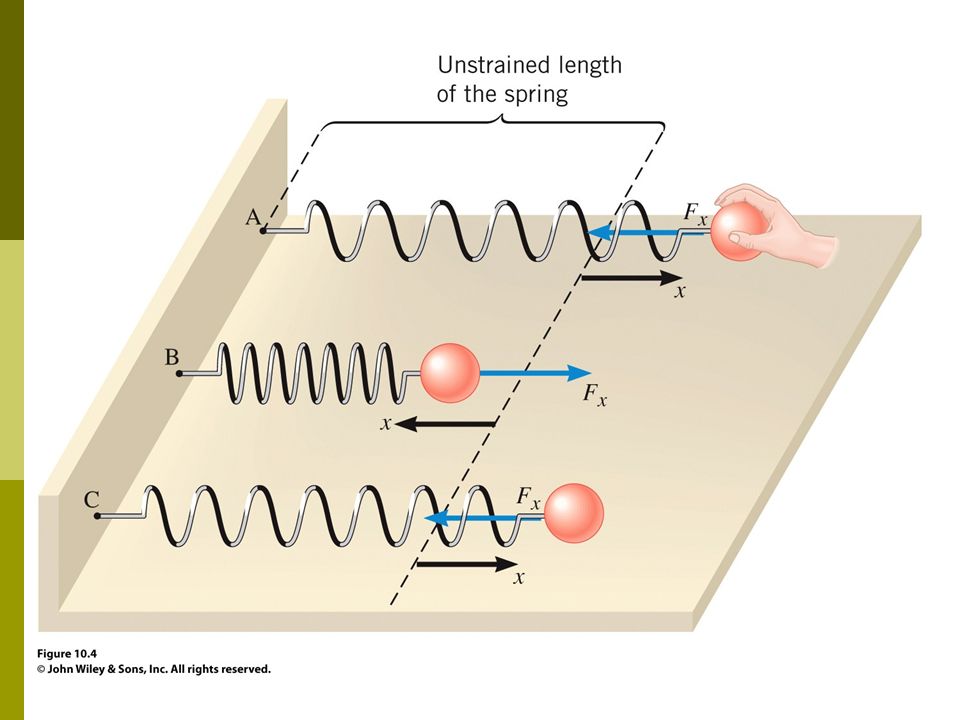

31 Simple Harmonic Motion  Any periodic motion that is the result of a restoring force which is proportional to the displacement can be described as simple harmonic motion. F elastic ©2008 by W.H. Freeman and Company

32 SHM and Hooke’s Law  Since a spring exhibits a restoring force which is proportional to the displacement, a spring/mass system will exhibit simple harmonic motion. Spring Mass System and SHM F elastic ©2008 by W.H. Freeman and Company

33 Period of a Mass-Spring System

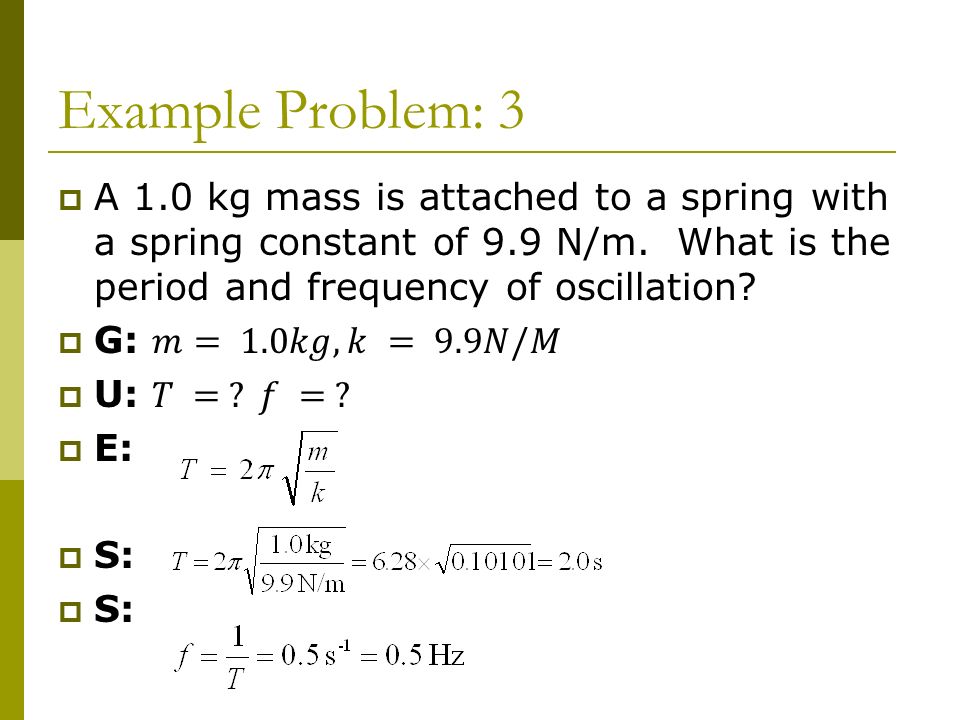

34 Example Problem: 3

35 Pendulum Motion  The forces on the bob are the weight, mg, and the tension, T.  The restoring force is the tangential component of the weight, -mg sin θ.

36 Pendulum Motion  For small angles,  The restoring force is  The outcome is SHM

37 Pendulum Motion  The mass cancels out when Newton’s 2 nd Law is applied:

38 Pendulum Motion  The frequency and period are

39 Period of a Simple Pendulum

40 Example Problem: 4

41 From Holt Physics © Holt, Rinehart

42 Damping  In an ideal system, the mass-spring system would oscillate indefinitely.  Damping occurs when friction slows down motion of the object. Damping causes the system to come to rest after a period of time. If we observe the system over a short period of time, damping is minimal, and we can treat the system like as ideal.

43 Comparison of a Pendulum and an Oscillating Spring Equilibrium position Max. PE Min. KE Min. PE Max. KE

44 10.8 Stress, Strain, and Hooke’s Law

45 CLASS ASSIGNMENT Section 2 Assignment

46 ENERGY AND SHM Section 3

47 10.3 Energy and Simple Harmonic Motion  A stretched or compressed spring has elastic potential energy and therefore it can do work.

48 Energy of a Spring and Mass System  If there is no friction, mechanical energy is conserved. A0 -A

49 x

50 10.3 Energy and Simple Harmonic Motion Conceptual Example 3 Changing the Mass of a Simple Harmonic Oscillator The box rests on a horizontal, frictionless surface. The spring is stretched to x=A and released. When the box is passing through x=0, a second box of the same mass is attached to it at the same speed. Discuss what happens to the (a) maximum speed, (b) amplitude, and (c) angular frequency.

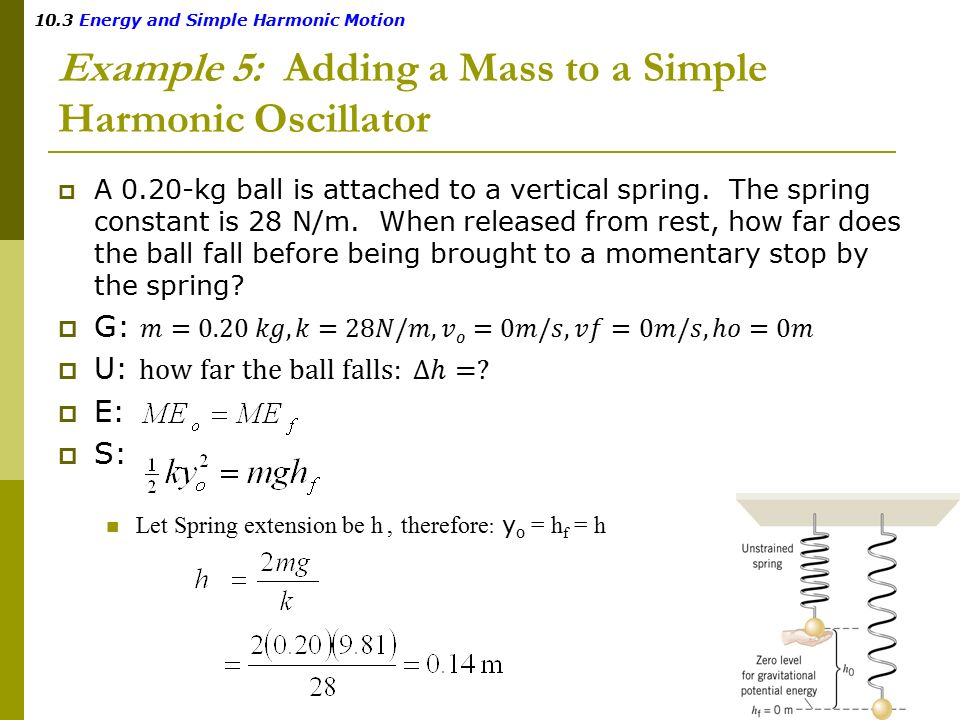

51 Example 5: Adding a Mass to a Simple Harmonic Oscillator 10.3 Energy and Simple Harmonic Motion

52 Example 5: Adding a Mass to a Simple Harmonic Oscillator

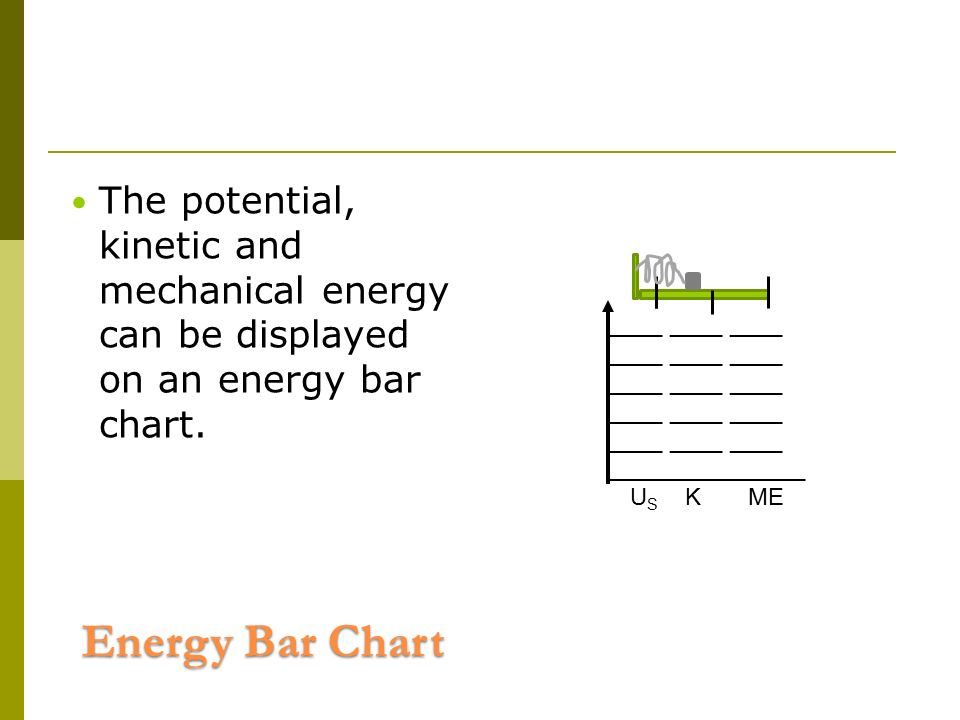

53 ____ ____ ____ ____ ____ ____ _______________ U S K ME Energy Bar Chart The potential, kinetic and mechanical energy can be displayed on an energy bar chart.

54 ____ ____ ____ ____ ____ ____ _______________ U S K ME____ ____ ____ ____ ____ ____ _______________ U S K ME ____ ____ ____ ____ ____ ____ _______________ U S K ME ____ ____ ____ ____ ____ ____ _______________ U S K ME____ ____ ____ ____ ____ ____ _______________ U S K ME____ ____ ____ ____ ____ ____ _______________ U S K ME

55

56 H/W – DUE FIRST THING TOMORROW!! Section 3 Assignment

57 Graphs for SHM (Prepare to discuss your graphs)  Displacement:  Velocity:  Acceleration:

58

59 Uniform Circular motion - Recap

60 Oscillating Spring/mass Systems – what they have in common  SHM produces wave graphs

61 Example 5: Adding a Mass to a Simple Harmonic Oscillator 10.3 Energy and Simple Harmonic Motion

62
