1 www.zfx-dental.com1 Welcome

2 www.zfx-dental.com2 Zfx Manager

3 www.zfx-dental.com3 Zfx Manager:

4 www.zfx-dental.com4 Cloud computing, made professional and personal lives easier, it is one of the best and effective way to make work be done efficiently and effectively on time each time. Recent developments of this technology made us think, what else can we do in the future, what other means of computing can be developed? Zfx Manager: Cloud

5 www.zfx-dental.com5 Personal Data Storage Data Sharing whit partner Process Control Communications whit partner Place Orders Order tracking Pricing control License control Support monitoring Zfx Manager: Characteristics

6 www.zfx-dental.com6 Zfx IntraScan

7 www.zfx-dental.com7 Open system to the common dental CADs Confocal microscope with Moiree effect recognition Smart pixel sensor for fast and precise scanning Automatic real-time stitching of the individual scans Scanning the oral tissue without additional usage of powder Interruption of scans (pause / stop) possible anytime Separate scans are automatically put together Individual scan time: less than 0.1 secondsTypical scan speed (PC-dependent): 14 scans / second Weight: 600g Pixels on sensor (X x Y): 144 x 90; pixel size: 50x86 μm On the object (X x Y): 66 x 120 μm Scan field (on the object - X x Y x Z): 10.4 x 9.6 x 18 mm USB 2.0 PC connection Output format: STLSTL file Zfx IntraScan: Characteristics

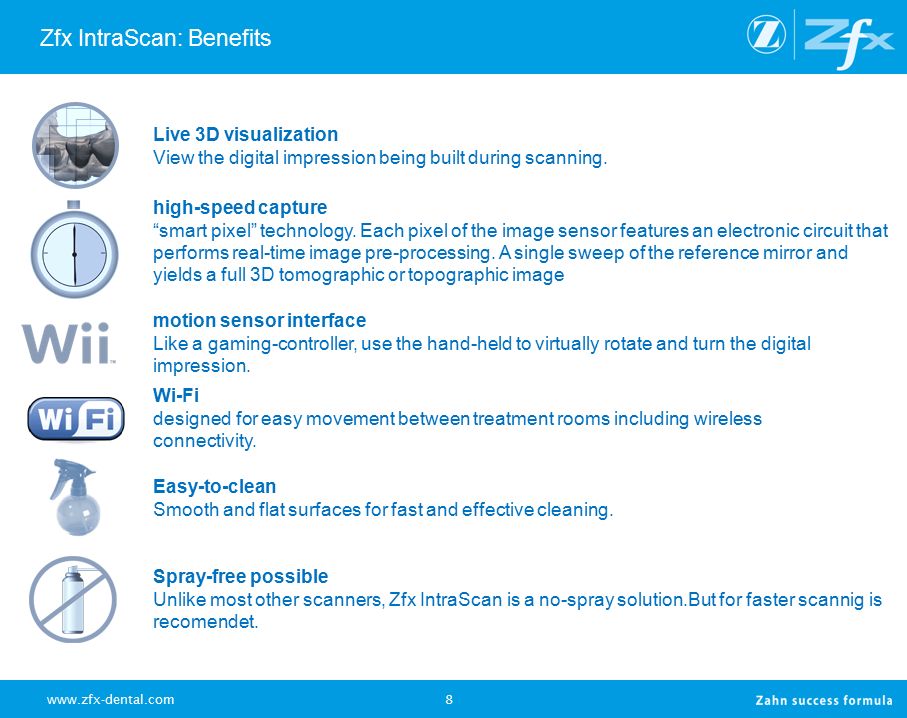

8 www.zfx-dental.com8 Live 3D visualization View the digital impression being built during scanning. motion sensor interface Like a gaming-controller, use the ­hand-held to virtually rotate and turn the digital impression. Wi-Fi designed for easy movement between treatment rooms including wireless connectivity. Easy-to-clean Smooth and flat surfaces for fast and effective cleaning. high-speed capture “smart pixel” technology. Each pixel of the image sensor features an electronic circuit that performs real-time image pre-processing. A single sweep of the reference mirror and yields a full 3D tomographic or topographic image Spray-free possible Unlike most other scanners, Zfx IntraScan is a no-spray solution.But for faster scannig is recomendet. Zfx IntraScan: Benefits

9 www.zfx-dental.com9 Dentists Less adjustment and grinding during seating Improved accuracy and clinical results Faster than traditional impression taking Reduced need for retakes No impression materials and mess Cost savings related to materials and shipping Benefits for digital impression Spray-free possible Ultrafast smart pixel” technology for high speed Scanning Easy to use with complete motion and positioning freedom live 3D visualization Less stressful impression-taking Wide range of dental indications Instant impression validation Online communication with the lab Reduced overall turn-around time Zfx IntraScan: Benefits Patients Quick and comfortable experience Better restoration fits and minimal grinding Improved clinical results Reduced number of appointments due to fewer retakes Reduced over-all chair-time

10 www.zfx-dental.com10 Zfx IntraScan: Dimensions Straumann iTero 3Shape TRIOS 3M C.O.S Zfx IntraScann

11 www.zfx-dental.com11 MachHolder for Main Implant System Zfx IntraScan: Components

12 www.zfx-dental.com12

13 www.zfx-dental.com13

14 www.zfx-dental.com14

15 www.zfx-dental.com15 Components -Evolution

16 www.zfx-dental.com16 Zfx Evolution

17 www.zfx-dental.com17 Number of cameras: 2 Resolution: 1,296 x 964 pixels Camera sensor system: s/w, CCD, USB Light source: 25 Watt LED (green) Number of projected line pairs: 128 Positioning unit: 2 axis (swiveling and rotating) Minimum measurement time: 980ms Scan time single stump: 20 s Scan time per model: 1.2 min Scan accuracy: < 9µm per solid (measurement in accordance with VDI, the European laboratory and field validation test procedures) Dimensions (w x h x l): 320 x 434 x 477 mm Weight: 22 kg Power supply: AC 110 / 220 Volt, 50 - 60 Hz Zfx Evolution: Characteristics

18 www.zfx-dental.com18 Zfx Evolution: Characteristics Implant bridge and bar accuracy 3D scanning in connection with designing implant bridges and bars requires very high accuracy. Zfx Evolution are among the few that can deliver reilable data for these indications. The perfect 3D data capture of both implant positions and implant orientations to ensure a perfect tension-free fit of the produced bridge or bar when seated.

19 www.zfx-dental.com19 Zfx VoA (Verification of Accuracy Art: Fully Auto Calibration Scan accuracy: < 9µm per solid (measurement in accordance with VDI, the European laboratory and field validation test procedures)

20 www.zfx-dental.com20 Zfx VoA (Verification of Accuracy Art: Messpunkte_Evolution_Kalibrierung Fully Auto Calibration Scan accuracy: < 9µm Volium 120X80mm

21 www.zfx-dental.com21 Zfx VoA (Verification of Accuracy Art: Fully Auto Calibration Camara 1 Projector Camara 2 NC Axis

22 www.zfx-dental.com22 Scanning the market's most extensive range of dental indications Antagonist model Pre-preparation Impression scanning Single coping Bridge framework Anatomical copings and framework Full anatomical crown Full anatomical bridge Single wax up/ Wax up bridge Inlay / Onlay / Inlay bridge Veneers Over-press crowns and bridges Telescope Customized abutments Implant bars and bridges Removable partial design Orthodontics module Multi-Die scanning Zfx Evolution : Benefits

23 www.zfx-dental.com23 Zfx Evolution: Characteristics Auto Detection of Articulatory System Kavo Protar Ivoclar Stratos SAM Artex Multisplit

24 www.zfx-dental.com24 Zfx Evolution: Characteristics Auto Detection of Implant System Auto Detection of Diameter

25 www.zfx-dental.com25 Texture scanning with coping and framework design Bring your hand-drawn margin line into 3D. The Zfx Evolution scanner's unique Texture Scanning will capture a hand-drawn margin line that you penciled directly on the physical model. Removable Partial Design Scan your pencil markings on the model. Combine your artistic technician skills with the digital process and jumpstart the design workflow. Texture Scanning on the Zfx Evolution scanners enables technicians to capture their hand-drawn framework position markings made directly on the physical model.

26 www.zfx-dental.com26 Fixator Art: Two-cast fixture - enables users to firmly set 2 models, preparation and antagonist, in occlusion so they do not move during scanning. The Two-cast fixture functions like a clamp making it easy to set while holding the models in occlusion.

27 www.zfx-dental.com27 Zfx Multi Die Multi Die technology The Zfx Evolution Scanner takes labs to whole new productivity levels with high speed scanning, and ultra-efficient batch and multi-case processing capabilities. With its new and unique Texture Scanning feature, Zfx Evolution scanner wield the market's most advanced 3D scanning technologies.

28 www.zfx-dental.com28 Zfx wax-up fixture ZFX wax-up fixture - enables scanning of wax-ups and bits from all angles and sides. The wax-up is suspended in wires that will be invisible in the scan result.

29 www.zfx-dental.com29

30 www.zfx-dental.com30 Zfx Mill inHouse

31 www.zfx-dental.com31 Zfx Mill inHouse

32 www.zfx-dental.com32 Zfx Mill inHouse : Characteristics Zfx Mill inhouse Number of axes: 4; synchronized control Traverse range (x, y, z axis): 100 x 100 x 40 mm Drives: precise ball screw spindle in 3 linear axes with 4mm lead Motor resolution: < 1 µm Ground steel precision guide rails Repetition accuracy: ± 0,005 mm Rotary axis: full circumference of 360 Harmonic drive free from backlash with circular spline diameter 40mm Automatic measuring and automatic axis compensation Automatic Tool chancer 6 Tool storage Integrated fixing device for round universal blanks with a thickness of 10 to 25 mm and a diameter of 98 mm Spindle: high-speed frequency spindle SF 170P Dimensions: (w x h x l): 400 x 385 x 410 mm Weight: 45 kg

33 www.zfx-dental.com33 Zfx Mill inHouse : Characteristics Open system (STL data records) Maximum precision thanks to optimized Zfx CAM strategies 4 axis milling (dry) Handling of zirconium oxide, PMMA or wax Maximum surface quality due to the Jäger quality milling spindle System package including PC, CAM software and Zfx milling strategies

34 www.zfx-dental.com34 Zfx Mill inHouse : Characteristics

35 www.zfx-dental.com35 Zfx Mill inHouse : Characteristics

36 www.zfx-dental.com36 Zfx Mill inHouse : Characteristics

37 www.zfx-dental.com37 Zfx RevitaliZe

38 www.zfx-dental.com38 Zfx RevitaliZe : Characteristics RevitaliZe TI-CoCr Min. 4 Implants Up to 4 units Screw includet fix price 600€

39 www.zfx-dental.com39 Zfx RevitaliZe : Characteristics RevitaliZe ZI Min. 4 Implants Up to 4 units Titanbases end Screw includet fix price 800€
