1. Alexandrina Rogozan Adaptive Fusion of Acoustic and Visual Sources for Automatic Speech Recognition UNIVERSITE du MAINE rogozan@lium.univ-lemans.fr

2. Alexandrina Rogozan2 Bio Sketch Assistant Professor in Computer Science and Electrical Engineering at University of Le Mans, France & Member of Speech Processing Group at LIUM 1999 : Ph.D. in Computer Science from University of Paris XI - Orsay  Heterogeneous Data Fusion for Audio-Visual Speech Recognition 1995-1997 : Participant at the French project AMIBE  Improvement of the Robustness and Confidentiality of Man- Machine Communication by using Audio and Visual Data Universities of Grenoble, Le Mans, Toulouse, Avignon, Paris 6 & INRIA

3. Alexandrina Rogozan3 Research Activity  GOAL: Study the benefit of visual information for ASR  METHOD: Develop different audio-visual ASR systems  APPROACH: Copy the synergy observed in speech perception  EVALUATION: Test the accuracy of recognition process on a speaker-dependent connected-letter task

4. Alexandrina Rogozan4 Overview 1. Challenges in Audio-Visual ASR 2. Audio-Visual Fusion Models 3. Implementation of the Proposed Hybrid-fusion Model 4. Improvements of the Hybrid-fusion Model 5. Results and Comparisons on the AMIBE Database 6. Conclusions et Perspectives

5. Alexandrina Rogozan5 1. Audio-Visual Speech System Overview  Obtaining the synergy of acoustic and visual modalities  Audio-visual fusion results > Uni-modal results Face Tracking Lip Localization Visual-features Extraction Acoustic-features Extraction Joint Treatment Visual Front End Integration Strategies

6. Alexandrina Rogozan6 1. Unanswered questions in AV ASR:  When has the audio-visual fusion take place: before or after the categorization in each modality ?  How to take into account the differences in the temporal evolution of speech events in acoustic and visual modalities ?  How to adapt the relative contribution of acoustic and visual modalities during the recognition process ?

7. Alexandrina Rogozan7 1. Relative contribution of acoustic and visual modalities  Speech features: Place & Manner of articulation & Voicing  Vary with the phonemic content Ex: Which modality to distinguish /m/ from /n/, but /m/ from /p/ ?  Vary with the environmental context Ex: Acoustic features on the place of articulation = the least robust ones Exploit the complementary nature of modalities A V

8. Alexandrina Rogozan8 1. Differences in temporal evolution of phonemes in acoustic and visual modalities  Anticipation & Retention Phenomena: temporal shift up to 250 ms [Abry & Lalouache, 1991]  ‘Natural asynchrony’ Handle with different phonemic frontiers  Vary with the phonemic content Exploit the ‘natural asynchrony’

9. Alexandrina Rogozan9 Overview 1. Challenges in Audio-Visual ASR 2. Audio-Visual Fusion Models - One-level Fusion Architectures - Hybrid Fusion Architecture 3. Implementation of the Proposed Hybrid-Fusion Model 4. Improvements of the Hybrid-Fusion Model 5. Results and Comparisons on the AMIBE Database 6. Conclusions et Perspectives

10. Alexandrina Rogozan10 2. One-level fusion architectures  At the Data (Features) Level  At the Results (Decision) Level Categorization Fusion Recognized Speech-Unit Visual Data Acoustic Data Categorization Fusion Visual Data Acoustic Data Recognized Speech-Unit

11. Alexandrina Rogozan11 2. Fusion before categorization  Concatenation or Direct Identification (DI)  Re-coding in the Dominant (RD) or in a Motor space (RM) [Robert-Ribes, 1995] Pb: Choice of the dominant space nature & Temporal ‘resynchronization’ in the common space Adaptation Acoustic Data Fusion Visual Data Categorization Recognized Speech-Unit Categorization Adaptation Recognized Speech-Unit Visual Data Acoustic Data

12. Alexandrina Rogozan12 2. Fusion after categorization  Separate Identification (SI)  Parallel Structure  Serial Structure Categorization Adaptation Fusion Visual Data Acoustic Data Categorization Recognized Speech-Unit Categorization Adaptation Fusion Visual Data Acoustic Data Categorization Recognized Speech-Unit

13. Alexandrina Rogozan13

14. Alexandrina Rogozan14 2. Level of audio-visual fusion in speech perception Ex: Lip image + Larynx-frequency => Voicing features [Grant, 1985] pulse train ( 4,7 % ) ( 28,9 % ) ( 51,1 % )  Audio-visual fusion before categorisation Ex: Lip image (t) + Speech signal (t+  T) => McGurk illusions [Massaro, 1996] /ga/ V /ba/ A /da/ AV  Audio-visual fusion after categorisation Flexibility and robustness of speech perception Adaptability of the fusion mechanisms

15. Alexandrina Rogozan15 2. Hybrid-fusion model for Audio-Visual ASR Adaptation Categorization Fusion a av v Sequence of phonemes A AV V Continuous, time-varying space of data Discrete, categorical space of results DI SI

16. Alexandrina Rogozan16 Overview 1. Challenges in Audio-Visual ASR 2. Audio-Visual Fusion Models 3. Implementation of the Proposed Hybrid-fusion Model - Structure of the DI-based Fusion - Structure of the SI-based Fusion 4. Improvements of the Hybrid-fusion Model 5. Results and Comparisons on the AMIBE Database 6. Conclusions et Perspectives

17. Alexandrina Rogozan17 3. Implementation of the DI-based fusion Adaptation Categorization Phonemic HMM Fusion a av v Sequence of phonemes A AV V Continuous, time-varying space of data Discrete, categorical space of results DI SI

18. Alexandrina Rogozan18 3. Characteristics of the DI-based fusion  Synchronisation of acoustic and visual speech events on the phonemic HMM states  Visual TOO strength  Perturbs the acoustic at the time of TRANSITION between HMM states and of speech-unit LABELING Necessity to adapt the DI-based fusion

19. Alexandrina Rogozan19 3. Adaptation of the DI-based fusion  To the RELEVANCE of speech features in each modality  To the RELIABILITY of processing in each modality Necessity to estimate a posteriori the reliability of the global process

20. Alexandrina Rogozan20 3. Realization of the adaptation in the DI- based fusion  Exponential weight  :  Global to the recognition hypothesis  Selected a posteriori  According to the SNR & the phonemic content A Phonemic HMM Fusion  i i  j Choice Sequence of phonemes............ Phonemic HMM V

21. Alexandrina Rogozan21 3. Choice of the hybrid-fusion architecture DI + V = > Asynchronous fusion of information Adaptation Categorization Phonemic HMM Fusion a av v Sequence of phonemes A AV V Continuous, time-varying space of data Discrete, categorical space of results DI SI

22. Alexandrina Rogozan22 3. Implementation of SI-based fusion  Serial structure => visual evaluation of DI solutions Phonemic HMM Fusion av v Adaptation Sequence of phonemes AV V Continuous, time- varying space of data Discrete, categorical space of results N-best phonetically  solutions DI SI

23. Alexandrina Rogozan23 3. Characteristics of the SI-based fusion  Multiplication of the modality output probabilities  Possibility of temporal shift up to 100 ms between modality phonemic frontiers  ‘Natural asynchrony’ allowed  Visual TOO strength  Perturbs the acoustic at the time of speech-unit LABELING Necessity to adapt the SI-based fusion

24. Alexandrina Rogozan24 3. Realization of the adaptation in the SI- based fusion  Exponential weight :  Calculated a posteriori according to the relative reliability of acoustic and visual modalities  Dispersion of 4-best solutions  Variation of with the SNR on the test data

25. Alexandrina Rogozan25 Overview 1. Challenges in Audio-Visual ASR 2. Audio-Visual Fusion Models 3. Implementation of the Proposed Hybrid-fusion Model 4. Improvements of the Hybrid-fusion Model - Visual categorization - Parallel Structure for the SI-based Fusion 5. Results and Comparisons on the AMIBE Database 6. Conclusions et Perspectives

26. Alexandrina Rogozan26 4. Type of interaction in the SI-based fusion  Effective integration vs coherence verification  depends on the ratio :  IMPROVEMENT: Reinforcement of the purely-visual component  Discriminative learning  Effective visual categorization

27. Alexandrina Rogozan27 4. Discriminative learning of visual speech by Neural Networks (NN)  Necessity of relevant visual differences between the classes to discriminate  Inconsistent with phonemic classes because of visual doubles i. e. /p/, /b/, /m/ Use of adapted classes : VISEMES  Sources of variability  language, speech rate, among speakers

28. Alexandrina Rogozan28 4. Definition of visemes  Extraction of visual phonemes from the training data  Middle of acoustic-phonemic segments anchors visual segments of 140 ms  Mapping of extracted visual phonemes  Kohonen’s algorithm for Self Organising Map (SOM)  Identification of visemes  3 resolution levels n pbm fv s zt dk j ch rlg Consonant visemes Vowel visemes  ei ua  oy

29. Alexandrina Rogozan29 4. Reinforced purely-visual component in SI parallel structure  Getting ride of temporal dependence between DI and V  Effective visual categorisation  Difficulty to take into account the temporal dimension of speech with NN  Towards hybrid HMM - NN based categorization

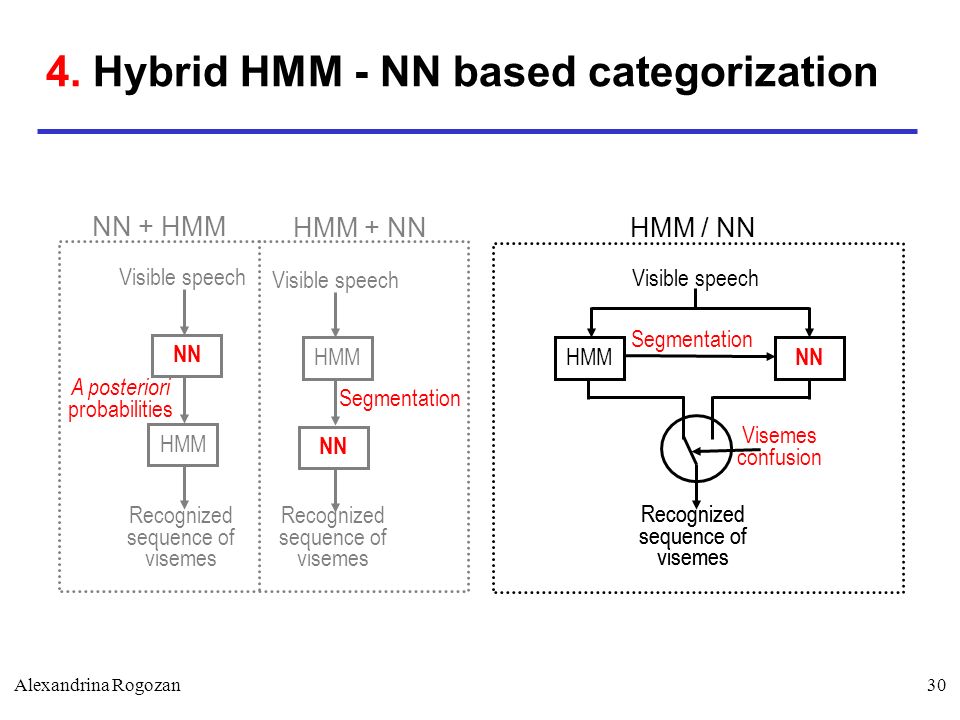

30. Alexandrina Rogozan30 4. Hybrid HMM - NN based categorization NN HMM Visible speech A posteriori probabilities Recognized sequence of visemes HMM NN Visible speech Segmentation Recognized sequence of visemes NN + HMM HMM + NN NN Visible speech Recognized sequence of visemes HMM Segmentation Visemes confusion Recognized sequence of visemes HMM / NN

31. Alexandrina Rogozan31 4. Reinforced purely-visual component in SI parallel structure Non-homogeneity of output scores  Inconsistent with previous multiplicative-based SI fusion Sequence of phonemes Visemic HMM / NN Phonemic HMM Fusion av v Adaptation AV V Continuous, time- varying space of data Discrete, categorical space of results DI SI

32. Alexandrina Rogozan32 4. Implementation of SI-based fusion in a parallel structure Phonemes => Visemes Adaptation Sequence of phonemes av Likelihood rate calculation N solutions N...... 1 Discrete, categorical space of results v Edition-distance based alignment 1

33. Alexandrina Rogozan33 4. ‘ Phonetic Plus Post-categorical ’ proposed by Burnham (1998)  2-level fusion architecture  visual categorization by comparison to visemic prototypes  facultative use of purely-visual component after categorization Categorization Fusion Categorization Adaptation Perceived speech Visual Speech Audible Speech FusionCategorization

34. Alexandrina Rogozan34 Overview 1. Challenges in Audio-Visual ASR 2. Audio-Visual Fusion Models 3. Implementation of the Proposed Hybrid-fusion Model 4. Improvements of the Hybrid-fusion Model 5. Results and Comparisons on the AMIBE Database 6. Conclusions et Perspectives

35. Alexandrina Rogozan35 5. Experiments  Audio-visual data of AMIBE project  connected letters  ‘dining-hall’ noise at SNR of 10 dB, 0 dB and -10 dB  Speech features  Visual: internal lip-shape height, width and area +  ’ +  ’’  Acoustic: 12 MFCC + energy +  ’ +  ’’  Speech modeling  HMM + duration model [Suaudeau & André-Obrecht, 1994]  TDNN, SOM

36. Alexandrina Rogozan36 5. Results The hybrid-fusion model DI+V allows for obtaining the audiovisual synergy.

37. Alexandrina Rogozan37 5. Results -10 dB0 dB10 dBclean AUDIO-2,167,98891,5 VISUAL30,9 DI40,876,490,895,4 SI6,381,689,491,9 DI+V41,977,891,295,8

38. Alexandrina Rogozan38 5. Comparisons  Master-Slave Model proposed at IRIT, Univ. Toulouse [André-Orecht et al, 1997]  Product of Models proposed at LIUPAV, Univ. Avignon [Jourlin, 1998]

39. Alexandrina Rogozan39 5. Master-Slave Model of IRIT (1997) Acoustic HMM parameters = Probabilistic functions of the master-labial HMM model Master labial HMM Slave acoustic HMM Open lips Semi-open lips Close lips

40. Alexandrina Rogozan40 5. Product of Models of LIUAPV (1998) The audio-visual HMM parameters are computed from separate acoustic and visual HMMs. T 22 2 1 3 T 11 T 33 T 12 T 23 D 1 (A) D 2 (A) D 3 (A) T 23 x T 66 1,5 1,4 1,6 2,5 2,4 2,6 3,5 3,4 3,6 T 11 x T 44 T 12 x T 56 T 11 x T 45 D 6 (V) 5 4 6 T 44 T 66 T 45 T 56 D 4 (V) D 5 (V) T 55 Acoustic HMM Visual HMM Audio-visual HMM

41. Alexandrina Rogozan41 6. Conclusion : Contribution  Taking into account the amount of problems in AV ASR Fusion(A)synchronyAdaptationVisemes  Proposition of the hybrid-fusion DI+V model  Audio-visual fusion adaptation a posteriori to variations of both the context and the content  Definition of specific-visual units, visemes, by auto- organisation and grouping

42. Alexandrina Rogozan42 6. Conclusion : Further Work  Use of visemes also during the DI-based fusion  Learning of temporal shifts between modalities for the SI- based fusion  Definition of a dependency function between pre and post categorical weights  Modality-weight estimation at a finer level Learning on consequent training data & Extensive testing

43. Alexandrina Rogozan43 6. Perspectives Towards a global platform for Audio-Visual Speech Communication  Preprocessing  source localization, enhancement of speech signal, scene analysis  Recognition  Synthesis  Coding
