1. Database Recovery Chuan Li

2. Database Recovery What is Transaction Database Recovery Overview Failure Types Recovery Techniques Implementation Recovery Strategies Recovery Techniques with Checkpoints Database Mirroring Summary

3. Transaction 1. Transaction Concept 2. Transaction Definition in SQL 3. Properties of Transactions

4. Transaction Concept The minimum unit of collections of operations that form a single logical step of work is called a transaction. Since a transaction is indivisible, it either executes in its entirety or not at all. Transaction and Program  In a relational database, a transaction can be a SQL statement, a set of SQL statements, or the entire program  An application typically contains multiple transactions Transaction is the very basic unit of the recovery and concurrency.

5. Transaction Definition in SQL Explicitly defined BEGIN TRANSACTION BEGIN TRANSACTION SQL statement1 SQL statement 1 SQL statement 2 SQL statement 2 。。。。。 。。。。。 COMMIT ROLLBACK Implicitly defined When a user does not explicitly define transactions, DBMS provides automatic divisions.

6. End of the Transaction COMMIT Normal end of the transaction Commit all the transaction operations (read+update) All transaction to the database update is permanent ROLLBACK Abnormal end of the transaction  Transaction failure happened in the process of operation, and can't continue  Rollback all the update operations  Rollback to the start state

7. Properties of transactions(ACID) Atomicity Consistency Isolation Durability

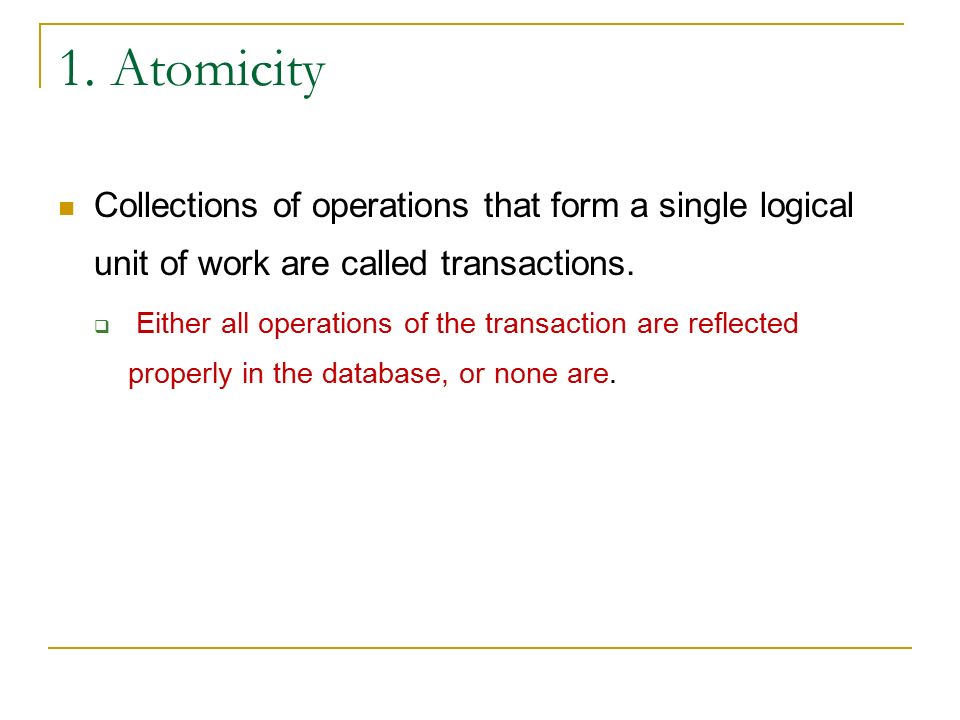

8. 1. Atomicity Collections of operations that form a single logical unit of work are called transactions.  Either all operations of the transaction are reflected properly in the database, or none are.

9. 2. Consistency A transaction must preserve database consistency—if a transaction starts from a consistent database, the database must again be consistent at the end of the transaction. consistency The database contains only the results of successful transactions, ie, the committed transactions unconsistency The database contains the results of failed transactions, ie, that are not committed, nor are they rolled back

10. Consistency & Atomicity Funds-transfer ： account A  account B  Define a transaction containing two operations  Correct state: two operations do both or none Database is in a consistent state if do either all or nothing. If only one operation, the database will be in inconsistent state. B=B+1 A=A-1 BA

11. 3. Isolation Concurrency is a normal state. The execution of one transaction cannot be distracted by other transactions Operation and the use of data within one transaction is isolated from other concurrent transactions Can not interfere with each other between the various transactions executing concurrently

12. The modification of T1 was covered by T2. ReadA=16 A←A-3 WriteA=13 ① ReadA=16 ② ③ A←A-1 WriteA=15 ④ T2T2 T1T1

13. 4. Durability Durability =Permanence  After a transaction completes successfully, the changes it has made to the database persist, even if there are system failures.  The following actions or failures should not have any influence on the result.

14. Properties of transactions How to ensure the ACID properties is the task of the transaction management module ACID damaging factors  When running multiple transactions in parallel, the operations of different transactions may go across each other  A transaction is terminated by force

15. Database Recovery What is Transaction Database Recovery Overview Failure Types Recovery Techniques Implementation Recovery Strategies Recovery Techniques with Checkpoints Database Mirroring Summary

16. Recovery System Overview Failure is inevitable  Disk failure  System error  Operator error  Malicious damage Consequences  Transaction abort unexpectedly  Compromise the database consistency

17. Recovery System Overview(Cont.) Countermeasures on Failure  DBMS Recovery sub-system  Ensure that the database can recover from the erroneous status to some logically consistent state  Ensure ACID properties Recovery system is an important indicator which measures the quality of the DBMS.

18. Database Recovery What is Transaction Database Recovery Overview Failure Types Recovery Techniques Implementation Recovery Strategies Recovery Techniques with Checkpoints Database Mirroring Summary

19. Transaction failure  A transaction aborted during operation due to various reasons and did not run to the normal termination point Common cause  bad input  overflow  resource limit exceeded  software error  deadlock  。。。。

20. Transaction failure recovery When a transaction failure occurs, it may have already written some modification back to disk Transaction failure recovery : UNDO ROLLBACK Clear all modifications of the transaction to the database

21. System crash  Normal operations of the whole system suddenly are destroyed  All the transaction processing halt  Loss of the transactional data  The content of nonvolatile storage remains intact, and is not corrupted

22. Common cause a bug in the database software or the operating system Operating errors Specific types of hardware error （ CPU failure ） Power failure

23. Recovering from system crash Restore all the modification by the incomplete transaction  When system reboots, the recovery program will do UNDO to all incomplete transactions  And as the result in the buffer was submitted by completed transaction  When system reboots, the recovery process needs to REDO all committed transactions

24. Failure Classification Transaction failure System crash Disk failure

25. Disk failure makes the data stored in the peripheral storage part missing or lost The probability of disk failure is smaller than the previous two kinds of failures, but much more destructive

26. Common cause Disk failure  Disk damage  Head crash  Some potential errors in operating system  Transient and strong magnetic interference

27. Recovering from disk failure Restore database from most recent backup Consult the log and redo all transactions that committed after the backup

28. Theory of recovery Theory of recovery ： Redundancy  Using redundant data to rebuild the corrupted or incorrect data Recovery implementation technique ： complexity  More than 10% of the code is the recovery system code in a large database products

29. Recovery System Transaction Concept Database Recovery Overview Failure Classification Recovery Technique Implementation Recovery Strategies Recovery Technology Using Checkpoints Database Mirroring Summary

30. Recovery techniques The key issues involved in the recovery mechanism 1. Redundancy Backup Logging 2. How to use these Redundancy to implement the database recovery

31. Backup Backup Concepts Backup Destinations Backup Method

32. Backup concepts Backup refers to the process that DBA periodically copies all the database content into a new disk or tape These data are called backup data

33. Backup failure point backup running transaction ↓ Running ─┼───────┼───────────── Ta Tb Tf load backup redo transaction Recovery ─┼───────┴ －－－－－－－－－－－ － →

34. Backup method 1 ． Static backup & Dynamic backup 2 ． Massive backup & Incremental backup

35. 1 ． Static backup No transaction may be active during the backup procedure, database is in a consistent state during backuping, and prohibiting any access or modify events during the backuping Advantages ： Simple Disadvantages ： reducing the availability of the database  Backup can only be performed after user transaction completed, and  User transaction can only start after backup ends

36. Recovery using a static backup failure point static backup running transaction ↓ running ─┼───────┼───────────── Ta Tb Tf load backup recovery ─┼─────── ┥

37. Dynamic backup Backup goes concurrently with user transactions Backup performed on database even though it is actively accessible to users and may currently be in a state of being updated Update is allowed during the backup period Advantage  No need to wait for the end of the running transaction  Will not affect the new transactions Disadvantage  Can not guarantee the accuracy and validity of the backup

38. Dynamic backup Recovery  Build the log file about transactions during the backup period  Only backup copy and log file together can restore the correct database

39. Recovery using a dynamic backup running transaction failure point dynamic backup running transaction ↓ Running ─┼───────┼───────────── Ta Tb Tf load backup recovery with logs recovery ━━━━━━╋ ━ ━ ━ ┥

40. Recovery using a dynamic backup Ta Tb Tf dynamic recovery running transaction failure point running ─┼───────┼───────────── logging new log file ─────────┼─────────────  backup logs load backup ， recovery with log backup Recovery to ━━━━━━┥ Consistent state

41. Massive backup & Incremental backup Massive backup: backup the entire database Incremental backup :only backup the data which was updated after the last backup Massive backup & Incremental backup  Massive backup is more convenient than incremental backup  But if database is large and transactions process frequently, incremental backup is more efficient

42. 3 ． Summary Backup methods Backup state Dynamic backup Static backup Backup method Massive backup Dynamic massive backup Static massive backup Incremental backup Dynamic incremental backup Static incremental backup

43. Backup Strategy backup is very time and resource consuming, so can not be done very frequently DBA should determine the backup period and method according to the usages of database For example ：  Dynamic incremental backup every night  Dynamic massive backup every week  Static massive backup every month

44. Recovery techniques Backup Logging

45. 1. Content 2. Usage 3. Principle

46. Content 1. Log file concept  The log is a sequence of log records, and maintains the history of all the update activities on the database. 2. Log file format log file based on records log file based on data blocks

47. Content （ Cont. ） 3. The contents of the log file  BEGIN TRANSACTION marks of different transactions  COMMIT or ROLLBACK marks of different transactions  All the updates for different transactions  Internal update operations related to transactions

48. 4. The log file based on record Contents of each log record  Transaction Indicator  Operation Type （ Insertion, deletion or modification ）  Operand （ Record Id, Block No. ）  The old value of the data （ for insert operation ， it is null ）  The new value of the data （ for delete operation, it is null ）

49. 5. The log file based on data block Contents of each log record  Transaction indicator  Operand （ Record Id, Block No. ）  The old value of the data block （ for insert operation ， it is null ）  The new value of the data block （ for delete operation, it is null ）

50. Usage 1 ． Usage  Recover from transaction failures  Recover from system failures  Assist backup copies in recovering from disk failures

51. Usage （ Cont. ） 2 ． Assist backup copies in recovering from disk failures  Static backup data is consistent data  After the completion of the static backup, still backup log file, when a disk failure occurred, we can load the backup of the data and use the copy of log to redo the completed transaction  We can restore the database to the correct state before failure at a certain time, but we do not need to re-run the program that the transaction has been completed

52. Usage （ Cont. ） failure point static backup running transaction ↓ running ─┼──────┼──────────┼── Ta Tb Tf logging └─────────── ┴ ── load backup recovery with log keep running Recover from ──────┴ －－－－－ ─ －－－－－－－ ┴────── disk failure logging └──────

53. Usage （ Cont. ） 3 ． Recover from disk failure ： LOG FILE + dynamic backup  Dynamic database backup ： backup log file of the same point  Only backup copy and log file together can restored the correct database  We can restore the database to the correct state before failure at a certain time, but we do not need to re-run the program that the transaction has been completed

54. Principle To ensure that the database is recoverable, we must follow two principles  The logging order is accordance with the time order of concurrent transactions  Write the log file firstly, then write the database Writing log ： writing the modification record to the log file Writing database ： writing the modification to the database

55. Principle （ Cont. ） Why we write log file first  Writing database and log files are different operations  Failure may occur between the two operations  If database has been modified, but there was no record in log file, we will never recovery that operation  If write logs, but did not change the database, the log file recovery is only executed once more unnecessary UNDO operations, that will not affect the validity of the database

56. Recovery System Transaction Concept Database Recovery Overview Failure Classification Recovery Technique Implementation Recovery Strategies Recovery Technology Using Checkpoints Database Mirroring Summary

57. Recovery Strategies Recover from transaction failure Recover from system crash Recover from disk failure

58. Recover from transaction failure Transaction failure ： The transaction is aborted before running to the normal termination point Recovery Method  Recovery subsystem uses log to undo the modification of database performed by the transaction Transaction failure recovery is done automatically by the system without user intervention

59. Steps of transaction failure recovery 1. Scan the log backward (that is, scan the log from the end to the beginning), and find the update action performed by the transaction. 2. Perform the inverse operation on the update action performed by the transaction, that is write the “value before updating” in the log into the database.  Insert operation, the “value before updating” is null, it is equivalent to the delete operation.  Delete operation, the “value after updating” is null, it is equivalent to the insert operation.  For modification operation, replace the “value before updating” with the “value after updating”.

60. Steps of transaction failure recovery 3. Continue to scan the log backward, find other update operations performed by the transaction and do the same 4. This processing continues, until the start tag ie, BEGIN TRANSACTION, is read, when transaction failure recovery is complete

61. Recovering from system crash Reasons of database state inconsistent  Some incomplete transaction have already modified the database  Some database modification made by committed transaction still in the buffer did not have time to write database Recovery method  1. Undo all incomplete transactions  2. Redo updates of all committed transactions Recovering from system crash automatically complete when the system restart, without user intervention.

62. Steps of system crash recovery 1.Scan the log forwards  Redo-list: transactions has already committed before the failure point T1, T3, T8…..  Undo-list : in the failure point,incomplete transaction T2, T4, T5, T6, T7, T9 …...

63. Steps of system crash recovery 2. Perform undo operation on transactions in undo-list Scan log backwards, performing undo on log records of transactions found in undo-list T2, T4, T5, T6, T7, T9 …… 3. Perform redo operation on transactions in redo-list Scan log forwards, performing redo on log records of transactions found in redo-list T1, T3, T8…..

64. Recover from disk failure 1. Reloading the data, bring the database to a consistent state 2. Redo completed transaction

65. Recover from disk failure Recovering steps 1. restore database from most recent backup, restore the database to the last consistent state  Loading a static backup into database, the database will be in a consistent state  Loading a dynamic backup and log file in the same time, using redo and undo operation to make database in a consistent sate

66. Recover the database to a consistent state with static backup failure point static backup running transaction ↓ Running ─┼───────┼───────────── Ta Tb Tf Logging └───────────── load backup recovery ━━━━━━┥

67. Recover the database to a consistent state with dynamic backup Ta Tb Tf dynamic backup running transaction failure point running ─┼───────┼───────────── logging new log file ─────────┼─────────────  backup logs load backup ， recovery with log backup Recovery to ━━━━━━┥ Consistent state

68. Recover from disk failure （ Cont. ） 2. Restore database from most recent backup. Consult the log and redo all transactions that committed after the backup  First we can scan the log file to find out the transaction id in the failure point, set the id in the redo queue.  Scan log forward from the start, perform the transaction in the redo queue.

69. Recover from disk failure （ Cont. ） Recover from disk failure requires DBA intervention Work of DBA  Reloading the last backup copies and log  Perform system restore command The recovery of the specific operation is performed by the DBMS

70. Recovery System Transaction Concept Database Recovery Overview Failure Classification Recovery Technique Implementation Recovery Strategies Recovery Technique Using Checkpoints Database Mirroring Summary

71. Recovery technique using checkpoint 1. The issues raised 2. Checkpoint 3. Recovery Strategies using checkpoint

72. The issues raised Two issues  It’s time-consuming when scan the whole log file  REDO must re-run a transaction ， waste a lot of time

73. Solutions Recovery technology using checkpoint  Add checkpoint in the log file  Add redo-log file  Recovery subsystem dynamically maintain the log file during log’s operation

75. Check Point Technical Contents recorded by checkpoint  1.The current running transactions list when creating checkpoint  2.The address of the nearest log of these transactions Redo log’s content The address of every checkpoint in log

77. Log maintained when create a checkpoint 1. Flush all logs in the log buffer area to disk 2. Write a checkpoint log in the log file 3. Flush the data in data buffer to database in the disk 。 4. Write the address of the checkpoint in the log file to redo log file.

78. Create checkpoint Periodically  According to a predetermined time intervals aperiodicity  According to certain rules, such as when log files have filled half, then build a checkpoint

79. Recovery strategy using checkpoints When a transaction T submitted before a checkpoint Changes made by T have already been write to database Recovery strategy utilizing checkpoints There is no need to execute redo when recovery

80. Recovery strategy using checkpoints （ CONT. ） T c (check point) T f (system crash) REDO UNDO REDO T2T2 T3T3 T4T4 T5T5 Do not REDO T1T1

81. Recovery procedure utilizing checkpoint 1. Find the address of the latest checkpoint’s address in the log file from the redo file 2. Using this address find the last checkpoint’s record in the log file

82. Recovery strategy utilizing checkpoints （ CONT. ） 2. According to the checkpoint log build a transactions list (ACTIVE-LIST), ACTIVE-List contains all the transactions which was running when create the checkpoint  Build two transactions’ queen UNDO-LIST REDO-LIST  Put all transactions in ACTIVE-LIST to UNDO- List. ， REDO-List remains empty 。

83. Recovery strategy utilizing checkpoints （ CONT. ） 3.Forward scan the log file from the checkpoint address until the end of the log file.  If there is a new start transaction T i, add T i to UNDO- LIST  If there is a log indicate T i has committed, then remove T i from UNDO-List, and add T i to REDO-LIST 4.For each transaction in UNDO-LIST execute UNDO ， for each transaction in REDO-LIST execute REDO.

84. Recovery System Transaction Concept Database Recovery Overview Failure Classification Recovery Technique Implementation Recovery Strategies Recovery Technology Using Checkpoints Database Mirroring Summary

85. Database Mirroring Media error is the most serious error, affect the availability of the database  recover from media error is time-consuming  In order to avoid media error, DBA must periodically backup the database to other media Method to improve the availability of the Database  Database Mirroring

86. Database Mirroring （ CONT. ） Database Mirroring  DBMS automatically copy the whole database or some critical data to other disk.  DBMS automatically guarantee the consistency between master and mirror. (Graph 7.5a)

87. Application of Database Mirroring When Media error happens  DBMS automatically use mirror database to recover from media error ， there is no need to shutdown the system or reload Database copy(graph 7.5b) Under normal circumstances  Can be used to support concurrent operation(graph7.5a )  When one user add an exclusive lock on the database, other user can read from the mirror

88. Database Mirroring （ CONT. ）

89. Recovery System Transaction Concept Database Recovery Overview Failure Classification Recovery Technique Implementation Recovery Strategies Recovery Technology Using Checkpoints Database Mirroring Summary

90. If database only contains the results of success transactions, then the database is in a consistent state. Consistency is the basic requirement of a database. Transaction is a logical unit of database  DBMS guarantee all transactions’ atomicity, consistency, isolation, and continuous property.

91. Summary(CONT.) DBMS must guarantee the database recover from transaction failures, system failures and media failure. Most frequently used Recovery technology is ： database backup and log file The basic principles of recovery ： Utilize the Redundant data from backend copy, log files and database mirroring to rebuild database

92. Summary(CONT.) Common Recovery Technology  recover from transaction error UNDO  recover from system error UNDO + REDO  recover from media error Reinstall the backup and restore to a consistent state + REDO

93. Summary(CONT.) Improve the efficiency of recovery technology  Checkpoint Can improve the efficiency when recover from system error Can improve the efficiency when recover from media error using dynamic backup  Database mirroring Database mirror can improve the efficiency when recover from media error
