2. Week 10 Central Nervous System The Brain Sheep HumanHuman BrainBrain Brain

3. Objective 1: Anatomy of the Human Brain & Cranial Nerves

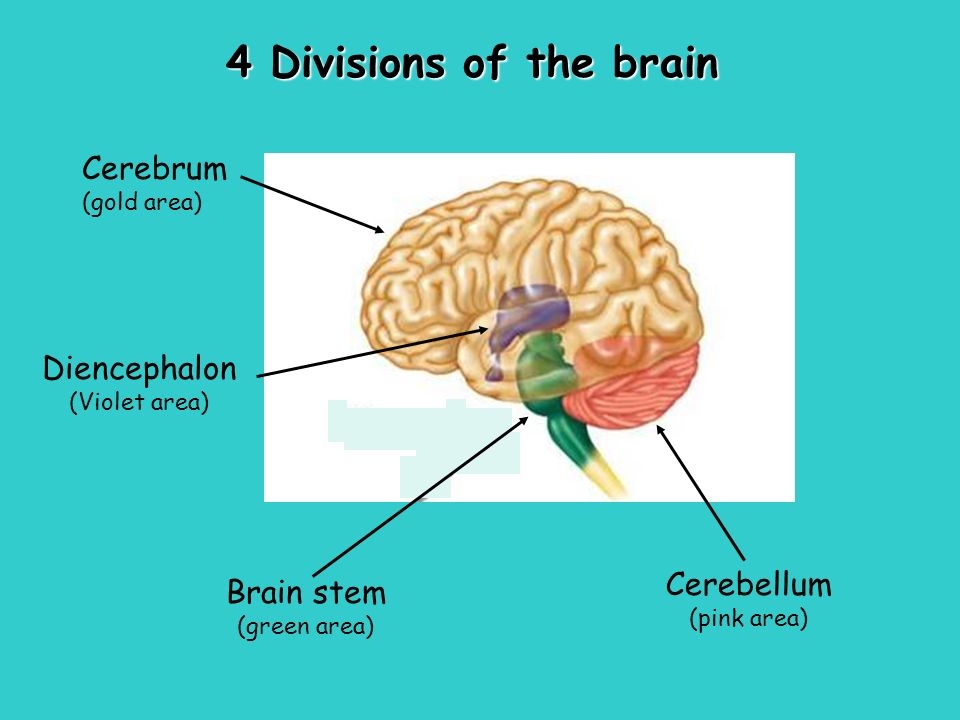

4. 4 Divisions of the brain Cerebrum (gold area) Diencephalon (Violet area) Brain stem (green area) Cerebellum (pink area)

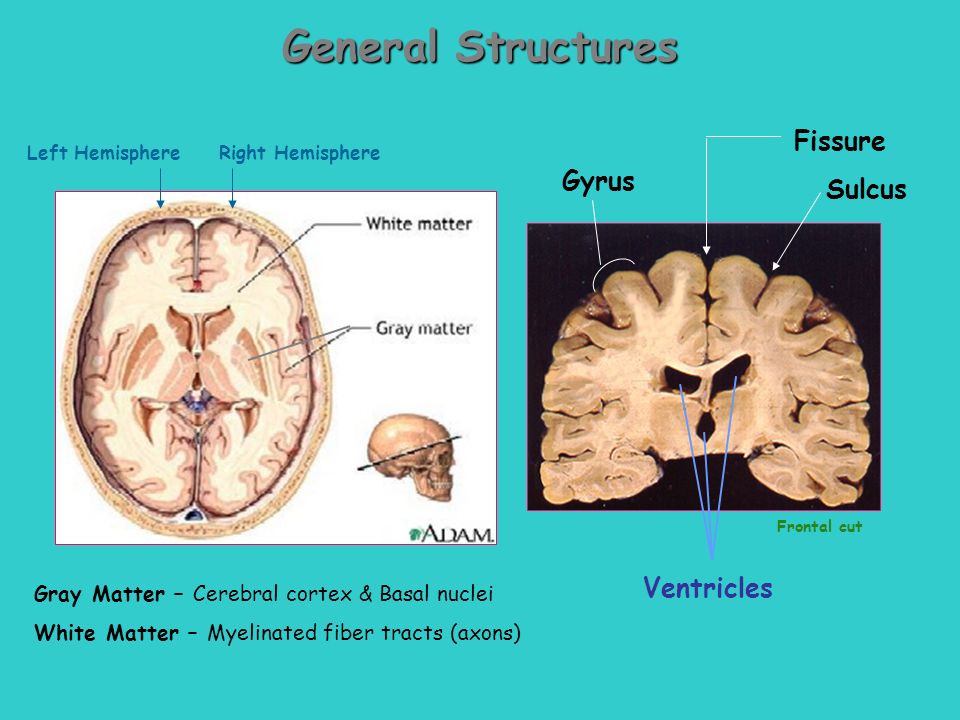

5. Fissure Sulcus Gyrus Ventricles General Structures Left HemisphereRight Hemisphere Gray Matter – Cerebral cortex & Basal nuclei White Matter – Myelinated fiber tracts (axons) Frontal cut

6. Recap: Pyramidal Cells of Cerebral Cortex Cerebral Cortex – Gray Matter Histology - Recap

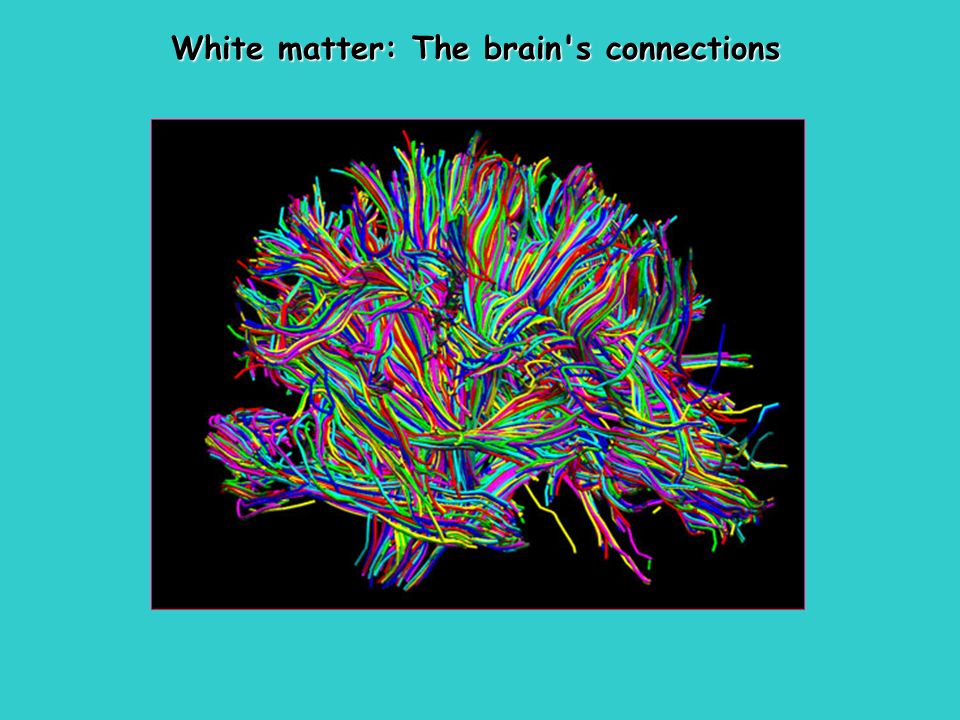

7. White matter: The brain's connections

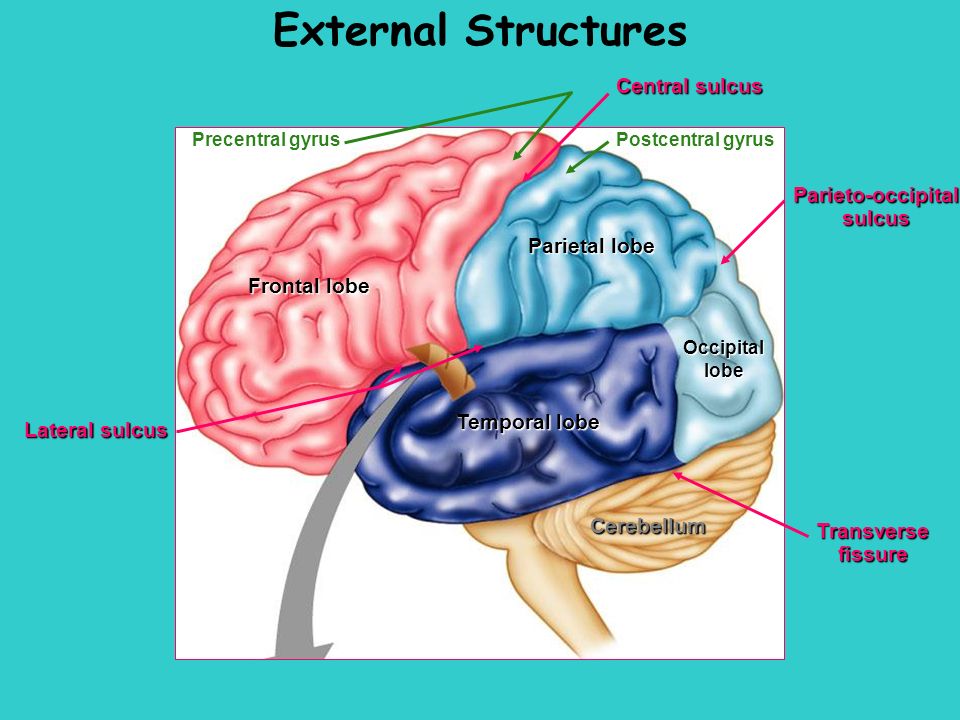

8. External Structures Frontal lobe Parietal lobe Temporal lobe Occipital lobe Central sulcus Lateral sulcus Parieto-occipital sulcus Transversefissure Postcentral gyrusPrecentral gyrus Cerebellum

9. Frontal lobe Parietal lobe Longitudinal fissure Left Hemisphere Right Hemisphere Central sulcus Precentral gyrus Postcentral gyrus

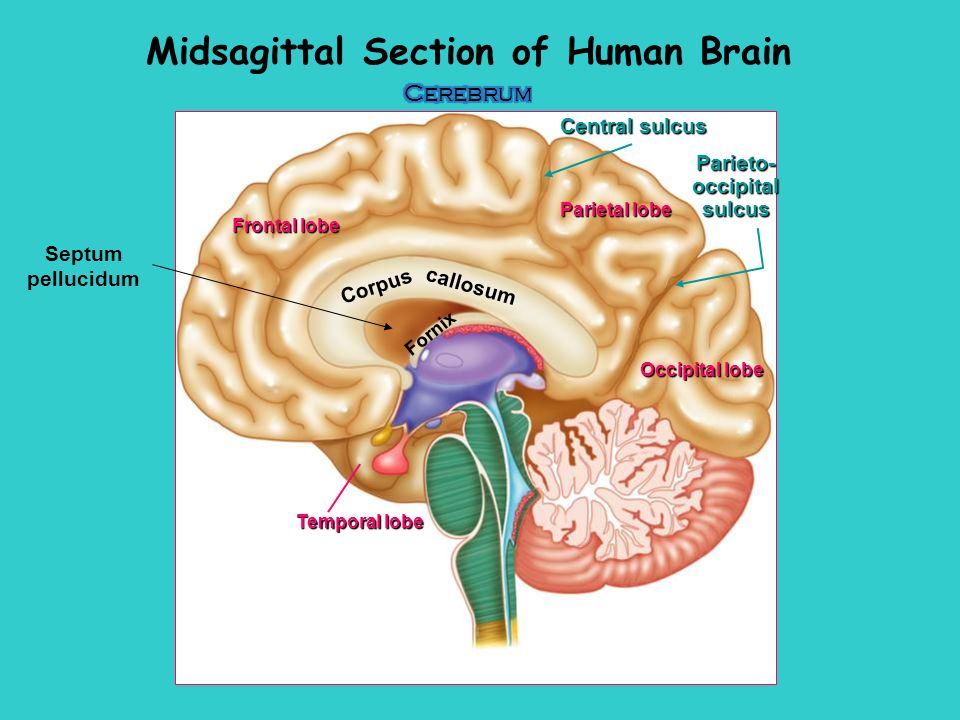

10. Septum pellucidum Fornix Midsagittal Section of Human Brain Corpus callosum Frontal lobe Parietal lobe Occipital lobe Temporal lobe Central sulcus Parieto- occipital sulcus

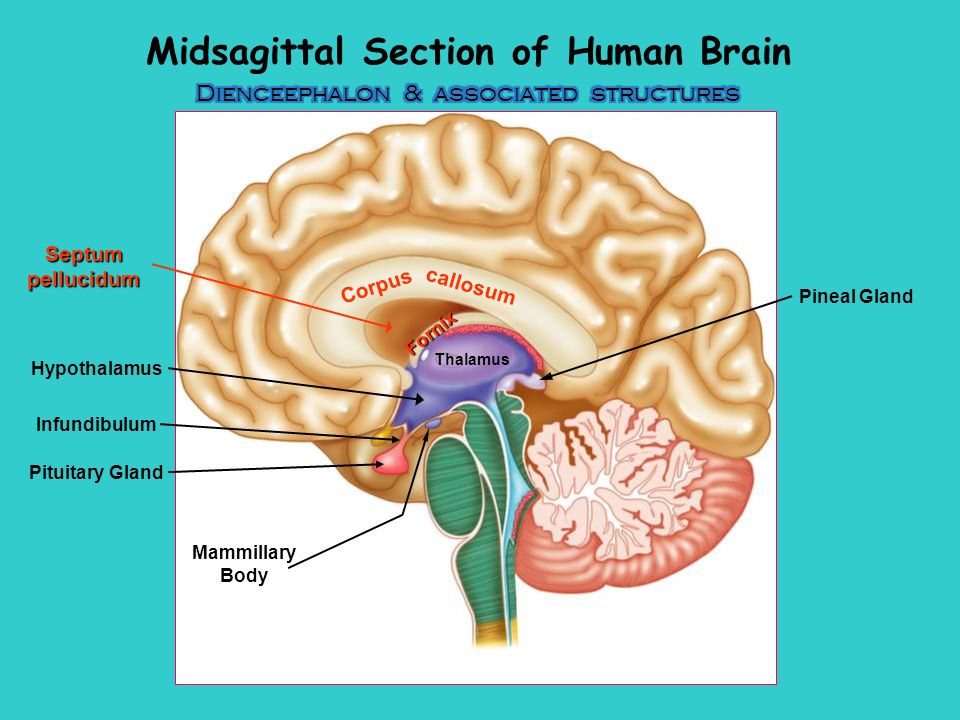

11. Septum pellucidum Fornix Midsagittal Section of Human Brain Corpus callosum Thalamus Hypothalamus Pineal Gland Infundibulum Pituitary Gland Mammillary Body

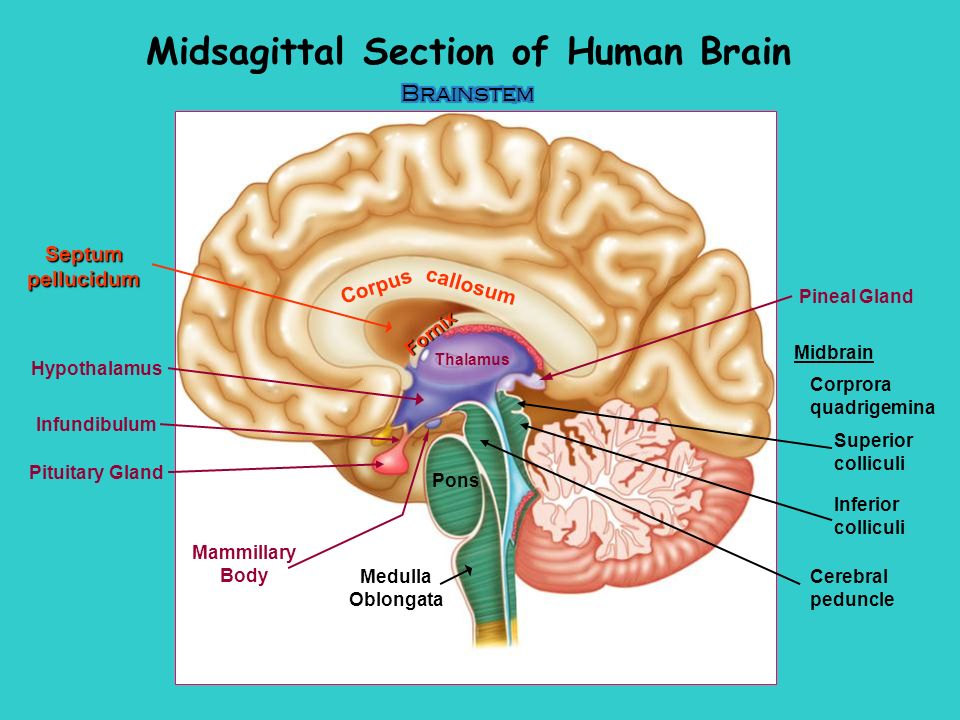

12. Septum pellucidum Fornix Midsagittal Section of Human Brain Corpus callosum Thalamus Hypothalamus Pineal Gland Infundibulum Pituitary Gland Mammillary Body Pons Medulla Oblongata Midbrain Corprora quadrigemina Superior colliculi Cerebral peduncle Inferior colliculi

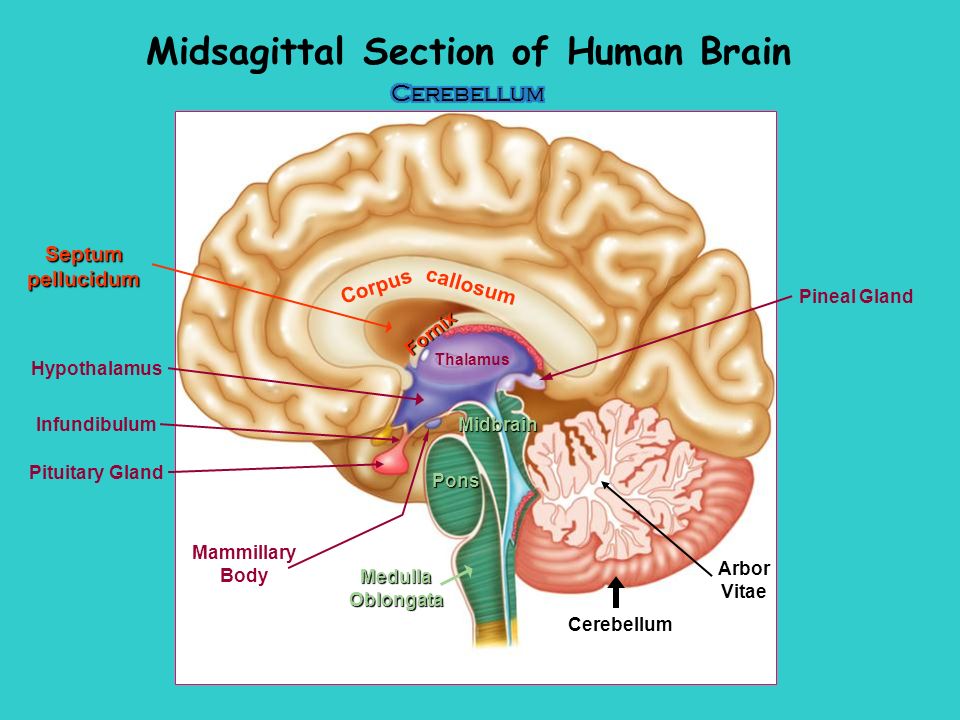

13. Septum pellucidum Fornix Midsagittal Section of Human Brain Corpus callosum Thalamus Hypothalamus Pineal Gland Infundibulum Pituitary Gland Mammillary Body Pons Medulla Oblongata Midbrain Arbor Vitae Cerebellum

14. Real Brain Occipital lobe lobe Frontal Temporal lobe Parietal lobe Gyrus Lateral sulcus Central sulcus Transverse Fissure Parieto-occipital Sulcus

15. Longitudinal fissure Central sulcus Postcentral gyrus Precentral gyrus Frontal lobe lobe Occipitallobe Real Brain Parietal

16. Midsagittal Section of Human Brain Corpus Callosum Fornix Septum pellucidum Parietal lobe Occipital lobe Frontal lobe Temporal lobe Brainstem Cerebellum Diencephalon

17. Corpus callosum Fornix Lateral Ventricles Septum pellucidum Longitudinal fissure Diencephalon Frontal Section of Human Brain

18. Structures of & related to the Diencephalon Midsagittal Section Corpus callosum Fornix Intermediatemass Hypothalamus Mammillary body Pineal body/ gland Thalamus Epithalamus Pituitary Gland

19. Pons Medulla oblongata Midbrain: Corpora quadrigemina Superior colliculi Superior colliculi Inferior colliculi Inferior colliculi Cerebral peduncle Spinal cord Brainstem Corpus callosum Fornix Diencephalon

20. Corpora quadrigemina Superior colliculus Inferior colliculus Brainstem Posterior Pineal body/ gland

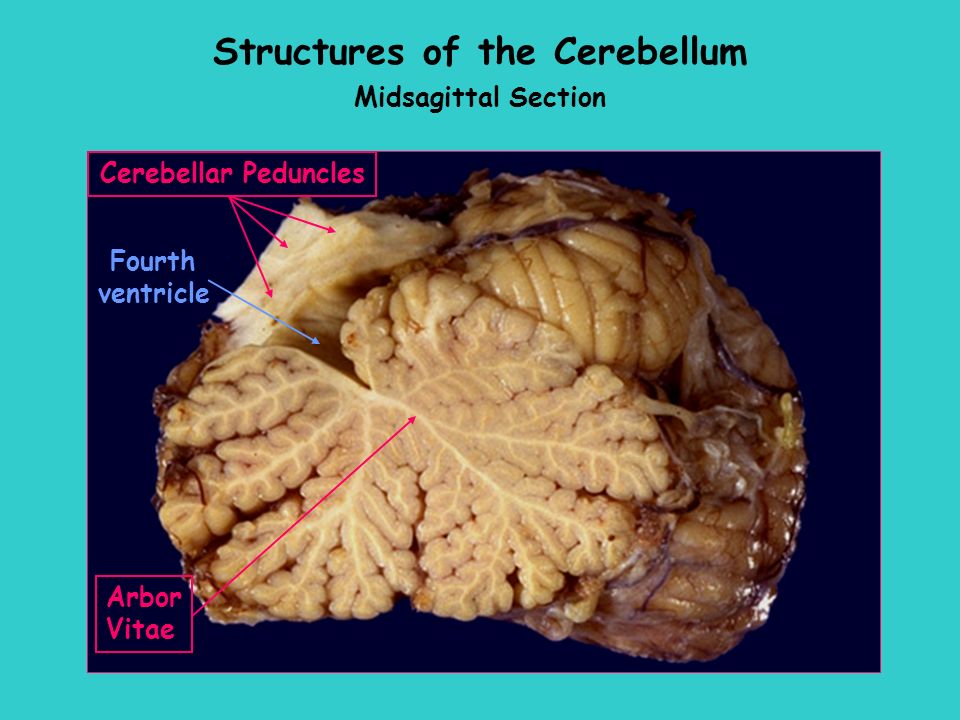

21. Arbor Vitae Cerebellar Peduncles Fourth ventricle Structures of the Cerebellum Midsagittal Section

22. Cerebellum Histology - Recap Purkinje Cells

23. Structures of the Brain Inferior View Midbrain (Cerebral peduncle) Pons Medulla oblongata Spinal cord Optic chiasma Infundibulum Mammilary Bodies Frontallobe Temporallobe Cerebellum

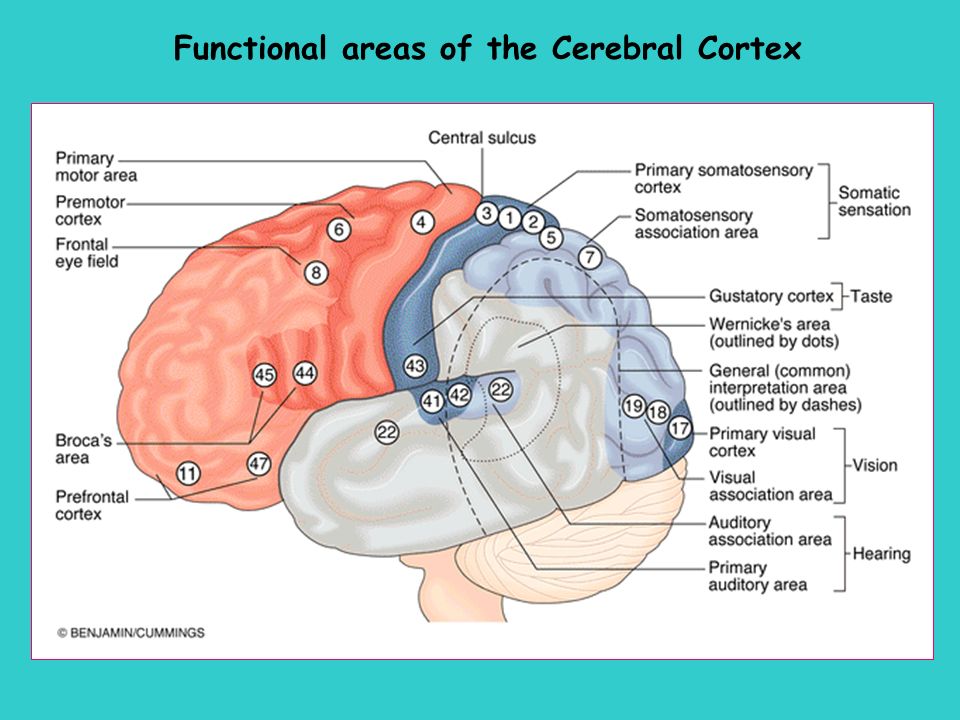

24. Functional areas of the Cerebral Cortex

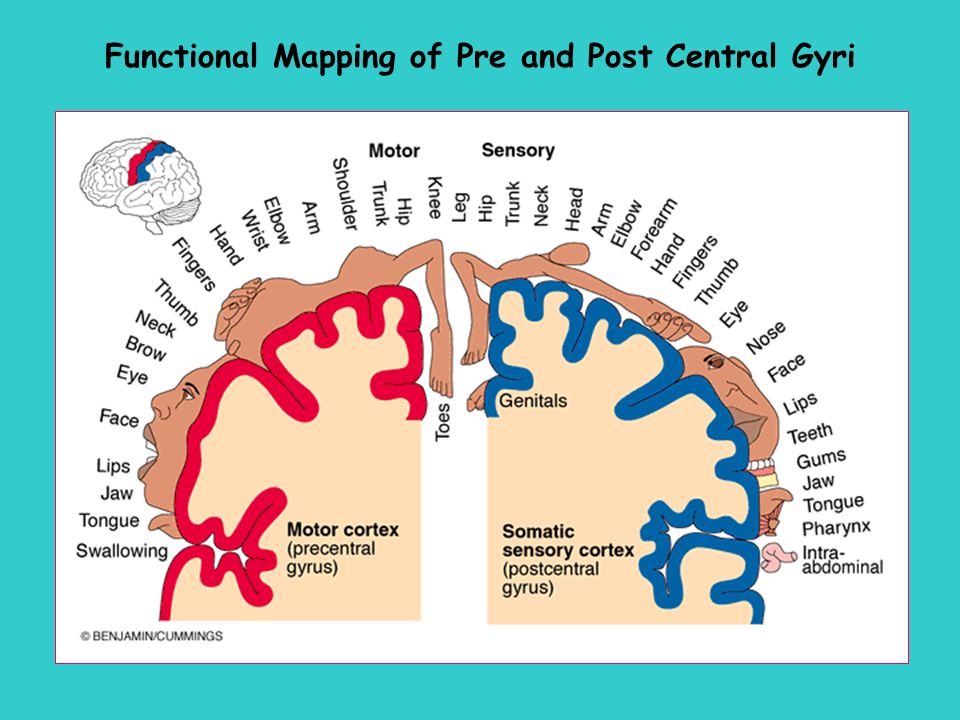

25. Functional Mapping of Pre and Post Central Gyri

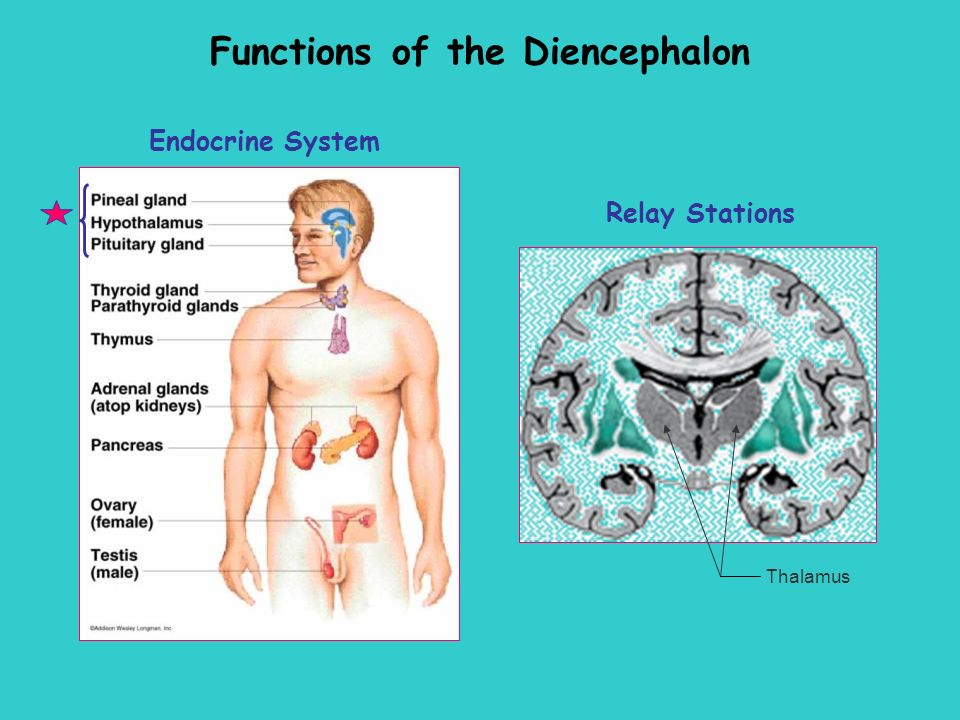

26. Functions of the Diencephalon Endocrine System Relay Stations Thalamus

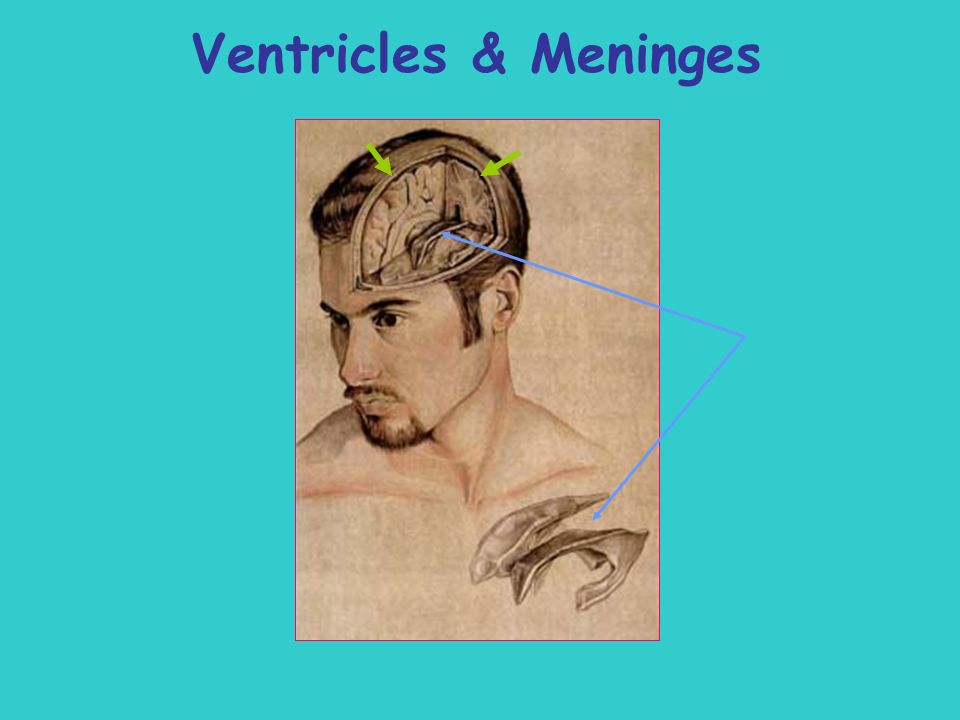

27. Ventricles & Meninges

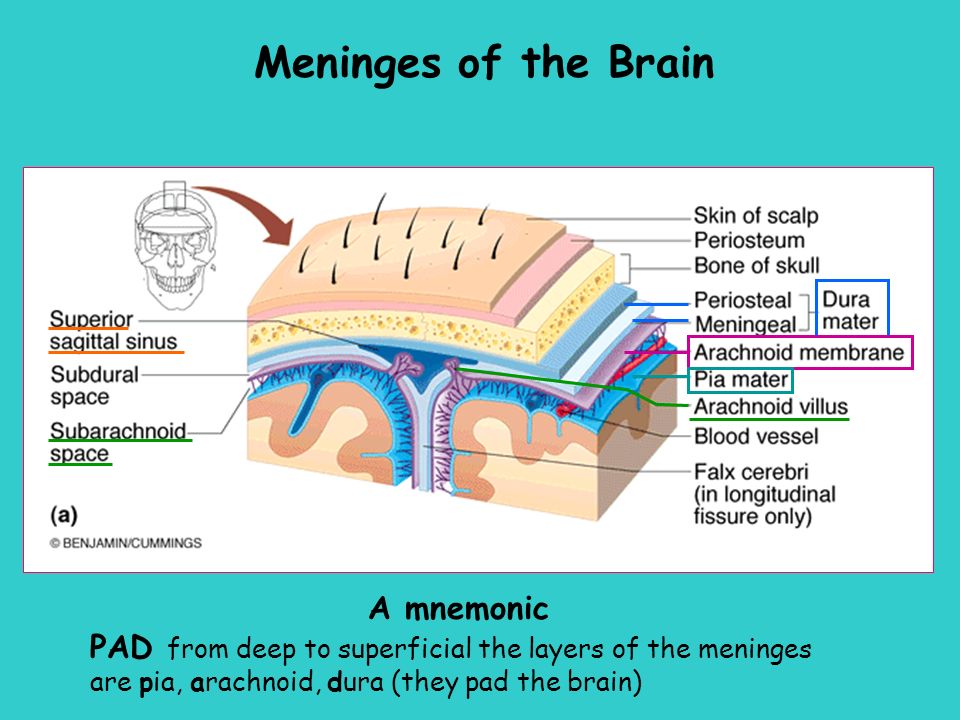

28. Meninges of the Brain A mnemonic PAD from deep to superficial the layers of the meninges are pia, arachnoid, dura (they pad the brain)

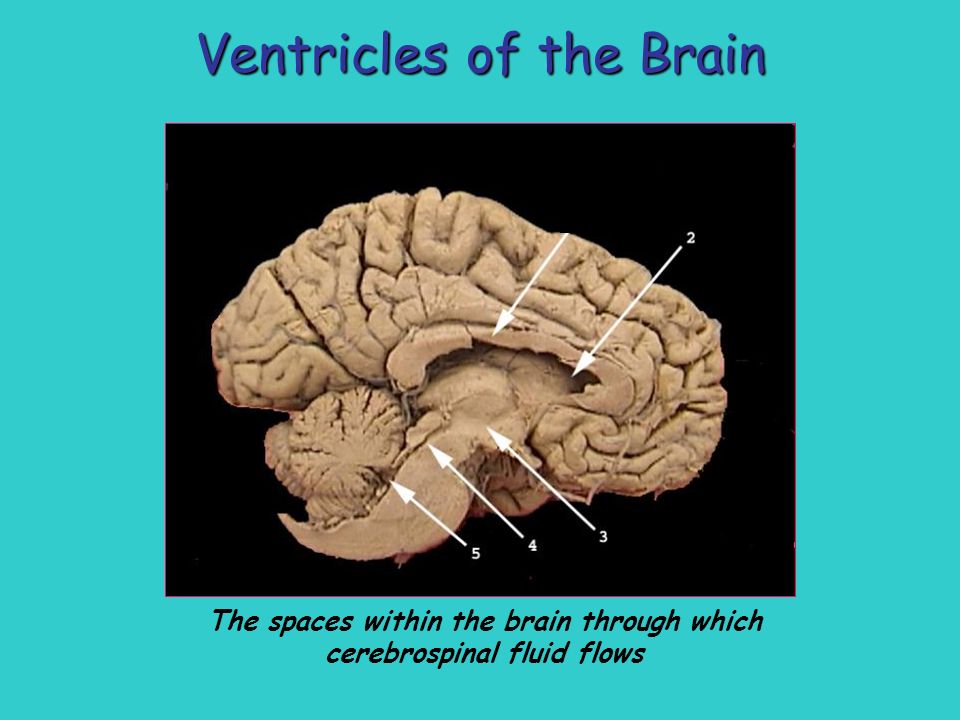

30. Ventricles of the Brain The spaces within the brain through which cerebrospinal fluid flows

31. Cerebrospinal fluid is continually produced by the choroid plexus found in the ventricles Die-cast model

32. Corpus callosum Lateral ventricles Third ventricle Ventricles Coronal Section of Brain Dien- ceph- alon

33. Third Ventricle Cerebral Aqueduct Fourth Ventricle

34. Cerebrospinal Fluid Circulation Choriod plexus Superior sagittal sinus Subarachnoid space Arachnoid villus Lateral ventricles 3rd ventricle 4 th ventricle Vein Interventricular foramen Cerebral aqueduct

35. C r a n i a l N e r v e s

36. 12 Pairs of Cranial Nerves On Occasion Our Trusty Truck Acts Funny - Very Good Vehicle AnyHow Oh, Oh, Oh - To Touch And Feel Very Good Velvet - AH! Filaments of Olfactory nerve (I) Olfactory bulb Olfactory tract Optic nerve (II) Optic chiasma Optic tractOculomotor nerve (III) Trochlear nerve (IV) Trigeminal nerve (V) Abducens nerve (VI) Hypoglossal nerve (XII) Accessory nerve (XI) Vagus nerve (X) Glossopharyngeal nerve (IX) Vestibulocochlear nerve (VIII) Facial nerve (VII)

37. The Real Thing Olfactory Bulb (I) Optic Nerve (II) Oculomotor Nerve (III) Trigeminal Nerve (V) Abducens Nerve (VI) Vestibulo- cochlear Nerve (VIII) Facial Nerve (VII) Hypoglossal Nerve (XII) Glosso- Pharyngeal (IX) Accessory Nerves (XI) Vagus (X) Trochlear Nerve (IV)

38. Hemorrhagic Stroke Tumor Brain Pathologies Ischemic Stroke

39. Objective 2: Sheep Brain Dissection

40. 1 Identify the external structures Inferior Sheep brain structures are the same as the human brain, only slightly different sizes

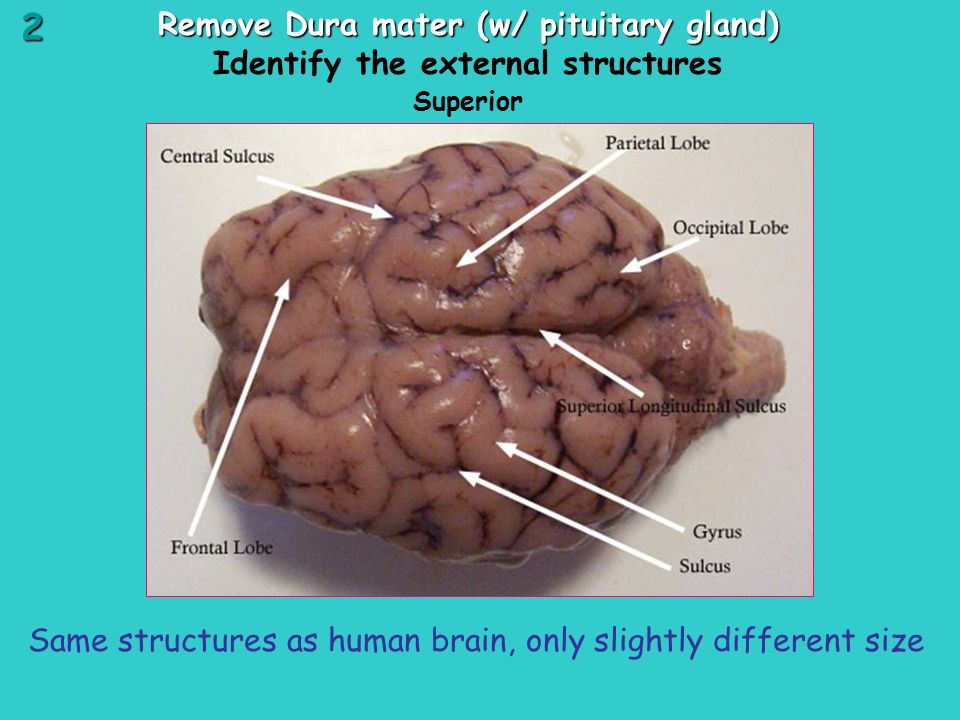

41. Remove Dura mater (w/ pituitary gland) Remove Dura mater (w/ pituitary gland) Identify the external structures Superior Same structures as human brain, only slightly different size2

42. Identify the external structures Inferior

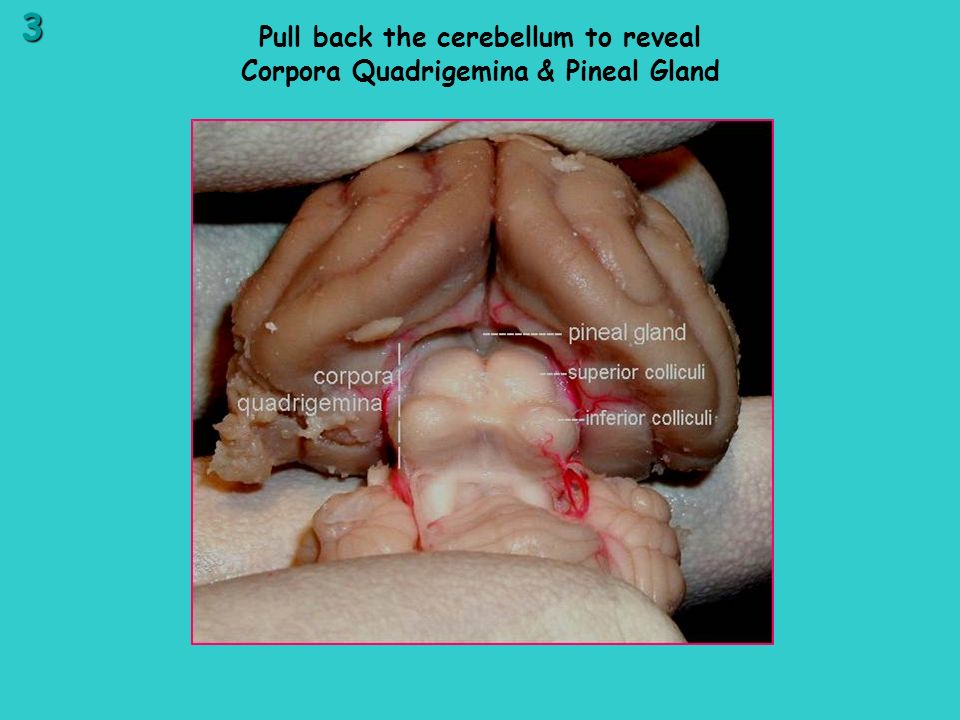

43. Pull back the cerebellum to reveal Corpora Quadrigemina & Pineal Gland3

44. Make a midsagittal cut through the brain4

45. Brainstem Diencephalon5

46. Identify the internal structures Midsagittal

47. Identify the internal structures Midsagittal Lateral Ventricle Third VentricleCerebral AqueductFourth Ventricle

48. You may begin!
