1 © 2010 Infoblox Inc. All Rights Reserved. Nico Wagemans Maarten Robbrecht Nico Wagemans Maarten Robbrecht Business Agility through Automated Infrastructure 1

2 © 2010 Infoblox Inc. All Rights Reserved. USA Netherlands Australia Hong Kong Singapore Japan India China Canada More… Sample of Infoblox Global Offices and Support Centers About Infoblox  Market Leader in DNS, DHCP and IPAM (DDI)  Only company to achieve highest “Strong Positive” ranking by Gartner*  The only holistic Network Change & Configuration Management (NCCM) product  First to combine DDI & NCCM  4,500+ customers and 250+ of the Fortune 500  Presence in over 30 countries, global TAC centers and 24/7 support. 170+ engineers * November 2009 DDI Marketscope Report 2

3 © 2010 Infoblox Inc. All Rights Reserved. Sample of Global Customers & Partners Financial Services American Express Bank of Tokyo Barclays UBS US Bank Visa Wells Fargo Retail/Services Abercrombie & Fitch FedEx Hertz L.L. Bean Staples Tiffany & Co. W.W. Grainger Manufacturing 3M Boeing Caterpillar Danone Ford General Electric Whirlpool Life Sciences Amgen Blue Cross GlaxoSmithKline Johnson & Johnson Pfizer Media/Internet DirectTV New York Times Reuters Time Warner Universal Studios Government Bundesagentur Fuer Arbeit Dept. of Homeland Security Swiss Armed Forces U.S. Army U.S. Courts Admin. Office High Tech/Consulting EDS HP IBM Juniper National Semiconductor Raytheon Siemens Education Brown University Harvard NYU Northwestern Univ. Univ. of California Univ. of Notre Dame Univ. of Pennsylvania Telecom AT&T Broadband Cable & Wireless Sprint T-Mobile Telus Verizon/Alltel Vodafone Energy Aramco Exelon Halliburton PG&E Progress CustomersTechnology Alliances 3

4 © 2010 Infoblox Inc. All Rights Reserved. TASK  Make the infrastructure more dynamic  Without increasing risk  While increasing productivity & network availability Infrastructure Automation is Strategic © 2010 Infoblox Inc. All Rights Reserved. People, Budgets Users, Devices, Systems, Applications, Protocols, Services, Virtualization, Mobility… Network Scale & Complexity Network Management Resources Time Network Infrastructure Demands Increasing Risks, Costs, Delays Quantity / Size 4

5 © 2010 Infoblox Inc. All Rights Reserved. Why Over 4,500 Organizations Rely On Infoblox? 65% 57% 43% 40% 36% 10% Compliance Why did you buy from Infoblox?  Business Availability  Non-stop “always on” Network  Real-time visibility on IP end points  Proactive detection of issues  Network Control & Compliance  Improved agility with real-time dynamic visibility  One click reporting on regulatory compliance and internal policy  Real-time analysis of the impact of changes  Efficiency and Automation  Automated provisioning of IP endpoints and network change  Enhanced efficiency in virtualized environments  Tools to identify, verify, and remediate issues quickly 5

6 © 2010 Infoblox Inc. All Rights Reserved. Infoblox DDI Solution  IP address Management (IPAM) -Planning -Allocation -Operations  Resilient Service Delivery -Domain Name System (DNS) -Dynamic Host Control Protocol (DHCP) -Other (Time, etc.) DNS, DHCP and IPAM Applications The Glue Between Networks and Applications Infrastructure Underperforming DDI is often the weak link in a network 6

7 © 2010 Infoblox Inc. All Rights Reserved. Legacy Service Delivery Problems DHCP DNS  Disjointed management  Often running on general purpose operating system  Lower performance and reliability than rest of network 7 Complex mix of vendors and platforms

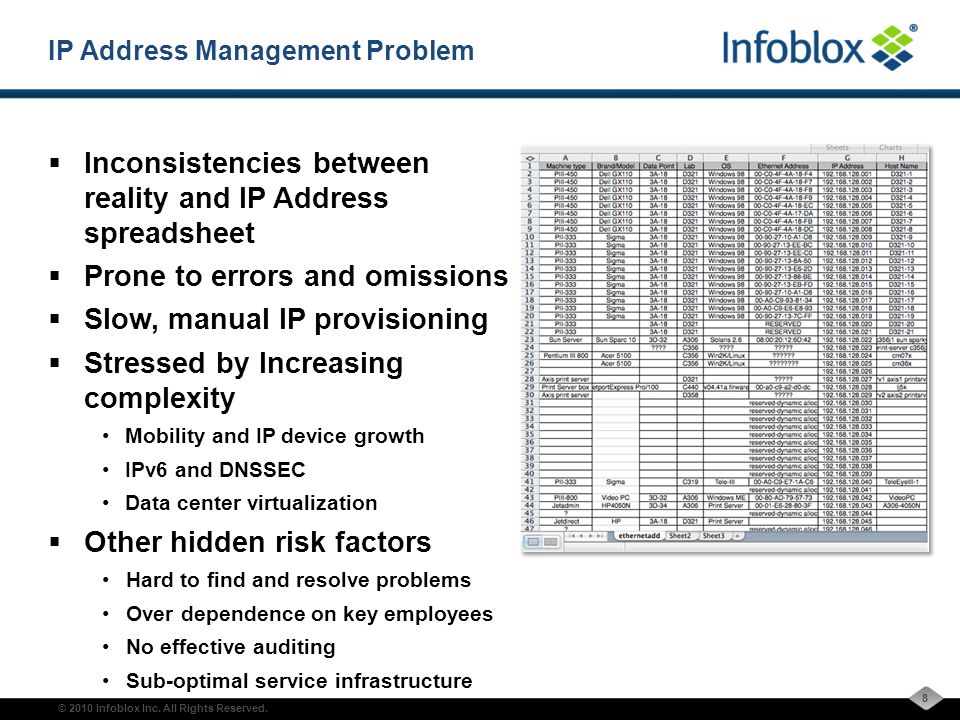

8 © 2010 Infoblox Inc. All Rights Reserved. IP Address Management Problem  Inconsistencies between reality and IP Address spreadsheet  Prone to errors and omissions  Slow, manual IP provisioning  Stressed by Increasing complexity Mobility and IP device growth IPv6 and DNSSEC Data center virtualization  Other hidden risk factors Hard to find and resolve problems Over dependence on key employees No effective auditing Sub-optimal service infrastructure 8

9 © 2010 Infoblox Inc. All Rights Reserved. Always On Patented Infoblox Grid™ Technology Grid Master Member Member/ Grid Master Candidate Member Grid Manager GUI Coordinated by the grid master Sharing a distributed database over real time secure connections Grid: A collection of secure member appliances, providing one or more services (DNS, DHCP, Discovery, File Delivery, etc.) Centralized management with secure delegation of IP provisioning tasks Real time IPAM & discovery Real time and historic reporting Failover and disaster recovery for services, data & management In service updates and upgrades Centralized management with secure delegation of IP provisioning tasks Real time IPAM & discovery Real time and historic reporting Failover and disaster recovery for services, data & management In service updates and upgrades 9

10 © 2010 Infoblox Inc. All Rights Reserved. Infoblox IP Address Management (IPAM) DNS/DNSSEC DHCPv4/DHCPv6 Network Switch/Routers IP Endpoints DISCOVERY Replace spreadsheet and manual process with Infoblox IPAM 10

11 © 2010 Infoblox Inc. All Rights Reserved. Use Case: Simplify Provisioning and Change Shorten planning cycle -View network -Select available or existing -Reduce or enlarge -Split and join Eliminate procedural delays Built-in error checking Closed loop update -DNS/DHCP configuration -Update to IP Map -Documented change history Select Area 11 Easy to move, add or change network Select and drag Right-click for details

12 © 2010 Infoblox Inc. All Rights Reserved. Full IPv6 Network Meta Data 12 Table View Multiple columns with meta data Customizable columns

13 © 2010 Infoblox Inc. All Rights Reserved. Full IPv6 Network Meta Data 13 Smart Folders Report based on meta data Customizable Real Time Hierarchical

14 © 2010 Infoblox Inc. All Rights Reserved. Use Case: Automated IP Allocation  Discover and map  Select available IP  Click to edit  Name and properties  Zone and other attributes  Closed loop update of DHCP and DNS records  Automatically logged and classified  Easy to troubleshoot 14 Select any available IP and assign to a host Select any available IP and assign to a host Instantly resolve issues such as IP conflict IPAM tools streamline process and ensure accuracy

15 © 2010 Infoblox Inc. All Rights Reserved. Link-Local in Host Record 15

16 © 2010 Infoblox Inc. All Rights Reserved. Use Case: IPAM for Virtualization 16  Maintain available IP pool  Dynamic allocation –DHCP reservation –DNS records –Log and classify –Update of IP MAP  Associate virtual to physical –Which virtual machine –Which virtual switch –Which physical machine –Which physical switch  Full path visibility – end to end  Solve problems across data center and network boundary ESX Server Virtual Machines App OS App OS App OS App OS ESX Server Virtual Machines App OS App OS App OS App OS ESX Server Virtual Machines App OS App OS App OS App OS Physical Servers Core Layer Distribution and access switching Manage at the Speed of Virtualization

17 © 2010 Infoblox Inc. All Rights Reserved. Use Case : IPAM for Virtualisation Visibility Into Virtual Environment © 2010 Infoblox Inc. All Rights Reserved. 17 Virtual machines grouped by VLAN Virtual machines grouped by switch-ports Virtual machines grouped by VMware Datacenter

18 © 2010 Infoblox Inc. All Rights Reserved. Use Cases: Manage Transition to IPv6  IPAM -IPV6 address allocation -IPv6 host objects -IPV6 subnet allocation -Split or Join IPv6 networks  Networking Protocols -Dual stack in Grid Members -Zone transfers from/to IPv6 addresses  DNS/DHCP Protocols -Respond to any IPv4 or IPv6 client -AAAA records in the forward zone -ip6.arpa reverse zone management -ACLs for IPv6 addresses and networks -DNS64 -DHCPv6 18 IPv6 and IPv4 External DNS Dual Stack Hosts IPv4 Hosts IPv4 Clients

19 © 2010 Infoblox Inc. All Rights Reserved. Use Cases: Manage Transition to IPv6 Extend current IPv6 DDI solution with unique features that help customers more easily incorporate IPv6 into their network Leadership Low Risk Adoption Helps customers plan and execute gradual adoption of IPv6 technology without intrusive architectural change or network disruption Powerful New Features NIOS 6.1 extends Infoblox’s current market leading, IPv6 enabled, High Availability DDI offering with powerful features such as: –IPv6 IPAM automation –Dual stack IPv4 and IPv6 services –IPv6 DHCP for dynamic address allocation –DHCP IPv6 prefix delegation option –DNS64 to translate IPv6 DNS lookups on IPv4 resources 19

20 © 2010 Infoblox Inc. All Rights Reserved. Typical Customer Roadmap? IPv6 at network edge for Internet facing services –Web –Email –Cloud applications –Time to deploy DNSSEC TodayTransitionalIPv6 Backbones Customer Provider Internet All IPv4IPv4 and IPv6 Co-ExistPhase-out of IPv4 IPv4 & IPv6IPv4IPv6 Internal DNS/DHCP with dual stack IPv6 & IPv4 –Needs robust platform –This may drive platform upgrades Architectural migration to IPv6 backbone with “legacy islands” –Translation technologies –Broad use of tunneling Phase 1 Phase 2 Phase 3 20

21 © 2010 Infoblox Inc. All Rights Reserved. Internal IPv6 Build-out  IPAM Automation for IPv6  64-bit, dual stack appliances  DHCP for IPv6 –Dynamic addresses –Delegate ranges “downstream”  DNS64 with NAT64 protocol to reach IPv4-only hosts –Legacy internal applications –Legacy external web servers –Partners (F5, Cisco, Juniper, etc.) 21 IPv6 IPv4 Dual Stack Hosts and Infrastructure Downstream subnets 2001:::::::2005::::::: DNS - 64 IPv4 only IPv6 only Nat64 Translator

22 © 2010 Infoblox Inc. All Rights Reserved. Internet DNS64 – Infoblox Feature 22 Recursive Name Server running DNS64 IPv4IPv6 NAT64 Protocol Translator www.v4only.com ns1.v4only.com Client queries www.v4only.com AAAA to local recursive name server 64::ff9b/96 1 1 2 2 2 2 3 3 4 4 5 5 6 6 7 7 1 1 2 2 3 3 4 4 5 5 6 6 7 7 Recursive name server queries name server for v4only.com and gets no AAAA response Recursive name server synthesizes a IPv6 address to return to client – using /96 prefix Client sends packet to synthesized IPv6 address which routes to the NAT64 protocol translator NAT64 device translates packet to destination IPv4 address IPv4 only web server returns the response over IPv4 to NAT64 device NAT64 device converts the packet to IPv6 to return to the originating client

23 © 2010 Infoblox Inc. All Rights Reserved. Enabling The Dynamic Network Routing, Switching… DNS / DHCP / IPAM Infoblox DDI Infoblox NCCM Closed Loop Automation Visibility and Automation Applications Check Infrastructure Provide DDI service Recognize change Detect IPs Communicate / Take Action 23

24 © 2010 Infoblox Inc. All Rights Reserved. Automated Network Change & Configuration Management Understand Cause & Effect  Full discovery and visualization of network Infrastructure  Collect & analyze network infrastructure configurations  Track and automate network changes  Identify violations of best practice rules  Identify security and compliance policy violations (SOX, HIPAA, PCI, etc.)  Identify, verify and remediate issues proactively 24

25 © 2010 Infoblox Inc. All Rights Reserved. THANK YOU ! 25
