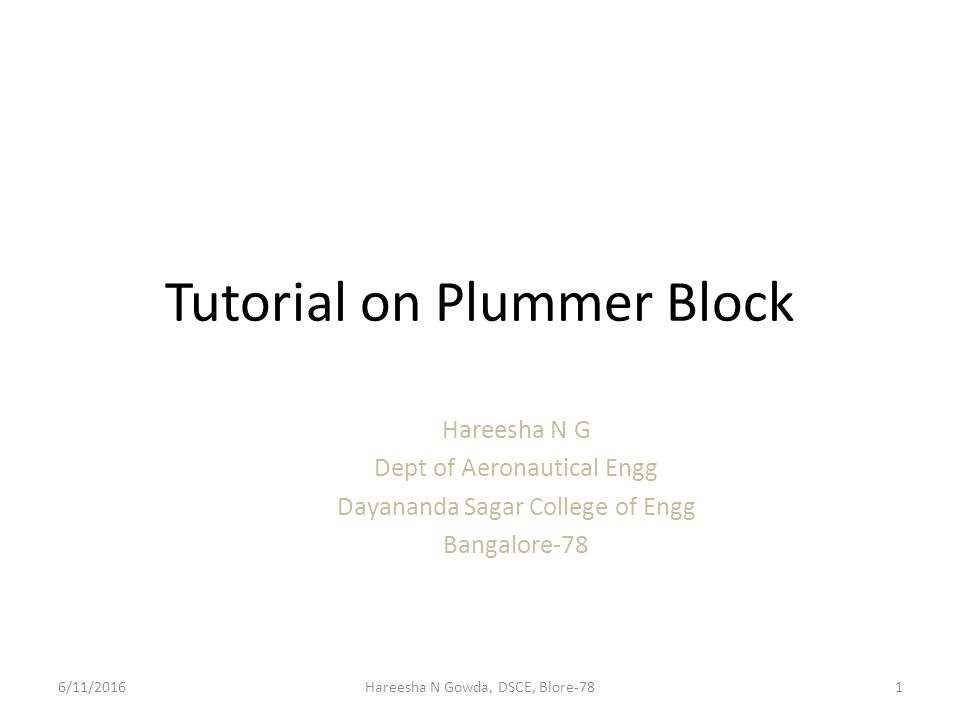

1. Tutorial on Plummer Block Hareesha N G Dept of Aeronautical Engg Dayananda Sagar College of Engg Bangalore-78 6/11/20161Hareesha N Gowda, DSCE, Blore-78

2. 2.Plummer Block 6/11/20162Hareesha N Gowda, DSCE, Blore-78

3. Part – 1: Body: 1. Create the sketch as shown in figure 2. Use Protrusion command to create the 3D feature, width 36 mm 6/11/20163Hareesha N Gowda, DSCE, Blore-78

4. Part – 1: Body: 1. Select XY plane, 2. Create the sketch on top face of the body as shown in figure 3. Use cutout command to create the 3D feature shown in figure, show outside cutout while creating cutout 6/11/20164Hareesha N Gowda, DSCE, Blore-78

5. Part – 1: Body: 1. Select bottom plane, 2. Create the sketch by selecting bottom face as shown in figure 3. Use cut out command to create the 3D feature, depth 2 mm. 6/11/20165Hareesha N Gowda, DSCE, Blore-78

6. Part – 1: Body: 1. Select bottom plane, 2. Create the sketch by selecting bottom face as shown in figure 3. Use cut out command to create the 3D feature, depth through all. 6/11/20166Hareesha N Gowda, DSCE, Blore-78

7. Part – 1: Body: 1.Select bottom plane, 2.2. Create the sketch by selecting bottom face as shown in figure 3. Use cut out command to create the 3D feature, depth 9mm. 6/11/20167Hareesha N Gowda, DSCE, Blore-78

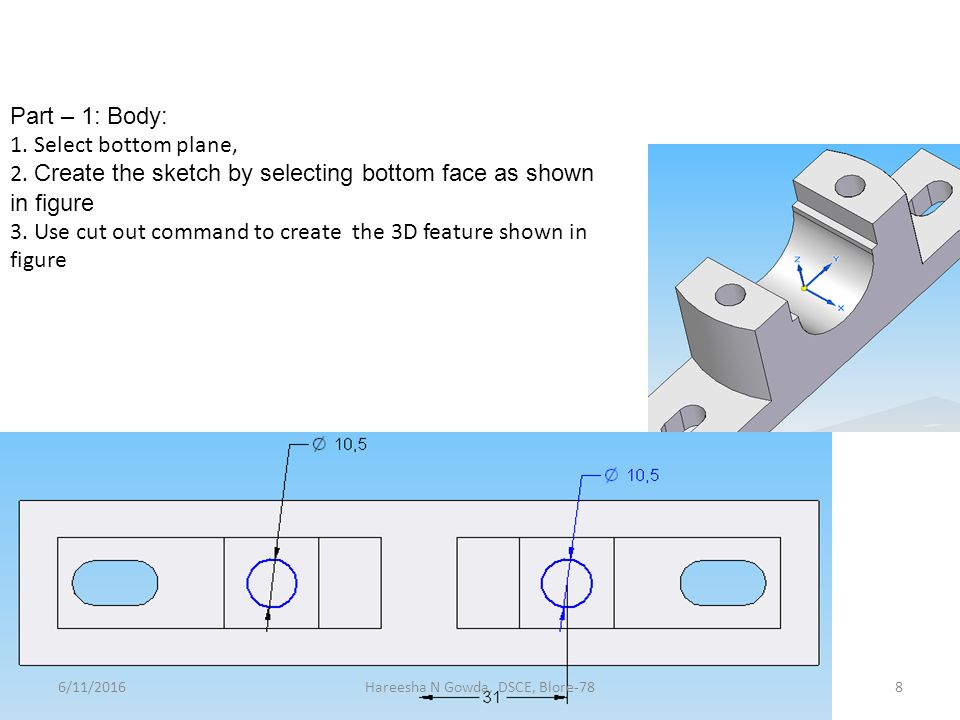

8. Part – 1: Body: 1. Select bottom plane, 2. Create the sketch by selecting bottom face as shown in figure 3. Use cut out command to create the 3D feature shown in figure 6/11/20168Hareesha N Gowda, DSCE, Blore-78

9. Part – 1: Body: 1.Select top surface 2.Use hole command to create the 3D feature shown in figure using parameters shown 6/11/20169Hareesha N Gowda, DSCE, Blore-78

10. Part – 2: cup: 1. Select YZ plane, 2. Crete the sketch as shown in figure 3. Use protrusion command to create the 3D feature, width 36 mm 6/11/201610Hareesha N Gowda, DSCE, Blore-78

11. Part – 2: cup: 1. Select top surfece 2. Crete the sketch as shown in figure 3. Use cutout command to create the 3D feature shown in figure, show outside cutout while using the command 6/11/201611Hareesha N Gowda, DSCE, Blore-78

12. Part – 2: cup: 1. Select top surface 2. Crete the sketch as shown in figure 3. Use cutout command to create the 3D feature shown in figure 6/11/201612Hareesha N Gowda, DSCE, Blore-78

13. Part – 2: cup: 1. Create a plane tangent to top surface 2. Hole command to create the 3D feature shown in figure using parameters defined 6/11/201613Hareesha N Gowda, DSCE, Blore-78

14. Part – 3: Bottom half bearing 1. Select YZ plane, 2. Crete the sketch as shown in figure 3. Use revolved protrusion command to create the 3D feature shown in figure, use 180 o 6/11/201614Hareesha N Gowda, DSCE, Blore-78

15. Part – 3: Bottom half bearing 1. Select YZ plane, 2. Crete the sketch as shown in figure 3. Use revolved protrusion command to create the 3D feature shown in figure, revolution 180 o 6/11/201615Hareesha N Gowda, DSCE, Blore-78

16. Part – 3: Bottom half bearing 1. Select left surface 2. Crete the sketch as shown in figure 3. Use cutout command to create the 3D feature shown in figure 6/11/201616Hareesha N Gowda, DSCE, Blore-78

17. Part – 4: Bolt M10 1. Select left surface 2. Crete the sketch as shown in figure 3. Use revolved cutout command to create the 3D feature shown in figure 6/11/201617Hareesha N Gowda, DSCE, Blore-78

18. Part – 5: Nut M10 1. Select left surface 2. Crete the sketch as shown in figure 3. Use revolved cutout command to create the 3D feature shown in figure 6/11/201618Hareesha N Gowda, DSCE, Blore-78
