1. European IXP Topography Project John Souter, LINX Kurt Erik Lindqvist, Netnod

2. Background In the peering track at NANOG62 Sylvie LaPerrière presented a comparison between population density and existence of an IXP Authors thought we should try the same for Europe, but also try and do further analysis – The latter turned out to be a bit harder… European IXP Topography Project213/05/2015

3. Scope 1.Analyze IXP proximity to major population centres 2.Develop classification system for IXPs 3.Combine 1 & 2 into a guide for European IXP scene 4.Draw conclusions and try and predict future market European IXP Topography Project313/05/2015

4. IXPs in Europe European IXP Topography Project413/05/2015

5. IXP Classification 1.Membership-based IXPs (i.e. where the members own the IXP) 2.Other types of not-for-profit IXPs (e.g. those owned by trusts such as Netnod, or other industry associations, such as DE-CIX or JINX) 3.IXPs hosted in academic institutions or academic service organisations (such as national academic or research networks) 4.IXPs operated by commercial data centre organisations 5.A commercially owned IXP (such as ECIX) 6.Joint ventures of some combination of the above (a fairly rare case) European IXP Topography Project513/05/2015

6. Classification results Mutual + Academic : 65% Mutual + Academic + Other non-for-profit : 76% European IXP Topography Project613/05/2015

7. Classification of the IXPs #IXPCityCountryType 1ALB-IXTiranaAlbania5 2AMS-IXAmsterdamNetherlands1 3BCIXBerlinGermany1 4BIXBudapestHungary1 5BIX.BGSofiaBulgaria2 6BNIXBrusselsBelgium3 7CATNIXBarcelonaSpain3 8CIXZagrebCroatia3 9CIXPGenevaSwitzerland6 10DE-CIXFrankfurt am MainGermany2 11DIXLyngbyDenmark3 12ECIXBerlinGermany5 13Equinix ZurichZurichSwitzerland4 14FICIXHelsinkiFinland1 15France-IXParisFrance1 European IXP Topography Project713/05/2015

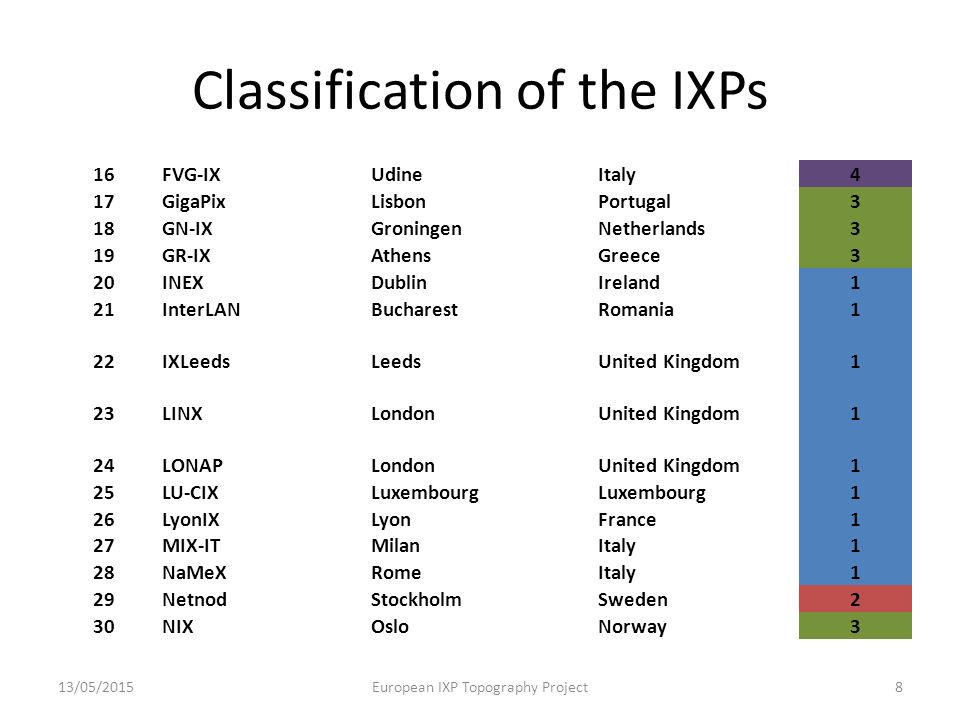

8. Classification of the IXPs 16FVG-IXUdineItaly4 17GigaPixLisbonPortugal3 18GN-IXGroningenNetherlands3 19GR-IXAthensGreece3 20INEXDublinIreland1 21InterLANBucharestRomania1 22IXLeedsLeedsUnited Kingdom1 23LINXLondonUnited Kingdom1 24LONAPLondonUnited Kingdom1 25LU-CIXLuxembourg 1 26LyonIXLyonFrance1 27MIX-ITMilanItaly1 28NaMeXRomeItaly1 29NetnodStockholmSweden2 30NIXOsloNorway3 European IXP Topography Project813/05/2015

9. Classification of the IXPs 31NIX.CZPragueCzech Republic1 32NL-ixThe HagueNetherlands5 33PLIXWarsawPoland4 34RIXReykjavikIceland1 35SFINXParisFrance3 36SIXLjubljanaSlovenia3 37SOXBelgradeSerbia2 38SwissIXZurichSwitzerland1 39Thinx PolandWarsawPoland5 40TIX TuscanyFlorenceItaly2 41TOP-IXTorinoItaly6 42TOUIXToulouseFrance1 43TPIXWarsawPoland5 44TREXTampereFinland5 45VIXViennaAustria3 46VSIXPadovaItaly3 European IXP Topography Project913/05/2015

10. Major population centers RankUrban AreaStatePopulationIXP?IXP names and notes 1Paris France10 975 000YFrance-IX plus several more 2London United Kingdom10 149 000YLINX, Lonap 3Ruhr area Germany6 722 000YECIX is in Düsseldorf (which is adjacent) 4Madrid Spain6 183 000YESPANIX 5Milan Italy5 264 000YMIX 6Barcelona Spain4 656 000YCatnix 7Berlin Germany4 006 000YBCIX, ECIX 8Rome Italy3 798 000YNamex 9Naples Italy3 726 000NLargest urban area in Europe with no IXP! 10Athens Greece3 515 000YGR-IX 11Lisbon Portugal2 669 000YGigaPix 12Rotterdam-The Hague Netherlands2 657 000?R-IX, but not sure if it is operational 13Manchester United Kingdom2 560 000YIXManchester 14Birmingham (West Midlands) United Kingdom2 448 000N 15Katowice (Silesian Metropolis) Poland2 231 000YTIX, Thinx, PLIX? 16Brussels Belgium2 072 000YBNIX 17Hamburg Germany2 057 000YDE-IX, ECIX 18Cologne-Bonn Germany2 003 000N 19Bucharest Romania1 932 000YInterLAN, Ronix 20Munich Germany1 911 000YDEC-IX, INXS European IXP Topography Project1013/05/2015

11. Major population centers 21Frankfurt Germany1 856 000YDEC-IX 22Leeds-Bradford United Kingdom1 787 000YIXLeeds 23Vienna Austria1 739 000YVIX 24Budapest Hungary1 724 000YBIX 25Warsaw Poland1 716 000YPLIX, TPIX, WIX, Thinx, KIX 26Amsterdam Netherlands1 600 000YAMS-IX, NL-IX, ECIX 27Valencia Spain1 561 000N 28Lyon France1 542 000YLyonIX 29Turin Italy1 499 000YTopix 30Porto Portugal1 496 000YGigaPix 31Stockholm Sweden1 456 000YNetnod 32Marseille France1 369 000YFrance-IX 33Stuttgart Germany1 354 000YStuttgart-IX 34Prague Czech Republic1 264 000YNIX-CZ 35Copenhagen Denmark1 231 000YNetnod, DIX 36Helsinki Finland1 203 000YFicix 37Sofia Bulgaria1 185 000YNetIX 38Glasgow United Kingdom1 182 000N 39Dublin Ireland1 158 000YINEX 40Seville Spain1 100 000N European IXP Topography Project1113/05/2015

12. Major population centers 41Lille France, Belgium1 016 000N 42Antwerp Belgium990 000YNL-IX 43Nice France962 000Y NicIX (operated by Rezopole, same as LyonIX) 44Łódź Poland939 000YThinx 45Toulouse France880 000YTOUIX 46Liverpool United Kingdom864 000N 47South Hampshire United Kingdom856 000N 48Bordeaux France845 000N 49Thessaloniki Greece840 000N 50Florence Italy821 000YTIX 51 Newcastle upon Tyne (Tyneside) United Kingdom780 000N 52Gdańsk (Tricity) Poland775 000YThinx 53Kraków Poland760 000YCIX, K-IX 54=Bilbao Spain750 000N 54=Riga Latvia750 000YLIX 56Palermo Italy731 000N 57Nottingham United Kingdom730 000N 58Catania Italy720 000N 59=Malaga Spain700 000N 59=Las Palmas Spain700 000N 59=Zaragoza Spain700 000N 59=Zagreb Croatia700 000YCIX 59=Dresden Germany700 000N 59=Hannover Germany700 000N European IXP Topography Project1213/05/2015

13. Major regions without an IXP 1.The Ruhr area of Germany 2.Naples in Italy 3.Birmingham in the UK 4.Large cities in the biggest European countries (France, Germany, Italy, Spain and the UK) 5.Spanish cities (except Barcelona & Madrid) European IXP Topography Project1313/05/2015

14. Possible reasons Telecom network topology Market conditions Proximity to other/existing IXPs European IXP Topography Project1413/05/2015

15. Areas Missing IXPs Five largest urban areas missing an IXP European IXP Topography Project1513/05/2015

16. Comparison to US study All but one of the 19 largest CSAs in the US have an IXP – 11 are major peering hubs The smallest of the 19 would be the 11 th largest in Europe Europe seems to have a denser mesh of IXPs while lacking IXPs in more large population centers European IXP Topography Project1613/05/2015

17. Suggested developments Investigate IXP proximity to regional GDP – On the to-do list Correlation to neutral datacenter availability – Data set might be hard to acquire European IXP Topography Project1713/05/2015

18. Download Report https://www.linx.net/archive/topography/IXP- topography-project.pdf https://www.linx.net/archive/topography/IXP- topography-project.pdf www.netnod.se 13/05/2015European IXP Topography Project18
