1. Designing as a Team Designing as a Team A Collaborative Approach to Web Development Jeffrey Veen jeff@adaptivepath.com

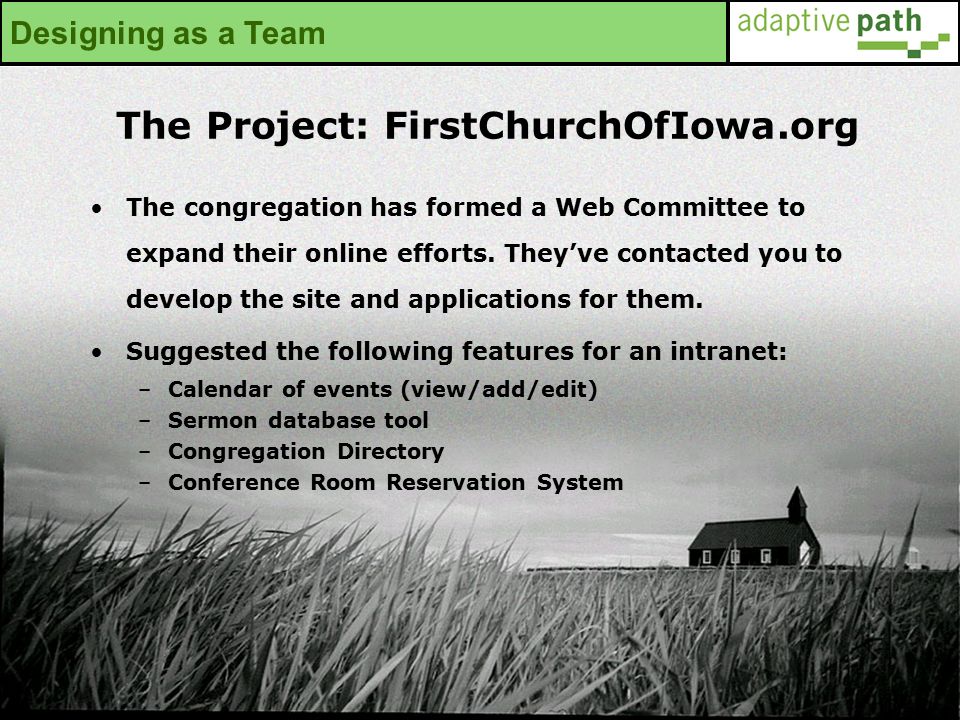

2. Designing as a Team The Project: FirstChurchOfIowa.org The congregation has formed a Web Committee to expand their online efforts. They’ve contacted you to develop the site and applications for them. Suggested the following features for an intranet: –Calendar of events (view/add/edit) –Sermon database tool –Congregation Directory –Conference Room Reservation System

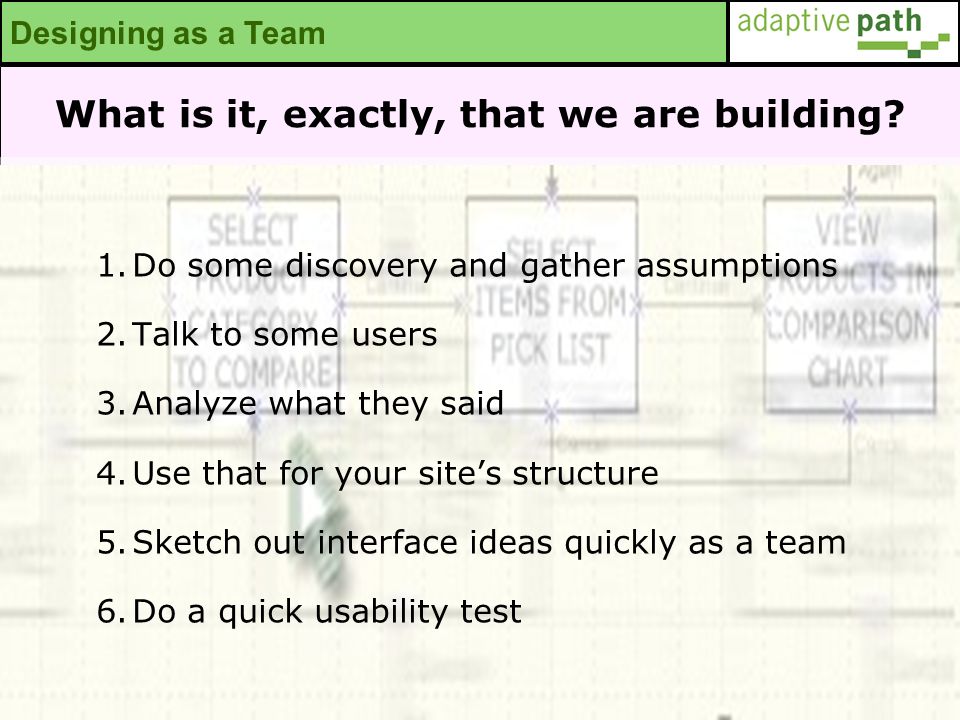

3. Designing as a Team What is it, exactly, that we are building? 1.Do some discovery and gather assumptions 2.Talk to some users 3.Analyze what they said 4.Use that for your site’s structure 5.Sketch out interface ideas quickly as a team 6.Do a quick usability test

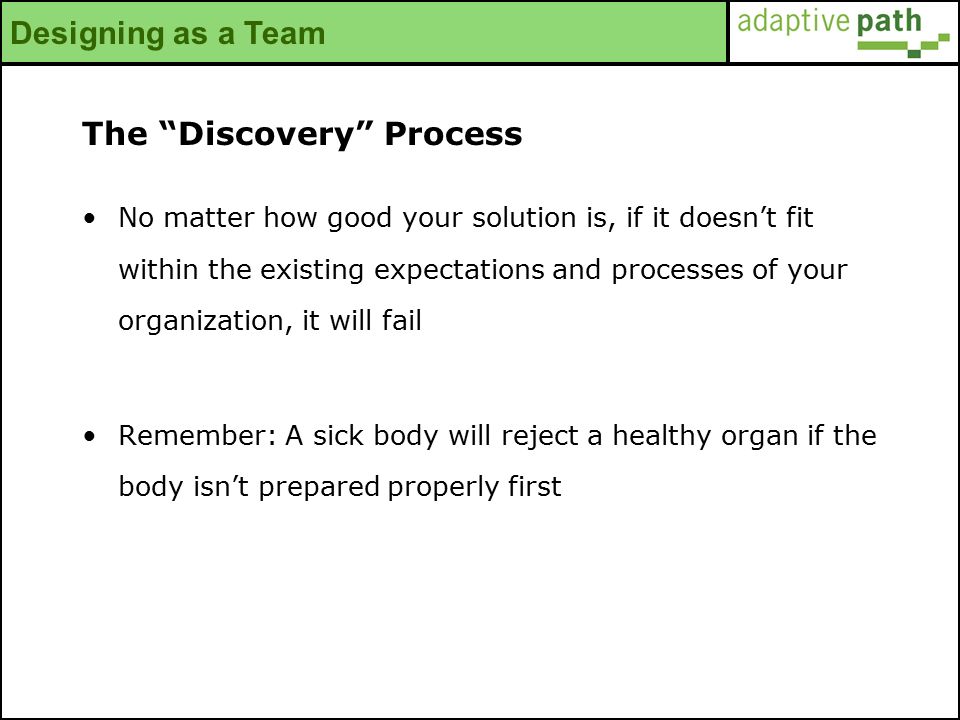

4. Designing as a Team The “Discovery” Process No matter how good your solution is, if it doesn’t fit within the existing expectations and processes of your organization, it will fail Remember: A sick body will reject a healthy organ if the body isn’t prepared properly first

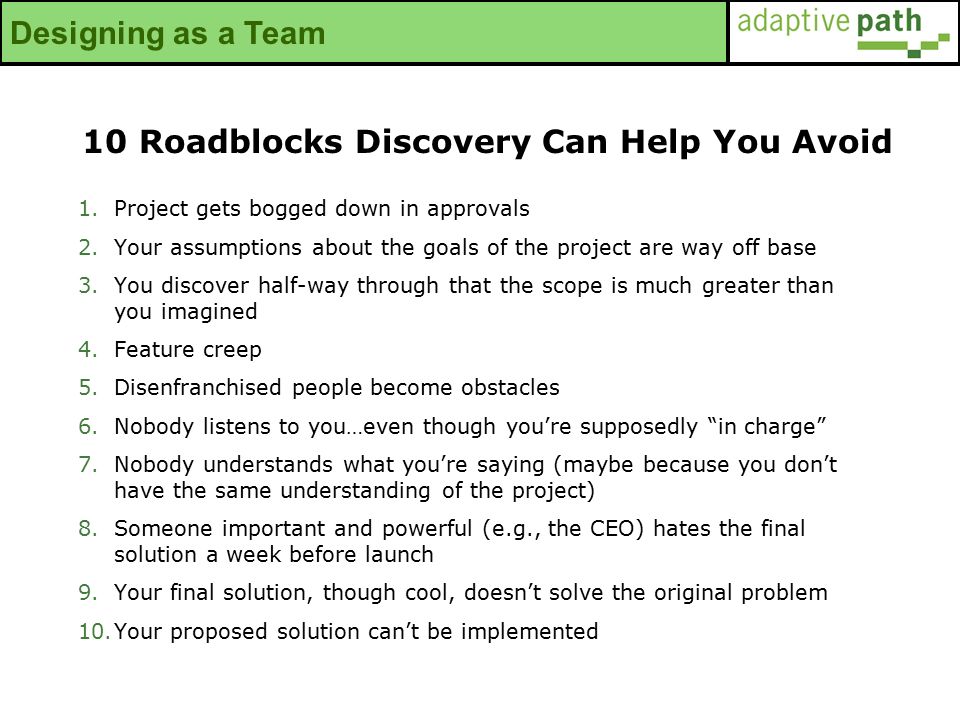

5. Designing as a Team 10 Roadblocks Discovery Can Help You Avoid 1.Project gets bogged down in approvals 2.Your assumptions about the goals of the project are way off base 3.You discover half-way through that the scope is much greater than you imagined 4.Feature creep 5.Disenfranchised people become obstacles 6.Nobody listens to you…even though you’re supposedly “in charge” 7.Nobody understands what you’re saying (maybe because you don’t have the same understanding of the project) 8.Someone important and powerful (e.g., the CEO) hates the final solution a week before launch 9.Your final solution, though cool, doesn’t solve the original problem 10.Your proposed solution can’t be implemented

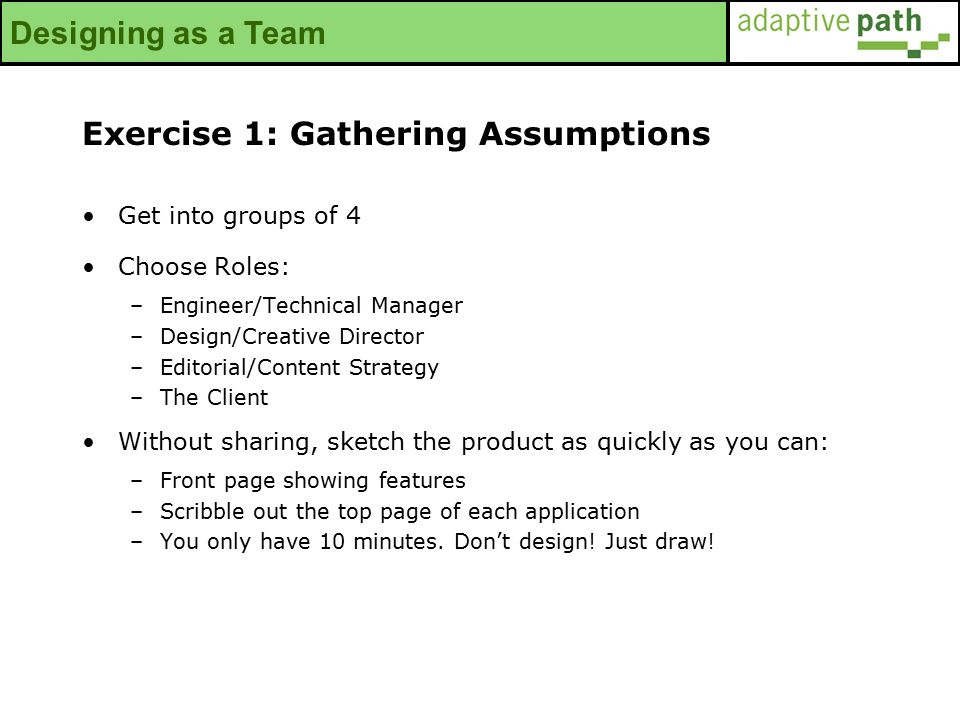

6. Designing as a Team Exercise 1: Gathering Assumptions Get into groups of 4 Choose Roles: –Engineer/Technical Manager –Design/Creative Director –Editorial/Content Strategy –The Client Without sharing, sketch the product as quickly as you can: –Front page showing features –Scribble out the top page of each application –You only have 10 minutes. Don’t design! Just draw!

7. Designing as a Team So who are these people, your “users”?

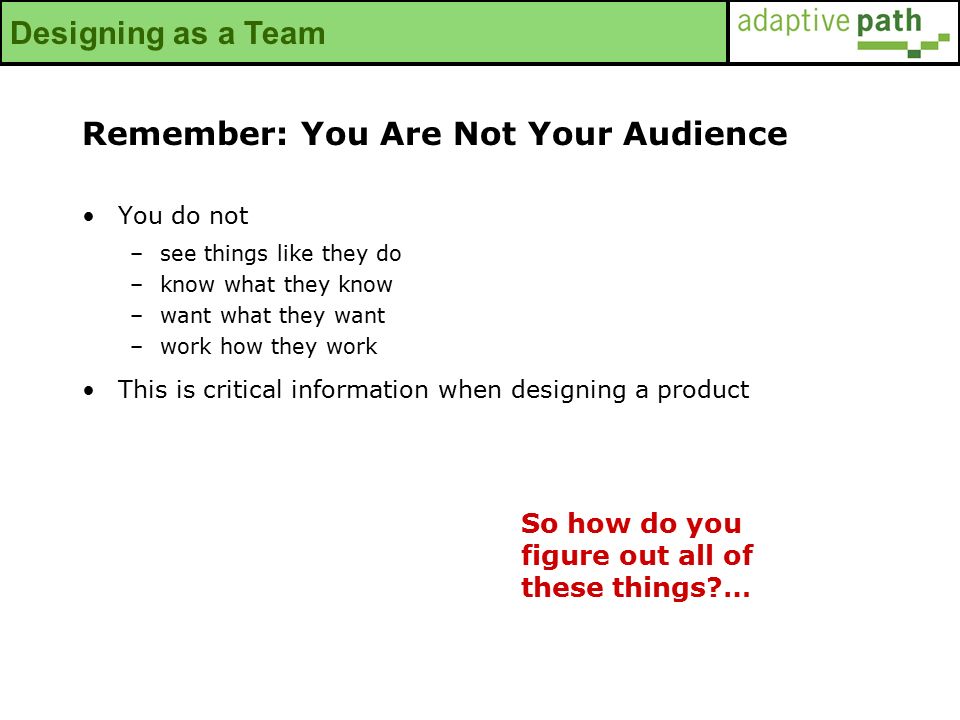

8. Designing as a Team Remember: You Are Not Your Audience You do not –see things like they do –know what they know –want what they want –work how they work This is critical information when designing a product So how do you figure out all of these things?…

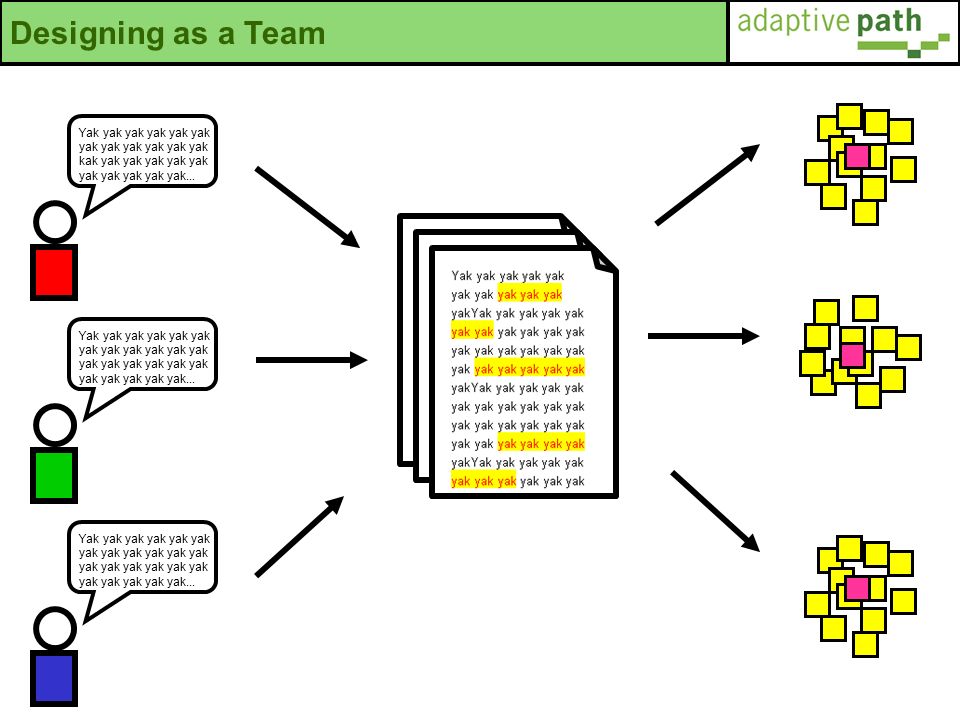

9. Designing as a Team Yak yak yak yak yak yak yak yak yak yak yak yak yak yak yak yak yak yak yak yak yak yak yak... Yak yak yak yak yak yak yak yak yak yak yak yak kak yak yak yak yak yak yak yak yak yak yak...

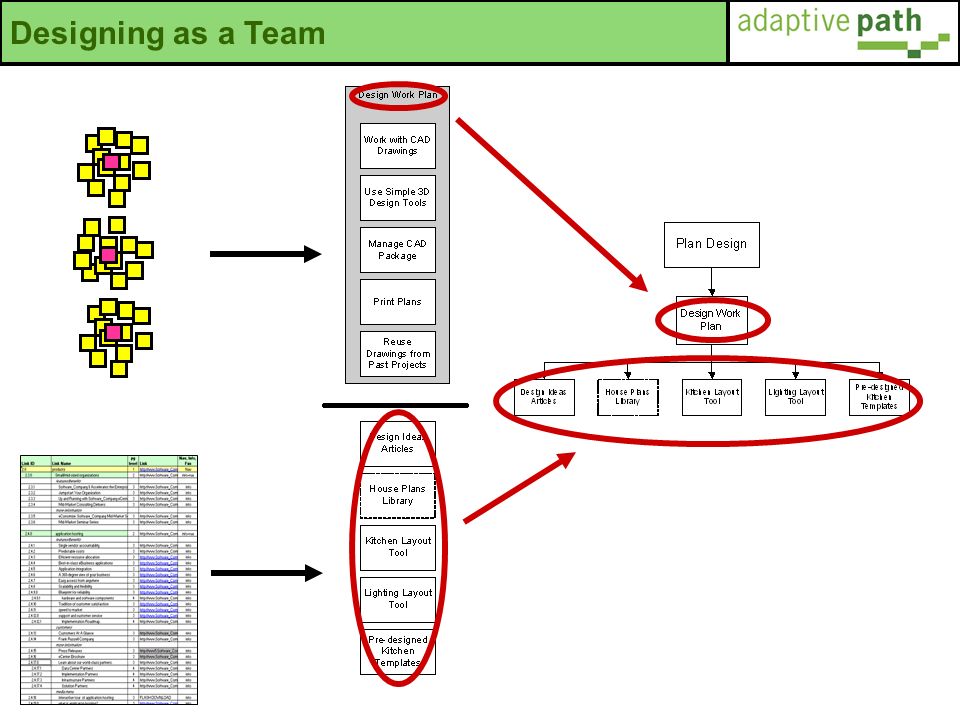

10. Designing as a Team

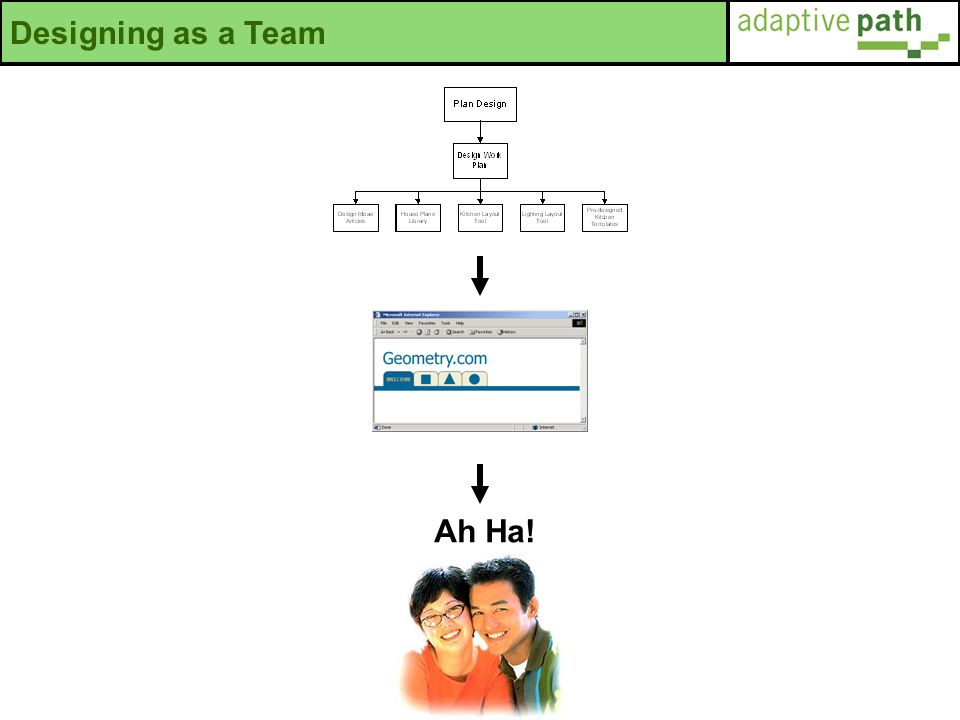

11. Ah Ha!

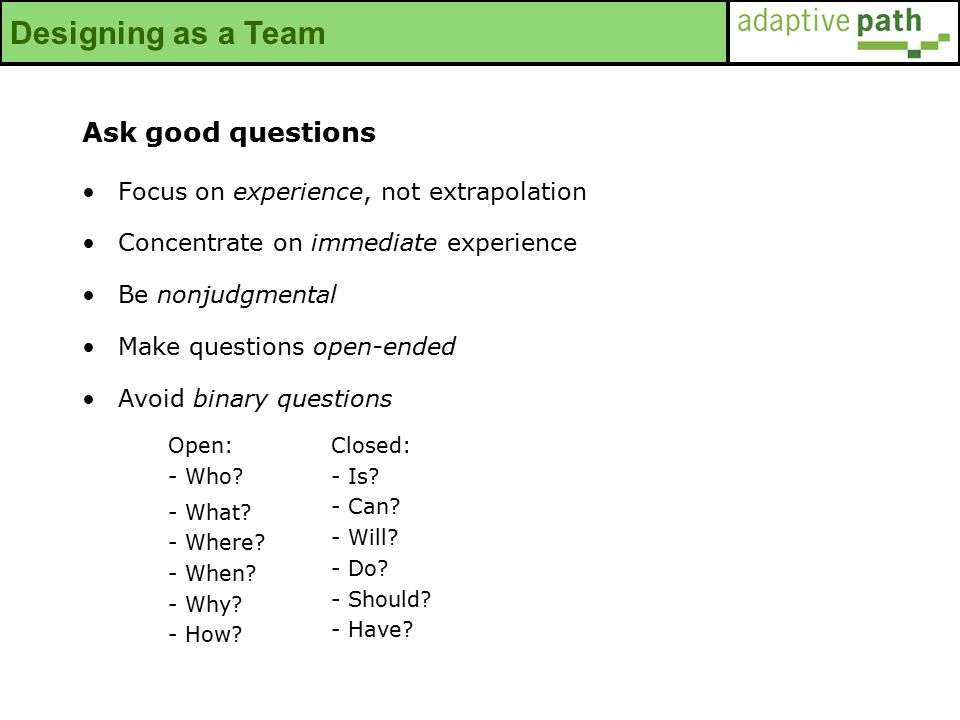

12. Designing as a Team Ask good questions Focus on experience, not extrapolation Concentrate on immediate experience Be nonjudgmental Make questions open-ended Avoid binary questions Open: - Who? - What? - Where? - When? - Why? - How? Closed: - Is? - Can? - Will? - Do? - Should? - Have?

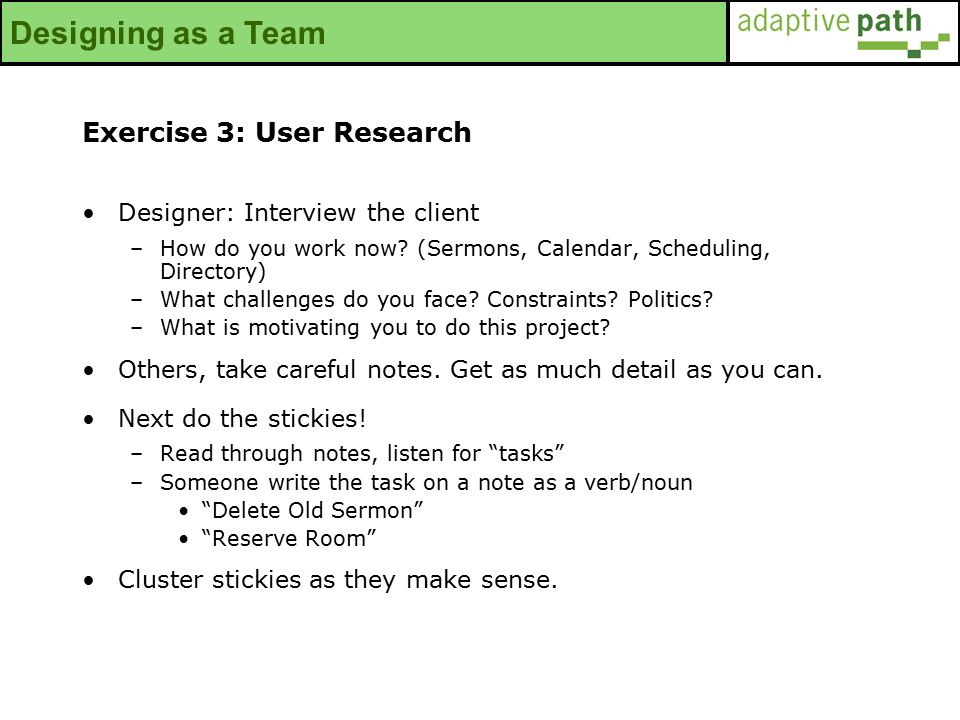

13. Designing as a Team Exercise 3: User Research Designer: Interview the client –How do you work now? (Sermons, Calendar, Scheduling, Directory) –What challenges do you face? Constraints? Politics? –What is motivating you to do this project? Others, take careful notes. Get as much detail as you can. Next do the stickies! –Read through notes, listen for “tasks” –Someone write the task on a note as a verb/noun “Delete Old Sermon” “Reserve Room” Cluster stickies as they make sense.

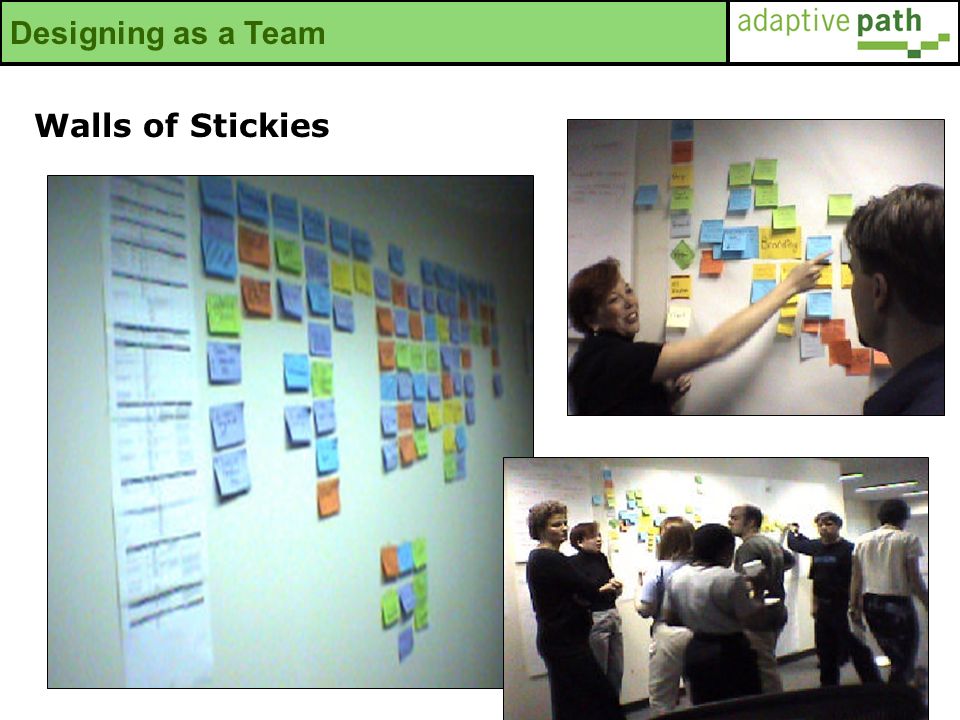

14. Designing as a Team Walls of Stickies

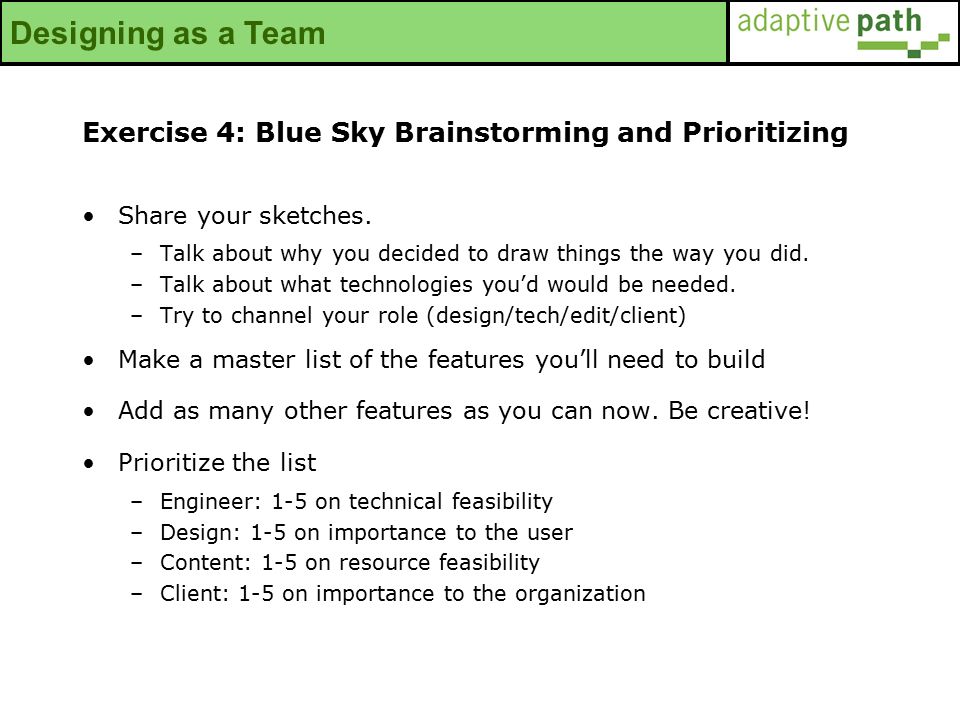

15. Designing as a Team Exercise 4: Blue Sky Brainstorming and Prioritizing Share your sketches. –Talk about why you decided to draw things the way you did. –Talk about what technologies you’d would be needed. –Try to channel your role (design/tech/edit/client) Make a master list of the features you’ll need to build Add as many other features as you can now. Be creative! Prioritize the list –Engineer: 1-5 on technical feasibility –Design: 1-5 on importance to the user –Content: 1-5 on resource feasibility –Client: 1-5 on importance to the organization

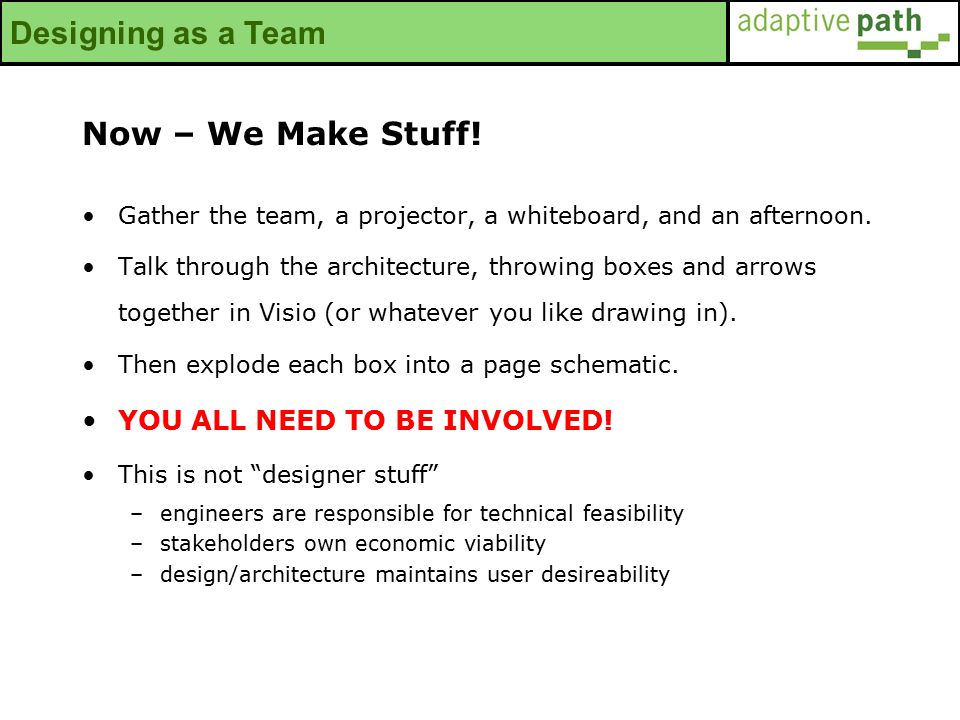

16. Designing as a Team Now – We Make Stuff! Gather the team, a projector, a whiteboard, and an afternoon. Talk through the architecture, throwing boxes and arrows together in Visio (or whatever you like drawing in). Then explode each box into a page schematic. YOU ALL NEED TO BE INVOLVED! This is not “designer stuff” –engineers are responsible for technical feasibility –stakeholders own economic viability –design/architecture maintains user desireability

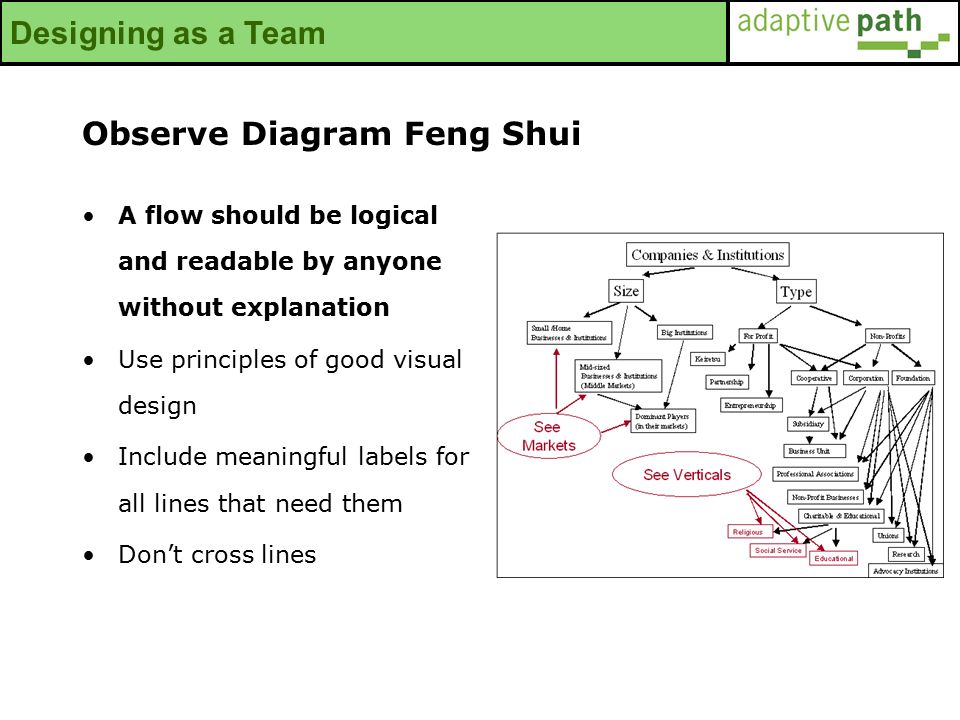

17. Designing as a Team Observe Diagram Feng Shui A flow should be logical and readable by anyone without explanation Use principles of good visual design Include meaningful labels for all lines that need them Don’t cross lines

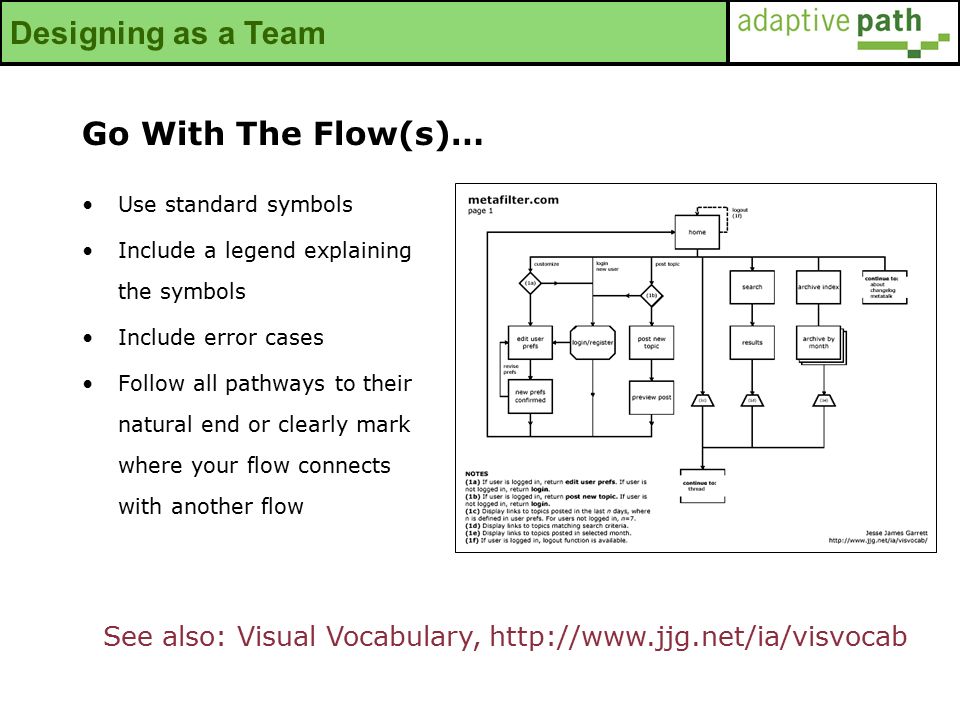

18. Designing as a Team Go With The Flow(s)… Use standard symbols Include a legend explaining the symbols Include error cases Follow all pathways to their natural end or clearly mark where your flow connects with another flow See also: Visual Vocabulary, http://www.jjg.net/ia/visvocab

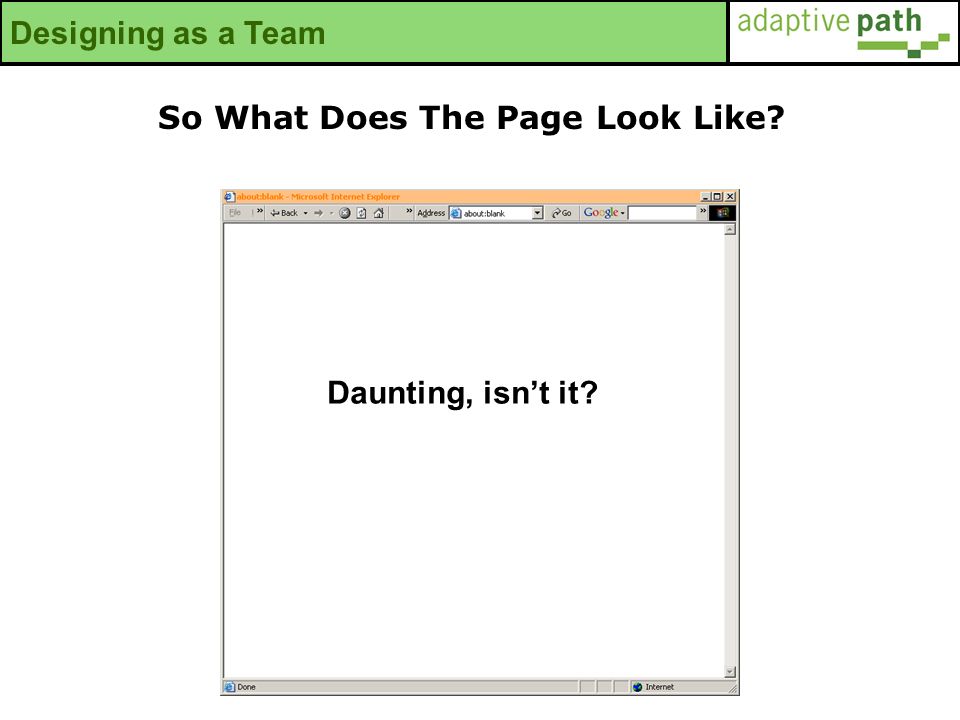

19. Designing as a Team So What Does The Page Look Like? Daunting, isn’t it?

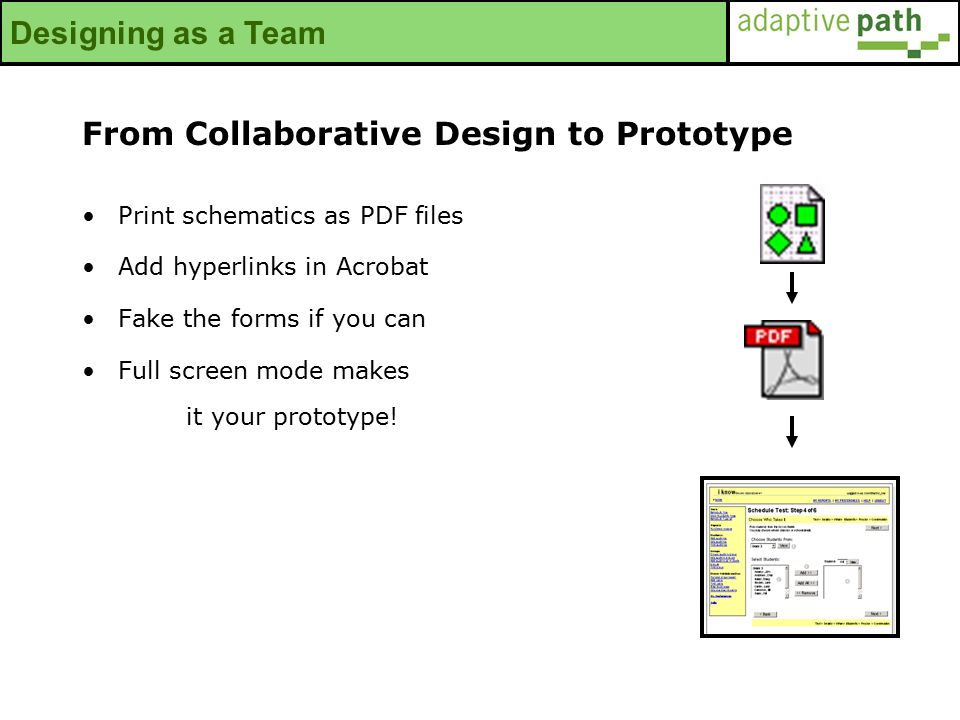

20. Designing as a Team From Collaborative Design to Prototype Print schematics as PDF files Add hyperlinks in Acrobat Fake the forms if you can Full screen mode makes it your prototype!

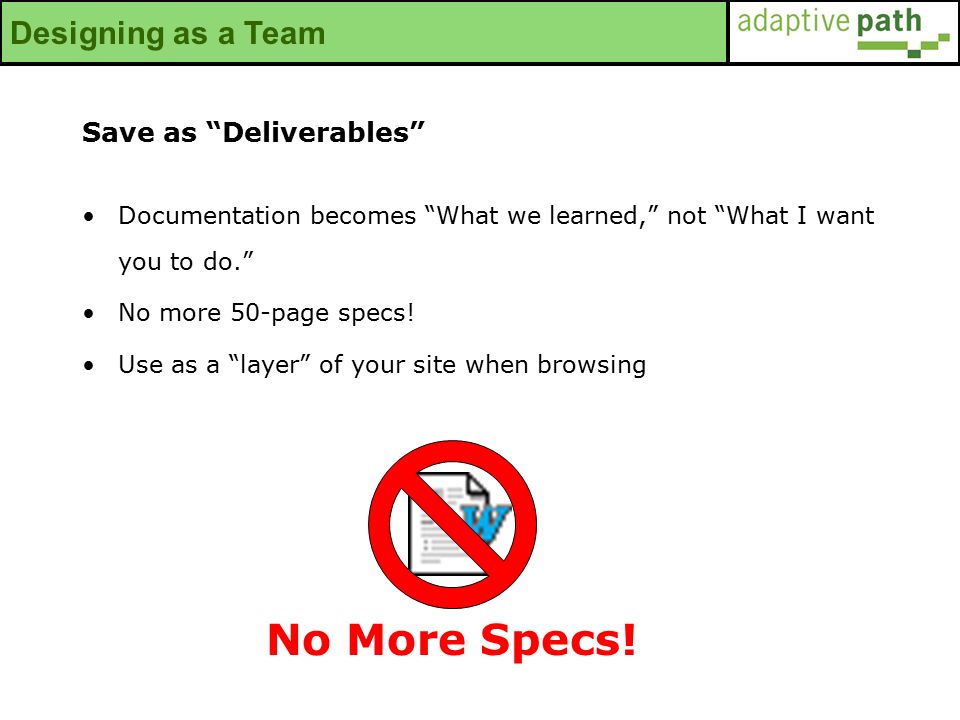

21. Designing as a Team Save as “Deliverables” Documentation becomes “What we learned,” not “What I want you to do.” No more 50-page specs! Use as a “layer” of your site when browsing No More Specs!

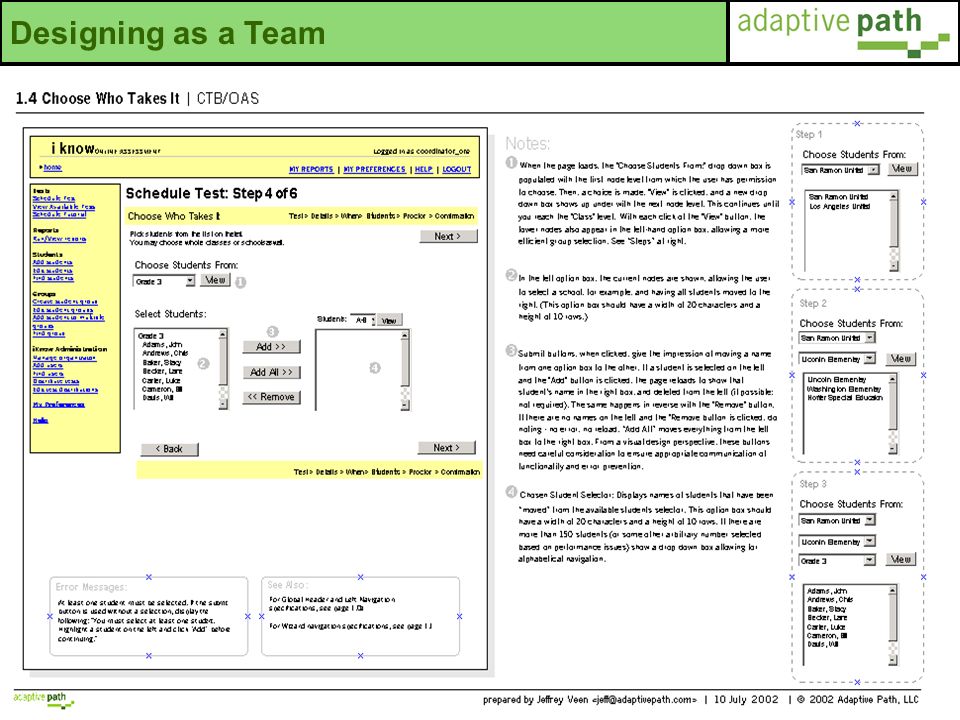

22. Designing as a Team

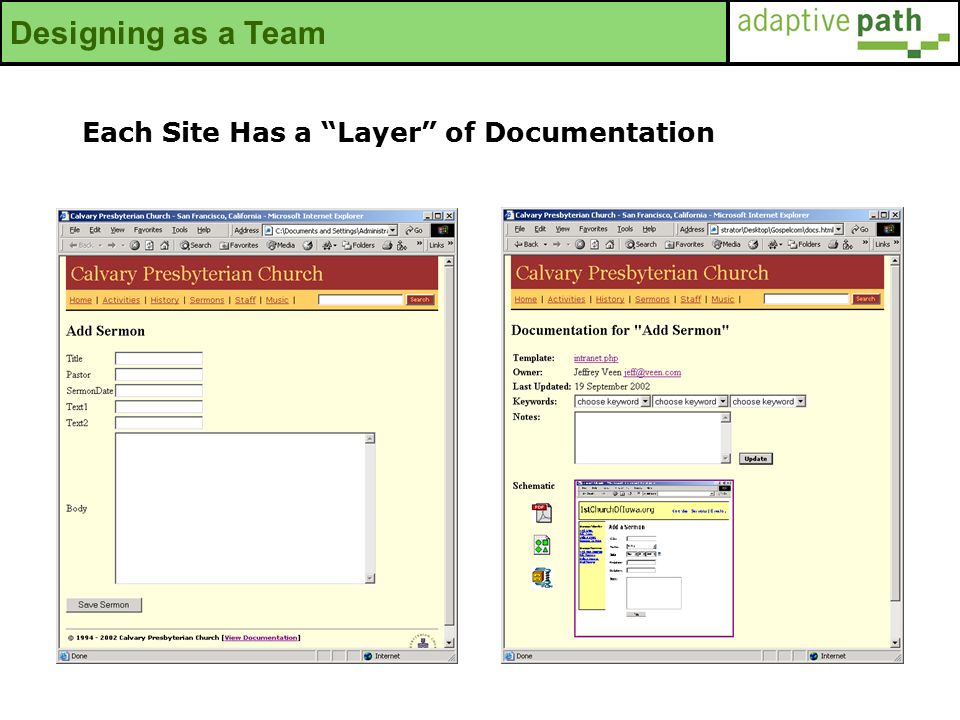

23. Each Site Has a “Layer” of Documentation
