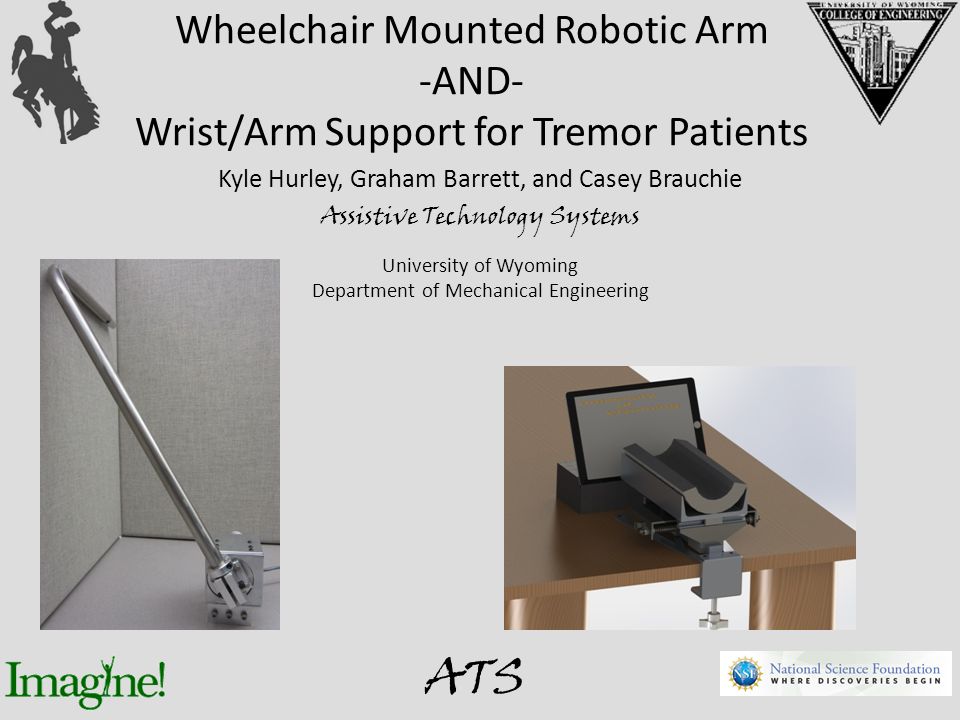

1. Wheelchair Mounted Robotic Arm -AND- Wrist/Arm Support for Tremor Patients ATS Kyle Hurley, Graham Barrett, and Casey Brauchie University of Wyoming Department of Mechanical Engineering Assistive Technology Systems

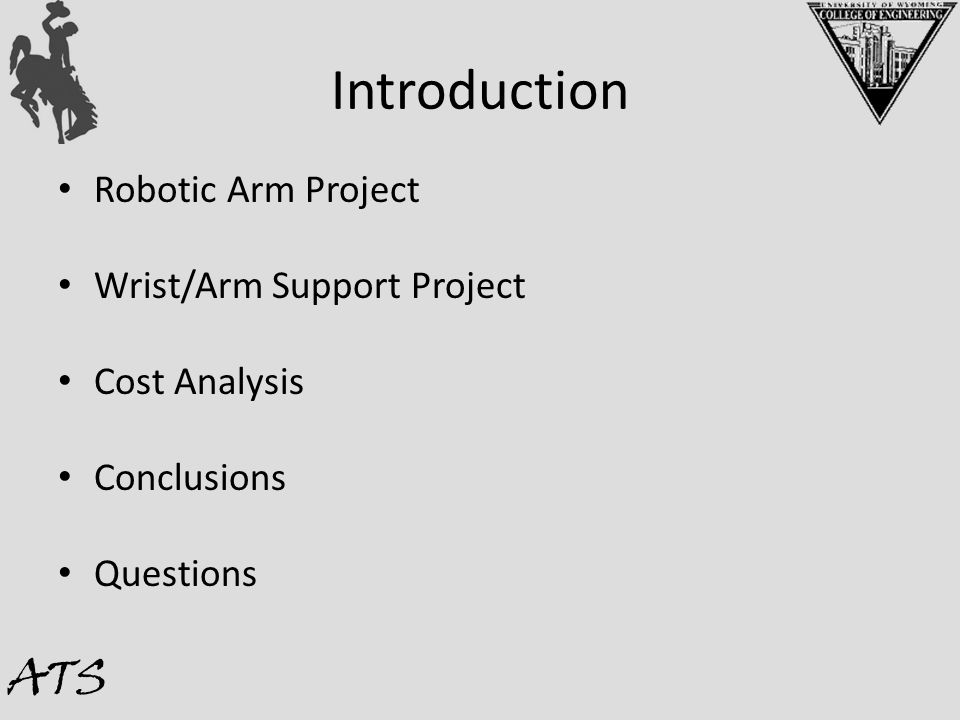

2. Introduction Robotic Arm Project Wrist/Arm Support Project Cost Analysis Conclusions Questions ATS

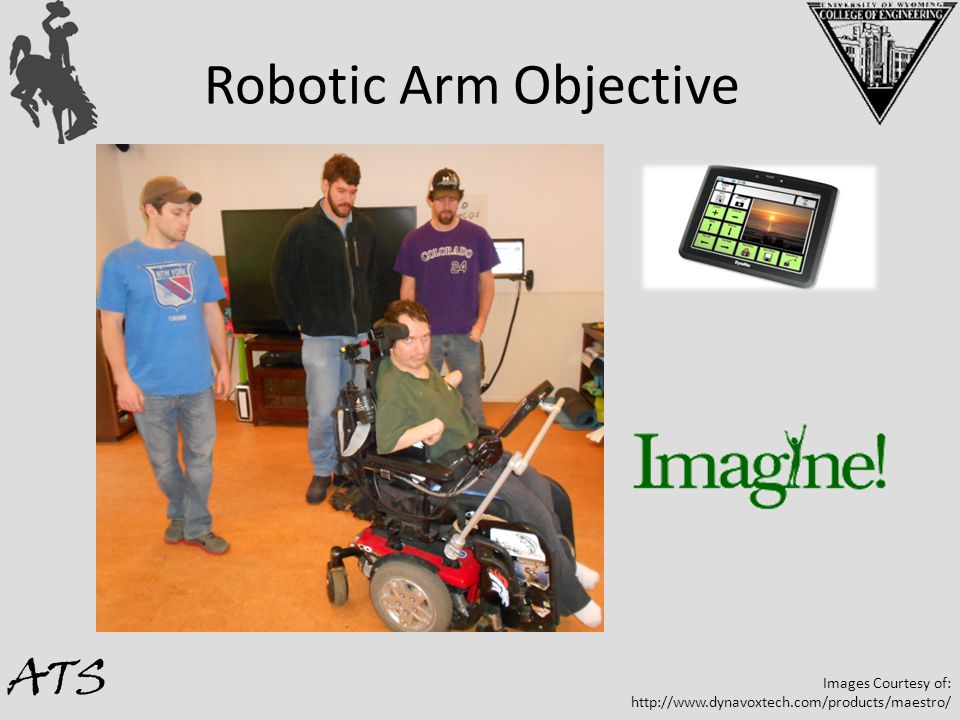

3. Robotic Arm Objective ATS Images Courtesy of: http://www.dynavoxtech.com/products/maestro/

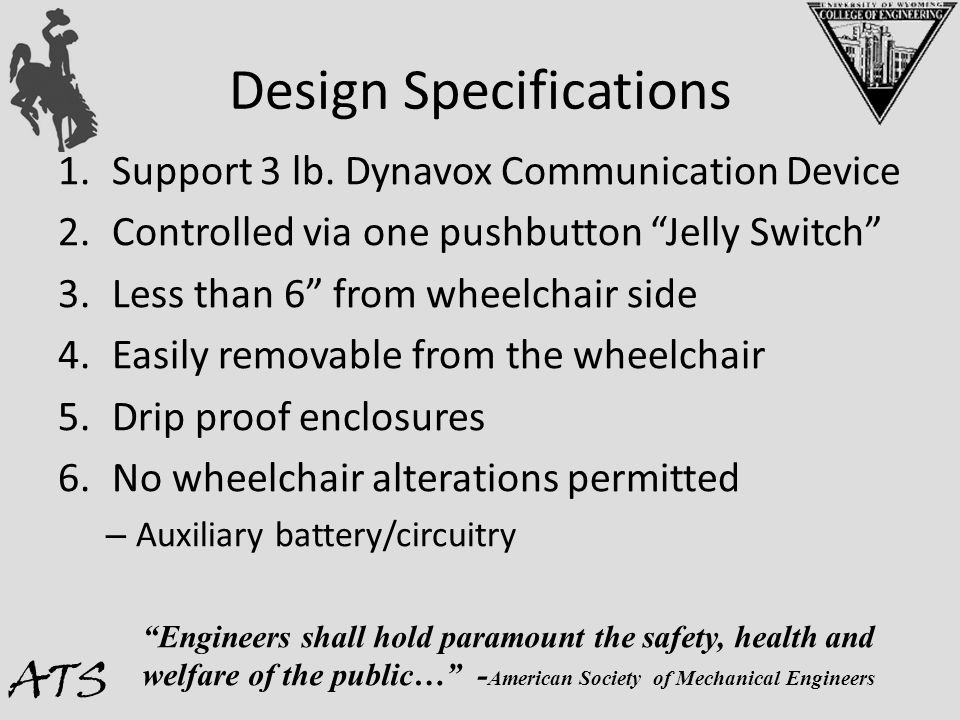

4. Design Specifications 1.Support 3 lb. Dynavox Communication Device 2.Controlled via one pushbutton “Jelly Switch” 3.Less than 6” from wheelchair side 4.Easily removable from the wheelchair 5.Drip proof enclosures 6.No wheelchair alterations permitted – Auxiliary battery/circuitry ATS “Engineers shall hold paramount the safety, health and welfare of the public…” - American Society of Mechanical Engineers

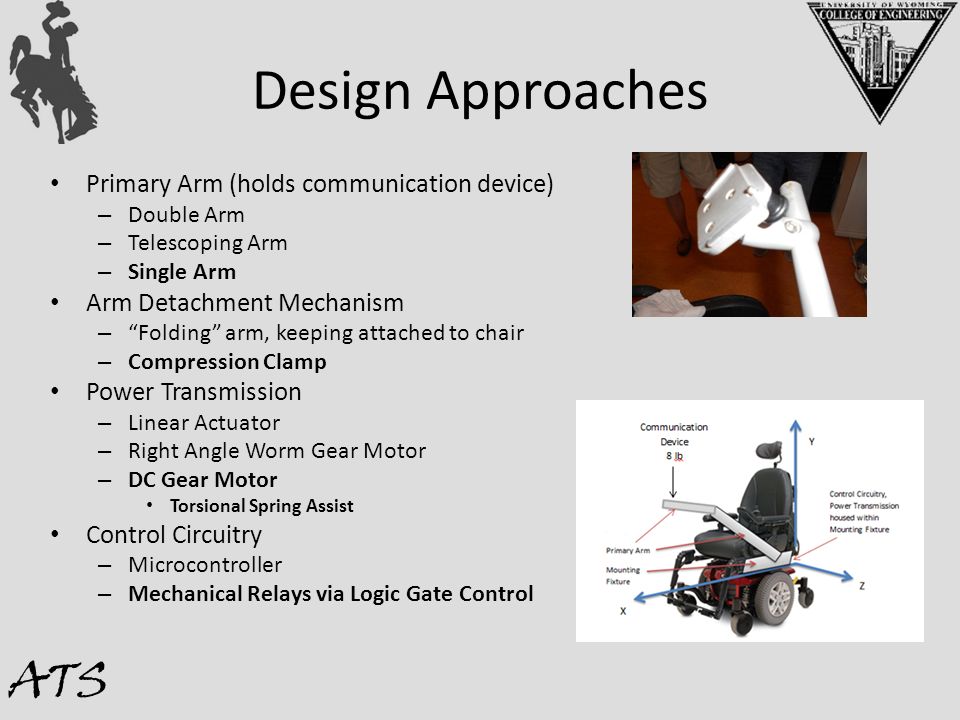

5. Design Approaches Primary Arm (holds communication device) – Double Arm – Telescoping Arm – Single Arm Arm Detachment Mechanism – “Folding” arm, keeping attached to chair – Compression Clamp Power Transmission – Linear Actuator – Right Angle Worm Gear Motor – DC Gear Motor Torsional Spring Assist Control Circuitry – Microcontroller – Mechanical Relays via Logic Gate Control ATS

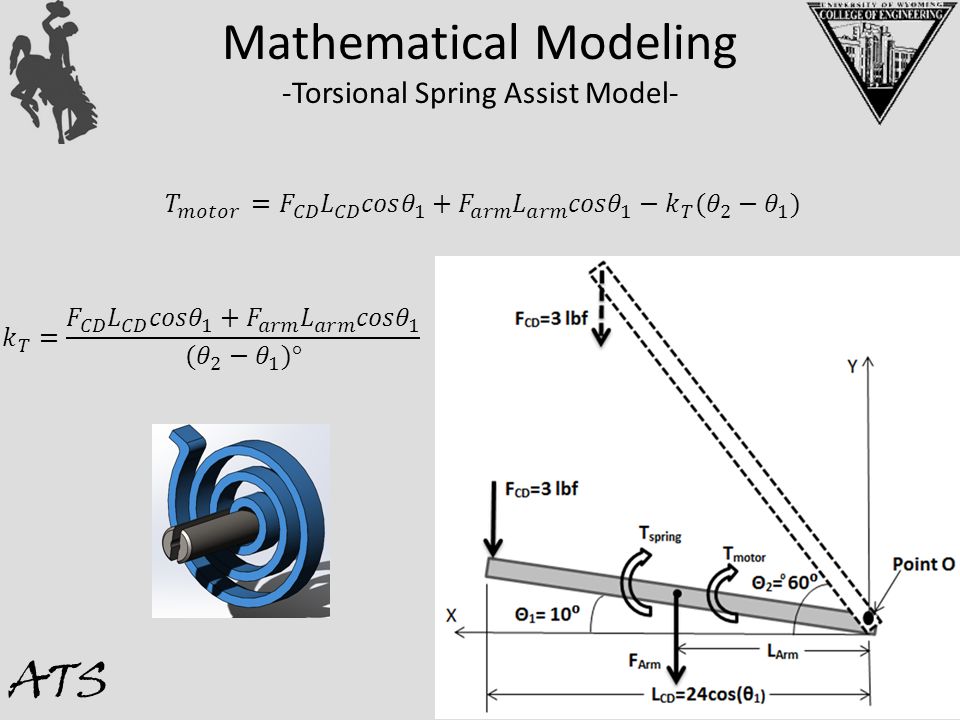

6. Mathematical Modeling -Torsional Spring Assist Model- ATS

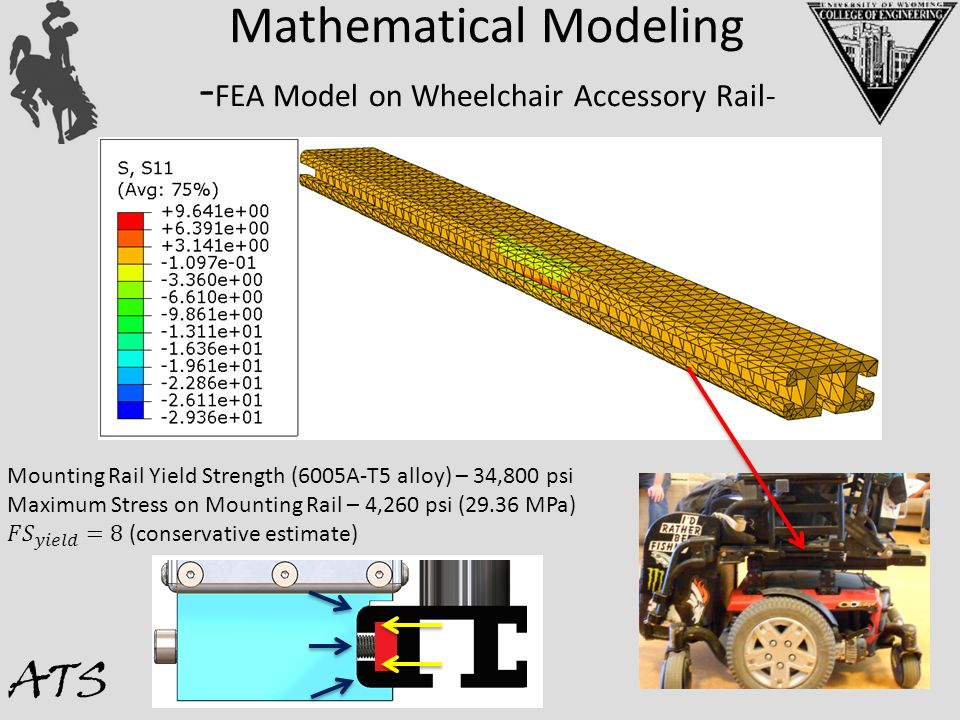

7. Mathematical Modeling - FEA Model on Wheelchair Accessory Rail- ATS

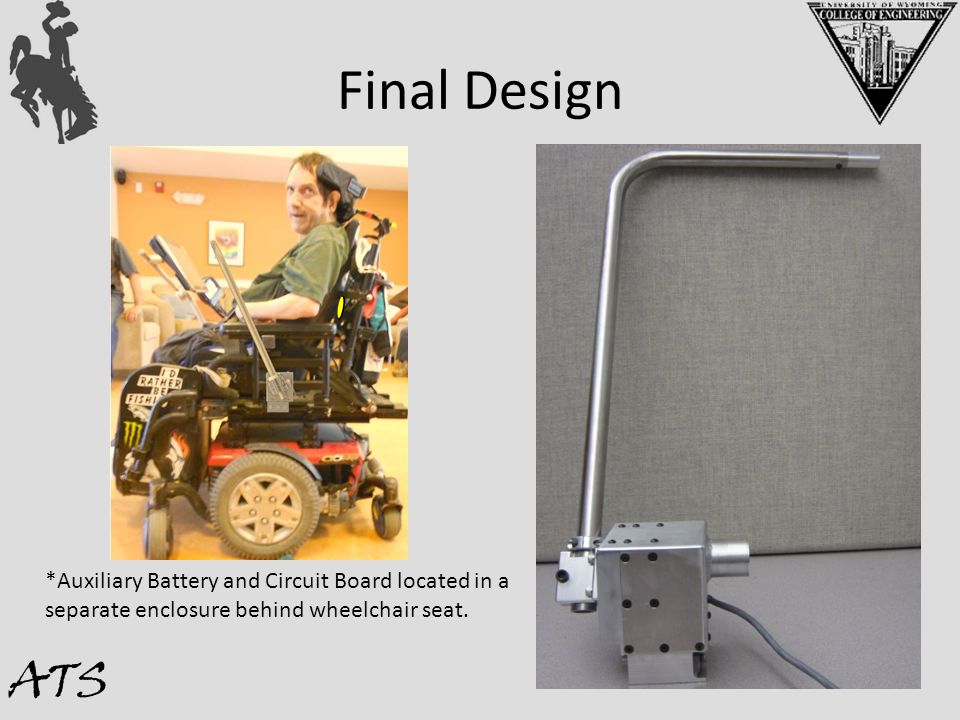

8. Final Design ATS *Auxiliary Battery and Circuit Board located in a separate enclosure behind wheelchair seat.

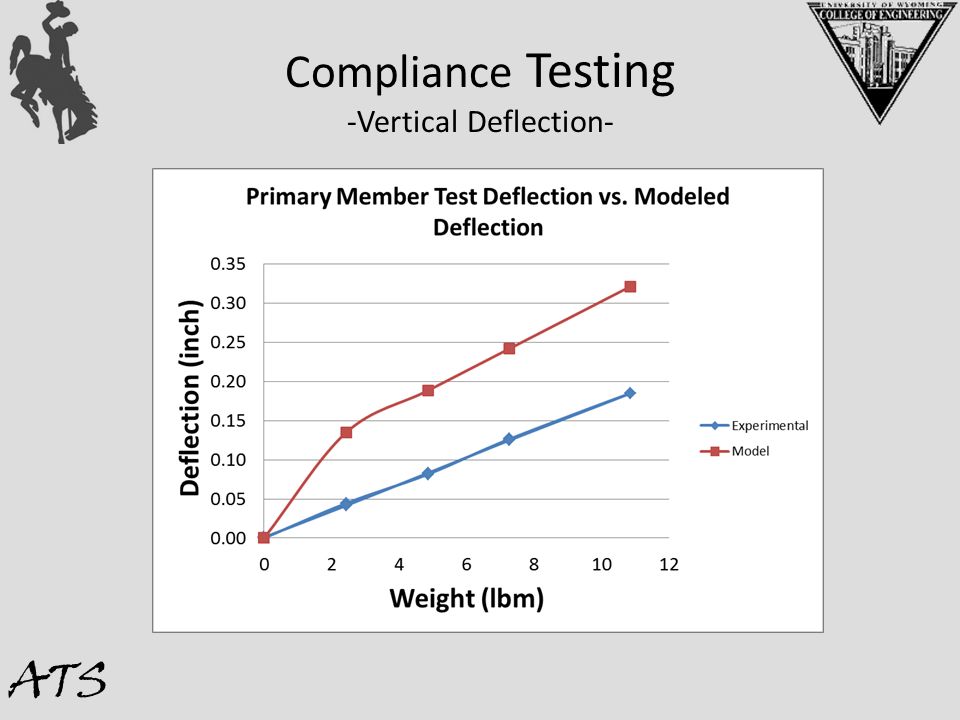

9. Compliance Testing -Vertical Deflection- ATS

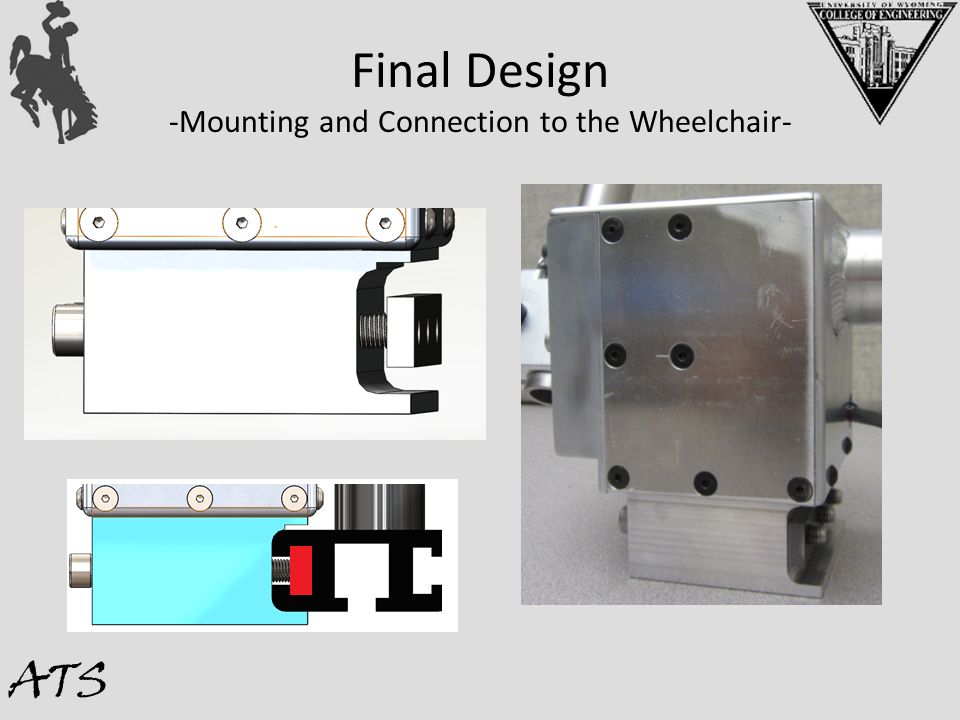

10. Final Design -Mounting and Connection to the Wheelchair- ATS

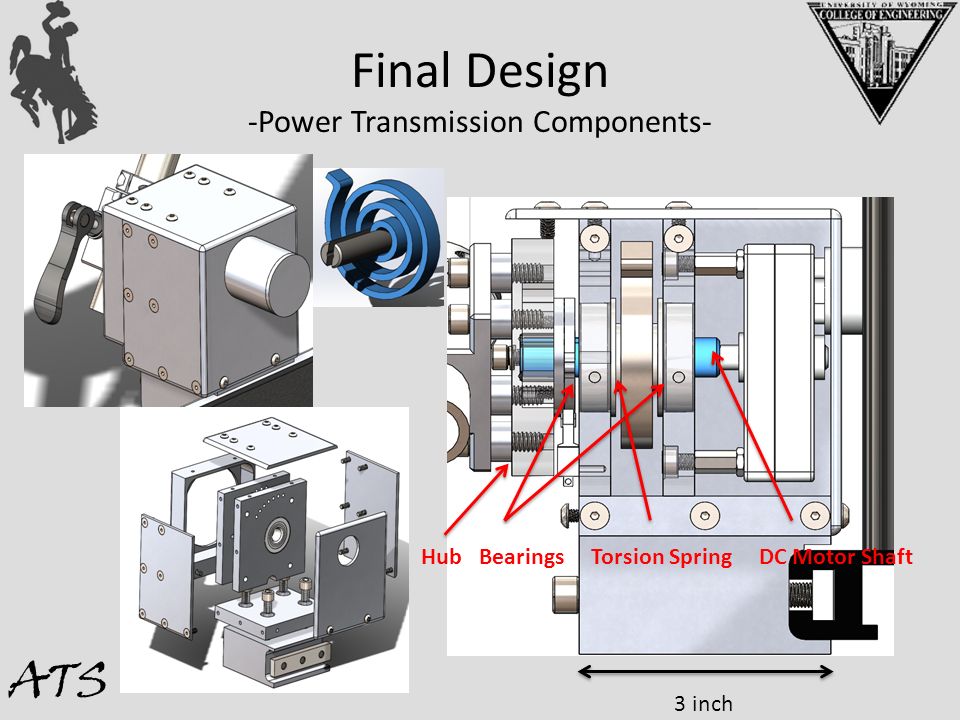

11. Final Design -Power Transmission Components- ATS Hub Bearings Torsion Spring DC Motor Shaft 3 inch

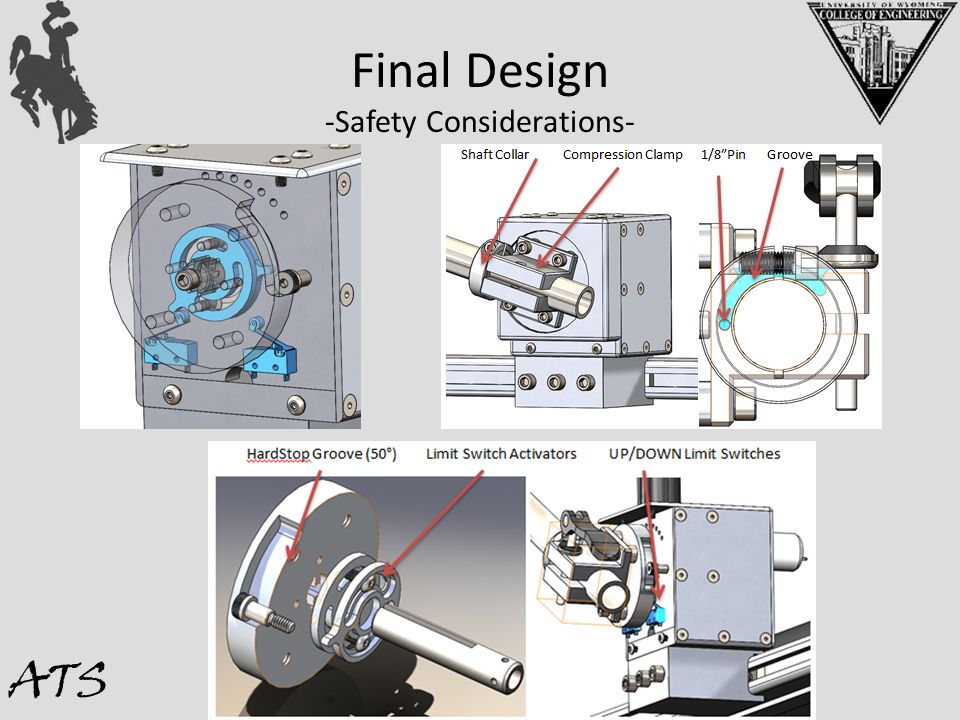

12. Final Design -Safety Considerations- ATS

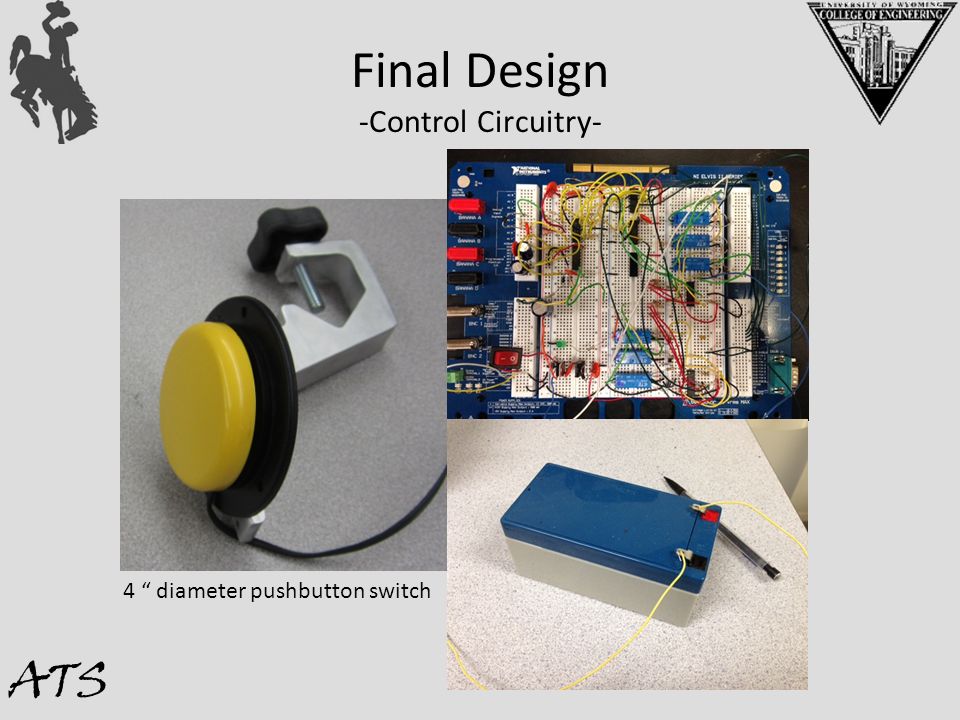

13. Final Design -Control Circuitry- ATS 4 “ diameter pushbutton switch

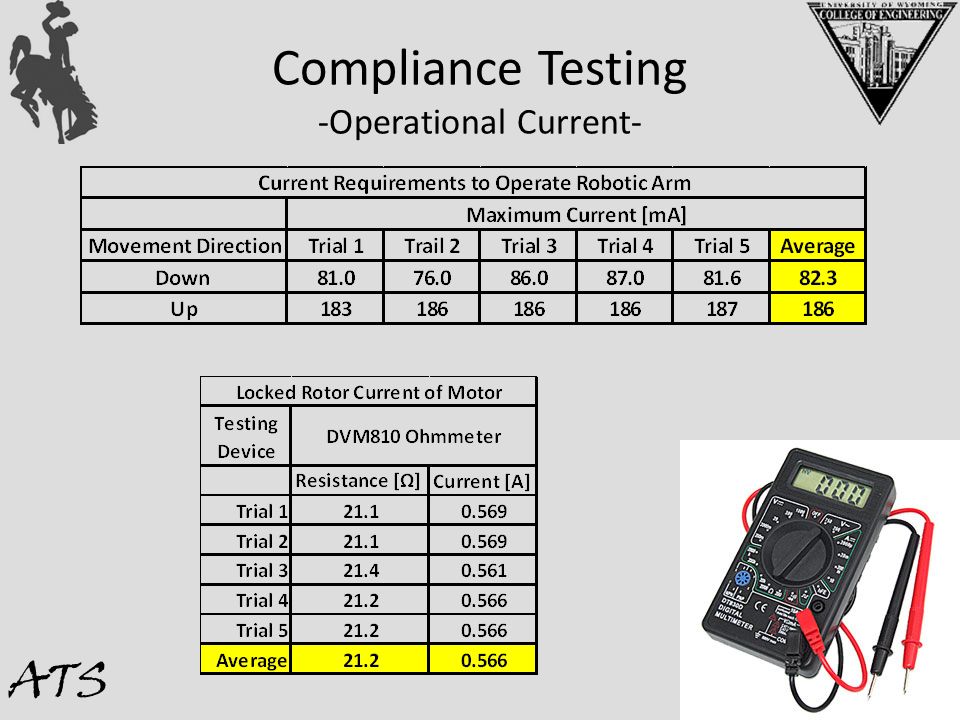

14. Compliance Testing -Operational Current- ATS

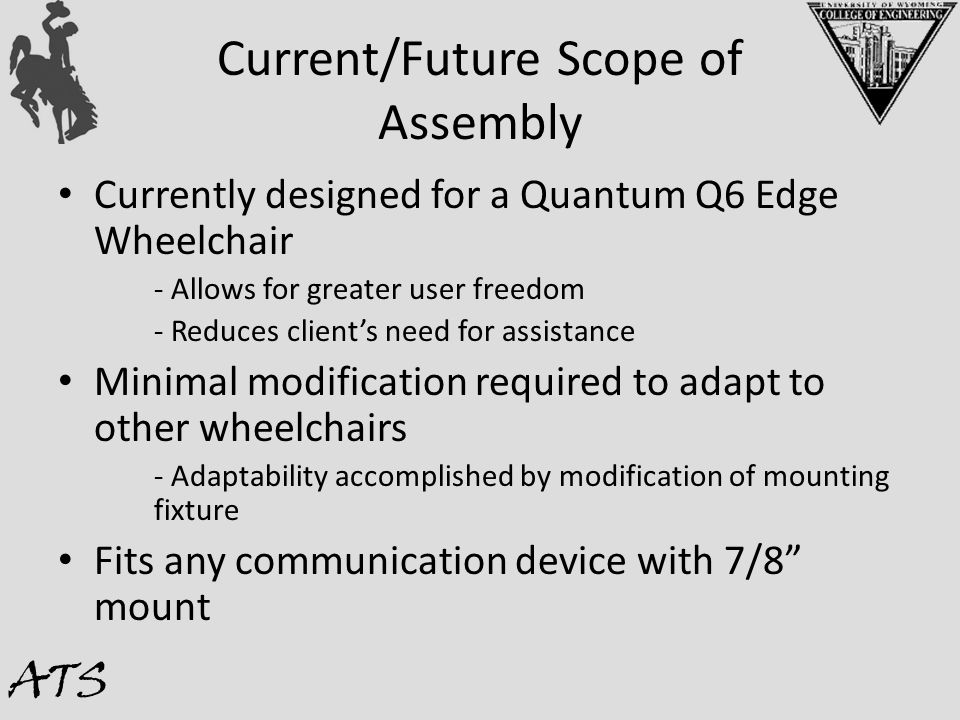

15. Current/Future Scope of Assembly Currently designed for a Quantum Q6 Edge Wheelchair - Allows for greater user freedom - Reduces client’s need for assistance Minimal modification required to adapt to other wheelchairs - Adaptability accomplished by modification of mounting fixture Fits any communication device with 7/8” mount ATS

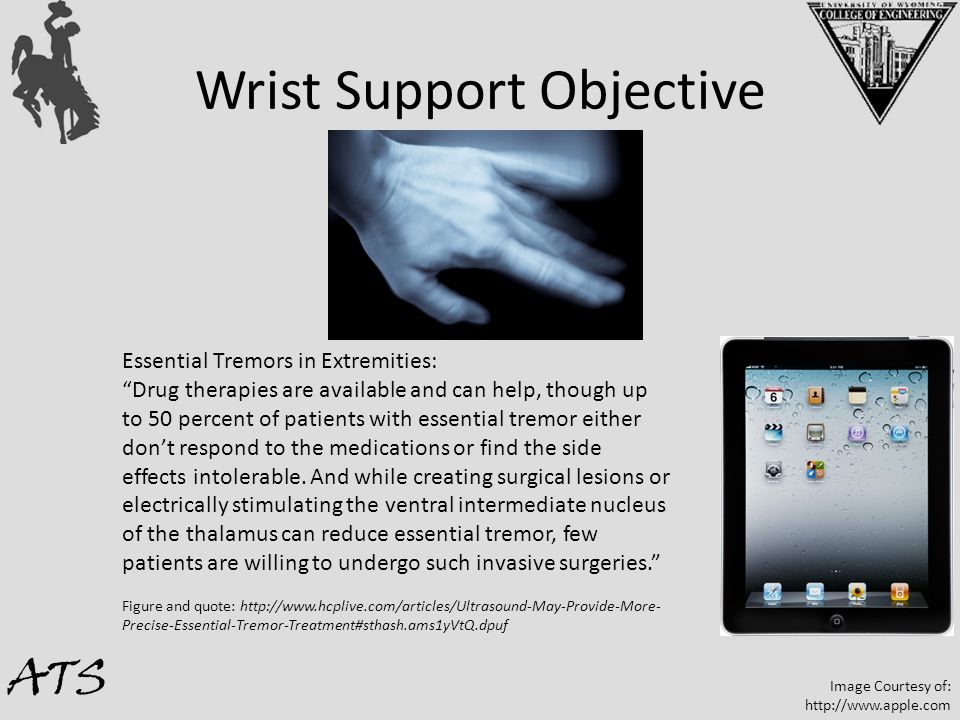

16. Wrist Support Objective ATS Image Courtesy of: http://www.apple.com Essential Tremors in Extremities: “Drug therapies are available and can help, though up to 50 percent of patients with essential tremor either don’t respond to the medications or find the side effects intolerable. And while creating surgical lesions or electrically stimulating the ventral intermediate nucleus of the thalamus can reduce essential tremor, few patients are willing to undergo such invasive surgeries.” Figure and quote: http://www.hcplive.com/articles/Ultrasound-May-Provide-More- Precise-Essential-Tremor-Treatment#sthash.ams1yVtQ.dpuf

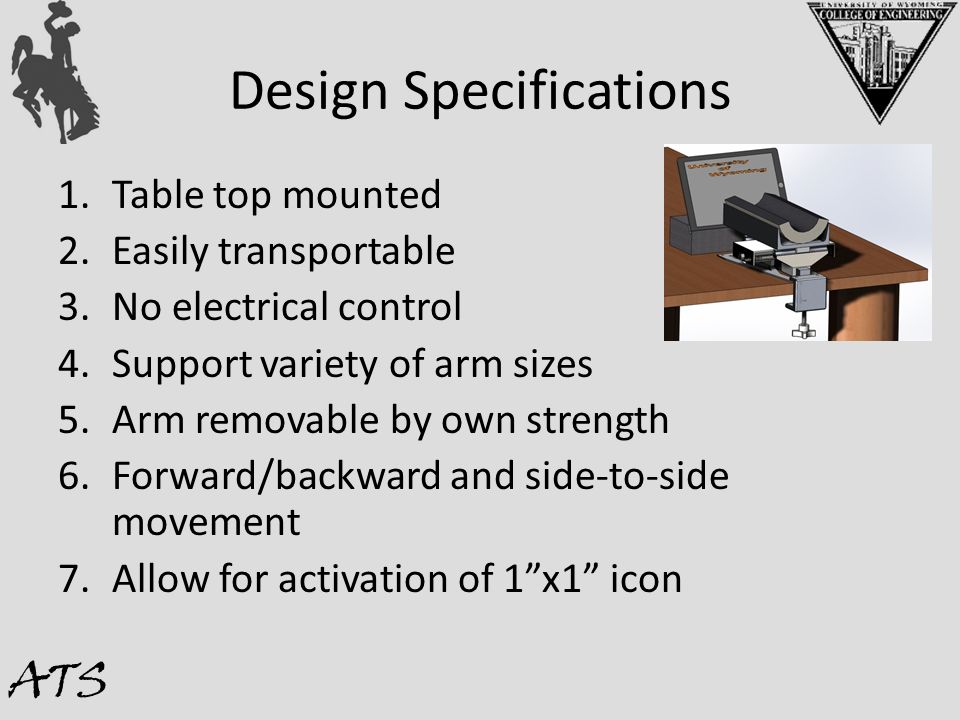

17. Design Specifications 1.Table top mounted 2.Easily transportable 3.No electrical control 4.Support variety of arm sizes 5.Arm removable by own strength 6.Forward/backward and side-to-side movement 7.Allow for activation of 1”x1” icon ATS

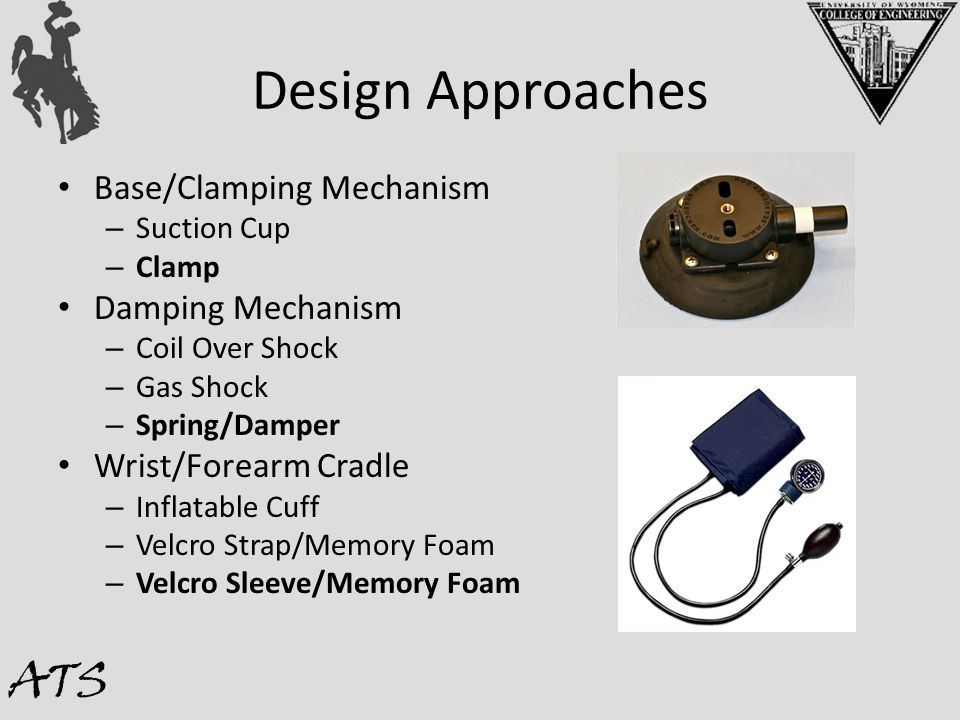

18. Design Approaches Base/Clamping Mechanism – Suction Cup – Clamp Damping Mechanism – Coil Over Shock – Gas Shock – Spring/Damper Wrist/Forearm Cradle – Inflatable Cuff – Velcro Strap/Memory Foam – Velcro Sleeve/Memory Foam ATS

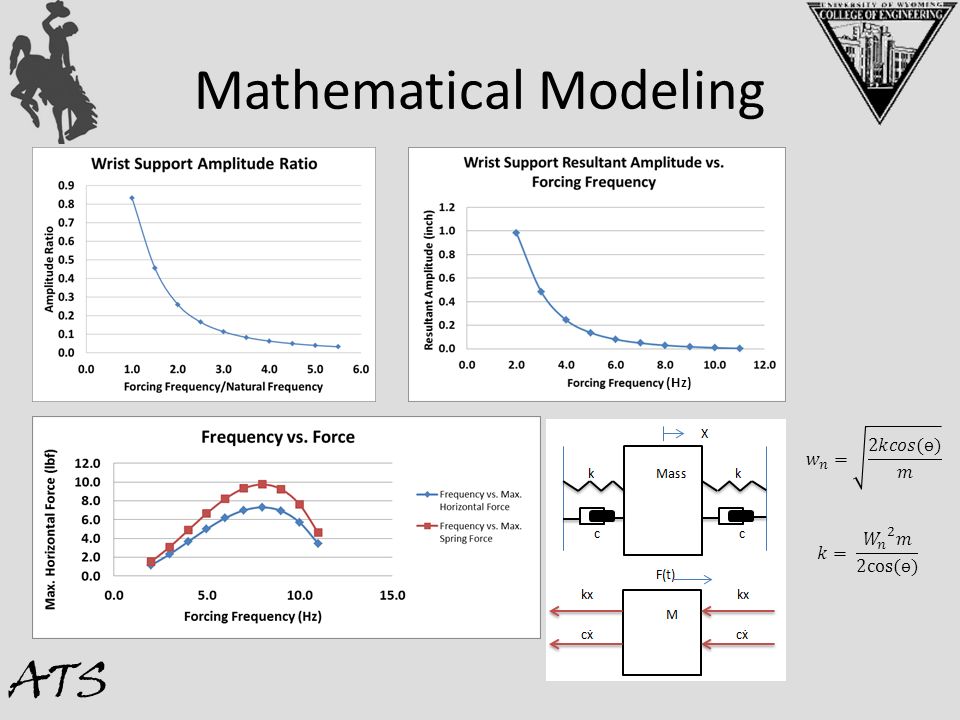

19. Mathematical Modeling ATS (Hz)

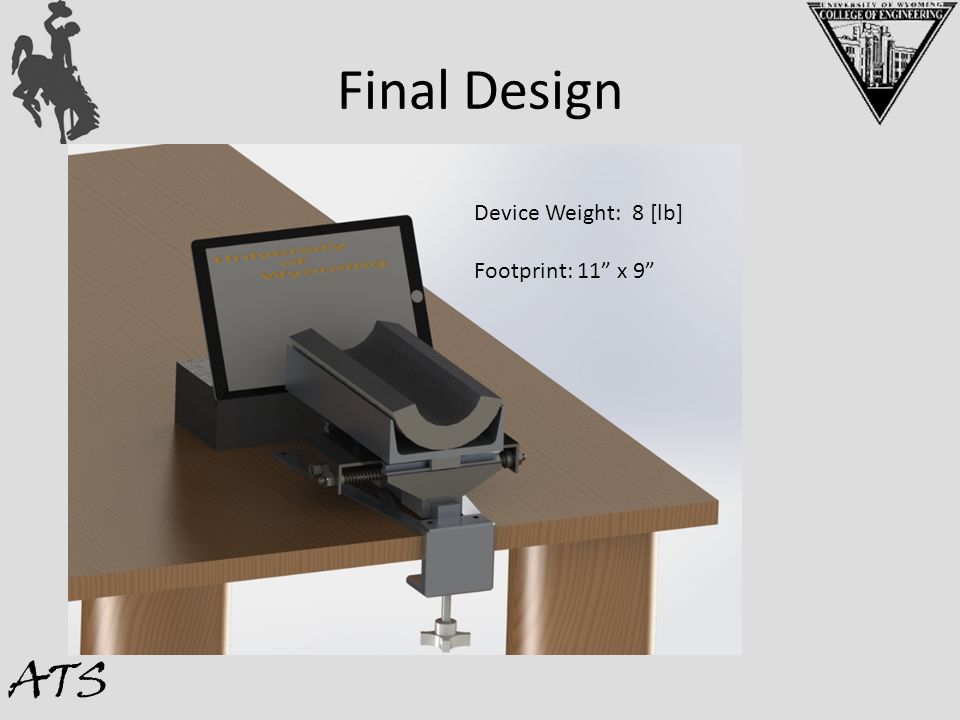

20. Final Design ATS Device Weight: 8 [lb] Footprint: 11” x 9”

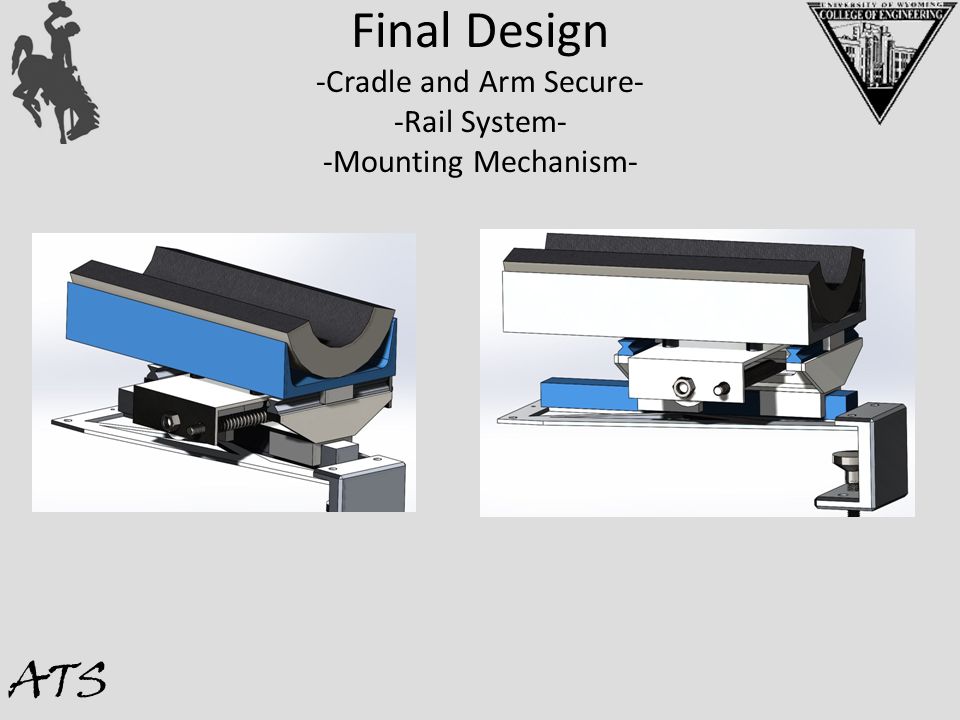

21. Final Design -Cradle and Arm Secure- -Rail System- -Mounting Mechanism- ATS

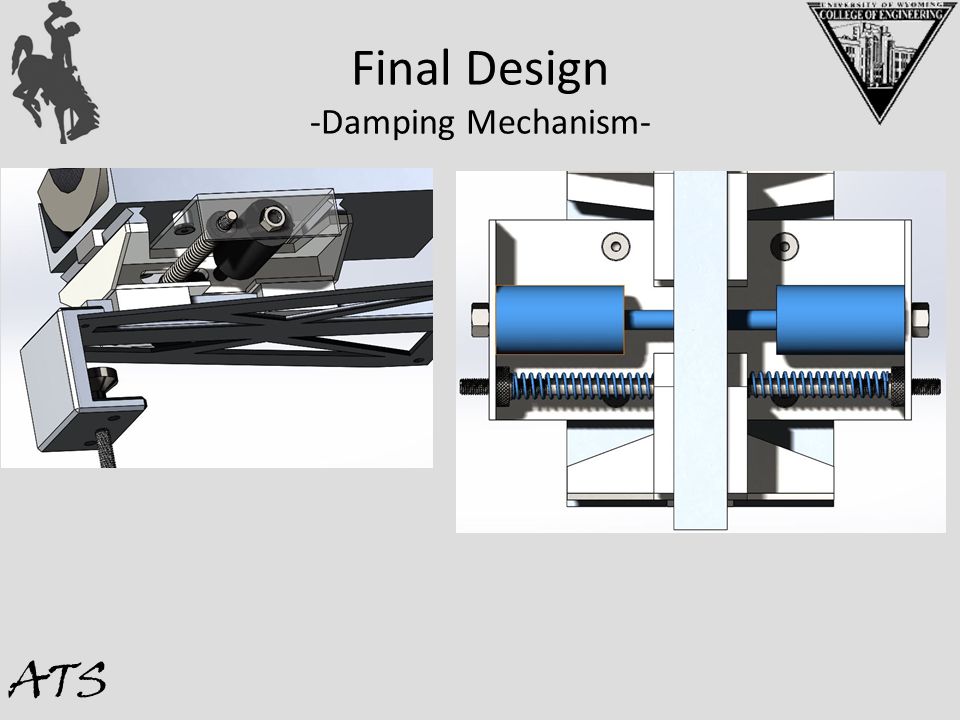

22. Final Design -Damping Mechanism- ATS

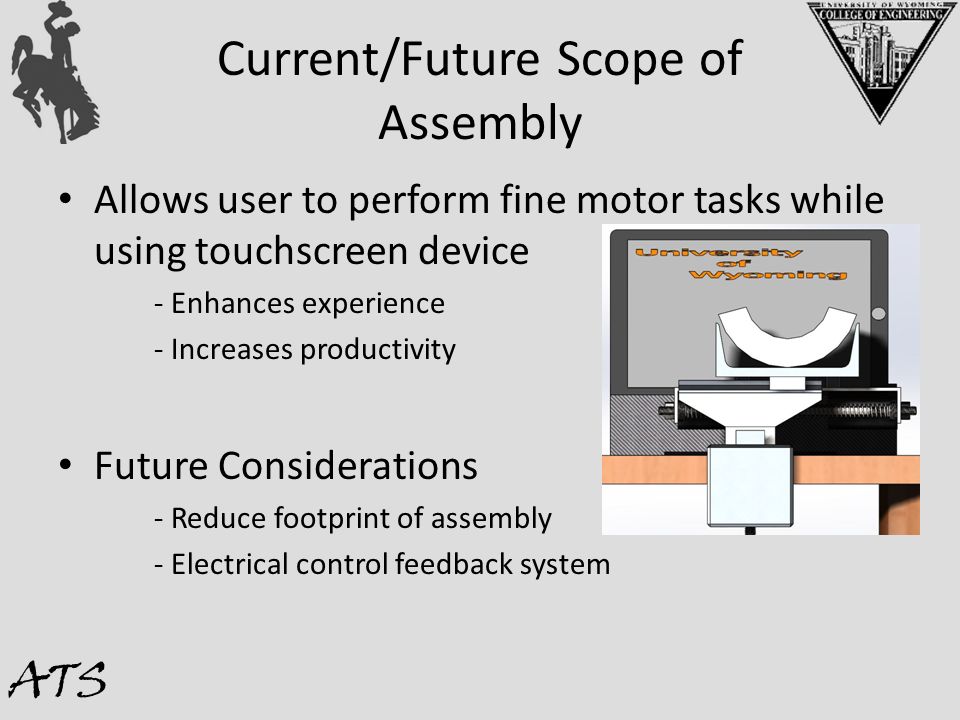

23. Current/Future Scope of Assembly Allows user to perform fine motor tasks while using touchscreen device - Enhances experience - Increases productivity Future Considerations - Reduce footprint of assembly - Electrical control feedback system ATS

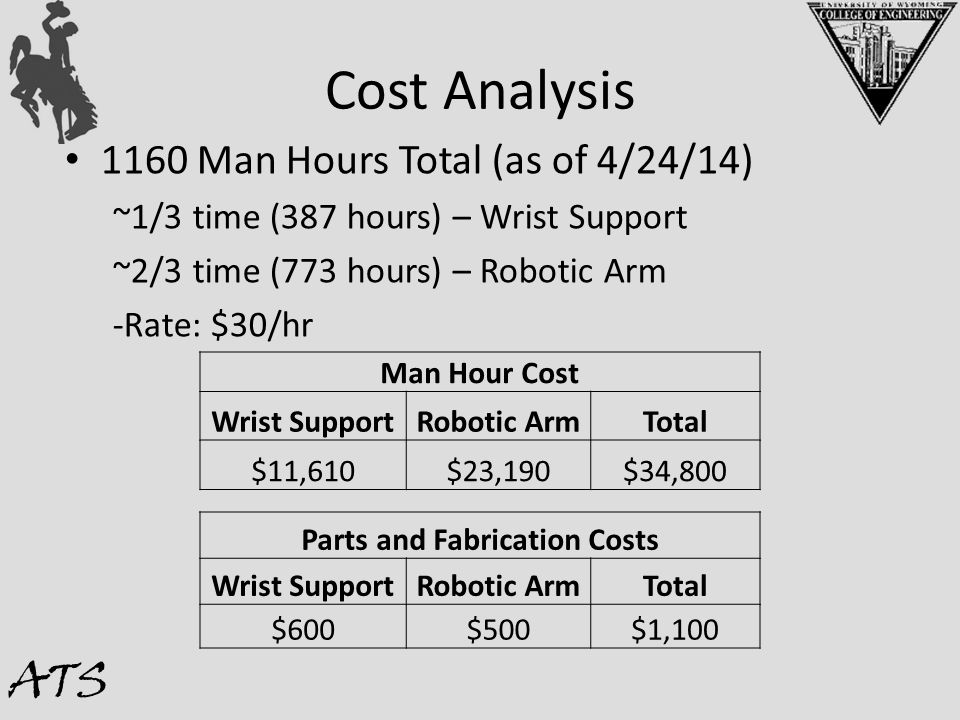

24. Cost Analysis 1160 Man Hours Total (as of 4/24/14) ~1/3 time (387 hours) – Wrist Support ~2/3 time (773 hours) – Robotic Arm -Rate: $30/hr ATS Man Hour Cost Wrist SupportRobotic ArmTotal $11,610$23,190$34,800 Parts and Fabrication Costs Wrist SupportRobotic ArmTotal $600$500$1,100

25. Conclusion Did we meet the design specifications? ATS Robotic Arm Specification Met? Move 3 lb. Communication Device Up/DownYES Single Pushbutton ControlYES Not exceed 6" from side of wheelchairYES Easily RemovableYES No Wiring HarnessesYES No Wheelchair AlterationsYES Wrist Support Specification Met? Table Top MountedYES No Electrical ControlYES Support Variety of IndividualsYES Arm Removable by Own StrengthYES Forward/Backward & Side-to-Side MovementYES Ability to Activate 1"x1" IconYES TransportableYES

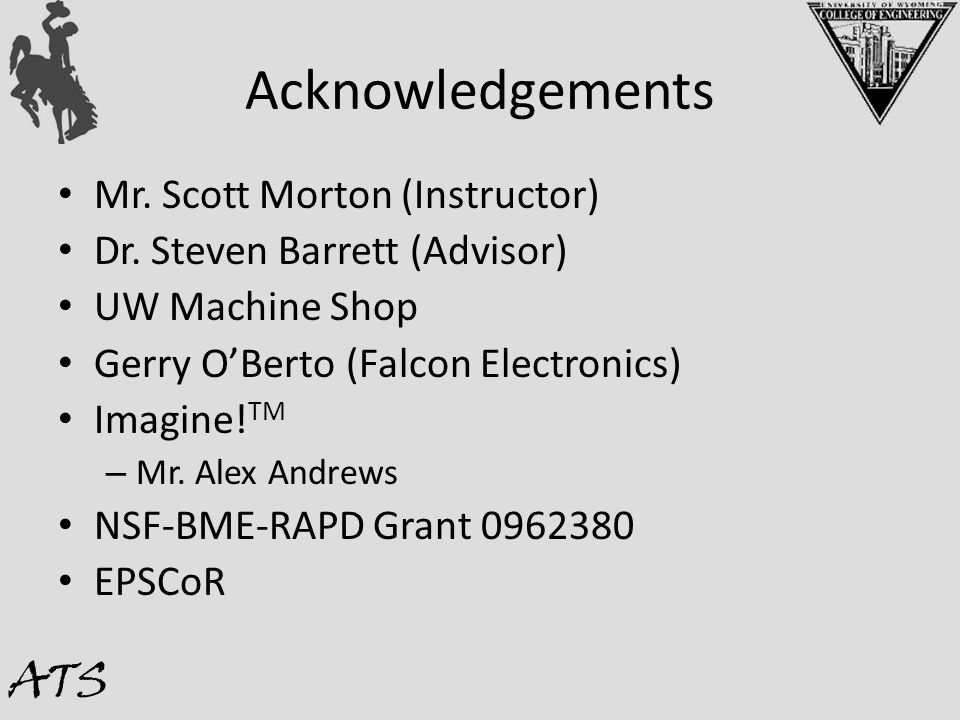

26. Acknowledgements Mr. Scott Morton (Instructor) Dr. Steven Barrett (Advisor) UW Machine Shop Gerry O’Berto (Falcon Electronics) Imagine! TM – Mr. Alex Andrews NSF-BME-RAPD Grant 0962380 EPSCoR ATS

27. Questions? ATS
