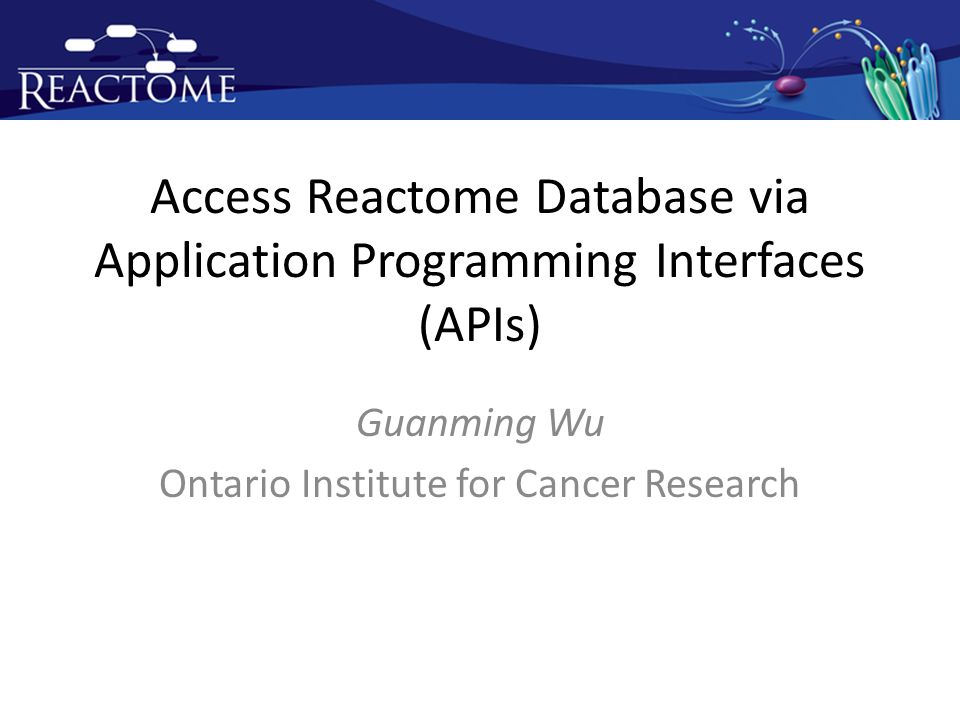

1. Access Reactome Database via Application Programming Interfaces (APIs) Guanming Wu Ontario Institute for Cancer Research

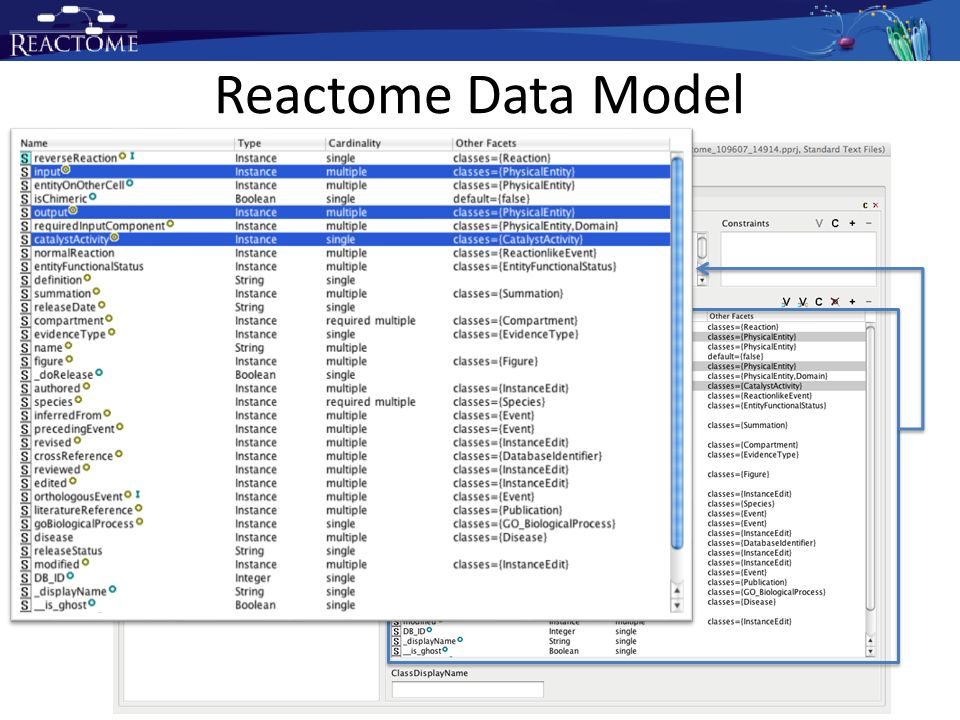

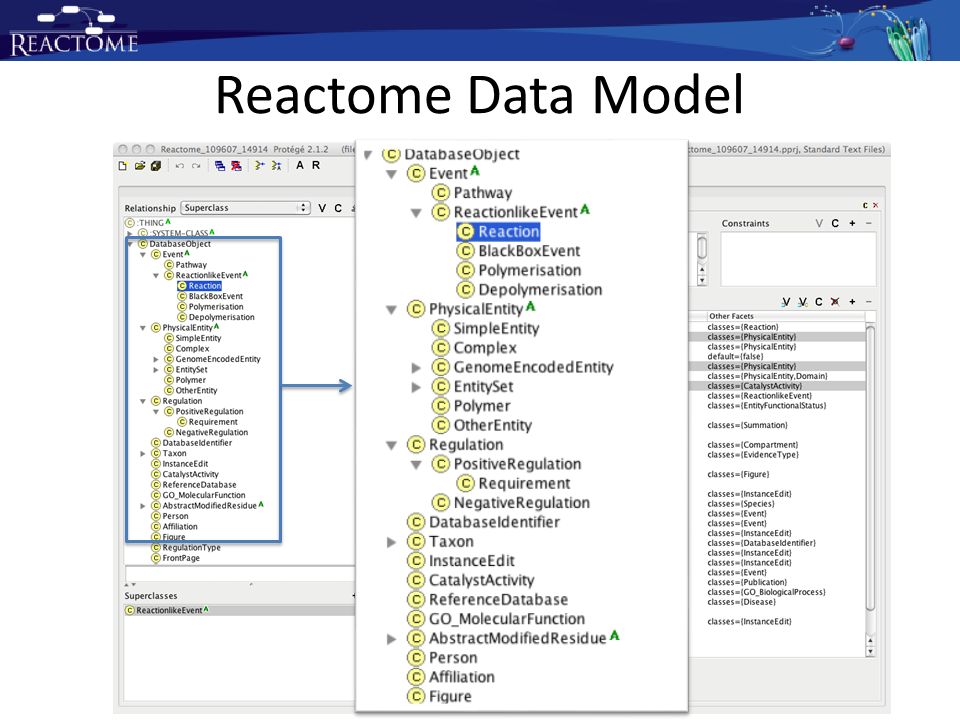

2. Reactome Data Model

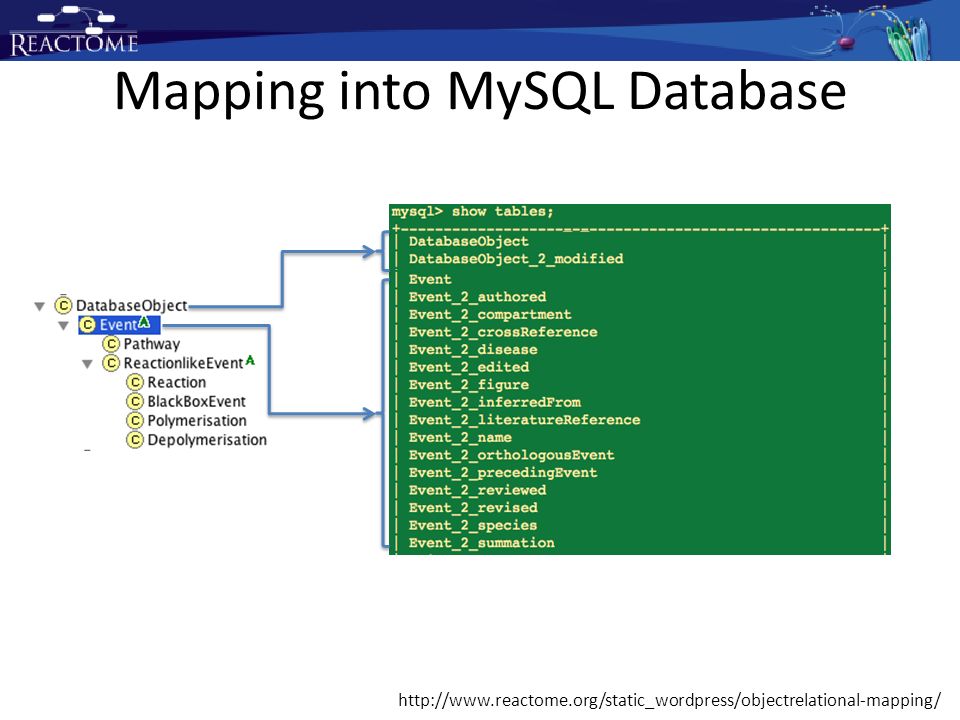

4. Mapping into MySQL Database http://www.reactome.org/static_wordpress/objectrelational-mapping/

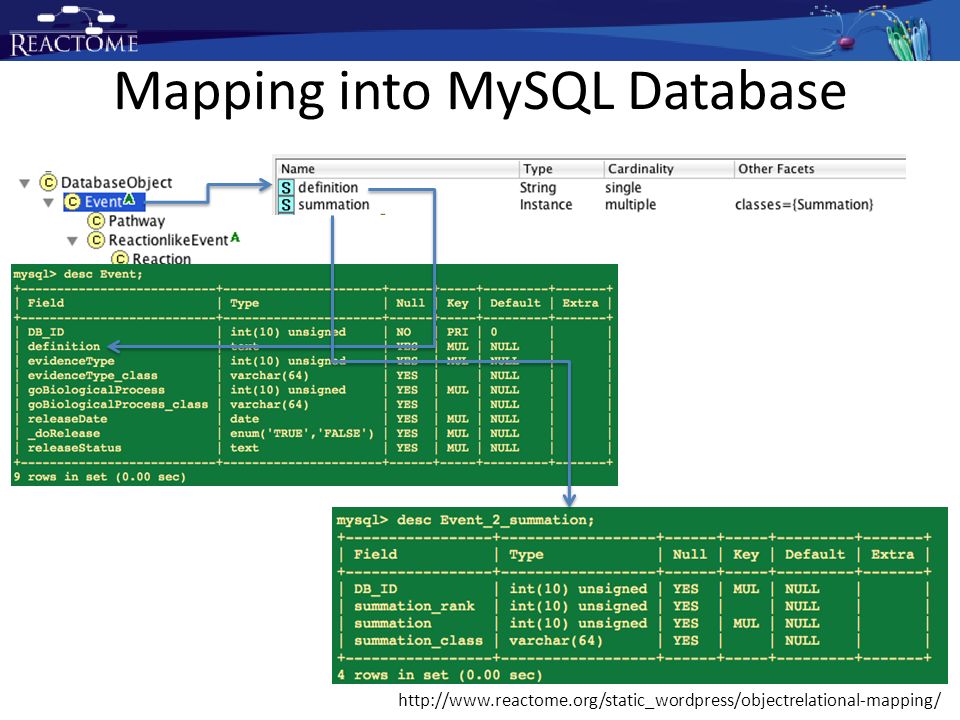

5. Mapping into MySQL Database http://www.reactome.org/static_wordpress/objectrelational-mapping/

6. Reactome APIs Java API Perl API SOAP API RESTful API

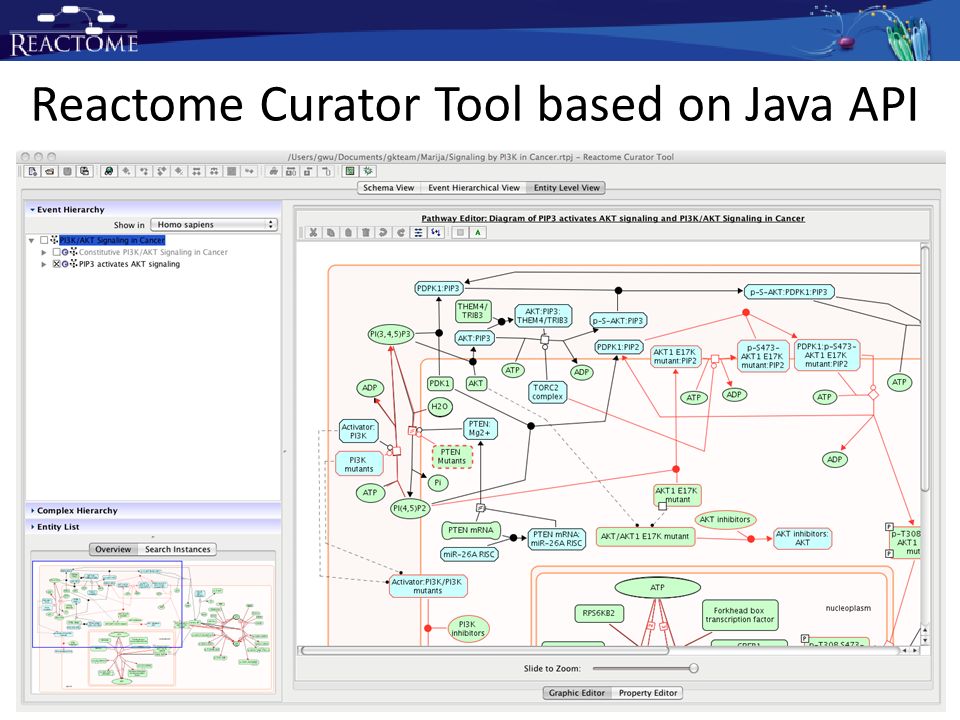

7. Reactome Curator Tool based on Java API

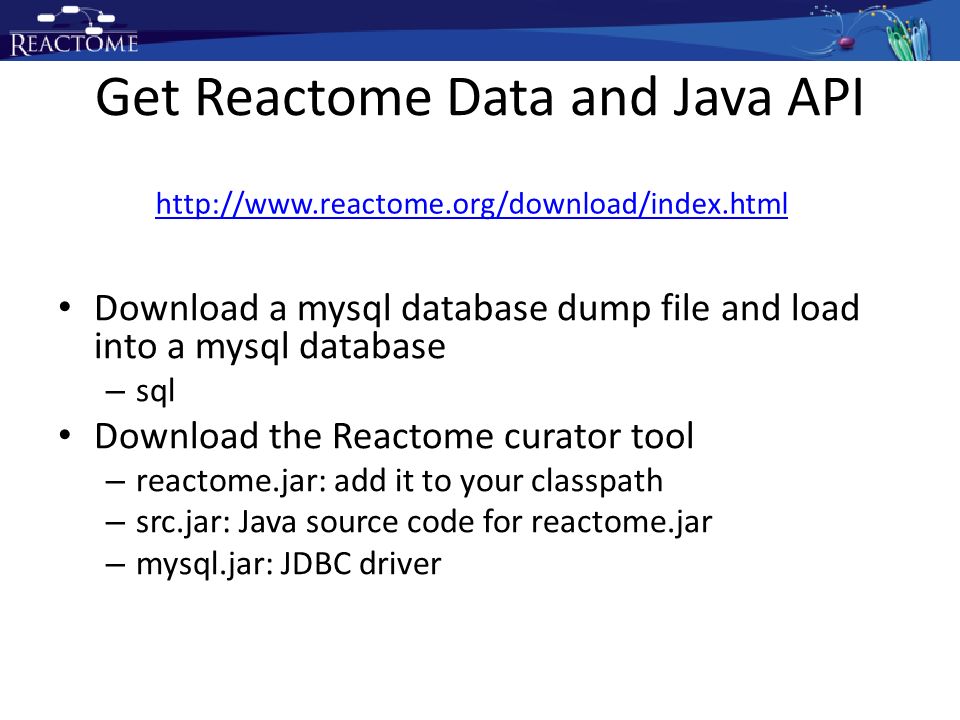

8. Get Reactome Data and Java API Download a mysql database dump file and load into a mysql database – sql Download the Reactome curator tool – reactome.jar: add it to your classpath – src.jar: Java source code for reactome.jar – mysql.jar: JDBC driver http://www.reactome.org/download/index.html

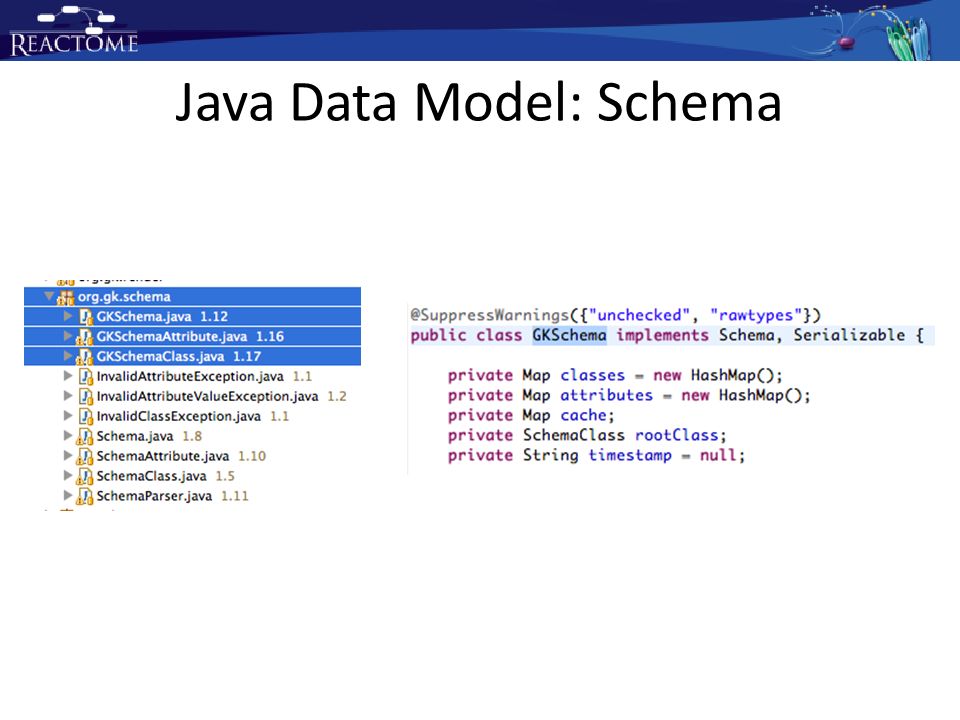

9. Java Data Model: Schema

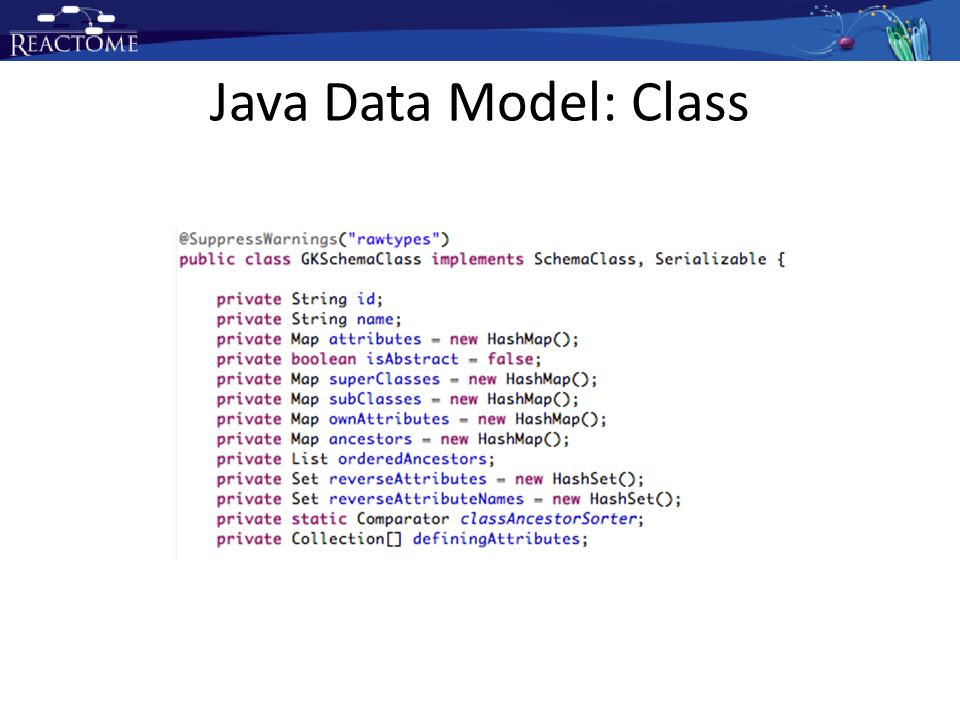

10. Java Data Model: Class

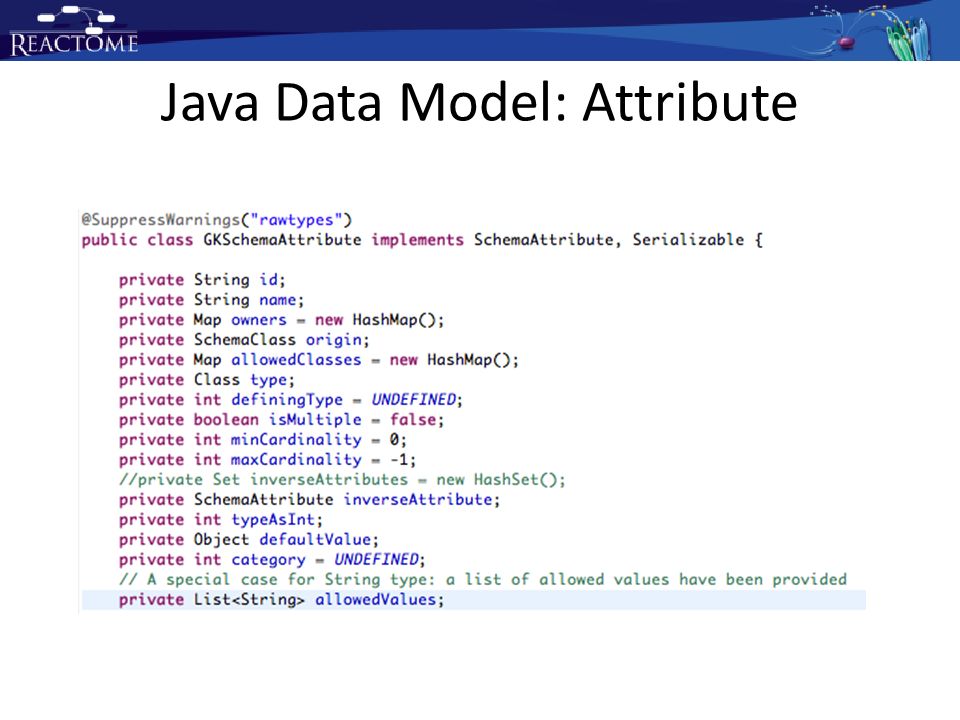

11. Java Data Model: Attribute

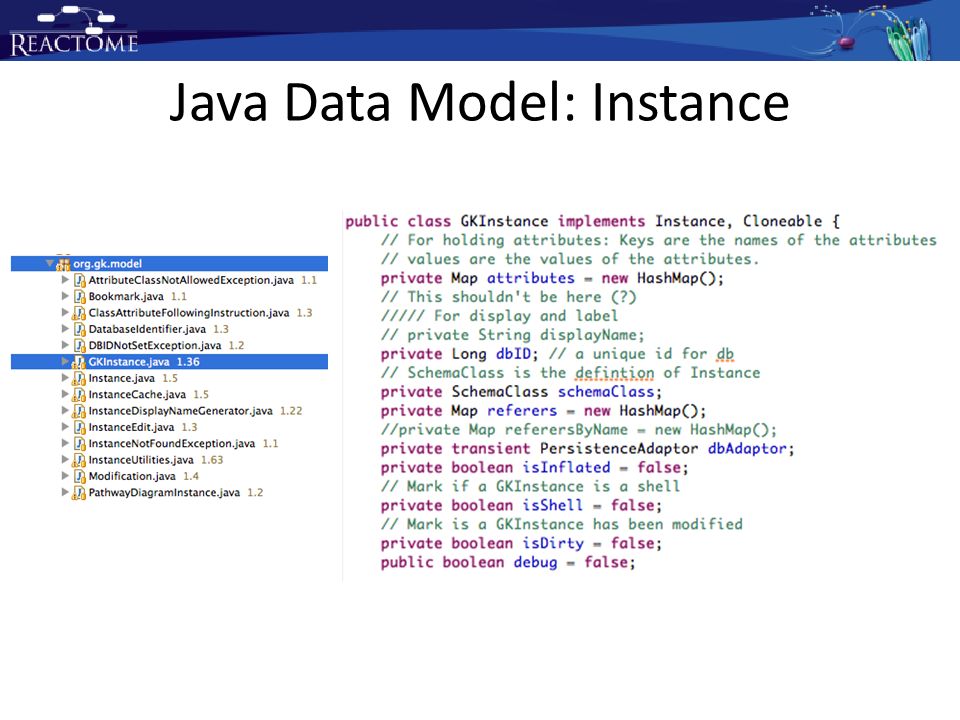

12. Java Data Model: Instance

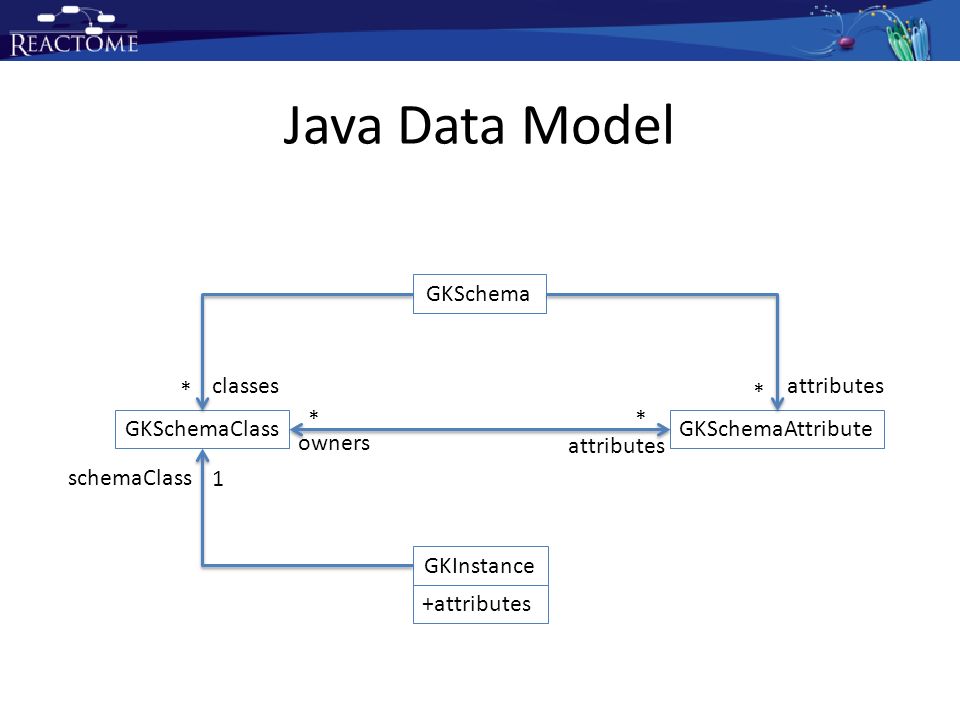

13. Java Data Model GKSchema GKSchemaClassGKSchemaAttribute GKInstance * classes * attributes * * owners +attributes 1 schemaClass

14. Connect to the Database

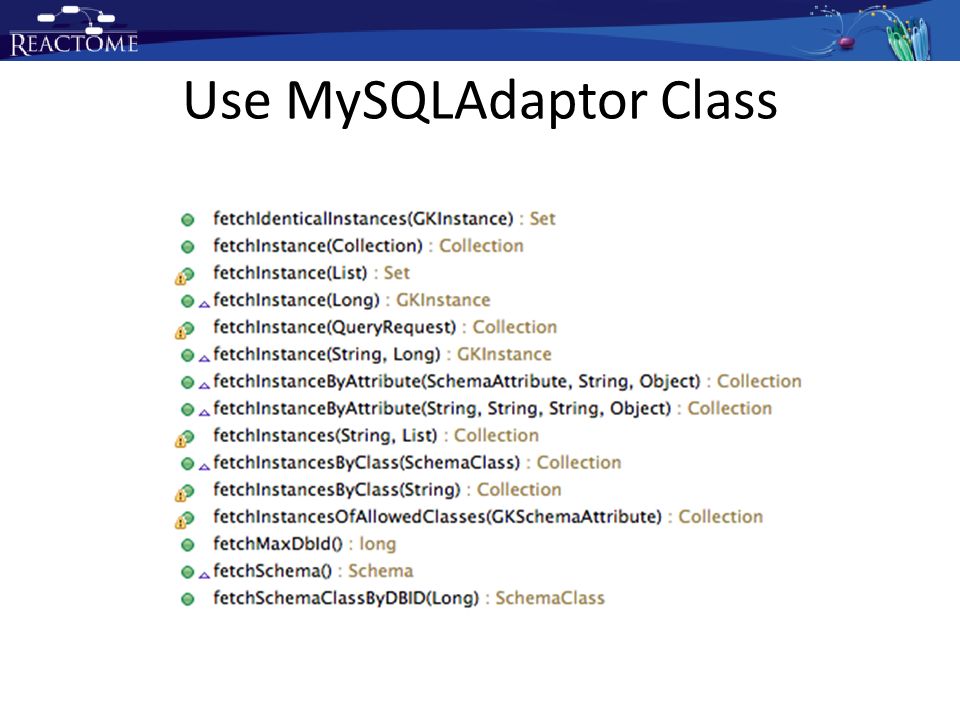

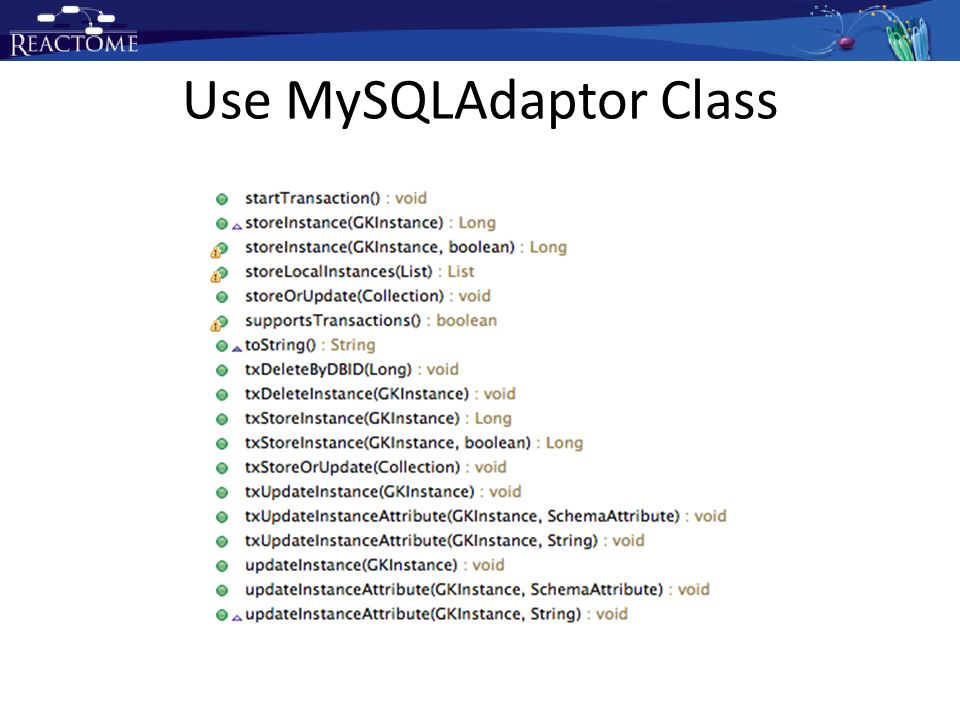

15. Use MySQLAdaptor Class

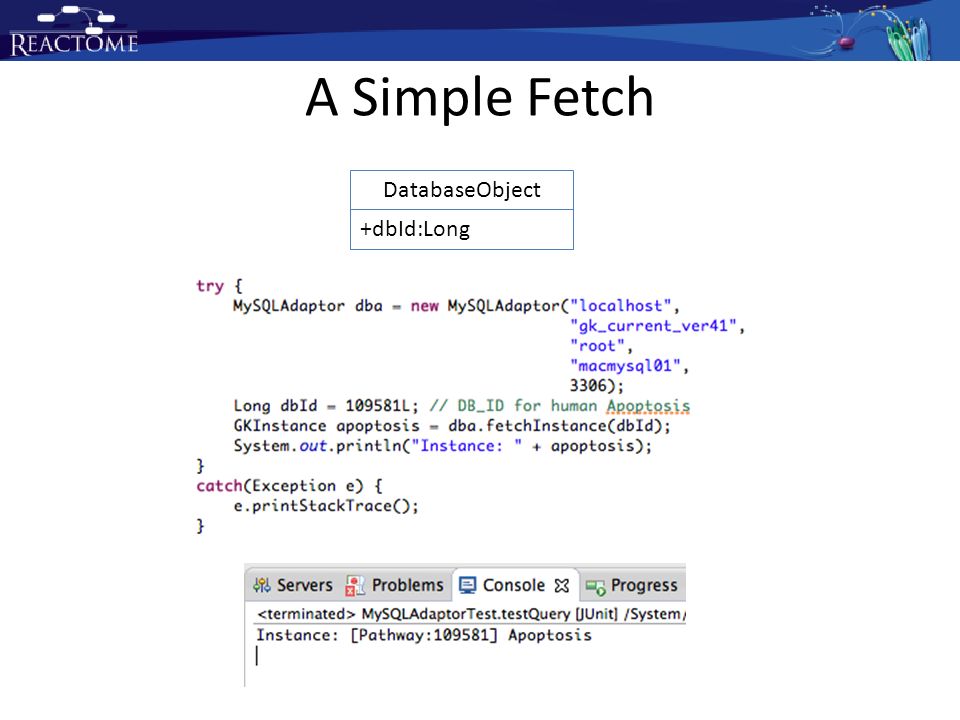

17. A Simple Fetch DatabaseObject +dbId:Long

18. Attribute based Query DatabaseObject +dbId:Long +displayName:String subclass Event Pathway subclass

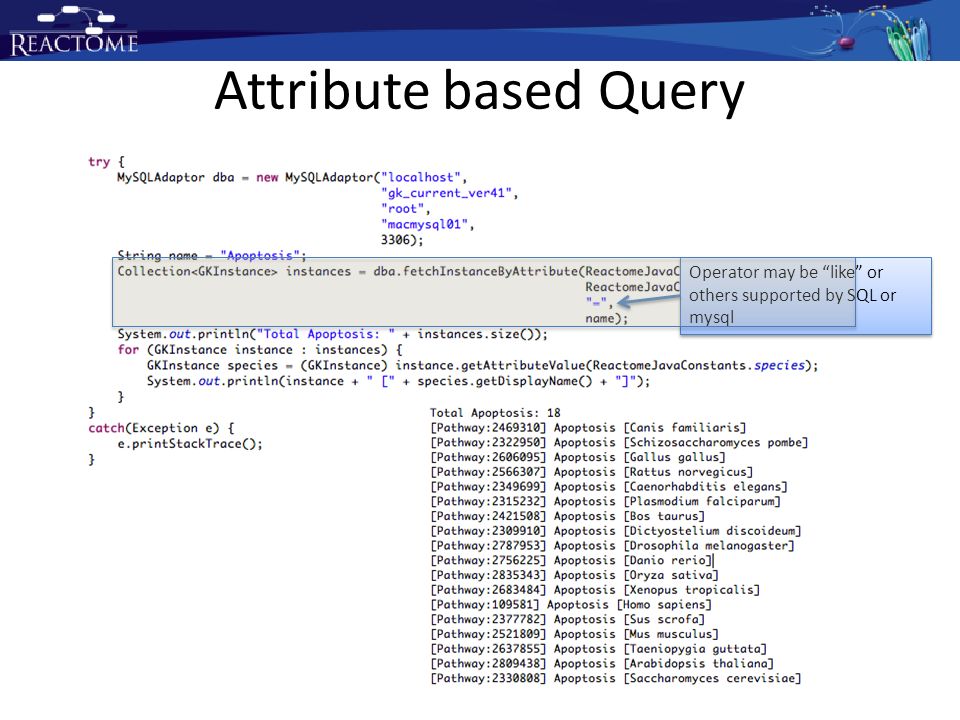

19. Attribute based Query Operator may be “like” or others supported by SQL or mysql

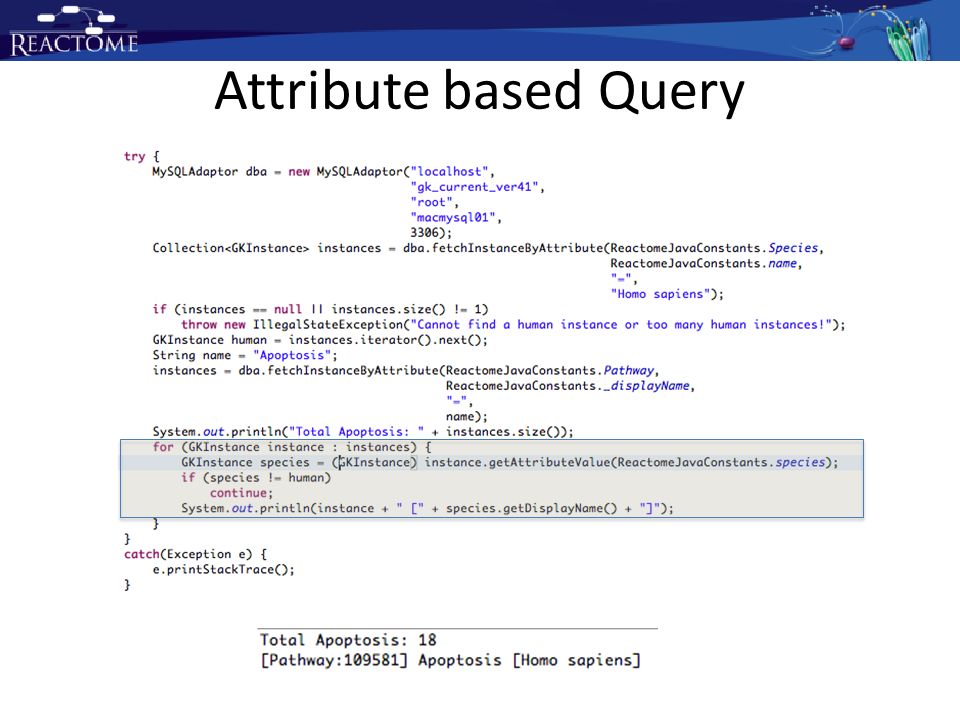

20. Attribute based Query

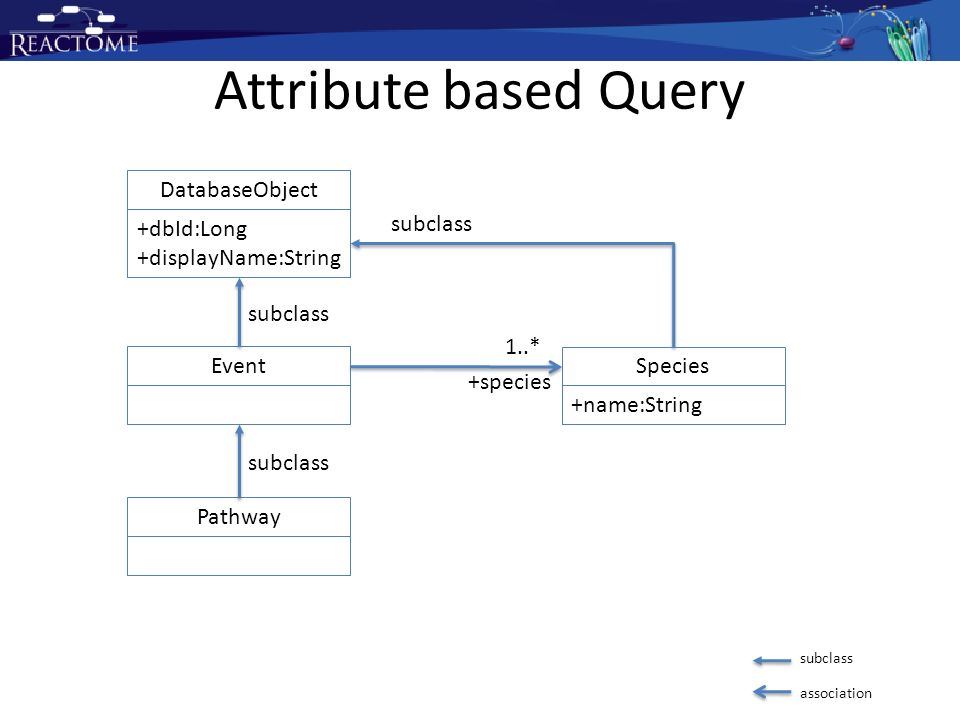

21. DatabaseObject +dbId:Long +displayName:String Event Pathway subclass Species +name:String subclass 1..* +species subclass association

22. Attribute based Query

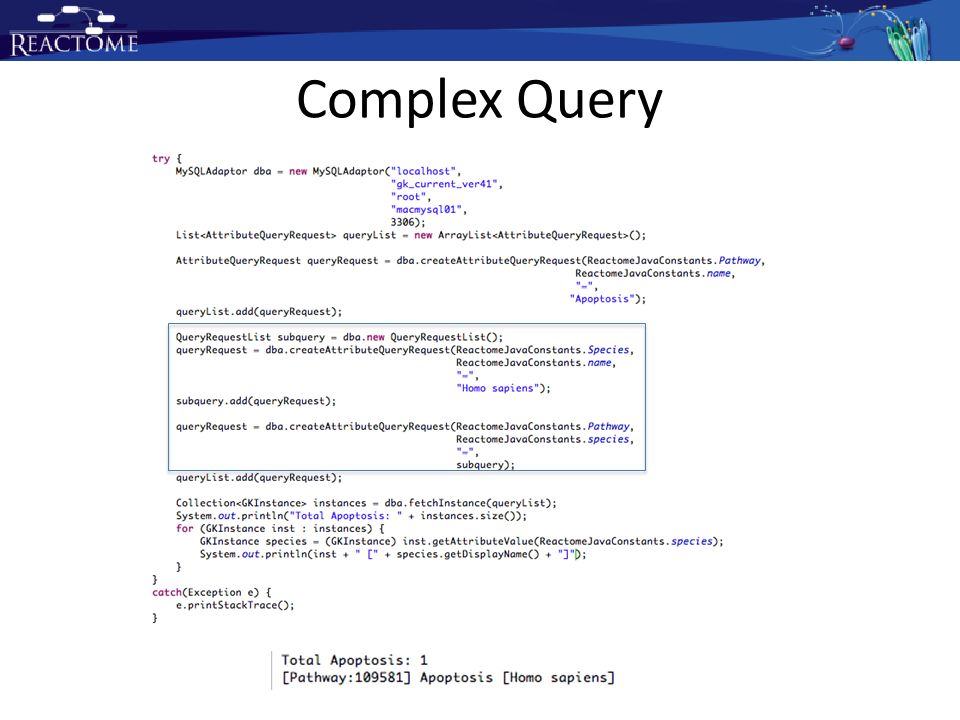

23. Complex Query

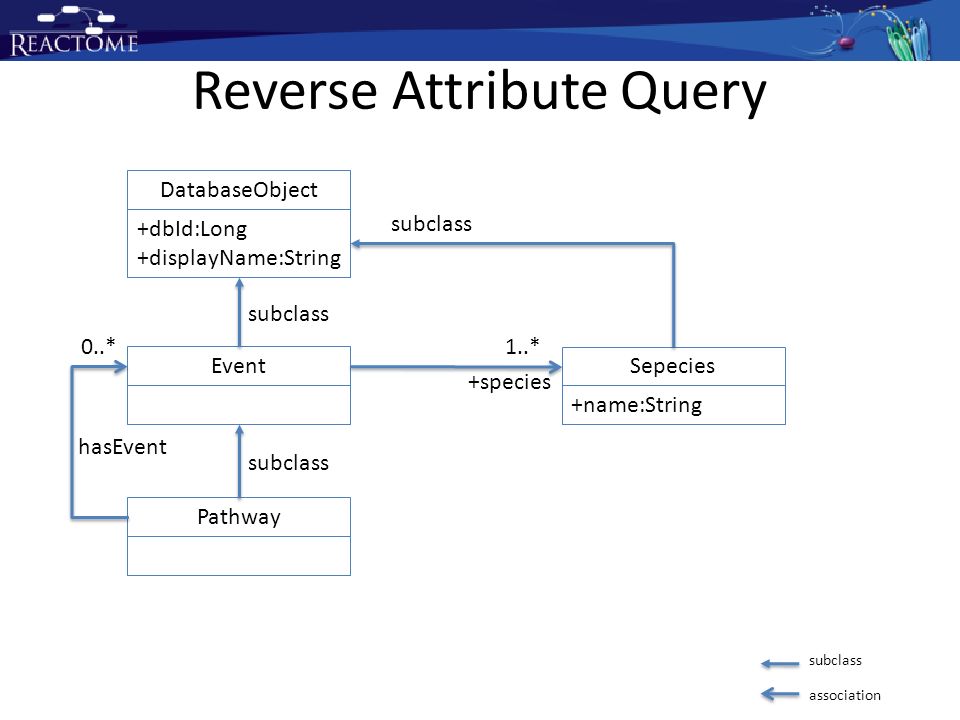

24. Reverse Attribute Query DatabaseObject +dbId:Long +displayName:String Event Pathway subclass Sepecies +name:String subclass 1..* +species 0..* hasEvent subclass association

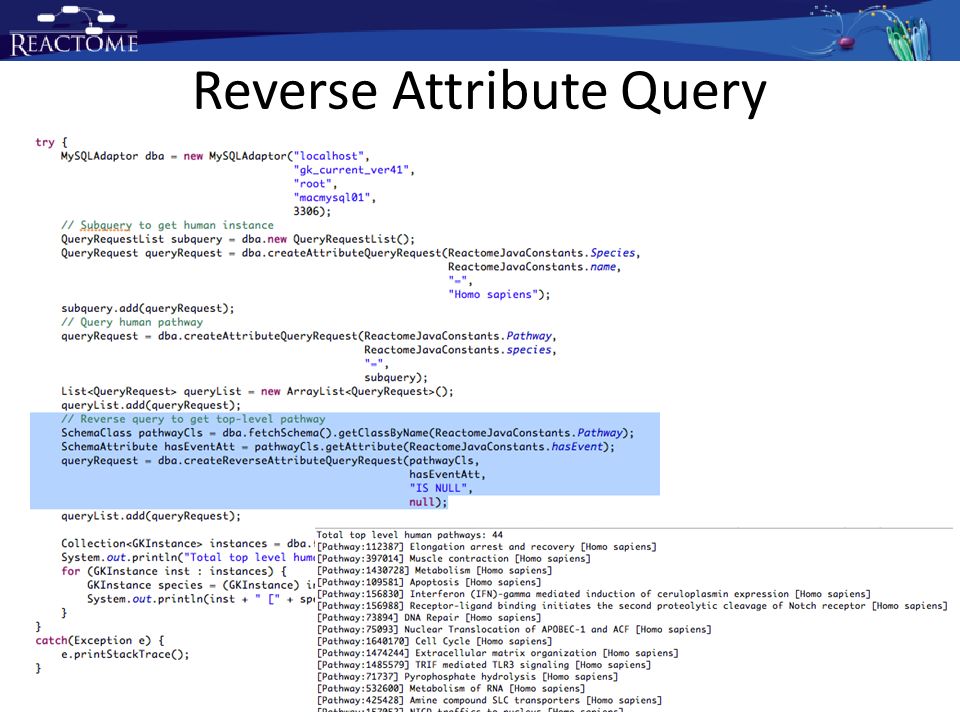

25. Reverse Attribute Query

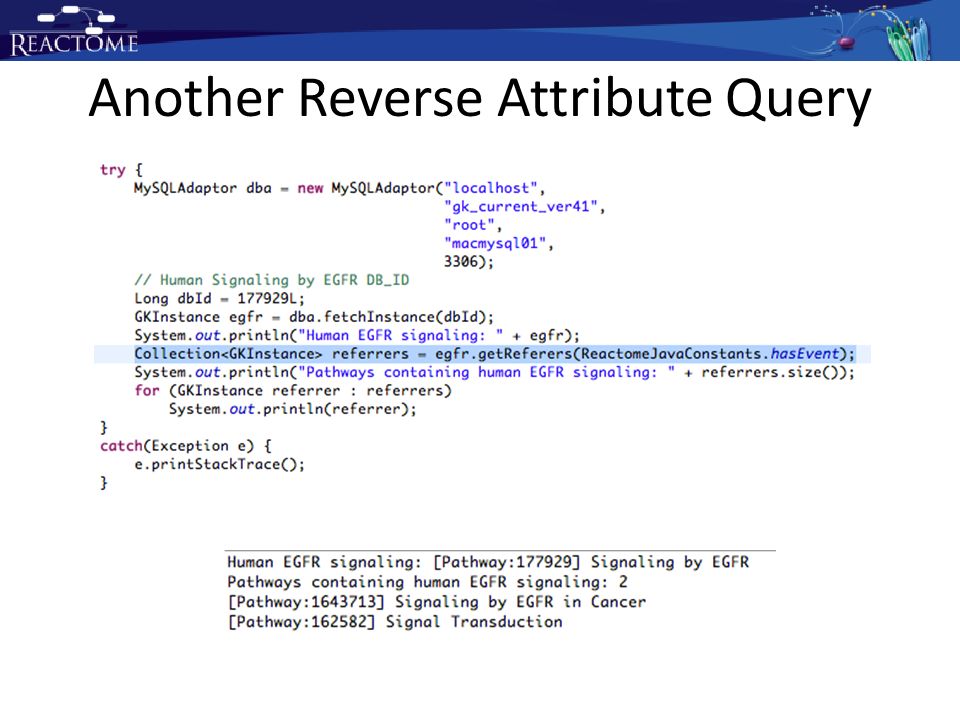

26. Another Reverse Attribute Query

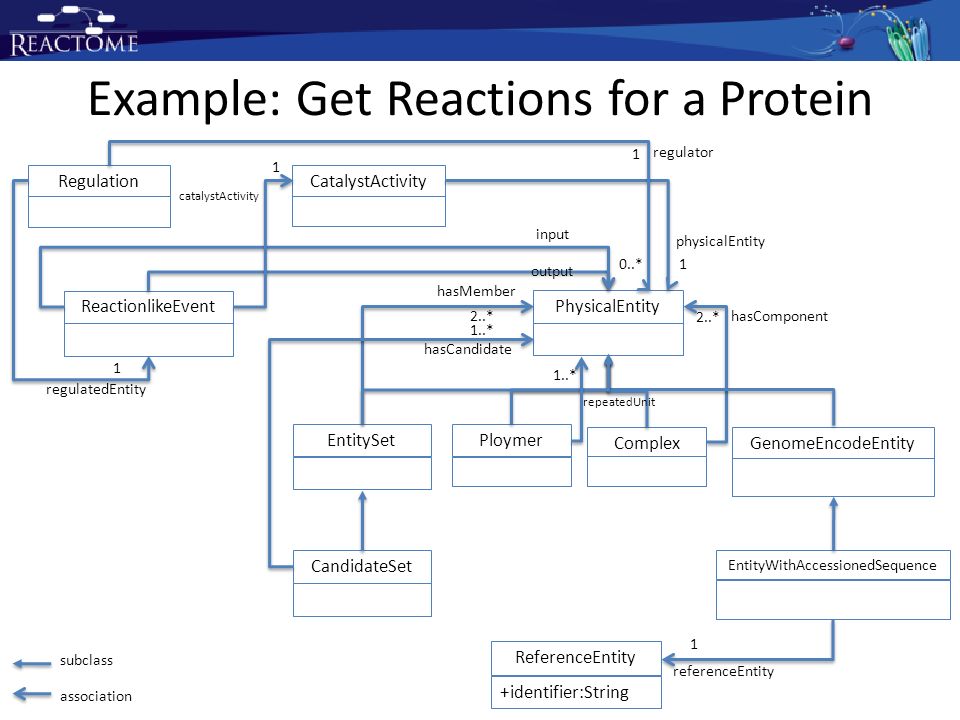

27. Example: Get Reactions for a Protein ReactionlikeEventPhysicalEntity EntityWithAccessionedSequence CandidateSet ReferenceEntity +identifier:String 1 referenceEntity hasComponent 2..* hasMember hasCandidate 1..* input 0..* output Complex EntitySet GenomeEncodeEntity Ploymer repeatedUnit 1..* CatalystActivity catalystActivity 1 physicalEntity 1 Regulation regulatedEntity 1 regulator 1 subclass association

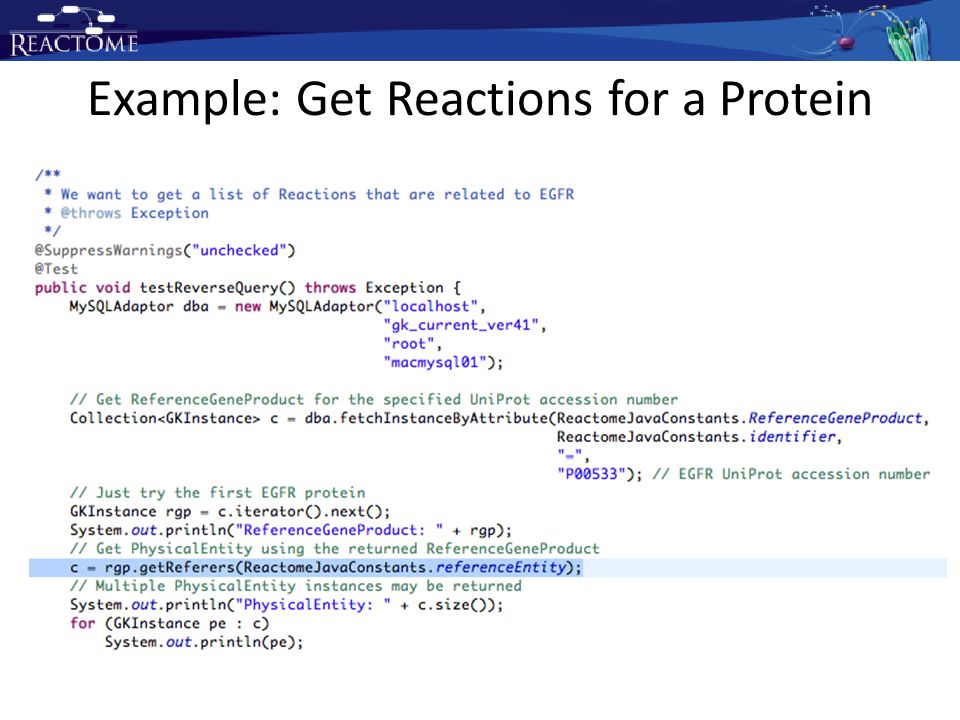

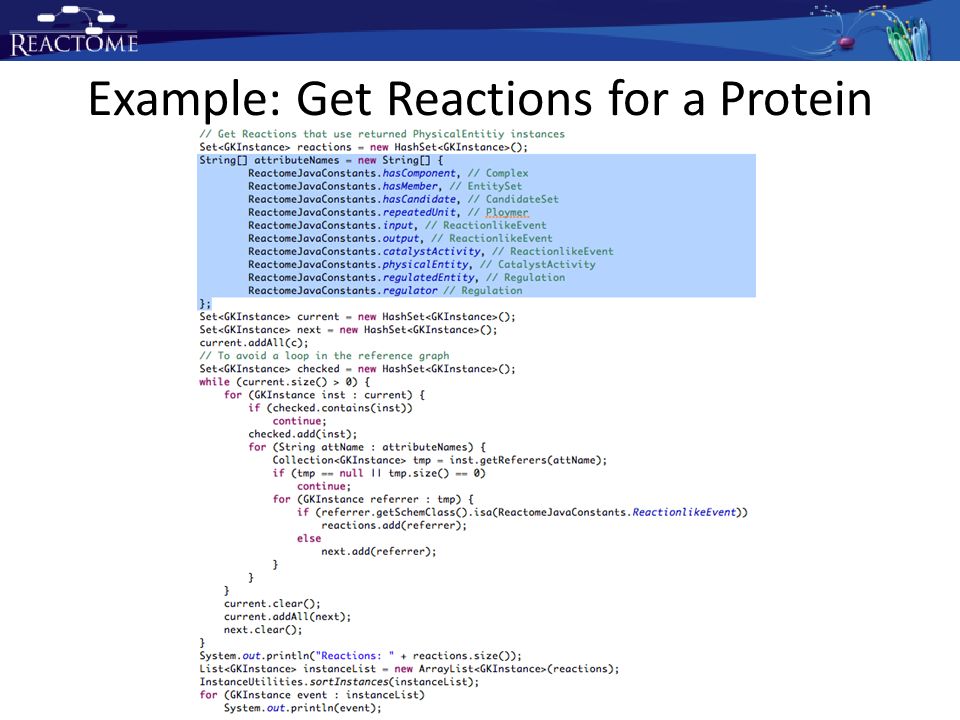

28. Example: Get Reactions for a Protein

30. ReferenceGeneProduct: [ReferenceGeneProduct:54208] UniProt:P00533 EGFR PhysicalEntity: 57 [EntityWithAccessionedSequence:1996343] p-6Y-EGFR M766_A767insASV mutant [plasma membrane] [EntityWithAccessionedSequence:1248649] Phospho-EGFRvIIImut [plasma membrane] [EntityWithAccessionedSequence:1996341] p-6Y-EGFR A289T mutant [plasma membrane] [EntityWithAccessionedSequence:1181399] EGFR E746_A750del;T790M mutant [plasma membrane] [EntityWithAccessionedSequence:1177532] EGFR G719A mutant [plasma membrane] [EntityWithAccessionedSequence:1996322] EGFR D770_N771insNPG mutant [plasma membrane] [EntityWithAccessionedSequence:1996326] EGFR M766_A767insASV mutant [plasma membrane] [EntityWithAccessionedSequence:1169418] EGFR G719S mutant [plasma membrane] [EntityWithAccessionedSequence:1228040] Phospho-EGFR L747_S752del mutant [plasma membrane] …… Reactions: 90 [Reaction:177944] Activation of SHP2 through the binding to phospho-Gab1 [Reaction:212713] Active PLC-gamma1 dissociates from EGFR [Reaction:183077] Assembly in clathrin-coated vesicles (CCVs) [Reaction:182994] Assembly of EGFR complex in clathrin-coated vesicles [Reaction:183002] Beta-Pix pushes CIN85 away from CBL [Reaction:183055] Binding of CBL to EGFR [Reaction:1225949] Binding of CBL to phosphorylated ligand-responsive EGFR mutants [Reaction:1220612] Binding of EGF to ligand-responsive EGFR mutants [Reaction:1306963] Binding of GRB2:GAB1 to p-ERBB2:p-EGFR ……

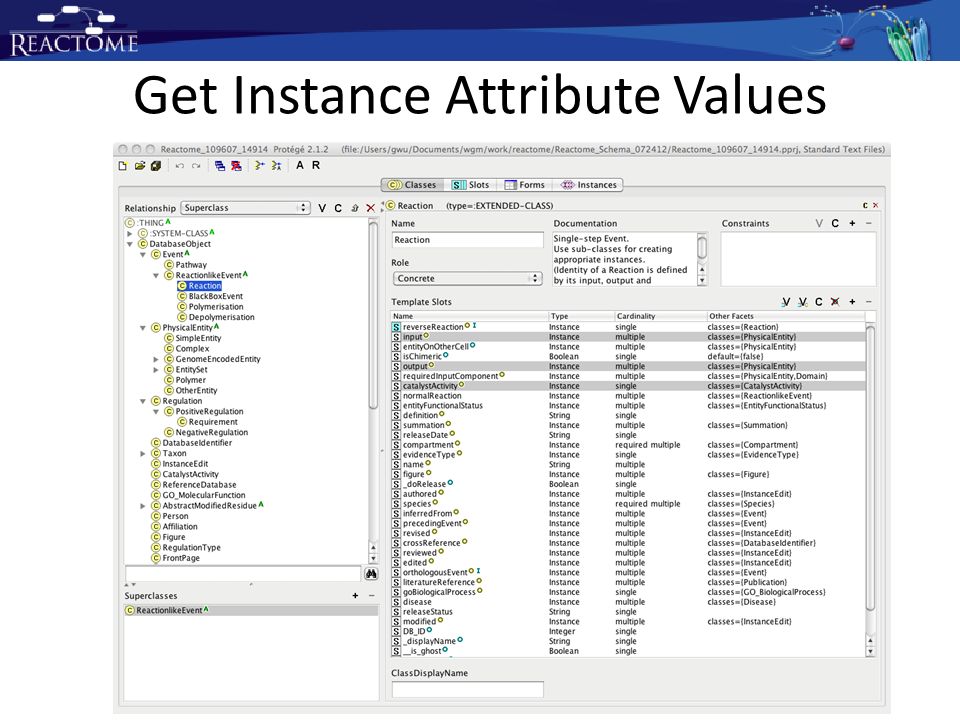

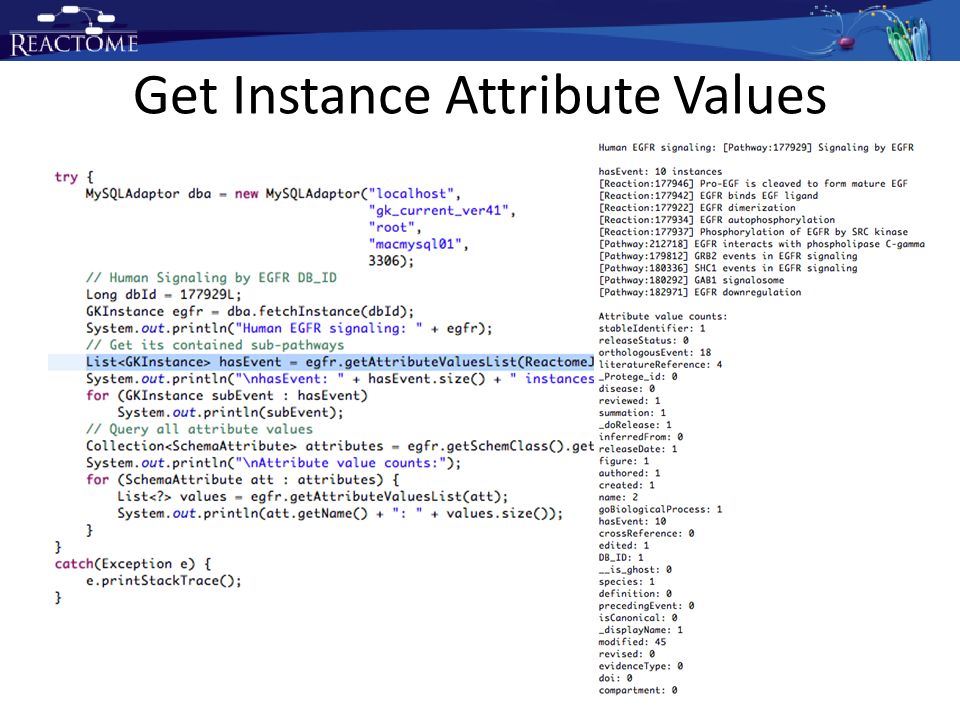

31. Get Instance Attribute Values

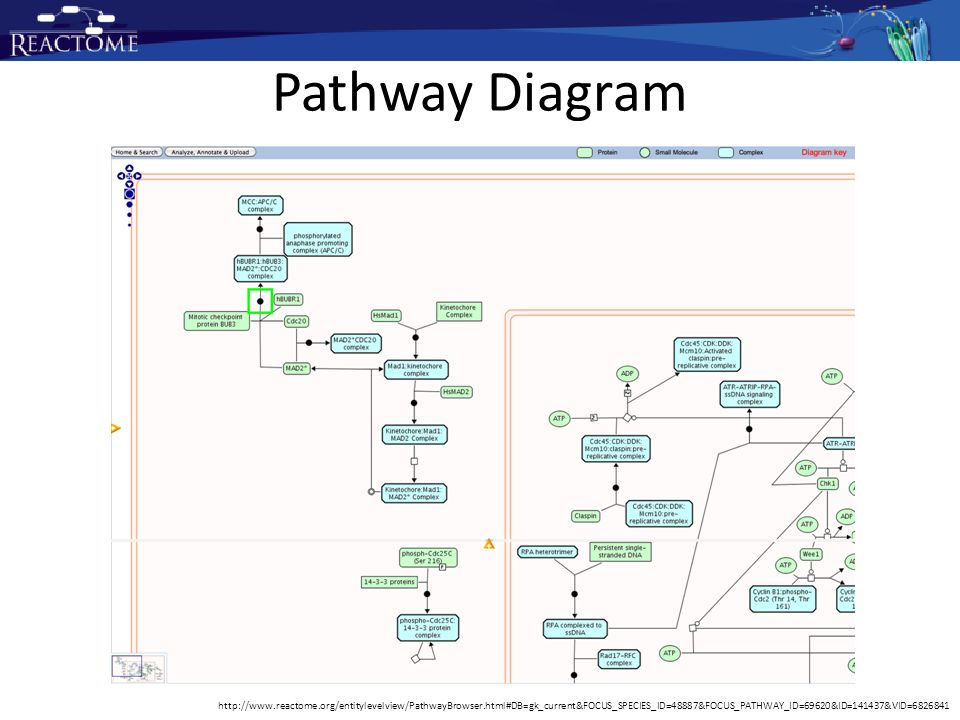

33. Pathway Diagram http://www.reactome.org/entitylevelview/PathwayBrowser.html#DB=gk_current&FOCUS_SPECIES_ID=48887&FOCUS_PATHWAY_ID=69620&ID=141437&VID=6826841

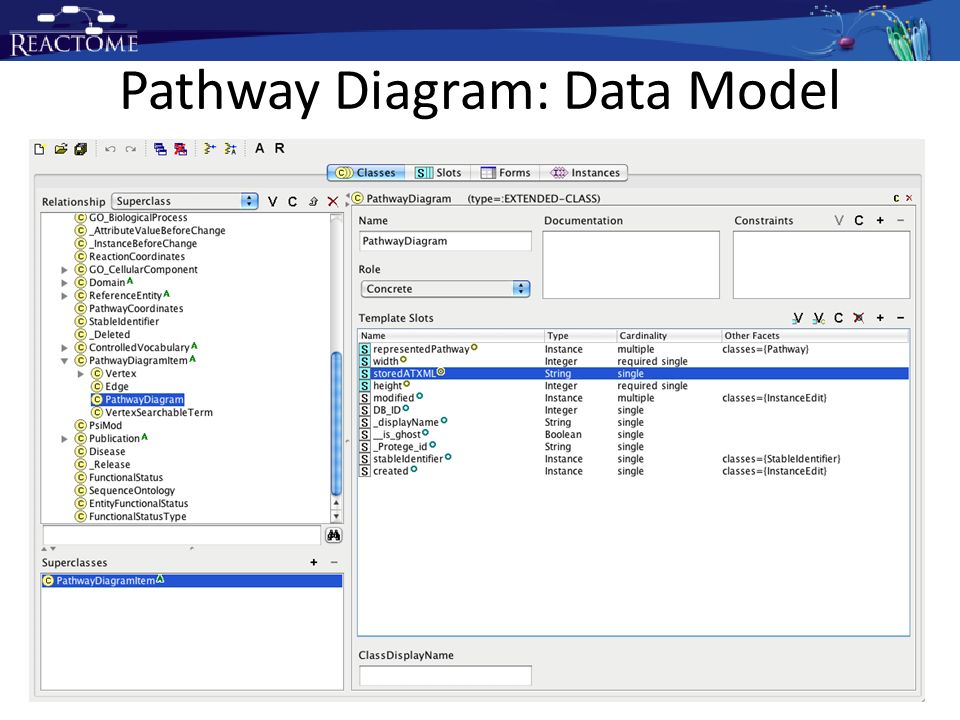

34. Pathway Diagram: Data Model

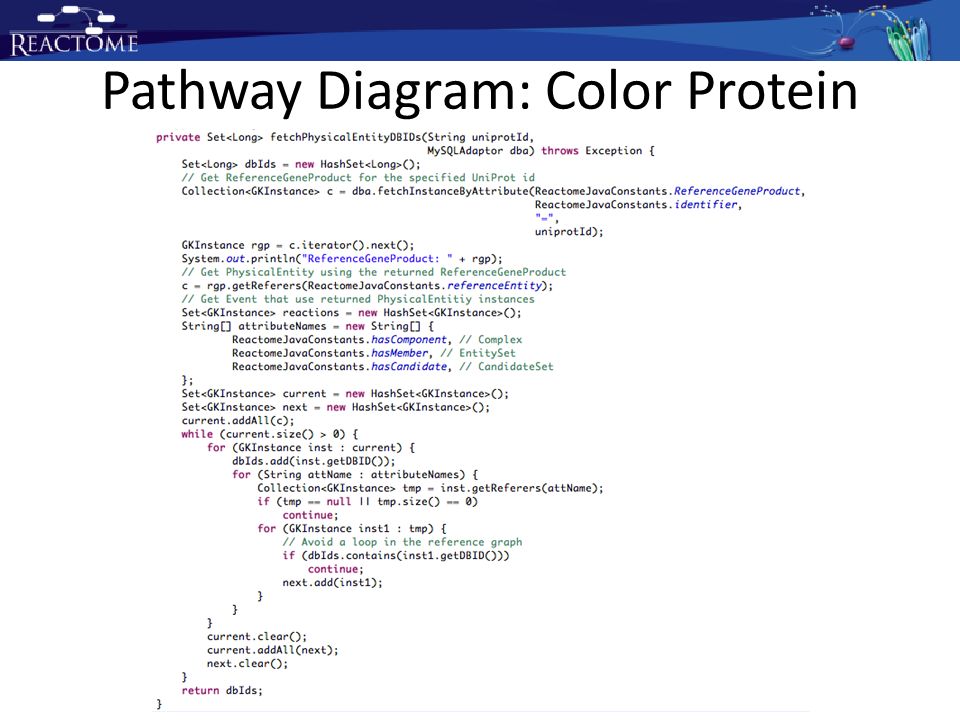

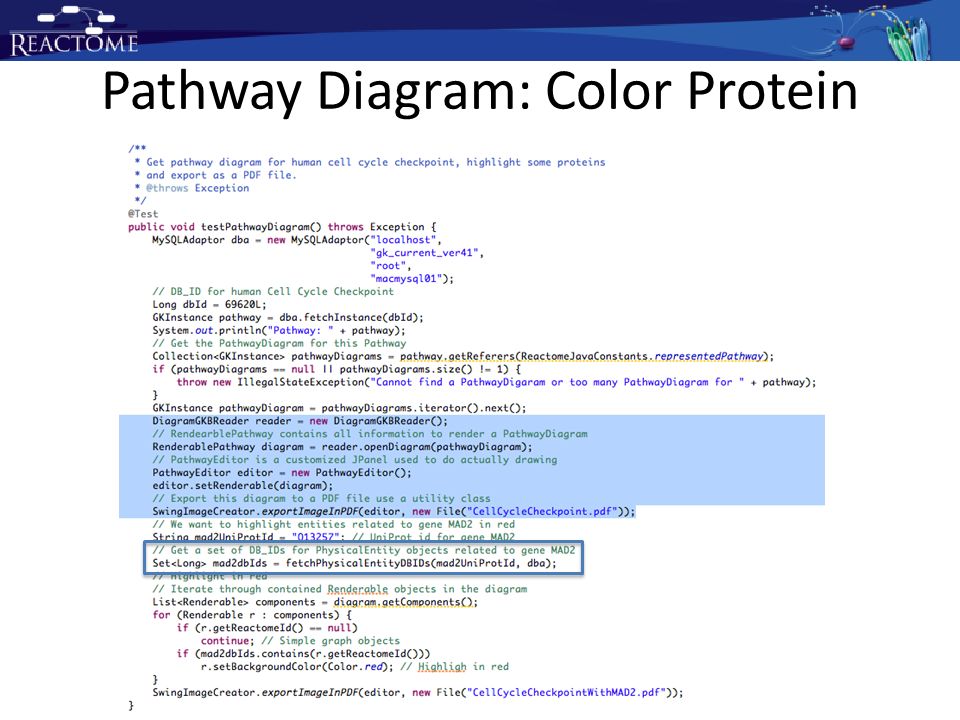

36. Pathway Diagram: Color Protein

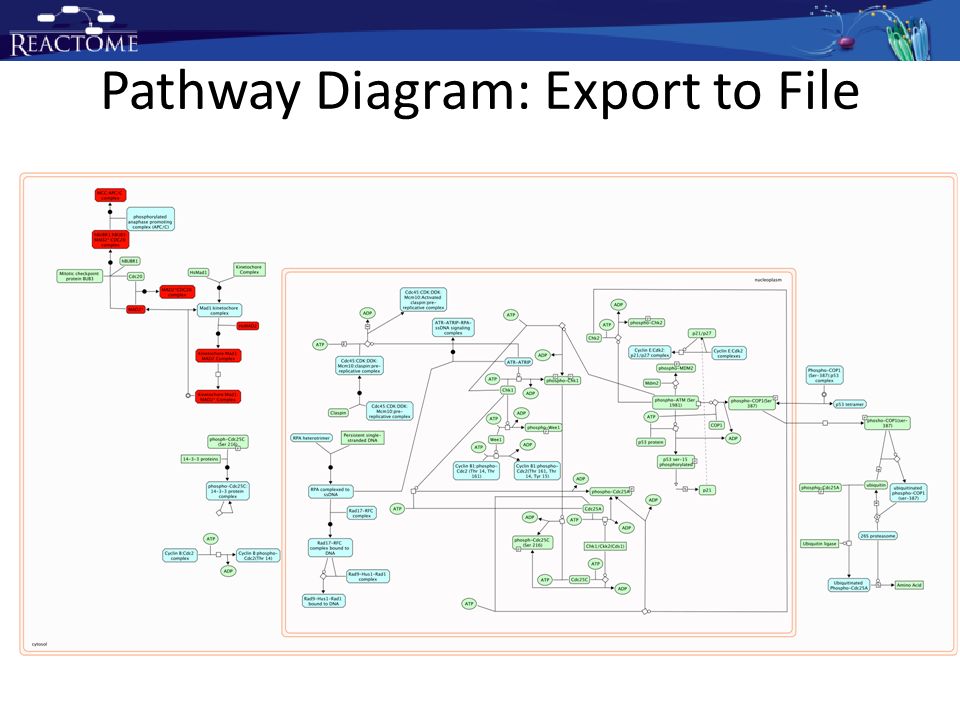

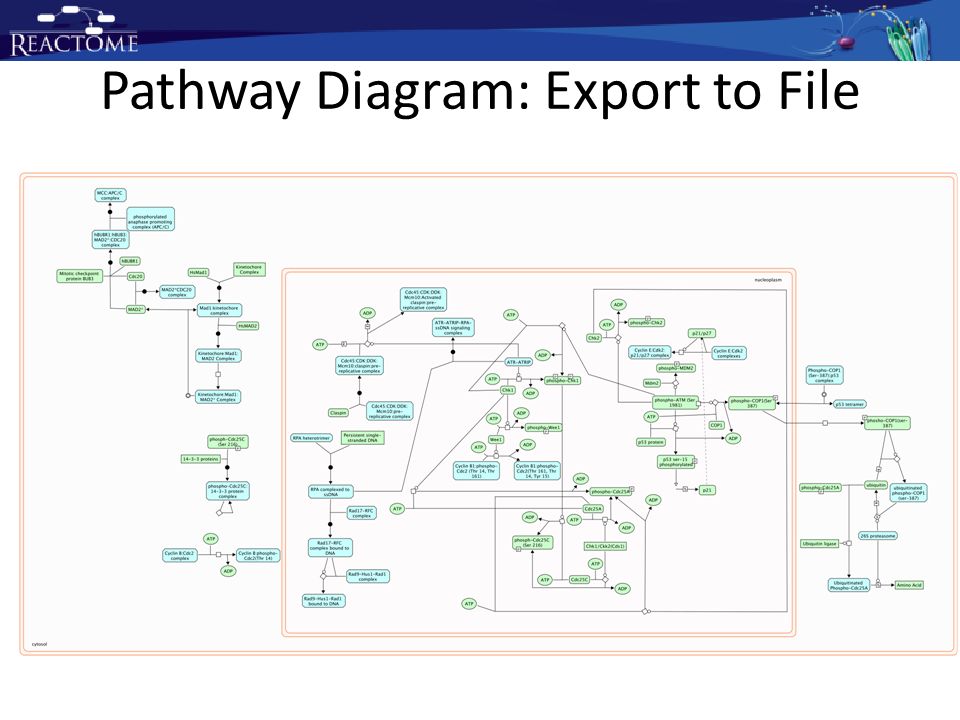

38. Pathway Diagram: Export to File

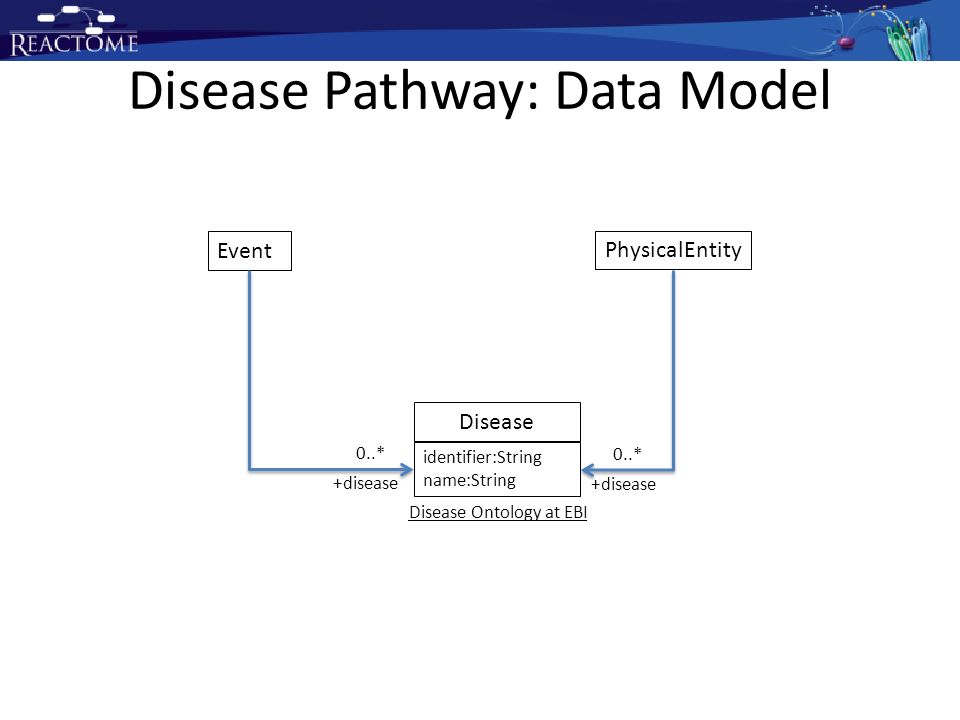

40. Disease Pathway: Data Model Disease identifier:String name:String Disease Ontology at EBI Event 0..* +disease PhysicalEntity 0..* +disease

41. Disease Pathway: Data Model PhysicalEntityEntityWithAccessionedSequenceGenomeEncodeEntity FragmentInsertionModification 0..* +hasModifiedResidue AbstractModifiedResidue GeneticallyModifiedResidue TranslationalModification FragmentModification CrosslinkedResidue FragmentDeletionModification GroupModifiedResidueModifiedResidue InterChainCrosslinkedResidue IntraChainCrosslinkedResidue ReplacedResidue subclass association

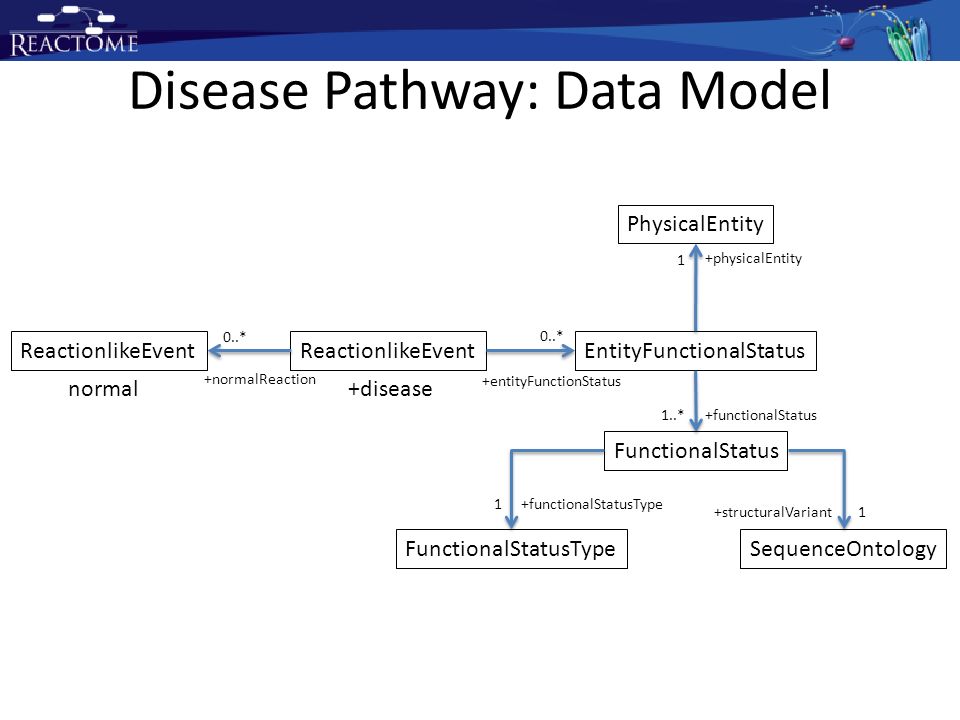

42. Disease Pathway: Data Model ReactionlikeEventEntityFunctionalStatus +disease ReactionlikeEvent normal +normalReaction 0..* +entityFunctionStatus 0..* PhysicalEntity +physicalEntity 1 1..* FunctionalStatus FunctionalStatusTypeSequenceOntology +functionalStatus +functionalStatusType1 +structuralVariant1

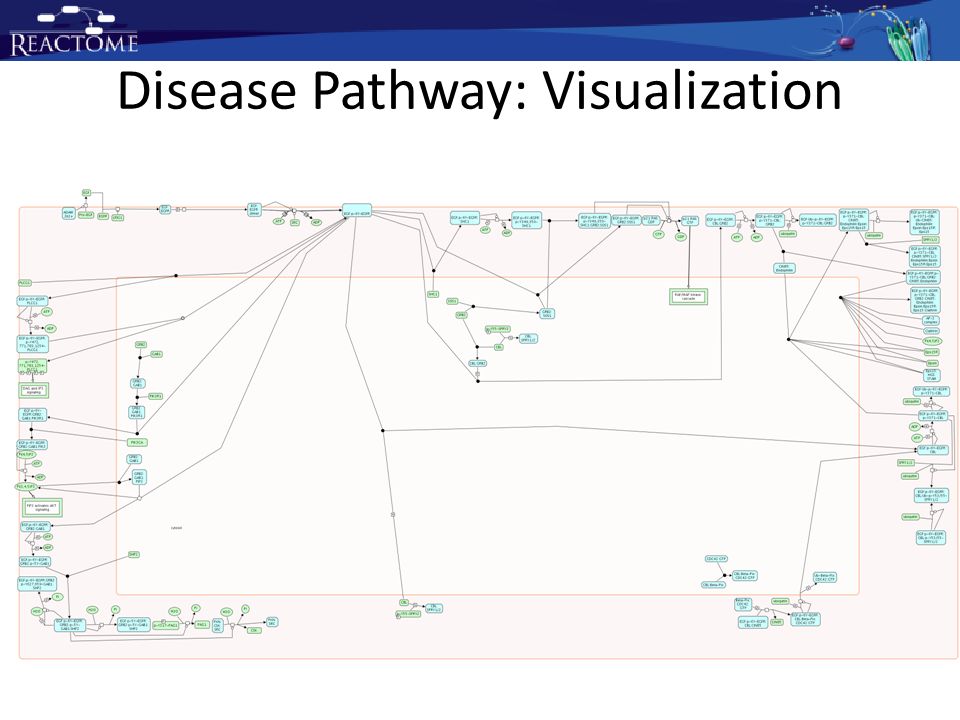

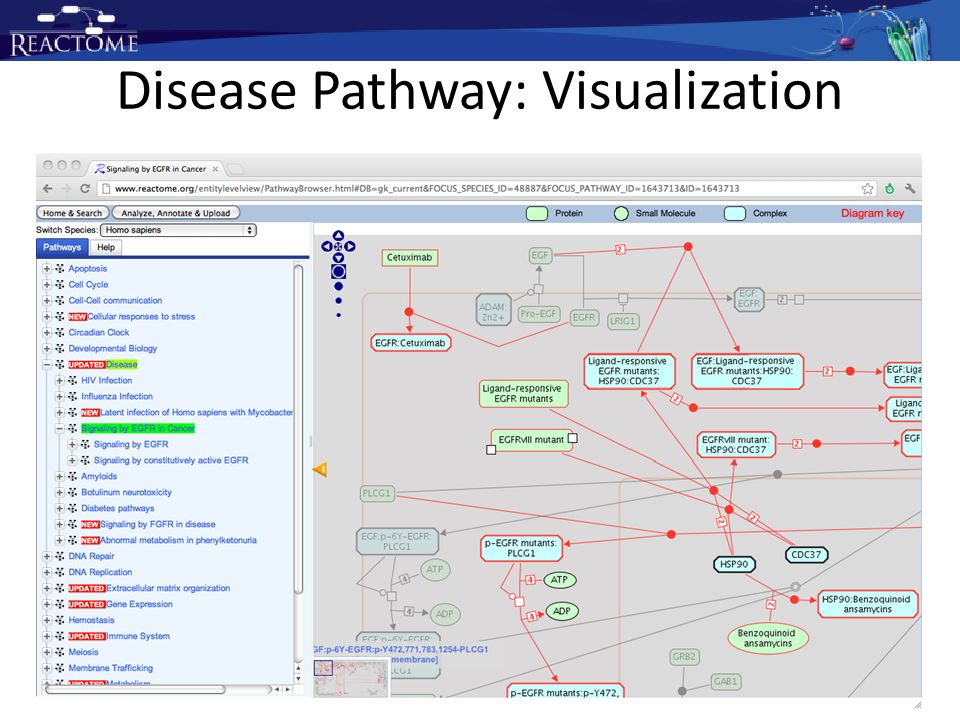

43. Disease Pathway: Visualization

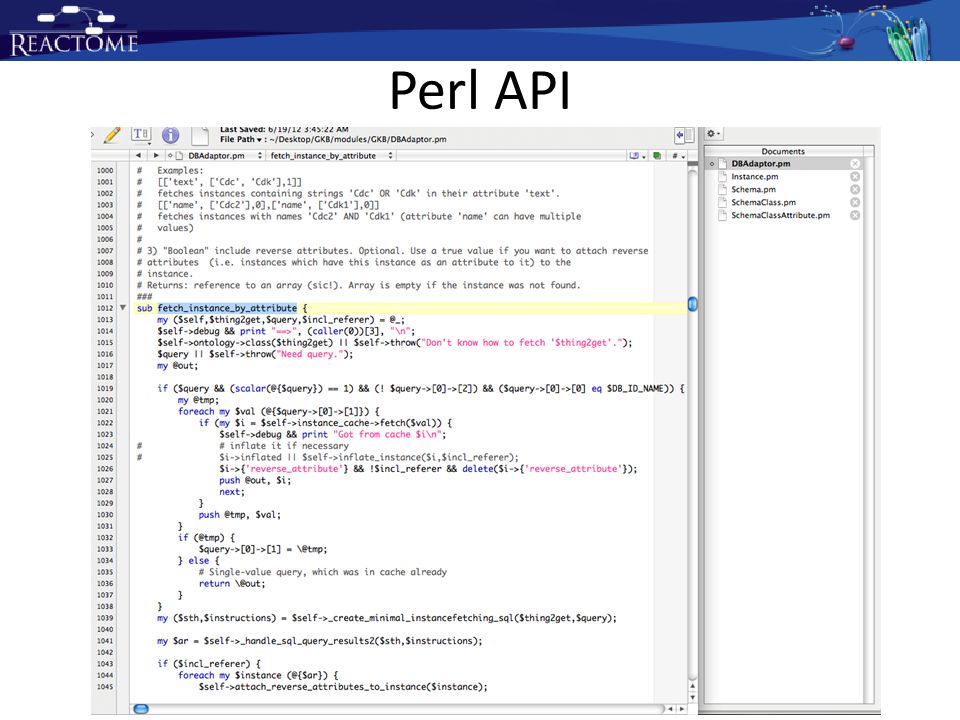

48. Perl API

49. http://www.reactome.org/download/index.html

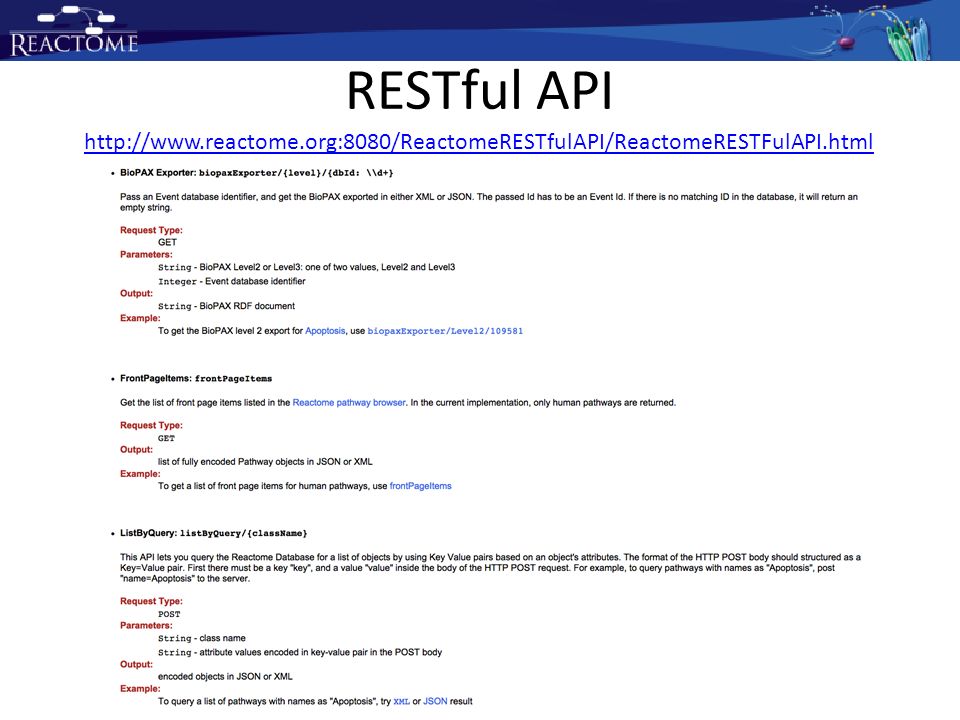

50. RESTful API http://www.reactome.org:8080/ReactomeRESTfulAPI/ReactomeRESTFulAPI.html

51. RESTful API http://www.reactome.org:8080/ReactomeRESTfulAPI/ReactomeRESTFulAPI.html

52. RESTful API http://www.reactome.org:8080/ReactomeRESTfulAPI/ReactomeRESTFulAPI.html

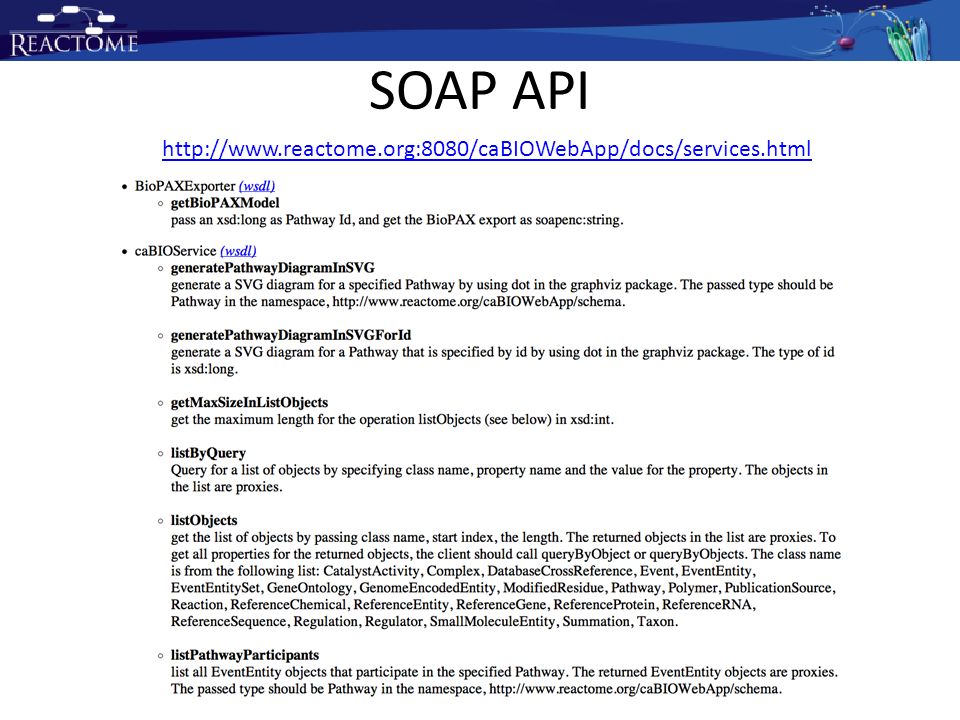

53. SOAP API http://www.reactome.org:8080/caBIOWebApp/docs/services.html

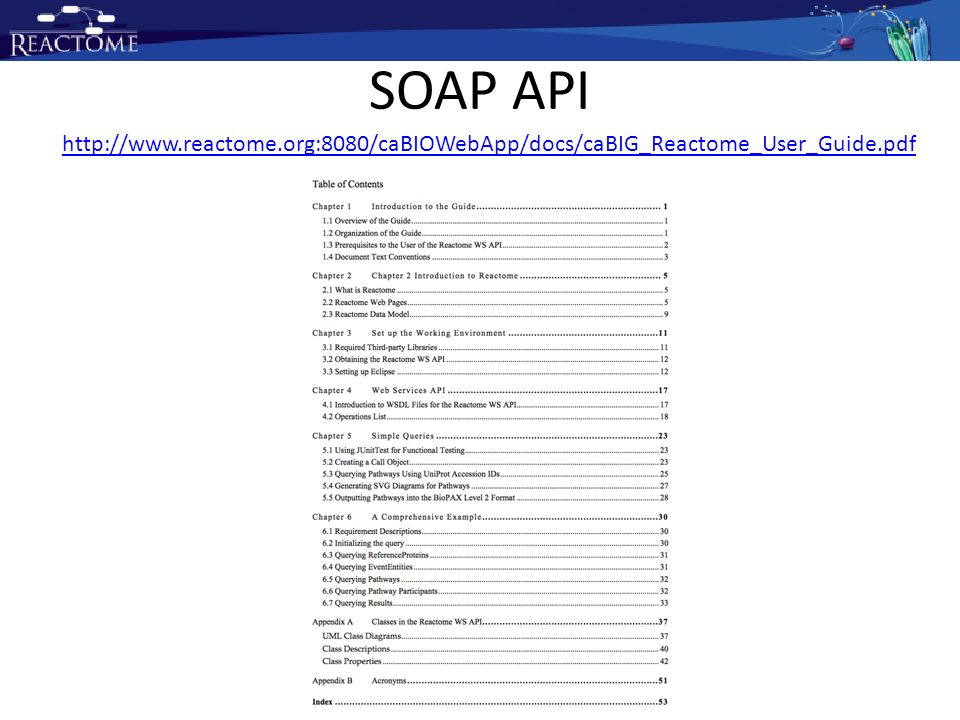

54. SOAP API http://www.reactome.org:8080/caBIOWebApp/docs/caBIG_Reactome_User_Guide.pdf

55. Acknowledgements Java and Perl API Imre Vastrik David Croft RESTful API Stanislav Palatnik (GSoC) Disease model Marija Orlic-Milacic Karen Rothfels Robin Haw Lisa Matthew Bijay Jassai Heeyeon Song Marc Gillespie Steve Jupe Peter D’Eustachio Java and Perl API Imre Vastrik David Croft RESTful API Stanislav Palatnik (GSoC) Disease model Marija Orlic-Milacic Karen Rothfels Robin Haw Lisa Matthew Bijay Jassai Heeyeon Song Marc Gillespie Steve Jupe Peter D’Eustachio
