1. 박 유 진

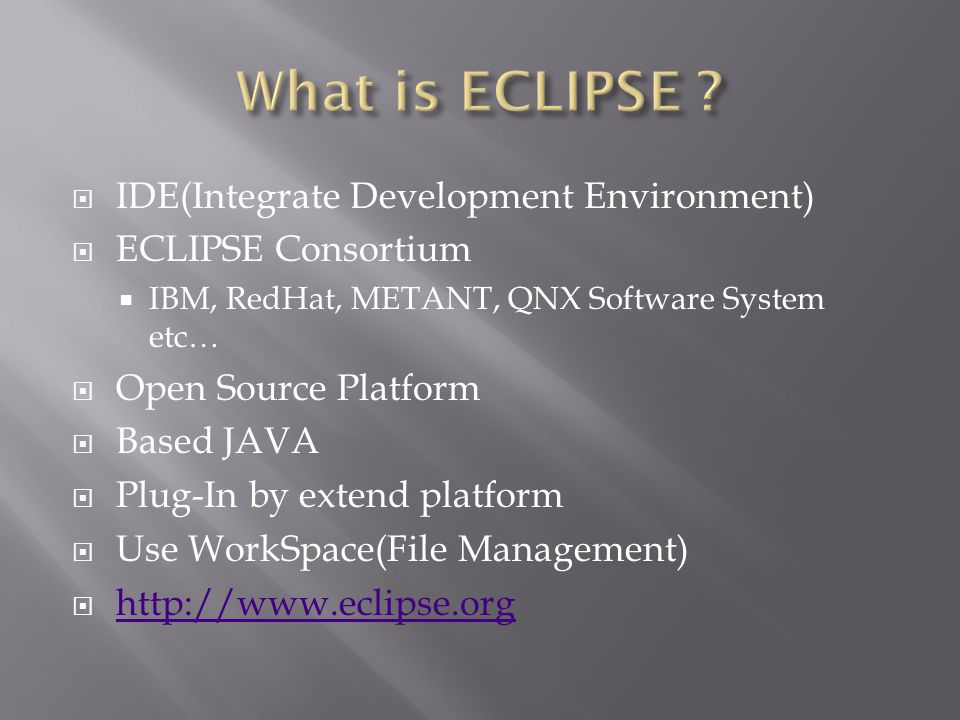

2.  IDE(Integrate Development Environment)  ECLIPSE Consortium  IBM, RedHat, METANT, QNX Software System etc…  Open Source Platform  Based JAVA  Plug-In by extend platform  Use WorkSpace(File Management)  http://www.eclipse.org http://www.eclipse.org

3.  Install JAVA JDK, JRE  Setup Environment variable  Unpack Eclipse classic 3.5  Install EclipseUML Plug-in

4.  Download & Install JDK(JAVA Development Kit) & JRE(JAVA Runtime Environment)  http://developers.sun.com/downloads/ http://developers.sun.com/downloads/

5. Download it!

6.  Excution JDK, JRE Setup files

8.  edit User Variable  Variable : PATH  Value : ;c:\Program Files\Java\jdk.1.6.0_16\bin ->;(Location of JDK)\bin

9.  edit System Variable  Variable : Path  Value : ;JAVA_HOME\bin

10.  Add New System Variable  Variable : CLASSPATH  Value : %classpath%. Dot!!

11.  Add New System Variable  Variable : JAVA_HOME  Value : C:\Program Files\Java\jdk1.6.0_16

13.  Download Eclipse classic 3.5  http://www.eclipse.org http://www.eclipse.org

14.  Unpack File & Excution Eclipse classic 3.5

16.  Download EclipseUML  http://www.omondo.com http://www.omondo.com

18.  Excution Setup File

19.  Check Location Eclipse unpacked folder

21.  Make JAVA Project

22.  Debug & Run Debug&Run

23.  Make UML Diagram
