1. HiRate Energy Overview and Storage Energy System Introduction 1 Mark Lin, CEO

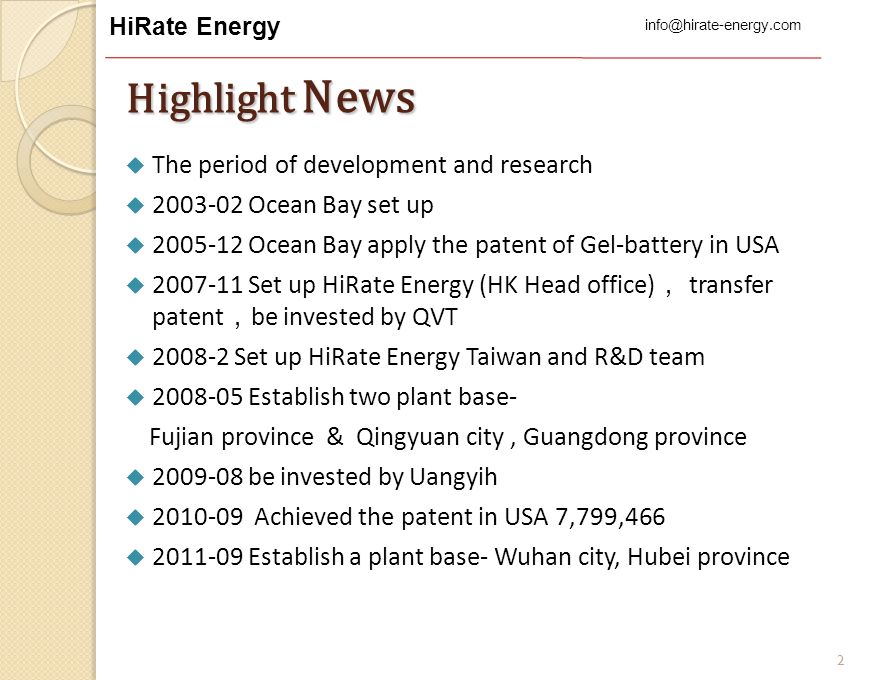

2. Highlight News  The period of development and research  2003-02 Ocean Bay set up  2005-12 Ocean Bay apply the patent of Gel-battery in USA  2007-11 Set up HiRate Energy (HK Head office) ， transfer patent ， be invested by QVT  2008-2 Set up HiRate Energy Taiwan and R&D team  2008-05 Establish two plant base- Fujian province & Qingyuan city, Guangdong province  2009-08 be invested by Uangyih  2010-09 Achieved the patent in USA 7,799,466  2011-09 Establish a plant base- Wuhan city, Hubei province info@hirate-energy.com HiRate Energy 2

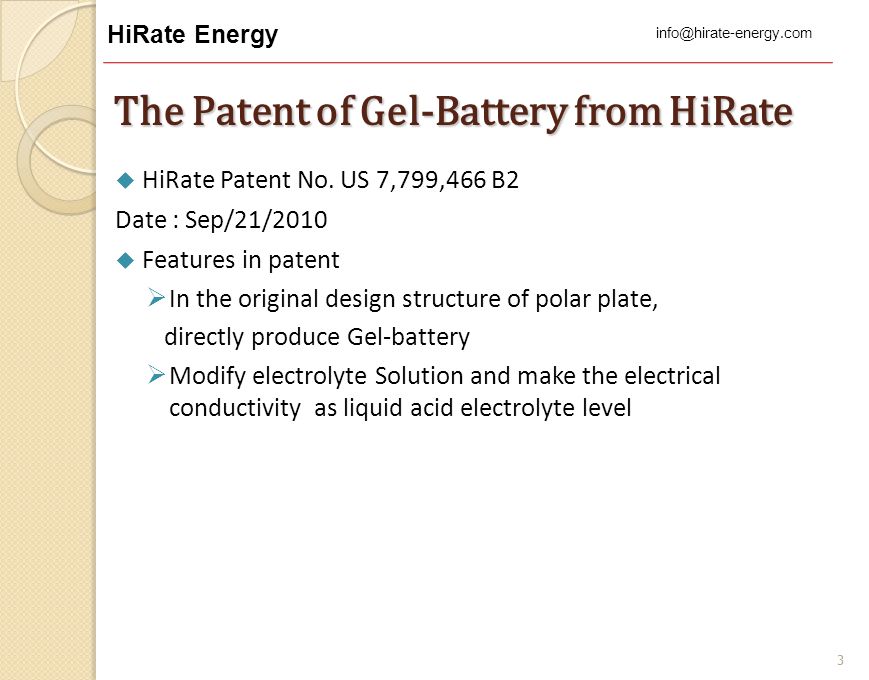

3. The Patent of Gel-Battery from HiRate  HiRate Patent No. US 7,799,466 B2 Date : Sep/21/2010  Features in patent  In the original design structure of polar plate, directly produce Gel-battery  Modify electrolyte Solution and make the electrical conductivity as liquid acid electrolyte level info@hirate-energy.com HiRate Energy 3

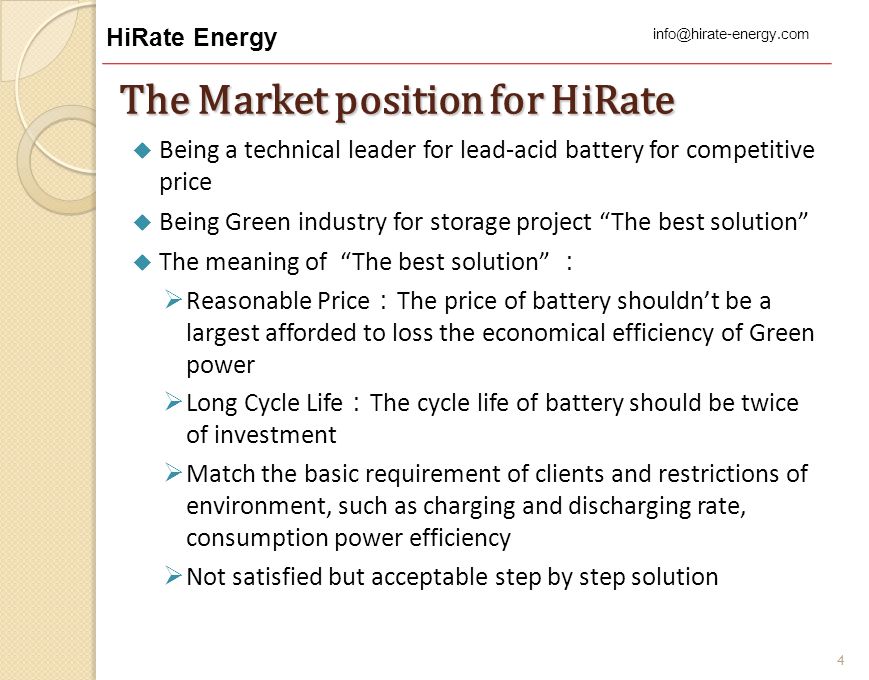

4. The Market position for HiRate  Being a technical leader for lead-acid battery for competitive price  Being Green industry for storage project “The best solution”  The meaning of “The best solution” ：  Reasonable Price ： The price of battery shouldn’t be a largest afforded to loss the economical efficiency of Green power  Long Cycle Life ： The cycle life of battery should be twice of investment  Match the basic requirement of clients and restrictions of environment, such as charging and discharging rate, consumption power efficiency  Not satisfied but acceptable step by step solution info@hirate-energy.com HiRate Energy 4

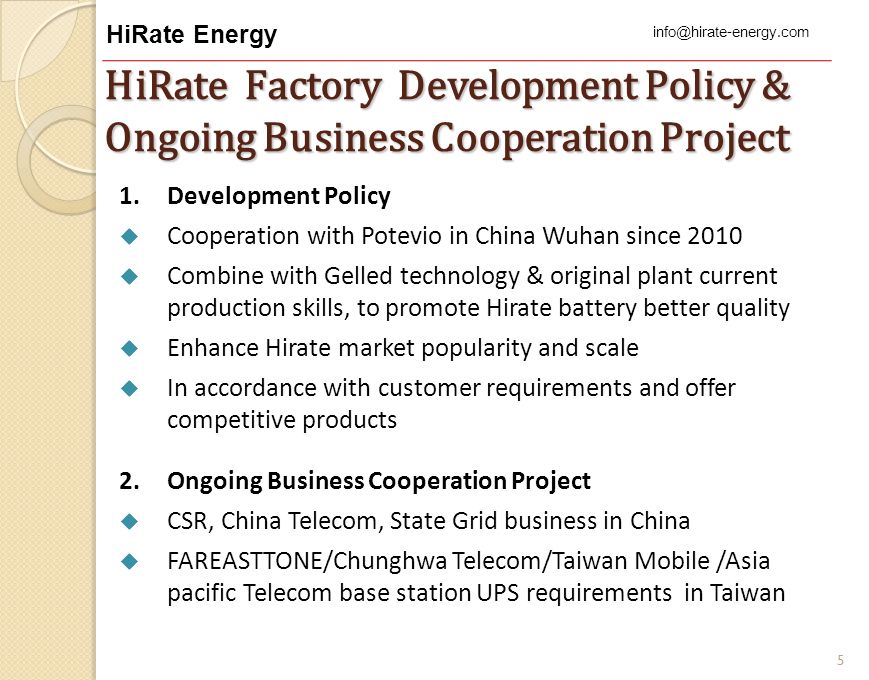

5. HiRate Factory Development Policy & Ongoing Business Cooperation Project info@hirate-energy.com HiRate Energy 1.Development Policy  Cooperation with Potevio in China Wuhan since 2010  Combine with Gelled technology & original plant current production skills, to promote Hirate battery better quality  Enhance Hirate market popularity and scale  In accordance with customer requirements and offer competitive products 2.Ongoing Business Cooperation Project  CSR, China Telecom, State Grid business in China  FAREASTTONE/Chunghwa Telecom/Taiwan Mobile /Asia pacific Telecom base station UPS requirements in Taiwan 5

6. Products application pictures 6 info@hirate-energy.com HiRate Energy

7. Gel Battery Advantages info@hirate-energy.com HiRate Energy  Long cycle life, it about two times of ordinary VRLA battery  Have deep cycle characteristic  Performance price ratio higher than ordinary VRLA battery  Wide operating temperature range, from -20 ℃ to 55 ℃  Resist vibration  Low self discharge rate 7

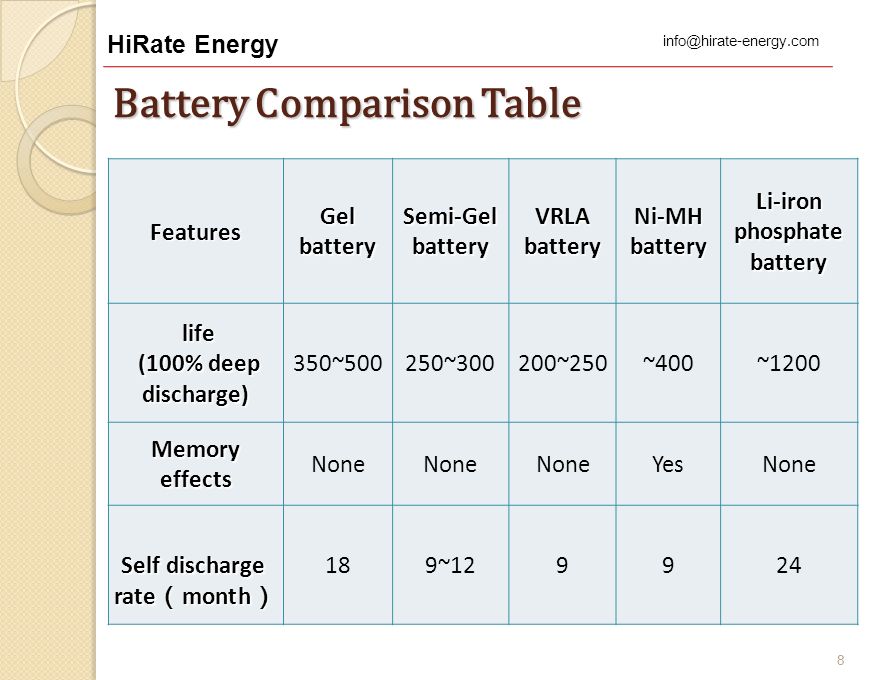

8. Battery Comparison Table Features Gel battery Semi-Gel battery VRLA battery Ni-MH battery Li-iron phosphate battery life life (100% deep discharge) (100% deep discharge) 350~500250~300200~250~400~1200 Memory effects None YesNone Self discharge rate （ month ） 189~129924 info@hirate-energy.com HiRate Energy 8

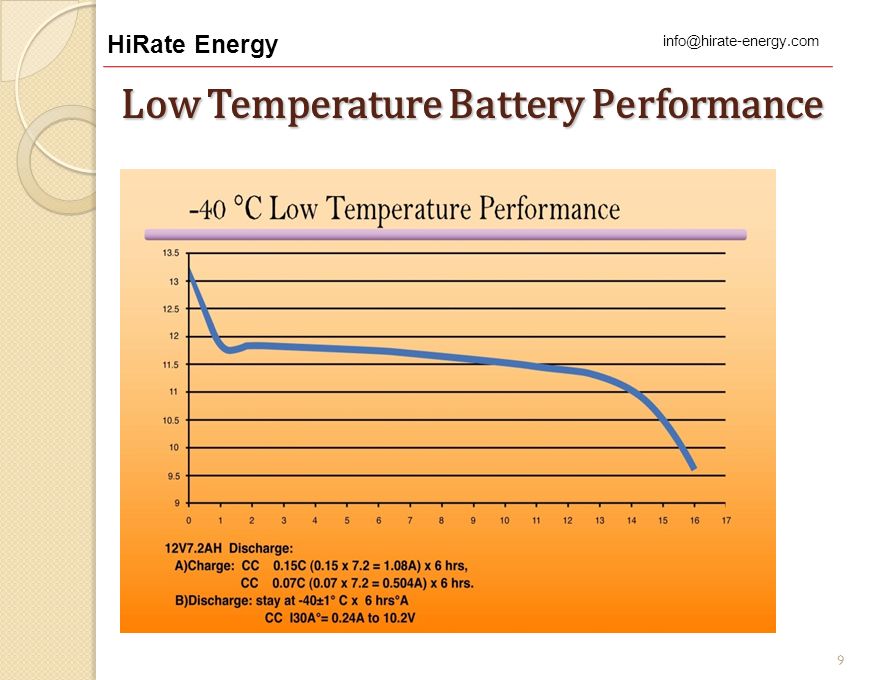

9. Low Temperature Battery Performance info@hirate-energy.com HiRate Energy 9

10.  High/Low voltage protection  Over-current protection  Over-temperature protection /Temperature display  Active cell balance  Capacity display  Real time monitor for each cell Battery Management System Advantage info@hirate-energy.com HiRate Energy 10

11. Battery Pack Combine BMS Comparison Battery Pack Combine BMS Comparison Features VRLA batteries pack Gel batteries pack+BMS Cycle life time (Deep discharge 100%) Up to 150 Higher than 350 Driving range (for EV)----- More than 10% pure Gel batteries pack Remote monitoring system status NoneYes info@hirate-energy.com HiRate Energy 11

12. Battery Management System charging test diagram info@hirate-energy.com HiRate Energy 12

13. Battery Management System discharging test diagram info@hirate-energy.com HiRate Energy 13

14. Storage system Overview Storage system Overview Currently, power supply system commonly divide into two series:  Power Supply System: Adopt single section 2V battery  A number of series batteries  High unit cost: About 12V battery 1.5 times price  Longer life battery: Compared with 12V battery  Power Supply System: Adopt single section 12V battery  Less quantity of series batteries  Low unit cost  Shorter life battery (BMS can solve this issue timely ) info@hirate-energy.com HiRate Energy 14

15. 15 System Diagram info@hirate-energy.com HiRate Energy

16. Application Example 1 一 (48V system ） info@hirate-energy.com HiRate Energy 16

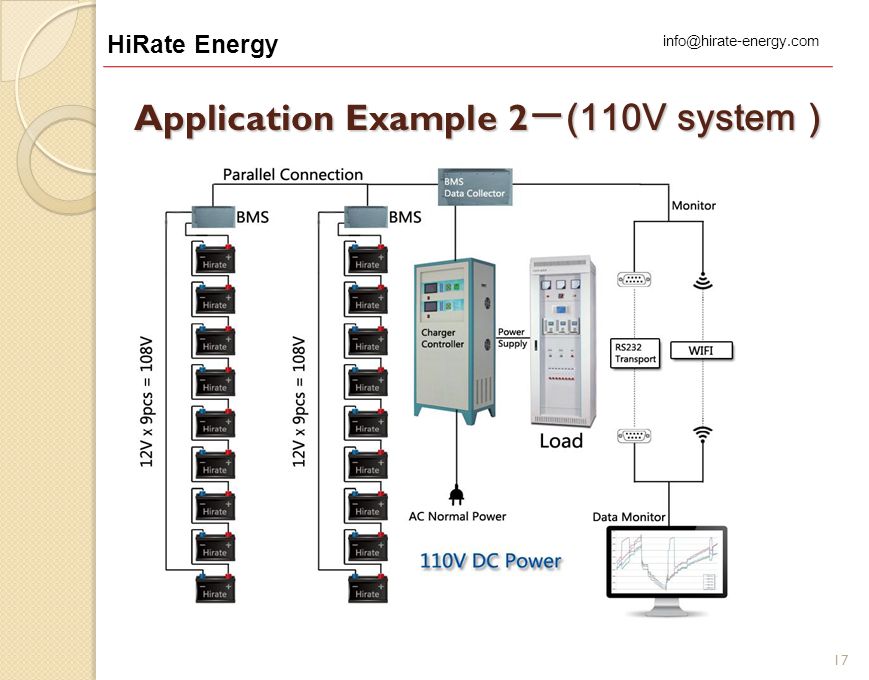

17. Application Example 2 一 (110V system ） info@hirate-energy.com HiRate Energy 17

18. Application Sample 3 一 (220V system ） Application Sample 3 一 (220V system ） info@hirate-energy.com HiRate Energy 18

19. Storage System diagram screen upper management board controller Battery Management System computer power supply (can be altered solar energy board ） Gel batteries info@hirate-energy.com HiRate Energy 19

20. Technical Level Technique threshold 1. Cost: LiFePO4 cost is too high ( Cost about 4-5 times Gel battery) 2. Temperature: Low temperature caused battery unable to use 3. Life: A number of series batteries caused battery cycle short life Solution: Hirate Energy Gel battery combine with Battery Management System ( DOD100%,battery life can maintain approximately 500 times-HRE series) info@hirate-energy.com HiRate Energy 20

21. Conclusion Classification Project Traditional Storage Energy System Hirate Energy Storage Energy System System Price Basically the same price System Life 2-3 years 4-6 years Management Maintenance Need to arrange staff on-site inspect at fixed period, if meet defective battery, have to change it any time Via computer processing remote system management and battery change is unnecessary Data Contents Commonly test voltage Record real-time voltage 、 current and temperature Abnormal notice No abnormal notice function If happen abnormal condition, it will give warning message Maintenance Cost Higher maintenance cost Basically maintenance cost is zero info@hirate-energy.com HiRate Energy 21

22. Due to the whole system becomes double life ， and its price did not increase. The entire management cost and personnel cost is greatly reduced as well. Consequently, whether system performance or use cost, Hirate Energy storage energy system is better than ordinary storage energy system info@hirate-energy.com HiRate Energy 22 Conclusion

23. 23 info@hirate-energy.com HiRate Energy
