1. C.Sollima INFN - University of Pisa for the KM3NeT Consortium “Quality Control Considerations for the KM3NeT Very Large Volume neutrino Telescope” The Future of High-Energy Neutrino Astronomy VLVnT Workshop 2011 12 -14 October 2011 - Erlangen, Germany

2. C. Sollima, INFN-Pisa VLVnT11, Erlangen, 13 October '11 Quality control and qualification process Data base for quality control Conclusions Contents

3. C. Sollima, INFN-Pisa VLVnT11, Erlangen, 13 October '11 Quality Control and Qualification Process SOME DEFINITIONS 1) Quality Assurance is a set of preventive activities, which are focused on processes whereas 2) “Quality Control encompasses the operational techniques and activities that are used to fulfill requirements for quality” (ISO 9001) 3) Quality Control is a detection activity, which is focused on detecting the defects once the product is manufactured

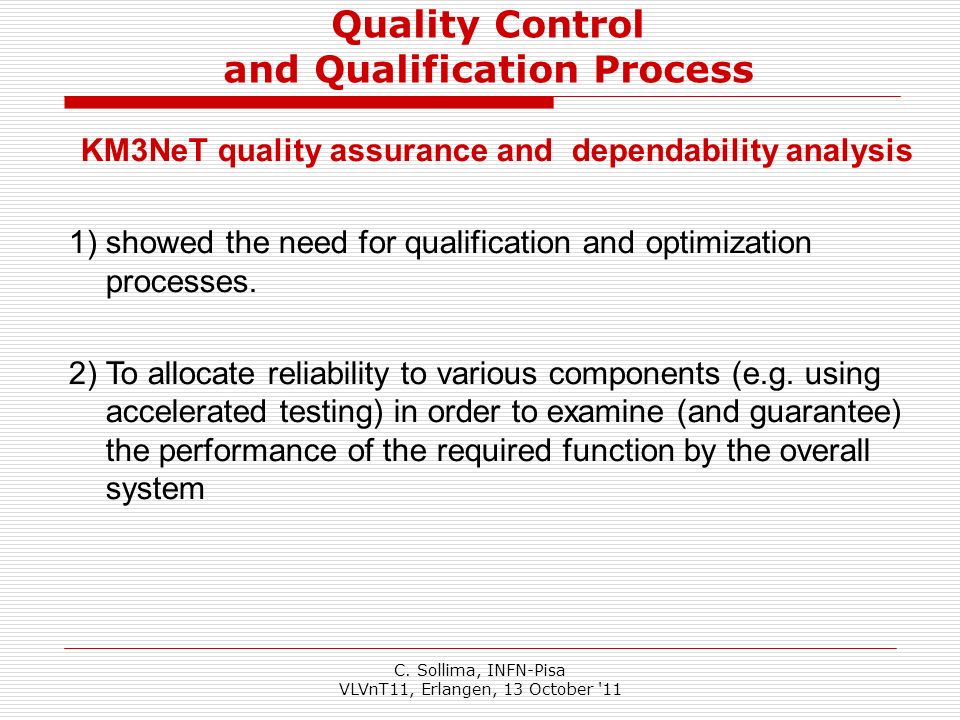

4. C. Sollima, INFN-Pisa VLVnT11, Erlangen, 13 October '11 Quality Control and Qualification Process KM3NeT quality assurance and dependability analysis 1) showed the need for qualification and optimization processes. 2) To allocate reliability to various components (e.g. using accelerated testing) in order to examine (and guarantee) the performance of the required function by the overall system

5. C. Sollima, INFN-Pisa VLVnT11, Erlangen, 13 October '11 Quality Control and Qualification Process Qualification process ( Pre-production ) Design Operation Manufacturing and Integration ( Production ) Product Life Cycle VERY IMPORTANT STEPS

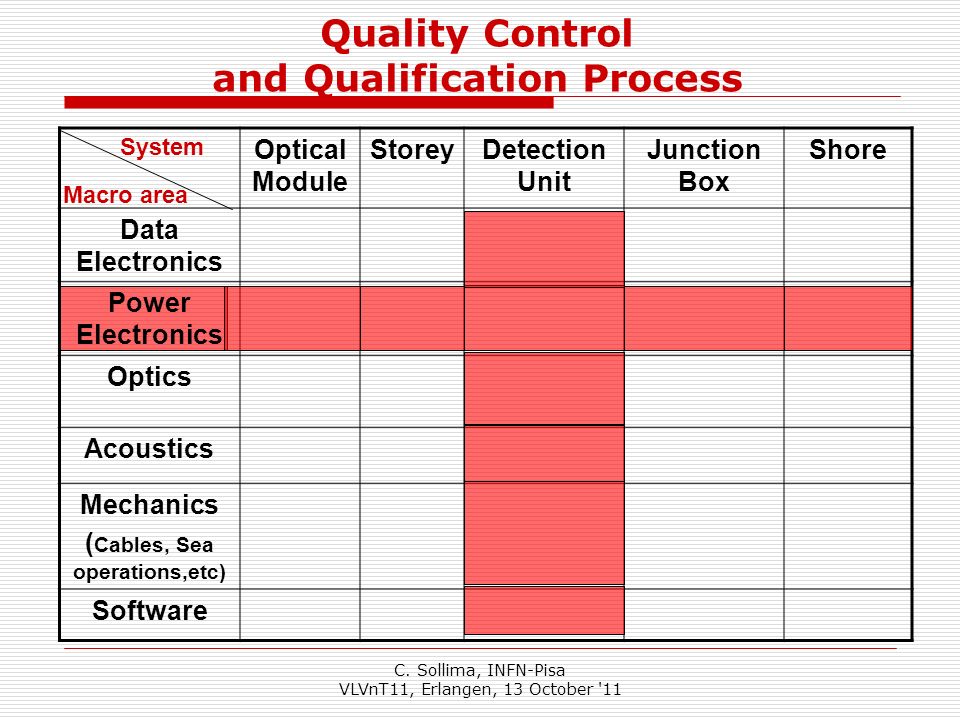

6. C. Sollima, INFN-Pisa VLVnT11, Erlangen, 13 October '11 Quality Control and Qualification Process Optical Module StoreyDetection Unit Junction Box Shore Data Electronics Power Electronics Optics Acoustics Mechanics ( Cables, Sea operations,etc) Software Macro area System

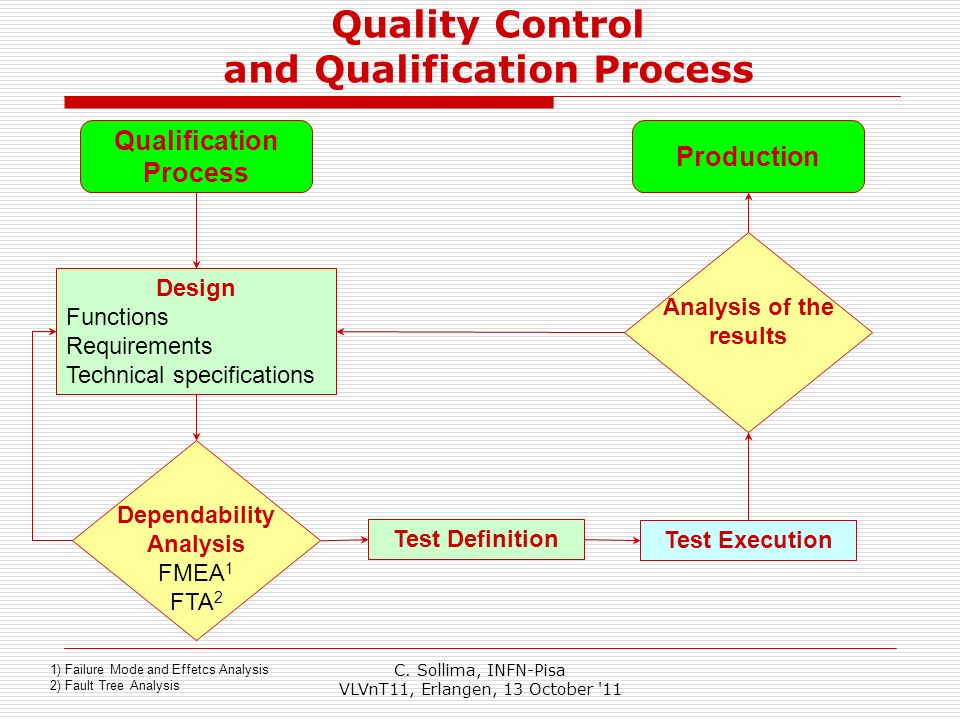

7. C. Sollima, INFN-Pisa VLVnT11, Erlangen, 13 October '11 Quality Control and Qualification Process Qualification Process Design Functions Requirements Technical specifications Dependability Analysis FMEA 1 FTA 2 Test Definition Test Execution Analysis of the results Production 1) Failure Mode and Effetcs Analysis 2) Fault Tree Analysis

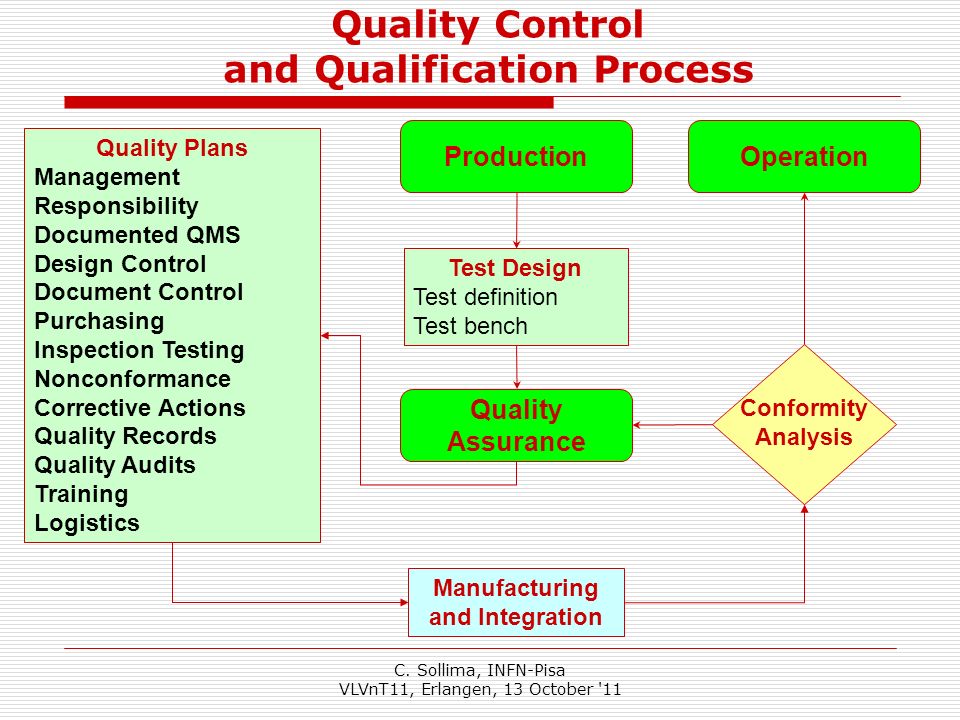

8. C. Sollima, INFN-Pisa VLVnT11, Erlangen, 13 October '11 Quality Control and Qualification Process Production Test Design Test definition Test bench Quality Plans Management Responsibility Documented QMS Design Control Document Control Purchasing Inspection Testing Nonconformance Corrective Actions Quality Records Quality Audits Training Logistics Manufacturing and Integration Conformity Analysis Operation Quality Assurance

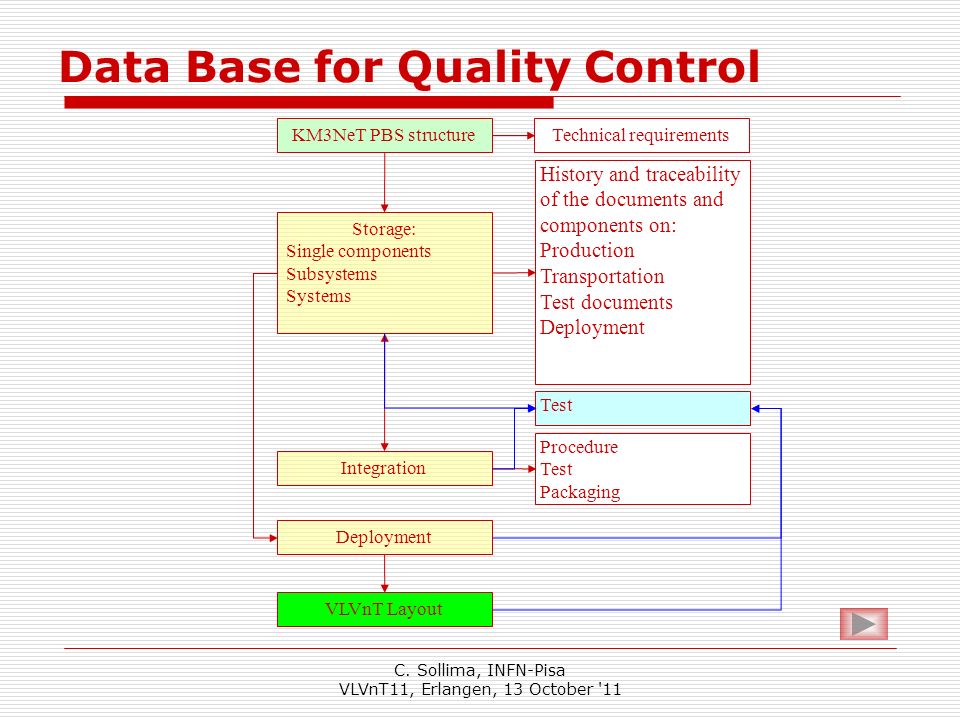

9. C. Sollima, INFN-Pisa VLVnT11, Erlangen, 13 October '11 Data Base for Quality Control KM3NeT PBS structure Storage: Single components Subsystems Systems VLVnT Layout Integration Deployment Procedure Test Packaging History and traceability of the documents and components on: Production Transportation Test documents Deployment Technical requirements Test

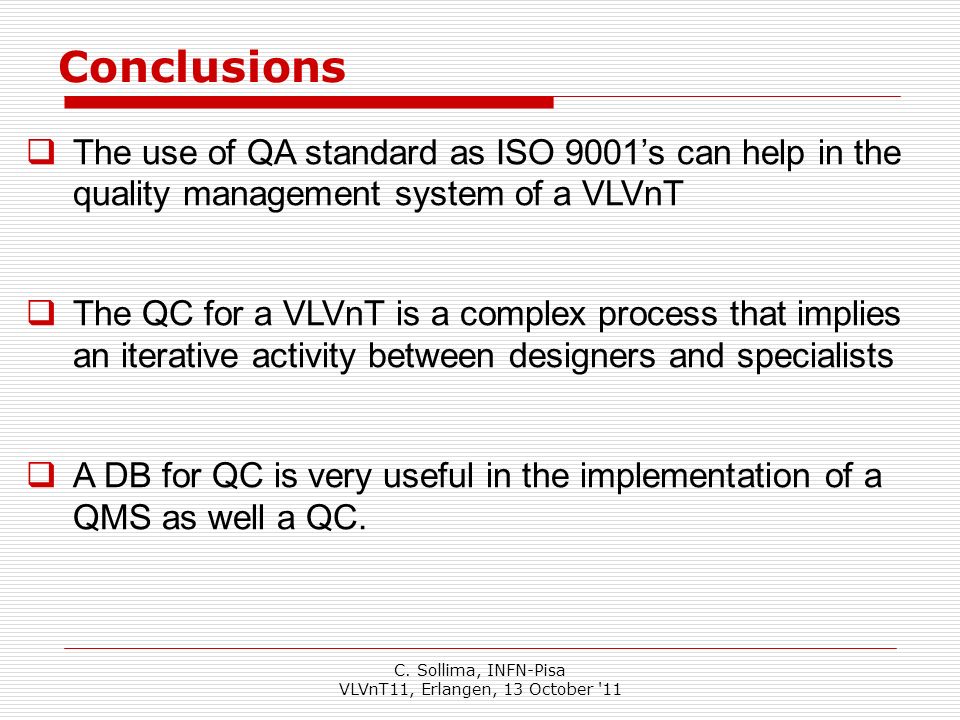

10. C. Sollima, INFN-Pisa VLVnT11, Erlangen, 13 October '11 Conclusions  The use of QA standard as ISO 9001’s can help in the quality management system of a VLVnT  The QC for a VLVnT is a complex process that implies an iterative activity between designers and specialists  A DB for QC is very useful in the implementation of a QMS as well a QC.

11. "Design Study for a Deep Sea Facility in the Mediterranean for Neutrino Astronomy and Associated Sciences” THANK VERY MUCH FOR YOUR KIND ATTENTION “ Quality Control Considerations for the KM3NeT Very Large Volume neutrino Telescope ” The Future of High-Energy Neutrino Astronomy VLVnT Workshop 2011 12 -14 October 2011 - Erlangen, Germany
