1. Space weather in the solar system Andrew Coates Mullard Space Science Laboratory University College London (UK)

2. Outline Space weather and solar wind Interaction with magnetic fields –Earth –Mercury –Giant planets Interaction with other objects –Venus (unmagnetized) –Mars, moon (crustal fields) –Moons in planetary magnetospheres: Titan, Enceladus, Io, Europa, Callisto Magnetosphere within magnetosphere: Ganymede Conclusions and future missions

3. Space weather - timescales Earth’s magnetic field shields us from solar, galactic particles – but some penetrate; radiation belts always present Event from Sun reaches Earth (or planet at R AU) on 3 timescales: 1.8 (xR) minutes: high energy X- or  - rays, radio noise 2.Minutes - hours (xR), high energy charged particles 3.2-3 days (xR), solar wind disturbances Effects on spacecraft of 1 and 2 are computer upsets; 3 can distort and energise magnetic environments

4. Gusty plasma from the Sun Mainly H +, 4% He ++, other highly ionized ions up to Fe At Earth’s orbit: Density ~10 cm -3 Speed 300-800 km s -1 Temperature ~10 5 K Magnetic field ~10 nT Gusty due to solar flares and ICMEs which fling huge amounts (10 13 kg) of material into space Solar wind basics http://science.nasa.gov/media/medialibrary/2009 /08/31/ 31aug_mms_resources/14_flare_model_med.gif http://berkeley.edu/news/media/ releases/ 2003/07/images/flare.jpg

6. Average solar wind conditions Diagram from Kivelson and Russell Solar wind density and B r  R AU -2, B   R AU -1, leading to Parker spiral Actual conditions highly variable as solar wind conditions change

7. Average input: 3x10 12 W 40 kg s -1 Earth’s magnetosphere

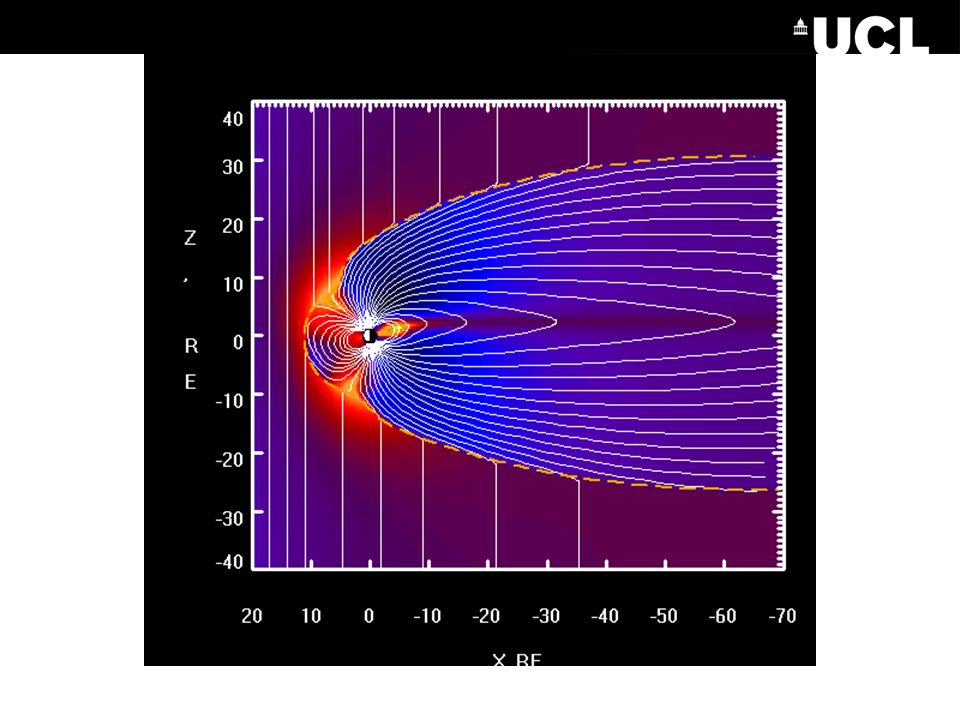

9. Solar wind interactions in the solar system Magnetized Unmagnetized Coates, 2001, adapted from Russell et al

10. Mercury Very small magnetosphere, no radiation belts Heavy pickup ions from surface sputtering by magnetospheric or solar wind particles Zurbuchen et al 08 Slavin et al 08

11. F.Bagenal, S.Bartlett Jupiter’s magnetosphere Rapidly rotating magnetosphere Filled with sulphur from Io’s volcanoes, water and oxygen from ice Slowly turned into sulphur, oxygen, water ions Ions are picked up by the rapidly rotating magnetosphere and eventually lost into the solar wind

12. Solar wind-driven and rotation-driven reconnection? Cowley et al., 2003

13. Saturn’s magnetosphere MIMI Team Rapidly rotating Filled with water-group molecules (O, OH, H 2 O, H 3 O) from the major sources (Enceladus, main rings, others) Slowly turned into water-group ions. Ions are picked up by the rapidly rotating magnetosphere and eventually lost

14. Venus interaction

15. Venus interaction with solar wind Venus has no magnetic field Gyroradius smaller than planetary radius Solar wind erodes the Venus atmosphere Venus Express measuring: Ions and electrons near Venus directly Images of escape process: using charge exchange Magnetic field Venus Express measuring rate: ~10 25 s -1 via tail, <10% via pickup(Barabash et al., 2007) Ambipolar effect may augment escape (Coates et al, 2008, 2011)

16. Recent results Magnetic reconnection in tail (Zhang et al., 2012) Hot flow anomalies (Collinson et al., 2012) Escape rate increases by factor ~1.9 during CIR (Edberg et al., 2011) and up to 100x during CME (Luhmann et al., 2007)

17. Mars No global field Exosphere: ionization, pickup Gyroradius larger than planet Loss rate ~10 25 s -1 (Lundin et al 89) – tens of % of Earth’s atmospheric mass over 3.8GY Early measurements of loss from Mars Express factor 100 lower (Barabash et al 2007) now revised upwards Asymmetric pickup due to reabsorption by planet Mars Express looking at pickup ions and global loss rates Venus similar but gyroradius smaller Pickup may be augmented by other processes e.g. ambipolar outflow due to ionospheric photoelectron escape (c.f. Coates et al, 2007 [Titan], 2008 [Venus]) Luhmann et al

18. Connerney, J. E. P. et al. (2005) Proc. Natl. Acad. Sci. USA 102, 14970-14975

19. Solar Wind Interaction with the Martian Mini-Magnetospheres http://mepag.jpl.nasa.gov/science/5_Planetary_Magnetism/mars_plasmoid_Steve_Bartlett_NASA_sm.jpg

20. Mars space weather effects Upstream plasma supersonic, SuperAlfvenic so bow shock (Phobos, MGS, MEX) Scale of interaction not as sensitive as Venus to solar wind conditions Induced magnetosphere: field draping (Phobos, MGS) Photoelectron production Auroral emissions, accelerated electrons on night side (Bertaux et al, Lundin et al) – associated with acceleration over crustal fields Plasma escape –Preliminary measurements (Barabash et al, Science, 2007) show lower escape flux than expected – implications for where early Mars water went –Measurement did not include lowest energy ions –Escape rate sensitive to solar wind conditions – 3xescape rate during CIR (Edberg et al., 2010) Crustal fields may affect low energy plasma escape Radiation environment important for life

21. Interactions of Venus, Earth and Mars with the X9.0 flare of December 5, 2006 Futaana et al., PSS, 56, 873, 2008.

22. Plasma-moon interactions (Halekas et al., 2011)

23. 360 km solar wind ‘shield’ (Wieser et al., 2010 Lunar ‘swirls’

24. Comet-solar wind interaction Comet Halley, 1986 Cravens & Gombosi, 2004 Comet tail observations led to idea of the solar wind (Biermann, 1951), magnetic field draping suggested by Alfven (1957) In-situ observations (including by Giotto) have shown importance of ion pickup by the solar wind

25. PhD student Yudish Ramanjooloo using comet images to probe the solar wind. Observations reveal location of heliospheric current sheet, boundaries between fast and slow wind. Fast ICMEs also detected by rapid disruption of tails. Extraction of solar wind speeds almost automated: star fields identified using astrometry.net : amateur images can be easily analyzed even if time of observation not well-known. Technique also used with STEREO SECCHI and SOHO LASCO data. Comets as probes of the solar wind

26. Titan Magnetosphere: M ms <1, no shock. Draping, wake Icy satellites Enceladus, and E ring, are major sources for inner magnetosphere Plasma-surface access, modification

27. Titan space weather effects Mostly inside Saturn’s magnetosphare Dependent on upstream conditions Encounters at different local times and positions within magnetosphere – building up picture of hoe interaction varies with conditions Heating of upper atmosphere Photoelectron production Production of heavy hydrocarbons, positive and negative ions – seed particles for aerosols, tholins Escape of Titan atmosphere Nitrogen isotope ratio (INMS – Waite et al.) indicates loss over time Observations in tail (Coates et al., 2012) indicate significant loss of Titan atmosphere (7 tonnes/day average)

28. Weak, O 2 /H 2 O atmospheres Ganymede – magnetosphere within a magnetosphere Ionospheres present Upstream plasma conditions key for interaction Pickup ions can give information on exosphere and surface composition 28 Johnson et al 2003 Khurana et al 1996 Ganymede & Europa: JUICE

29. Conclusions Space weather effects important at solar system bodies including atmospheric evolution Solar wind effects important, e.g. reconnection processes Rapid rotation controls magnetospheres of Jupiter, Saturn Effect on plasma boundaries due to upstream dynamic pressure Escape rates depend on upstream conditions Ionospheres depend on UV Europa, Ganymede (magnetized), Callisto, Enceladus bombarded by energetic particles Surface modification and effects from plasma and SEPs

30. Space Weather at Mars Magnetospheric and ionospheric disturbances (T1, T3) Disruption of radio communication (T1) Disruption of satellite operations (T1, T2, T3) Timescales: T1 – electromagnetic radiation reaches Mars (12 minutes) T2 – SEPs reach Mars (30-80 minutes) T3 – Plasma reaches Mars (1.5-4.5 days) http://mepag.jpl.nasa.gov/science/5_Planeta ry_Magnetism/mars_plasmoid_Steve_Bartle tt_NASA_sm.jpg

31. Introduction TitanVenusMars Radius (km)257560503397 Solar distance (AU)9-100.72-0.731.4-1.7 P surface (bar) Composition 1.5 N 2 ~95%,CH 4 ~5% 90 CO 2 0.1 CO 2 Magnetic field?No Crustal magnetization RotationOrbit-locked to Saturn (15.9d) 243d, retrograde24.6h Relevant missionsCassini-Huygens, Voyager Venus Express, PVO Mars Express, MGS, Phobos…

32. Comparison of space weather effects TitanVenusMars Bow shockNo (so far)Yes Scale sensitive to upstream Yes Less Induced magnetosphere Yes PhotoelectronsYes (also seen in tail) YesYes (also seen in tail) Plasma escapeO +, CH 4 +, little N (CAPS) ~10 25 total (Wahlund et al 05) O +, H +, some He + (Fedorov et al), H + /O + ~ 2, total 4x10 26 (Lundin et al) CO 2 +, O +, O 2 + total ~3x10 23 Ratio3010001

33. From Coates, 2011, Ion Pickup and Acceleration: Measurements From Planetary Missions, AIP proceedings volume ‘Physics of the heliosphere: a 10-year retrospective’, 10 th Annual Astrophysics Conference, in press, Dec 2011 Object

34. SpacecraftQ (s -1 )Q (Halley=100) Reference IoGalileo3x10 28 4.3Bagenal, 94 EuropaGalileo2x10 27 0.29Smyth & Marconi, 06 GanymedeGalileo1.3x10 27 0.19Marconi, 07 TitanCassini4x10 24 -10 25 1-1.5x10 -3 Coates et al., 12, Wahlund et al., 05 EnceladusCassini3x10 27 – 1-2x10 28 0.43- 2.9Tokar et al., 06 Smith et al. Enceladus L-shell Cassini3.8-7.6x10 26 0.06-0.12Cowee et al., 09 RheaCassini2.45x10 24 3.6x10 -4 Teolis et al., 10 DioneCassini9.6x10 25 0.01Tokar et al., 12 Adapted from Coates, Ion Pickup and Acceleration: Measurements From Planetary Missions, AIP proc. ‘Physics of the heliosphere: a 10-year retrospective’, 10 th Annual Astrophysics Conference, 2012 Moons – gas production rates

35. Planets – gas production rates ObjectSpacecraftQ (s -1 )Q (Halley=100)Reference MercuryGround based10 24 -10 25 1.5x10 -4 - 1.5x10 -3 Potter et al., 02 VenusVEx, PVO10 24 -10 25 1.5x10 -4 - 1.5x10 -3 Brace et al., 87 Barabash et al., 07a MarsMEx, Phobos10 23 -10 25 1.5x10 -5 - 1.5x10 -3 Barabash et al., 07b Lundin et al., 08, 89 Adapted from Coates, Ion Pickup and Acceleration: Measurements From Planetary Missions, AIP proc. ‘Physics of the heliosphere: a 10-year retrospective’, 10 th Annual Astrophysics Conference, 2012

36. Comets – gas production rates ObjectSpacecraftProduction rate (s -1 ) Ratio (Halley=100) Reference Giacobini- Zinner ICE4x10 28 5.8Mendis et al, 96 HalleyGiotto, Vega, Suisei, Sakigake 6.9x10 29 100Krankowsky et al, 86 Grigg- Skjellerup Giotto (GEM)7.5x10 27 1.1Johnstone et al, 93 BorrellyDS13.5x10 28 5.1Young et al, 2004 Churyumov- Gerasimenko Rosetta3x10 24 -5x10 27 4.3x10 -4 -0.7Hansen et al., 07, Motschmann & Kuehrt, 06 From Coates, AIP proceedings, 2010
