1. Dual Use Chemical Equipment Controlled by the CCL Chemical and Biological Controls Division

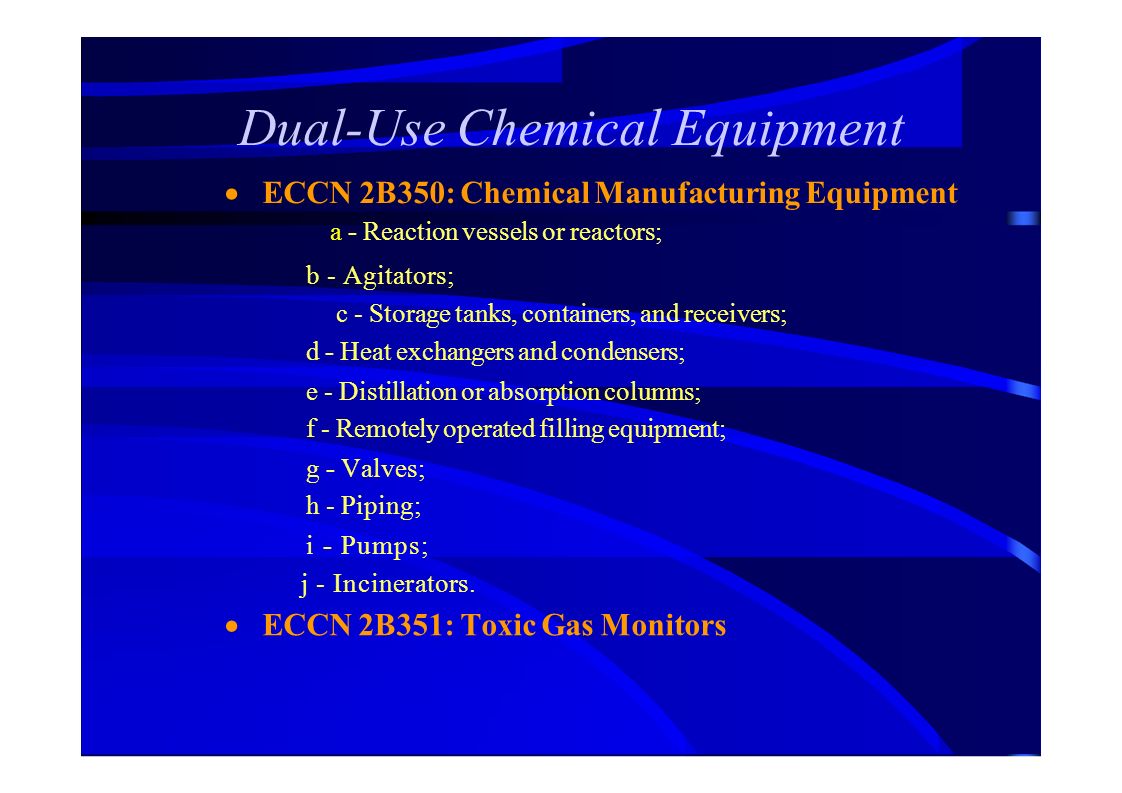

2. Dual-Use Chemical Equipment  ECCN 2B350: Chemical Manufacturing Equipment a - Reaction vessels or reactors; b - Agitators; c - Storage tanks, containers, and receivers; d - Heat exchangers and condensers; e - Distillation or absorption columns; f - Remotely operated filling equipment; g - Valves; h - Piping; i - Pumps; j - Incinerators.  ECCN 2B351: Toxic Gas Monitors

3. Dual-Use Chemical Equipment  ECCN 2B350.a - Reactors – Combine mechanical stirring with temperature control; – Safely and economically perform chemical reactions; – Come in many different varieties; – Can be operated as batch reactors or continuously; – Only reactors which meet very specific size and materials of construction parameters are controlled.  Prescreening Key Words – 2B350.a - Reactor, reaction vessel, synthesizer, converter, compounder

4. Dual-Use Chemical Equipment  2B350.b - Agitators – Mechanically mix reactants; – Insure an even distribution of reactants and products; – Only agitators which are made from very specific materials of construction are controlled.  Prescreening Key Words – 2B350.b - Agitator, stirrer, mixer, blender

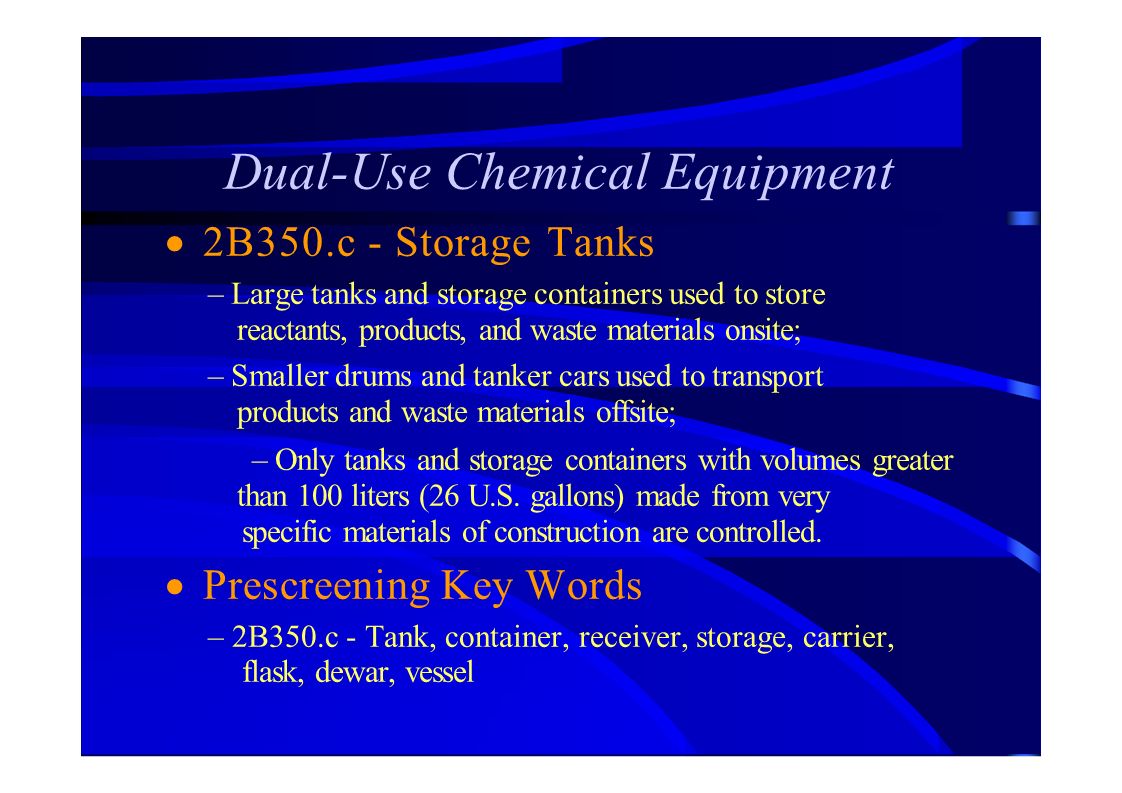

5. Dual-Use Chemical Equipment  2B350.c - Storage Tanks – Large tanks and storage containers used to store reactants, products, and waste materials onsite; – Smaller drums and tanker cars used to transport products and waste materials offsite; – Only tanks and storage containers with volumes greater than 100 liters (26 U.S. gallons) made from very specific materials of construction are controlled.  Prescreening Key Words – 2B350.c - Tank, container, receiver, storage, carrier, flask, dewar, vessel

6. Dual-Use Chemical Equipment  2B350.d - Heat Exchangers – Used to increase, lower, or maintain reactor temperatures and to either increase or reduce the temperature of reactants and products. – Used to condense hot gases; – Come in a variety of shapes and styles; – Only heat exchangers with internal surface areas less than 20 m 2 and made from very specific materials of construction are controlled.  Prescreening Key Words – 2B350.d - Heat exchanger, condenser, cooler, collector

7. Dual-Use Chemical Equipment  2B350.e - Columns – Used to increase reactant and product concentrations; – Remove impurities and waste products; – Perform reactions to form new products or remove impurities; – Only columns with internal diameters greater than 0.1 m and made from very specific materials of construction are controlled.  Prescreening Key Words – 2B350.e - Distillation, absorption, column

8. Dual-Use Chemical Equipment  2B350.f - Filling Equipment – Reduce human exposure to toxic or explosive materials; – Increase economic efficiency through automation; – Only filling equipment made from specific materials of construction are controlled.  Prescreening Key Words – 2B350.f - Filler, loader, remote

9. Dual-Use Chemical Equipment  2B350.g - Valves – Used to control the flow of reactants, products, and waste materials; – Come in very many different forms and sizes; – Only a few types of valves made from very specific materials of construction are controlled.  Prescreening Key Words – 2B350.g - Valve, choke, diaphragm, check, relief

10. Dual-Use Chemical Equipment 2B350.h - Multiple Walled Pipes Multiple walled pipes made from controlled corrosion resistant materials are generally not used in industry.

11. Dual-Use Chemical Equipment  2B350.i - Pumps – Used to physically move reactants, products, and waste materials; – Come in very many different forms and sizes; – Only a few types of pumps with flow rates greater than 600 liters/hour and vacuum pumps with pumping rates greater than 5,000 liters/hour made from specific materials of construction are controlled.  Prescreening Key Words – 2B350.i - Pump, diaphragm, magnetic drive, vacuum

12. Dual-Use Chemical Equipment  2B350.j - Incinerators – Used to completely destroy chemical agents and other toxic materials; – Only incinerators made from very specific materials of construction are controlled.  Prescreening Key Words – 2B350.j - Incinerator, burner, combustor, destroyer, furnace

13. Dual-Use Chemical Equipment Typical Small Laboratory Reactor

14. Dual-Use Chemical Equipment  ECCN 2B351: Toxic Gas Monitors – Used to detect and monitor for chemical agents and other toxic chemicals; – Used to detect and monitor for pollutants such as SO 2 and Cl 2 ; – Only toxic gas monitors which can continuously detect chemical agents, controlled precursors, and other compounds containing phosphorus, sulfur, fluorine, or chlorine at concentrations less than 0.3 mg/m 3 are controlled.  Prescreening Key Words – 2B351.a - Monitor, analyzer, spectrometer,

15. Conclusion Chemical Equipment Controlled by EAR – ECCN 2B350.a - Reaction vessels or reactors; – ECCB 2B350.b - Agitators; – ECCN 2B350.c - Storage tanks, containers, and receivers; – ECCN 2B350.d - Heat exchangers and condensers; – ECCN 2B350.e - Distillation or absorption columns; – ECCN 2B350.f - Remotely operated filling equipment; – ECCN 2B350.g - Valves; – ECCN 2B350.h - Piping; – ECCN 2B350.i - Pumps; – ECCN 2B350.j - Incinerators; – ECCN 2B351.a - Toxic gas monitors.
